ACME theatre spot 150 TS-150 CW User manual

TS-150 CW
TS-150 WW
TS-1504 CW
TS-1504 WW
User Manual
Please read the instruction carefully

CONTENTS
1. Safety Instructions ................................................................................. 2
2. Technical Specifications ......................................................................... 3
3. The Plate for Color Filter & Barn Door Installation................................. 4
4. How To Set The Unit............................................................................... 5
4.1 Control panel ................................................................................... 5
4.2 Main Functions ................................................................................ 6
5. How to Control the Unit....................................................................... 11
5.1 Master/Slave Built In Preprogrammed Function ............................ 11
5.2 DMX Controller .............................................................................. 11
5.3 DMX 512 Configurations ................................................................ 12
6. DMX 512 Connections ......................................................................... 12
7. Troubleshooting ................................................................................... 13
8. Fixture Cleaning ................................................................................... 14
1D

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction manual.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always
by taking its base.
Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher
than this.
Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand during its
operation. Turn off the power and allow about 15 minutes for the unit to cool down before
replacing or serving.
In the event of serious operating problem, stop using the unit immediately. Never try to repair
the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.
Please contact the nearest authorized technical assistance center. Always use the same type
spare parts.
DO NOT touch any wire during operation as high voltage might be causing electric shock.
Warning
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
Please read the instruction carefully which includes important
information about the installation, usage and maintenance.
2D

moisture.
DO NOT open the unit within five minutes after switching off.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Caution
There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any
repairs yourself. In the unlikely event your unit may require service, please contact your nearest
dealer.
Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to
which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s
weight. Also always use a safety cable that can hold 12 times of the weight of the unit when
installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out of the
touch of people and has no one pass by or under it.
2. Technical Specifications
◆The best price-performance ratio LED theater spot, engineered to exceed conventional
projectors in performance and power
◆DMX, Master/Slave and manual control
◆Motorized linear zoom for beam angle from 14~55°
◆0~100% smooth dimming
◆Color frame for use of color filtersand barn doors included
◆LCD display for easy navigation
◆Knobs for manually control of zoom and dimming are available at rear side
◆
TS-150 WW/CW with Chinese Fresnel lens
◆TS-1504 WW/CW with German Fresnel lens
Power supply: AC 100~240V, 50/60Hz
3D

Power consumption: 190W
Color Temperature: 5600+100K (TS-150 CW)
3150+100K (TS-150 WW)
Light Source: 1 × 150W white LED
CRI:
WW: ≥92
CW: ≥89
Weight: 8.6Kgs
Dimension: 406×417×238mm
Photometric Diagram:
Distance(m) 3 5 7 10
14 Lux CW 6920 2300 1175 575
14
55
WW 6240 2380 1215 595
55 Lux CW 2240 820 420 205
WW 2000 840 430 210
° °
°
°
3. The Plate for Color Filter & Barn Door Installation
Fig. 1
4D

At first, please push the Lock Cap button by hand as the arrow ○ 1E A, and move away the Lock as the
arrow A○ 2E A; Then insert the Plate for Color Filter into the inside slot from topsideA○ 3E A;
Fig. 2
Secondly, please insert the Barn Door into the outside slot from topside as arrow A○ 4E A, and fasten
the lock (Note: the Barn Door must be fastened into the inside of the lock’s hook ); then flip down
the lock cap again as arrowA○ 5E A.
4. How To Set The Unit

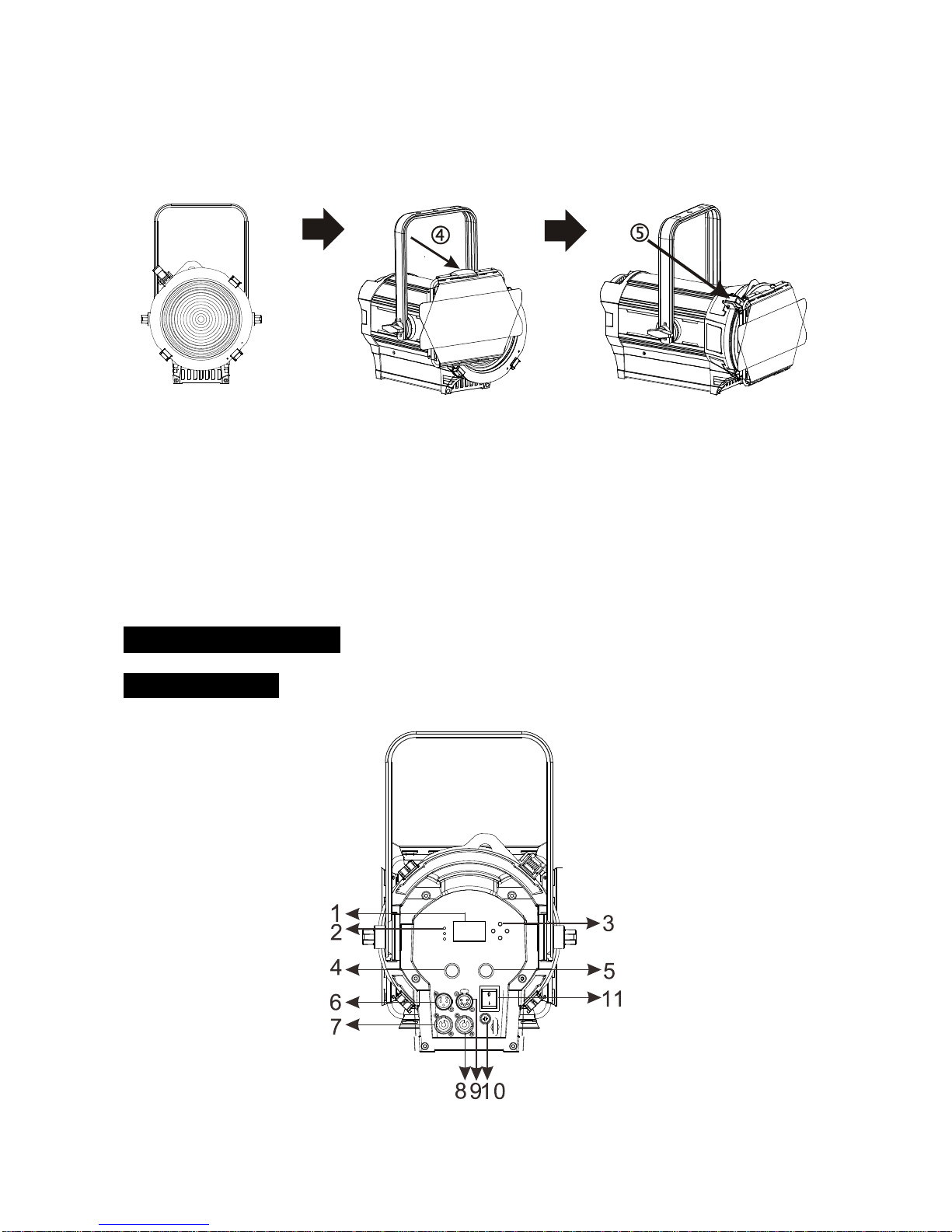

4.1 Control panel
5D

1. Display: Show the various menus and the selected functions.
2. LED:
MASTER On Master Mode
SLAVE On Slave Mode
DMX On DMX input present
3. Button:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
4. Dimmer: Manual adjust the dimmer value.
5 Zoom: Manual adjust the zoom value.
6. DMX input: For DMX512 link, use 5-pin XLR cable to link the unit together.
7. POWER IN: Connects to mains supply power.
8. POWER OUT: Connects to the next unit.
9. DMX output: For DMX512 link, use 5-pin XLR cable to link the unit together.
10. Fuse(T5A): Used to protect the unit from damage of the over current.
11. Power Switch: Used to turn On/Off the fixture.
4.2 Main Functions
To select any functions, press the MENU button until the required one is shown on the display.
Select the function by ENTER button and the display will blink. Use the DOWN and UP button to
change the mode. Once the required mode has been selected, press the ENTER button to setup or
it will automatically return to the main functions without any change after idling one minute. Back
to the functions without any change press the MENU button.

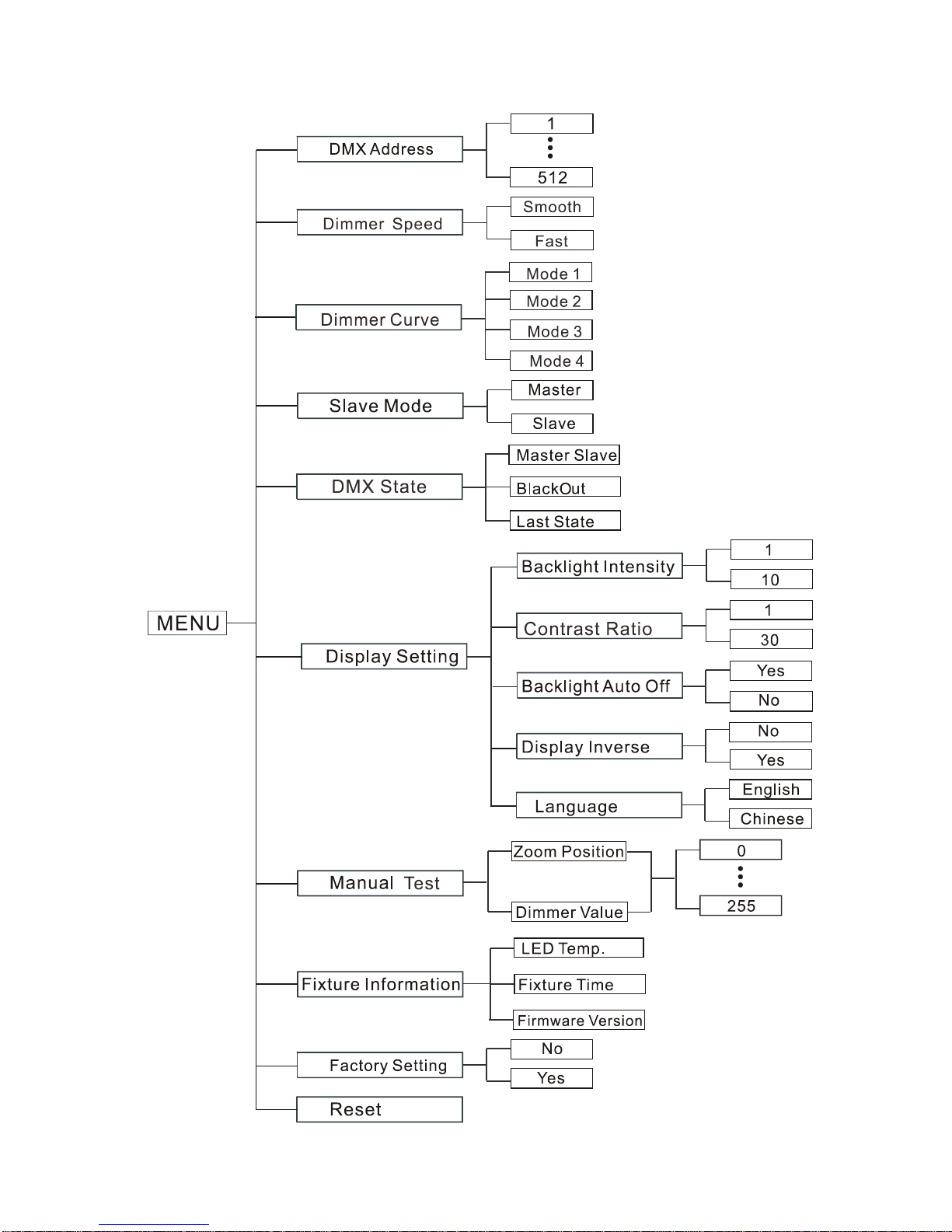

The main functions are shown below:
6D

7D

DMX Address
Select DMX Address, press the ENTER button to confirm, the present address will blink on the
display. Use the UP and DOWN button to adjust the DMX address from 1to 512. Once the address
has been selected, press the ENTER button to save. Hold and press the MENU button about one
second or wait for one minute to exit the menu mode.
Dimmer Speed
Select Dimmer Speed, press the ENTER button to confirm, present mode will blink on the display.
Use the DOWN and UP button to select the Smooth (dimmer speed smooth) or Fast(dimmer
speed fast) mode. Once the mode has been selected, press the ENTER button to save. Hold and
press the MENU button about one second or wait for one minute to exit the menu mode.
Dimmer Curve
To select Dimmer Curve, press the ENTER button to show the DIMMER CURVE on the display, use
the UP/DOWN button to select Mode 1,Mode 2,Mode 3 or Mode 4. Once selected, press the
ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Square Law: Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
Linear: The increase in light intensity appears to be linear as DMX value is increased.
S-cure: Light intensity control is finger at low levels and high levels and coarser at medium levels.
8D

Slave Mode
Select Slave Mode, press the ENTER button to confirm, present mode will blink on the display. Use
the DOWN and UP button to select the Master or Slave mode. Once the mode has been selected,
press the ENTER button to save. Hold and press the MENU button about one second or wait for
one minute to exit the menu mode.
DMX State
Select DMX State, press the ENTER button to confirm, present mode will blink on the display. Use
the DOWN and UP button to select the Master Slave, Blackout or Last State mode. Once the
mode has been selected, press the ENTER button to save. Hold and press the MENU button about
one second or wait for one minute to exit the menu mode.
Display Settings
Enter menu mode, select Display Settings, press ENTER button to confirm, use UP/DOWN button
to select Backlight Intensity, Contrast Ratio, Backlight Auto Off, Display Inverse or Language.
Backlight Intensity
Select Backlight Intensity, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to adjust backlight intensity from 1 (dark) to 10 (bright),
press the ENTER button to save. Press the MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
Contrast Ratio
Select Contrast Ratio, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to adjust value from 1 to 30, press the ENTER button to save.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Backlight Auto Off
Select Backlight Auto Off, press the ENTER button to confirm, present mode will blink on
the display, use the UP/DOWN button to select Yes (display goes off one minute after exiting
9D

menu mode) or No (display always on), press the ENTER button to save. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
Display Inverse
Select Display Inverse, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select the No (normal display) or Yes (inverse display),
press the ENTER button to save. Press the MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
Language
Select Language, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select the English or Chinese, press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Manual Test
Select Manual Test, press the ENTER button to confirm. Use the DOWN and UP button to select
the Zoom Position or Dimmer Value mode. Once selected, use the DOWN and UP button to adjust
the value (0~255), and press the ENTER button to save. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Fixture Information
Enter menu mode, select Fixture Information, press the ENTER button to confirm, use the
UP/DOWN button to select the LED Temp., Fixture Time or Firmware Version.
LED Temp.
Select LED Temp., press the ENTER button to confirm, the current running temperature of the
fixture will show on the display. Press the MENU button back to exit.
Fixture Time
Select Fixture Time, press the ENTER button to confirm, and running time of the fixture will
10D

show on the display. Press the MENU button back to exit.
Firmware Version
Select Firmware Version, press the ENTER button to confirm, the software version will show
on the display. Press the MENU button back to exit.
Factory Setting
Select Factory Setting,press the ENTER button to confirm, present mode will blink on the display.
Use the DOWN and UP button to select the No or Yes (Switch back to default settings). Hold and
press the MENU button about one second or wait for one minute to exit the menu mode.
Reset
Select Reset, press the ENTER button and the fixture will now reset.
5. How to Control the Unit
You can operate the unit in two ways:
1. Master/slave built-in preprogram functions
2. Universal DMX controller
5.1 Master/Slave Built In Preprogrammed Function
By linking the units in master/slave connection, the first unit will control the other units to give an
automatic, synchronized light show. This function is good when you want an instant show.
5.2 DMX Controller
Use universal DMX controller to control the units, you have to set DMX address from 1 to 512
channels so that the units can receive DMX signal.
Press the MENU button, and the display will blink. Use DOWN and UP button to change the
DMX512 address. Once the address has been selected, press and keep ENTER button pressed up to
11D

when the display stops blinking or storing automatically one minute later. To go back to the
functions without any change press the MENU button again. If you use please refer to the
following diagram to address your DMX512 channel for the first 4 units.
2 channels：
5.3 DMX 512 Configurations
2 Channels Mode:
CHANNEL VALUE FUNCTION
1
0 ~ 255
DIMMER
0 100%
2
0 ~ 255 ZOOM
6. DMX 512 Connections
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.
1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture
to the input of the next fixture. The cable cannot be branched or split to a “Y” cable.
12D

Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the
signal and shut down the system
2. The DMX output and input connectors are pass-through to maintain the DMX circuit when one
of the units’ power is disconnected.
3. At last fixture, the DMX cable has to be terminated with a terminator to reduce signal errors.
Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug
and plug it in the DMX-output of the last fixture.
4. Each lighting fixture needs to have an address set to receive the data sent by the controller.
The address number is between 0-511 (usually 0 & 1 are equal to 1).
5. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),
Pin4/5: not used
7. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on Lamp.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the
unit or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause
13D

damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition
8. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically
to optimize light output. Cleaning frequency depends on the environment in which the fixture
operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on
the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60
days.
14D

0BDeclaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;
EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008.
&
1BHarmonized Standard
EN 60598-1:2008 + All:2009; EN 60598-2-17:1989 + A2:1991; EN 62471:2008; EN
62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
Innovation, Quality, Performance
15D
