ACME CM-108 RGB User manual

Innovation, Quality, Performance
CM-108 RGB
UserGuide
Professional Entertainment Technology

Innovation, Quality, Performance
CM-108 RGB
UserGuide
Professional Entertainment Technology

1
A
TABLE OF CONTENTS
1. Safety Instruction
2. Technical Specification
3. How To Set The Unit
4. How To Control The Unit
5. Troubleshooting
6. Fixture Cleaning
22
A
EC Declaration of Conformity
We declare that our products (lighting equipments) comply with the
following specification and bears CE mark in accordance with the
provision of the Electromagnetic Compatibility (EMC) Directive
89/336/EEC.
EN55014-2: 1997A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002;
EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6: 1996,
EN61000-4-11: 1994.
&
Harmonized Standard
EN60598-1: 2000+ALL: 2000+A12: 2002
Safety of household and similar electrical appliances
Part 1: General requirements

1
A
TABLE OF CONTENTS
1. Safety Instruction
2. Technical Specification
3. How To Set The Unit
4. How To Control The Unit
5. Troubleshooting
6. Fixture Cleaning
22
A
EC Declaration of Conformity
We declare that our products (lighting equipments) comply with the
following specification and bears CE mark in accordance with the
provision of the Electromagnetic Compatibility (EMC) Directive
89/336/EEC.
EN55014-2: 1997A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002;
EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6: 1996,
EN61000-4-11: 1994.
&
Harmonized Standard
EN60598-1: 2000+ALL: 2000+A12: 2002
Safety of household and similar electrical appliances
Part 1: General requirements

21
A
6. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be
carried out periodically to optimize light output. Cleaning frequency depends on the
environment in which the fixture operates: damp, smoky or particularly dirty
surrounding can cause greater accumulation of dirt on the unit’s optics.
yClean with soft cloth using normal glass cleaning fluid.
yAlways dry the parts carefully.
yClean the external optics at least every 20 days. Clean the internal optics at least
every 30/60 days.
2
A
1. Safety Instruction
WARNING
yPlease keep this User Guide for future consultation. If you sell the unit to another
user, be sure that they also receive this instruction booklet.
yUnpack and check carefully there is no transportation damage before using the
unit.
yBefore operating, ensure that the voltage and frequency of power supply match
the power requirements of the unit.
yIt’s important to ground the yellow/green conductor to earth in order to avoid
electric shock.
yThe unit is for indoor use only. Use only in a dry location.
yThe unit must be installed in a location with adequate ventilation, at least 50cm
from adjacent surfaces. Be sure that no ventilation slots are blocked.
yDisconnect main power before replacement or servicing.
yMake sure there are no flammable materials close to the unit while operating as
it is fire hazard.
yUse safety cable when fixes this unit. Don’t handle the unit by taking its head only,
but always by taking its base.
yMaximum ambient temperature is Ta: 40℃. Don’t operate it where the
temperature is higher than this.
yUnit surface temperature may reach up to 85℃. Don’t touch the housing
bare-hand during its operation. Turn off the power and allow about 15 minutes for
the unit to cool down before replacing or serving.
yIn the event of serious operating problem, stop using the unit immediately. Never
try to repair the unit by yourself. Repairs carried out by unskilled people can lead
to damage or malfunction. Please contact the nearest authorized technical
assistance center. Always use the same type spare parts.
yDo not touch any wire during operation as high voltage might be causing electric
shock.
Please read carefully the instruction, which includes important
information about the installation, usa
g
e and maintenance.

21
A
6. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be
carried out periodically to optimize light output. Cleaning frequency depends on the
environment in which the fixture operates: damp, smoky or particularly dirty
surrounding can cause greater accumulation of dirt on the unit’s optics.
yClean with soft cloth using normal glass cleaning fluid.
yAlways dry the parts carefully.
yClean the external optics at least every 20 days. Clean the internal optics at least
every 30/60 days.
2
A
1. Safety Instruction
WARNING
yPlease keep this User Guide for future consultation. If you sell the unit to another
user, be sure that they also receive this instruction booklet.
yUnpack and check carefully there is no transportation damage before using the
unit.
yBefore operating, ensure that the voltage and frequency of power supply match
the power requirements of the unit.
yIt’s important to ground the yellow/green conductor to earth in order to avoid
electric shock.
yThe unit is for indoor use only. Use only in a dry location.
yThe unit must be installed in a location with adequate ventilation, at least 50cm
from adjacent surfaces. Be sure that no ventilation slots are blocked.
yDisconnect main power before replacement or servicing.
yMake sure there are no flammable materials close to the unit while operating as
it is fire hazard.
yUse safety cable when fixes this unit. Don’t handle the unit by taking its head only,
but always by taking its base.
yMaximum ambient temperature is Ta: 40℃. Don’t operate it where the
temperature is higher than this.
yUnit surface temperature may reach up to 85℃. Don’t touch the housing
bare-hand during its operation. Turn off the power and allow about 15 minutes for
the unit to cool down before replacing or serving.
yIn the event of serious operating problem, stop using the unit immediately. Never
try to repair the unit by yourself. Repairs carried out by unskilled people can lead
to damage or malfunction. Please contact the nearest authorized technical
assistance center. Always use the same type spare parts.
yDo not touch any wire during operation as high voltage might be causing electric
shock.
Please read carefully the instruction, which includes important
information about the installation, usa
g
e and maintenance.

3
A
Warning
yTo prevent or reduce the risk of electrical shock or fire, do not expose the unit to
rain or moisture.
yDo not open the unit within five minutes after switching off.
yThe housing, the lenses, or the ultraviolet filter must be replaced if they are
visibly damaged.
Caution
There are no user serviceable parts inside the unit. Do not open the housing or
attempt any repairs yourself. In the unlikely event your unit may require service,
please contact your nearest dealer.
Installation
The unit should be mounted via its screw holes on the bracket. Always ensure
that the unit is firmly fixed to avoid vibration and slipping while operating. And
make sure that the structure to which you are attaching the unit is secure and is
able to support a weight of 10 times of the unit’s weight.Also always use a safety
cable that can hold 12 times of the weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people and has no one pass by or under it.
2. Technical Specification
◇Extremely small, fast and powerful LED moving beam.
◇DMX Channels: 8/12/15
◇Pan/Tilt: 630°/200°, speed adjustable
◇Smooth electronic dimming: 0-100%
◇Electronic strobe with pulse and random effects
◇Optional easy controller CA-8/CA-9 RTX for instant lighting shows at your
fingertips
◇High efficiency, low power consumption
◇Super compact, low weight
Voltage: 100V~240V, 50/60Hz
Fuse: T 6.3A
20
A
5. Troubleshooting
Following are a few common problems that may occur during operation.
Here are some suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link
properly.
2. If the DMX LED is on and no response to the channel, check the address
settings and DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or
on PCB of the unit or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that
may cause damage or interference to DMX interface circuit.
C. Some units don’t respond to the easy controller
1. You may have a break in the DMX cabling. Check the LED for the response of
the master/ slave mode signal.
2. Wrong DMX address in the unit. Set the proper address.
D. No response to the sound
1. Make sure the unit does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone
E. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is
broken.
2. The motor’s drive IC on the PCB might be out of condition

3
A
Warning
yTo prevent or reduce the risk of electrical shock or fire, do not expose the unit to
rain or moisture.
yDo not open the unit within five minutes after switching off.
yThe housing, the lenses, or the ultraviolet filter must be replaced if they are
visibly damaged.
Caution
There are no user serviceable parts inside the unit. Do not open the housing or
attempt any repairs yourself. In the unlikely event your unit may require service,
please contact your nearest dealer.
Installation
The unit should be mounted via its screw holes on the bracket. Always ensure
that the unit is firmly fixed to avoid vibration and slipping while operating. And
make sure that the structure to which you are attaching the unit is secure and is
able to support a weight of 10 times of the unit’s weight.Also always use a safety
cable that can hold 12 times of the weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people and has no one pass by or under it.
2. Technical Specification
◇Extremely small, fast and powerful LED moving beam.
◇DMX Channels: 8/12/15
◇Pan/Tilt: 630°/200°, speed adjustable
◇Smooth electronic dimming: 0-100%
◇Electronic strobe with pulse and random effects
◇Optional easy controller CA-8/CA-9 RTX for instant lighting shows at your
fingertips
◇High efficiency, low power consumption
◇Super compact, low weight
Voltage: 100V~240V, 50/60Hz
Fuse: T 6.3A
20
A
5. Troubleshooting
Following are a few common problems that may occur during operation.
Here are some suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link
properly.
2. If the DMX LED is on and no response to the channel, check the address
settings and DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or
on PCB of the unit or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that
may cause damage or interference to DMX interface circuit.
C. Some units don’t respond to the easy controller
1. You may have a break in the DMX cabling. Check the LED for the response of
the master/ slave mode signal.
2. Wrong DMX address in the unit. Set the proper address.
D. No response to the sound
1. Make sure the unit does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone
E. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is
broken.
2. The motor’s drive IC on the PCB might be out of condition

19
A
4.5 DMX512 Connection
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin
adapter-cable.
2. At last unit, the DMX cable has to be terminated with a terminator. Solder a
120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin
XLR-plug and plug it in the DMX-output of the last unit.
3. Connect the unit together in a `daisy chain` by XLR plug from the output of the
unit to the input of the next unit. The cable can not branched or split to a `Y`
cable. DMX 512 is a very high-speed signal. Inadequate or damaged cables,
soldered joints or corroded connectors can easily distort the signal and shut
down the system.
4. The DMX output and input connectors are pass-through to maintain the DMX
circuit, when one of the units’ power is disconnected.
5. Each lighting unit needs to have an address set to receive the data sent by the
controller. The address number is between 0-511 (usually 0 & 1 are equal to
1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.
7. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),
Pin4/Pin 5: Not used.
4
A
Power consumption: 110W
Light source: 3W LED x 36 (R12, G12, B12)
Dimension: 322X267X167 mm
Weight: 6.2 kg
3. How to Set the Unit
3.1 Control panel
Display：
To show the various menus and the selected functions
LED：DMX On DMX input present
MASTER On Master Mode
SLAVE On Slave Mode
SOUND Flashing Sound activation
Button：
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions

19
A
4.5 DMX512 Connection
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin
adapter-cable.
2. At last unit, the DMX cable has to be terminated with a terminator. Solder a
120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin
XLR-plug and plug it in the DMX-output of the last unit.
3. Connect the unit together in a `daisy chain` by XLR plug from the output of the
unit to the input of the next unit. The cable can not branched or split to a `Y`
cable. DMX 512 is a very high-speed signal. Inadequate or damaged cables,
soldered joints or corroded connectors can easily distort the signal and shut
down the system.
4. The DMX output and input connectors are pass-through to maintain the DMX
circuit, when one of the units’ power is disconnected.
5. Each lighting unit needs to have an address set to receive the data sent by the
controller. The address number is between 0-511 (usually 0 & 1 are equal to
1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.
7. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),
Pin4/Pin 5: Not used.
4
A
Power consumption: 110W
Light source: 3W LED x 36 (R12, G12, B12)
Dimension: 322X267X167 mm
Weight: 6.2 kg
3. How to Set the Unit
3.1 Control panel
Display：
To show the various menus and the selected functions
LED：DMX On DMX input present
MASTER On Master Mode
SLAVE On Slave Mode
SOUND Flashing Sound activation
Button：
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions

5
A
Only for remote control：
Connecting with CA-8/CA-9 RTX to control the unit for Stand by, Function and
Mode function.
Mains input：
Connect to power supply.
Mains output：
Connect to supply power to the next unit.
DMX input/output：
For DMX512 link, use 3/5-pin XLR cable to link the unit together.
3.2 Main Function
To select any of the given functions, press the MENU button up to when the
required one is showing on the display. Select the function by ENTER button and
the display will blink. Use DOWN and UP button to change the mode. Once the
required mode has been selected, press the ENTER button to setup, to go back to
the functions without any change press the MENU button again. Hold and press
the MENU button about one second or wait for one minute to exit the menu mode.

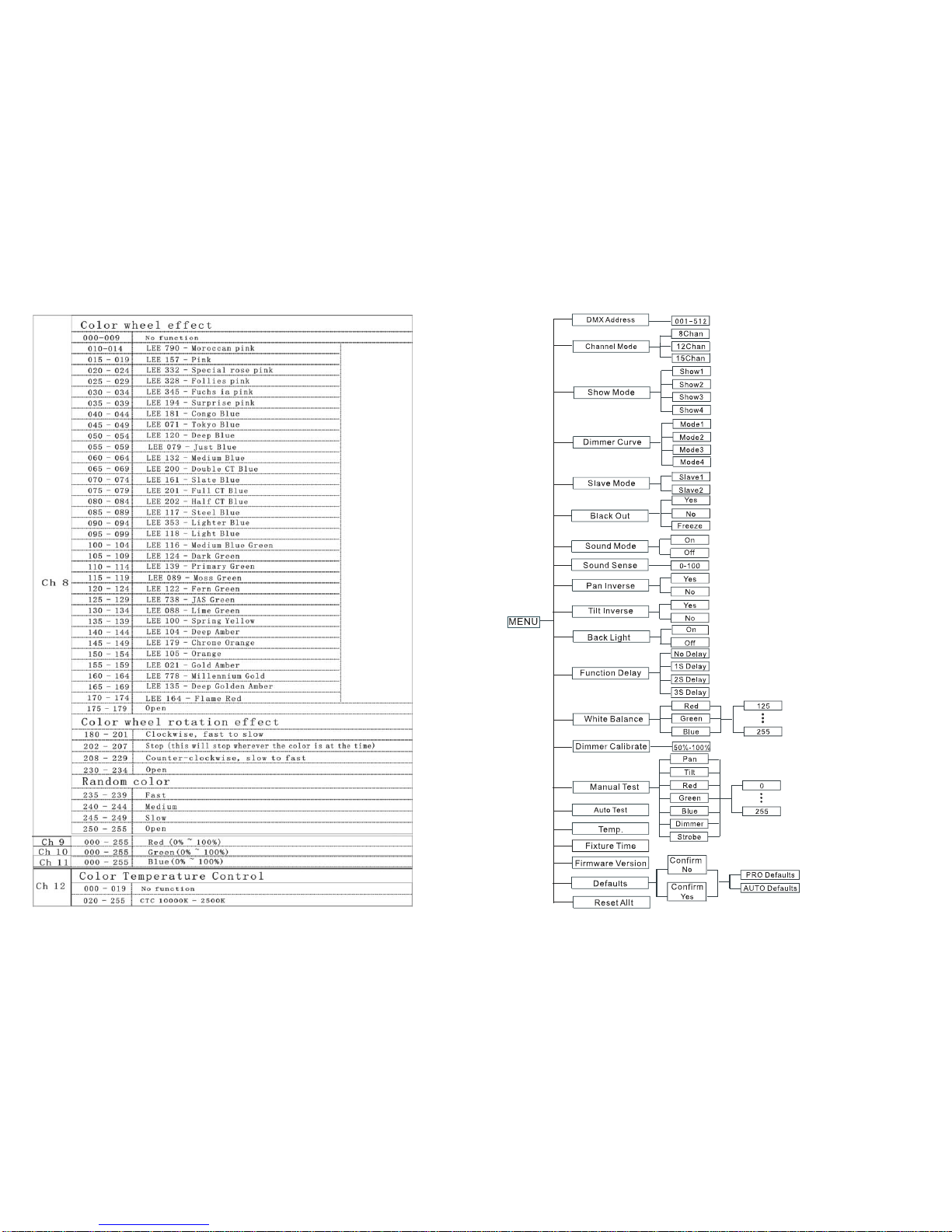

The main functions are showing below:
18
A

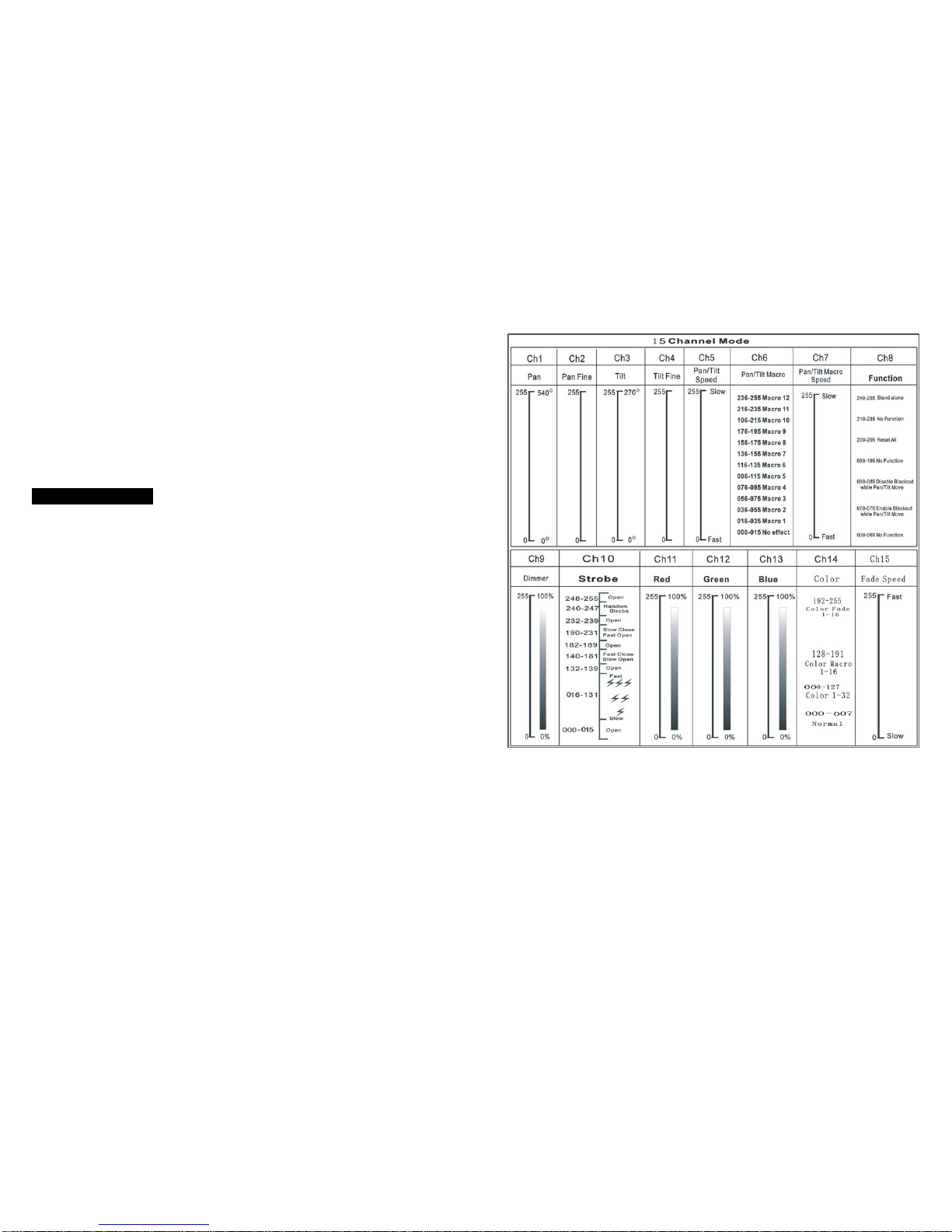

15 channel mode:

5
A
Only for remote control：
Connecting with CA-8/CA-9 RTX to control the unit for Stand by, Function and
Mode function.
Mains input：
Connect to power supply.
Mains output：
Connect to supply power to the next unit.
DMX input/output：
For DMX512 link, use 3/5-pin XLR cable to link the unit together.
3.2 Main Function
To select any of the given functions, press the MENU button up to when the
required one is showing on the display. Select the function by ENTER button and
the display will blink. Use DOWN and UP button to change the mode. Once the
required mode has been selected, press the ENTER button to setup, to go back to
the functions without any change press the MENU button again. Hold and press
the MENU button about one second or wait for one minute to exit the menu mode.
The main functions are showing below:
18
A
15 channel mode:

17
A
6
A

17
A
6
A

7
A
DMX Address
Select DMX Address, press the ENTER button to confirm, the present
address will blink on the display. Use the UP and DOWN button to adjust the
address from 1to 512. Once the address has been selected, press the ENTER
button to setup, to go back to the functions without any change press the MENU
button again. Hold and press the MENU button about one second or wait for one
minute to exit the menu mode.
Channel Mode
Select Channel mode, press the ENTER button to confirm, the present
address will blink on the display. Use the UP and DOWN button to select
8CH(mode1),12CH(mode2)，15CH(mode3). Once the channel mode has been
selected, press the ENTER button to setup, to go back to the functions without any
change press the MENU button again. Hold and press the MENU button about one
second or wait for one minute to exit the menu mode.
Show Mode
Select Show Mode, press the ENTER button to confirm, present mode will
blink on the display. Use the DOWN and UP button to select the Show 1 or Show
2or Show 3 or Show 4. Once the mode has been selected, press the ENTER
button to setup, to go back to the functions without any change press the MENU
button again. Hold and press the MENU button about one second or wait for one
minute to exit the menu mode.
Show 1 mode: Fixture is placed on the floor. Tilt movement angle 210°.
Show 2 mode: Fixture is fixed under ceiling. Tilt movement angle 90°.
Show 3 mode: Fixture is placed on the stage, in front of the audience
The spot is always projecting to the audience’s direction; i.e. in front of the
stage. Pan movement angle (left to right to left):160°. Tilt movement angle:
90° (60°above horizon; 30°below horizon.)
Show 4 mode: Fixture is fixed under ceiling.
The spot is mainly projecting in front of the stage. Pan movement angle(left
to right to left):160°. Tilt movement angle:90°(vertically, front 75°; back 15°)
16
A
12 channel mode:

7
A
DMX Address
Select DMX Address, press the ENTER button to confirm, the present
address will blink on the display. Use the UP and DOWN button to adjust the
address from 1to 512. Once the address has been selected, press the ENTER
button to setup, to go back to the functions without any change press the MENU
button again. Hold and press the MENU button about one second or wait for one
minute to exit the menu mode.
Channel Mode
Select Channel mode, press the ENTER button to confirm, the present
address will blink on the display. Use the UP and DOWN button to select
8CH(mode1),12CH(mode2)，15CH(mode3). Once the channel mode has been
selected, press the ENTER button to setup, to go back to the functions without any
change press the MENU button again. Hold and press the MENU button about one
second or wait for one minute to exit the menu mode.
Show Mode
Select Show Mode, press the ENTER button to confirm, present mode will
blink on the display. Use the DOWN and UP button to select the Show 1 or Show
2or Show 3 or Show 4. Once the mode has been selected, press the ENTER
button to setup, to go back to the functions without any change press the MENU
button again. Hold and press the MENU button about one second or wait for one
minute to exit the menu mode.
Show 1 mode: Fixture is placed on the floor. Tilt movement angle 210°.
Show 2 mode: Fixture is fixed under ceiling. Tilt movement angle 90°.
Show 3 mode: Fixture is placed on the stage, in front of the audience
The spot is always projecting to the audience’s direction; i.e. in front of the
stage. Pan movement angle (left to right to left):160°. Tilt movement angle:
90° (60°above horizon; 30°below horizon.)
Show 4 mode: Fixture is fixed under ceiling.
The spot is mainly projecting in front of the stage. Pan movement angle(left
to right to left):160°. Tilt movement angle:90°(vertically, front 75°; back 15°)
16
A
12 channel mode:

15
A
change the DMX512 address. Once the address has been selected, press the
ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait
for one minute to exit the menu mode. Please refer to the following diagram to
address your DMX512 channel for the first 4 units：
Channel mode Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
8channels 1 9 17 25
12channels 1 13 25 37
15channels 1 16 31 46
4.4 DMX512 Configuration
8 channel mode:
8
A
Dimmer Curve
Select Dimmer Curve, press the ENTER button to confirm, present mode will
blink on the display. Use the DOWN and UP button to select the mode 1 or mode
2or mode 3 or mode 4 mode. Once the mode has been selected, press the
ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait
for one minute to exit the menu mode.
Mode 1(Optically Liner): The increase in light intensity appears to be linear as
DMX value is increased.
Mode 2(Square Law): Light intensity control is finer at low levels and coarser at
high levels.
Mode 3(Inverse Square Law): Light intensity control is coarser at low levels and
finger at high levels.
Mode 4(S-cure): Light intensity control is finger at low levels and high levels and
coarser at medium levels.
Slave Mode
Select Slave Mode, press the ENTER button to confirm, present mode will
blink on the display. Use the DOWN and UP button to select the Slave 1 (normal)
or Slave 2 (2 light show) mode. Once the mode has been selected, press the
ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait
for one minute to exit the menu mode.
Black Out Mode
Select Slave Mode, press the ENTER button to confirm, present mode will

15
A
change the DMX512 address. Once the address has been selected, press the
ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait
for one minute to exit the menu mode. Please refer to the following diagram to
address your DMX512 channel for the first 4 units：
Channel mode Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
8channels 1 9 17 25
12channels 1 13 25 37
15channels 1 16 31 46
4.4 DMX512 Configuration
8 channel mode:
8
A
Dimmer Curve
Select Dimmer Curve, press the ENTER button to confirm, present mode will
blink on the display. Use the DOWN and UP button to select the mode 1 or mode
2or mode 3 or mode 4 mode. Once the mode has been selected, press the
ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait
for one minute to exit the menu mode.
Mode 1(Optically Liner): The increase in light intensity appears to be linear as
DMX value is increased.
Mode 2(Square Law): Light intensity control is finer at low levels and coarser at
high levels.
Mode 3(Inverse Square Law): Light intensity control is coarser at low levels and
finger at high levels.
Mode 4(S-cure): Light intensity control is finger at low levels and high levels and
coarser at medium levels.
Slave Mode
Select Slave Mode, press the ENTER button to confirm, present mode will
blink on the display. Use the DOWN and UP button to select the Slave 1 (normal)
or Slave 2 (2 light show) mode. Once the mode has been selected, press the
ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait
for one minute to exit the menu mode.
Black Out Mode
Select Slave Mode, press the ENTER button to confirm, present mode will

9
A
blink on the display. Use the DOWN and UP button to select the Yes (yes blackout),
No (no blackout) or Freeze mode. Once the mode has been selected, press the
ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait
for one minute to exit the menu mode.
Sound Mode
Select Sound Mode, press the ENTER button to confirm, present mode will
blink on the display. Use the DOWN and UP button to select the On (sound on) or
Off (sound off) mode. Once the mode has been selected, press the ENTER button
to setup, to go back to the functions without any change press the MENU button
again. Hold and press the MENU button about one second or wait for one minute
to exit the menu mode.
Sound Sense
Select Sound Sense, press the ENTER button to confirm, present mode will
blink on the display. Use the DOWN and UP button to select the 0…100 mode.
Once the mode has been selected, press the ENTER button to setup, to go back to
the functions without any change press the MENU button again. Hold and press
the MENU button about one second or wait for one minute to exit the menu mode.
Pan Inverse
Select Pan Inverse, press the ENTER button to confirm, present mode will
blink on the display. Use the DOWN and UP button to select the Yes (pan inversion)
or No (normal) mode. Once the mode has been selected, press the ENTER button
to setup, to go back to the functions without any change press the MENU button
again. Hold and press the MENU button about one second or wait for one minute
to exit the menu mode.
Tilt Inverse
Select Pan Inverse, press the ENTER button to confirm, present mode will
blink on the display. Use the DOWN and UP button to select the Yes (tilt inversion)
or No (normal) mode. Once the mode has been selected, press the ENTER button
to setup, to go back to the functions without any change press the MENU button
14
A
function is good when you want an instant show. You have to set the first unit in
master mode Show Mode and select show1 or show2 or show3 or show4 mode.
Its DMX input jack will have nothing plugged into it, and its master LED will be
constantly on and sound LED will flash to the music. The other units will have to set
in slave mode and select Slave 1 (normal) or Slave 2 (2 light show) mode, Their
DMX cables plugged into the DMX input jacks (daisy chain) and the slave led lights
will constantly on.
2-light show
In slave mode, Slave 1 means the unit works normally and Slave 2 means
2-light show. In order to create a great light show, you can set Slave 2 on the
second unit to get contrast movement to each other, even if you have two units
only.
4.2 Easy Controller
The easy remote control is used only in master/slave mode.
By connecting to the 1/4” microphone jack of the first unit, you will
find that the remote controller on the first unit will control all the
other units in Stand by, and Mode selection.
Stand By Blackout the unit
Function 1. Sync. Strobe
2. Async. strobe
3. Sound Strobe
Show
1-4
1. Pan index
2. Tilt index
3. Dimmer
Fade Speed
1. Fast
2. Middle
3. Slow
Mode Sound
(LED OFF)
Show
(LED Slow Blinking)
Show
(LED Fast Blinking)
LED ON
4.3 DMX Controller
By using a universal DMX controller to control the units, you will need to set
DMX address from 1 to 512 so that the units can receive DMX signal.
Press the MENU button up to when the DMX Address is showing on the display.
Pressing ENTER button and the display will blink. Use DOWN and UP button to

9
A
blink on the display. Use the DOWN and UP button to select the Yes (yes blackout),
No (no blackout) or Freeze mode. Once the mode has been selected, press the
ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait
for one minute to exit the menu mode.
Sound Mode
Select Sound Mode, press the ENTER button to confirm, present mode will
blink on the display. Use the DOWN and UP button to select the On (sound on) or
Off (sound off) mode. Once the mode has been selected, press the ENTER button
to setup, to go back to the functions without any change press the MENU button
again. Hold and press the MENU button about one second or wait for one minute
to exit the menu mode.
Sound Sense
Select Sound Sense, press the ENTER button to confirm, present mode will
blink on the display. Use the DOWN and UP button to select the 0…100 mode.
Once the mode has been selected, press the ENTER button to setup, to go back to
the functions without any change press the MENU button again. Hold and press
the MENU button about one second or wait for one minute to exit the menu mode.
Pan Inverse
Select Pan Inverse, press the ENTER button to confirm, present mode will
blink on the display. Use the DOWN and UP button to select the Yes (pan inversion)
or No (normal) mode. Once the mode has been selected, press the ENTER button
to setup, to go back to the functions without any change press the MENU button
again. Hold and press the MENU button about one second or wait for one minute
to exit the menu mode.
Tilt Inverse
Select Pan Inverse, press the ENTER button to confirm, present mode will
blink on the display. Use the DOWN and UP button to select the Yes (tilt inversion)
or No (normal) mode. Once the mode has been selected, press the ENTER button
to setup, to go back to the functions without any change press the MENU button
14
A
function is good when you want an instant show. You have to set the first unit in
master mode Show Mode and select show1 or show2 or show3 or show4 mode.
Its DMX input jack will have nothing plugged into it, and its master LED will be
constantly on and sound LED will flash to the music. The other units will have to set
in slave mode and select Slave 1 (normal) or Slave 2 (2 light show) mode, Their
DMX cables plugged into the DMX input jacks (daisy chain) and the slave led lights
will constantly on.
2-light show
In slave mode, Slave 1 means the unit works normally and Slave 2 means
2-light show. In order to create a great light show, you can set Slave 2 on the
second unit to get contrast movement to each other, even if you have two units
only.
4.2 Easy Controller
The easy remote control is used only in master/slave mode.
By connecting to the 1/4” microphone jack of the first unit, you will
find that the remote controller on the first unit will control all the
other units in Stand by, and Mode selection.
Stand By Blackout the unit
Function 1. Sync. Strobe
2. Async. strobe
3. Sound Strobe
Show
1-4
1. Pan index
2. Tilt index
3. Dimmer
Fade Speed
1. Fast
2. Middle
3. Slow
Mode Sound
(LED OFF)
Show
(LED Slow Blinking)
Show
(LED Fast Blinking)
LED ON
4.3 DMX Controller
By using a universal DMX controller to control the units, you will need to set
DMX address from 1 to 512 so that the units can receive DMX signal.
Press the MENU button up to when the DMX Address is showing on the display.
Pressing ENTER button and the display will blink. Use DOWN and UP button to
