ACME LITE PANEL 900 LP-900 WW BD30 User manual

LP-900 WW BD30
LP-900 CW BD30
User Manual
Please read the instructions carefully before use

CONTENTS
1. Safety Introductions.............................................................................................. 2
2. Technical Specifications......................................................................................... 3
3. How To Set The Fixture ......................................................................................... 4
3.1 Control Panel................................................................................................... 4
3.2 Main Function ................................................................................................. 5
4. How To Control The Unit ....................................................................................... 8
4.1 Master/Slave Function .................................................................................... 8
4.2 DMX Controller ............................................................................................... 9
5. DMX512 Configuration.......................................................................................... 9
6. DMX512 Connections ......................................................................................... 10
7. Troubleshooting .................................................................................................. 11
8. Fixture Cleaning .................................................................................................. 11
1

1. Safety Introductions
WARNING
Please keep this User Manual for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
Use safety cables when fixing this unit.
Maximum ambient temperature is Ta: 40 degrees C. DO NOT operate it where the temperature
is higher than this.
Turn off the power and allow about 15 minutes for the unit to cool down before servicing.
In the event of a serious operating problem, stop using the unit immediately. Never try to repair
the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.
Please contact the nearest authorized technical assistance center. Always use the same type
spare parts.
DO NOT touch any cables during operation as high voltage may cause electric shock.
Warning:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
The housing and lenses must be replaced if they are visibly damaged.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.
2

Caution:
There are no user serviceable parts inside the unit. Do not open the housing or attempt any
repairs yourself. In the unlikely event your unit may require service, please contact your nearest
dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. Make sure that the structure to which
you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s
weight. Also always use a safety cable that can hold 12 times of the weight of the unit when
installing the fixture.
The equipment must be installed by professionals. It must be fixed at a place where is out of the
reach of people and no one pass by or under it.
2. Technical Specifications
Lite Panel 900, an innovative LED fixture, creates even, soft and directional powerful output;
0 ~ 100% dimming;
High scanning frequency more than 1000Hz, no flicking, make it perfect for TV studios;
Low heat & low power consumption
Voltage:AC 100 ~ 240V, 50/60Hz
Power Consumption: 76W
Power Cable Daisy Chains: 4 fixtures Max. (230V, 50Hz)
LED Source:
WW: 900pcs Warm White LEDs
CW: 900pcs Cold White LEDs
Fuse: T 6.3A
Beam Angle: 30°
3

Color Temperature:
WW: 2800 ~ 3200K
CW: 6500 ~ 7000K
CRI: ≥ 82
Weight: 6.2Kgs
Dimension: 371 x 328 x 111mm
3. How To Set The Fixture
3.1 Control Panel
1.Display: Shows the various menus and the selected functions;
2. Indicator LED:
DMX
On DMX input present
MASTER
On Master Mode
SLAVE
On Slave Mode
4

POWER On Power On
3. Button:
MENU
To select the programming functions
DOWN
To go backward in the selected functions
UP
To go forward in the selected functions
ENTER
To confirm the selected functions
4. Dimmer Adjust knob: Adjusts the lightness for the unit;
5. DMX OUT: DMX 512 link, use a 3/5 -pin XLR cable to link to the next unit;
6. DMX IN DMX 512 link, use a 3/5 -pin XLR cable to link the unit to a DMX controller;
7. POWER OUT: Connects to the next unit;
8. POWER IN: Connects to mains supply power.
3.2 Main Function
To select any of the given functions, press the MENU button up to the required selection as shown
on the display. Select the function with the ENTER button and the display will blink. Use the
DOWN/UP buttons to change the mode. Once the required mode has been selected, press the
ENTER button to confirm. To go back to the main functions without any changes press the MENU
button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit
the current mode.
The main functions are shown below:
5

6

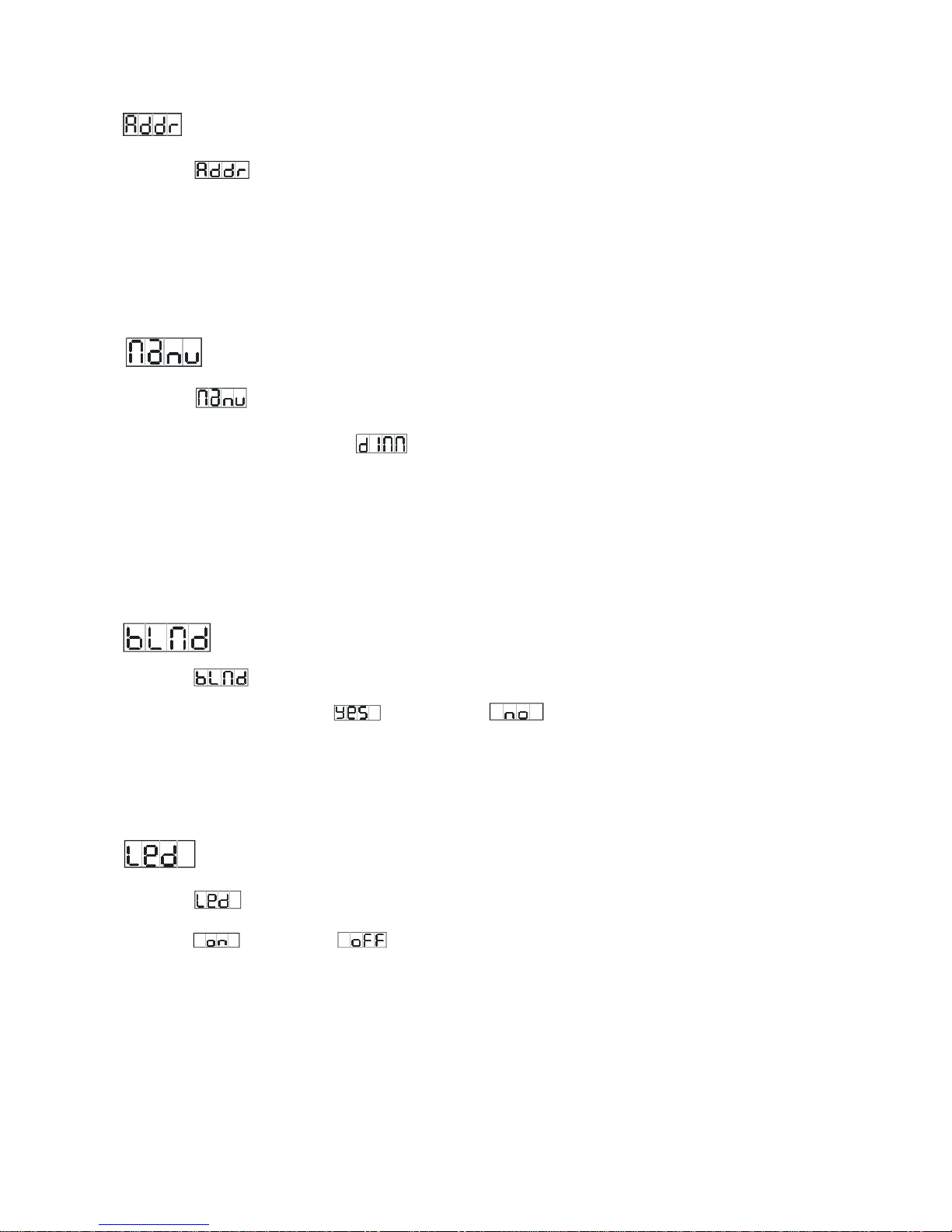

DMX 512 Address
To select , press the ENTER button to show DMX ADDRESS on the display. Use the
DOWN/UP buttons to adjust the address from 1to 512. Once the address has been selected, press
the ENTER button to setup or automatically exit menu mode without any change after 30 seconds.
To go back to the previous functions without any change press the MENU button.
Manual Mode
To select , press the ENTER button to show the MANUAL MODE on the display. Use the
DOWN/UP button to select the (dimmer) mode, press the ENTER button to confirm, then
use the DOWN/UP button to adjust the value between 0and 255, once select press the ENTER
button to setup or automatically exit menu mode without any change after 30 seconds. To go back
to the functions without any change press the MENU button.
Blackout Mode
To select , press the ENTER button to show BLACKOUT MODE on the display. Use the
DOWN/UP buttons to select (blackout) or (normal) mode. Once the mode has
been selected, press the ENTER button to setup or automatically exit menu mode without any
change after 30 seconds. To go back to the functions without any change press the MENU button
LED display
To select , press the ENTER button to show LED on the display. Use the DOWN/UP buttons
to select (LED on) or (LED off) mode. Once the mode has been selected, press the
ENTER button to setup or exit menu mode without any change after 30 seconds. To go back to the
functions without any change press MENU button again.
7

Display Inverse
To select , press the ENTER button to show DISPLAY on the display. Press the ENTER button
again and it will show the (inversion). To go back to the functions without any change press
MENU button.
Auto Test
To select , press the ENTER button to show TEST on the display and the unit will run a
self-test. To go back to the functions press the MENU button.
Fixture use hours
To select , press the ENTER button to show FIXTURE USE HOURS on the display and the
display will show the number of working hours of the unit. To go back to the functions press the
MENU button
Software Version
To select , press the ENTER button to show SOFTWARE VERSION on the display and the
display will show the version of the software of the unit. To go back to the functions press the
MENU button.
4. How To Control The Unit
You can operate the unit in two ways:
1. By master/slave function
2. By DMX controller
You do not need to turn the unit off when you change the DMX address, the new DMX address
setting will take effect immediately.
4.1 Master/Slave Function
By linking the units in master/slave connection, the first unit will be master automatically. You
8

should set the master unit effect via its knobs, then the other units (slave) will lighting as the
same.
4.2 DMX Controller
When using a universal DMX controller to control the units, you must set a DMX address from 1 to
512.
Press the MENU button up to when is showing on the display. Press the ENTER button and
the display will blink. Use the DOWN/UP buttons to change the DMX 512 address. Once the
address has been selected, press and hold the ENTER button until the display stops blinking or it
will store automatically 30 seconds later. To go back to the functions without any change press the
MENU button again.
If you use please refer to the following diagram to address your DMX512 channel for the first 4
units.
1 Channel Mode:
5. DMX512 Configuration
1 Channel Mode:
CHANNEL
VALUE
FUNCTIONS
1
0 ~ 255
DIMMER
0

100%
9

6. DMX512 Connections
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.
1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture
to the input of the next fixture. The cable cannot be branched or split to a “Y” cable.
Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the
signal and shut down the system
2. The DMX output and input connectors are pass-through to maintain the DMX circuit when one
of the units’ power is disconnected.
3. At last fixture, the DMX cable has to be terminated with a terminator to reduce signal errors.
Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug
and plug it in the DMX-output of the last fixture.
4. Each lighting fixture needs to have an address set to receive the data sent by the controller.
The address number is between 0-511 (usually 0 & 1 are equal to 1).
5. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),Pin4/5: not used
10

7. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and DMX
polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the
fixture or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause
damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
8. Fixture Cleaning
Cleaning must be carried out periodically to optimize light output. Cleaning frequency depends on
the environment in which the fixture operates: moist, smoky or particularly dirty surroundings can
cause a greater accumulation of dirt on the fixture.
Clean with soft cloth using normal glass cleaning fluid or mild soapy water.
Always dry the parts carefully.
Clean the external optics at least every 30 days.
11

12

13

Declaration of Conformity
We declare that our products (lighting equipment) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;
EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008.
&
Harmonized Standard
EN 60598-1:2008 + All:2009; EN 60598-2-17:1989 + A2:1991; EN 62471:2008;
EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
14
