ACME PAGEANT CM-600z User manual

CM-600Z
User Manual
Please read the instruction carefully before use

TABLE OF CONTENTS
1. Safety Instructions .................................................................................................. 2
2. Technical Specifications .......................................................................................... 3
3. How To Set The Unit ............................................................................................... 4
3.1 Control panel .................................................................................................... 4
3.2 Main Function .................................................................................................. 5
3.3 Home Position Adjustment ............................................................................. 13
4. Control By Universal DMX Controller .................................................................... 13
4.1 DMX 512 Connection ...................................................................................... 13
4.2 Address Setting ............................................................................................... 14
4.3 DMX 512 Configuration .................................................................................. 16
5. Troubleshooting ................................................................................................... 21
6. Fixture Cleaning ................................................................................................... 21
1A

1. Safety Instructions
WARNING
Please keep this User Manual for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
Use safety cables when fixing this unit. DO NOT handle the unit by its head only, always carry by
its base.
Maximum ambient temperature is Ta: 40 degrees C. DO NOT operate it where the temperature
is higher than this.
Unit surface temperature may reach up to 75 degrees C. DO NOT touch the housing with
bare-hands during its operation. Turn off the power and allow about 15 minutes for the unit to
cool down before replacing or serving.
In the event of a serious operating problem, stop using the unit immediately. Never try to repair
the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.
Please contact the nearest authorized technical assistance center. Always use the same type
spare parts.
DO NOT touch any wire during operation as high voltage may cause electric shock.
Please read the instruction carefully which includes important
information about the installation, usage and maintenance.
2A

Warning:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
The housing and lenses must be replaced if they are visibly damaged.
Caution:
There are no user serviceable parts inside the unit. Do not open the housing or attempt any
repairs yourself. In the unlikely event your unit may require service, please contact your nearest
dealer.
Installation:
The fixture should be mounted via its Omega Quick Release Clamp bracket. Always ensure that
the unit is firmly fixed to avoid vibration and slipping while operating and make sure that the
structure to which you are attaching the unit is secure and is able to support a weight of 10
times of the fixtures weight. Always use a safety cable that can hold 12 times of the weight of
the fixture when installing.
The equipment must be installed by professionals. It must be installed in a place where is out of
the reach of people and no one can pass by or under it.
2. Technical Specifications
󳔜 Extremely small, fast and powerful LED moving beam.
󳔜 DMX Channels: 14/26 channels mode
󳔜 Outstanding color macro effect
󳔜 Variable strobe effects
󳔜 Blue white LCD display for easy navigation
󳔜 Perfect for stage, theatre, TV studio, rental and discotheques
 Input Voltage: AC 100 ~ 240V, 50/60Hz
 Power Consumption: 704W
3A

 Power Cable Daisy Chain: 9 Fixture Max. (230V, 50Hz)
5 Fixture Max. (120V, 60Hz)
 LED Source: 37 × 10W OSRAM OSTAR LED
 Beam Angel: 10° ~ 60°
 Weight: 19.5Kgs
 Dimension: 430 × 246 × 512mm
3. How To Set The Unit
3.1 Control panel
1. Function Display:
Shows the various menus and the selected functions
2. LED:
POWER ON Power On
4A

DMX ON DMX input present
3. Button:
MENU To select the programming functions
DOWN To go backward in th e selected f unction s
UP To go forward in the selected functions
ENTER To confirm the selected funct ions
4. DMX IN:
DMX512 link, use 3/5 -pin XLR cable to link the unit and the DMX controller
5. DMX OUT:
DMX512 link, use 3/5-pin XLR cable to link the next unit and output DMX signal
6. MAINS IN:
PowerCon connection from main power supply
7. MAIS OUT:
PowerCon loop connection for main power supply to the next unit
8. Fuse (T 10A):
Protects the unit from over-voltage or short circuit
3.2 Main Function
To select any of the given functions, press the MENU button until the required function is showing
on the display. Select the function by pressing the ENTER button and the display will blink. Use the
DOWN/UP buttons to change the mode. Once the required mode has been selected, press the
ENTER button to setup, to go back to the functions without any change press the MENU button
again. Press and hold the MENU button for about one second or wait for one minute to exit the
menu mode.

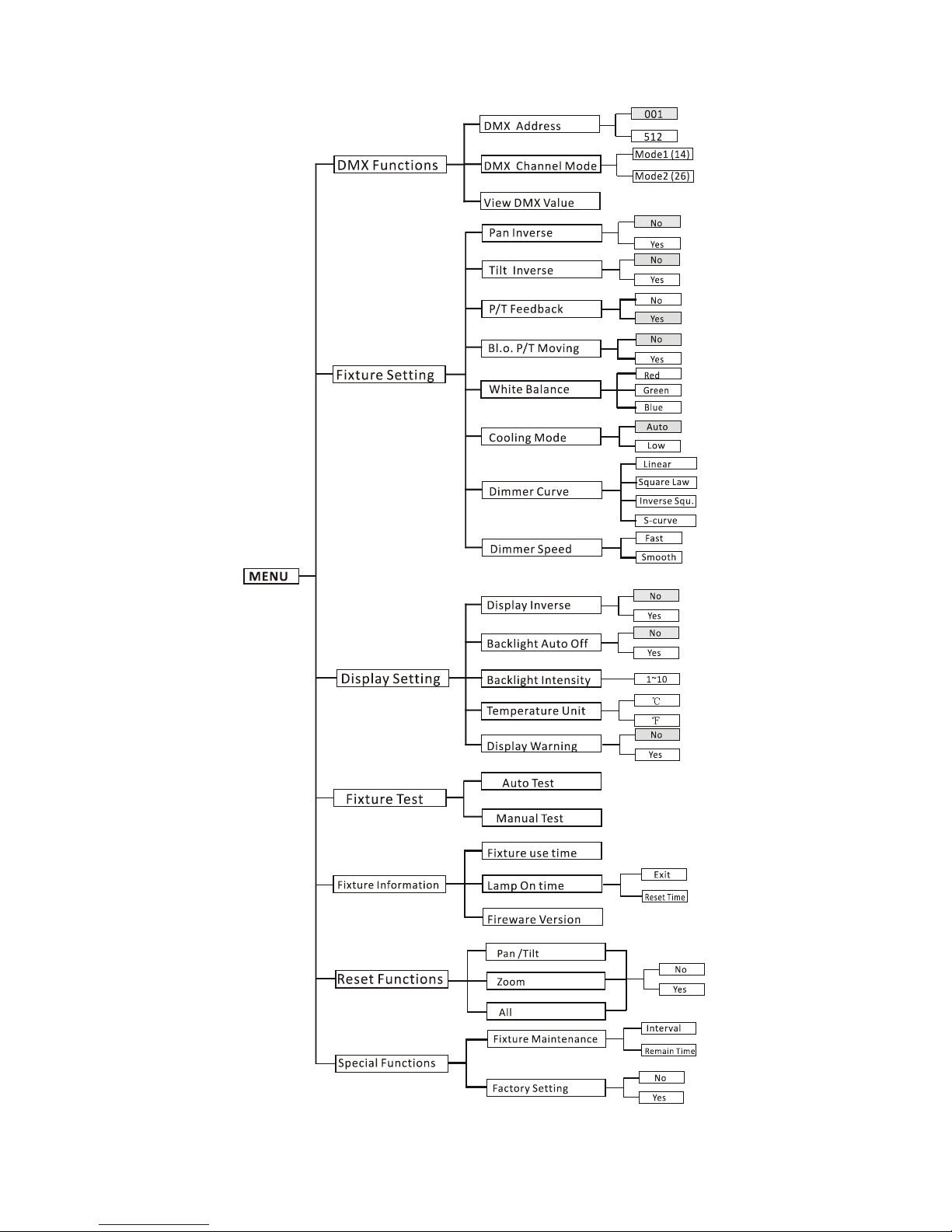

The main functions are shown overleaf:
5A

6A

DMX Functions
Enter MENU mode, select DMX Functions, press the ENTER button to confirm, use the UP/DOWN
button to select DMX Address, DMX Channel Mode or View DMX Value.
DMX Address
To select DMX Address, press the ENTER button to show the DMX ADDRESS on the display.
Use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to setup.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
DMX Channel Mode
To select DMX Channel Mode, press the ENTER button to show the DMX CHANNEL MODE on
the display. Use the UP/DOWN button to select Mode1 (14) or Mode2 (26), and press the ENTER
button to setup. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to show the VIEW DMX VALUE on the
display. Use the UP/DOWN button to view the DMX channel values. Press the MENU button back
to the last menu or let the unit idle one minute to exit menu mode.
Fixture Setting
Enter MENU mode, select Fixture Setting, press the ENTER button to confirm, use the UP/DOWN
button to select Pan Inverse, Tile Inverse, P/T Feedback, BL.O. P/T Moving, White Balance,
Cooling Mode, Dimmer Curve or Dimmer Speed.
Pan Inverse
To select Pan Inverse, press the ENTER button to show the PAN INVERSE on the display. Use
the UP/DOWN button to select No (normal) or Yes (pan inverse), press the ENTER button to setup.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Tilt Inverse
To select Tilt Inverse, press the ENTER button to show the TILT INVERSE on the display. Use
the UP/DOWN button to select No (normal) or Yes (tilt inverse), press the ENTER button to setup.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
7A

P/T Feedback
To select P/T Feedback, press the ENTER button to show the PAN/TILT FEEDBACK on the
display. Use the UP/DOWN button to select No (Pan or tilt’s position will not feedback while out
of step) or Yes (Feedback while pan/tilt out of step), press the ENTER button to setup. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
BL.O. P/T Moving
To select BL.O. P/T Moving, press the ENTER button to show the BLACKOUT WHILE PAN/TILT
MOVING on the display, use the UP/DOWN button to select No (normal while pan/tilt moving) or
Yes (blackout while pan/tilt moving), press the ENTER button to setup. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
White Balance
To select White Balance, press the ENTER button to show the WHITE BALANCE on the display, use
the UP/DOWN button to select Red, Green or Blue. Once selected, press the ENTER button to
confirm, and use the UP/DOWN button to adjust the value from 125 to 255, press the ENTER
button to setup. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
Cooling Mode
To select Cooling Mode, press the ENTER button to show the COOLING MODE on the display.
Use the UP/DOWN button to select Auto (Normal) or Low (Low speed). Once selected, press the
ENTER button to setup. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Dimmer Curve
To select Dimmer Curve, press the ENTER button to show the DIMMER CURVE on the display,
use the UP/DOWN button to select Linear, Square Law, Inverse Squ. or S-curve. Once selected,
press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
8A

Linear: The increase in light intensity appears to be linear as DMX value is increased.
Square Law: Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
S-cure: Light intensity control is finger at low levels and high levels and coarser at medium levels.
Dimmer Speed
To select Dimmer Speed, press the ENTER button to show the DIMMER SPEED on the display.
Use the UP/DOWN button to select Fast or Smooth. Once selected, press the ENTER button to
setup. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Display Setting
Enter MENU mode, select Display Setting, press the ENTER button to confirm, use the UP/DOWN
button to select Display Inverse, Backlight Auto Off, Backlight Intensity ,Temperature unit or
Display Warning.
Display Inverse
To select Display Inverse, press the ENTER button to show the DISPLAY INVERSE on the
display. Use the UP/DOWN button to select No (normal) or Yes (display inverse). Once selected,
press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Backlight Auto Off
To select Backlight Auto Off, press the ENTER button to show the BACKLIGHT AUTO OFF on
the display. Use the UP/DOWN button to select No (display always on) or Yes (display goes off one
minute after exiting menu mode). Once selected, press the ENTER button to confirm and store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
9A

Backlight Intensity
To select Backlight Intensity, press the ENTER button to show the BACKLIGHT INTENSITY on
the display. Use the UP/DOWN button to adjust the intensity from 1 (dark) to 10 (bright). Once
selected, press the ENTER button to setup and store. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Temperature Unit
To Select Temperature Unit, press the ENTER button to show the TEMPERATURE UNIT on the
display. Use the UP/DOWN button to select 󳇾 or , press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Display Warning
To select Display Warning, press the ENTER button to show the DISPLAY WARNING on the
display. Use the UP/DOWN button to select No (Normal) or Yes (display will show the error
warning when the unit went wrong), press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
Fixture Test
Enter MENU mode, select Fixture Test, press the ENTER button to confirm, use the UP/DOWN
button to select Auto Test or Manual Test
Auto Test
To select Auto Test, press the ENTER button to show the AUTO TEST on the display. Press the
ENTER button, the unit will run built-in programs to automatically test pan, tilt and zoom. Press
the MENU button back to the last menu or exit menu mode after auto test.
Manual Test
To select Manual Test, press the ENTER button to show the MANUAL TEST on the display.
Press the ENTER button, and then use the UP/DOWN button to select channel, and adjust the
channel value. Once selected, press the ENTER button to setup, the fixture will run as the channel
value indicates. Press the MENU button back to the last menu or exit menu mode let the unit idle
one minute.
(All channels value will become 0 after exiting Manual Test menu)
10A

Fixture Information
Enter MENU mode, select Fixture Information, press the ENTER button to confirm, use the
UP/DOWN button to select Fixture use time, Lamp On tme or Firmware Version.
Fixture use time
To select Fixture use time, press the ENTER button to show the FIXTURE USE TIME on the
display. Press the ENTER button, the fixture working hours will show on the display. Press the
MENU button to exit.
Lamp On time
To select Lamp On time, press the ENTER button to show the LAMP ON TIME on the display.
Press the ENTER button to confirm, then use the UP/DOWN button to select Exit or Reset Time,
press the ENTER button to store. Press the MENU button back to the last menu or exit menu mode
let the unit idle one minute.
Firmware Version
To select Firmware Version, press the ENTER button to show the FIRMWARE VERSION on the
display. Press the ENTER button and the fixture software version will show on the display. Press
the MENU button to exit.
Reset Functions
Enter MENU mode, select Reset Function, press the ENTER button to confirm, use the UP/DOWN
button to select Pan/Tilt, Zoom or All.
Pan/Tilt
To Select Pan/Tilt, press the ENTER button to show the PAN/TILT on the display. Use the
UP/DOWN button to select Yes (the unit will run built-in program to reset pan and tilt to their
home positions) or No, press the ENTER button to store. Press the MENU button to exit menu
mode.
Zoom
To select Zoom, press the ENTER button to show the ZOOM on the display. Use the
UP/DOWN button to select Yes (the unit will run built-in program to reset zoom to its home
positions) or No, press the ENTER button to store. Press the MENU button to exit menu mode.
11A

All
To select All, press the ENTER button to show the ALL on the display. Use the UP/DOWN
button to select Yes (the unit will run built-in program to reset all motors to their home positions)
or No, press ENTER button to store. Press MENU button to exit menu mode.
Special Functions
Enter MENU mode, select Special Functions, press the ENTER button to confirm, use the
UP/DOWN button to select Fixture Maintenance or Factory Setting.
Fixture Maintenance
To select Fixture Maintenance, press the ENTER button to show the FIXTURE MAINTENANCE
on the display. Use the UP/DOWN button to select Interval or Remain Time.
Interval
To select Interval, press the ENTER button to confirm, the interval time will be shown on the
display. Press the MENU button to exit.
Remain Time
To select Remain Time, press the ENTER button to confirm, the remaining time will be shown
on the display. Press the ENTER button to confirm, use the UP/DOWN button to select Exit or
Reset time, press the MENU button to exit.
Factory Setting
To select Factory Setting, press the ENTER button to show the FACTORY SETTING on the
display. Press the ENTER button to confirm, use the UP/DOWN button to select No or Yes (the
fixture will reset to factory settings and exit menu mode).
12A

3.3 Home Position Adjustment
In the main functions, hold the ENTER button for at least 3 seconds into offset mode, use the
DOWN/UP button up to select Pan Offset, Tilt Offset or Zoom Offset, and press the ENTER button
to confirm. Use the DOWN/UP button to adjust the home position of the Pan, Tilt or Zoom, Once
the position has been selected, press the ENTER button to setup, to go back to the functions
without any change press the MENU button again. Press and hold the MENU button about one
second or wait for about one minute to exit the menu mode.
4. Control By Universal DMX Controller
4.1 DMX 512 Connection
13A

1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.
2. The last units DMX cable has to be terminated with a 120 ohm 1/4W resistor between pin
2(DMX-) and pin 3(DMX+) of a 3-pin XLR-plug and plug it in the DMX-output of the last unit.
3. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the
input of the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
4. The DMX output and input connectors are pass-through to maintain the DMX circuit, when
one of the units’ power is disconnected.
5. Each fixture unit needs to have an address set to receive the data sent by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.
7. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),
Pin 4/Pin 5: Not used.
4.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Functions, press the ENTER button to
confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm,
the present address will blink on the display, use the UP/DOWN button to adjust the address from
001 to 512, and press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 7 seconds to exit menu mode.
14A

Please refer to the following diagram to set the DMX address for the first 4 units
Channel mode Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
14 channels 1 15 29 43
26 channels 1 27 53 79
15A

4.3 DMX 512 Configuration
14 Channels Mode:
CHANNEL VALUE FUNCTION
1
000-255
PAN
2
000-255
PAN FINE
3
000-255
TILT
4
000-255
TILT FINE
5
000-255
PAN/TILT SPEED
fast

slow
6
000-009
010-014
015-255
SPECIAL FUNCTIONS
No function
Reset
No function
7
000-255
DIMMER
0%~100%
8
000-019
020-024
025-064
065-069
070-084
085-089
090-104
105-109
110-124
125-129
130-144
145-149
150-164
165-169
170-184
185-189
190-204
205-209
210-224
225-229
230-244
245-255
SHUTTER
Blackout
Open
Strobe 1: fast slow
Open
Strobe 2: opening pulse, fast slow
Open
Strobe 3: closing pulse, fast slow
Open
Strobe 4: random strobe, fast slow
Open
Strobe 5: random opening pulse, fast slow
Open
Strobe 6: random closing pulse, fast slow
Open
Strobe 7: burst pulse, fast slow
Open
Strobe 8: random burst pulse, fast slow
Open
Strobe 9: sine wave, fast slow
Open
Strobe 10: burst, fast slow
Open
9
000-255
RED (0%  100%)
10
000-255
GREEN (0%

100%)
16A

11
000-255
BLUE (0%

100%)
12
000-255
WHITE (0%  100%)
13
000-009
010-014
015-019
020-024
025-029
030-034
035-039
040-044
045-049
050-054
055-059
060-064
065-069
070-074
075-079
080-084
085-089
090-094
095-099
100-104
105-109
110-114
115-119
120-124
125-129
130-134
135-139
140-144
145-149
150-154
155-159
160-164
165-169
170-174
175-179
180-201
202-207
208-229
230-234
COLOR MACRO
Open
LEE 790 – Moroccan Pink
LEE 157 – Pink
LEE 332 – Special Rose Pink
LEE 328 – Follies Pink
LEE 345 – Fuchsia Pink
LEE 194 – Surprise Pink
LEE 181 – Congo Blue
LEE 071 – Tokyo Blue
LEE 120 – Deep Blue
LEE 079 – Just Blue
LEE 132 – Medium Blue
LEE 200 – Double CT Blue
LEE 161 – State Blue
LEE 201 – Full CT Blue
LEE 202 – Half CT Blue
LEE 117 – Steel Blue
LEE 353 – Lighter Blue
LEE 118 – Light Blue
LEE 116 – Medium Blue Green
LEE 124 – Dark Green
LEE 139 – Primary Green
LEE 089 – Moss Green
LEE 122 – Fern Green
LEE 738 – JAS Green
LEE 088 – Lime Green
LEE 100 – Spring Yellow
LEE 104 – Deep Amber
LEE 179 – Chrome Orange
LEE 105 – Orange
LEE 021 – Gold Amber
LEE 778 – Millennium Gold
LEE 135 – Deep Gold Amber
LEE 164 – Flame Red
Open
Color wheel rotation effect
Clockwise, fast  slow
Stop (this will stop wherever the color is at the time)
Counter-clockwise, slow  fast
Open
Random color
17A

235-239
240-244
245-249
250-255
Fast
Medium
Slow
Open
14
000-255
ZOOM
wide  narrow
26 Channels Mode:
CHANNEL VALUE FUNCTION
1
000-255
PAN
2
000-255
PAN FINE
3
000-255
TILT
4
000-255
TILT FINE
5
000-255
PAN/TILT SPEED
fast

slow
6
000-255
ZOOM
wide

narrow
7
000-009
010-014
015-255
SPECIAL FUNCTIONS
No function
Reset
No function
8
000-255
DIMMER
0%~100%
9
000-019
020-024
025-064
065-069
070-084
085-089
090-104
105-109
110-124
125-129
130-144
145-149
150-164
165-169
170-184
185-189
SHUTTER
Blackout
Open
Strobe 1: fast slow
Open
Strobe 2: opening pulse, fast slow
Open
Strobe 3: closing pulse, fast slow
Open
Strobe 4: random strobe, fast slow
Open
Strobe 5: random opening pulse, fast slow
Open
Strobe 6: random closing pulse, fast slow
Open
Strobe 7: burst pulse, fast slow
Open
18A

190-204
205-209
210-224
225-229
230-244
245-255
Strobe 8: random burst pulse, fast

slow
Open
Strobe 9: sine wave, fast slow
Open
Strobe 10: burst, fast slow
Open
10
000-255
RING 1 RED (0%  100%)
11
000-255
RING 1 GREEN (0%

100%)
12
000-255
RING 1 BLUE (0%

100%)
13
000-255
RING 1 WHITE (0%

100%)
14
000-009
010-017
018-024
025-032
033-039
040-047
048-054
055-061
062-069
070-076
077-084
085-091
092-099
100-106
107-113
114-121
122-128
129-136
137-143
144-151
152-158
159-165
166-173
174-180
181-188
189-195
196-203
204-210
211-217
218-225
226-232
233-240
RING 1 COLOR PRESET
Open
Color1
Color2
Color3
Color4
Color5
Color6
Color7
Color8
Color9
Color10
Color11
Color12
Color13
Color14
Color15
Color16
Color17
Color18
Color19
Color20
Color21
Color22
Color23
Color24
Color25
Color26
Color27
Color28
Color29
Color30
Color31
19A
