ACV 281178-27 User manual

Compatible with 1-DIN devices
 •KiaCee‘d2010->
Double DIN Kit contents
• (1) facia plate
• (2) metal frame
• (3) pocket / 2 screws
• (4) mounting brackets
InstallationManual
1-DINKit
Part-No.:281178-27
InstallationManualDoubleDINKit
1
2
3
4
3

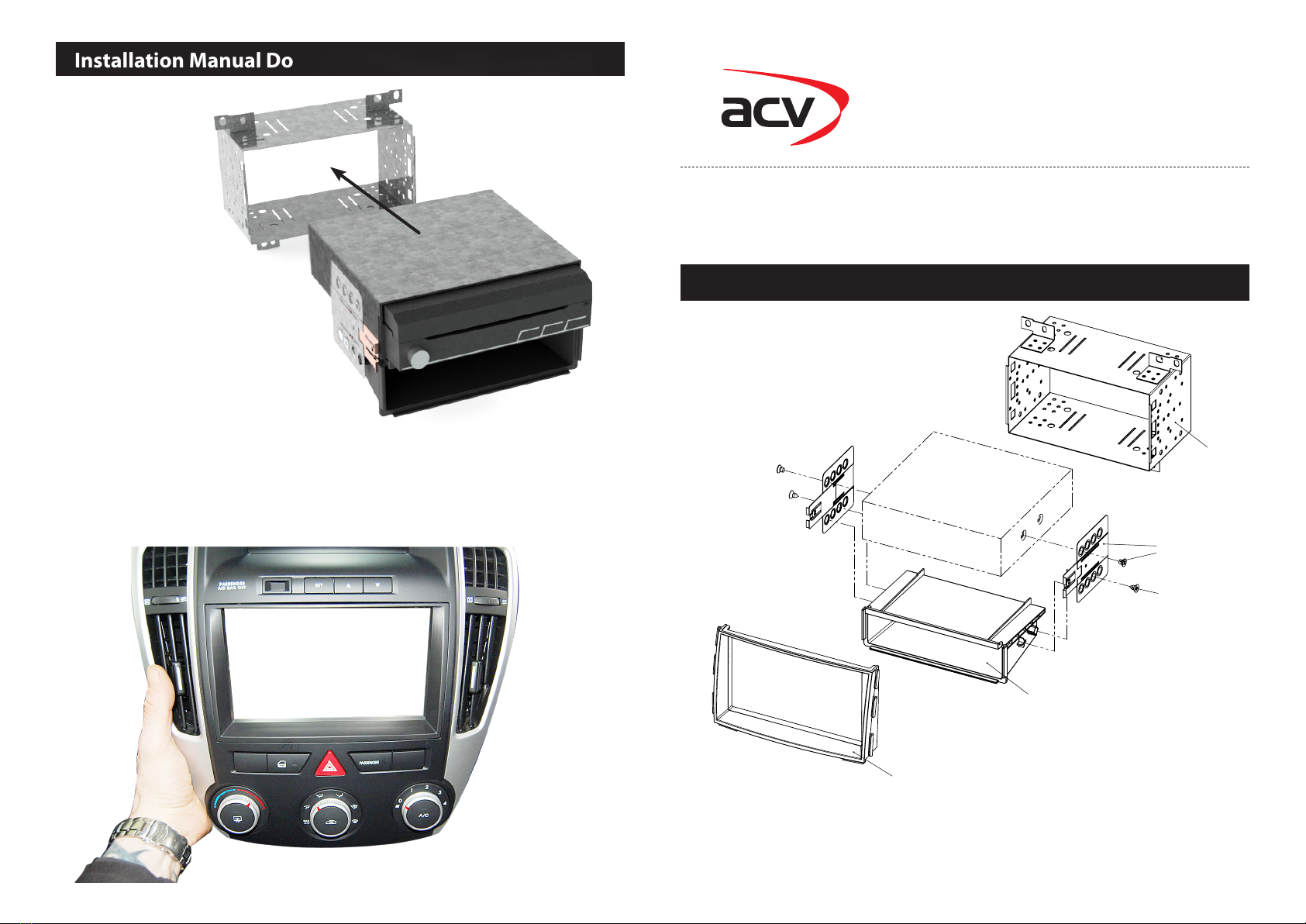

A: Push metal frame into
dashboard. Fix it with
the OEM screws
B: Push 1-DIN head unit into
metal frame until it snaps in
C: Push facia plate over 1-DIN head unit
and pocket. Push OEM center panel
over facia plate. Fix it on dash board

InstallationManualKiaCee‘d
Fix mounting brackets:
Use the rst hole (seen from left) at
top of mounting bracket to x 1-DIN
head unit. (use screws type A)
Use the third hole (seen from left) to
x the pocket (use screws type B)
screws type A
(for 1-DIN head unit)
screws type B
(for pocket)
A
B
A
B
1-DIN head unit with
pocket / mounting brackets
Remove OEM Kia head unit
Adjust installation depth
to your individual needs
