ACV 381114-21-1 User manual

© 12/2008 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
12. Connect all required circuit points
of Double-DIN Navigation, mount it
to Double DIN facia plate, place it
on the dashboard.
Connect cables of OEM display
x facia plate with mounted OEM
display above Double-DIN Navigation
11. facia plate with mounted
OEM display
9. Fix OEM display with 2 screws
10. Remove clamps from Ford
OEM panel. Place clamps on
new facia plate
Info: Hazard light switch by Ford
(No.: 15 19 127) may be required
Compatible with double DIN devices
Installation Manual
Double DIN Kit
Colour Part-No.:
Double DIN
Part-No.:
with pocket
black 381114-21-1 281114-21-1
silver 381114-21-2 281114-21-2
Ford Fiesta 2009->
Models with display only
Facia Plate
Display Holder
2. Remove the display panel
1. Unclip the display panel
4. Remove the OEM head unit
Dismount the air vents
Mount the air vents to the
new facia plate
3. Remove the 4 screws of
the OEM head unit
5. Remove the middle bar
(cut at the position marked
with arrows)
6. Remove OEM display.
Cut away overlapping pins
left and right
7. Mount OEM display to facia plate:
Turn facia plate upside down
Place OEM display top like shown
on the picture
8. Push OEM display bottom
until it snaps in

This manual suits for next models

3

Other ACV Automobile Accessories manuals

ACV 381130-07 User manual

ACV

ACV 381130-07 User manual

ACV 381300-24 User manual

ACV

ACV 381300-24 User manual

ACV 381296-01 User manual

ACV

ACV 381296-01 User manual

ACV 381094-22 User manual

ACV

ACV 381094-22 User manual

ACV 381275-15-1 User manual

ACV

ACV 381275-15-1 User manual

ACV 381320-13 User manual

ACV

ACV 381320-13 User manual

ACV 381200-07 User manual

ACV

ACV 381200-07 User manual

ACV 381200-19-1 User manual

ACV

ACV 381200-19-1 User manual

ACV 381200-07 User manual

ACV

ACV 381200-07 User manual

ACV 381320-14-PRO User manual

ACV

ACV 381320-14-PRO User manual

ACV 381114-20-1 User manual

ACV

ACV 381114-20-1 User manual

ACV 381323-01 User manual

ACV

ACV 381323-01 User manual

ACV 381296-07-1 User manual

ACV

ACV 381296-07-1 User manual

ACV 391130-16 User manual

ACV

ACV 391130-16 User manual

ACV 381178-36 User manual

ACV

ACV 381178-36 User manual

ACV 381275-05 User manual

ACV

ACV 381275-05 User manual

ACV 381320-21-1 User manual

ACV

ACV 381320-21-1 User manual

ACV 381178-29-1 User manual

ACV

ACV 381178-29-1 User manual

ACV 381178-37-1 User manual

ACV

ACV 381178-37-1 User manual

ACV 381178-24 User manual

ACV

ACV 381178-24 User manual

ACV 381230-29 User manual

ACV

ACV 381230-29 User manual

ACV 381094-19 User manual

ACV

ACV 381094-19 User manual

ACV 381320-33-1 User manual

ACV

ACV 381320-33-1 User manual

ACV 381230-33-1 User manual

ACV

ACV 381230-33-1 User manual

Popular Automobile Accessories manuals by other brands

Erickson 07488 manual

Erickson

Erickson 07488 manual

Kuda 076090 Installation instruction

Kuda

Kuda 076090 Installation instruction

VESTEL Charging station02-AC Series user manual

VESTEL

VESTEL Charging station02-AC Series user manual

AddSecure Asset Series installation guide

AddSecure

AddSecure Asset Series installation guide

CrimeStopper PlateCam SV-5200.IR installation instructions

CrimeStopper

CrimeStopper PlateCam SV-5200.IR installation instructions

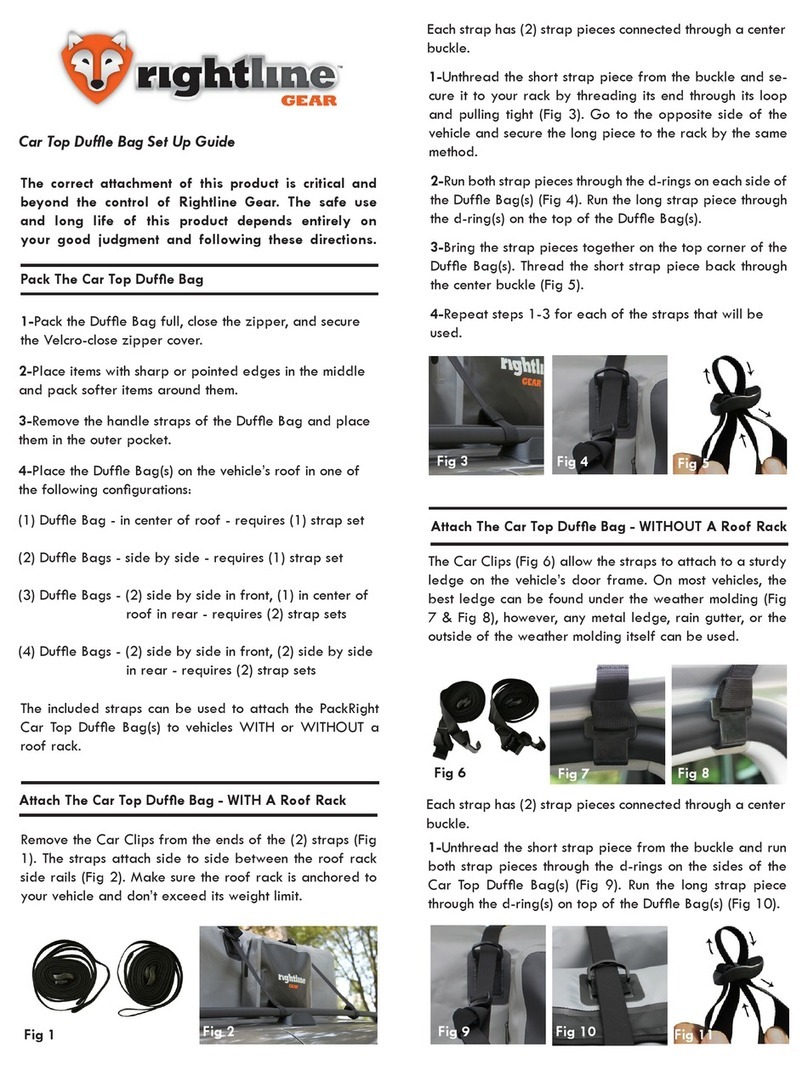

Rightline Gear Car Top Duffle Bag Setup guide
