ACV 381114-24-1 User manual

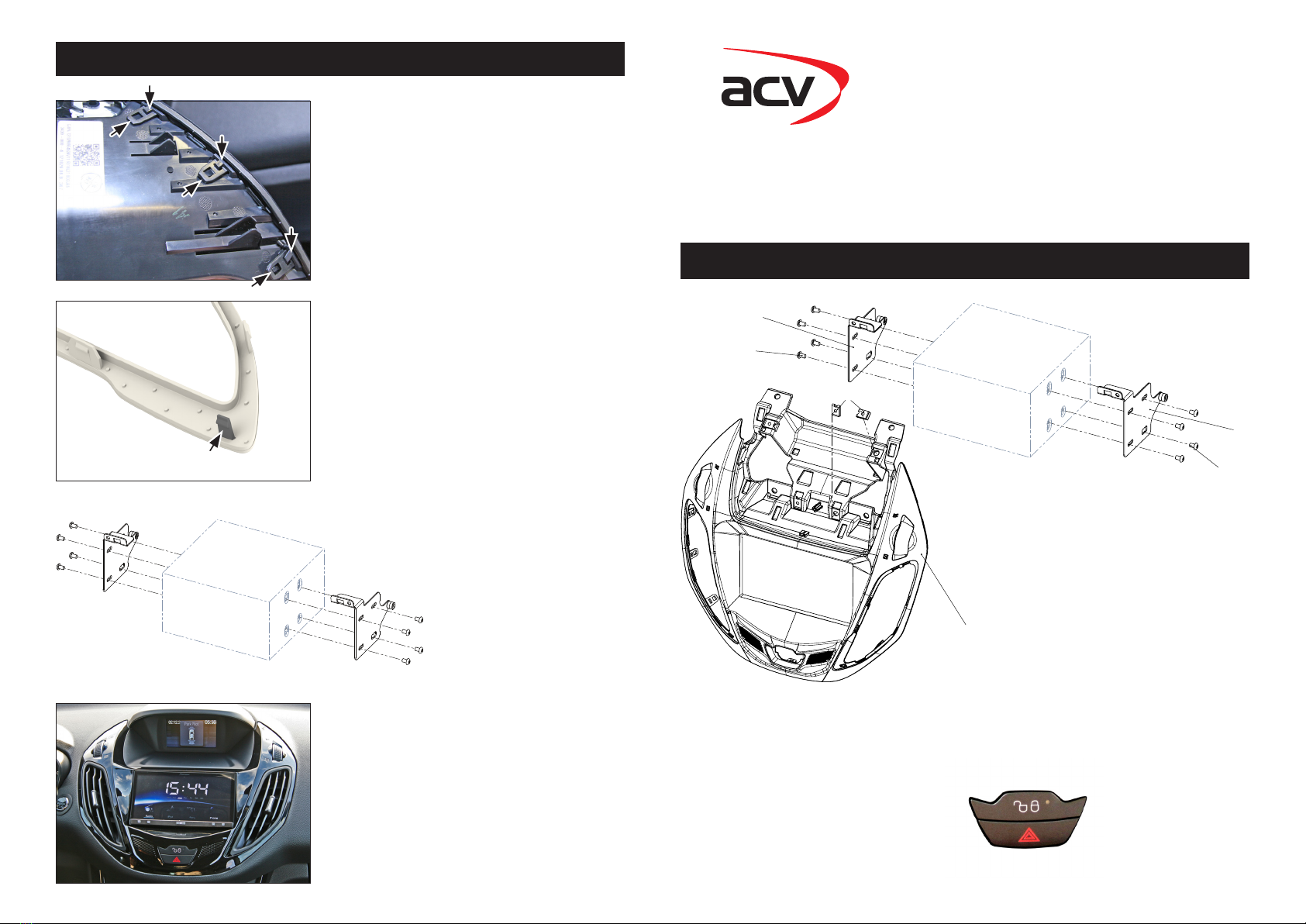

Double DIN Kit contents
(1) Facia Plate
(2) Mounting Bracket Right
(3) Mounting Bracket Left
(4) Flat Headed Screw
(5) speed nut
Installation Manual Double DIN Kit
Compatible with these double DIN devices
Double DIN Navigation
• Ford B-MAX (JK8) 06/2012->
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
Installation Manual
Double DIN Kit
nestor silver 381114-24-1
piano black: 381114-24-2
10. cut away a pin on the rear side of
the trim frame (see arrow)
( Note: Does not apply for SONY
OEM head units! )
Attach air vents and air vents trim
frame to new facia plate
9. Remove air vents carefully
(double clipped /see arrows)
and air vent trim frames from
OEM panel.
12. A new hazard light switch by Ford
is required: part-no.: 1519127
Attach hazard light switch to new
facia plate
Connect all required circuit points
Reinstall everything in reverse
order to nish installation
11. Attach mounting brackets to
Double DIN head unit and x it
on dash board
A new hazard light switch by Ford
is required: part-no.: 1519127
1
2
4
3
4
5

2. Remove screws of
display panel (see arrows)
Remove display cover
6. Remove inner plastic frame
from dashboard
7. Cut away plastic in order to
clear space for Double DIN
head unit
8. After cutting reinstall plastic
frame into dashboard
1. Unclip and remove
panel on top of
B-MAX dashboard
(see arrows)
5. Unclip and remove
center console
4. Remove 2 screws of
center console
3. Remove two TX20 screws of
display
Remove display
Installation Manual Double DIN Kit Installation Manual Double DIN Kit
