ACV 381230-32-1 User manual

Compatible with Double-DIN devices:
Installation Manual
Double DIN Kit
colour: black
part-no.: 381230-32-1
Opel Astra (K ) 2015->
Double DIN Set contents
• (1) facia plate
• (2) mounting bracket right
• (3) mounting bracket left
• (4) bracket
• (5) speed nut
• (6) self-tapping convex llister head screw
• (7) at headed screw
8. Mount mounting brackets
to head unit
9. Connect all required
circuit points
Mount head unit
to dash board
Place facia plate
Install everything in
reverse order to nish
installation
1
2
7
6
4
5
5
3
7
6

3. Remove panel cover between
steering wheel and air vent
(see arrows)
Installation Manual Double DIN Kit
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.

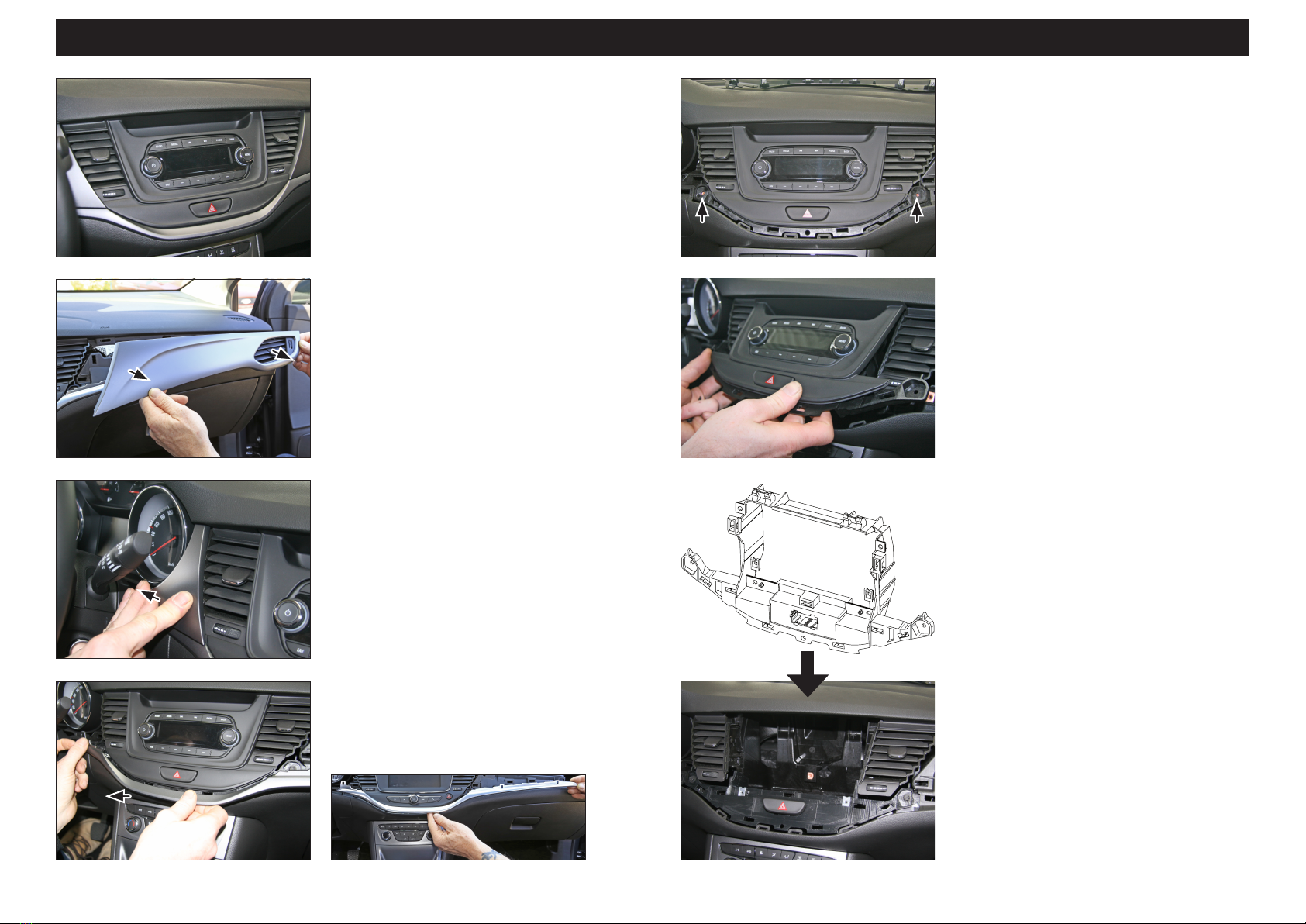

1. Opel Astra OEM Dashboard 5. Remove screws
(see arrows)
2. Remove front panel at the
right side
(see arrows)
6. Remove head unit
(unplug all cables carefully
before)
4. Remove trim frame
(see arrows)
7. Remove hazard light switch
from OEM panel.
Mount hazard light switch
to bracket and connect cable
Install bracket into dash board
