ACV 381200-07 User manual

1
2
© 12/2008 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
Compatible with double DIN devices
 •MitsubishiL2002006->

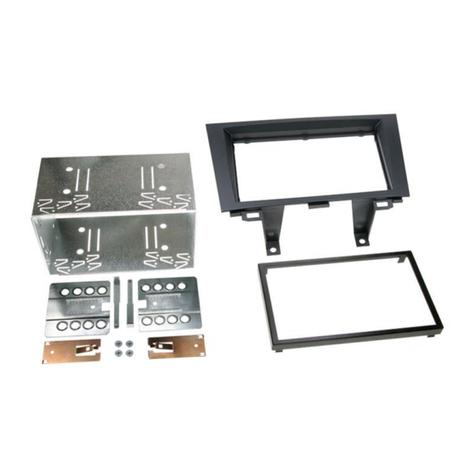

Double DIN Kit contents
• (1) Facia Plate
• (2) Mounting Brackets
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
InstallationManual
DoubleDINKit
Part-No.:381200-07
6. Mount brackets to
head unit
Connect all wires
Mount head unit
into dashboard
7. Place OEM-Panel onto
dashboard to nish installation

InstallationManualDoubleDINKit

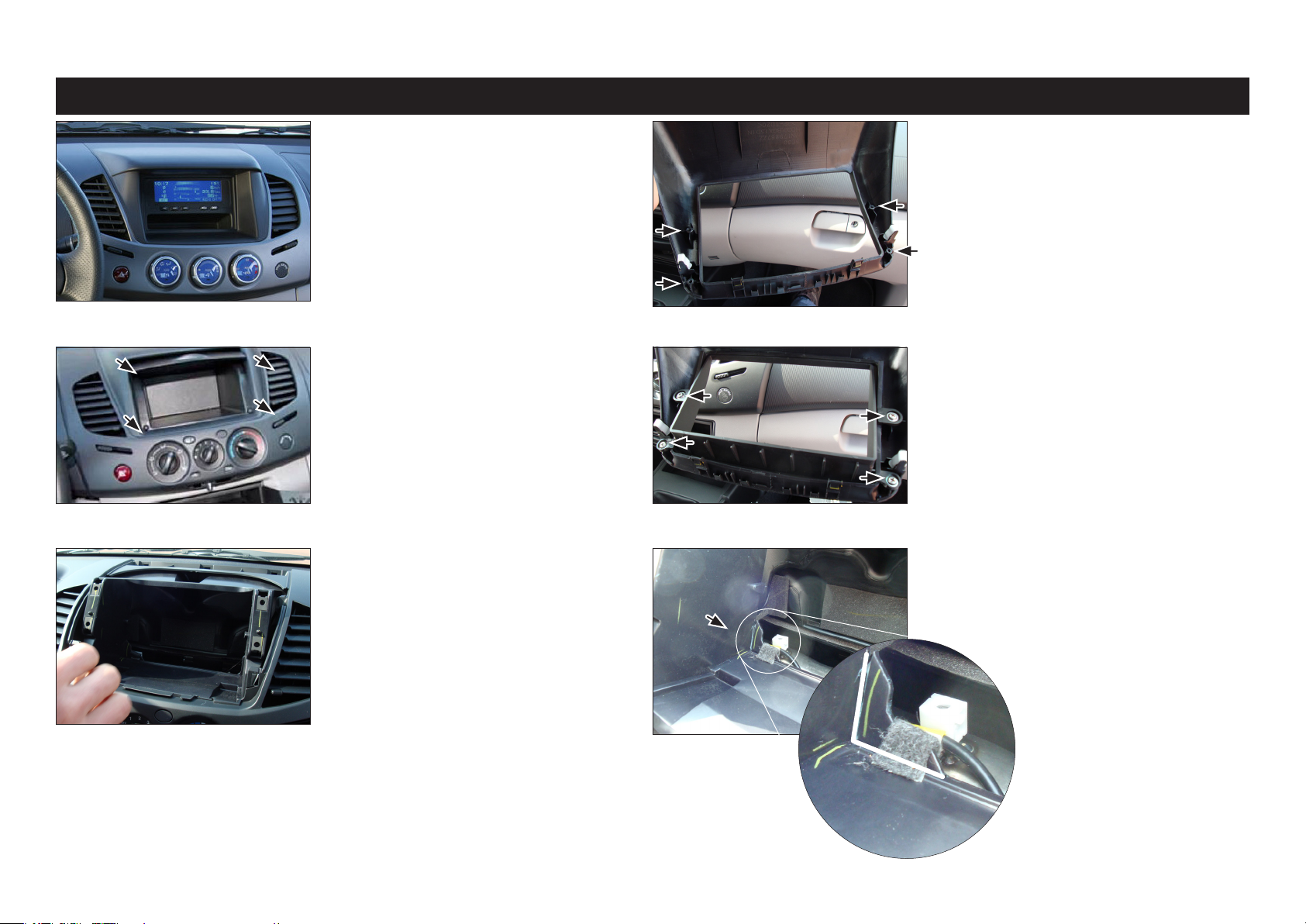

1. Mitsubishi L200 with pocket
Unclip and remove the
OEM-Panel by pulling it
towards your direction
Caution.
Mitsubishi equipped with OEM-
display requires a dierent OEM
panel
Mitsubishi-Part-No.: 81346
4. Mount facia plate to
OEM-Panel (with original screws)
5. Cut edges at the left and right
to clear space for Double-DIN
head unit
2. Front view without OEM-Panel
3. Remove 4 screws to disassemble
OEM-Case from OEM-Panel
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
