ACV 381094-19 User manual

1
2
3
4
© 07/2009 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
Compatible with these Double DIN double DIN devices
Double DIN Navigation
 •FiatStilo
Double DIN Kit contents
• (1) Metal Frame
• (2) Installation Kit
Installation Kit (3)
Trim Frame (4)
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
Installation Manual
Double DIN Kit
black: 381094-19
rubber-touch: 391094-19

3. Connect all required circuit points
and push the double DIN head
unit in the metal frame until it
snaps in.
Place the facia plate to the
mounting bracket until it snaps in
to nish installation.
InstallationManualDoubleDINKitFiatStilo

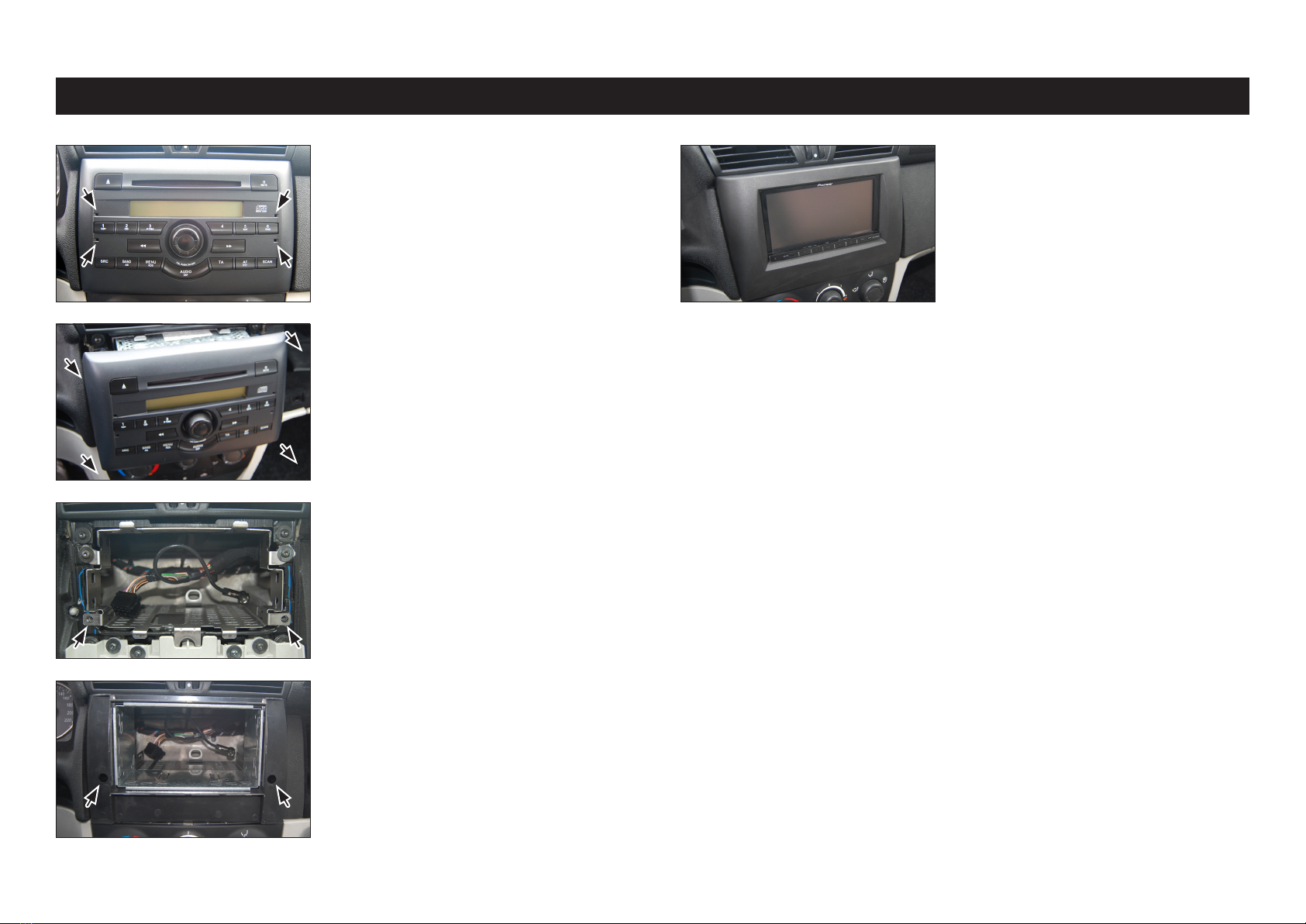

1. Insert Radio release keys
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
2. Remove OEM-Radio
3. Remove two screws of the OEM
metal frame (see arrows) at
the left and right side.
4. Push the metal frame into the
mounting frame.
Place both onto the dashboard.
Fix the mounting frame
with two screws (see arrows)
