ACV 381178-36 User manual

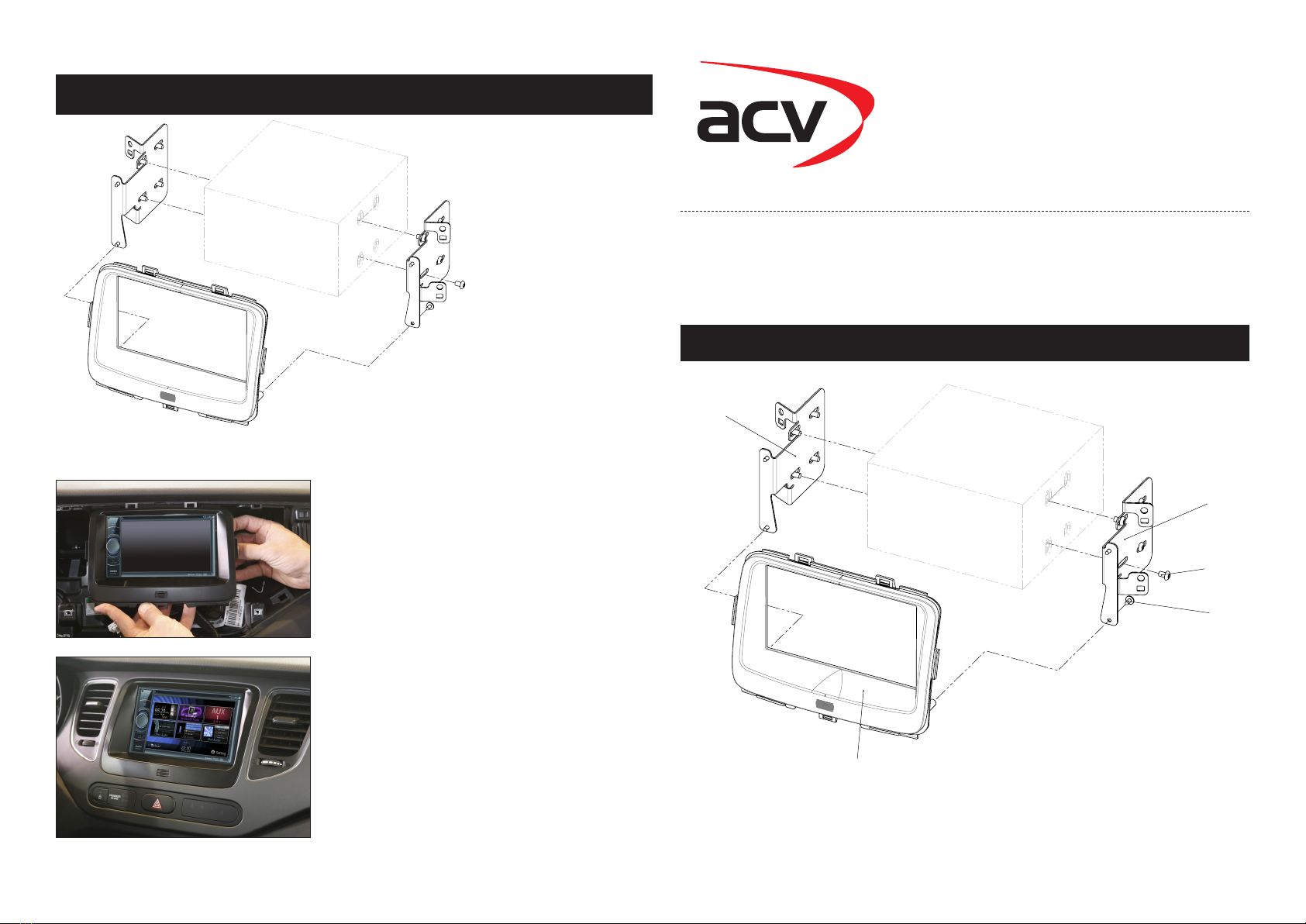

• (1) facia plate
• (2) mounting bracket right
• (3) mounting bracket left
• (4) at headed screw
• (5) self tapping screw with collar
© 08/2012 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
Compatible with these double DIN devices
Double DIN Navigation
• Kia Carens 2013->
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
Installation Manual
Double DIN Kit
colour part-no.
black 381178-36
11. Install everything in reverse order
to nish installation
10. Connect all required circuit points
place Double DIN head unit
on dash board
9. Attach mounting brackets to
Double DIN head unit
Attach facia plate to mounting
brackets
1
2
3
4
5

1. Unclip and remove OEM panel
(see arrow)
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
2. Remove 3 screws (see arrows)
3. Pull air condition control unit
towards your direction
Unplug cables carefully
4. Remove 2 screws located under
OEM head unit (see arrows)
5. Pull OEM panel toward your
direction carefully
6. Unplug cables of OEM panel
carefully
Remove OEM panel
7. Remove 4 screws of OEM
head unit (see arrows)
8. Unplug cables carefully and
remove OEM head unit
