ACV 381275-05 User manual

3

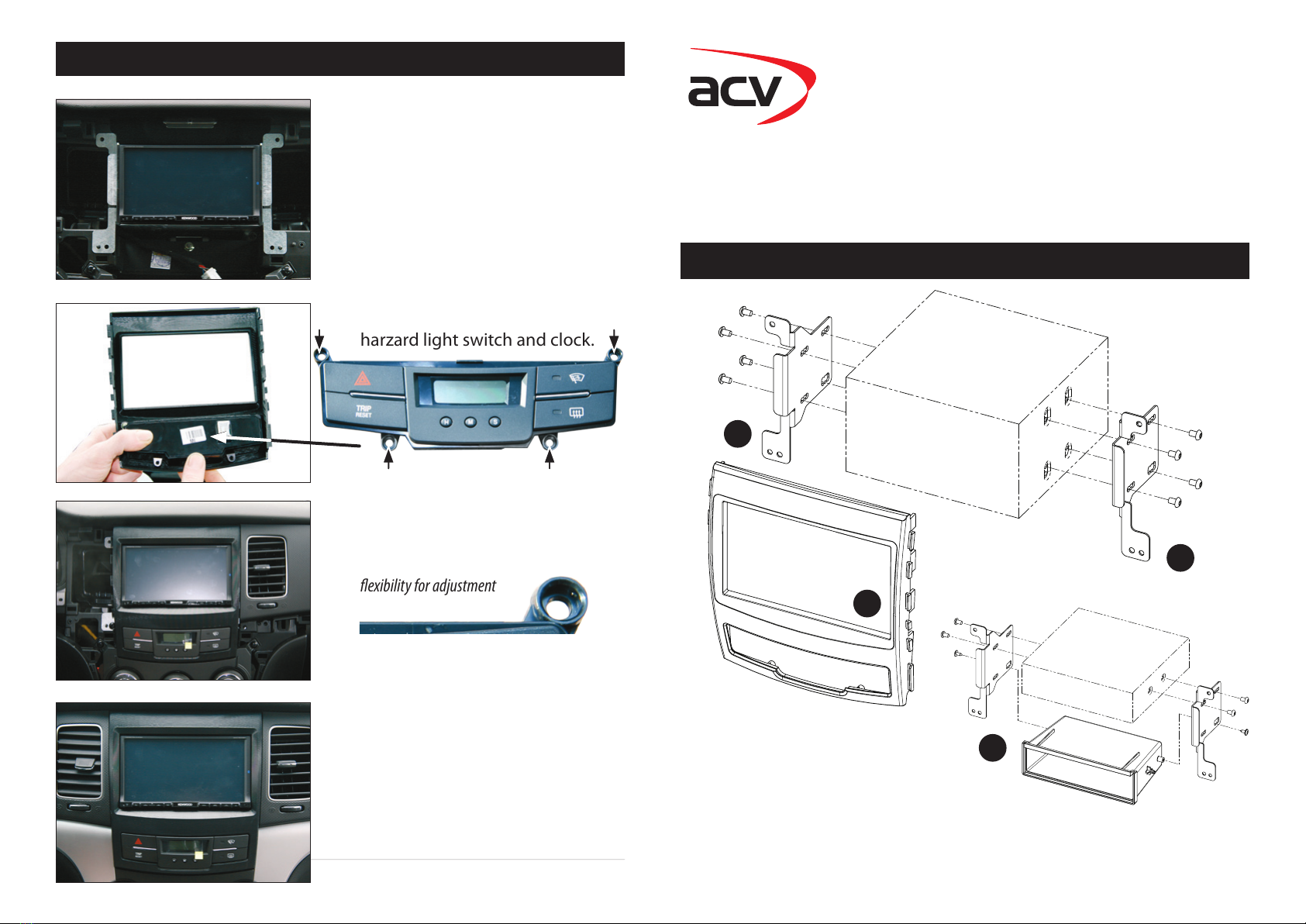

Double DIN Kit contents
(1) Facia Plate
(2) Metal Mounting Brackets
(3) pocket ( part-no.: 281275 only! )
11. Connect harness for panel with
hazard light switch
Place facia plate on dashboard
Reinstall everything in reverse
order
10. Remove OEM panel holding
harzard light switch and clock.
12. Dashboard with installed
Double-DIN navigation
Mount OEM panel to facia plate
in case of inaccurate mounting position:
cut upper part of OEM panel holder holes (see
arrows) to a at hole in order to get more
exibility for adjustment
9. Attach metal mounting brackets
to Double-DIN navigation
Connect all required circuit points
Place Double-DIN navigation
on dashboard and fix it with OEM
screws
Installation Manual Double DIN Kit
1
2
2
Compatible with these double DIN devices
Double DIN Navigation
• SsangYong Korando 2011->
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
Installation Manual
Double DIN Kit
Double-DIN: 381275-05
with pocket: 281275-05
with pocket: 281275-05
Double-DIN: 381275-05

2. Open glove box - remove two
screws beneath silver panel
6. Open right door
Remove side cover
Remove 2 screws (see arrows)
1. SsangYong Korando with
OEM head unit
5. Pull out air vent towards
your direction
4. Remove 2 screws beneath
tachometer unit cover
left and right side
Pull tachometer unit cover
towards your direction
8. Remove screws of OEM-head
unit. Remove OEM head unit by
pulling it towards your direction
Pull out radio harness carefully
3. Unclip and remove silver panels
at left and right side carefully
(we recommend using a
plastic wedge)
7. Remove whole panel with
integrated air vents
Installation Manual Double DIN Kit Installation Manual Double DIN Kit
