Adaptec DuraStor 7220SS User manual

INSTALLATION AND USER’SGUIDE
DURASTOR 6220SS/7220SS
DuraStor IUG.book Page 1 Wednesday, January 30, 2002 10:49 AM

R
DuraStor 6220SS/7220SS
Installation and User’s Guide
DuraStor IUG.book Page i Wednesday, January 30, 2002 10:49 AM

ii
Copyright
© 2001- 2002 Adaptec, Inc. All rights reserved. No part of this publication may be
reproduced, stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or otherwise, without the
prior written consent of Adaptec, Inc., 691 South Milpitas Blvd., Milpitas, CA 95035.
Trademarks
Adaptec and the Adaptec logo are trademarks of Adaptec, Inc., which may be
registered in some jurisdictions.
Windows 95, Windows 98, Windows NT, Windows 2000, and Windows Me, are
trademarks of Microsoft Corporation in the US and other countries, used under
license.
All other trademarks are the property of their respective owners.
Changes
The material in this document is for information only and is subject to change
without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, Adaptec, Inc. assumes no liability resulting from
errors or omissions in this document, or from the use of the information contained
herein.
Adaptec reserves the right to make changes in the product design without
reservation and without notification to its users.
Disclaimer
IF THIS PRODUCT DIRECTS YOU TO COPY MATERIALS, YOU MUST HAVE
PERMISSION FROM THE COPYRIGHT OWNER OF THE MATERIALS TO
AVOID VIOLATING THE LAW WHICH COULD RESULT IN DAMAGES OR
OTHER REMEDIES.
DuraStor IUG.book Page ii Wednesday, January 30, 2002 10:49 AM

iii
Regulatory Compliance Statements
Federal Communications Commission Radio Frequency Interference Statement
WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his or her own
expense.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Canadian Compliance Statement
This Class A digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur
le matérial brouilleur du Canada.
European Union Compliance Statement
This Information Technology Equipment has been tested and found to comply with
the following European directives:
EMC Directive 89/336/EEC, as amended by 92/31/EEC and 93/68/EEC
EN 50081-1 (1992)
EN 55022 (1994) Class A
EN 50082-1 (1992)
EN61000-4-2 (1998)
EN61000-4-3 (1998)
EN61000-4-4 (1995)
EN61000-4-5 (1995) Surges
EN61000-4-6 (1996) Conducted immunity
EN61000-4-11 (1994) Supply dips of variation
Australian/New Zealand Compliance Statement
This device has been tested and found to comply with the limits for a Class A digital
device, pursuant to the Australian/New Zealand standard AS/NZS 3548 set out by
the Spectrum Management Agency.
Japanese Compliance (Voluntary Control Council Initiative)
This is a class A product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take corrective action.
DuraStor IUG.book Page iii Wednesday, January 30, 2002 10:49 AM

v
Contents
1 Introduction
About This Guide 1-1
Installation Overview 1-2
Storage Management Software Tools 1-2
Adaptec Storage Manager Pro 1-2
Adaptec Disk Array Administrator 1-3
The Operator Control Panel 1-3
2 About the DuraStor Storage Subsystem
About the DuraStor RAID Appliances 2-1
Front Bezel 2-3
Controller Canister 2-4
Power System 2-5
Cooling Fan Module 2-6
SCSI RAID Appliance I/O Connectivity Panel 2-7
Fibre Channel-to-SCSI RAID Appliance I/O
Connectivity Panel 2-10
About the DuraStor 312R Storage Enclosure 2-14
Front Bezel 2-15
Disk Drives 2-16
Power Supply Units 2-17
Cooling Fan Module 2-18
Disk I/O Card 2-19
SAF-TE Controller Card 2-20
3 Installing the DuraStor Storage Subsystem
Storage Subsystem Installation Overview 3-2
Setting Up the DuraStor RAID Appliance 3-3
Removing the Front Bezel 3-3
Mounting the RAID Appliance on the Rack 3-4
Replacing the Front Bezel 3-6
Connecting the Power Cords 3-6
DuraStor IUG.book Page v Wednesday, January 30, 2002 10:49 AM

vi
DuraStor 6220SS/7220SS Installation and User’s Guide
Setting Up the DuraStor 312R Storage Enclosure 3-6
Removing the Front Bezel 3-7
Mounting the Storage Enclosure on the Rack 3-8
Attaching a Disk Drive to a Drive Carrier 3-10
Installing Disk Drives 3-10
Replacing the Front Bezel 3-11
Connecting the Power Cords 3-11
Completing the Connections for the DuraStor 6220SS 3-11
Connecting the SCSI RAID Appliance to the
DuraStor 312R 3-12
Connecting the SCSI RAID Appliance to the Host
System 3-17
Changing Your Drive Configuration 3-22
Changing Your Operating Mode 3-22
Setting the Host System HBA to Multiple-LUN
Support 3-22
Completing the Connections for the DuraStor 7220SS 3-23
Connecting the Fibre Channel-to-SCSI RAID Appliance
to the DuraStor 312R 3-23
Connecting the Fibre Channel-to-SCSI RAID Appliance
to the Host System 3-29
Important Information About SAN Environments 3-31
Topology Setup 3-33
SAN Solution Strategies 3-46
Turning On the Power 3-54
Powering On 3-54
Powering Off 3-54
Accessing Your Storage Management Tool 3-54
Installing Storage Manager Pro 3-55
Accessing Disk Array Administrator 3-56
4 Monitoring the DuraStor Storage Subsystem
Monitoring the DuraStor RAID Appliance 4-2
Front Bezel LEDs 4-2
Audible Alarm 4-3
The Operator Control Panel 4-4
DuraStor IUG.book Page vi Wednesday, January 30, 2002 10:49 AM

vii
Contents
Monitoring the DuraStor 312R Storage Enclosure 4-4
Status LEDs 4-5
Drive LEDs 4-5
Audible Alarm 4-7
5 Maintaining the DuraStor Storage Subsystem
Maintaining the DuraStor RAID Appliance 5-1
Replacing a RAID Controller 5-2
Replacing the Cooling Fan Module 5-4
Replacing a Power Supply Unit 5-5
Replacing the DuraStor RAID Appliance Chassis 5-6
Maintaining the DuraStor 312R Storage Enclosure 5-7
Replacing a Disk Drive 5-8
Replacing the Cooling Fan Module 5-10
Replacing a Power Supply Unit 5-11
Replacing the Disk I/O Card 5-13
Replacing the SAF-TE Controller Card 5-14
Replacing the DuraStor 312R Chassis 5-15
6 Troubleshooting
Problems with the DuraStor RAID Appliance 6-1
Problems with the DuraStor 312R Storage Enclosure 6-2
A Port Information
B The Operator Control Panel of the DuraStor RAID
Appliance
Glossary
Index
DuraStor IUG.book Page vii Wednesday, January 30, 2002 10:49 AM

1-1
1
Introduction
In This Chapter
About This Guide
This Installation and User’s Guide describes how to install, use, and
maintain the following DuraStor products:
■DuraStor RAID Appliance (the RAID enclosure that houses the
SCSI or Fibre Channel-to-SCSI RAID control)
■DuraStor 312R Storage Enclosure
■DuraStor 6220SS Storage Subsystem (composed of the DuraStor
SCSI RAID Appliance and the DuraStor 312R)
■DuraStor 7220SS Storage Subsystem (composed of the DuraStor
Fibre Channel-to-SCSI RAID Appliance and the DuraStor 312R)
This Guide does not describe the DuraStor 6200S or 7200S RAID
controller. For information, refer to the DuraStor 6200S/7200S RAID
Controller Installation Guide for installation instructions and product
specifications.
This Guide also does not describe the three storage management
software tools provided with the DuraStor RAID appliance and
DuraStor 6220SS/7220SS. Detailed operation instructions for these
About This Guide 1-1
Installation Overview 1-2
Storage Management Software Tools 1-2
DuraStor IUG.book Page 1 Wednesday, January 30, 2002 10:49 AM

1-2
DuraStor 6220SS/7220SS Installation and User’s Guide
tools are provided in separate user’s guides provided on the
DuraStor CD. See Storage Management Software Tools on page 1-2.
This Guide assumes that you are familiar with basic computer
hardware and network administration terminology and tasks, and
that, if you are using your DuraStor product as part of an external
storage subsystem, you have a working knowledge of Redundant
Array of Independent Disks (RAID) technology.
Installation Overview
The installation instructions can be followed to set up the complete
storage subsystem (DuraStor 6220SS/7220SS) or to install just one
of the two components (DuraStor RAID appliance or
DuraStor 312R).
If you are installing either the DuraStor RAID appliance or the
DuraStor 312R but not both, use the Table of Contents to help you
move directly to the information you are seeking.
Storage Management Software Tools
If you are building an external RAID storage subsystem, you can
create and manage it using three different software tools:
■Adaptec Storage ManagerTM Pro. See page 1-2.
■Adaptec Disk Array Administrator. See page 1-3.
■Operator Control Panel (OCP) of the DuraStor RAID appliance.
See page 1-3.
Adaptec Storage Manager Pro
We recommend using the Storage Manager Pro software
application. It is included on the DuraStor CD as part of the
DuraStor Storage Subsystem and runs on both Windows NT®and
Windows®2000. Use it to create and reconfigure arrays, manage
spares, monitor the status of your storage devices, and more.
Storage Manager Pro allows you to perform all these functions for
all systems on your network that are running Storage Manager Pro
and gives you the power to manage all your storage devices from a
single location.
DuraStor IUG.book Page 2 Wednesday, January 30, 2002 10:49 AM

1-3
Introduction
The Adaptec Storage Manager Pro User’s Guide is provided with the
DuraStor RAID appliance and DuraStor 6220SS/7220SS, and is
also available on the DuraStor CD. See Installing Storage Manager
Pro on page 3-55 for details.
Adaptec Disk Array Administrator
If you are using an operating system other than Windows NT®or
Windows®2000, you need to use Disk Array Administrator to
manage your storage subsystem.
Disk Array Administrator is firmware built into the
DuraStor 6200S/7200S RAID controller BIOS, and can be accessed
using the RS-232 serial port connection on the rear panel of the
DuraStor RAID appliance. See Accessing Disk Array Administrator
on page 3-56 for detailed instructions.
You can find the Adaptec Disk Array Administrator User’s Guide on
the DuraStor CD.
The Operator Control Panel
If you don’t have a computer monitor available and cannot use one
of the user-friendly applications, the alternative is the Operator
Control Panel (OCP) located on the front bezel of the DuraStor
RAID appliance. It can be used to perform most of the functions
required to monitor your storage devices and create and manage
arrays and spares.
You can find the DuraStor RAID Appliance Operator Control Panel
User’s Guide on the DuraStor CD.
For more information, see Appendix B, The Operator Control Panel of
the DuraStor RAID Appliance.
DuraStor IUG.book Page 3 Wednesday, January 30, 2002 10:49 AM

2-1
2
About the DuraStor Storage
Subsystem
In This Chapter
This chapter describes the components of the DuraStor Storage
Subsystem which is composed of the DuraStor RAID appliance
(SCSI or Fibre Channel-to-SCSI) as well as the DuraStor 312R
storage enclosure. You should familiarize yourself with all the
components of your DuraStor product before you begin installing
and using it.
About the DuraStor RAID Appliances
This section provides illustrated descriptions of the main features
of the DuraStor RAID appliances, both SCSI and Fibre Channel-to-
SCSI. Figure 2-1 provides an overview of both the RAID appliances
from the front. Both RAID appliances look similar from the front;
the difference is in the back where one provides SCSI connections;
the other provide Fibre Channel connections.
About the DuraStor RAID Appliances 2-1
About the DuraStor 312R Storage Enclosure 2-14
DuraStor IUG.book Page 1 Wednesday, January 30, 2002 10:49 AM

2-2
DuraStor 6220SS/7220SS Installation and User’s Guide

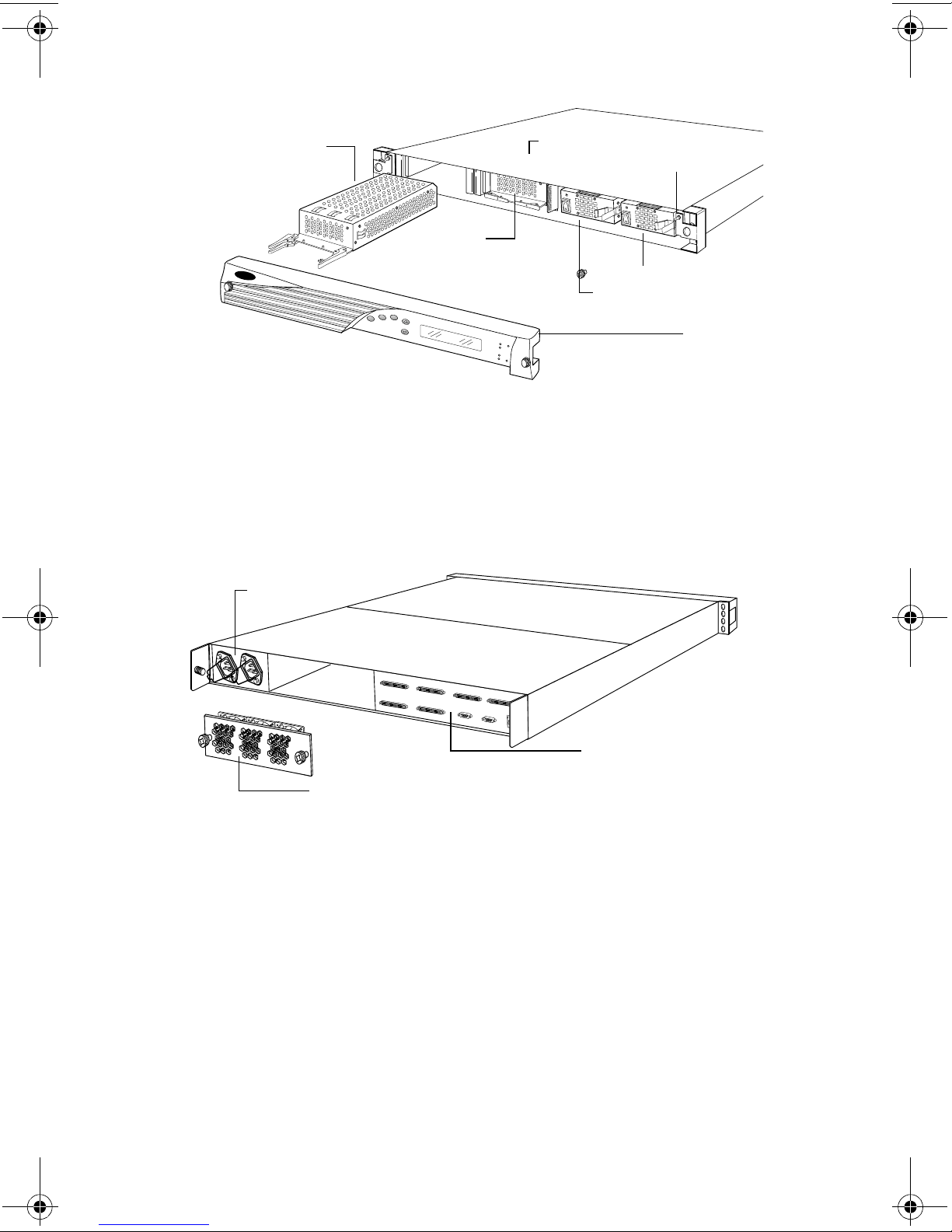

Figure 2-1. Front View of the DuraStor SCSI RAID Appliance
Figure 2-2 provides an overview of the back view of the SCSI RAID
appliance and Figure 2-3 shows the back view of the Fibre
Channel-to-SCSI RAID appliance. Detailed specifications can be
found in Table 2-1 on page 2-9.
Figure 2-2. Back View of the DuraStor SCSI RAID Appliance
M
ENU
E
NTER
E
SCAPE
C
ONTROLLER
1P
OWER
F
AUL
T
S
T
ATUS
A
CTIVITY
C
ONTROLLER
2
S
T
ATUS
A
CTIVITY
adaptec
Front Bezel
Post
Controller 1
Controller 2
Power Supply Unit 1
Power Supply Unit 2
Chassis
Canister
Canister
Ext
Int
HOST OUT (CH 0)
HOST OUT (CH 3)
HOST IN (CH 0)
HOST IN (CH 3)
DISK CH 2DISK CH 1
SERIAL BSERIAL A
Cooling Fan Module
I/O Connectivity Panel
Power Cord
Connectors
DuraStor IUG.book Page 2 Wednesday, January 30, 2002 10:49 AM

2-3
About the DuraStor Storage Subsystem
Figure 2-3. Back View of the DuraStor Fibre Channel RAID Appliance
Front Bezel
The removable front bezel of the DuraStor RAID appliance covers
the RAID controllers and power supply units. See Figure 2-4. It also
houses the OCP buttons, the LCD panel, and the Power, Fault, and
Controller LEDs.
Figure 2-4. DuraStor RAID Appliance Front Bezel
When the bezel is properly installed and power is turned on, the
front bezel is energized. It is removable or hot-swappable at any
time without interruption to the system functions. See Removing the
Front Bezel on page 3-3 for more information.
Ext
P-2
Int
DISK CH 2DISK CH 1
DISK CH 3DISK CH 0
SERIAL BSERIAL A
Tx Rx
P-1
Tx
P-3
Tx
P-4
Tx Rx
AC Power
Connectors
Cooling Fan Module I/O Panel
Ultra-160 Terminator
M
ENU
E
SCAPE
M
ENU
E
NTER
E
SCAPE
C
ONTROLLER
1 P
OWER
F
AUL
T
S
TATU S
A
CTIVITY
C
ONTROLLER
2
S
T
ATUS
A
CTIVITY
adaptec
Screw
Fault LED
Controller LEDs
Power LED
LCD Panel
Operator Control Panel
Buttons
DuraStor IUG.book Page 3 Wednesday, January 30, 2002 10:49 AM

2-4
DuraStor 6220SS/7220SS Installation and User’s Guide
Operator Control Panel (OCP)
The OCP is located on the front bezel of the DuraStor RAID
appliance, and can be used to build and monitor your storage
subsystem if you are unable to use a computer monitor and storage
management software such as Storage Manager Pro.
For more information on the OCP, see Appendix B, The Operator
Control Panel of the DuraStor RAID Appliance.
Controller Canister
The DuraStor RAID appliance contains two controller canisters
(see Figure 2-5), each capable of housing a RAID controller.
The DuraStor SCSI RAID appliance contains a DuraStor 6200S
RAID controller preinstalled; the second controller canister is
empty. The empty canister contains the hardware you need to
install a second controller.
The DuraStor Fibre Channel-to-SCSI RAID appliance contains one
DuraStor 7200S RAID controller preinstalled; the second controller
canister is empty. The empty canister contains the hardware you
need to install a second controller.

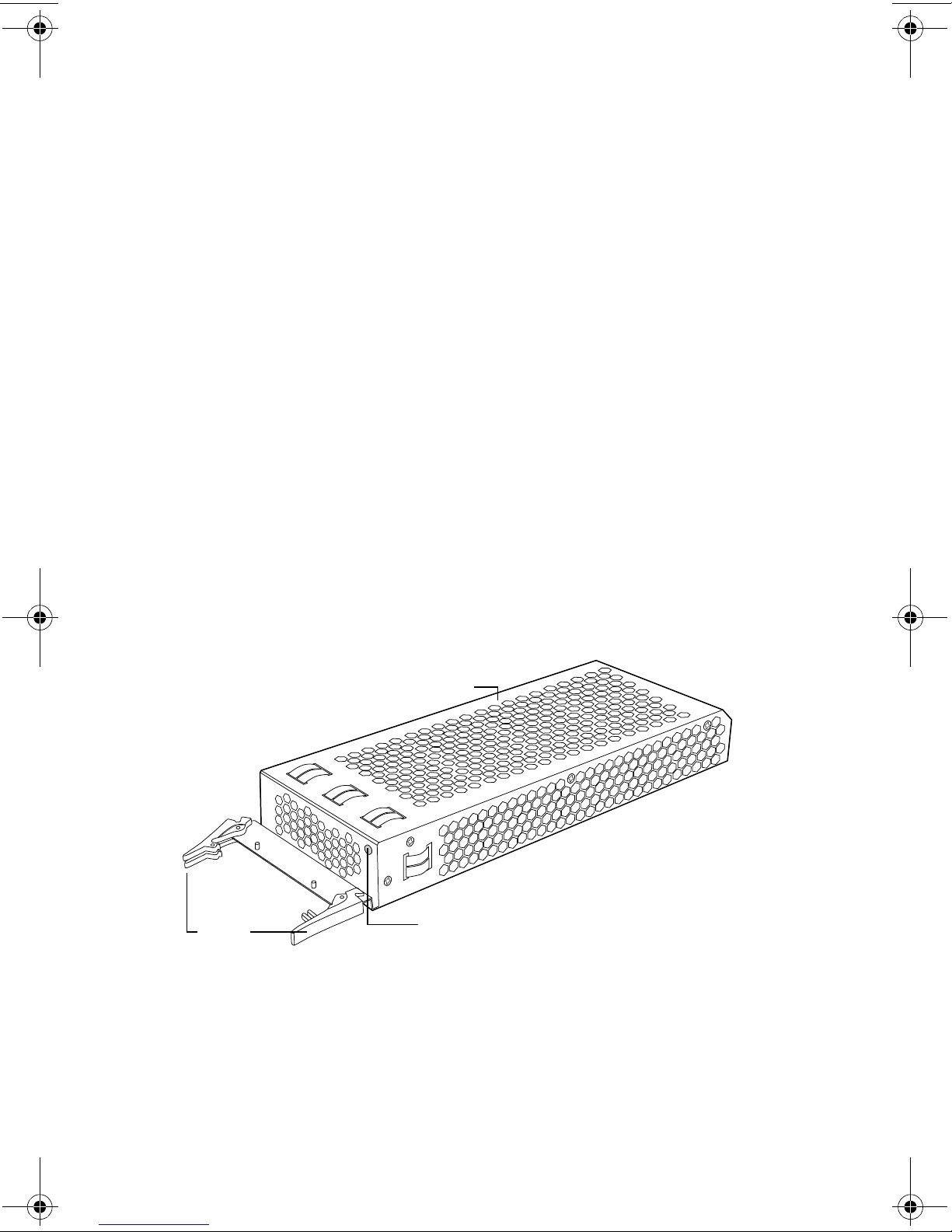

Figure 2-5. DuraStor RAID Appliance Controller Canister
The controller canister fits into the front of the chassis, behind the
bezel, and is easily removable for quick controller installation or
replacement. See Replacing a RAID Controller on page 5-2 for details.
Latches
RAID Controller Installed Inside
Ready LED
DuraStor IUG.book Page 4 Wednesday, January 30, 2002 10:49 AM

2-5
About the DuraStor Storage Subsystem
Power System
The DuraStor RAID appliance power system consists of two
hot-swappable, power supply units (PSUs) and two AC power
cord connectors. This system provides the appliance with an N+1
redundant power system. Each PSU has auto-switching circuitry
for 110/220 VAC systems.
The DuraStor RAID appliance PSU is shown in Figure 2-6.
Figure 2-6. DuraStor RAID Appliance Power Supply Unit
You access the PSUs by removing the front bezel, and turn them on
by using their On/Off switches. When you turn on a PSU, its own
Power-on LED and the Power LED on the front bezel light up, and
the DuraStor RAID appliance performs a power-on self-test
(POST), which can be monitored via the LCD panel on the OCP.
Power-on LED
On/Off Switch
PSU Latch Release
DuraStor IUG.book Page 5 Wednesday, January 30, 2002 10:49 AM

2-6
DuraStor 6220SS/7220SS Installation and User’s Guide
Figure 2-7 shows the AC power cord connectors on the back of the
chassis. The security bales hold the power cords in place and
prevent accidental disconnections.

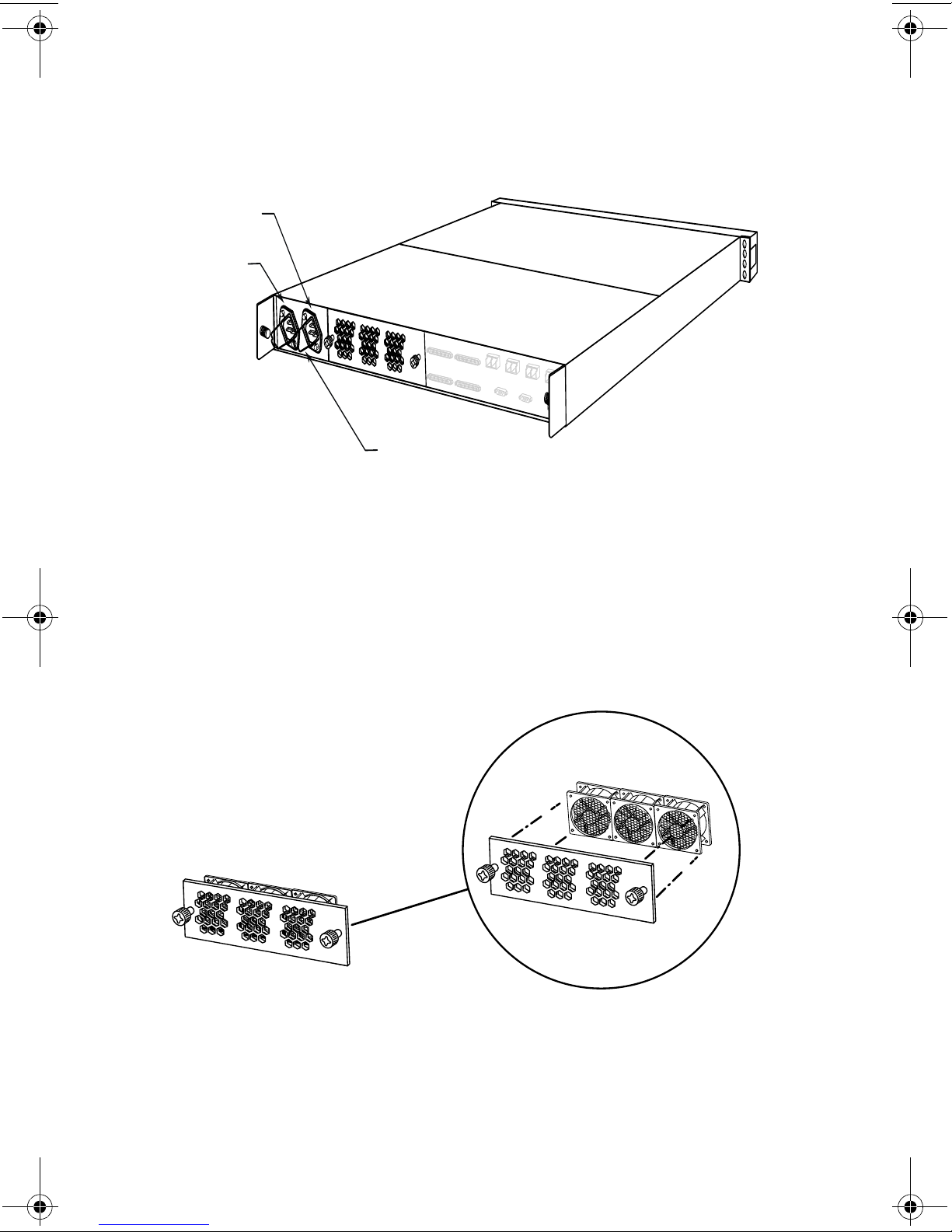

Figure 2-7. DuraStor RAID Appliance Power Cord Connector Location
Cooling Fan Module
The cooling system of the DuraStor RAID appliance consists of
three high-performance cooling fans contained in a module that fits
into a bay on the back of the appliance. See Figure 2-8. The module
is easily accessible and hot-swappable.
Figure 2-8. DuraStor RAID Appliance Cooling Fan Module
If the appliance temperature exceeds the established threshold of
60 °C (140 °F), the Fault LED begins to flash. (The controller
AC Power Cord
Connectors
Provides AC Power
to Power Supply 1
Provides AC Power
to Power Supply 2
DuraStor IUG.book Page 6 Wednesday, January 30, 2002 10:49 AM

2-7
About the DuraStor Storage Subsystem
processor monitors the temperature and reports when this
condition occurs.)
If a fan fails, the Fault LED lights up. Failed cooling fans must be
replaced immediately.
The cooling fan module can be hot-swapped during normal
operation. See Replacing the Cooling Fan Module on page 5-4 for
more details.
Caution: Do not operate the DuraStor RAID appliance for
longer than 5 minutes with the cooling fan module
removed. Cooling is unavailable to all components while
the fans are removed.
SCSI RAID Appliance I/O Connectivity Panel
The I/O connectivity panel of the SCSI RAID appliance connects
the host computer (server) to the storage enclosure disk drives. See
Figure 2-9 for detailed connection information.

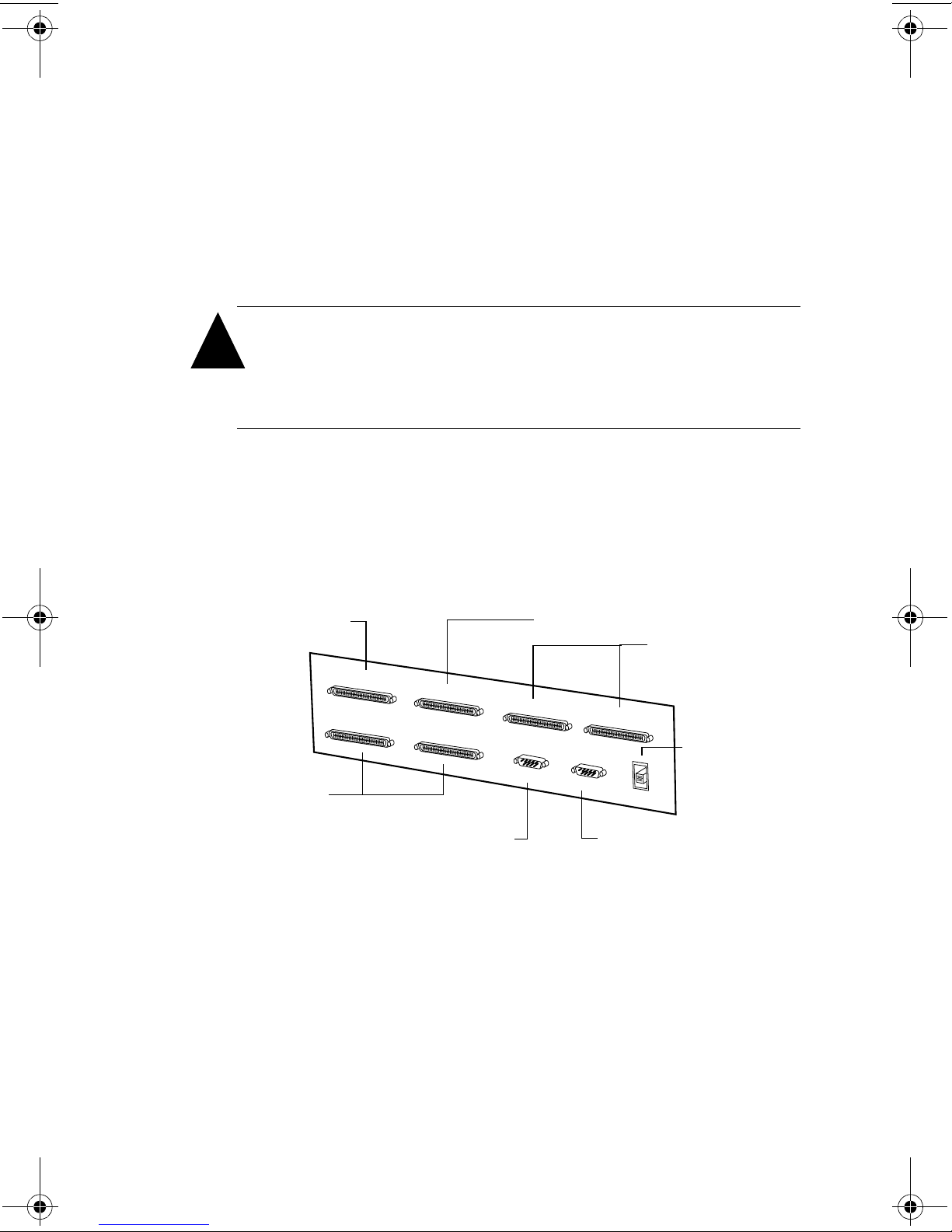

Figure 2-9. SCSI RAID Appliance I/O Connectivity Panel
Four 68-pin very-high-density SCSI connectors connect the host
system Host Bus Adapters (HBAs) to the DuraStor SCSI RAID
controller host channels. From left to right:
■Host 1 In (CH 3)
■Host 2 In (CH 0)
■Host 1 Out
■Host 2 Out
!
Ext
Int
HOST 2 OUT
HOST 1 OUT
HOST 2 IN (CH 0)
HOST 1 IN (CH 3)
DISK CH 2 DISK CH 1
SERIAL B SERIAL A
Connect to Host System
Connects to Host System
or to Storage Enclosure
I/O Card
Connects to Storage
Switches Mode
from OCP (INT) to
VT-100 Terminal
(EXT)
Enclosure I/O Card
Connects to Host System
or to Host In via Jumper
Cable
Connects to External
VT-100 Terminal
Connects to External
VT-100 Terminal
DuraStor IUG.book Page 7 Wednesday, January 30, 2002 10:49 AM

2-8
DuraStor 6220SS/7220SS Installation and User’s Guide
Additionally, two 68-pin very-high-density SCSI connectors
connect to the disk channels of the DuraStor 312R storage
enclosure. From left to right:
■Disk CH 2
■Disk CH 1
The connector labeled Host In (CH 3) can also be used as a disk
channel under some configurations. See Appendix A, Port
Information for connector pin-out detail.
Two RS-232 serial ports each connect a controller to a VT-100
terminal, and are used when you want to access Disk Array
Administrator management software. Serial A port is for
Controller 1; Serial B port is for Controller 2.
Note: Host 1 In (CH 3), Host 2 In (CH 0), Disk CH 2, and
Disk CH 1 ports require external termination when they
are unused in any dual-controller (active-active or active-
passive) configuration. The single-controller (stand-alone)
configuration requires no external terminators.
Host 1 Out and Host 2 Out have automatic internal
termination when they are unused.
The switch in the lower right corner of the panel sets the
keyboard/keypad input control to either INT (internal, via the
OCP) or EXT (external, via the VT-100 keyboard or a computer
running Hyper Terminal). Setting the switch to EXT disables the
OCP buttons.
Note: The front bezel LEDs will work whether the OCP is
being used or not. Setting this switch to EXT will not disable
the front bezel LEDs.
Table 2-1 summarizes the specific technical specifications of the
DuraStor SCSI RAID appliance.
DuraStor IUG.book Page 8 Wednesday, January 30, 2002 10:49 AM

2-9
About the DuraStor Storage Subsystem
Table 2-1. DuraStor SCSI RAID Appliance Technical Specifications
Operating Environment 40 °F to 86 °F (+5 °C to +30 °C)
Relative Humidity
Operating/Nonoperating 5%–95% (noncondensing)
Power Requirements 100/220 VAC (auto-sensing)
2.0/0.8 Amperes (maximum)
50–60 Hz
150 W
Dimensions (HxWxD) 1.70 in x 17.70 in x 24.50 in
Weight 20.25 lbs with one controller
22.25 lbs with two controllers
Altitude -200 to 10,000 ft
Electromagnetic Emissions
Requirements (EMI)
FCC, Part 15, Class A
CISPR 22 EN55022-A
Safety Requirements UL1950
CSA #950
TUV/EN60950
CE Compliance (EMC) 89/336/EEC EMC Directive
Shock
Operating
Nonoperating
1.0 G, 2–50 ms
20.0 G, 2–20 ms
Vibration
Operating
Nonoperating
5–500 Hz, 0.25 G (pk to pk)
5–500 Hz, 1.0 G (pk to pk)
DuraStor IUG.book Page 9 Wednesday, January 30, 2002 10:49 AM

2-10
DuraStor 6220SS/7220SS Installation and User’s Guide
Fibre Channel-to-SCSI RAID Appliance I/O Connectivity
Panel
The I/O connectivity panel of the Fibre Channel-to-SCSI RAID
appliance connects the host computer (server) to the storage
enclosure disk drives. See Figure 2-10 for detailed connection
information.

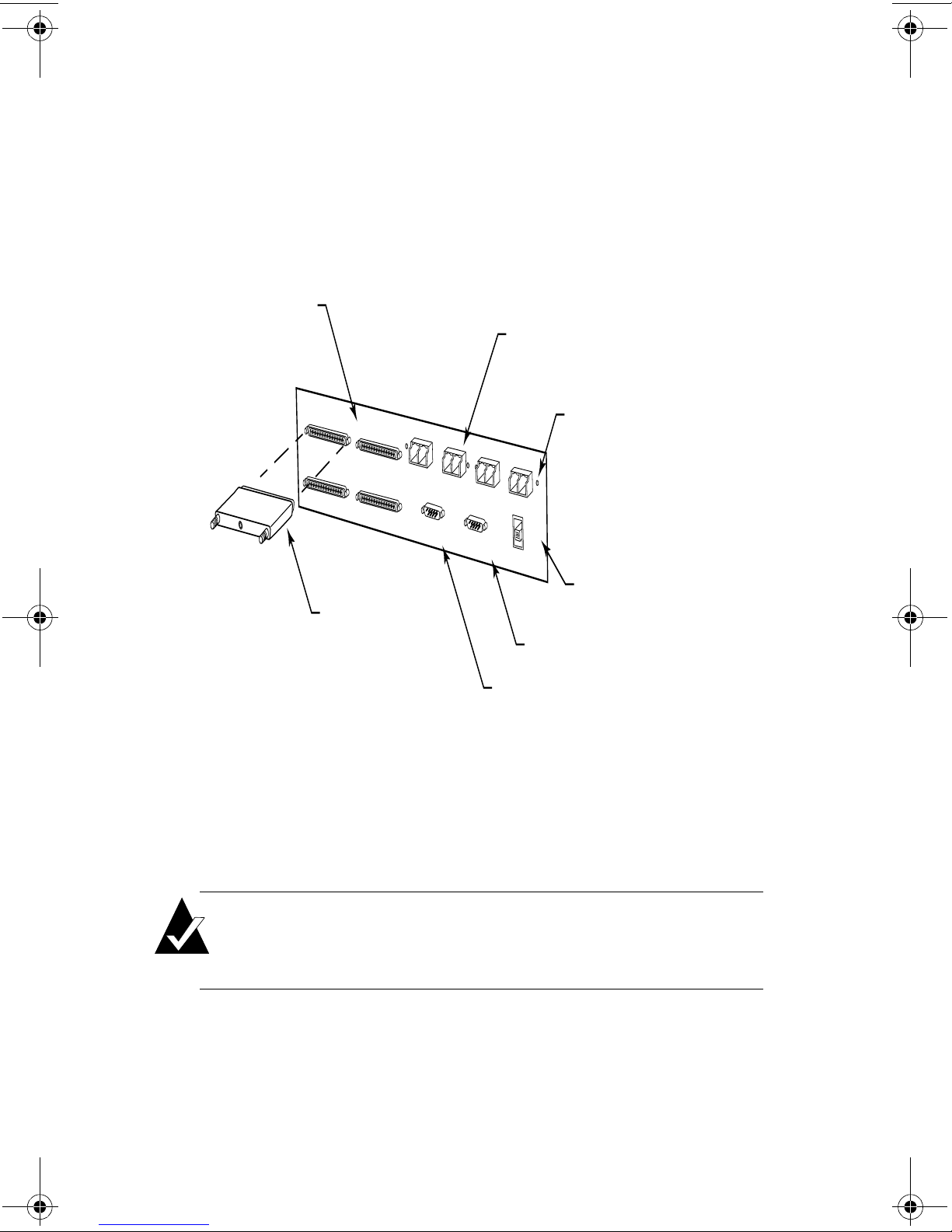

Figure 2-10. DuraStor Fibre Channel RAID Appliance I/O Connectivity
Panel
There are four 2-Gb Fibre Channel (FC) ports which provide the
connectivity from the host system FC HBAs to the RAID appliance
host channels. Each port has an FC link LED to indicate a valid FC
loop connection. These LEDs are marked with Tx and Rx.
Note: The SFP transceivers are available in copper and
optical models. Be sure you have the correct transceiver for
your connectivity to your host HBA.
Ext
P-2
Int
DISK CH 2DISK CH 1
DISK CH 3DISK CH 0
SERIAL B SERIAL A
Tx
Rx
P-1
Tx
P-3
Tx
Rx
P-4
Tx
Rx
Connects Controller 1 to an external VT-100 terminal
Fibre Channel Host Ports
(Connects to Host system
FC HBA Ports)
Disk Channel Ports
(Connects to NexStor 802S/1202S
Disk I/O card)
Valid FC Link LED
Connects Controller 2 to an external VT-100 terminal
Switches input mode from the
Operator Control Panel (Int) to the
VT-100 terminal (Ext)
Ultra-160 Terminator
DuraStor IUG.book Page 10 Wednesday, January 30, 2002 10:49 AM
