Adaptec RAIDStation RS/7F User manual

RAIDstationTM RS/7F KIT
Fibre Channel Storage Arrays
January 2001
DO-1016-001

Copyright
2001 Adaptec, Inc. All rights reserved. No part of this publication may be repro-
duced, stored in a retreival system, or transmitted in any form or by any means,
electronic, mechanical, photocopying, recording or otherwise, without the prior
written consent of Adaptec, Inc., 691 South Milpitas Blvd., CA95035.
Trademarks
Adaptec and the Adaptec logo are trademarks of Adaptec, Inc., which may be
registered in some jurisdictions. Windows 95, Windows 98, Windows NT, and
Windows 2000 are trademarks of Microsoft Corporation in the US and other
countries, used under license.
All other trademarks are the property of their respective owners.
Changes
The material in this document is for information only and is subject to change
without notice. While reasonable efforts have been made in the preperation of
this document to assure its accuracy, Adaptec, Inc. assumes no liability resulting
from errors or omissions in this document, or from the use of the information
contained herein.
Adaptec reserves the right to make changes in the product design withour reser-
vation and without notification to its users.
Disclaimer
IF THIS PRODUCT DIRECTS YOU TO COPY MATERIALS, YOU MUST
HAVE PERMISSION FROM THE COPYRIGHT OWNER OF THE MATERI-
ALS TO AVOID VIOLATING THE LAW WHICH COULD RESULT IN DAM-
AGES OR OTHER REMEDIES.

FCC Statement
Warning: Changes or modifications to this unit not expressly approved by the party re-
sponsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to pro-
vide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or tele-
vision reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following mea-
sures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the follow-
ing two conditions: (1) This device may not cause harmful interference, and (2) this de-
vice must accept any interference received, including interference that may cause
undesired operation.

Limited 3-Year Warranty
Adaptec, Inc. (“Adaptec”) warrants to the end-user purchaser of this product that
it will be free from defects in material and workmanship for a period of three (3)
years from the date of purchase. If the product should become defective within
the warranty period, Adaptec, at its option, will repair or replace the product, or
refund the purchaser’s purchase price for the product, provided it is delivered, at
the purchaser’s expense, to an authorized Adaptec service facility or to Adaptec.
Repair or replacement parts or products will be furnished on an exchange basis
and will either be new or reconditioned. All replaced parts or products shall
become the property of Adaptec. This warranty shall not apply if the product has
been damaged by accident, misuse, abuse or as a result of unauthorized service or
parts.
Warranty service is available to the purchaser by delivering the product during
the warranty period to an authorized Adaptec service facility or to Adaptec and
providing proof of purchase price and date. The purchaser shall bear all ship-
ping, packing and insurance costs and all other costs, excluding labor and parts,
necessary to effectuate repair, replacement or refund under this warranty.
For more infromation on how to obtain warranty service, write or telephone
Adaptec at 691 South Milpitas Boulevard, Milpitas, CA 95035, or telephone:
[phone].
THIS LIMITED WARRANTY DOES NOT EXTEND TO ANY PRODUCT
WHICH HAS BEEN DAMAGED AS A RESULT OF ACCIDENT, MISUSE,
ABUSE OR AS A RESULT OF UNAUTHORIZED SERVICE OR PARTS.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED
WARRANTIES FOR THIS PRODUCT. IN THE EVENT THIS PRODUCT
BECOMES DEFECTIVE DURING THE WARRANTY PERIOD, THE PUR-
CHASER’S EXCLUSIVE REMEDY SHALL BE REPAIR, REPLACEMENT
OR REFUND AS PROVIDED ABOVE. INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES, INCLUDING WITHOUT LIMITATION LOSS OF DATA,
ARISING FROM BREACH OF ANY EXPRESS OR IMPLIED WARRANTY
ARE NOT THE RESPONSIBILITY OF ADAPTEC AND, TO THE EXTENT
PERMITTED BY LAW, ARE HEREBY EXCLUDED BOTH FOR PROPERTY
DAMAGE, AND TO THE EXTENT NOT UNCONSCIONABLE, FOR PER-

SONAL INJURY DAMAGE. TO THE EXTENT LOCAL LAW PROHIBITS
THE DISCLAIMING OF IMPLIED WARRANTIES, ANY IMPLIED WAR-
RANTY SHALL HAVE NO GREATER DURATION THAN 3 YEARS FROM
THE DATE OF PURCHASE AND SHALL TERMINATE AUTOMATICALLY
AT THE EXPIRATION OF SUCH PERIOD.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PROD-
UCTS, AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRATY LASTS, SO THE ABOVE LIMITATION OR
EXCLUSIONS MAY NOT APPLY TO YOU.
This warranty gives you specific legal rights, and you may also have other rights,
which vary, from state to state.
Adaptec Customer Support
If you have questions about installing or using your Adaptec product, check this
user’s guide first—you will find answers to most of your questions here. If you
need further assistance, use the support options listed below.
Technical Support Identification (TSID) Number
✿ The 12-digit TSID can be found on the white barcode-type label included
inside the box with your product. The TSID helps us provide more efficient ser-
vice by accurately identifying your product and support status. The TSID is
required when contacting Technical Support.
✿ Affix your TSID label here:
Support Options
✿ Search the Adaptec Support Knowledgebase (ASK) at http://
ask.adaptec.com for articles, troubleshooting tips, and frequently asked ques-
tions for your product.
✿ For support via Email, submit your question to Adaptec’s Technical Support
Specialists at http://ask.adaptec.com.

North America
✿ Visit our Web site at http://www.adaptec.com.
✿ For information about Adaptec’s support options, call [phone], 24
hours per day, 7 days per week.
✿ To speak with a Technical Support Specialist: For Hardware products call
[phone], Monday–Friday, 6:00 A.M. to 5:00 P.M., Pacific Time.
For RAID and Fibre Channel call [phone], Monday–Friday, 3:00
A.M. to 5:00 P.M., Pacific Time.
To expedite your service, have your computer in front of you.
✿ To order Adaptec products, including software and cables, call +1 800-442-
7274 or [phone].
Europe
✿ Visit our Web site at http://www.adaptec-europe.com.
✿ English and French: To speak with a Technical Support Specialist, call one of
the following numbers, Monday–Thursday, 10:00 to 12:30 and 13:30 to 17:30;
Friday, 10:00 to 12:30 and 13:30 to 16:30, Central European Time:
✿ English: [phone]
✿ French: [phone]
To expedite your service, have your computer in front of you.
✿ German: To speak with a Technical Support Specialist, call +49 89 456
40660, Monday–Thursday, 09:30 to 12:30 and 13:30 to 16:30; Friday, 09:30 to
12:30 and 13:30 to 15:00, Central European Time. To expedite your service, have
your computer in front of you.
✿ To order Adaptec products, including accessories and cables:
✿ UK: +0800 96 65 26 or fax [phone]
✿ Other European countries: [phone]

Australia and New Zealand
✿ Visit our Web site at http://www.adaptec.com.au.
✿ To speak with a Technical Support Specialist, call [phone], Monday–
Friday, 10:00 A.M. to 4:30 P.M., Eastern Australia Time. To expedite your ser-
vice, have your computer in front of you.
Hong Kong and China
✿ Visit our Web site at http://www.adaptec.com.
✿ To speak with a Technical Support Specialist, call [phone], Monday–
Friday, 10:00 to 17:00.
✿ Fax Technical Support at [phone].
Singapore
✿ Visit our Web site at http://www.adaptec.com.
✿ To speak with a Technical Support Specialist, call [phone], Monday–Fri-
day, 10:00 to 17:00.

T-1
Table of Contents
Chapter 1:
Introduction ...................................................................... 1-1
Scope............................................................................. 1-1
Configurations............................................................... 1-1

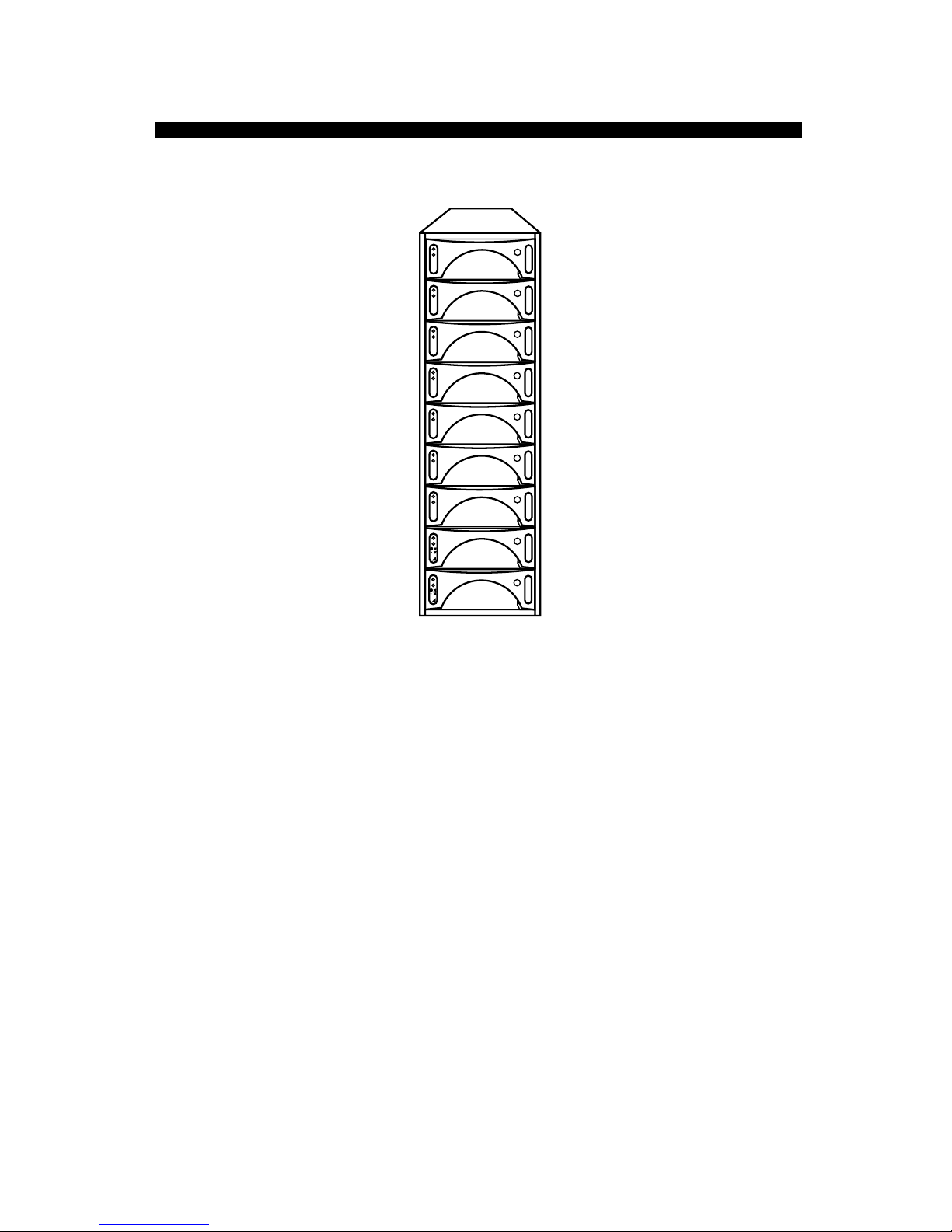

RAIDStation7 Fibre Channel Tower............................. 1-1
RAIDStation7 Fibre Channel Rackmount .................... 1-2

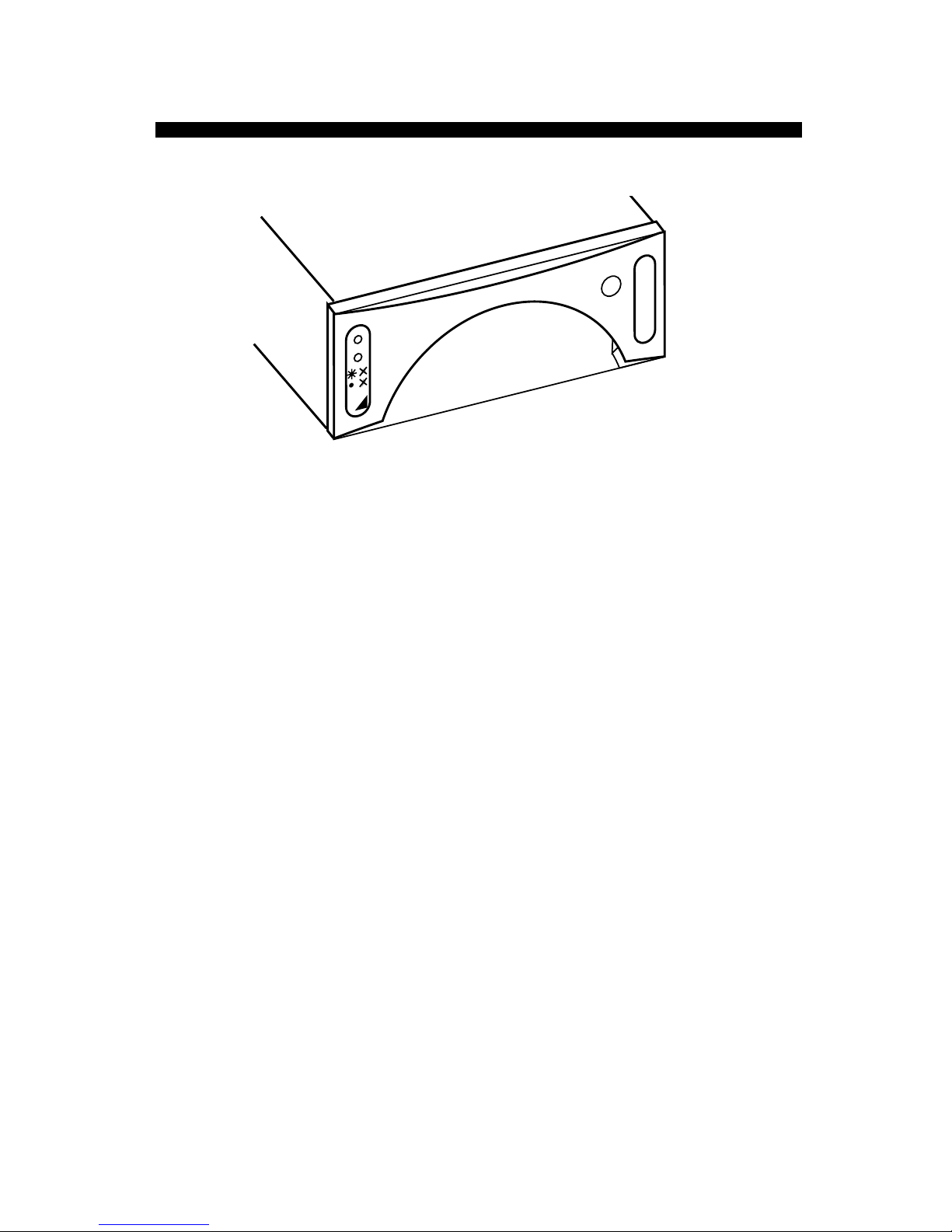

Hard Disk Drive Carrier................................................ 1-3
Cooling.......................................................................... 1-4
Environmental Monitoring............................................ 1-4
Power Supplies.............................................................. 1-4
Chapter 2:
Unpacking and Initial Setup.............................................. 2-1
Rackmounting Recommendations......................................... 2-2
Ambient Temperature ................................................... 2-2
Air Flow........................................................................ 2-2
Mechanical Stability ..................................................... 2-2
Electrical Considerations....................................................... 2-3
Circuit Overloading....................................................... 2-3
Grounding ..................................................................... 2-3
Device Insertion .................................................................... 2-4
Power Supply Insertion................................................. 2-5
Disk Drive Carrier Insertion ......................................... 2-5
Advanced Cooling Module Insertion............................ 2-6
Port Bypass Card Insertion ........................................... 2-7
Rackmounting a Storage Array..................................... 2-7
Chapter 3:
Cabling and Configuration.............................................. 3-1
Cabling the RAIDStation7 Fibre Channel Storage Array..... 3-2
Cabling A Single RAIDStation7 Fibre Channel Storage
Array with a Single Port Bypass Circuit....................... 3-3
Cabling Multiple RAIDStation7 Fibre Channel Storage
Arrays with a Single Port Bypass Circuit ..................... 3-4
Dual Port Bypass Circuits............................................. 3-6

T-2
Table of Contents
Setting the Storage Array IDs ............................................... 3-7
Attaching the RAIDStation7 Fibre Channel Storage Array
to an AC Power Source....................................................... 3-10
Chapter 4:
Environmental Monitoring.............................................. 4-1
Versatile Environmental Monitor (VEM)............................. 4-2
VEM Features............................................................... 4-3
Communications ........................................................... 4-4
VEM Fault Notification................................................ 4-5
Advanced Cooling Module Failure LED...................... 4-5
Disk Drive Carrier LEDs.............................................. 4-6
Power Supply Carrier LEDs ......................................... 4-7
Chapter 5:
Removing and Installing Components ............................. 5-1
Device Carrier Removal and Installation.............................. 5-1
Power Supply Removal and Installation....................... 5-2
Disk Drive Carrier Removal and Installation ............... 5-3
ACM Removal and Installation .................................... 5-4
Removing/Installing Storage Array in Rack Cabinet ... 5-5
VEM Removal and Installation .................................... 5-6
Port Bypass Circuit Removal and Installation.............. 5-7
Appendix A:
Technical Specifications.................................................. A-1

1-1
Introduction
Chapter 1: Introduction
Scope
This User’s Manual covers the RAIDstation7 Fibre Channel Storage Arrays and
their associated optional and replacement products.
Configurations
The RAIDstation7 Fibre Channel Storage Array is available in a tower (RS/7F
KIT) or a 19”rackmount (RS/7FR KIT) model.
Each Storage Array consists of nine storage bays: seven for hard disk drives and
two for power supplies.
Models covered by this Users Manual
•RS/7F KIT
•RS/7FR KIT
RAIDStation7 Fibre Channel Tower
The tower model contains two power supply units, a maximum of seven Fibre
Channel hard disk drives, three Advanced Cooling Modules (ACMs), an Versatile
Environmental Monitor (VEM), and a single Fibre Channel loop (an optional sec-
ond loop is available from Adaptec as an upgrade). The tower Storage Array is
connected to the host system using the included Fibre Channel cable.

1-2
Introduction
Figure 1-1. RAIDStation7 Fibre Channel Tower
RAIDStation7 Fibre Channel Rackmount
The RAIDStation7 rackmount model can be mounted in any standard equipment
rack with a front width of 19 inches. The procedure for mounting the rackmount
Storage Array in the equipment rack is described in Chapter 2.
The rackmount Storage Array consists of two power supply units, a maximum of
seven fibre channel hard disk drives, three Advanced Cooling Modules (ACMs),
an Versatile Environmental Monitor (VEM), and a single Fibre Channel loop (an
optional second loop is available from Adaptec as an upgrade). The rackmount
Storage Array is connected to the host system using the included Fibre Channel
cable.
110V
110V

1-3
Introduction
Figure 1-2. RAIDStation7 Fibre Channel Rackmount
Hard Disk Drive Carrier
Front loaded hard disk drives are housed in hot-swap carriers. The carriers are of
high quality anodized metal construction. This allows for rapid heat dissipation
and conforms to the stringent requirements of CE and FCC standards. A diagram
of a carrier is shown in Figure 1-3.
Figure 1-3. Hard Disk Drive Carrier
110V
110V
Power
Supplies
Disk
Drives

1-4
Introduction
Cooling
All RAIDStation7 Fibre Channel models feature three Advanced Cooling Mod-
ules (ACMs). The modules are mounted at the rear of the unit. In the event of
ACM failure, two ACMs are capable of cooling the entire Storage Array until a
replacement ACM is installed.
CAUTION: The failed ACM should be replaced as soon as possible in case
another ACM failure occurs.
Environmental Monitoring
The Versatile Environmental Monitor (VEM) monitors the ACMs, hard disk
drives, power supplies, and Storage Array shelf temperature.
Power Supplies
The RAIDStation7 Fibre Channel Storage Array is available in an AC-powered
model.
AC Power Supply
The RAIDStation7 Fibre Channel Storage Array uses two high performance, hot
swap AC power supply units. A single power supply is rated at 370 Watts peak.
Each power supply has greater than 500,000 hours Mean Time Between Failures
(MTBF). In the event one power supply fails, the second power supply can easily
power the entire Storage Array until the failed unit is replaced. A diagram of the
power supply unit is shown in Figure 1-4.

1-5
Introduction
Figure 1-4. AC Power Supply Unit
110/220

1-6
Introduction

2-1
Unpacking and Initial Setup
Chapter 2: Unpacking and Initial Setup
Upon receipt, visually inspect the exterior of the packaging for any signs of dam-
age. If any damage is found, the shipping company and Adaptec must be notified
immediately, and they will advise you of the appropriate action. The cartons are
sealed using packaging tape, which should be carefully cut open in the normal
manner.
Remove the top foam layer from each box and exercise caution when lifting out
the components. At this point the contents should be verified against the packing
list and Adaptec should again be informed if any discrepancies exist. The devices
and power supply units are housed in anti-static packaging and anti-static precau-
tions must be observed during handling.
CAUTION: This equipment is intended only for installation in a restricted
access location.

2-2
Unpacking and Initial Setup
Rackmounting Recommendations
To ensure the safe and efficient operation of the RAIDstation7 Fibre Channel
rackmount Storage Array it is essential that you comply with the following guide-
lines. Adaptec’s rackmount systems may be installed in closed or open rackmount
cabinets by observing the environmental, electrical and mechanical precautions
listed in the following sections.
Ambient Temperature
Installation of rackmount systems in standard 19-inch equipment racks may lead
to a differential between the room ambient temperature and the internal ambient
temperature of the rack cabinet environment. The normal operating temperature
of the RAIDStation Fibre Storage Array is between 5oC and 30oC (between 41oF
and 86oF). The maximum operating temperature of the RAIDStation7 Fibre
Channel Storage Array is 40oC, 104oF. However, it is not recommended that the
system be continuously run at this elevated temperature for extended periods of
time.
Air Flow
To ensure that the RAIDstation7’s internal heat build-up is adequately dissipated
into the room environment, the Storage Array’s air flow must not be restricted.
No air vents or ducts can be blocked. The system must be a minimum of 1 meter
away from a solid surface such as a wall or partition. Air flow through the
RAIDstation7 Storage Array is from front to rear.
Mechanical Stability
Consideration should be given to the loading of the rack cabinet. To maintain a
low center of gravity (thus reducing the likelihood of instability and equipment
tipping) rackmount Storage Arrays should be installed (where possible) from the
bottom of the cabinet upwards. This is essential to ensure personal safety.

2-3
Unpacking and Initial Setup
Electrical Considerations
Circuit Overloading
Care should be taken to ensure that the current does not exceed the rating of the
power source circuitry. This includes cabling, power distributions, filters and any
other components through which the main AC flows. The power requirements of
the RAIDstation7 Fibre Channel Storage Array (both tower and rackmount) is
given in Table 2-1and Table 2-2.
These power requirements must be added to the power demands of any other
electrical devices installed in the equipment rack to calculate the total power con-
sumption of the complete system. In addition, any surge currents must be consid-
ered. Hard disk drives normally consume greater than twice the amount of current
at start-up time than they use during steady state operation.
Grounding
Adaptec recommends that all rackmount Storage Array shelves be grounded to a
common point in the equipment rack. Each shelf should have a grounding braid
running from it to this common grounding point (see Figure 2-1 ). A point for
securing the grounding braid is provided at the rear of Adaptec rackmount cabi-
nets.
Table 2-1 AC Power requirements (47 to 63 Hz)
Amps Volts (AC)
1.5 187 to 264
3 85 to 132

2-4
Unpacking and Initial Setup
Figure 2-1. Grounding shelves within a 19 in. cabinet
Device Insertion
This section details how to install power supply units, disk drives, and Advanced
Cooling Modules (ACM). The installation of a RAIDStation7 rackmount Storage
Array is also covered. The position of the power supplies and the disk drives
within the RAIDstation7 Rackmount Storage Array is shown below. For the
tower version of the RAIDstation7 Storage Array, Figure 2-2 would be oriented
vertically, with bay 0 on top and bay 8 on the bottom.
Figure 2-2. Location of devices in tower or shelf
WARNING: Before attempting to install any of the components, ensure that
anti-static precautions have been taken. The minimum requirement is a
properly grounded anti-static wrist strap and grounding wire.
110V 110V
110V 110V
110V 110V
Connecting braid,
connected radially
from each shelf to
a common ground
point.
Power Supply
Power Supply
Disk Drive 7
Disk Drive 6
Disk Drive 5
Disk Drive 4 Disk Drive 3
Disk Drive 2
Disk Drive 1
Bay 0
Bay 8
