1. Overview
1.1 Description
EM500-SWL is an outdoor environment monitoring sensor mainly used to measure liquid level
data through wireless LoRa network. EM500-SWL device is battery powered and designed for
multiple mounting ways. It is equipped with NFC (Near Field Communication) and can easily be
configured by a smartphone or a PC software.
Sensor data are transmitted in real-time using standard LoRaWAN protocol. LoRaWAN enables
encrypted radio transmissions over long distance while consuming very little power.
The user can obtain sensor data and view the trend of data change through Ursalink Cloud or thr
ough the user's own Network Server.
1.2 Features
Large measurement range for liquid level measurement
Up to 11km communication range
Easy configuration via NFC
Standard LoRaWAN support
Ursalink Cloud compliant
Low power consumption with 19000mAh replaceable battery
1.3 Specifications
LoRaWAN
Frequency
EU433/CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
Tx Power
20dBm
Sensitivity
-147dBm @300bps
Mode
OTAA/ABP Class A
Antenna
Embedded Ceramic Antenna
Temperature Measurement
Pressure Type
Gauge Pressure
Range
EM500-SWL-W003: 3m H2O
EM500-SWL-W005: 5m H2O
EM500-SWL-W010: 10m H2O
(Customizable up to 200m and for other liquid)
Accuracy
± 0.5% FS
Physical Characteristics
Cable Length
At least should be 1-1.5m longer than measuring range

EM500-SWL User Guide
5
Power Supply
19000 mAh Li-SoCl2battery
Battery Life
4.5 year (10 min interval, SF12)
>10 year (10 min interval, SF7)
Operating Temperature
Transceiver: -30°C to +70°C
Pressure Sensor: -10°C to +60°C
Relative Humidity
0% to 100% (non-condensing)
Dimension
Transceiver: 105.4 × 71 × 69.5 mm
(Waterproof connector is not included)
Level Sensor: 122 × ф26 mm
Mounting
Pole, wall, DIN rail
2. Hardware Introduction
2.1 Packing List
1 × EM500-SWL
(Include sensor)
2 × Mounting
Screws
1 × Hose
Clamp
1 × Warranty Card
1 × Quick Guide
1 × DIN Rail (Optional)
If any of the above items is missing or damaged, please contact your Ursalink sales
representative.

EM500-SWL User Guide
6
2.2 Transceiver Overview
2.3 Dimensions(mm)
3. Assembly and Preparation
3.1 Sensor Assembly
Follow the steps below to connect light sensor cable to EM500 transceiver if they are
separated.
Front View:
①LoRa Antenna (Internal)
②NFC Area
③Water-proof Connector with Vent
Back View:
④Battery (Internal)
⑤Wall Mounting Holes
⑥Pole Mounting Holes

EM500-SWL User Guide
7
Pinouts:
3.2 Insulating Sheet Disassembly
Pull out the insulating sheet on the side of the battery and check if electrode of the battery is
reversed.
Note: Refer to Chapter 4 to check if EM500 can be turned on via power button.
PIN
Color
Description
1
Red
GND
2
--
--
3
---
--
4
White
B
5
Yellow
A
6
Black
VOUT=12V
4. Put the motherboard back and restore
everything in its due position.
3. Pull out the motherboard, insert and lock
the wires accordingly (see the label on the
motherboard or following picture).
2. Pass the cable through the cap, rubber seal
and enclosure cover.
1. Take off the mounting bracket, remove the cap,
rubber seal and the screws on the bottom of the
device, and then take off the enclosure cover.

EM500-SWL User Guide
8
4. Turn ON/OFF and Reset (Power Button)
The LED indicator is inside the device. EM500-SWL can also be turned on/off and
reset via Mobile APP or Toolbox.
Function
Action
LED Indication
Turn On
Press and hold the button for more than
3 seconds.
Off → Static Green
Turn Off
Press and hold the button for more than
3 seconds.
Static Green -> Off
Reset
Press and hold the button for more than
10 seconds.
Note: EM500 will automatically power on after
reset.
Blink 3 times.
Check On/Off Status
Quickly press the power button.
Light On: Device is on.
Light Off: Device is off.
5. Sensor Configuration
Ursalink EM500-SWL sensor can be monitored and configured via one of the following methods:
Mobile APP (NFC);
Windows software (NFC or Type-C port).
In order to protect the security of sensor, password validation is required when first configuration.
Default password is 123456.
5.1 Configuration via Smartphone APP
Preparation:
Smartphone (NFC supported)
Toolbox APP: APP can be downloaded on Google Play or Apple Store.

EM500-SWL User Guide
9
5.1.1 Read/Write Configuration via NFC

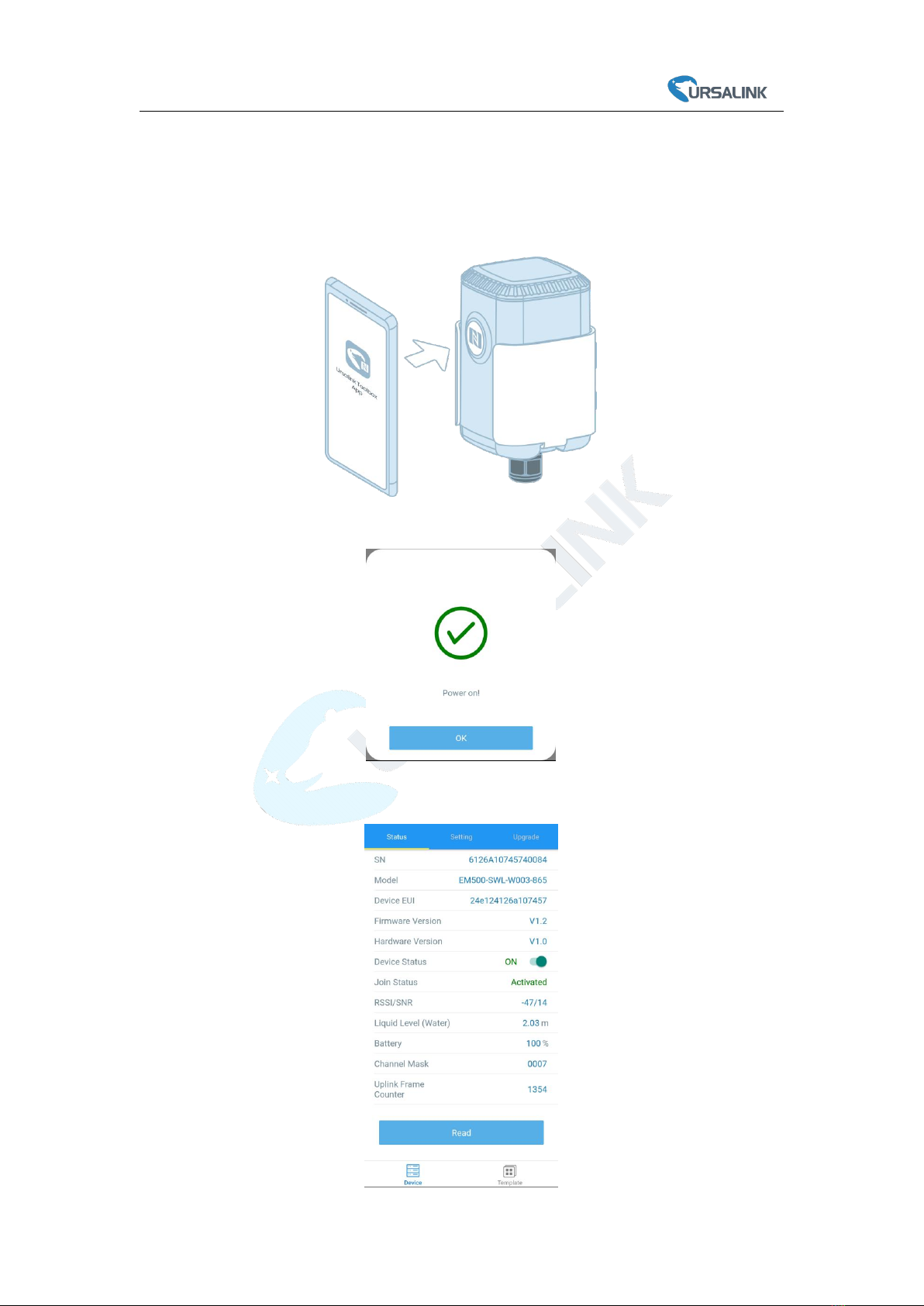

1. Enable NFC on the smartphone and open “Toolbox” APP.
2. Attach the smartphone with NFC area to the device to read basic information.
Note: Ensure your smartphone NFC area and it is recommended to take off phone case before
using NFC.
3. Click “Write” to change the configuration of EM500 and attach the smartphone with NFC area
to the device until the APP shows a successful prompt.
4. Go to “Device” > “Status” and click “Read” and attach the smartphone with NFC area to the
device to read real-time data of sensor.

EM500-SWL User Guide
10
5.1.2 Template Configuration
Template settings are used for easy and quick device configuration in bulk.
Note: Template function is allowed only for sensors with the same model and LoRa frequency
band.
1. Go to “Template” page on the APP and save current settings as a template.
2. Attach the smartphone with NFC area to another device.
3. Select the template file from Toolbox APP and tap “Write”.
4. Keep the two devices close until the APP shows a successful prompt.

EM500-SWL User Guide
11
5. Slide the template item to the left to edit or delete the template.
5.2 Configuration via PC
Preparation:
Dedicated NFC Reader or Type-C USB cable
PC (Windows 10 is recommended)
Toolbox: https://www.ursalink.com/en/software-download/
5.2.1 Log in the Toolbox
Make sure “Toolbox” is downloaded on your computer. Select one of the following methods to
log in Toolbox.
Type-C Connection
1. Connect the EM500-SWL to computer via type-C port.
Type-C port is inside the transceiver of the EM500-SWL.
2. Select type as “General” and click password to log in Toolbox. (Default password: 123456)

EM500-SWL User Guide
12
NFC Connection
1. Connect the NFC reader to computer, then attach the EM500-SWL to NFC area of the reader.
2. Select type as “NFC” and serial port as NFC reader port on Toolbox.
5.2.2 Basic Configuration
1. Click “Read” to read current data of the sensor.

EM500-SWL User Guide
13
2. When you perform one of the following operations, type the password and click “Enter”, then
wait a few seconds until toolbox shows a successful prompt. (Password is not needed if you
connect it via type-C port)
Turn on/off the sensor
Reset the sensor
Click “Write” to change settings
Upgrade
5.2.3 Template Settings
Note: Template function is allowed only for sensors with the same model and LoRa frequency
band.
1. Go to “Maintenance -> Template and Reset” page in Toolbox.
2. Click “Export” to save the current settings as a template.
3. Click “Browse” to select the correct template from computer.
4. Click “Import” to import the template to the device.

EM500-SWL User Guide
14
5.2.4 Upgrade
1. Download firmware on your computer.
2. Go to “Maintenance -> Upgrade” page in Toolbox.
3. Click “Browse” and select the firmware from computer.
4. Click “Upgrade” to upgrade the device.
Note: If NFC connection is selected, please keep the two devices close and don’t move them in
order to get the best connectivity as possible when upgrading.
5.3 Configuration Examples
5.3.1 LoRaWAN Channel Settings
The configuration of LoRaWAN channel of EM500-SWL must match the LoRaWAN gateway’s.
Refer to Appendix to check default channel settings of EM500-SWL.
Mobile APP Configuration:
Open Toolbox APP and go to “Device ->Setting -> LoRaWAN Settings”to change the frequency and
channels.
Software Configuration:
Log in Toolbox and go to “LoRaWAN Settings -> Channel” to change frequency and channels.

EM500-SWL User Guide
15
Note: If frequency is one of CN470/AU915/US915, you can enter the index of the channel that
you want to enable in the input box, making them separated by commas.
Examples:
1, 40: Enabling Channel 1 and Channel 40
1-40: Enabling Channel 1 to Channel 40
1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60
All: Enabling all channels
Null: Indicates that all channels are disabled
5.3.2 Data Calibration Settings
Mobile APP Configuration:
Open Toolbox APP and go to “Device -> Setting -> Calibration Settings”to enable the calibration
and input the calibration value.
Software Configuration:
Log in Toolbox and go to “Device Settings -> Basic -> Calibration Settings” to enable the
calibration and type the calibration value.

EM500-SWL User Guide
16
5.3.3 Alarm Settings
EM500-SWL will upload the current data instantly after the threshold is triggered.
Mobile APP Configuration:
Open Toolbox APP and go to “Device -> Setting -> Threshold Settings”to enable the threshold
settings and input the threshold.
Software Configuration:
Log in Toolbox and go to “Device Settings -> Basic -> Threshold Settings” to enable the calibration
and input the calibration value.

EM500-SWL User Guide
17
6. Installation
6.1 Transceiver Installation
6.1.1 Wall Mounting
1. Attach the mounting bracket to the wall and mark the two holes(around 16mm) on the wall.
Note: The connecting line of two holes must be a horizontal line.
2. Drill the holes according to the marks and screw the mounting screws into the wall.
3. Mount the device on the wall.
6.1.2 Pole Mounting
1.Loosen the hose clamp by turning the locking mechanism counter-clockwise.
1. Straighten out the hose clamp and slide it through the rectangular holes in the mounting
bracket, wrap the hose clamp around the pole.
2. Use a screwdriver to tighten the locking mechanism by turning it clockwise.

EM500-SWL User Guide
18
6.1.3 DIN Rail Mounting
Use 2 pieces of M3 × 6 flat head Phillips screws to fix the DIN rail to the device, and then hang
the DIN rail on the mounting bracket. It is necessary to choose a standard bracket.
6.2 Sensor Installation
Lower the sensor via cable into the media until it is close to the bottom of tanks or ponds. Be
careful not to hit the bottom hard or touch hard objects like sand or sludge since it will damage
the sensor.
Note:
Ensure the gas holes of transmitter do not be blocked while mounting or using it.
To prevent the separation of level sensor and transceiver due to water shock and gravity,
please fix the sensor cable with a fixed bracket or wrap it around the pole.
If the sensor is to be used in a well or other locations with turbulence or other disturbances, it is
advisable to install a pipe to protect the sensor. Several holes should be drilled at different
heights of the pipe in order to let water flow into and remove dydrodynamic pressure.
Note: The pipe can’t be placed bend.

EM500-SWL User Guide
19
7. Payload Format
All data are based on following format:
Channel1
Type1
Data1
Channel2
Type2
Data2
Channel 3
...
1 Byte
1 Byte
N Bytes
1 Byte
1 Byte
M Bytes
1 Byte
...
Please refer to decoder example: https://github.com/Ursalink-CN/ursalink-decoder
Uplink Packet(HEX)
Downlink Packet(HEX)
Channel
Type
Data Example
Unit
01
75(Battery Level)
64 => 100
%
03
77 (Water Level)
02 00 => 00 02 = 2
cm
FF
01(Ursalink Protocol
Version)
01=> V1.0
/
09 (Hardware Version)
01 40=> V1.4
0a(Software Version)
01 14=> V1.14
0b(Device Restart
Notification)
ff (reserved)
0f(Device Type)
00 => Class A
16 (Device SN)
64 10 90 82 43 75 00 01
=>Device SN is 6410908243750001
Channel
Type
Data Example
Unit
FF
03(Set Reporting Interval)
b0 04 => 04 b0 = 1200
s

EM500-SWL User Guide
20
8.Sensor Management via Ursalink Cloud
Ursalink cloud is a comprehensive platform that provides multiple services including device
remote management and data visualization with the easiest operation procedures.
8.1 Ursalink Cloud Registration
Register and log in Ursalink Cloud.
Ursalink Cloud URL: https://cloud.ursalink.com/login.html
8.2 Add a Ursalink LoRaWAN Gateway
1. Enable “Ursalink” type network server and “Ursalink Cloud” mode in gateway web GUI.
Note: Ensure gateway has accessed the Internet.
