ADF Web HD67601-232-A1 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 1 di 30
User Manual
Revision 1.004
English
PROFINET / Serial - Converter
(Order Code: HD67601-232-A1, HD67601-485-A1,
HD67601-422-A1)
For Website information:
www.adfweb.com? roduct=HD67601
For rice information:
www.adfweb.com? rice=HD67601-232-A1
www.adfweb.com? rice=HD67601-485-A1
www.adfweb.com? rice=HD67601-422-A1
Benefits and Main Features:
Very easy to configure
Triple electrical isolation
Two ROFINET ports
Temperature range: -40°C/+85°C (-40°F/+185°F)
For other ROFINET products see also the following link:
Converter PROFINET to
www.adfweb.com? roduct=HD67078 (M-Bus)
www.adfweb.com? roduct=HD67090 (M-Bus ireless)
www.adfweb.com? roduct=HD67178 (SNMP Manager)
www.adfweb.com? roduct=HD67600 (NMEA 2000)
www.adfweb.com? roduct=HD67601 (Serial)
www.adfweb.com? roduct=HD67602 (Modbus Master)
www.adfweb.com? roduct=HD67603 (Modbus Slave)
www.adfweb.com? roduct=HD67604 (PROFIBUS Master)
www.adfweb.com? roduct=HD67605 (PROFIBUS Slave)
www.adfweb.com? roduct=HD67606 (CAN)
www.adfweb.com? roduct=HD67607 (CANopen)
www.adfweb.com? roduct=HD67608 (DeviceNet Master)
www.adfweb.com? roduct=HD67609 (DeviceNet Slave)
www.adfweb.com? roduct=HD67610 (J1939)
www.adfweb.com? roduct=HD67611 (Modbus TCP Master)
www.adfweb.com? roduct=HD67612 (Modbus TCP Slave)
www.adfweb.com? roduct=HD67614 (DMX)
www.adfweb.com? roduct=HD67660 (EtherNet/IP Slave)
www.adfweb.com? roduct=HD67661 (EtherNet/IP Master)
www.adfweb.com? roduct=HD67679 (BACnet Slave)
www.adfweb.com? roduct=HD67719 (BACnet Master)
www.adfweb.com? roduct=HD67818 (KNX)
www.adfweb.com? roduct=HD67848 (DALI)
www.adfweb.com? roduct=HD67952 (MQTT)
Do you have your customer protocol? Then go to:
www.adfweb.com? roduct=HD67003
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 2 di 30
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 8
CONFIGURATION 8
OWER SU LY 9
FUNCTION MODES 10
LEDS 11
ROFINET 12
RS232 13
RS485 13
RS422 14
USE OF COM OSITOR SW67601 15
NEW ROJECT / O EN ROJECT 16
SOFTWARE O TIONS 17
SET COMMUNICATION 18
XML FILE 19
U DATE DEVICE 20
SERIAL ROTOCOL 22
MECHANICAL DIMENSIONS 24
LC CONFIGURATION 25
ORDERING INFORMATIONS 28
ACCESSORIES 28
LC CONFIGURATION 29
DISCLAIMER 29
OTHER REGULATIONS AND STANDARDS 29
WARRANTIES AND TECHNICAL SU ORT 30
RETURN OLICY 30
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
ARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1.001 15/05/2013 Fl All Revision
1.002 08/10/2013 Fl All Revision
1.003 11/12/2013 Fl All Revision
1.004 21/12/2018 Ff All Added RS422 version

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 3 di 30
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 4 di 30

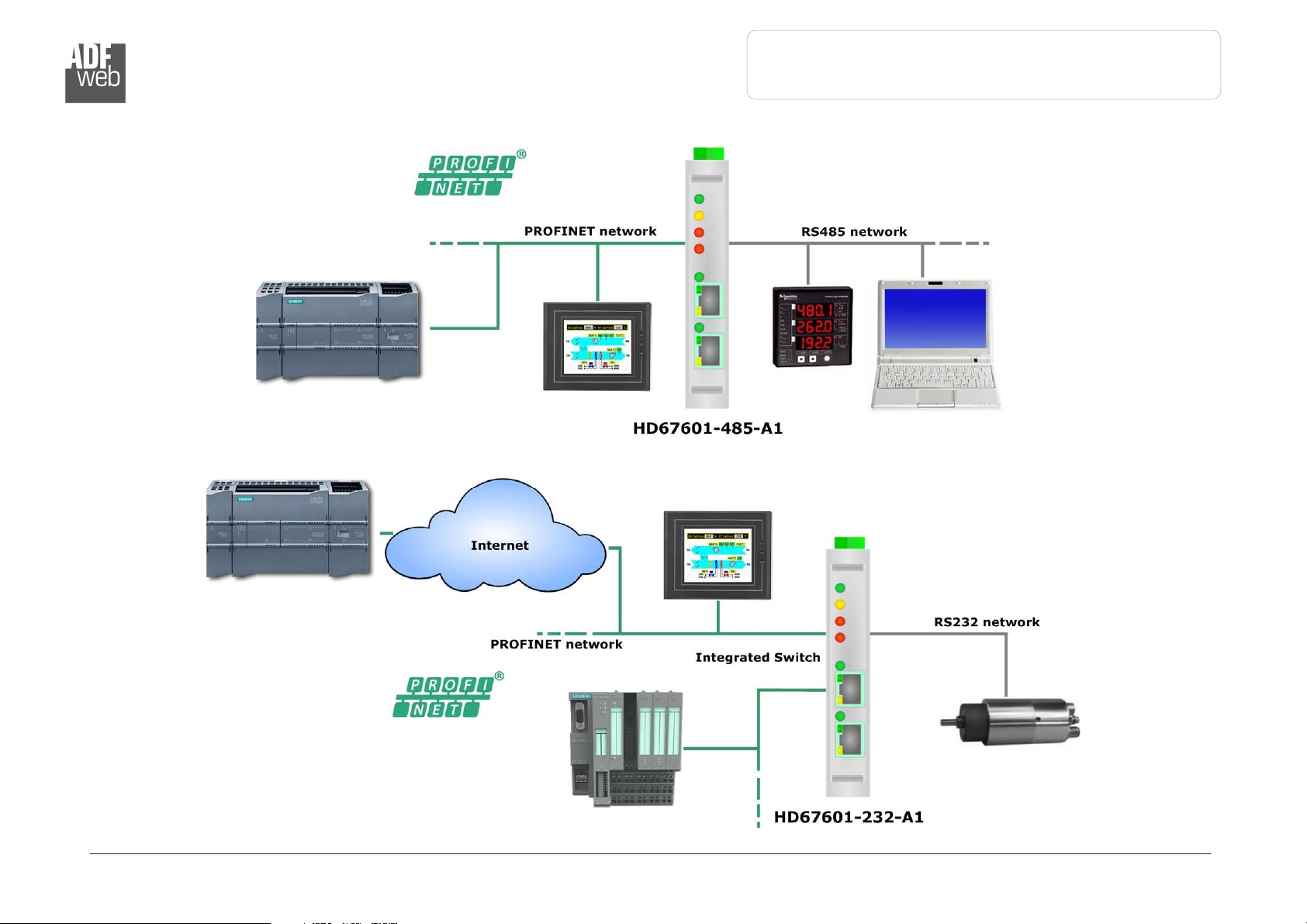

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 5 di 30
CONNECTION SCHEME:

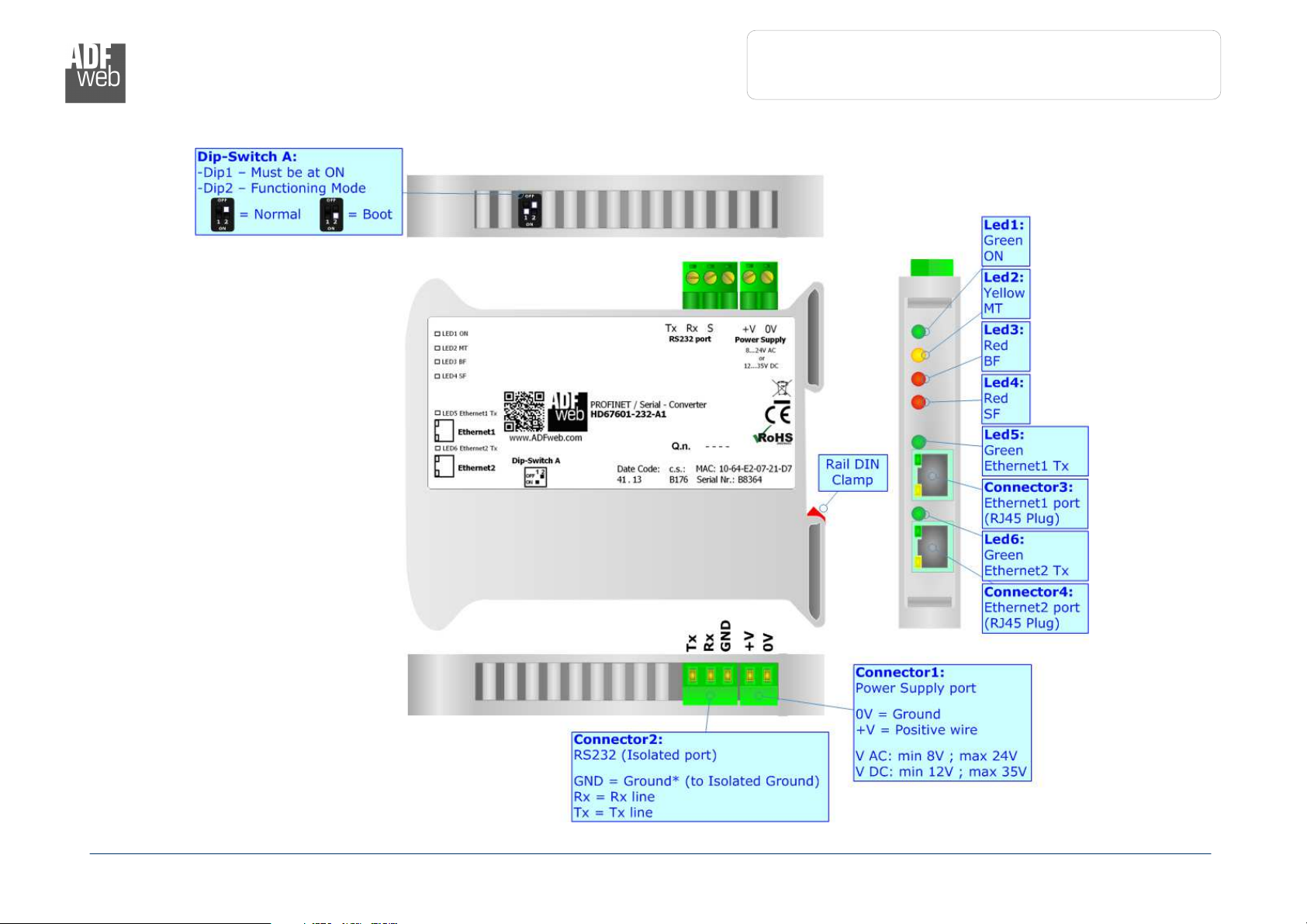

Figure 1a: Connection scheme for HD67601- 3 -A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 6 di 30
Figure 1b: Connection scheme for HD67601-485-A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 7 di 30

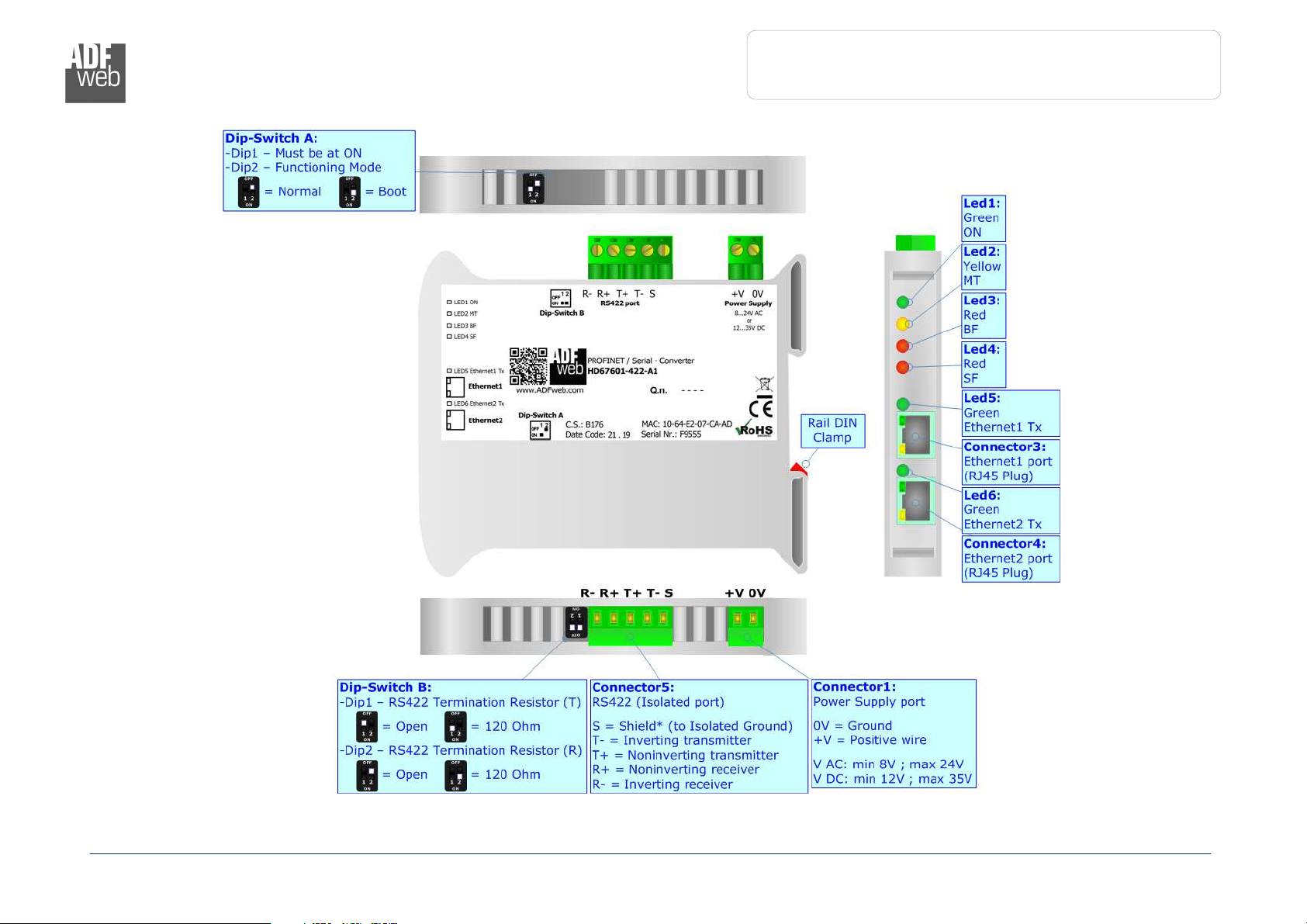

Figure 1c: Connection scheme for HD67601-4 -A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 8 di 30
CHARACTERISTICS:
The HD67601 is a ROFINET / Serial Converter.
It allows for the following characteristics:
Up to 498 bytes in reading and 498 bytes in writing;
Triple isolation between Serial - ower Supply, Serial - Ethernet, ower Supply - Ethernet.
Two-directional information between Serial and ROFINET;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67601 software on your C in order to perform the following:
Define the parameters of ROFINET line;
Define the parameters of Serial line;
Generate the XML file to be imported on the master ROFINET;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 9 di 30
PO ER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [ /VA]
HD67601-232-A1 3.5
HD67601-485-A1 3.5
HD67601-422-A1 3.5
HD67601
-
xxx
-
A1
Caution:
Do n
ot reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 10 di 30

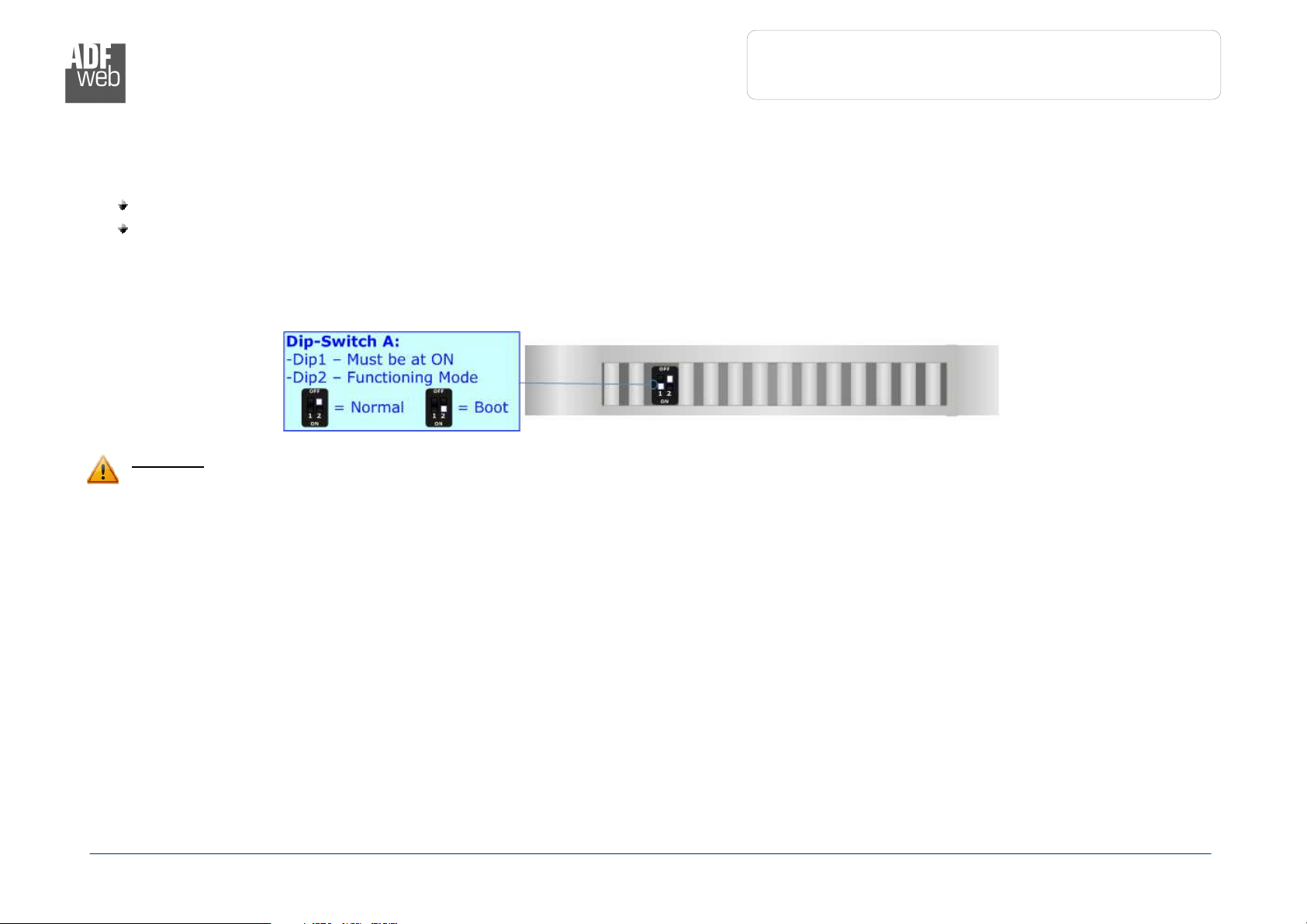

FUNCTION MODES:
The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’:
The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for uploading the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section.
Warning:
Dip1 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable is not inserted.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 11 di 30
LEDS:
The device has got six LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: ON [supply voltage ]
(green)
ON: Device powered
OFF: Device not powered
ON: Device powered
OFF: Device not powered
2: MT [maintenance display]
(yellow)
ON: Maintenance problem is present
OFF: No maintenance problems are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: BF [bus fault] (red)
ON: The Ethernet connection is defective; the I
address exists several times in the network; the own
NameOfStation exists several times in the network; no
I address has been set
Flashing: At least one configured AR is no longer in
the data exchange
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: SF [group error] (red) ON: At least one AR is not in the data exchange
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet1 Tx (green) Blinks when Ethernet frames are transmitted Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
6: Ethernet2 Tx (green) Blinks when Ethernet frames are transmitted Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 12 di 30
PROFINET:
The ROFINET connection must be made using Connector3 and/or Connector4 of HD67601-xxx-A1 with at least a Category 5E cable. The
maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to
100 Mbps. To connect the device to a Hub/Switch the use of a straight cable is recommended. To connect the device to a C/ LC/other the
use of a cross cable is recommended.
RS232:
The connection from a RS232 socket to a serial port (example one from a personal computer) must be made with a NULL MODEM cable (a
serial cable where the pins 2 and 3 are crossed).
It is recommended that the RS232 cable not exceed 15 meters.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 13 di 30
RS485:
To terminate the RS485 line with a 120Ω resistor, it is necessary to put dip 1 ON, like in figure.
The maximum length of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 14 di 30

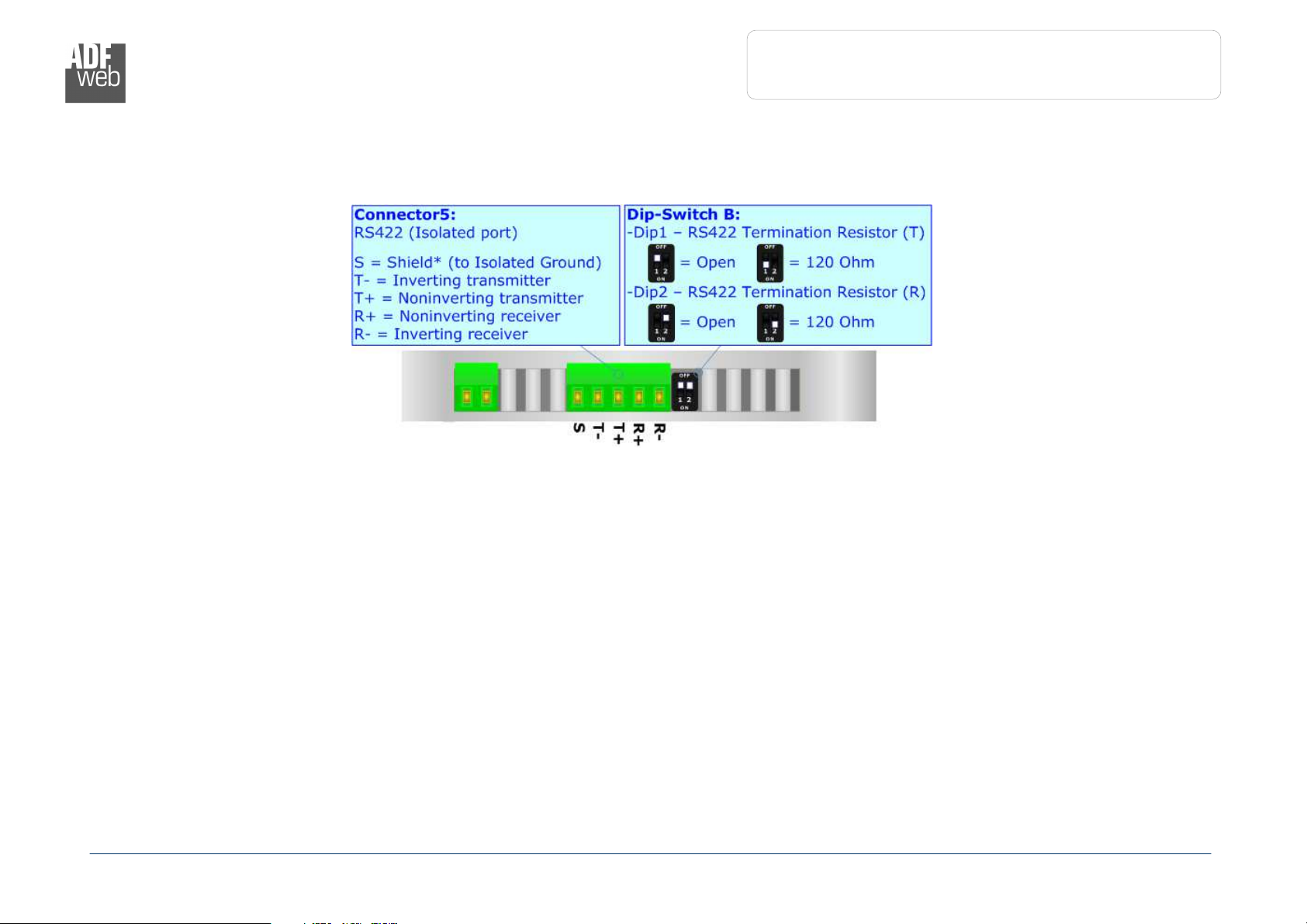

RS422:
For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1 for T line and/or put ON dip 2 for R line, like in figure.
The maximum length of the cable should be 1200m (4000 feet).

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 15 di 30
USE OF COMPOSITOR S 67601:
To configure the Converter, use the available software that runs with Windows called SW67601. It is downloadable from the site
www.adfweb.com and its operation is described in this document (this manual is referenced to the last version of the software present on our
web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).
When launching the SW67601, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure : Main window for SW67601

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 16 di 30

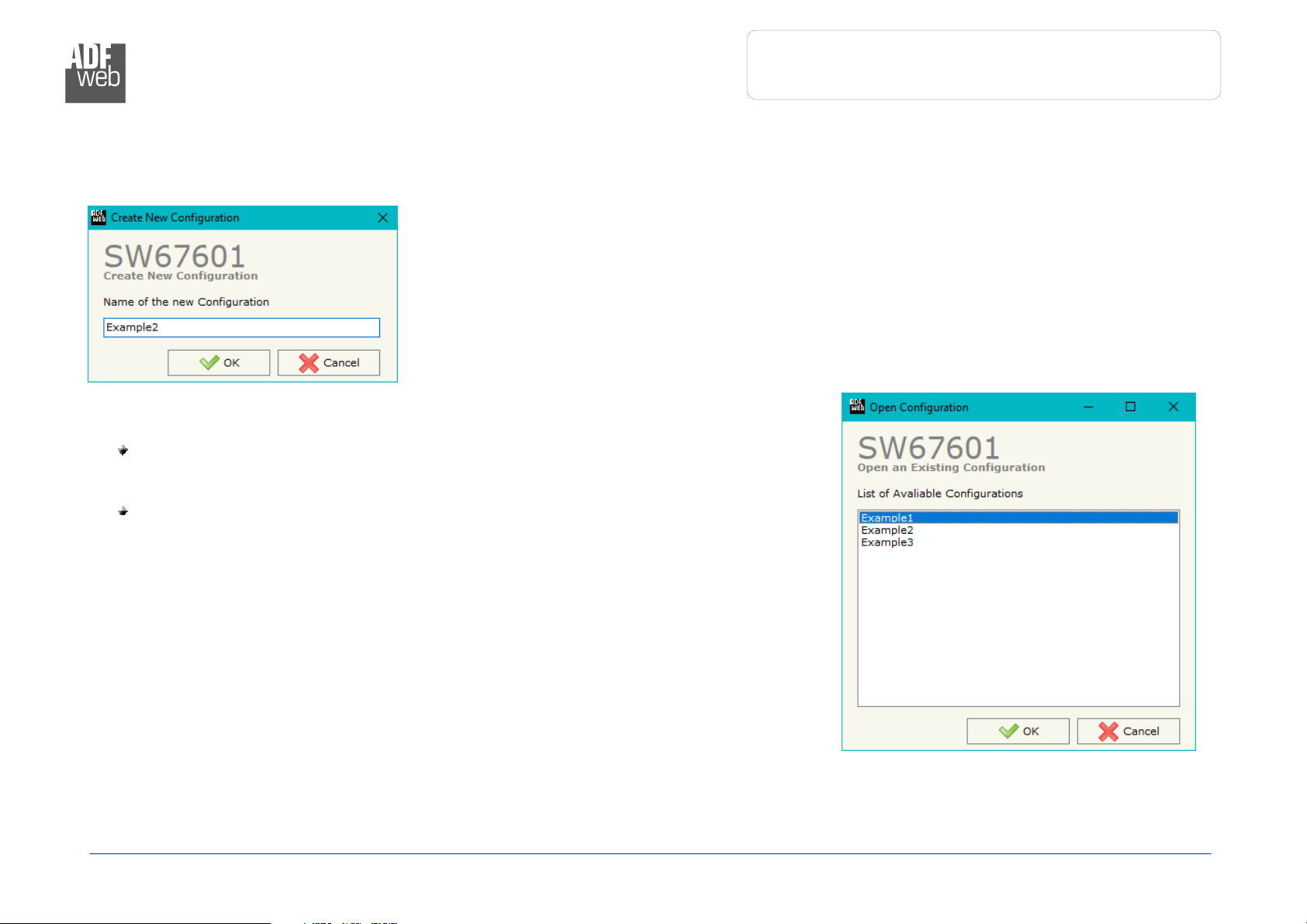

NE CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a rogrammable “ ROFINET / Serial - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 17 di 30
SOFT ARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67601 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 18 di 30
SET COMMUNICATION:
This section defines the fundamental communication parameters of two buses, ROFINET and Serial.
By ressing the “Set Communication” button from the main window for SW67601 (Fig. 2), the
window “Set Communication” appears (Fig. 3).
The window is divided in two sections, one for the ROFINET and the other for the Serial.
The meanings of the fields for “ ROFINET” are:
In the field “IP ADDRESS” the I address of the converter is defined;
In the fields “SUBNET Mask” the SubNet Mask of the converter is defined;
In the fields “GATE AY” the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field “Port” the port used for ROFINET communication is defined. The port has a fixed
value of 34964;
In the field "PROFINET Name of Station" it is possible to assign a name to the ROFINET
node;
In the fields “Number Byte IN” the number of input byte of the converter is defined;
In the fields “Number Byte Out” the number of output byte of the converter is defined.
The meanings of the fields for the “Serial” section are:
In the field “Serial” the serial to use is defined;
In the field “Baudrate” the baudrate for the serial line is defined;
In the field “Parity” the parity of the serial line is defined.
Note:
In the fields “Number Byte IN” and “Number Byte Out” insert the number of maximum
bytes that are sent/received plus 2. The value can be a maximum of 500 (498 data bytes + 2 fixed).

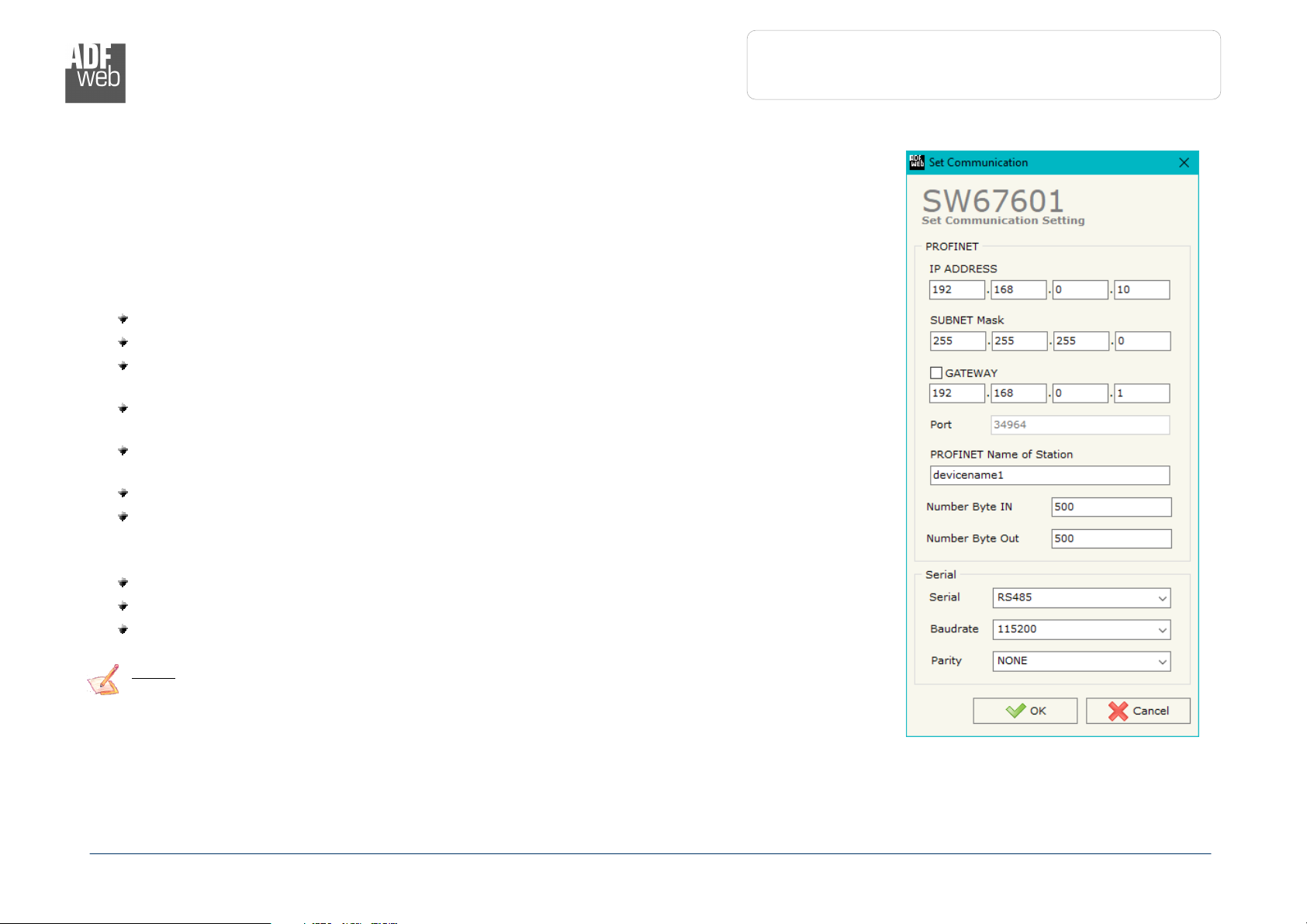

Figure
3
:
“Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 19 di 30
XML FILE:
By ressing the “PROFINET XML” button from the main window for SW67601 (Fig. 2) it is possible to generate the xml file to be imported
into the master ROFINET.

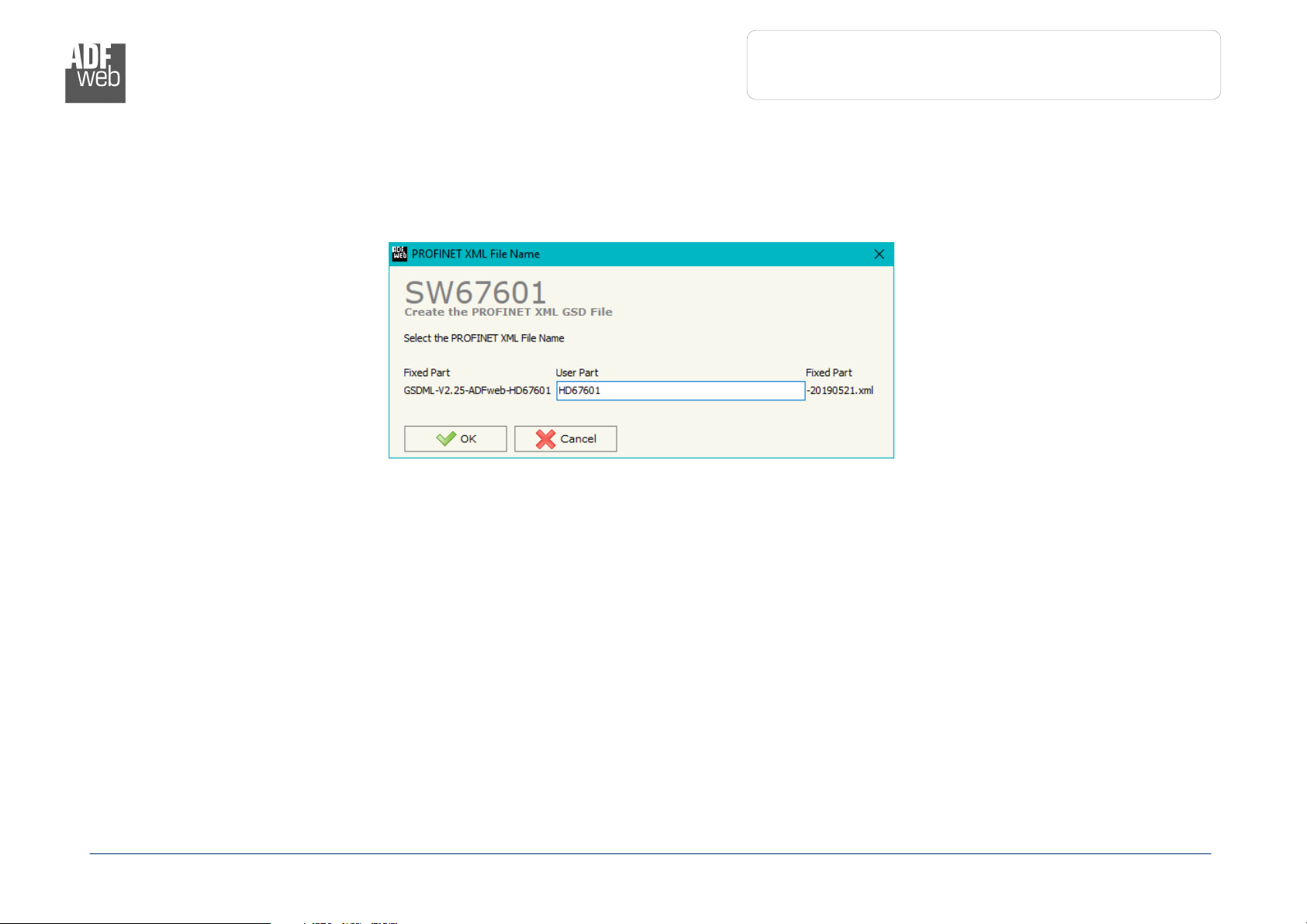

Figure
4
:
“PROFINET XML File Name” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
PROFINET / Serial
Document code: MN67601_ENG Revision 1.004 agina 20 di 30
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created Configuration into the
device; and also the Firmware, if necessary.
If you don’t know the actual I address of the device you have to use this procedure:
Turn off the Device;
ut Dip1 of ‘Dip-Switch A’ at ON position;
Turn on the device
Connect the Ethernet cable;
Insert the I “192.168.2.205”;
ress the “Ping” button, “Device Found!” must appear”;
ress the “Next” button;
Select which operations you want to do;
ress the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn off the Device;
ut Dip1 of ‘Dip-Switch A’ at OFF position;
Turn on the device.
If you know the actual I address of the device you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual I of the Converter;
ress the “Ping” button, must appear “Device Found!”;
ress the “Next” button;
Select which operations you want to do;
ress the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly updated.
Figure 5: “Update device” windows
