DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 1 di 38
User Manual
Revision 1.
English
DALI / DMX - Converter
(Order Code: HD67838-B2-Y, HD67838-B2-N)
for Website information:
www.adfweb.com?Product=HD67838
for Price information:
www.adfweb.com?Price=HD67838-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -4 °C/85°C (-4 °F/185°F)
For others DALI products, see also the following links:
Converter DALI to
www.adfweb.com?Product=HD67822 (KNX)
www.adfweb.com?Product=HD67831 (RS4 5)
www.adfweb.com?Product=HD67832 (BACnet/IP Master)
www.adfweb.com?Product=HD67833 (BACnet/IP Slave)
www.adfweb.com?Product=HD67834 (CAN)
www.adfweb.com?Product=HD67835 (CANopen)
www.adfweb.com?Product=HD67836 (DeviceNet Master)
www.adfweb.com?Product=HD67837 (DeviceNet Slave)
www.adfweb.com?Product=HD67839 (Ethernet)
www.adfweb.com?Product=HD6784 (EtherNet/IP)
www.adfweb.com?Product=HD67842 (Modbus Master)
www.adfweb.com?Product=HD67843 (Modbus Slave)
www.adfweb.com?Product=HD67844 (Modbus TCP Master)
www.adfweb.com?Product=HD67845 (Modbus TCP Slave)
www.adfweb.com?Product=HD67848 (PROFINET)
www.adfweb.com?Product=HD67849 (SNMP Manager)
www.adfweb.com?Product=HD6785 (SNMP Agent)
Do you have an your customer protocol?
www.adfweb.com?Product=HD67 3
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
User Manual
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]
Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India
www.axisindia.in | [email protected]

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 2 di 38
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
DALI 1
RS485 11
ETHERNET 12
USE OF COMPOSITOR SW67838 13
NEW PROJECT / OPEN PROJECT 14
SOFTWARE OPTIONS 15
SET COMMUNICATION 17
DALI ACCESS 18
DMX DEFAULT VALUE 19
UPDATE DEVICE 2
USE OF DALI CONSOLE SOFTWARE 22
STRUCTURE OF THE SOFTWARE 23
SETUP 24
NETWORK SETTING 25
DMX MAPPING 3
MECHANICAL DIMENSIONS 35
ORDERING INFORMATIONS 36
ACCESSORIES 36
DISCLAIMER 37
OTHER REGULATIONS AND STANDARDS 37
WARRANTIES AND TECHNICAL SUPPORT 38
RETURN POLICY 38
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1. 15/ 6/2 17 Ff All First Release

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 3 di 38
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 4 di 38
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 5 di 38
CONNECTION SCHEME:
Figure 1: Connection scheme for HD67838-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 6 di 38
CHARACTERISTICS:
The HD67838 is a DALI / DMX - Converter.
It has the following characteristics:
Up to 64 devices on DALI bus;
Configurator for DALI network/devices;
Isolation between DALI – DMX, Power Supply – DMX. Additional isolation Power Supply – DALI for HD67838-B2-N version;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].
CONFIGURATION:
You need “DALI Console” software on your PC in order to perform the following:
Configure the DALI network;
Setup the DALI devices (groups, scenes, IDs, …);
Test DALI communication.
You need Compositor SW67838 software on your PC in order to perform the following:
Define the parameter of DMX line;
Define the parameter of DALI line;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 7 di 38
POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67838-B2 3.5
HD67838-B2
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 8 di 38
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 9 di 38
LEDS:
The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Serial communication
(yellow) Blinks when DMX communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: DALI communication
(yellow) Blinks when DALI communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Comm. error (yellow) Turns ON when DALI devices defined are not present Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 1 di 38
DALI:
DALI stands for “Digital Addressable Lighting Interface” and it is an interface protocol for digital
communication between electronic lighting equipment (electronic ballasts, transformers, etc.).
With the right choice of individual DALI components an extremely wide range of requirements can be met,
from operating the lighting system from a simple light switch to lighting management systems for entire
office complexes with thousands of light sources. Using ADFweb.com’s DALI converters, any light source,
including incandescent lamps, fluorescent lamps, high-intensity discharge lamps and even LEDs, can be
controlled irrespective of whether they are installed in an office, a restaurant or a street light.
Characteristics Description
Medium Shielded Twisted Pair
Topology Linear, Star or mixed
Device power consumption Max 25 mA
DALI voltage 9.5 V – 22.5 V (typical 16 V)
Maximum cable length 3 m (1.5 mm2 wire)
Maximum number of DALI
devices 64
Baud rate 12 bps
Maximum number of DALI
groups 16
Maximum number of DALI
scenes 16

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 11 di 38
RS4 5:
For terminate the RS485 line with a 12 Ω resistor it is necessary to put ON dip 1, like in figure.
The maximum length of the cable should be 12 m (4 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 12 di 38
ETHERNET:
The Ethernet port is used for programming DALI network and for programming the converter.
The Ethernet connection must be made using Connector2 of HD67838-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 1 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 13 di 38
USE OF COMPOSITOR SW67 3 :
To configure the Converter, use the available software that runs with Windows called SW67838. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 1 ; 32/64bit).

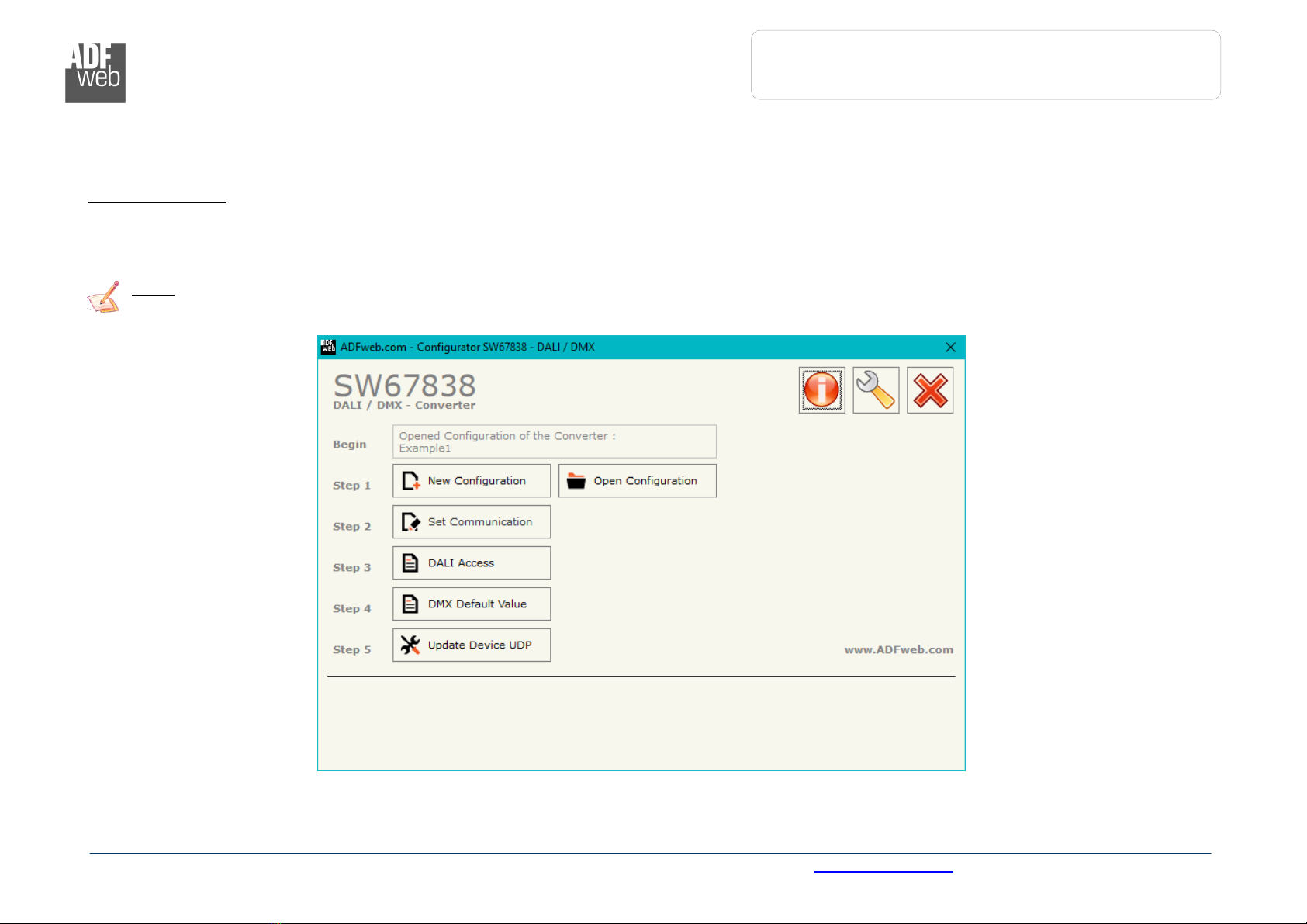

When launching the SW67838, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67838

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 14 di 38
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “DALI / DMX - Converter” in order to
configure another device in the same manner, it is necessary to maintain the folder and
all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the button
“Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 15 di 38
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67838 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 16 di 38
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 17 di 38
SET COMMUNICATION:
This section define the fundamental communication parameters of DMX and DALI buses.
By Pressing the “Set Communication” button from the main window for SW67838 (Fig. 2) the window
“Set Communication” appears (Fig. 3).
The means of the fields for the “DMX” section are:
In the field “DMX” the direction of the communication is defined;
In the field “Channel Number” the number of DMX channels is defined.
The means of the fields for the “DALI” section are:
In the field “DALI Console Port” the UDP port used for Ethernet communication is defined.
The means of the fields for the “Ethernet” section are:
In the field “IP ADDRESS” the IP address of the converter is defined;
In the field “SUBNET Mask” the SubNet Mask is defined;
In the field “GATEWAY” the default gateway of the Ethernet network is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for going out of
the net.
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 18 di 38
DALI ACCESS:
By pressing the “DALI Access” button from the main window for SW67838 (Fig. 2) the window “Select the DALI Device Present in the
Network” appears (Fig. 4).
This section is used to define the DALI devices connected to the converter. It is enough to check/uncheck the connected/unconnected DALI
devices.
Figure 4: “DALI Access” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 19 di 38
DMX DEFAULT VALUE:
By pressing the “DMX Default Value” button from the main window for SW67838 (Fig. 2) the “DMX Default Value” window appears (Fig. 5).
In this section it is possible to define the default value for each channel of the DMX array when the converter is turned ON.
Figure 5: “DMX Default Value” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ DMX
Document code: MN67838_ENG Revision 1. Pagina 2 di 38
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if
necessary.
If you don’t know the actual IP address of the device you have to use this
procedure:
Turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ in ON position;
Turn ON the device
Connect the Ethernet cable;
Insert the IP “192.16 .2.205”;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ at OFF position;
Turn ON the device.
If you know the actual IP address of the device, you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly update.
Figure 6: “Update device” windows
