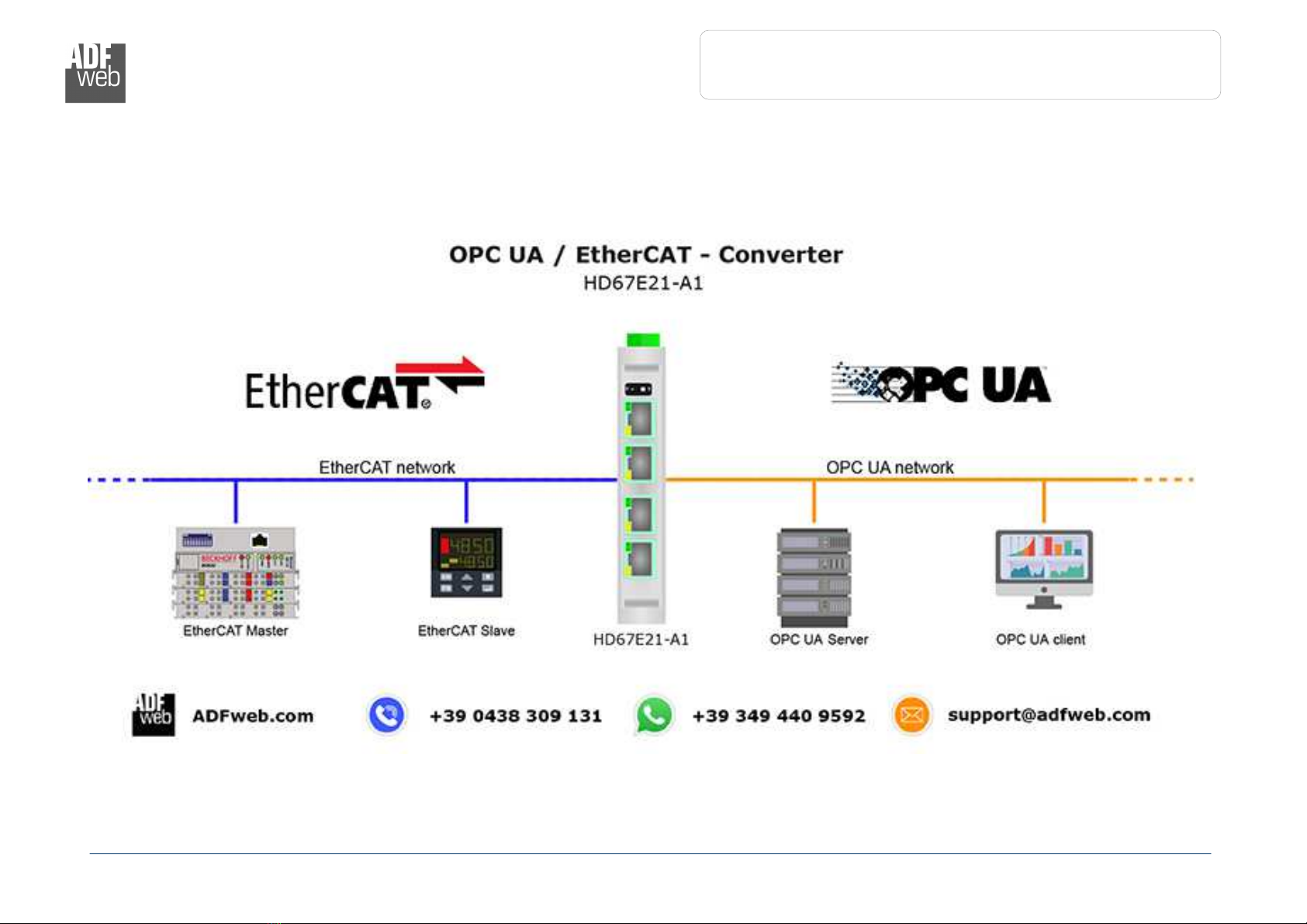

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 5 of 25
CONNECTION SCHEME:
Figure 1: Connection scheme for HD67E21-A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 6 of 25
CHARACTERISTICS:
The HD67E21-A1 are EtherCAT / O C UA - Converters.
It allows for the following characteristics:
Isolation between EtherCAT – O C UA – ower Supply;
Two-directional information between EtherCAT bus and O C UA bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67E21 software on your C in order to perform the following:
Define the parameters of EtherCAT line;
Define the parameters of O C UA line;
Define EtherCAT variables to read and write;
Define the list of O C UA variables available for the Client;
Export the ESI file for configuration of EtherCAT Master;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 7 of 25
POWER SUPPLY:

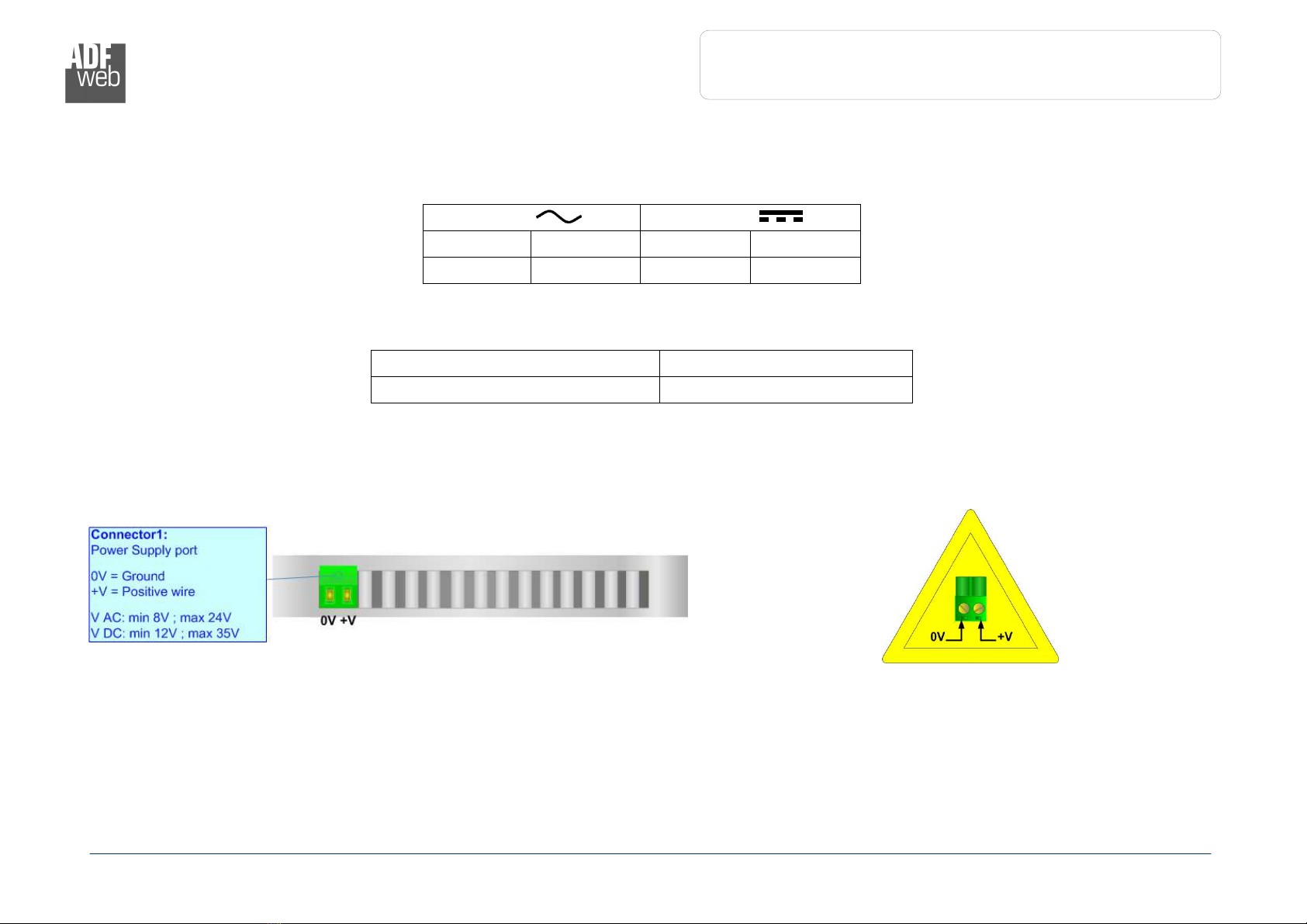

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67E21-A1 3.5
HD67E21-A1
Caution:
Do n
ot reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 8 of 25
FUNCTION MODES:
The device has got two function modes depending on the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for uploading the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 9 of 25
LEDS:
The device has got seven LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: EtherCAT comm. (green) It blinks when EtherCAT communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: O C UA comm. (green) It blinks when O C UA communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (green) ON: An error in the communication busses occurs
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: EtherCAT state (green)
OFF: EtherCAT Master not connected
Blinking: EtherCAT Master is connecting
ON: EtherCAT Master is connected
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
6: Ethernet1 link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
7: Ethernet2 link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 10 of 25
ETHERCAT
EtherCAT (Ethernet for Control Automation Technology) is an Ethernet-based fieldbus system, invented by Beckhoff Automation.
The protocol is standardized in O C UA and is suitable for both hard and soft real-time computing requirements in automation technology.
With EtherCAT, the standard Ethernet packet or frame (according to IEEE 802.3) is no longer received, interpreted, and copied as process
data at every node. The EtherCAT slave devices read the data addressed to them while the telegram passes through the device, processing
data "on the fly". In other words, real-time data and messages are prioritized over more general, less time-sensitive or heavy load data.
The converter has two EtherCAT ports, one is used as Input port (Connector7) and it will receive the incoming messages from the Master,
the other is used as Output port (Connector8) and i twill forward the messages to the others nodes of the network.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 11 of 25
ETHERNET:
The Ethernet port is used for programming the device and for O C UA communication.
Ethernet connection and the updating of the converter must be made using Connector9 and/or Connector10 of the HD67E21-A1 with at least
a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to
connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the
device to a C/ LC/other is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 12 of 25
USE OF COMPOSITOR SW67E21:
To configure the Converter, use the available software that runs with Windows called SW67E21. It is downloadable on the site
www.adfweb.com and its operation is described in this document. This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).

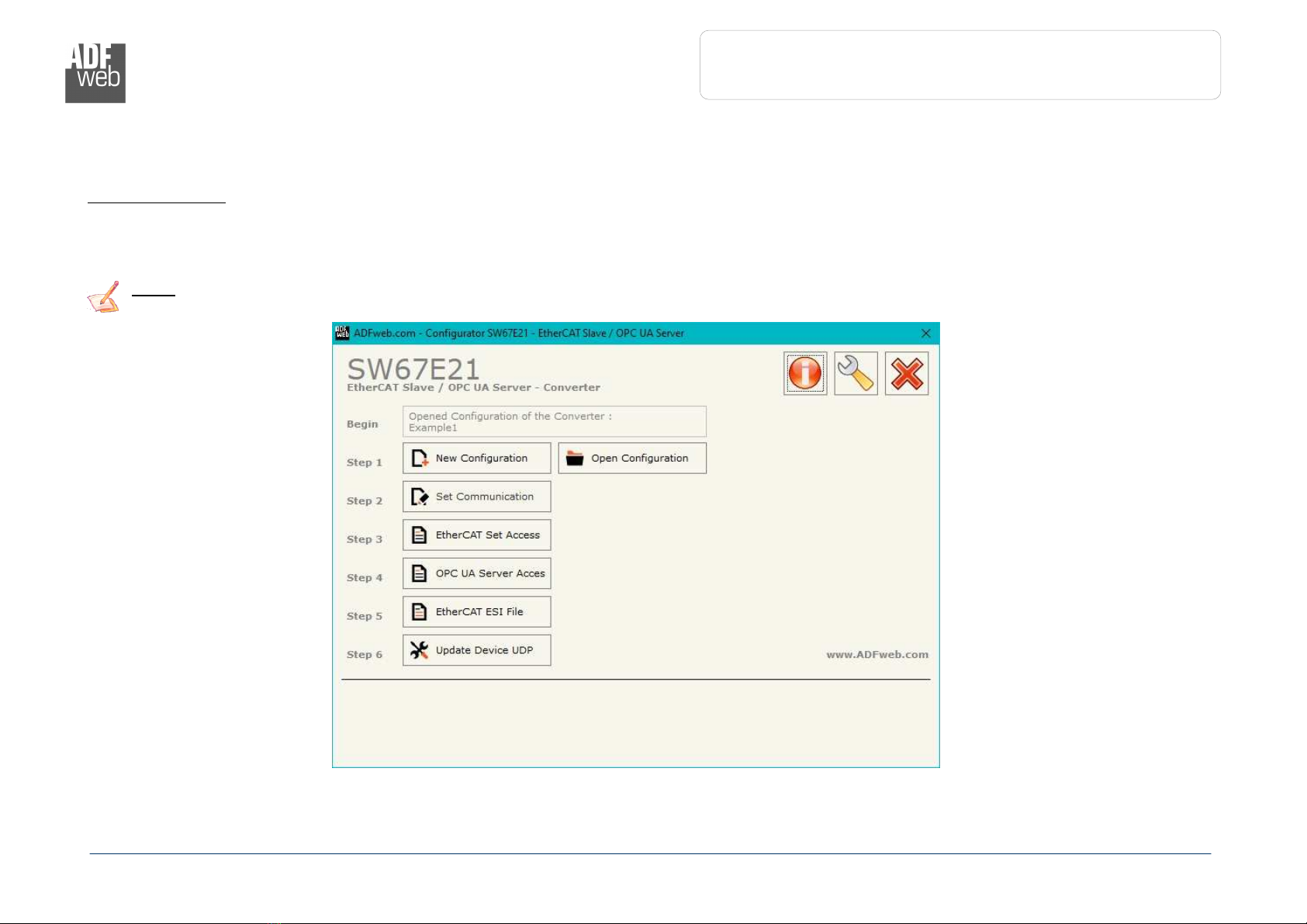

When launching the SW67E21, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
F
igure 2: Main window for SW67E21

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 13 of 25
NEW CONFIGURATION / OPEN CONFIGURATION:

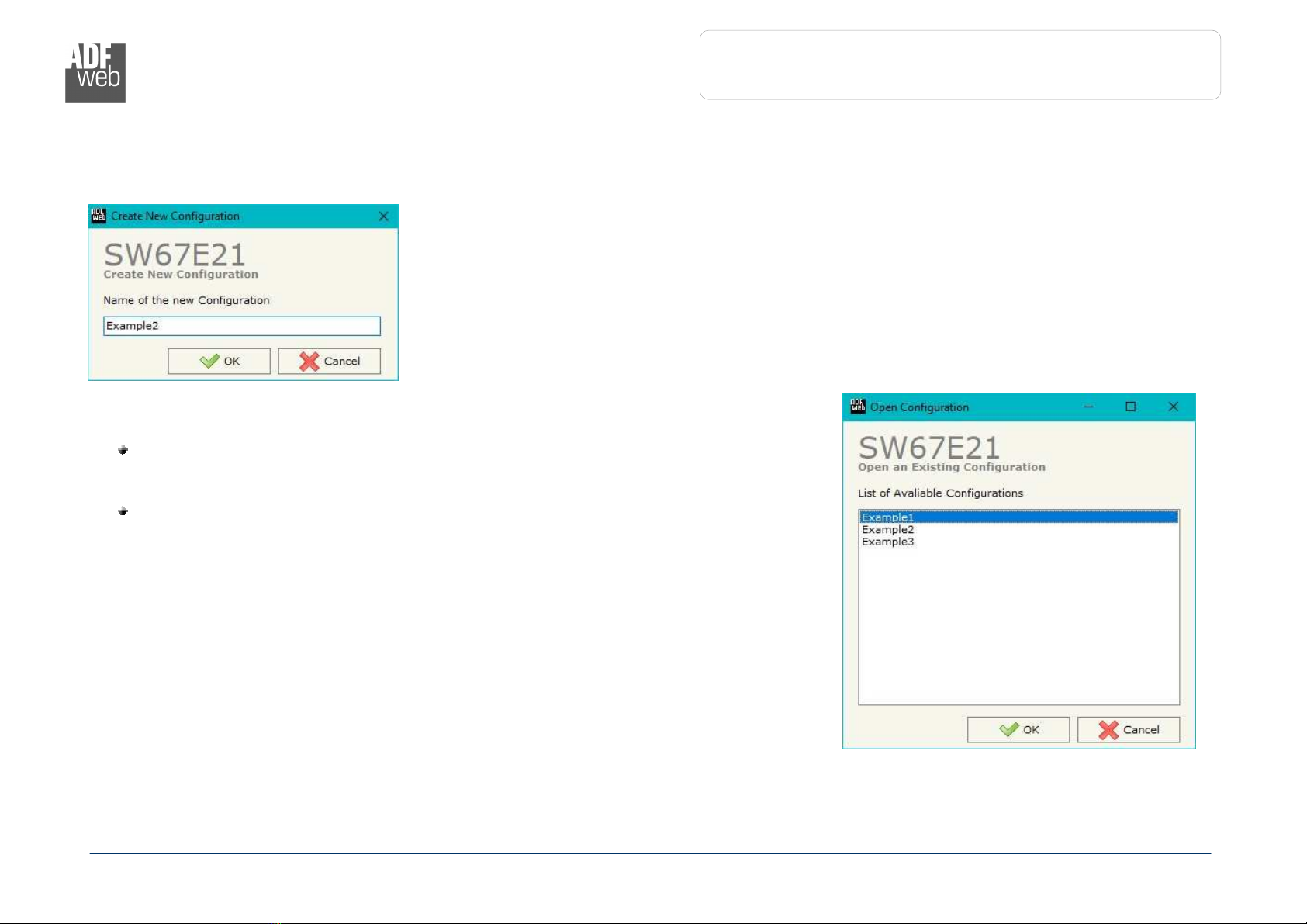

The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “EtherCAT / O C UA Server -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 14 of 25
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67E21 checks automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 15 of 25
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 16 of 25
Figure 3: “Set Communication setting” window
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, EtherCAT and
O C UA.
By ressing the “Set Communication” button from the main window for SW67E21 (Fig. 2)
the window “Set Communication” appears (Fig. 3).
The means of the fields for “EtherCAT Slave” are:
In the field “Revision Num er” the revision number of the converter is defined;
In the field “Slave Name” the name of the converter is defined;
In the field “Node Address” the ID of the converter is defined.
The means of the fields for “O C UA” are:
In the field “IP Address” the I address of the converter is defined;
In the field “Su net Mask” the SubNet Mask of the converter is defined;
In the field “GATEWAY” the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of
the net;
In the field “DNS” the DNS address is defined. This field is required if the server
address is define by URL and not I Address.
In the field “Port” the port used for O C UA communication is defined.
The means of the fields for “NT ” are:
In the field “Server URL” the URL or the I Address of the NT Server is defined;
In the field “Poll Time (seconds)” the polling time for the time synchronization is
defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 17 of 25

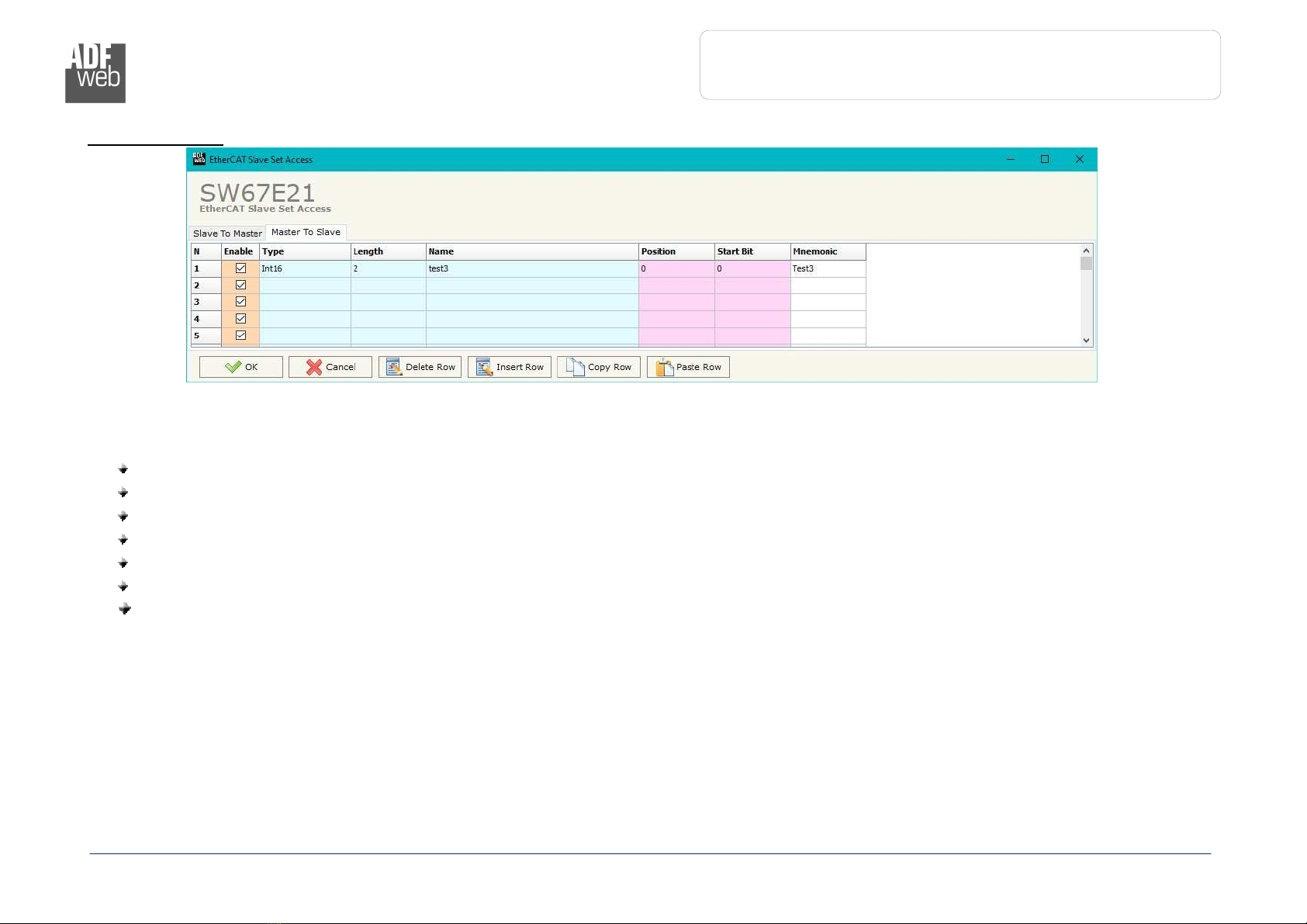

Figure 4a: “EtherCAT Slave Set Access

Slave To Master” window
ETHERCAT SET ACCESS:
By ressing the “EtherCAT Set Access” button from the main window for SW67E21 (Fig. 2) the window “EtherCAT Slave Set Access”
appears (Fig. 4).
This section is used to define the EtherCAT variables readable by the EtherCAT Master (Slave To Master) and the EtherCAT variables
writeable by the EtherCAT Master (Master To Slave).
S LAVE T O M ASTER
The means of the fields are:
If the field “Ena le” is checked, the EtherCAT variable is enabled;
In the field “Type” the data format of the EtherCAT variable is defined;
In the field “Lenght” the dimension of the EtherCAT variable is defined;
In the field “Name” the name of the EtherCAT variable is defined;
In the field “Init Value” the default value of the EtherCAT variable is defined;
In the field “Position” the starting address of the EtherCAT array where the variable is mapped is defined;
In the field “Start Bit” the starting bit of the selected osition where the variable is mapped is defined;
In the field “Mnemonic” a description of the variable is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 18 of 25

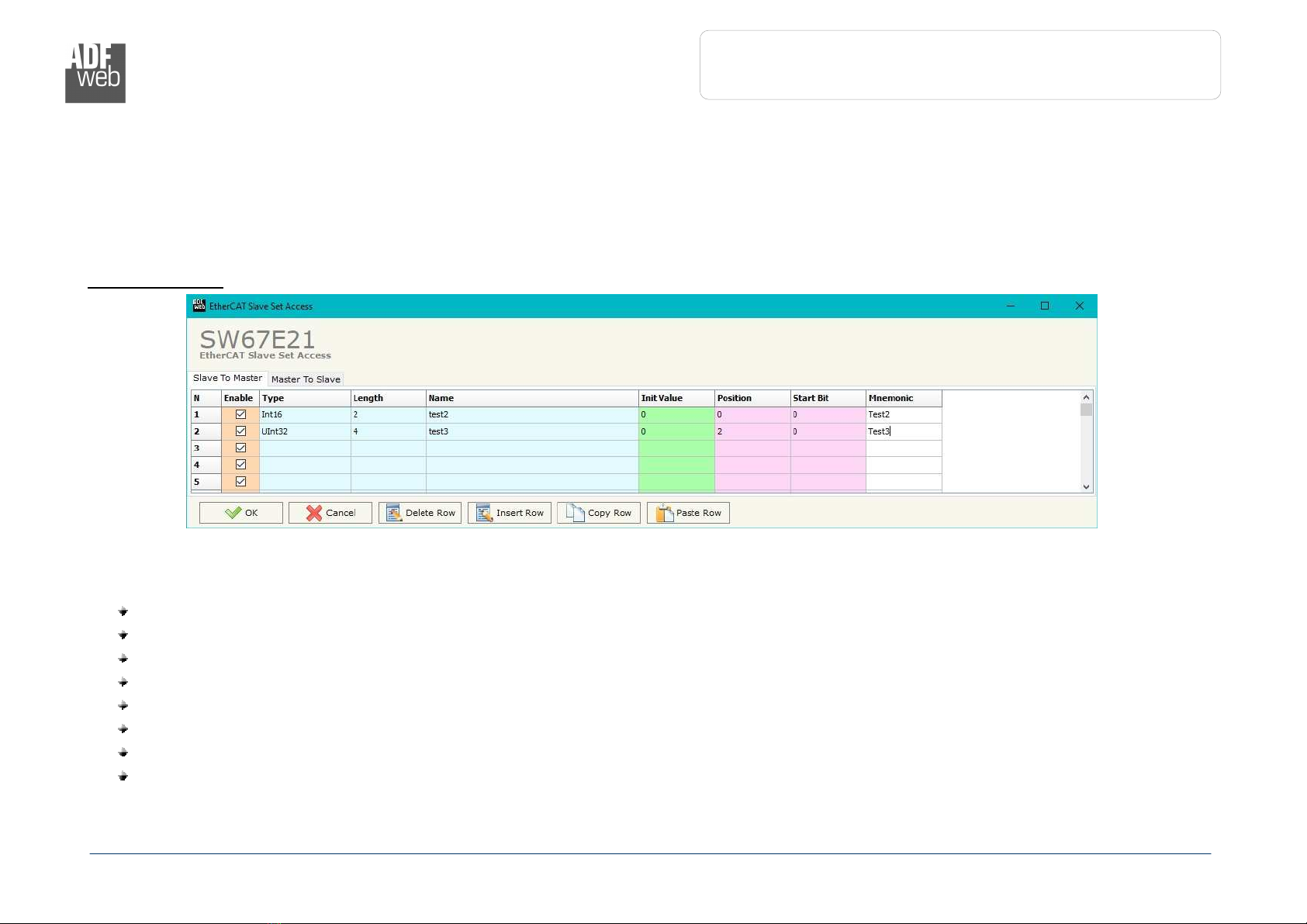

Figure 4b: “EtherCAT Slave Set Access  Master To Slave” window
M ASTER T O S LAVE
The means of the fields are:
If the field “Ena le” is checked, the EtherCAT variable is enabled;
In the field “Type” the data format of the EtherCAT variable is defined;
In the field “Lenght” the dimension of the EtherCAT variable is defined;
In the field “Name” the name of the EtherCAT variable is defined;
In the field “Position” the starting address of the EtherCAT array where the variable is mapped is defined;
In the field “Start Bit” the starting bit of the selected osition where the variable is mapped is defined;
In the field “Mnemonic” a description of the variable is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 19 of 25
Figure 5: “
OPC UA Server Access
” window
OPC UA ACCESS:
By ressing the “OPC UA Access” button from the main window for SW67E21 (Fig. 2) the window “O C UA Server Access” appears (Fig. 5).
This section is used to define the list of O C UA variables to read/write.
The means of the checkboxes inside the table are:
If the field “Ena le” is checked, the O C UA variable is enabled;
In the field “Type” the data format of the O C UA variable is defined;
In the field “Position” the starting byte of the internal memory arrays where getting the value is defined;
In the field “Length” the byte length of the O C UA variable is defined;
In the field “Name” the name of the O C UA variable is defined;
In the field “R/W” the access type of the O C UA variable is defined;
In the field “Mnemonic” a description of the O C UA variable is defined.
ETHERCAT ESI FILE:
By pressing the “EtherCAT ESI File” button it is possible to save the ESI file for the EtherCAT side of the converter.
The ESI file is used to configure the EtherCAT Master.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EtherCAT
Slave
/
OPC UA
Server
Document code: MN67E21_ENG Revision 1.000 age 20 of 25
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created Configuration
into the device; and also the Firmware, if necessary. This by using the Ethernet port.
If you don’t know the actual I address of the device you have to use this procedure:
Turn OFF the Device;
ut Dip1 of ‘Dip-Switch A’ in ON position;
Turn ON the device
Connect the Ethernet cable;
Insert the I “192.168.2.205”;
Select which operations you want to do;
ress the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn OFF the Device;
ut Dip1 of ‘Dip-Switch A’ in OFF position;
Turn ON the device.
If you know the actual I address of the device, you have to use this procedure:
Turn ON the Device with the Ethernet cable inserted;
Insert the actual I of the Converter;
Select which operations you want to do;
ress the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly updated.

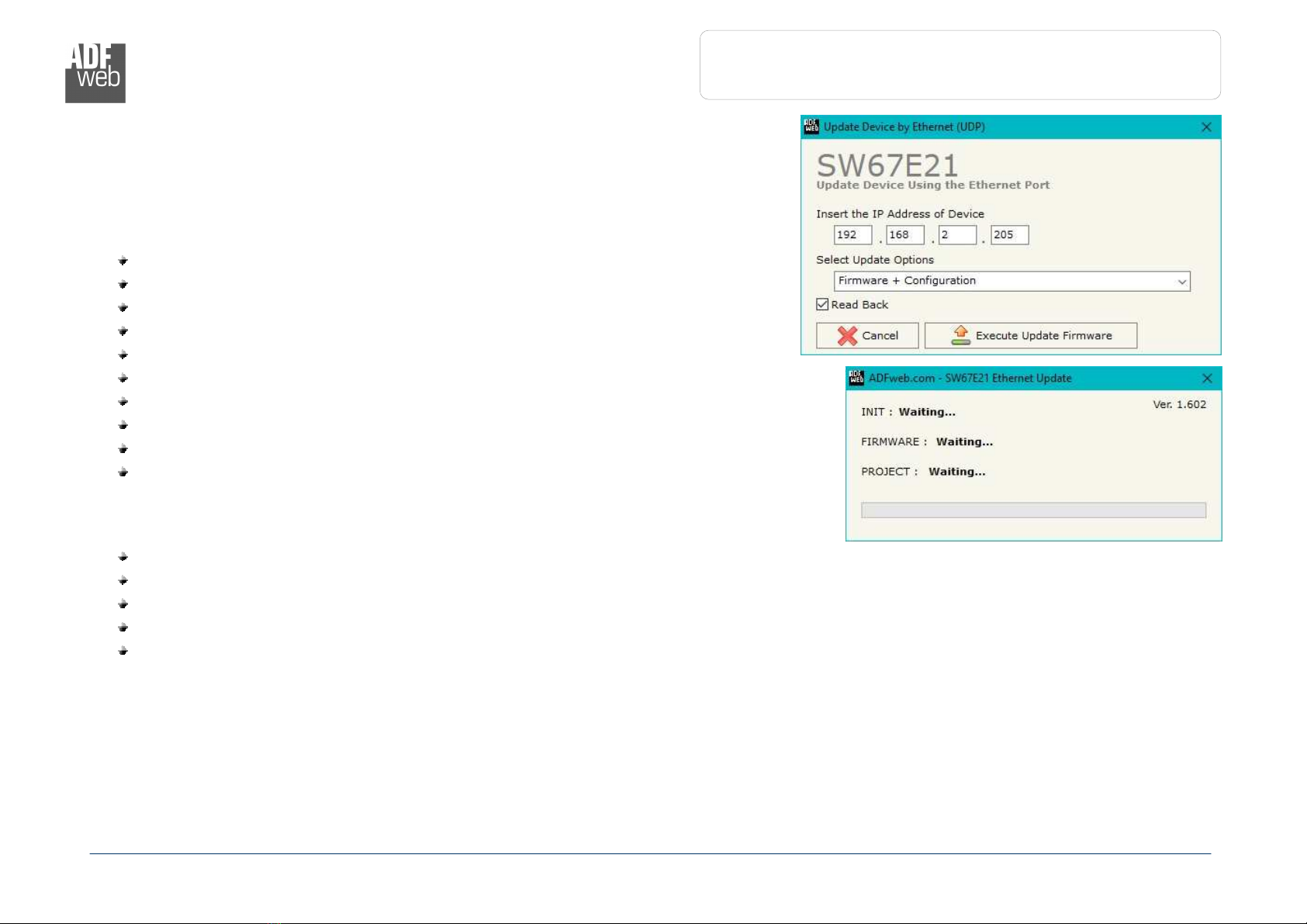

Figure 6: “Update device” windows
