ADF Web HD67510-Slim-232 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 1 of 38
User Manual
Revision 2 100
English
Modbus Slave / Modbus TCP Master - Converter
(Order Code: HD67510-A1, HD67510-A1-422,
HD67510-B2, HD67510-Slim-232, HD67510-Slim-485)
For Website information:
www adfweb com?Product=HD67510
For Price information:
www adfweb com?Price=HD67510-A1
www adfweb com?Price=HD67510-A1-422
www adfweb com?Price=HD67510-B2
www adfweb com?Price=HD67510-Slim-232
www adfweb com?Price=HD67510-Slim-485
Benefits and Main Features:
32mm Rail DIN mount
Wide supply input range
Triple electrical isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others products, see also the following links:
RS232 / RS485 / SB / Ethernet
www adfweb com?Product=HD67118 (RS232 / RS485 - Converter)
www adfweb com?Product=HD67119 (USB / RS485 - Converter)
www adfweb com?Product=HD67038 (RS485 / RS232 / Ethernet - Converter)
CAN / CANopen / Modbus / Modbus TCP
www adfweb com?Product=HD67001 (CANopen / Modbus Master - Converter)
www adfweb com?Product=HD67502 (CANopen / Modbus Slave - Converter)
www adfweb com?Product=HD67011 (CAN / Modbus Master - Converter)
www adfweb com?Product=HD67012 (CAN / Modbus Slave - Converter)
www adfweb com?Product=HD67514 (CAN / Modbus TCP Master – Converter)
www adfweb com?Product=HD67515 (CAN / Modbus TCP Slave – Converter)
Modbus TCP Slave / Modbus Master - Converter
www adfweb com?Product=HD67507
www adfweb com?Product=HD67508
Do you have your customer protocol? Then go to:
www adfweb com?Product=HD67003
Do you need to choose a device? Do you want help?
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 2 of 38
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLES OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 10
CONFIGURATION 10
POWER SUPPLY 11
FUNCTION MODES 12
LEDS (for HD67510-A1 and HD67510-B2) 13
LEDS (for HD67510-Slim-xxx) 14
ETHERNET 15
RS232 15
RS485 16
RS422 17
USE OF COMPOSITOR SW67510 18

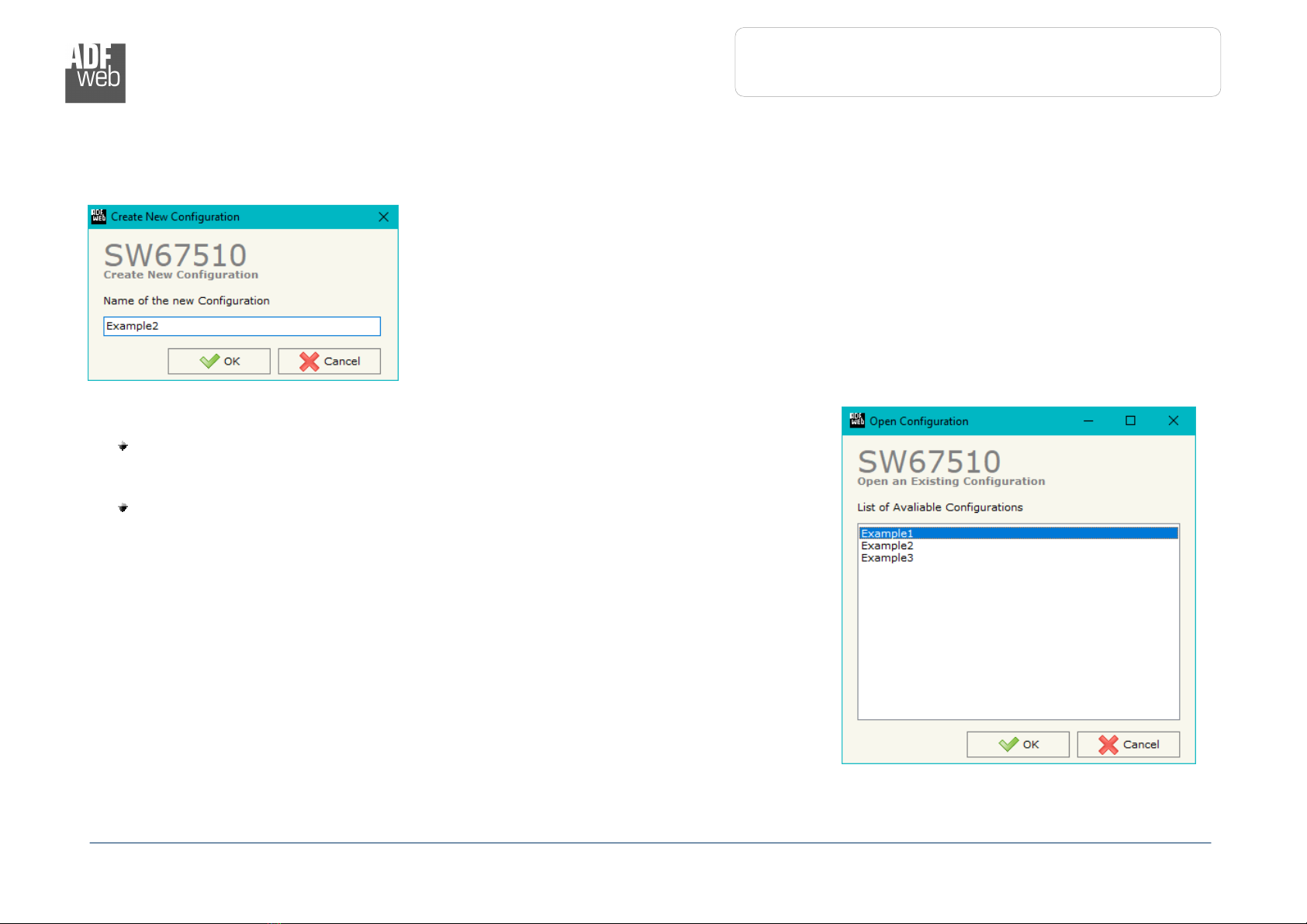

NEW CONFIGURATION / OPEN CONFIGURATION 19

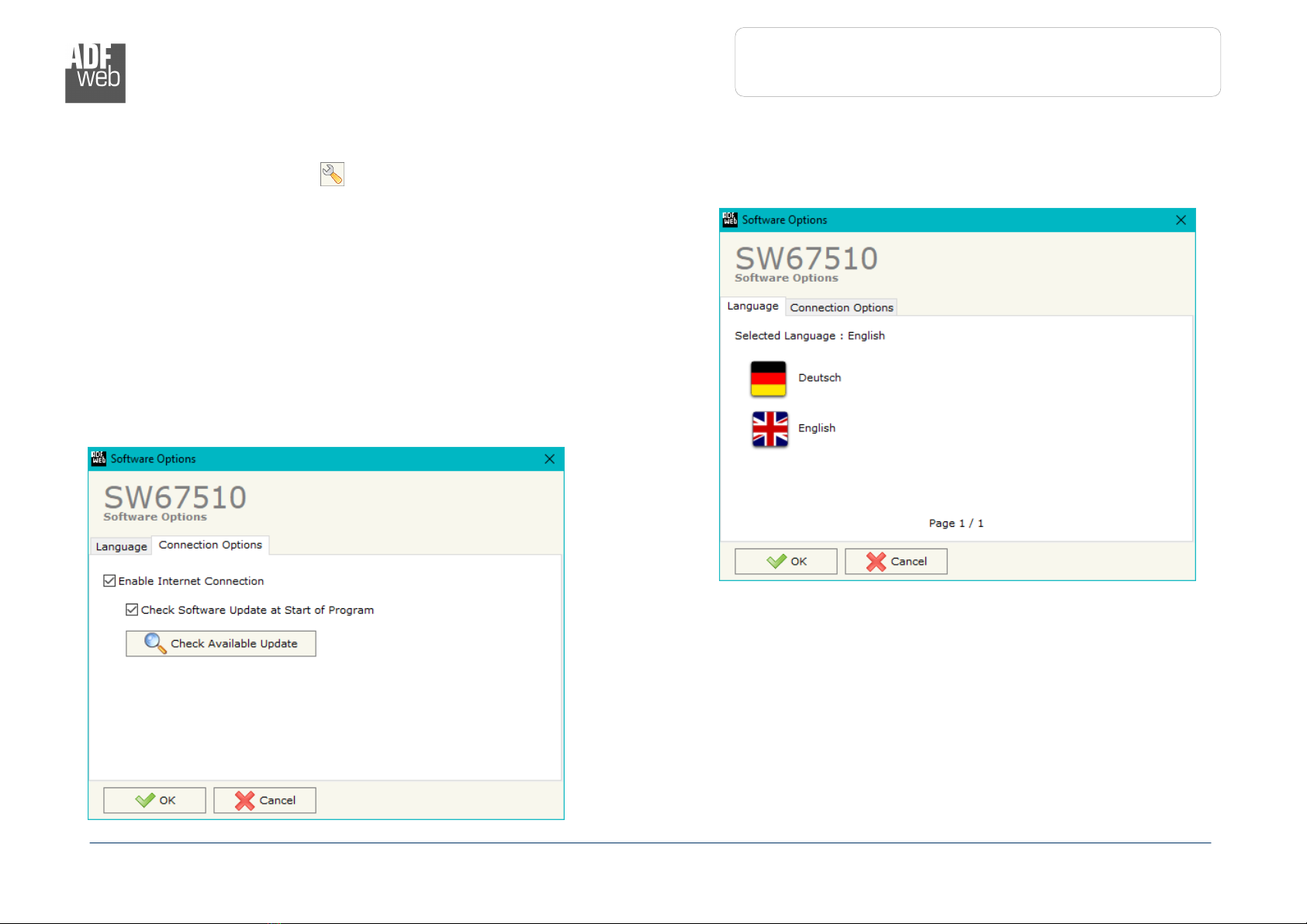

SOFTWARE OPTIONS 20
SET COMMUNICATION 21
UPDATE VIA SERIAL 29
UPDATE VIA UDP 30
MECHANICAL DIMENSIONS 32
ORDERING INFORMATIONS 35
ACCESSORIES 36
DISCLAIMER 37
OTHER REGULATIONS AND STANDARDS 37
WARRANTIES AND TECHNICAL SUPPORT 38
RETURN POLICY 38
PDATED DOC MENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISION LIST:
Revision Date Author Chapter Description
2 000 12/02/2014 Fl All New hardware version
2 001 12/09/2014 Ff All Add new functions
2 100 10/07/2019 Ff All Revision
2 200 10/01/2023 Ff All Added Slim version
WARNING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 3 of 38
SEC RITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I NTENDED SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q ALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESID AL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 4 of 38

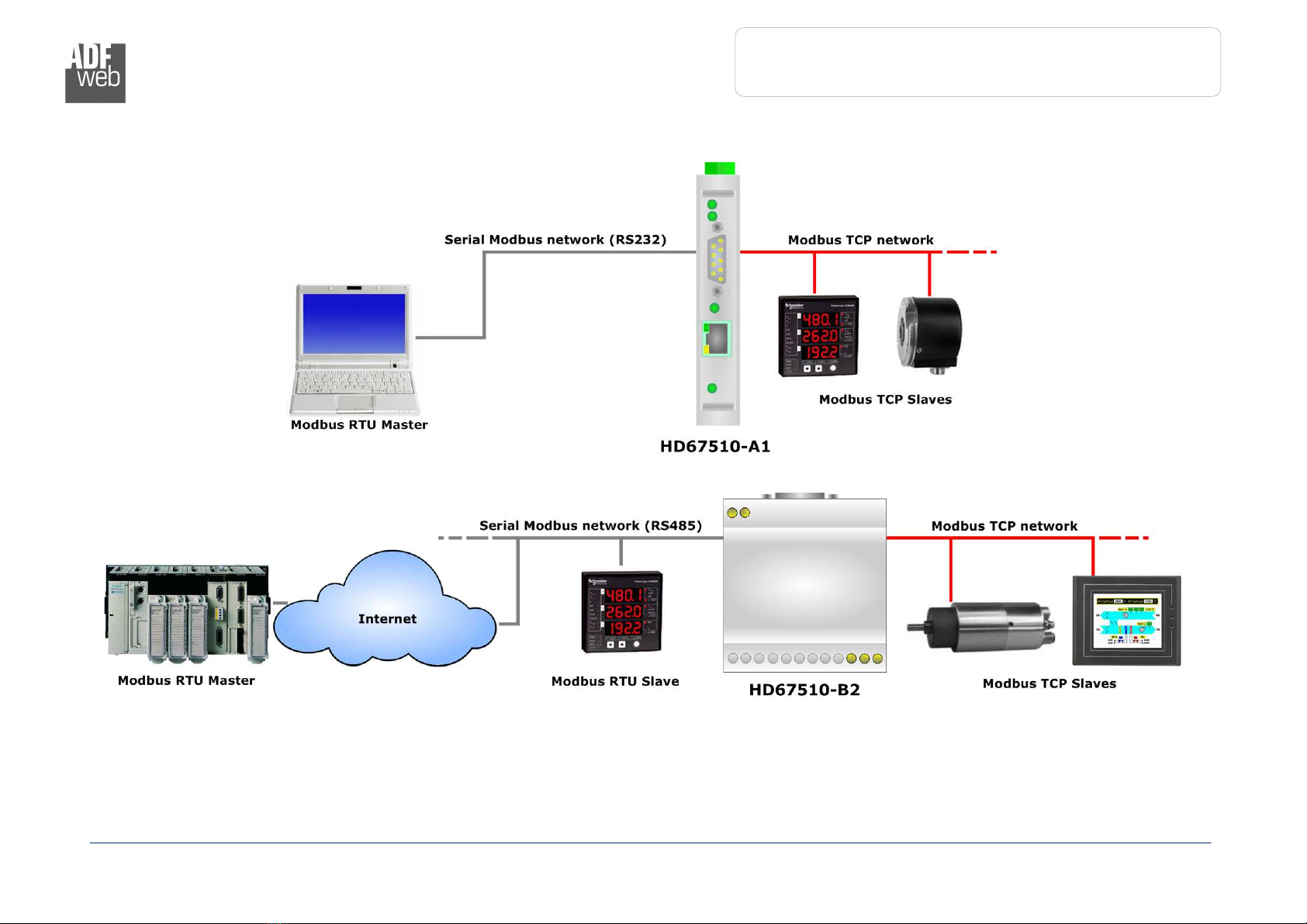

EXAMPLES OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 5 of 38
CONNECTION SCHEME:

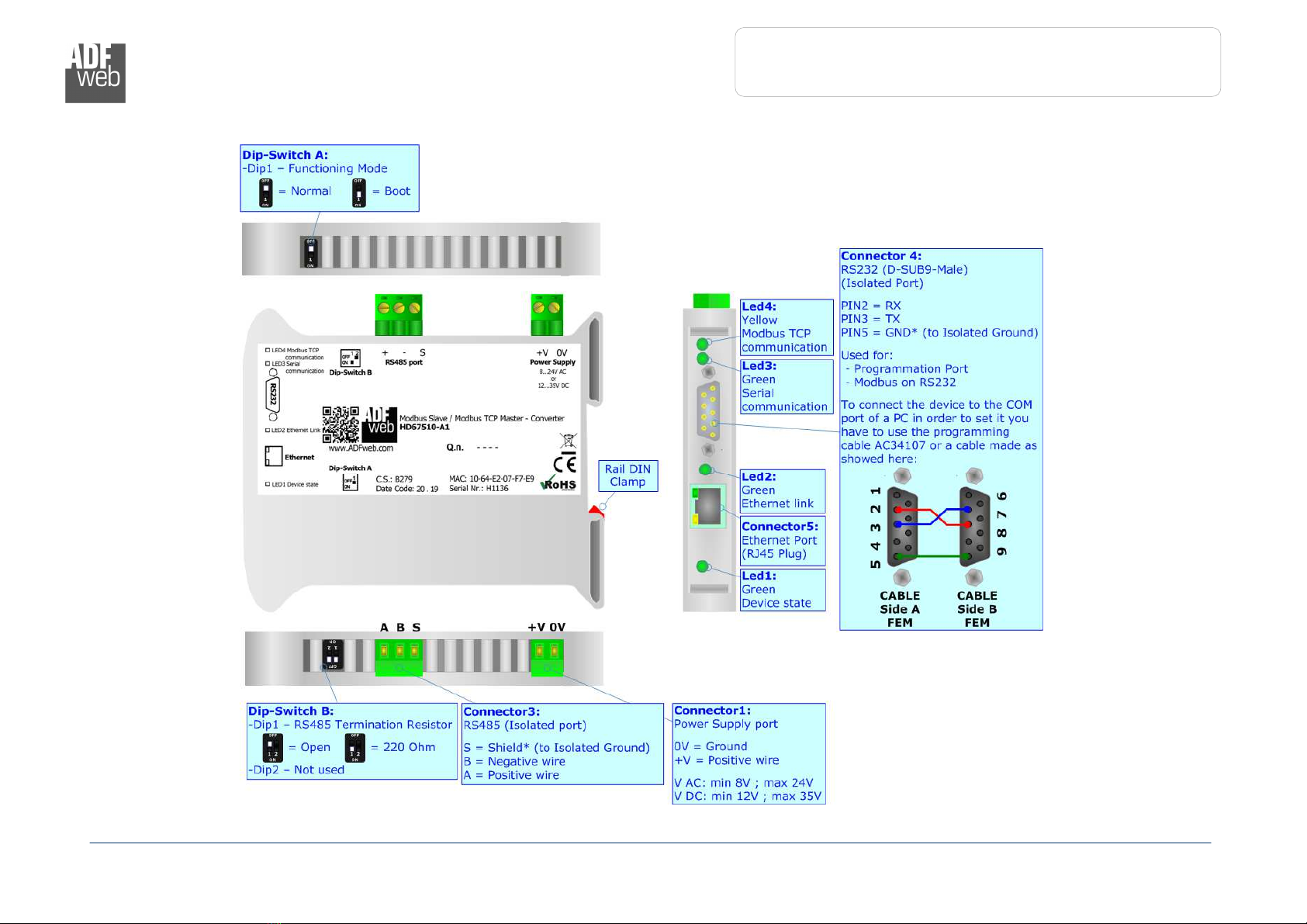

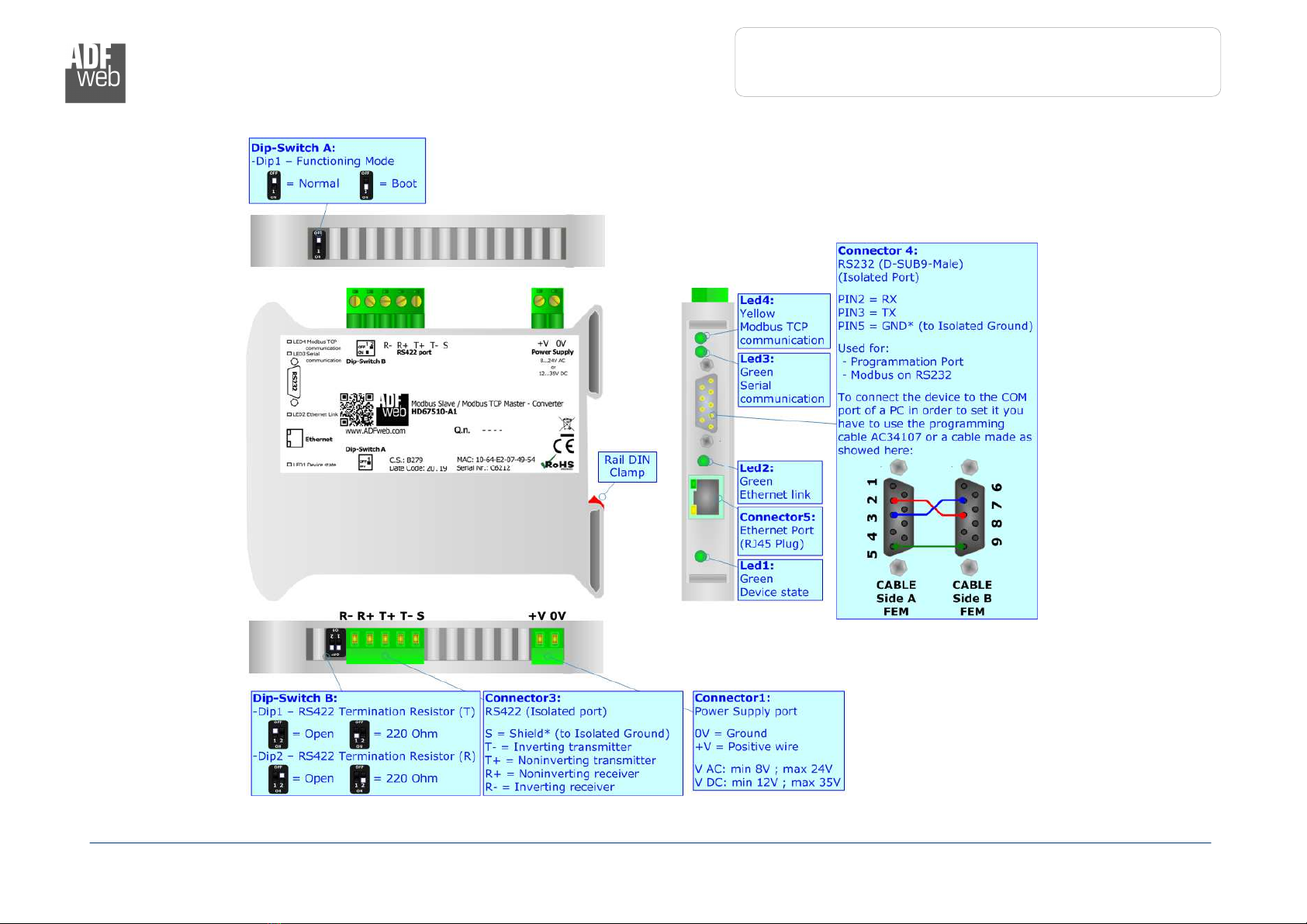

Figure 1a: Connection scheme for HD67510 A1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 6 of 38

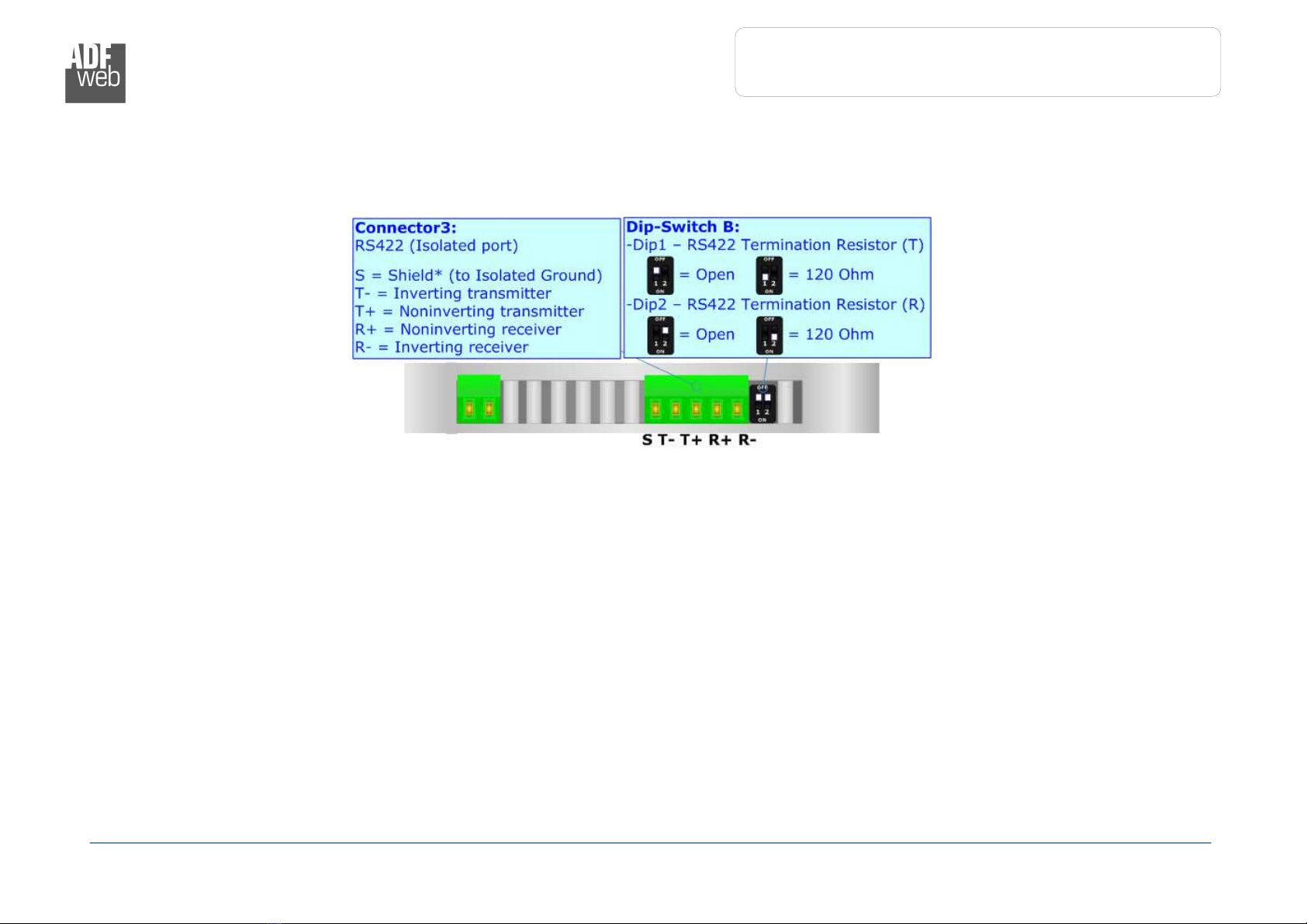

Figure 1b: Connection scheme for HD67510 A1 422

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 7 of 38
Figure
1c
: Connection
s
cheme for HD675
10
B2

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 8 of 38

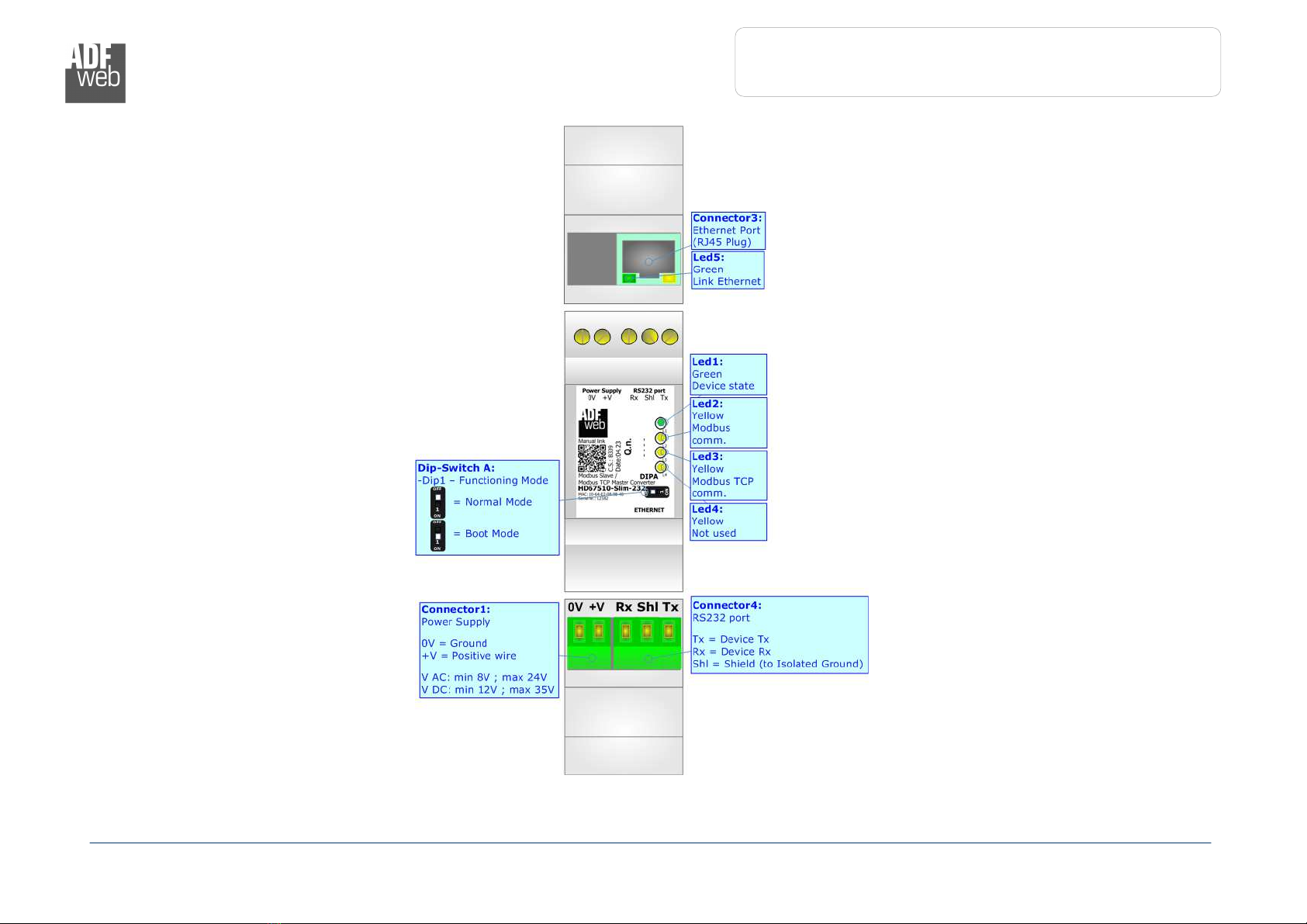

Figure
1d
: Connection
s
cheme for HD675
10
Slim
232

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 9 of 38

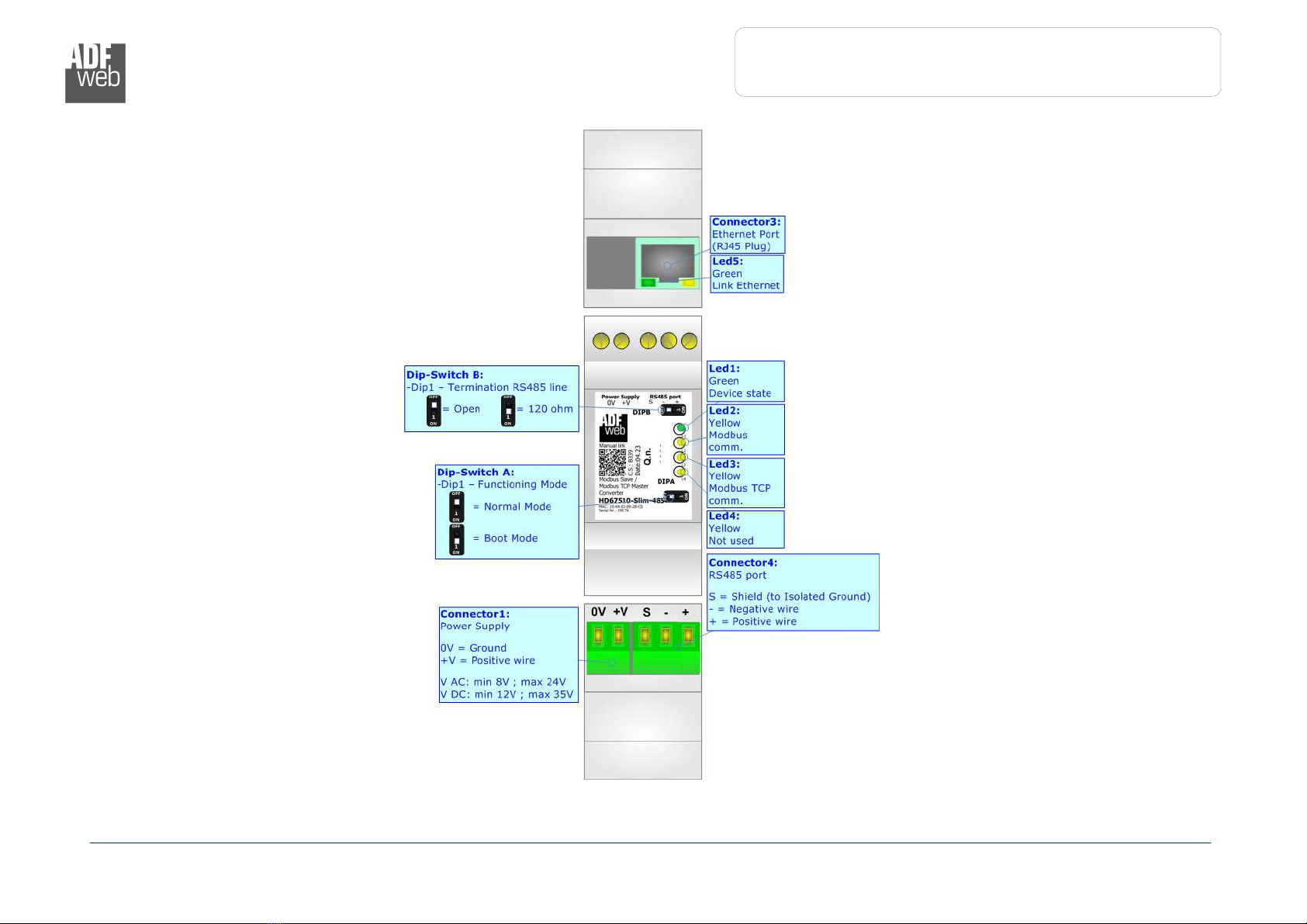

Figure 1e: Connection scheme for HD67510 Slim 485

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 10 of 38
CHARACTERISTICS:
The HD67510 converters are a Modbus Slave / Modbus TCP Master – Converter
It allows for the following characteristics:
Triple isolation between Serial - Power Supply, Serial - Ethernet, Power Supply - Ethernet
Ethernet 10Base-T / 100Base-T, autosensing for Modbus TCP ;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CONFIG RATION:
You need Compositor SW67510 software on your PC in order to perform the following:
Define the parameters of Modbus TCP line;
Define the parameters of Serial Modbus line;
Update the device

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 11 of 38

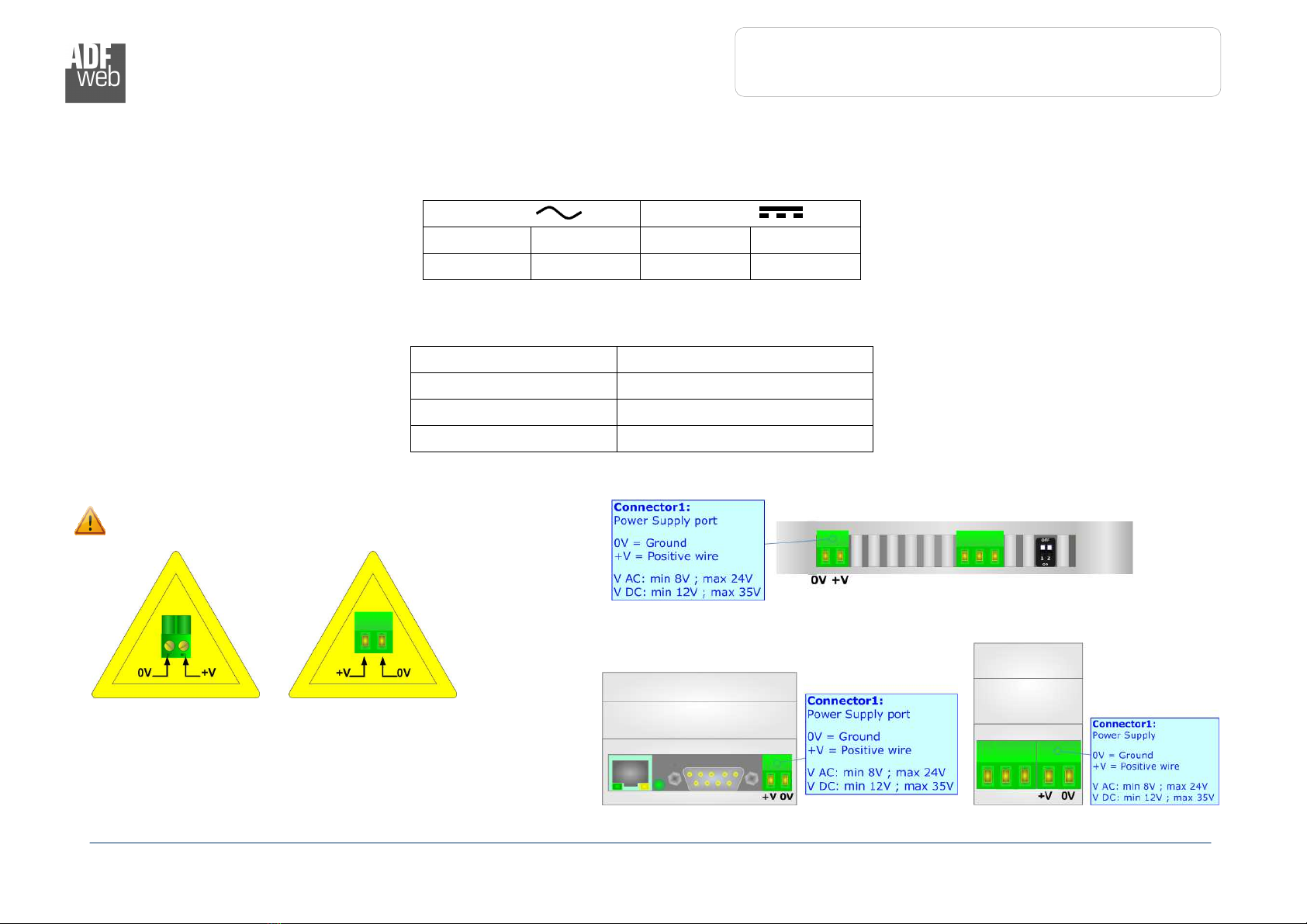

POWER S PPLY:
The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67510-A1-xxx 3 5
HD67510-B2 3 5
HD67510-Slim-xxx 3 5
Caution: Not reverse the polarity power
HD67510-A1
HD67
510
-
A1
-
422
HD67510-B2
HD67510-Slim

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 12 of 38
F NCTION MODES:
The device has got two function modes depending on the position of the ‘Dip-Switch A’
With ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
With ‘Dip1 of Dip-Switch A’ at “ON” position, is used for uploading the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 13 of 38
LEDS (for HD67510-A1 and HD67510-B2):
The devices has got four (five for HD67510-B2) LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Normal Mode Boot Mode
1: Device state Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Ethernet Link ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
3: Serial communication Blinks when are received Modbus response
frames (RS232/RS485)
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Modbus TCP
communication
Blinks when are received Modbus TCP request
frames
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Not used (present only on
HD67510-B2) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 14 of 38

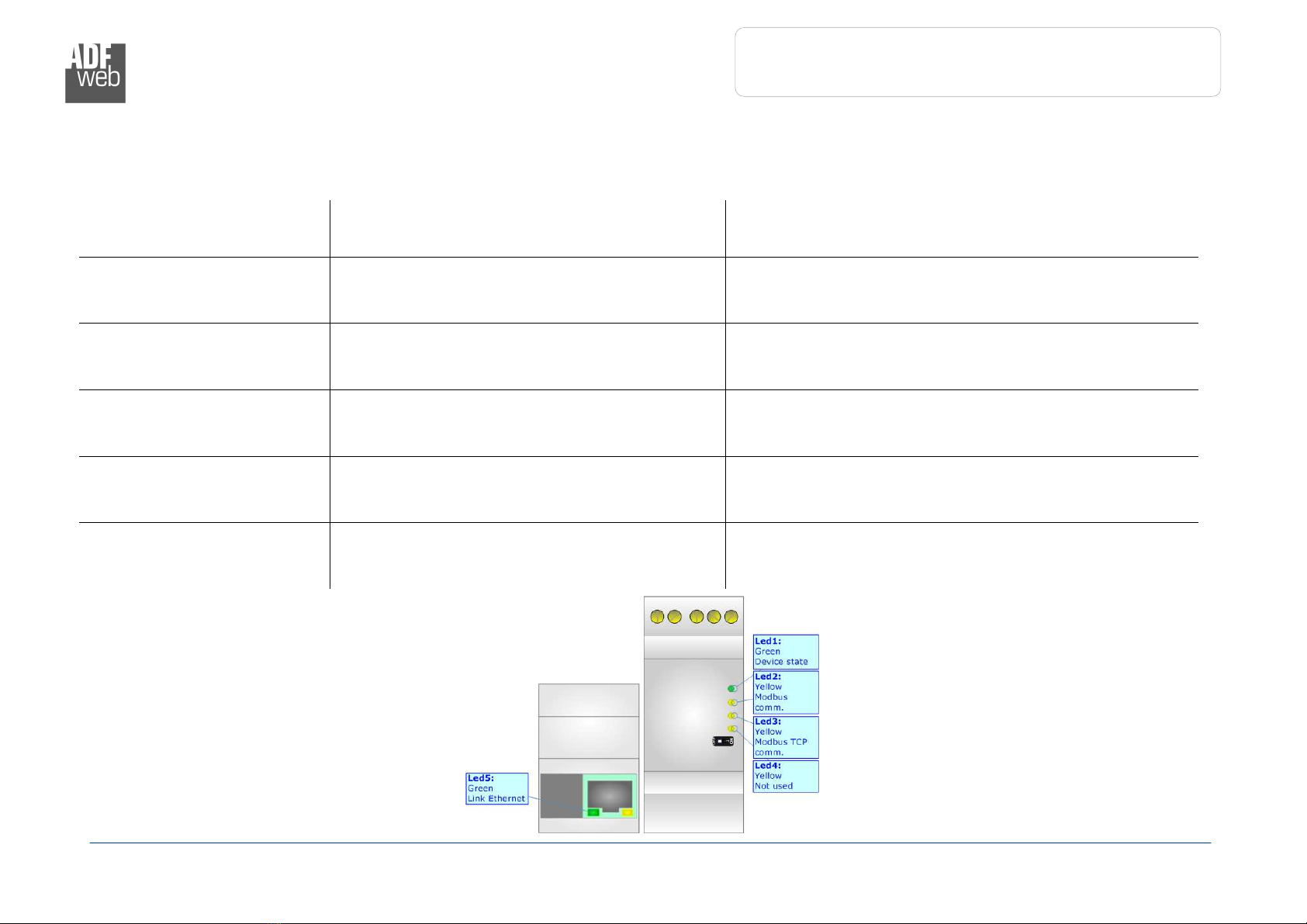

LEDS (for HD67510-Slim-xxx):
The devices has got five LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Normal Mode Boot Mode
1: Device state Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Modbus communication Blinks when are received Modbus response
frames (RS232/RS485)
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Modbus TCP
communication
Blinks when are received Modbus TCP request
frames
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Not used OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 15 of 38
ETHERNET:
The Ethernet connection must be made using Connector5 of HD67510-A1/HD67510-B2 or Connector3 of the HD67510-Slim with at least a
Category 5E cable The maximum length of the cable should not exceed 100m The cable has to conform to the T568 norms relative to
connections in cat 5 up to 100 Mbps To connect the device to a Hub/Switch the use of a straight cable is recommended To connect the
device to a PC/PLC/other the use of a cross cable is recommended
RS232:
The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a Null Modem cable (a serial
cable where the pins 2 and 3 are crossed)
It is recommended that the RS232 cable not exceed 15 meters
The device is provided with a D-sub connector type DE-9 Male (also called DB-9) The cable must use a DE-9 Female connector
The serial port is used for programming the device and for Modbus communication

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 16 of 38
RS485:
To terminate the RS485 line with a 120Ω resistor, it is necessary to put dip 1 ON, like in figure
The maximum length of the cable should be 1200m (4000 feet)
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 17 of 38
RS422:
For terminate the RS422 line with a 120Ω resistor it is necessary to put ON dip 1 for T line and/or put ON dip 2 for R line, like in figure
The maximum length of the cable should be 1200m (4000 feet)

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 18 of 38
SE OF COMPOSITOR SW67510:
To configure the Converter, use the available software that runs with Windows called SW67510 It is downloadable on the site
www adfweb com and its operation is described in this document (This manual is referenced to the last version of the software present on
our web site) The software works with MSWindows (XP, Vista, Seven, 8, 10, 11; 32/64bit)
When launching the SW67510, the window on the right appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
Figure 2: Main window for SW67510

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 19 of 38
NEW CONFIG RATION / OPEN CONFIG RATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “Modbus Slave / Modbus TCP Master -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus Slave
/
Modbus
TCP
Master
Document code: MN67510_ENG Revision 2 100 Page 20 of 38
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software pdate at Start of Program”, the
SW67510 check automatically if there are updatings when it is launched
