ADJ EVENT BAR PRO User manual

User Manual
EVENT BAR PRO

©2021 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying
product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this document may be trade-
marks or registered trademarks of their respective companies and are hereby acknowledged. All
non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and opera-
tion of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
2
Date Document
Version
Software
Version DMX Channels Notes
07/22/2021 1.0 1.3 2 / 17 / 20 / 22 / 25
channels Update for Primary/Secondary mode.
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual
before beginning installation and/or programming.

3
GENERAL INFORMATION
Unpacking: Thank you for purchasing the Event Bar Pro by ADJ Products, LLC. Every Event Bar Pro
has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping. If the carton appears to have
been damaged, carefully inspect your xture for any damage and be sure all equipment necessary to
operate the unit has arrived intact. In the event damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Please do not return this unit
to your dealer without contacting customer support rst.
Introduction: The Event Bar Pro is DMX intelligent 4-head moving pinspot LED xture. The Event
Bar Pro has 3 DMX Modes: 1 Channel DMX Mode, 12 Channel Mode, and 14 Channel Mode. The
xture has three operating modes: sound active mode, show mode, or DMX controlled. The Event
Bar Pro can only be run as a stand alone unit or in primary-secondary conguration. This unit is suit-
able for theaters, studios, retail stores, and other similar locations. For best results, use fog or spe-
cial eects smoke to enhance the light projections.
Customer Support: ADJ Products, LLC provides a toll free customer support line, to provide help
and to answer any questions that may arise during set up or initial operation. You may also visit us
on the web at www.adj.com for any comments or suggestions. Service Hours are Monday through
Friday 8:00 a.m. to 4:30 p.m. Pacic Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or
moisture.
Warning! This unit may cause severe eye damage. Avoid looking directly into the light source at all
times!

4
To optimize the performance of this product, please read these operating instructions carefully to
familiarize yourself with the basic operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please keep this manual with the unit for
future reference.
GENERAL INSTRUCTIONS
FEATURES
• 5 DMX Channel Modes: 2 Channel Mode, 17 Channel Mode, 20 Channel Mode, 22 Channel Mode,
& 25 Channel Mode.
• 3 Operating Modes - Show Mode, Sound Active, & DMX Control
• 8 Built-In Shows
• UC3 Controller Compatible (Sold Separately)
• Digital Display for Address and Function Setting
• Power Cord Daisy Chain (See Power Cord Daisy Chain section of this manual)
• Omega Bracket for Truss Mounting
• Built-In Mount for a lighting stand (Stand Sold Separately)
WARRANTY REGISTRATION
The Event Bar Pro carries a 2 year (730 days) limited warranty. Please ll out the enclosed warranty
card to validate your purchase and warranty.
You may also register your product online at www.adj.com. All returned service items, whether under
warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. If
the unit is under warranty, you must provide a copy of your proof of purchase invoice. Please contact
ADJ customer support for an R.A. number.
HANDLING PRECAUTIONS
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, as
doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service
please contact ADJ Products, LLC.
During operation the housing may become hot. Avoid touching the unit with bare hands while in use.
ADJ Products, LLC will not accept any liability for any resulting damages caused by the non-obser-
vance of this manual or any unauthorized modication to this unit.

For Your Own Personal Safety, Please Read and Understand This Manual Completely Before
You Attempt To Install Or Operate This Unit!
• To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken.
• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is
used to reduce the risk of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit with the cover removed.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 7.9”
(20cm) between this device and a wall.
• Do not attempt to operate this unit if it has been damaged in any way.
• This unit is intended for indoor use only. Use of this product outdoors voids all warranties.
• Always mount this unit in a safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and the point at which they exit from the applicance.
• Cleaning - The fixture should be cleaned only as recommended by the manufacturer. See the
Cleaning section of this manual for details.
• Heat - This fixture should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A.Objects have fallen onto, or liquid has been spilled into, the appliance.
B.The appliance has been exposed to rain or water.
C.The appliance does not appear to operate normally or exhibits a marked change in perfor-
mance.
5
SAFETY PRECAUTIONS

DMX SET UP
6
Power Supply: The ADJ Event Bar Pro contains an automatic voltage switch which will automatically
sense the voltage when it is plugged into the power source. With this switch there is no need to worry
about the correct power voltage, and this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and con-
troller manufacturers as a form of communication between intelligent xtures and controllers. A DMX
controller sends DMX data instructions from the controller to the xture. DMX data is sent as serial
data that travels from xture to xture via the DATA “IN” and DATA “OUT” XLR terminals located on all
DMX xtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of dierent manufacturers to be
linked together and operate from a single controller, as long as all xtures and the controller are DMX
compliant. When using several DMX xtures, try to use the shortest cable path possible in order to
ensure proper DMX data transmission. The order in which xtures are connected in a DMX line does
not inuence the DMX addressing. For example, a xture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a xture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Primary/Secondary Operation): The Event
Bar Pro has 5 DMX channel modes: 2 channel mode, 17 channel mode, 20 channel mode, 22 channel
mode, & 25 channel mode. The DMX address is set electronically using the controls on the rear of the
bar. Your unit and your DMX controller require an approved DMX-512 110 Ohm Data cable for data

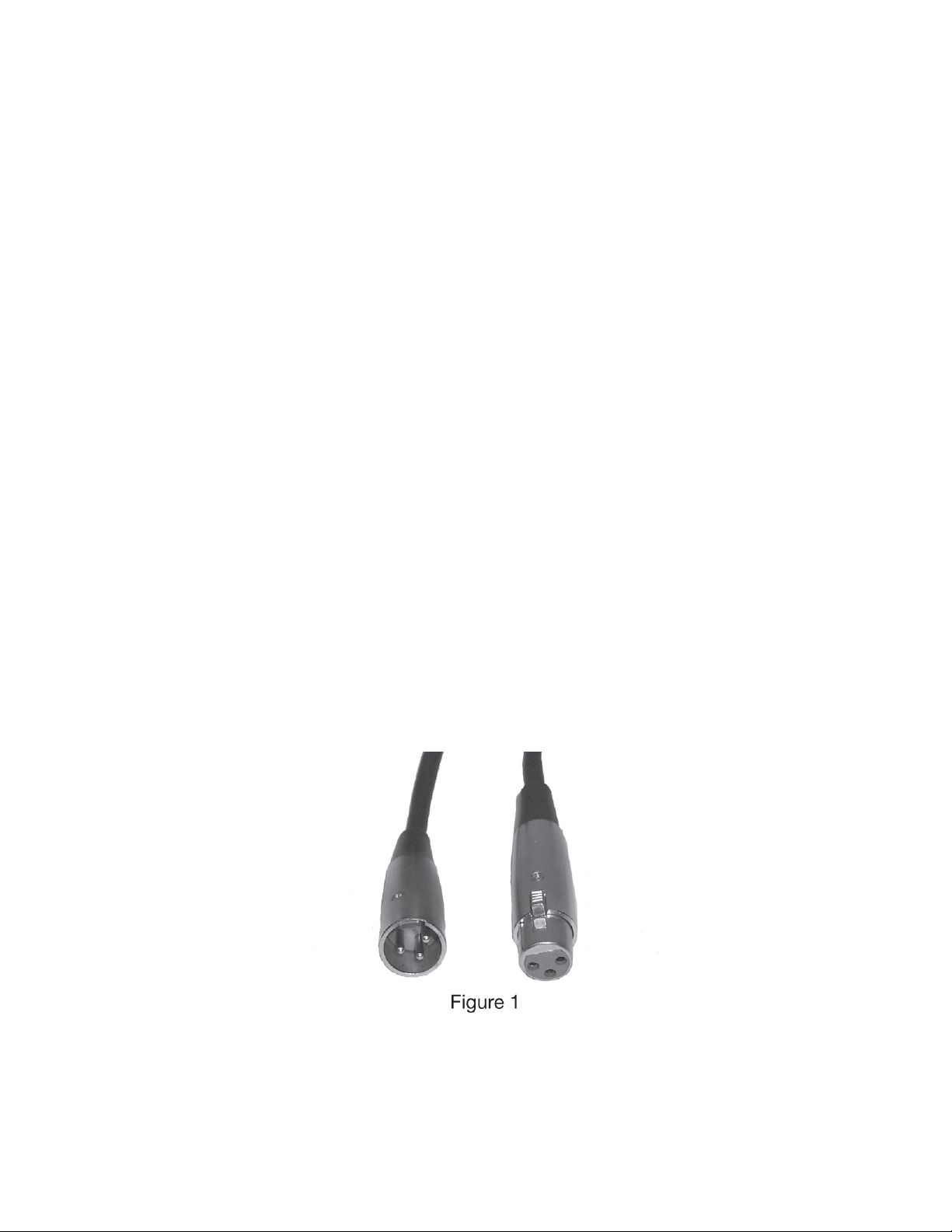

input and data output. We recommend Accu-Cable DMX cables. If you are making your own cables,
be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro-
fessional sound and lighting stores). Your cables should be made with a male XLR connector on one
end of the cable and a female XLR connector on the other. Also remember that DMX cable must be
daisy chained and cannot be split.

7
DMX SET UP
Notice: Be sure to follow gures two and three when making your own cables. Do not use the ground
lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a
short circuit and result in erratic behavior.
Special Note: Line Termination. When longer runs of cable are used, you may need to use a termi-
nator on the last unit to avoid erratic behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is
connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted
into the female XLR connector of the last unit in your daist chain to terminate the line. Using a cable
terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
5-Pin XLR DMX Connectors. Some manufactures use 5-pin XLR connectors for DATA transmission
in place of 3-pin. 5-pin XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting
standard 5-pin XLR connectors into a 3-pin line, a cable adaptor must be used. These adaptors are
readily available at most electronics stores. The chart below details a proper cable conversion.

8
INSTALLATION
The Event Bar Pro is fully operational in two dierent mounting positions: hanging upside-down from
a ceiling or trussing, or attached to a sturdy tripod stand. The unit should be mounted using a mount-
ing clamp (not provided), and axing it to the mounting bracket that is provided with the unit. Always
ensure that the unit is rmly xed to avoid vibration and slipping while operating. Always ensure that
the structure to which you are attaching the unit is secure and is able to support a weight of 10 times
the unit’s weight. Also, always use a safety cable that can hold 12 times the weight of the unit when
installing the xture.
The equipment must be installed by a professional, and it must be installed in a place where it is out
of the reach of people’s grasp.

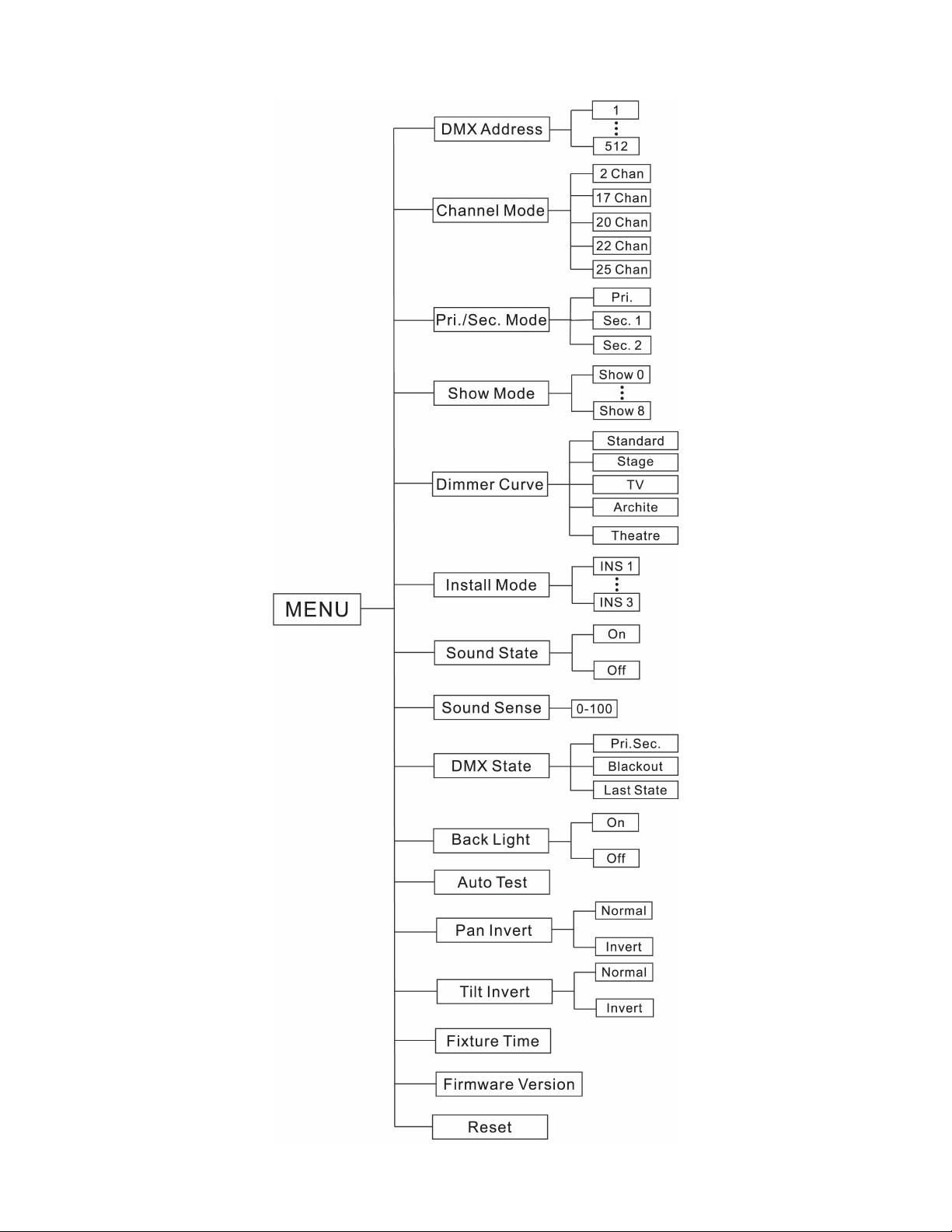

SYSTEM MENU
9

10
DMX Address - Set the DMX Address.
1. Press the MENU button until “DMX Addresss” is displayed, then press ENTER.
2. The currently selected address will now be displayed. Press the UP or DOWN buttons to scroll to
your desired address.
3. Press ENTER to conrm, and then press and hold the MENU button for at least three seconds to
assign.
Channel Mode - This will let you select your desired DMX Channel mode.
1. Press the MENU button until “Channel Mode” is displayed, then press ENTER.
2. The currently selected DMX Channel Mode will be displayed. Press the UP or DOWN buttons to
scroll to your desired Channel mode.
3. Press ENTER to conrm.
Pri/Sec Mode - This will let you set your unit as a primary or a secondary in a primary/second-
ary conguration.
1. Press the MENU button until “Pri/Sec Mode” is displayed, then press ENTER. Either “Pri”, “Sec
1”, or “Sec 2” will be displayed.
2. Press the UP or DOWN buttons until your desired setting is displayed, and press ENTER to con-
m.
NOTE: If one xture is set to “Pri”, and the next xture is set to “Sec 2”, the xtures will now have
contrasting movement with respect to each other.
Show Mode - Show modes 0-8 (Factory programs). Show mode can run with or without sound
active mode.
1. Press the MENU button until “Show Mode” is displayed, then press ENTER.
2. The currently selected show number will be displayed. Programs 1-8 are factory programs, while
“Show 0” is random mode. Press the UP or DOWN buttons to nd your desired show.
Dimmer Curve - In this mode you can select the dimmer curve. See the Dimmer Curve Chart
section of this manual for the dierent dimmer curve modes.
1. Press the MENU button until “Dimmer Curve” is displayed, then press ENTER.
2. The current dimmer mode will be displayed.
3. Press the UP or DOWN buttons to nd your desired dimmer mode and press ENTER to conrm.
Install Mode - This mode allows you to control the beam spread of the xture.
1. Press the MENU button until “Install Mode” is displayed, then press ENTER.
2. Either “INS 1”, “INS 2” or “INS 3” will be displayed.
• INS 1 - Long range beam (ceiling hanging)
• INS 2 - Short range beam (ceiling hanging)
• INS 3 - Front range beam (for truss or wall mounting)
3. Press the UP or DOWN buttons until your desired installation setting is displayed, and press EN-
TER to conm.
SYSTEM MENU

11
SYSTEM MENU
Sound State - In this mode the unit will run in sound active mode.
1. Press the MENU button until “Sound State” is displayed, then press ENTER.
2. Either “On” or “O” will now be displayed, depending on the current setting. Use the UP or
DOWN buttons to toggle between “On” and “O”.
3. Press ENTER to conrm your selection, then press and hold the MENU button to activate.
Sound Sense - In this mode you can adjust the sound sensitivity of the sound active mode.
1. Press the MENU button until “Sound Sense” is displayed, then press ENTER.
2. Press the UP or DOWN buttons to adjust the sensitivity level. The sensitivity level can be adjust-
ed between 0 (least sensitive) and 100 (most sensitive).
3. Press ENTER to set your desired sensitivity level.
DMX State - This setting determines how the xture will behave when it powers up or when
the DMX signal is lost or interrupted.
1. Press the MENU button until “DMX State” is displayed, then press ENTER.
2. Either “Pri Sec”, “Blackout”, or “Last State” will be displayed. Choose an operating mode you
would like the unit to start up in when power is applied or the DMX signal is lost.
• Primary/Secondary - The unit will automatically go into Primary/Secondary mode.
• Blackout - The unit will automatically go into stand by mode.
• Last State - The unit will automatically go into the last DMX set up.
3. Press ENTER to conrm your desired set up.
Back Light - With this function you can make the backlight automatically turn o after one
minute.
1. Press the MENU button until “Back Light” is displayed, then press ENTER.
2. Either “ON” or “OFF” will now be displayed. Press the UP or DOWN buttons to select “ON” to
keep the backlight on at all times, or “OFF” to allow the backlight to turn o after 2 minutes.
Press any button to turn the backlight on again.
3. Press ENTER to conrm.
Auto Test - This function will run a self test program.
1. Press the MENU button until “Auto Test” is displayed, then press ENTER.
2. The xture will now run a self test. Press the MENU button to exit.
Pan Invert - Pan Inversion.
1. Press the MENU button until “Pan Invert” is displayed, then press ENTER. Either “Normal” or
“Inverse” will be displayed.
2. To activate the Pan inversion press the UP or DOWN buttons until “Inverse” is displayed, and
press ENTER to conm. To deactivate Pan inversion, select “Normal” and press Enter.
Tilt Invert - Tilt Inversion.
1. Press the MENU button until “Tilt Invert” is displayed, then press ENTER. Either “Normal” or “In-
verse” will be displayed.
2. To activate the Tilt inversion press the UP or DOWN buttons until “Inverse” is displayed, then
press ENTER to conm. To deacti-ate Tilt inversion, select “Normal” and press Enter.

12
Fixture Time - With this function you can display the running time of the unit.
1. Press the MENU button until “Fixture Time” is displayed, then press ENTER.
2. The running time of the xture will now be displayed. Press MENU to exit.
Firmware Version - This will display the software version.
1. Press the MENU button until “Firmware Version” is displayed. Press the ENTER button and the
software vesion will be displayed.
2. Press the MENU button to exit back to the main menu.
Reset - Use this function to reset the unit.
1. Press the MENU button until “Reset” is displayed, then press ENTER.
2. The xture will now reset.
SYSTEM MENU

13

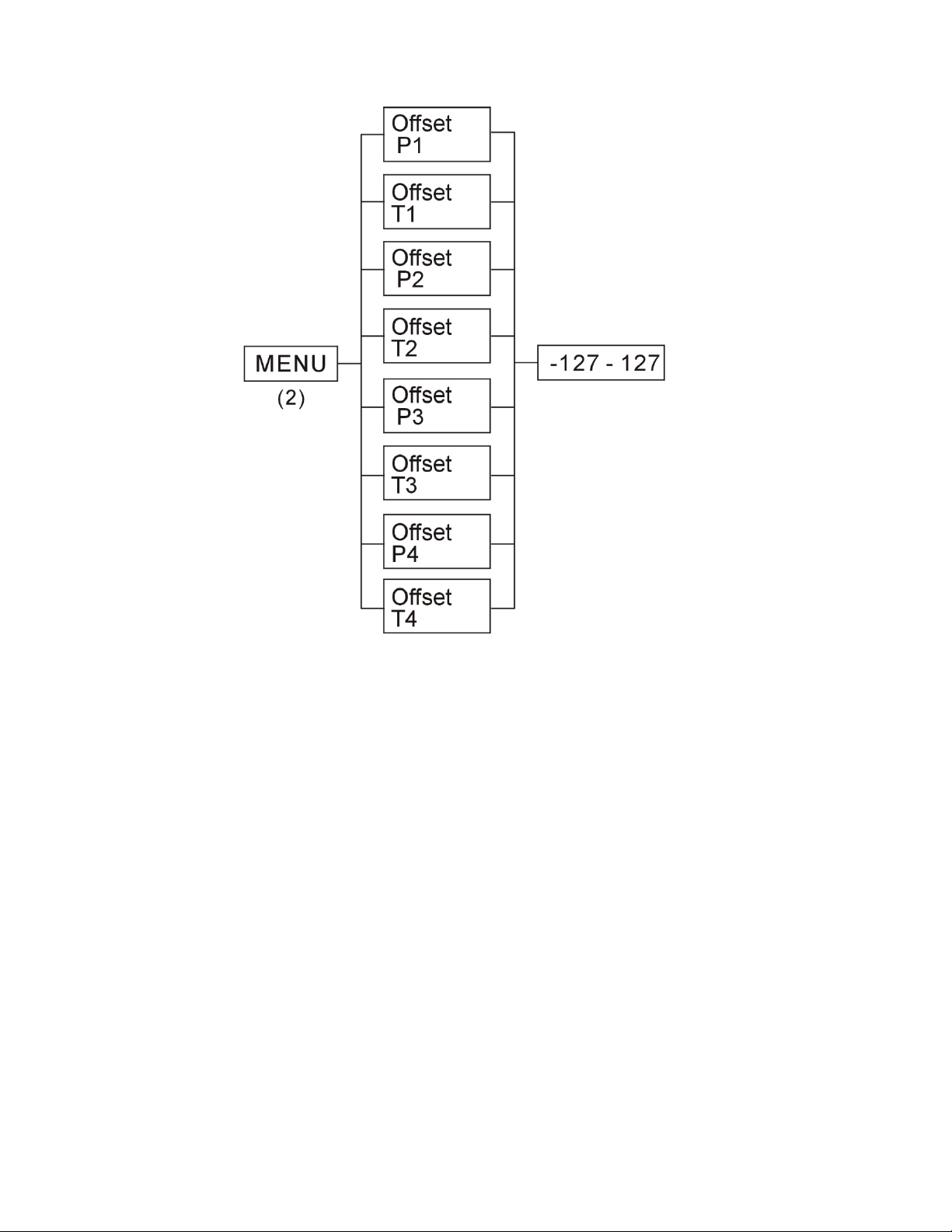

HOME POSITION ADJUSTMENT
With this function you can adjust and set the xture’s home position.
1. Press the ENTER button for at least 3 seconds to enter into oset mode.
2. Press the UP or DOWN buttons until you nd the setting that you would like to adjust. Selectable
settings include Pan (Oset Px) and Tilt (Oset Tx) for moving heads 1 to 4. Press ENTER, and
the display will begin to ash.
3. Press the UP or DOWN buttons to adjust to your desired home position. Once you have found
your desired position, press the ENTER button to set and save, or press the MENU button to
return to return to oset functions without any changes. If you do not press any buttons for 8
seconds, the xture will return to the oset functions automatically.

14
Universal DMX Control: This function allows you to use a universal DMX-512 controller to create
unique programs tailored to your individual needs.
• The Event Bar Pro has five different DMX channel modes. Refer to the System Menu section of
this manual for details on how to set the DMX channel mode. Detailed information on the DMX
traits can be found in the Channel Mode sections of this manual.
• To control your fixture in DMX mode, follow the set-up procedures in the DMX Set Up section of
this manual, as well as the set-up specifications that are included with your DMX controller.
• Use the controller’s faders to control the various DMX fixture traits. This will allow you to create
your own programs.
• Set the DMX address, as detailed in the System Menu section of this manual.
• For longer cable runs (more than a 100 feet) use a terminator on the last fixture.
• For help operating in DMX mode consult the manual included with your DMX controller.
UNIVERSAL DMX CONTROL
PRIMARY-SECONDARY CONFIGURATION
This function will allow you to link up to 16 units together and operate without a controller. The units
will be sound activated. IOne unit will act as the controlling unit and the others will react to the con-
trolling unit’s programs. Any unit can act as a Primary or as a Secondary.
1. Using approved DMX data cables, daisy chain your units together via the XLR connector on the
rear of the units. Remember the male XLR connector is the input and the female XLR connector
is the output. The first unit in the chain (primary) will use the female XLR connector only, and the
last unit in the chain will use the male XLR connector only. For longer cable runs, we suggest the
use of a terminator at the last fixture.
2. Set the Primary unit to the Primary setting following the instructions in the System Menu section
of this manual. Then set the Primary to your desired operating mode.
3. On the Secondary units, press the MENU button until “Pri/Sec Mode” is displayed, then press
ENTER. Choose either “Sec 1” or “Sec 2” and press ENTER.
4. The Secondary unit(s) will now follow the Primary unit.
UC3 CONTROL
Blackout Blackout the unit
Function
1. Synchronous white strobe
2. Asynchronous white strobe
3. Synchronous white strobe
by sound
Select show 1-8
Mode Sound 1 (LED OFF) Show (LED ON)

15
2 CHANNEL MODE
CHANNEL DMX
VALUES FUNCTION
1
Shows
000 - 007 Blackout
008 - 037 Show 1
038 - 067 Show 2
068 - 097 Show 3
098 - 127 Show 4
128 - 157 Show 5
158 - 187 Show 6
188 - 217 Show 7
218 - 247 Show 8
248 - 254 Random Show
255 Sound Active
2
Show Speed/Sound Sensitivity
000 - 255 Show Speed, slow to fast
Sound Sensitivity, least sensitive to most sensitive
Note:
• When Channel 1 is set to a value between 008 - 254, Channel 2 will control the show speed.
• When Channel 1 is set to a value of 255, Channel 2 will control the sound sensitivity.

16
17 CHANNEL MODE
CHANNEL DMX
VALUES FUNCTION
1 000 - 255 Pan (Head 1)
2 000 - 255 Pan Fine (Head 1)
3 000 - 255 Tilt (Head 1)
4 000 - 255 Tilt Fine (Head 1)
5 000 - 255 Pan (Head 2)
6 000 - 255 Pan Fine (Head 2)
7 000 - 255 Tilt (Head 2)
8 000 - 255 Tilt Fine (Head 2)
9 000 - 255 Pan (Head 3)
10 000 - 255 Pan Fine (Head 3)
11 000 - 255 Tilt (Head 3)
12 000 - 255 Tilt Fine (Head 3)
13 000 - 255 Pan (Head 4)
14 000 - 255 Pan Fine (Head 4)
15 000 - 255 Tilt (Head 4)
16 000 - 255 Tilt Fine (Head 4)
17 000 - 255 Master Dimmer, 0% - 100%

17
20 CHANNEL MODE
CHANNEL DMX
VALUES FUNCTION
1 000 - 255 Pan (Head 1)
2 000 - 255 Pan Fine (Head 1)
3 000 - 255 Tilt (Head 1)
4 000 - 255 Tilt Fine (Head 1)
5 000 - 255 Head 1 Dimmer, 0% - 100%
6 000 - 255 Pan (Head 2)
7 000 - 255 Pan Fine (Head 2)
8 000 - 255 Tilt (Head 2)
9 000 - 255 Tilt Fine (Head 2)
10 000 - 255 Head 2 Dimmer, 0% - 100%
11 000 - 255 Pan (Head 3)
12 000 - 255 Pan Fine (Head 3)
13 000 - 255 Tilt (Head 3)
14 000 - 255 Tilt Fine (Head 3)
15 000 - 255 Head 3 Dimmer, 0% - 100%
16 000 - 255 Pan (Head 4)
17 000 - 255 Pan Fine (Head 4)
18 000 - 255 Tilt (Head 4)
19 000 - 255 Tilt Fine (Head 4)
20 000 - 255 Head 4 Dimmer, 0% - 100%

18
22 CHANNEL MODE
CHANNEL DMX
VALUES FUNCTION
1 000 - 255 Pan (Head 1)
2 000 - 255 Pan Fine (Head 1)
3 000 - 255 Tilt (Head 1)
4 000 - 255 Tilt Fine (Head 1)
5 000 - 255 Head 1 Dimmer, 0% - 100%
6 000 - 255 Pan (Head 2)
7 000 - 255 Pan Fine (Head 2)
8 000 - 255 Tilt (Head 2)
9 000 - 255 Tilt Fine (Head 2)
10 000 - 255 Head 2 Dimmer, 0% - 100%
11 000 - 255 Pan (Head 3)
12 000 - 255 Pan Fine (Head 3)
13 000 - 255 Tilt (Head 3)
14 000 - 255 Tilt Fine (Head 3)
15 000 - 255 Head 3 Dimmer, 0% - 100%
16 000 - 255 Pan (Head 4)
17 000 - 255 Pan Fine (Head 4)
18 000 - 255 Tilt (Head 4)
19 000 - 255 Tilt Fine (Head 4)
20 000 - 255 Head 4 Dimmer, 0% - 100%
21 000 - 255 Master Dimmer, 0% - 100%
22
Strobe
000 Open
001 - 005 Reset
006 - 255 Strobing, slow to fast

19
25 CHANNEL MODE
CHANNEL DMX
VALUES FUNCTION
1 000 - 255 Pan (Head 1)
2 000 - 255 Pan Fine (Head 1)
3 000 - 255 Tilt (Head 1)
4 000 - 255 Tilt Fine (Head 1)
5 000 - 255 Head 1 Dimmer, 0% - 100%
6 000 - 255 Pan (Head 2)
7 000 - 255 Pan Fine (Head 2)
8 000 - 255 Tilt (Head 2)
9 000 - 255 Tilt Fine (Head 2)
10 000 - 255 Head 2 Dimmer, 0% - 100%
11 000 - 255 Pan (Head 3)
12 000 - 255 Pan Fine (Head 3)
13 000 - 255 Tilt (Head 3)
14 000 - 255 Tilt Fine (Head 3)
15 000 - 255 Head 3 Dimmer, 0% - 100%
16 000 - 255 Pan (Head 4)
17 000 - 255 Pan Fine (Head 4)
18 000 - 255 Tilt (Head 4)
19 000 - 255 Tilt Fine (Head 4)
20 000 - 255 Head 4 Dimmer, 0% - 100%
21 000 - 255 Master Dimmer, 0% - 100%
22
Strobe
000 Open
001 - 005 Reset
006 - 255 Strobing, slow to fast
CONTINUED ON NEXT PAGE

20
25 CHANNEL MODE
CHANNEL DMX
VALUES FUNCTION
23
Shows
000 - 007 Blackout
008 - 037 Show 1
038 - 067 Show 2
068 - 097 Show 3
098 - 127 Show 4
128 - 157 Show 5
158 - 187 Show 6
188 - 217 Show 7
218 - 247 Show 8
248 - 254 Random Show
255 Sound Active
24
Show Speed/Sound Sensitivity
000 - 255 Show Speed, slow to fast
Sound Sensitivity, least sensitive to most sensitive
25
Dimmer Curves
000 - 020 Standard
021 - 040 Stage
041 - 060 TV
061 - 080 Architectural
081 - 100 Theatre
101 - 255 Default to unit curve setting
Note:
• When Channel 1 is set to a value between 008 - 254, Channel 2 will control the show speed.
• When Channel 1 is set to a value of 255, Channel 2 will control the sound sensitivity.
