ADJ VIZI HEX WASH7 User manual

Rev. 8/25/20
User Instructions
VIZI HEX WASH7
4 0 1 0 7 6 5

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 2
©2017 ADJ Products, LLC all rights reserved. Information, specications, diagrams,
images, and instructions herein are subject to change without notice. ADJ Products, LLC
logo and identifying product names and numbers herein are trademarks of ADJ
Products, LLC. Copyright protection claimed includes all forms and matters of
copyrightable materials and information now allowed by statutory or judicial law or
hereinafter granted. Product names used in this document may be trademarks or
registered trademarks of their respective companies and are hereby acknowledged. All
non-ADJ Products, LLC brands and product names are trademarks or registered
trademarks of their respective companies.
ADJ Products, LLC and all afliated companies hereby disclaim any and all liabilities
for property, equipment, building, and electrical damages, injuries to any persons, and
direct or indirect economic loss associated with the use or reliance of any information
contained within this document, and/or as a result of the improper, unsafe, insufcient
and negligent assembly, installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC). Saving electric energy is a key to help
protecting the environment. Please turn off all electrical products when they are not in
use. To avoid power consumption in idle mode, disconnect all electrical equipment from
power when not in use. Thank you!

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 3
Table of Contents
Unpacking ....................................................................................................................................... 4
Introduction..................................................................................................................................... 4
Customer Support ...............................................................................................................................................4
Safety Precautions..................................................................................................................................................5
Features...........................................................................................................................................6
Handling Precautions .............................................................................................................................................6
Registration......................................................................................................................................... 6
Mounting ........................................................................................................................................... 8
DMX Set-Up ...................................................................................................................................................... 10-12
DMX Control...........................................................................................................................................................13
DMX Traits ........................................................................................................................................................ 14-22
Color Macro Chart............................................................................................................................................ 23-25
System Menu.........................................................................................................................................................27
Operation.........................................................................................................................................................44
Photometric Chart ........................................................................................................................................... 46-47
Dimmer Curve Chart .............................................................................................................................................48
Fuse Replacement ................................................................................................................................................48
Cleaning ............................................................................................................................................................ 49
Trouble Shooting ..................................................................................................................................................49
Warranty............................................................................................................................................50
Specifications ......................................................................................................................................... 52

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 4
Unpacking: Thank you for purchasing the Vizi Hex Wash7 by ADJ Products, LLC.
Every Vizi Hex Wash7 has been thoroughly tested and has been shipped in perfect
operating condition. Carefully check the shipping carton for damage that may have
occurred during shipping. If the carton appears to be damaged, carefully inspect your
xture for any damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Please do not
return this unit to your dealer without contacting customer support rst.
Introduction: The Vizi Hex Wash7 is a DMX intelligent, moving head, wash xture. The
Vizi Hex Wash7 has 3 DMX channel modes; 19 channels, 21 channels, or 27 channels.
The xture has two different operating modes; auto program or DMX control. The Vizi
Hex Wash7 can be used as a stand alone unit or in a Primary/Secondary conguration.
For best results use fog or special effects smoke to enhance the beams projections.
Customer Support: ADJ Products, LLC provides a toll free customer support line,
to provide help and to answer any question should you encounter problems during
your set up or initial operation. You may also visit us on the web at www.adj.com
for any comments or suggestions. Service Hours are Monday through Friday 8:00
a.m. to 4:30 p.m. Pacic Standard Time:
Voice: [phone]
Fax: [phone]
E-mail [email protected]
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!
Vizi Hex Wash7 General Information
ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 3

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 5
For Your Own Personal Safety, Please Read and Understand This
Manual Completely Before You Attempt To Install Or Operate
This Unit!
• To reduce the risk of electrical shock or re, do not expose this unit to rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required voltage for your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken.
• Do not attempt to remove or break off the ground prong from the electrical cord. This
prong is used to reduce the risk of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts
inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow
about 6” (15cm) between this device and a wall. Do not attempt to operate this unit,
if it becomes damaged.
• This unit is intended for indoor use only, use of this product outdoors voids all
warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords
at plugs, convenience receptacles, and the point where they exit from the appliance.
• Cleaning -The xture should be cleaned only as recommended by the manufacturer.
See page 47 for cleaning details. Heat -This xture should be situated away from heat
sources such as radiators, heat registers, stoves, or other appliances (including
ampliers) that produce heat.
• The xture should be serviced by qualied service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a marked
change in performance.
Vizi Hex Wash7 Safety Precautions

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 6
• DMX-512 Protocol Compatible (3 DMX Modes: 19 DMX Channel Mode, 21 DMX
Channel Mode, and 27 DMX Channel Mode)
• Pan & Tilt Invert
• Locking Power Connector In/Out
• Locking 3/5-P XLR Connector In/Out
• Color Macros + Individual RGBWA+UV Control
• 2 Operating Modes - Auto Program & DMX Control
• Built-In ADJ’s WiFly EXR Wireless DMX Up to 2,500 feet/760M
• Stand Alone Setup or Primary-Secondary Conguration
• Edit and Save Scenes into the Memory
Vizi Hex Wash7 Features
Caution! There are no user serviceable parts inside this unit. Do not attempt any
repairs yourself, doing so will void your manufactures warranty. In the unlikely
event your unit may require service please contact ADJ Products, LLC.
During operation the housing may become extremely hot. Avoid touching the unit
with bare hands while in use.
ADJ Products, LLC will not accept any liability for any resulting damages caused
by the non-observance of this manual or any unauthorized modication to this
unit.
Vizi Hex Wash7 Handling Precautions
The Vizi Hex Wash7 carries a two year limited warranty. Please ll out the enclosed
warranty card to validate your purchase. All returned service items whether under
warranty or not, must be freight pre-paid and accompany a return authorization (R.A.)
number. The R.A. number must be clearly written on the outside of the return package.
A brief description of the problem as well as the R.A. number must also be written down
on a piece of paper and included in the shipping carton. If the unit is under warranty,
you must provide a copy of your proof of purchase invoice. You may obtain a R.A.
number by contacting our customer support team on our toll free customer support
number. All packages returned to the service department not displaying a R.A. number
on the outside of the package will be returned to the shipper at the shippers cost.
Vizi Hex Wash7 Product Registration

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 7
Vizi Hex Wash7 Dimensions
To optimize the performance of this product, please read these operating instructions
carefully to familiarize yourself with the basic operations of this unit. These instructions
contain important safety information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Vizi Hex Wash7 General Instructions
107mm [4.21in]
284.4mm [11.20in]
266.28mm [10.48in]
381.48mm [15.02in]
411.7mm [16.21in]
286.88mm [11.29in] 206.53mm [8.13in]
202mm [7.95in]
183.5mm [7.22in]
284.4mm [11.20in]
411.7mm [16.21in]
456.2mm [17.96in]
Ø152.41mm [6.00in]
227.47mm [8.96in]
202mm [7.95in]

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 8
Vizi Hex Wash7 Truss Mounting
When installing the unit, the trussing or area of installation must be able to hold 10 times
the weight without any deformation. When installing the unit must be secured with a
Secondary safety attachment, e.g. and appropriate safety cable. Never stand directly
below the unit when mounting, removing, or servicing the unit.
Overhead mounting requires extensive experience, including calculating working load
limits, installation material being used, and periodic safety inspection of all installation
material and unit. If you lack these qualications, do not attempt the installation yourself.
These installations should be checked by a skilled person once a year.CAD
The Vizi Hex Wash7 is fully operational in three different mounting positions; hanging
upside-down from a ceiling, mounted sideways on trussing, or set on a at level
surface. Be sure this xture is kept at least 0.5m away from any ammable materials
(decoration etc.). Always use and install the supplied safety cable as a safety measure
to prevent accidental damage and/or injury in the event the clamp fails (see next page).
Never use the carrying handles for Secondary attachment.

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 9
Vizi Hex Wash7 Clamp Mounting
NOTICE: The suitable environmental temperature for this lighting xture is between -25˚
C to 45˚ C. Do not place this lighting xture in an environment where the temperatures
are under or above the temperatures stated above. This will allow the xture to run at
its best and help prolong the xture life.
Screw one clamp each via a M12 screw and nut onto the Omega holders. Insert the
quick-lock fasteners of the Omega holders into the respective holes on the bottom of
the Vizi Hex Wash7. Tighten the quick-lock fasteners fully clockwise. Install the second
Omega holder. Pull the safety-cable through the holes on the bottom of the base and
over the trussing system or a safe xation spot. Insert the end in the carabiner and
tighten the safety screw.
3
12

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 10
Figure 1
Power Supply: The ADJ Vizi Hex Wash7 contains a electronic voltage switch, which
will auto sense the voltage when it is plugged into the power source. With the electronic
ballast you do not need to worry about wall voltage, this unit can be plugged in
anywhere.

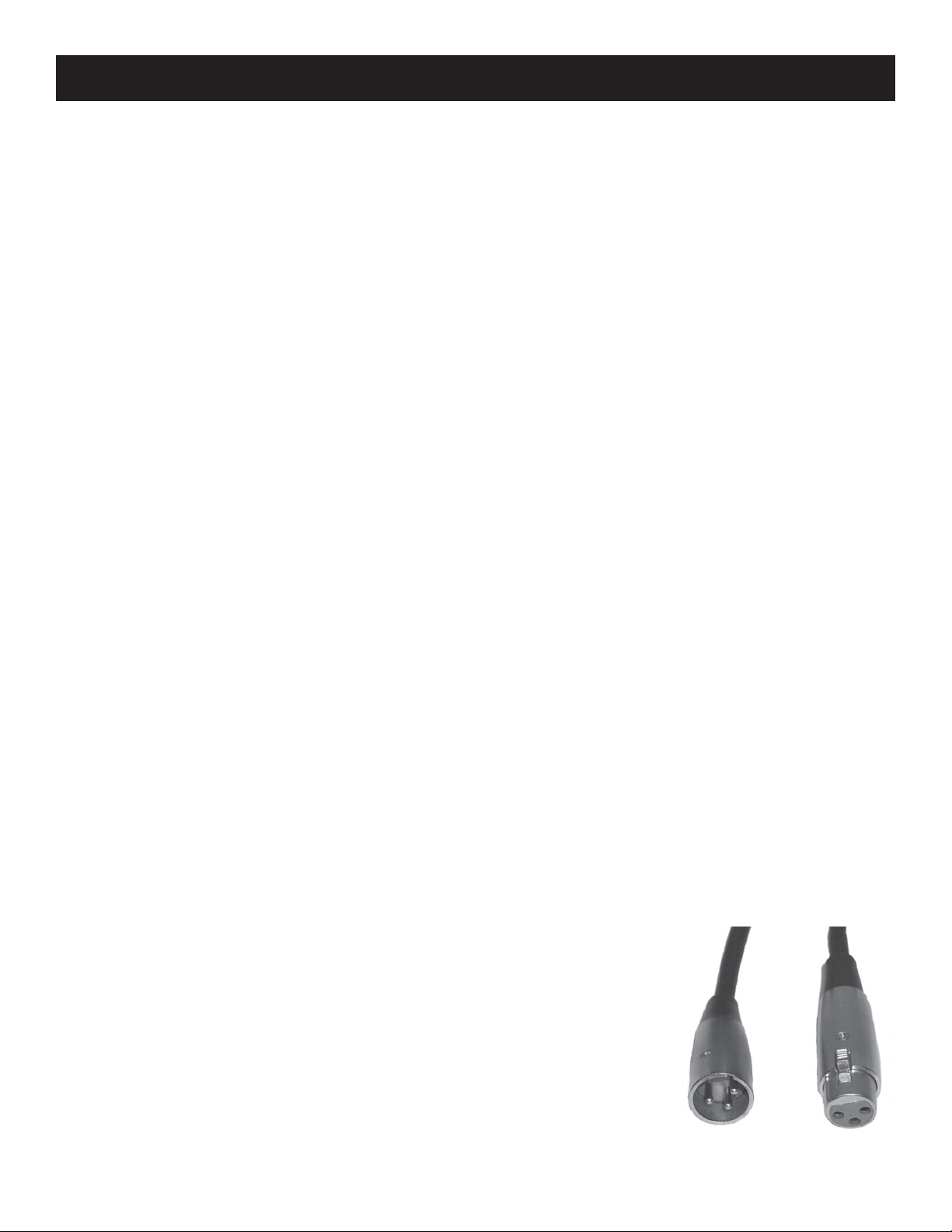

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most
lighting and controller manufactures as a form of communication between intelligent
xtures and controllers. A DMX controller sends DMX data instructions from the
controller to the xture. DMX data is sent as serial data that travels from xture to
xture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures
(most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of dierent
manufactures to be linked together and operate from a single controller, as long as
all xtures and the controller are DMX compliant. To ensure proper DMX data
transmission, when using several DMX xtures try to use the shortest cable path
possible. The order in which xtures are connected in a DMX line does not inuence
the DMX addressing. For example; a xture assigned a DMX address of 1 may be
placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the
middle. Therefore, the rst xture controlled by the controller could be the last xture
in the chain. When a xture is assigned a DMX address of 1, the DMX controller
knows to send DATA assigned to address 1 to that unit, no matter where it is located
in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Primary/Secondary Operation):
The Vizi Hex Wash7 can be controlled via DMX-512 protocol. The Vizi Hex Wash7 can
be either a 19, 21, or 27 channel DMX unit. The DMX address is set electronically using
the controls on the panel of the unit. Your unit and your DMX controller require a
approved DMX-512 110 Ohm Data cable for data input and data
output (Figure 1). We recommend Accu-Cable DMX cables. If
you are making your own cables, be sure to use standard
110-120 Ohm shielded cable (This cable may be purchased at
almost all professional sound and lighting stores). Your cables
should be made witha male and female XLR connector on either
end of the cable. Also remember that DMX cable must be daisy
chained and cannot be split.
Vizi Hex Wash7 DMX Set Up

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 11
a male and female XLR connector on either end of the cable. Also remember that
DMX cable must be daisy chained and cannot be split.
Notice: Be sure to follow gures two and three when making your own cables. Do not use
the ground lug on the XLR connector. Do not connect the cable’s shield conductor to the
ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
Grounding the shield could cause a short circuit and erratic behavior.
Vizi Hex Wash7 DMX Set Up
DMX512 IN
3-PIN XLR
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Figure 2
Figure 3
1 Ground 1 Ground
XLR Male Socket XLR Pin Conguration
3 Hot
2 Cold 2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
Special Note: Line Termination.
When longer runs of cable are used, you may need
to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120
ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector
(DATA + and DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part
number Z-DMX/T) will decrease the possibilities of erratic behavior.
1
2
3
Termination reduces signal e rrors and signal
transmission problems interference. It is always
advisable connect a DMX terminal, (Resistance
Ohm 1/4 W) between PIN 2 (DMX-) PIN 3 (DMX+)
of the last fixture.
Figure 4

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 12
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin DMX-512 data cables for
DATA transmission in place of 3-pin. 5-pin DMX xtures may be implemented in a 3-pin
DMX line. When inserting standard 5-pin data cables in to a 3-pin line a cable adapter
must be used, these adapters are readily available at most electric stores. The chart
below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)
3-Pin XLR Female (Out)
Pin 1
Pin 5 - Do Not Use
Pin 4 - Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion
Vizi Hex Wash7 DMX Set Up

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 13
Universal DMX Control: This function allows you to use a universal DMX-512 controller
to control head movement, colors, Primary dimmer, shutter (strobe), and various other
features. A DMX controller allows you to create unique programs tailored to your
individual needs.
1. The Vizi Hex Wash7 has 3 DMX channel modes; 19 Channel mode, 21 Channel
mode, and 27 Channel mode. See pages 13-21 for detailed description of the DMX
traits.
2. To control your xture in DMX mode, follow the set-up procedures on pages 9-11 as
well as the set-up specications that are included with your DMX controller.
3. Use the controller’s faders to control the various DMX xture traits.
4. This will allow you to create your own programs.
5. Follow the directions on page 26 to select your DMX Channel mode, and to set the
DMX address.
6. For longer cable runs (more than a 100 feet) use a terminator on the last xture.
7. For help operating in DMX mode consult the manual included with your DMX
controller.
Vizi Hex Wash7 DMX Control

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 14
ValueChannel
Vizi Hex Wash7 19 Channel DMX Mode (Basic)
Function
1
2
3
TILT MOVEMENT 8bit
ALL RED LED
0% - 100%
PAN MOVEMENT 8bit (540° or 630°)0 - 255
0 - 255
0 - 255
0 - 255 ALL GREEN LED
0% - 100%
4
0 - 255
5ALL BLUE LED
0% - 100%
0 - 255
6ALL WHITE LED
0% - 100%
0 - 255
7ALL AMBER LED
0% - 100%
0 - 255
8ALL UV LED
0% - 100%
0 - 255
9COLOR MACROS
PLEASE SEE PAGE’S 22-24
0 - 255
11 Primary DIMMER
0% - 100%
0 - 255
12 DIMMER FINE
0% - 100%
0 - 255
13 ZOOM
7° - 58°
0 - 31
32 - 63
64 - 95
96 - 127
128 - 159
160 - 191
192 - 223
224 - 255
10
SHUTTER/STROBE
LED OFF
LED ON
STROBING SLOW - FAST
LED ON
STROBE PULSE SLOW - FAST
LED ON
RANDOM STROBE SLOW - FAST
LED ON

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 15
Vizi Hex Wash7 19 Channel DMX Mode (Basic)
Channel Value Function
14 AUTO PROGRAMS
0 OFF
1 - 20 PROGRAM 1
21 - 40 PROGRAM 2
41 - 60 PROGRAM 3
61 - 80 PROGRAM 4
81 - 100 PROGRAM 5
101 - 120 PROGRAM 6
121 - 140 PROGRAM 7
141 - 160 PROGRAM 8
161 - 180 PROGRAM 9
181 - 200 PROGRAM 10
201 - 220 PROGRAM 11
221 - 240 PROGRAM 12
241 - 250 PROGRAM 13
251 - 255 PROGRAM 14
15 PROGRAM SPEED
0 - 255 SLOW - FAST
16 AUTO PROGRAM FADE
0 NORMAL
1 - 255 SLOW - FAST
17 DIMMER MODE
0 - 20 STANDARD
21 - 40 STAGE
41 - 60 TV
61 - 80 ARCHITECTURAL
81 - 100 THEATRE
101 - 255 DEFAULT DIMMER SETTING
18 PAN/TILT SPEED
0 - 225 FAST - SLOW
226 - 235 BLACKOUT BY MOVEMENT
236 - 255 NO FUNCTION

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 16
Channel Value
Vizi Hex Wash7 19 Channel DMX Mode (Basic)
Function
AUTO PROGRAMS
NORMAL
ALL MOTOR RESET
NO FUNCTION
INTERNAL PROGRAM 1
INTERNAL PROGRAM 2
INTERNAL PROGRAM 3
INTERNAL PROGRAM 4
INTERNAL PROGRAM 5
INTERNAL PROGRAM 6
INTERNAL PROGRAM 7
NO FUNCTION
0 - 79
80 - 84
85 - 99
100 - 119
120 - 139
140 - 159
160 - 179
180 - 199
200 - 219
220 - 239
240 - 255
19

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 17
Vizi Hex Wash7 21 Channel DMX Mode (Standard)
1
2
3
4
0 - 255
0 - 255
0 - 255
0 - 255
TILT MOVEMENT 8bit
PAN MOVEMENT FINE 16bit
TILT MOVEMENT FINE 16bit
50 - 255 ALL RED LED
0% - 100%
60 - 255 ALL GREEN LED
0% - 100%
70 - 255 ALL BLUE LED
0% - 100%
80 - 255 ALL WHITE LED
0% - 100%
90 - 255 ALL AMBER LED
0% - 100%
10 0 - 255 ALL UV LED
0% - 100%
11 0 - 255 COLOR MACROS
PLEASE SEE PAGE’S 22-24
12
0 - 31
32 - 63
64 - 95
96 - 127
128 - 159
160 - 191
192 - 223
224 - 255
SHUTTER/STROBE
LED OFF
LED ON
STROBING SLOW - FAST
LED ON
STROBE PULSE SLOW - FAST
LED ON
RANDOM STROBE SLOW - FAST
LED ON
13 0 - 255 Primary DIMMER
0% - 100%
14 0 - 255 DIMMER FINE
0% - 100%
15 0 - 255 ZOOM
7° - 58°
PAN MOVEMENT 8bit (540° or 630°)
Channel Value Function

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 18
Vizi Hex Wash7 21 Channel DMX Mode (Standard)
16
0
1 - 20
21 - 40
41 - 60
61 - 80
81 - 100
101 - 120
121 - 140
141 - 160
161 - 180
181 - 200
201 - 220
221 - 240
241 - 250
251 - 255
AUTO PROGRAMS
OFF
PROGRAM 1
PROGRAM 2
PROGRAM 3
PROGRAM 4
PROGRAM 5
PROGRAM 6
PROGRAM 7
PROGRAM 8
PROGRAM 9
PROGRAM 10
PROGRAM 11
PROGRAM 12
PROGRAM 13
PROGRAM 14
20
17
0 - 225
226 - 235
236 - 255
0 - 255
18 0 - 255
PAN/TILT SPEED
FAST - SLOW
BLACKOUT BY MOVEMENT
NO FUNCTION
Channel Value Function
PROGRAM SPEED
SLOW - FAST
19
0 - 20
1 - 40
41 - 60
61 - 80
81 - 100
101 - 255
DIMMER MODE
STANDARD
STAGE
TV
ARCHITECTURAL
THEATRE
DEFAULT DIMMER SETTING
AUTO PROGRAM FADE
NORMAL
SLOW - FAST

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 19
Vizi Hex Wash7 21 Channel DMX Mode (Standard)
16
0
1 - 20
21 - 40
41 - 60
61 - 80
81 - 100
101 - 120
121 - 140
141 - 160
161 - 180
181 - 200
201 - 220
221 - 240
241 - 250
251 - 255
AUTO PROGRAMS
OFF
PROGRAM 1
PROGRAM 2
PROGRAM 3
PROGRAM 4
PROGRAM 5
PROGRAM 6
PROGRAM 7
PROGRAM 8
PROGRAM 9
PROGRAM 10
PROGRAM 11
PROGRAM 12
PROGRAM 13
PROGRAM 14
20
17
0 - 225
226 - 235
236 - 255
0 - 255
18 0 - 255
PAN/TILT SPEED
FAST - SLOW
BLACKOUT BY MOVEMENT
NO FUNCTION
Channel Value Function
PROGRAM SPEED
SLOW - FAST
19
0 - 20
1 - 40
41 - 60
61 - 80
81 - 100
101 - 255
DIMMER MODE
STANDARD
STAGE
TV
ARCHITECTURAL
THEATRE
DEFAULT DIMMER SETTING
AUTO PROGRAM FADE
NORMAL
SLOW - FAST

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 20
Vizi Hex Wash7 21 Channel DMX Mode (Standard)
21
0 - 79
80 - 84
85 - 99
101 - 119
120 - 139
140 - 159
160 - 179
180 - 199
200 - 219
220 - 239
240 - 255
AUTO PROGRAMS
NORMAL
ALL MOTOR RESET
NO FUNCTION
INTERNAL PROGRAM 1
INTERNAL PROGRAM 2
INTERNAL PROGRAM 3
INTERNAL PROGRAM 4
INTERNAL PROGRAM 5
INTERNAL PROGRAM 6
INTERNAL PROGRAM 7
NO FUNCTION
Channel Value Function
