ADJ JOLT PANEL FX User manual

JOLT PANEL FX
User Manual

2
Date Document
Version
Software
Version DMX Channels Notes
01/24/2022 1.0 1.0 6/9/13/18/36/41/126/141 Initial Release
10/03/2022 1.1 1.02 6/9/13/18/36/41/51/81/126 Updated DMX Channels, adding 51
& 81, & updated Dimensions
10/18/2022 1.2 N/C NO CHANGE Added RDM Codes
©2022 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product
names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes
all forms and matters of copyrightable materials and information now allowed by statutory or judicial
law or hereinafter granted. Product names used in this document may be trademarks or registered
trademarks of their respective companies and are hereby acknowledged. All non-ADJ Products, LLC
brands and product names are trademarks or registered trademarks of their respective companies.
ADJ Products, LLC and all afliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as a
result of the improper, unsafe, insufcient and negligent assembly, installation, rigging, and operation
of this product.
ADJ PRODUCTS LLC World Headquarters
6122 S. Eastern Ave. | Los Angeles, CA 90040 USA
Tel: [phone] | Fax: [phone] | www.adj.com |[email protected]
ADJ Supply Europe B.V.
Junostraat 2 | 6468 EW Kerkrade | Netherlands
Tel: [phone] | Fax: [phone] | www.americandj.eu | [email protected]
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the environment. Please turn off all electrical products
when they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment
from power when not in use. Thank you!
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of this
document may be available online.
Please check www.adj.com for the latest revision/update of this manual before
beginning installation and/or programming.

3
Introduction 4
Limited Warranty (USA Only) 5
Warranty Registration | Features 6
Safety Guidelines 7
Overview 8
Installation 9
Remove Device Management 11
Control Panel 12
System Menu 13
DMX Setup 15
DMX Traits 17
LED Pixel Zones 37
Dimmer Modes and Curves 38
Daisy Chain Power Linking | Cleaning and Maintenance 39
Software Update Instructions 40
Dimensional Drawings 41
Specifications 42
CONTENTS

4
GENERAL INFORMATION
INTRODUCTION
Please read and understand the instructions in this manual carefully and thoroughly before attempting
to operate this device. These instructions contain important safety and use information.
This product is intended for use by professionally trained personnel only, and is not suitable for
private use.
Unpacking
Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully
check the shipping carton for damage that may have occurred during shipping. If the carton is damaged,
carefully inspect the device for damage, and be sure all accessories necessary to install and operate
the device have arrived intact. In the event damage has been found or parts are missing, please contact
our customer support team for further instructions. Please do not return this device to your dealer
without rst contacting customer support. Please do not discard the shipping carton in the trash. Please
recycle whenever possible.
BOX CONTENTS
Omega Brackets
1.83M locking power cable
CUSTOMER SUPPORT
Contact ADJ Service for any product related service and support needs.
Also visit forums.adj.com with questions, comments or suggestions.
ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
323-582-2650 | Fax: [phone] | [email protected]
ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
[phone] | Fax: [phone] | [email protected]
REPLACEMENT PARTS please visit parts.adj.com
IMPORTANT NOTICE!
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACTURER’S
WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE
DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE
MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO WARRANTY CLAIMS AND/OR
REPAIRS.

5
LIMITED WARRANTY (USA ONLY)
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing
defects in material and workmanship for a prescribed period from the date of purchase (see specic warranty period
on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including
possessions and territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable
evidence, at the time service is sought.
B. For warranty service, you must obtain a Return Authorization number (RA#) before sending back the product-please
contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to the ADJ Products, LLC
factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are
within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within
the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be
shipped with the product. If any accessories are shipped with the product, ADJ Products, LLC shall have no liability
whatsoever for loss of or damage to any such accessories, or for the safe return thereof.
C. This warranty is void of the serial number has been altered or removed; if the product is modied in any manner which
ADJ Products, LLC concludes, after inspection, affects the reliability of the product, if the product has been repaired or
service by anyone other than ADJ Products, LLC factory unless prior written authorization was issued to purchaser by
ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.
D. This is not a service contact, and this warranty does not include maintenance, cleaning or periodic check up. During
the period specied above, ADJ Products, LLC will replace defective parts at its expense with new or refurbished parts,
and will absorb all expenses for warrant service and repair labor by reason of defects in material or workmanship. The
sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement
thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were
manufactured after August 15, 2012, and bear identifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products without any
obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products
described above. Except to the extent prohibited by applicable law, all implied warranties made by ADJ Products, LLC
in connection with this product, including warranties of merchantability or tness, are limited in duration to the warranty
period set forth above. And no warranties, whether expressed or implied, including warranties of merchantability or
tness, shall apply to this product after said period has expired. The consumer’s and/or Dealer’s sole remedy shall be
such repair or replacement as is expressly provided above; and under no circumstances shall ADJ Products, LLC be
liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
G. This warranty is the only written warranty applicable to ADJ Products, LLC Products and supersedes all prior warranties
and written descriptions of warranty terms and conditions heretofore published.
LIMITED WARRANTY PERIODS
• Non L.E.D. Lighting Products = 1-year (365 days) Limited Warranty (Such as: Special Effect Lighting, Intelligent
Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands etc.
excluding LED and lamps)
• Laser Products = 1 Year (365 Days) Limited Warranty (excludes laser diodes which have 6 month limited warranty)
• L.E.D. Products = 2-year (730 days) Limited Warranty (excluding batteries which have a 180 day limited warranty)
Note: 2 Year Warranty only applies to purchases within the United States.
• StarTec Series = 1 Year Limited Warranty (excluding batteries which have a 180 day limited warranty)
• ADJ DMX Controllers = 2 Year (730 Days) Limited Warranty

6
WARRANTY REGISTRATION
The Jolt Panel FX carries a 2 year limited warranty. Please ll out the enclosed warranty card to
validate your purchase. All returned service items, whether under warranty or not, must be freight
pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly
written on the outside of the return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper included in the shipping carton. If the unit is
under warranty, you must provide a copy of your proof of purchase invoice. You may obtain an R.A.
number by contacting our customer support team on our customer support number. All packages
returned to the service department not displaying an R.A. number on the outside of the package will
be returned to the shipper.
FEATURES
The Jolt Panel FX is an extremely versatile fixture ideal for concert tours, one-off event production
and permanent nightclub installations. It features a central strip of 48 x 5-Watt cool white SMD LEDs,
surrounded on both sides by a total of 800 x 0.3W RGB SMD LEDs. This provides lighting designers
with the creative potential of generating both strikingly bright white strobe effects and vibrant color
washes from the same compact fixture.
• Compact size, light weight construction
• Two types of LEDs: 48 x cool white LED in the center, and 800 x 5050 RGB components in the
outer portion of the display
• 40 x LED zones and 6 x strobe tube zones with individual control capability
• Smooth dimming and color mixing
• Ultra-high stunning output with multiple strobe speeds
INCLUDED ITEMS:
• 1 x Locking power cable
• 1 x Omega bracket
• 1 x Single yoke
IP RATING
This device is IP20 rated. This means that the unit is protected against the instrusions of solids
approximately the size of an adult finger (2.5mm) or larger, but the unit is not protected against
water or liquid intrusion of any kind.

7
SAFETY GUIDELINES
THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO
GUARANTEE SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS
AND GUIDELINES IN THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR
INJURY AND/OR DAMAGES RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE
DISREGARD OF THE INFORMATION PRINTED IN THIS MANUAL. ONLY QUALIFIED AND/OR
CERTIFIED PERSONNEL SHOULD PERFORM INSTALLATION OF THIS FIXTURE AND ONLY
THE ORIGINAL RIGGING PARTS INCLUDED WITH THIS FIXTURE SHOULD BE USED FOR
INSTALLATION. ANY MODIFICATIONS TO THE FIXTURE AND/OR THE INCLUDED MOUNTING
HARDWARE WILL VOID THE ORIGINAL MANUFACTURER’S WARRANTY AND INCREASE THE
RISK OF DAMAGE AND/OR PERSONAL INJURY. ONLY CERTIFIED PERSONNEL SHOULD
PERFORM INSTALLATION OF THIS FIXTURE.
• PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
• THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
• DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR
MANUFACTURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS
FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN
THIS MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO ANY
WARRANTY CLAIMS AND/OR REPAIRS.
• DO NOT PLUG FIXTURE INTO A DIMMER PACK!
• NEVER OPEN THIS FIXTURE WHILE IN USE!
• UNPLUG POWER BEFORE SERVICING FIXTURE!
• NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!
• KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
• NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
• RETINA INJURY RISK - MAY INDUCE BLINDNESS!
• SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
• INDOOR / DRY LOCATIONS USE ONLY!
• DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE!
• MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS)
• MINIMUM DISTANCE TO FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6 FEET (0.5
METER).
• DO NOT TOUCH the xture housing during operation. Turn OFF the power and allow
approximately 60 minutes for the xture to cool down before serving.
• DO NOT shake xture, and avoid brute force when installing and/or operating xture.
• DO NOT operate xture if the power cord is frayed, crimped, damaged and/or if any of the power
cord connectors are damaged and do not insert into the xture securely with ease. NEVER force
a power cord connector into the xture. If the power cord or any of its connectors are damaged,
replace it immediately with a new one of the same power rating.
• DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked.
Allow approx. 6” (15cm) between xture and other devices or a wall for proper cooling.

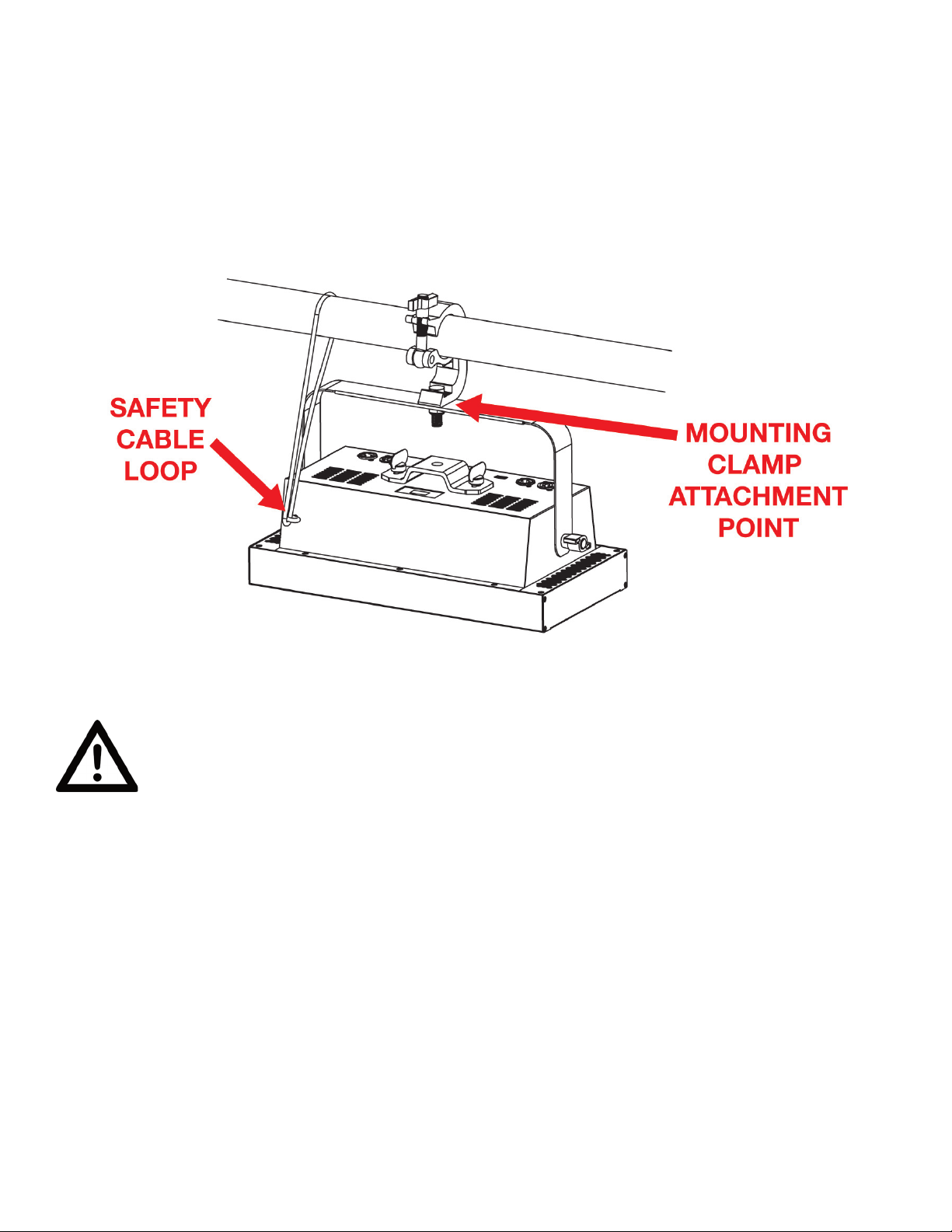

• When installing xture in a suspended environment, always use mounting hardware that is no less
than M10 x 25 mm, and always install xture with an appropriately rated safety cable.
• Always disconnect xture from main power source before performing any type of service and/or
cleaning procedure.
• Only handle the power cord by the plug end. Never pull out the plug by tugging the wire portion of
the cord.
• During the initial operation of this xture, a light smoke or smell may emit from the interior of the
xture. This is a normal process and is caused by excess paint in the interior of the casing burning
off from the heat associated with the lamp and will decrease gradually over time.
• Consistent operational breaks will ensure xture will function properly for many years.
• Only use original packaging and materials to transport the xture in for service.

8
OVERVIEW

9
INSTALLATION
FLAMMABLE MATERIAL WARNING
Keep xture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics.
ELECTRICAL CONNECTIONS
A qualified electrician should be used for all electrical connections and/or installations.
MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS).
MINIMUM DISTANCE OF INFLAMMABLE MATERIALS FROM THE SURFACE IS 1.6
FEET (0.5 METERS).
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
• Fixture MUST be installed following all local, national, and country commercial electrical and
construction codes and regulations.
• Before rigging/mounting a single xture or multiple xtures to any metal truss/structure or placing
the xture(s) on any surface, a professional equipment installer MUST be consulted to determine
if the metal truss/structure or surface is properly certied to safely hold the combined weight of the
xture(s), clamps, cables, and accessories.
• Maximum ambient operating temperature is 113°F (45°C). Do not use xture when ambient
temperature exceeds this value.
• Fixture(s) should be installed outside walking paths, seating areas, or areas where unauthorized
personnel might reach the xture by hand.
• NEVER stand directly below the xture(s) when rigging, removingm, or servicing.
• Overhead xture installation must always be secured with a secondary safety attachment, such as
an appropriately rated safety cable.
• Allow approximately 60 minutes for the xture to cool down before servicing.
IP RATING
This device is IP20 rated. This means that the unit is protected against the intrusion of
solids 2.5mm in size or larger (approximately the size of an adult finger tip). The unit is NOT
protected against water or liquid intrusion of any kind!
RIGGING
Overhead rigging requires extensive experience, including calculating working load limits,
knowledge of installation material being used, and periodic safety inspection of all installation
material and the fixture, among other skills. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury.

10
SAFETY CABLE:
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A
SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL NOT FALL IF
THE CLAMP FAILS.
INSTALLATION
CLAMP INSTALLATION
This fixture features a mounting point on the yoke for the attachment of a mounting clamp. There
is also a safety cable loop located on the rear of the fixture (see the illustration below). When
mounting the fixture to a truss or any other suspended or overhead installation, be sure to secure
appropriately rated clamps (not included) to the yoke, and attach a separate SAFETY CABLE of the
appropriate weight rating to the safety cable loop.

11
NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout
the entire system, including DMX data splitters and wireless systems.
Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for
lighting, and allows the DMX systems of the xtures to be modied and monitored remotely. This
protocol is ideal for instances in which a unit is installed in a location that is not easily accessible.
With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled con-
troller to send out a signal to devices on the wire, as well as allowing the xture to respond (known
as a GET command). The controller can then use its SET command to modify settings that would
typically have to be changed or viewed directly via the unit’s display screen, including the DMX Ad-
dress, DMX Channel Mode, and Temperature Sensors.
FIXTURE RDM INFORMATION:
Device ID Device Model ID RDM Code Personality ID
OPEN 0x1FDB 0x1900
0x010A(6CH)
0x020A(9CH)
0x030A(13CH)
0x040A(18CH)
0x050A(36CH)
0x060A(41CH)
0x070A(51CH)
0x080A(81CH)
0x090A(126CH)
0x0A0A(141CH)
Please be aware that not all RDM devices support all RDM features, and therefore it is important
to check beforehand to ensure that the equipment that you are considering includes all of the fea-
tures that you require.
The following parameters are accessible in RDM on this device:
MANUFACTURER
SOFTWARE VERSION
DMX START ADDRESS
DEVICE MODEL DESCRIPTION
DEVICE LABEL
DMX PERSONALITY
DMX PERSONALITY DESCRIPTION
DEVICE HOURS
RESET DEVICE - WARM RESET
RESET DEVICE - COLD RESET
REMOTE DEVICE MANAGEMENT (RDM)

12

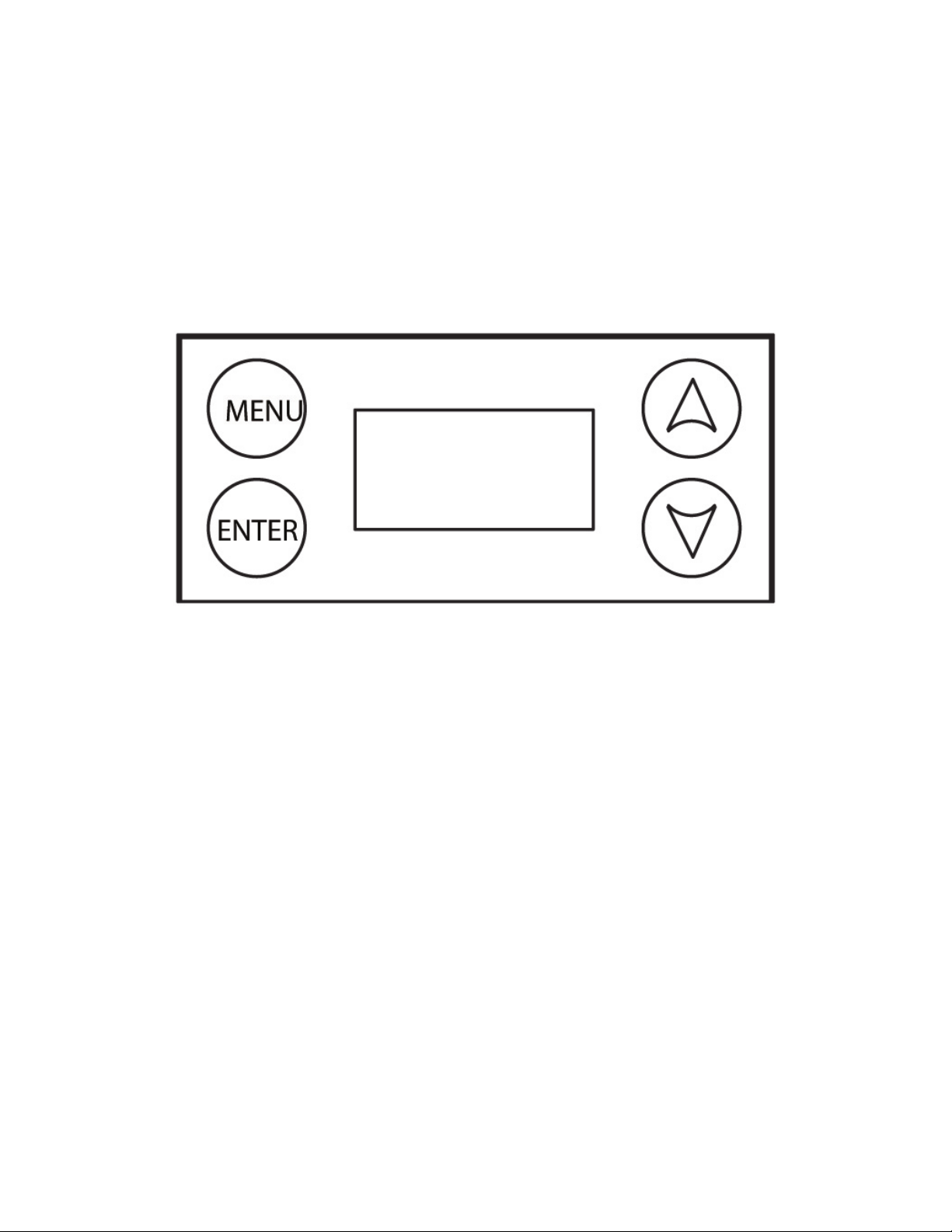

CONTROL PANEL
The xture includes an easy to navigate system menu control panel display where all necessary
settings and adjustments are made.
• MENU: Leave current menu and return to previous menu level.
• UP: Scroll up in currently displayed menu.
• DOWN: Scroll down in currently displayed menu.
• ENTER: Select an option or confirm a selection.
This fixture includes a display lock feature which automatically shuts off the display screen after a
certain period of inactivity. This feature is OFF by default, which means that the display will always
remain on regardless of inactivity, but can be configured to kick in after up to 10 minutes of inactivity.
See the System Menu section of this manual for details on how to configure this setting.

13
MAIN MENU OPTIONS / VALUES (Default Settings in BOLD)DESCRIPTION
DMX SETTINGS
DMX Address
1- 507 (6ch)
1- 504 (9ch)
1- 500 (13ch)
1- 495 (18ch)
1- 477 (36ch)
1- 472 (41ch)
1- 462 (51ch)
1- 432 (81ch)
1- 387 (126ch)
1- 372 (141ch)
DMX Channel Mode
6CH
9CH
13CH
18CH
36CH
41CH
51CH
81CH
126CH
141CH
No DMX Status
Blackout
Takes all traits to 0
when DMX signal is
lost or interrupted.
Hold
Holds all traits at last
received value when
DMX signal is lost or
interrupted.
Manual
Defaults to values set
in Manual Mode when
DMX signal is lost or
interrupted.
PERSONALITY
Dim Modes
Standard
Stage
TV
Architectural
Theatre
Stage 2
Dimmer Curve
Linear
Square
Inv. Sq.
S-Curve
Display
Display Backlight Off - 2 min
Display Lock Off - 10 min
Display Invert No / Yes
Temperature Unit °C / °F
Fan Speed
Low
High
Auto
Service
(Passcode = 011)
White Balance
Red1 (000 - 255)
Green1 (000 - 255)
Blue1 (000 - 255)
Red2 (000 - 255)
Green2 (000 - 255)
Blue2 (000 - 255)
...
USB Port Power ON / OFF
Update Software YES / NO
Factory Restore YES / NO
SYSTEM MENU

14
SYSTEM MENU
MAIN MENU OPTIONS / VALUES (Default Settings in BOLD)DESCRIPTION
MANUAL
Outer Red 000 - 255
Note: Manual control
settings shall always
hold when no DMX
signal is detected.
Outer Green 000 - 255
Outer Blue 000 - 255
Inner White 000 - 255
Dimmer 000 - 255
Dimmer Fine 000 - 255
Strobe Effect 000 - 255
Strobe Rate 000 - 255
Strobe Duration 000 - 255
FIXTURE TEST Auto Test
FIXTURE
INFORMATION
Fixture Use Hour
LED Use Hour
Total LED Hour
LED On Hour
LED Hours Reset
Temperature
Fan State
RDM UID xxxxxx
Error Logs
Fixture Errors LED Fan Error
Temperature Error
Reset Error Log
(Passcode = 011) NO / YES
Firmware Version x.xx

15
DMX SETUP
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu-
nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions
from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via
the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have
a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be
linked together and operate from a single controller, as long as all fixtures and the controller are
DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible
when using several DMX fixtures. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation):The Jolt Panel FX can be controlled
via DMX-512 protocol, and features multiple DMX channel modes. Your unit and your DMX control-
ler require a 5-pin XLR connector for data input and data output. If you are making your own cables,
be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro
lighting stores). Your cables should be made with a male XLR connector at one end and a female
XLR connector on the other. Also remember that DMX cable must be daisy chained and cannot be
split.
Special Note: Line Termination. When longer runs of cable are used, you may need to use a ter-
minator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor
which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is
inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a
cable terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior.

16
Channel Mode Unit 1 Address Unit 2 Address Unit 3 Address Unit 4 Address
6 Channels 1 7 13 19
9 Channels 1 10 19 28
13 Channels 1 14 27 40
18 Channels 1 19 37 55
36 Channels 1 37 73 109
41 Channels 1 42 83 124
51 Channels 1 52 103 154
81 Channels 1 82 163 244
126 Channels 1 127 253 379
141 Channels 1 142 283 424
DMX SETUP
DMX ADDRESSING
All fixtures should be given a DMX starting address when operating with a DMX controller, in order
to ensure that the correct fixture responds to the correct control signal. This digital starting address is
the channel number from which the fixture starts to “listen” to the digital control signal sent out from
the DMX controller. The assignment of this starting DMX address is achieved by setting the correct
DMX address on the digital control display on the fixture.
You can set the same starting address for all fixtures or a group of fixtures, or set different addresses
for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react
in the same way. In this case, please note that changing the settings of one channel will affect all the
fixtures simultaneously.
If you set each fixture to a different DMX address, each unit will “listen” starting at the channel
number you have set, based on the quantity of DMX channels of each fixture. That means changing
the settings of one channel will only affect the selected fixture.
As an example, when operating this device in 6 channel mode, you should set the starting DMX
address of the first unit to 1, the second unit to 7 (1 + 6), the third unit to 13 (1 + 6 + 6), and so on.

17
DMX TRAITS: 6 CHANNEL MODE
Features subject to change without notice
6 CHANNEL MODE VALUE FUNCTION
1 000-255 Outer Red: 0 to 100%
2 000-255 Outer Green: 0 to 100%
3 000-255 Outer Blue: 0 to 100%
4 000-255 Inner White: 0 to 100%
5 000-255 Dimmer: 0 to 100%
6 000-255 Dimmer Fine: 0 to 100%
DMX TRAITS: 9 CHANNEL MODE
Features subject to change without notice
9 CHANNEL MODE VALUE FUNCTION
1 000-255 Outer Red: 0 to 100%
2 000-255 Outer Green: 0 to 100%
3 000-255 Outer Blue: 0 to 100%
4 000-255 Inner White: 0 to 100%
5 000-255 Dimmer: 0 to 100%
6 000-255 Dimmer Fine: 0 to 100%
7
Strobe Effect
0-2 Open
3-5 Strobe
6-50 Ramp up
51-100 Ramp down
101-150 Ramp up-down
151-200 Lightning
201-255 Random
8 000-255 Strobe Rate: Slow to Fast
9 000-255 Strobe Duration: Slow to Fast
DMX TRAITS: 13 CHANNEL MODE
Features subject to change without notice
13 CHANNEL MODE VALUE FUNCTION
1 000-255 Outer Red: 0 to 100%
2 000-255 Outer Green: 0 to 100%
3 000-255 Outer Blue: 0 to 100%
4 000-255 Inner White: 0 to 100%
5 000-255 Outer Color Macros
6 000-255 Dimmer: 0 to 100%
7 000-255 Dimmer Fine: 0 to 100%
8
Outer Strobe Effect
0-2 Open
3-5 Strobe
6-50 Ramp up
51-100 Ramp down
101-150 Ramp up-down
151-200 Lightning
201-255 Random
9 000-255 Outer Strobe Rate: Slow to Fast
10 0-255 Outer Strobe Duration: Slow to Fast

18
DMX TRAITS: 13 CHANNEL MODE
Features subject to change without notice
13 CHANNEL MODE VALUE FUNCTION
11
Outer Program Macro
0-5 No function
6-15 Macro1
16-25 Macro2
26-35 Macro3
36-45 Macro4
46-55 Macro5
56-65 Macro6
66-75 Macro7
76-85 Macro8
86-95 Macro9
96-105 Macro10
106-115 Macro11
116-125 Macro12
126-135 Macro13
136-145 Macro14
146-155 Macro15
156-165 Macro16
166-175 Macro17
176-185 Macro18
186-195 Macro19
196-205 Macro20
206-215 Macro21
216-225 Macro22
226-235 Macro23
236-245 Macro24
246-255 Macro25
12
Inner Program Macro
0-5 No function
6-33 Macro1
34-60 Macro2
61-88 Macro3
89-116 Macro4
117-144 Macro5
145-172 Macro6
173-200 Macro7
201-228 Macro8
229-255 Macro9
13 000-255 In/Out Program Macro Speed: Slow to Fast

19
DMX TRAITS: 18 CHANNEL MODE
Features subject to change without notice
18 CHANNEL MODE VALUE FUNCTION
1 000-255 Outer Red: 0 to 100%
2 000-255 Outer Green: 0 to 100%
3 000-255 Outer Blue: 0 to 100%
4 000-255 Outer Color Macros
5 000-255 Outer Dimmer: 0 to 100%
6 000-255 Outer Dimmer Fine: 0 to 100%
7
Outer Strobe Effect
0-2 Open
3-5 Strobe
6-50 Ramp up
51-100 Ramp down
101-150 Ramp up-down
151-200 Lightning
201-255 Random
8 000-255 Outer Strobe Rate: Slow to Fast
9 0-255 Outer Strobe Duration: Slow to Fast
10
Outer Program Macro
0-5 No function
6-15 Macro1
16-25 Macro2
26-35 Macro3
36-45 Macro4
46-55 Macro5
56-65 Macro6
66-75 Macro7
76-85 Macro8
86-95 Macro9
96-105 Macro10
106-115 Macro11
116-125 Macro12
126-135 Macro13
136-145 Macro14
146-155 Macro15
156-165 Macro16
166-175 Macro17
176-185 Macro18
186-195 Macro19
196-205 Macro20
206-215 Macro21
216-225 Macro22
226-235 Macro23
236-245 Macro24
246-255 Macro25
11 0-255 Outer Program Macro Speed
12 000-255 Inner Dimmer: 0 to 100%
13 000-255 Inner Dimmer Fine: 0 to 100%

20
DMX TRAITS: 18 CHANNEL MODE
Features subject to change without notice
18 CHANNEL MODE VALUE FUNCTION
14
Inner Strobe Effect
0-2 Open
3-5 Strobe
6-50 Ramp up
51-100 Ramp down
101-150 Ramp up-down
151-200 Lightning
201-255 Random
15 000-255 Inner Strobe Rate: Slow to Fast
16 000-255 Inner Strobe Duration: Slow to Fast
17
Inner Program Macro
0-5 No function
6-33 Macro1
34-60 Macro2
61-88 Macro3
89-116 Macro4
117-144 Macro5
145-172 Macro6
173-200 Macro7
201-228 Macro8
229-255 Macro9
18 000-255 Inner Program Macro Speed
