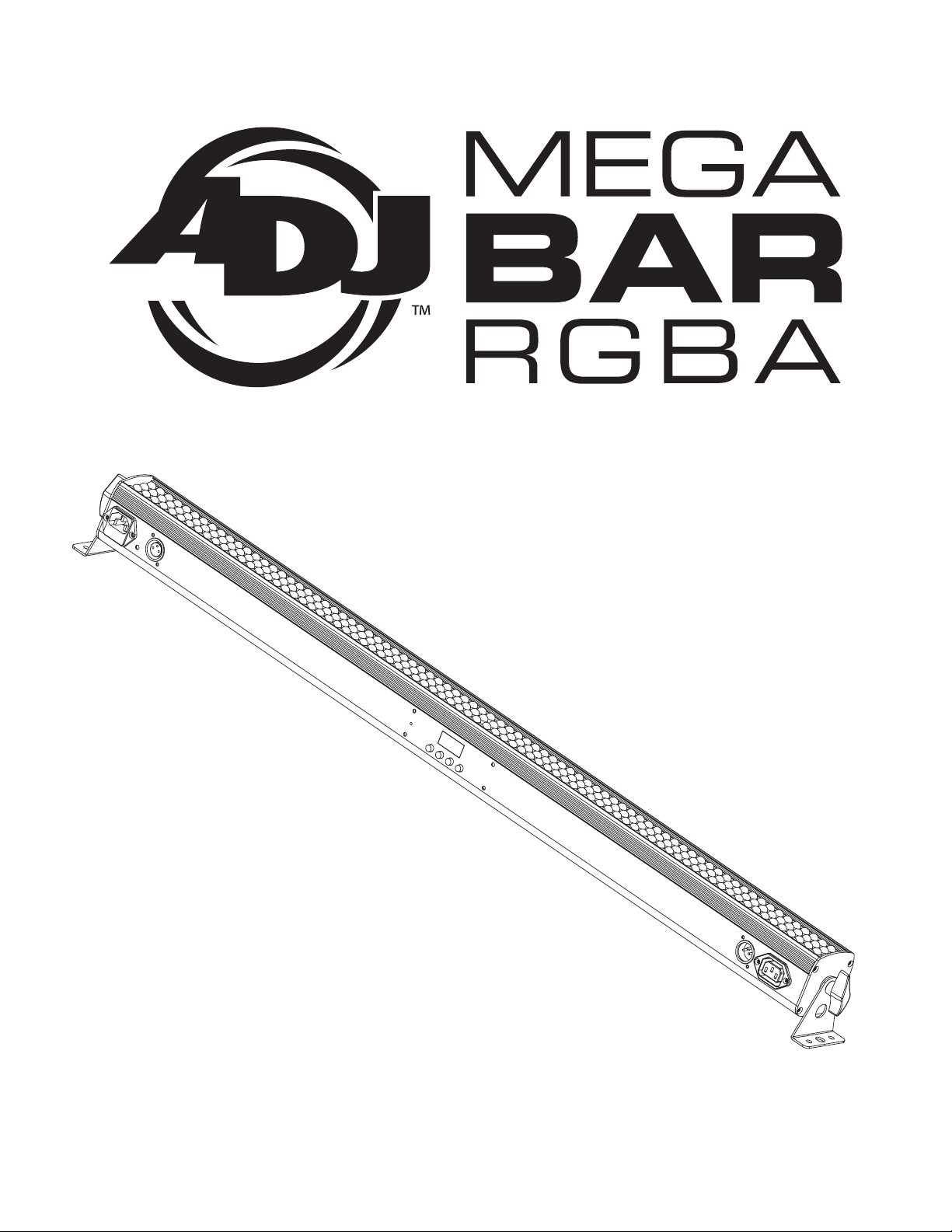

ADJ Mega Bar RGBA User manual

User Instructions
Rev.9/20

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 2
Mega Bar RGBA Introduction
Unpacking: Thank you for purchasing the Mega Bar RGBA by ADJ Products, LLC.
Every Mega Bar RGBA has been thoroughly tested and has been shipped in perfect
operating condition. Carefully check the shipping carton for damage that may have
occurred during shipping. If the carton appears to be damaged, carefully inspect your
fixture for any damage and be sure all accessories necessary to operate the unit has
arrived intact. In the case damage has been found or parts are missing, please contact
our toll free customer support number for fur- ther instructions. Do not return this unit to
your dealer without first con- tacting customer support.
Introduction: The ADJ Mega Bar RGBA is a DMX intelligent, LED bar fixture. This
fixture can be used in a stand alone mode or connected in a Primary/Secondary
configuration. This wash has five operating modes: Sound Active Mode, Auto Mode,
RGB mode, Static Color mode, and DMX control mode.
Customer Support: ADJ Products, LLC provides a customer support line, to provide
set up help and to answer any question should you encounter problems during your set
up or initial operation. You may also visit us on the web at www.adj.com for any
comments or sugges-tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30
p.m. Pacific Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
Warning! To prevent or reduce the risk of electrical shock orfire, do not expose this
unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs
yourself, doing so will void your manufactures war-ranty. In the unlikely event your unit
may require service please contact ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 3
Mega Bar RGBA Features
Mega Bar RGBA Warranty Registration
The Mega Bar RGBA carries a 3-year limited warranty. Please fill out the enclosed
warranty card to validate your purchase. All returned service items whether under
warranty or not, must be freight pre-paid and accompany a return authorization (R.A.)
number. The R.A. number must be clearly written on the outside of the return package.
A brief description of the problem as well as the R.A. number must also be written down
on a piece of paper included in the shipping carton. If the unit is under warranty, you must
provide a copy of your proof of purchase invoice. You may obtain a R.A. number by
contacting our customer support team on our customer support number. All pack- ages
returned to the service department not displaying a R.A. number on the outside of the
package will be returned to the shipper.
The unit should be mounted using a mounting clamp (not provided), affixing it to the
mounting bracket that is provided with the unit. Always ensure that the unit is firmly
fixed to avoid vibration and slip- ping while operating. Always ensure that the structure
to which you are attaching the unit is secure and is able to support a weight of 10 times
the unit’s weight. Also, always use a safety cable that can hold 12 times the weight of
the unit when installing the fixture. The equipment must be installed by a professional,
and it must be installed in a place where it is out of the reach of people’s grasp.
Mega Bar RGBA Installation
• Mulit-Colors
• Six Operating Modes
• Electronic Dimming 0-100%
• Built in Microphone
• DMX-512 protocol
• 3-Pin DMX Connection
• Seven DMX Modes: 4 Channel Mode, 6 Channel Mode, 7 Channel Mode, 9 Channel
Mode, 10 Channel Mode, 18 Channel Mode, and 34 Channel Mode.
• ADJ RFC compatiable (Not Included)
• Power Cord Daisy Chain (See page 23)

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 4
Mega Bar RGBA Safety Precautions
• To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken. Do
not attempt to remove or break off the ground prong from the electrical cord. This
prong is used to reduce the risk of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts
inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow
about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out` doors voids all
warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to the point
they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by the manufacturer.
See page 23 for cleaning details.
• Heat -The appliance should be situated away from heat sources such as radiators,
heat registers, stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked change
in performance.

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 5
Mega Bar RGBA Set Up
Power Supply: The ADJ Mega Bar RGBA contains a automatic volt- age switch, which
will auto sense the voltage when it is plugged into the power source. With this switch
there is no need to worry about the correct power voltage, this unit can be plugged in
anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form
of communication between intelligent fixtures and controllers. A DMX controller sends
DMX data instructions from the controller to the fixture. DMX data is sent as serial data
that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals
located on all DMX fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different
manufactures to be linked together and operate from a single controller, as long as all
fixtures and the controller are DMX compliant. To ensure proper DMX data
transmission, when using several DMX fixtures try to use the shortest cable path
possible. The order in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When
a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA
assigned to address 1 to that unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation):
The Mega Bar RGBA can be controlled via DMX-512 protocol. The Mega Bar RGBA has
7 DMX channel modes, please see pages 9-10 for the different modes. The DMX address
is set on the back panel of the Mega Bar RGBA. Your
unit and your DMX controller require a standard 3-pin
XLR connector for data input and data output (Figure
1). We recommend Accu-Cable DMX cables. If you
are making your own cables, be sure to use standard
110-120 Ohm shielded cable (This cable may be
purchased at almost all pro lighting stores). Your
cables should be made with a male and female XLR
connector on either end of the cable. Also remember
that DMX cable must be daisy chained and cannot be
split.

1 Ground
1 Ground
XLR Male Socket
3 Hot
2 Cold 2 Cold
3 Hot
XLR Female Socket
ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 6
Mega Bar RGBA Set Up
XLR Pin Conguration
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)
Notice: Be sure to follow figures two and three when making your own cables. Do not
use the ground lug on the XLR connector. Do not connect the cable’s shield conductor
to the ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behavior.
DMX512 IN
3-PIN XLR
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Special Note: Line Termination.
When longer runs of cable are used, you may need to
use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm
1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector
(DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in
your daisy chain to terminate the line. Using a cable terminator (ADJ part number
Z-DMX/T) will decrease the possibilities of erratic behavior.
Termination reduces signal e rrors and avoids
signal transmission problem s and interference.
It is always advisable to connect a DMX terminal,
(Resistance 120 Ohm 1/4 W) between PIN 2
(DMX-) and PIN 3 (DMX +) of the last fixture.
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin DMX- 512 data cables for
DATA transmission in place of 3-pin. 5-pin DMX xtures may be implemented in a 3-pin
DMX line. When inserting standard 5-pin data cables in to a 3-pin line a cable adapter
must be used, these adapters are readily available at most electric stores. The chart
below details a proper cable conversion.
1
2
3
3-Pin XLR to 5-Pin XLR Conversion
Ground/Shield Pin 1
Data Compliment (- signal) Pin 2 Pin 2
Data True (+ signal) Pin 3 Pin 3
Not Used Do Not Use
Not Used Do Not Use

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 7
Mega Bar RGBA Operating Instructions
LED Display On/Off:
To set the LED display to turn off after 20 seconds, press the MODE and DOWN buttons
at the same time. Now the display will disappear after 20s. Press any button to turn the
display on again. To allow the display to stay On at all times, press the MODE and UP
buttons at the same time.
Operating Modes:
The Mega Bar RGBA has six operating modes:
• Sound-Active mode - The unit will react to sound, chasing through the built in
programs.
• Built-In Program - There are 22 built-in programs to choose from.
• Static Color Mode - There are 15 colors to choose from.
• Auto Mode - A auto program will run with adjustable fade speed.
• RGBA Mode - Choose one of the four colors to remain static or adjust the intensity
of each color to make your desired color.
• DMX control mode - This function will allow you to control each individual fixtures
traits with a standard DMX 512 controller.
Static Color Mode:
1. Plug the fixture in and press the MODE button until “C0.XX” is displayed.
2. There are 15 colors to choose from. Select your desired color by pressing the UP
and DOWN buttons. After you have selected your desired color you can activate
strobing by pressing the SET UP button to enter the Flash (strobe) mode.
3. “FS.XX” will now be displayed, this is Flash mode. The Flash can be adjusted
between “FS.00” (flash off) to “FS.99” (fastest flash).
RGBA Dimmer Mode:
1. Plug the fixture in and press the MODE button until “rgbA” is dis- played. Then
press the SET UP button to adjust intensity of the individual colors.
2. When “r.XXX” is displayed you are in Red dimming mode. Press the UP and DOWN
buttons to adjust intensity.
3. When “G.XXX” is displayed you are in Green dimming mode. Press the UP and
DOWN buttons to adjust intensity.
4. When “b.XXX” is displayed you are in Blue dimming mode. Press the UP and
DOWN buttons to adjust intensity.

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 8
Mega Bar RGBA Operating Instructions
5. When “A.XXX” is displayed you are in Amber dimming mode. Press the UP and
DOWN buttons to adjust intensity.
6. After you have adjusted the RGBA colors to make your desired color you can then
activate strobing by pressing the SET UP but- ton to enter the Flash (strobe) mode.
7. “FS.XX” will be displayed, this is Flash mode. The Flash can be adjusted between
“FS.00” (flash off) to “FS.99” (fastest flash).
Built-In Program Mode:
1. Plug the fixture in and press the MODE button until “Pr.XX” is dis- played. “XX”
represents a number from 1-22. Use the UP or DOWN buttons to scroll through the
22 programs. Programs 21 and 22 have adjustable colors. Once you have found your
desired program press the SET UP button.
2. Pressing the SET UP button will display “SP.XX”. When this is dis- played you can
adjust the running speed of your desired program. Use the UP or DOWN button to
adjust the speed between “SP.01” (slowest) and “SP.99” (fastest). Once you have set
your desired running speed, you can press the SET UP button to to enter the Fade
adjustment mode.
3. Pressing the SET UP button will display “Fd.XX”. When this is dis- played you can
adjust the fade speed of your desired program. Use the UP or DOWN button to adjust
the speed between “Fd.01” (fastest) and “Fd.99” (slowest) or “Fd.00” (Off). Once you
have set your desired fade speed, you can press the SET UP button to to enter the
Flash (Strobe) mode.
4. After pressing SET UP, “FS.XX” will be displayed, this is Flash mode. The Flash can
be adjusted between “FS.00” (flash off) to “FS.99” (fastest flash).
PROGRAMS 21 & 22:
If you have chosen programs 21 or 22, after the Flash mode, press the SET UP button.
“C1.XX” will be displayed. This is the base color, use the UP and DOWN buttons to scroll
through the 15 colors. Once you have chosen your base color, press the SET UP button
again so that“C2.XX” is displayed. This is the moving color, use the UP and DOWN
buttons to scroll through the 15 colors.
Sound Active Mode:
In this mode the Mega Bar RGBA will react to sound, and chase through the different
colors.

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 9
Mega Bar RGBA Operating Instructions
Sound Active Mode:
In this mode the Mega Bar RGBA will react to sound, and chase through the different
colors.
1. Plug the fixture in and press the MODE button until “SU.XX” is displayed. “XX”
represents the sound sensitivity level.
2. Use the UP or DOWN buttons to adjust the sound sensitivity. “SU.00” is off, “SU.01
is the lowest sensitivity, and “SU.31” is the highest. After adjusting the sound
sensitivity, press SET UP if you wish to activate the Flash mode.
3. “FS.XX” will now be displayed, this is Flash mode. The Flash can be adjusted
between “FS.00” (flash off) to “FS.99” (fastest flash).
Auto Run Mode:
In this mode the Mega Bar RGBA will run a auto program.
1. Plug the fixture in and press the MODE button until “AUTO” is dis- played.
2. After you have activated Auto Run mode, press the SET UP but- ton to adjust the fade
time.
3. Once you press SET UP “Fd.XX” should be displayed. Use the UP or DOWN buttons
to set the fade speed to either “Fd.00” (fade off) or between “Fd.01” (fastest speed)
and “Fd.99” (slowest speed). After adjusting the fade speed, press SET UP if you
wish to activate the Flash mode.
4. “FS.XX” will now be displayed, this is Flash mode. The Flash can be adjusted
between “FS.00” (flash off) to “FS.99” (fastest flash).
DMX Mode:
Operating through a DMX controller gives the user the freedom to create their own
programs tailored to their own individual needs. This function also allows you to use your
fixtures as spot lights. The Mega Bar RGBA has 7 DMX modes: 4 Channel mode, 6
Channel mode, 7 Channel mode, 9 Channel mode, 10 Channel mode, 18 Channel
mode, and a 34 Channel mode. See pages 13-22 for each modes’ DMX traits.
1. This function will allow you to control each individual fixture’s traits with a
standard DMX 512 controller.
2. To run your fixture in DMX mode press the MODE button until “d.XXX” is
displayed. “XXX” represents the current displayed ad- dress. Use the UP or
DOWN buttons to select your desired DMX address, then press the SETUP
button to select your DMX Channel mode.

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 10
Mega Bar RGBA Operating Instructions
3. Use the UP or DOWN buttons to scroll through the DMX Channel modes. The
Channel modes are listed below:
To run the 4 Channel Mode, press the MODE button until “Ch.01” is displayed.
To run the 6 Channel Mode, press the MODE button until “Ch.02” is displayed.
To run the 7 Channel Mode, press the MODE button until “Ch.03” is displayed.
To run the 9 Channel Mode, press the MODE button until “Ch.04” is displayed.
To run the 10 Channel Mode, press the MODE button until “Ch.05” is displayed.
To run the 18 Channel Mode, press the MODE button until “Ch.06” is displayed.
To run the 34 Channel Mode, press the MODE button until “Ch.07” is displayed.
4. Please see pages 13-22 for DMX values and traits.
5. After you have chosen your desired DMX Channel mode plug in the fixture via the
XLR connections to any standard DMX controller.
Default Running Mode:
This is a default running mode. When this mode is activated all modes will return to their
default settings and a Auto program will run.
1. Plug the fixture in and press the MODE and SET UP buttons at the same time.
ADJ RFC:
This function is used to activate and deactivate the ADJ RFC (Remote Control). When
this function is activated you can control the fixture using the ADJ RFC. Please see the
next page for ADJ RFC controls and functions.
1. Plug the fixture in and press the MODE button until “Auto” is displayed.
2. Press the SET UP button until “rF.XX” is displayed. “XX” represents either “on” or “off”.
3. Press the UP or DOWN buttons to either activate the remote function (On) or
deactivate it (Off).

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 11
Mega Bar RGBA Primary - Secondary Configuration
Primary-Secondary Configurations:
This function will allows you to link units together to run in a Primary- Secondary mode.
In Primary-Secondary operation one unit will act as the controlling unit and the others
will react to the controlling units built-in programs. Any unit can act as a Primary or as a
Secondary however, only one unit can be pro-grammed to act as the “Primary.”
Primary-Secondary Connections and Settings:
1. Daisy chain your units via the XLR connector on the rear of the unit. Use standard
XLR data cables to link your units together. Remember that the Male XLR connector
is the input and the Female XLR con- nector is the ouput. The first unit in the chain
(Primary) will use the female XLR connector only. The last unit in the chain will use
the male XLR connector only.
2. Set the “Primary” unit to your desired operating mode and then connect the
“Secondary” unit or units.
3. For the “Secondary” unit(s) press the MODE button until “SLAu” is displayed. The
“Secondary” unit(s) will now follow the “Primary” unit.

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 12
Mega Bar RGBA ADJ RFC Operation
The ADJ RFC remote (sold seperately) has many different functions and al- lows you
to control your Mega Bar RGBA from long distance. The ADJ RFC remote can control
your system up to 150 ft. To use the RFC you must first activate the fixtures receiver,
to activate the receiver please see the instruc- tions on pages 10-11.
BLACKOUT Pressing this button will blackout the fixture.
AUTO RUN This button will run an automatic program. You can control the fade speed
of the Auto Run by pressing the Flash button twice and then ad- just the speed using
the “+” and “” buttons. Press the Flash button once to enter Flash mode and use the “+”
and “” buttons to adjust the Flash speed.
PROGRAM SELECTION This button will activate 1 of 2 modes; Color Select mode
or Built-In Programs.
1. Press this button so that the Red LED’s flash, you are now in Color Static mode. Use
the “+” or “” to scroll through the 15 colors. Once you have found your color, you can
press the Flash Button to activate strobing and use the “+” or “” to adjust the Flash
rate.
2. Press this button so that the Green LED’s flash, you are now in Built-In Program
mode. Use the “+” or “” to scroll through the 22 built-in programs. Once you have
found your desired program and you can press the SPEED button and then use the
“+” and “” buttons to adjust the program speed. You can press the Flash Button to
activate strobing and use the “+” or “” to adjust the Flash rate. Press the Flash button
twice to enter the Fade speed adjustment and use the “+” and “” buttons to adjust the
Fade speed.
FLASH This button will activate the flash (strobe) effect. You can control the flash
speed by pressing the “+” and “” buttons.
SPEED Press this button and use the “+” & “” buttons to adjust the speed of the Built in
Programs.
SOUND ACTIVE - This button activates sound active mode. Use the “+” & “” buttons to
adjust the sound sensitivity level.
R G B W/A - Press either one of these buttons and the press the “+” or “” to adjust the
brightness.
“+” and “” - Use these buttons to adjust the flash rate, speed of the Auto Run and built
in programs, sound sensitivity, and output intensity. Use these buttons to scroll
through the static colors and built in programs.

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 13
Mega Bar RGBA 4 Channel Mode
Mega Bar RGBA 6 Channel Mode
Channel Value Function
1 RED
0 - 255 0% - 100%
2 GREEN
0 - 255 0% - 100%
3 BLUE
0 - 255 0% - 100%
4 AMBER
0 - 255 0% - 100%
Channel Value Function
1 RED
0 - 255 0% - 100%
2 GREEN
0 - 255 0% - 100%
3 BLUE
0 - 255 0% - 100%
4 AMBER
0 - 255 0% - 100%
5 STROBING
0 - 7 NOTHING
8 - 255 STROBING SLOW - FAST
6 MASTER DIMMER
0 - 255 0% - 100%

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 14
Mega Bar RGBA 7 Channel Mode
Channels 1, 2, 3, & 4 will not work, when Channel 5 is being
used.
ValueChannel Function
1 RED
0 - 255 0% - 100%
2 GREEN
0 - 255 0% - 100%
3 BLUE
0 - 255 0% - 100%
4 AMBER
0 - 255 0% - 100%
5 COLOR MACROS
0 - 255 (Please see the color macro chart page 25)
6 STROBING
0 - 7 NOTHING
8 - 255 STROBING SLOW - FAST
7 MASTER DIMMER
0 - 255 0% - 100%

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 15
Mega Bar RGBA 9 Channel Mode
Channel Value Function
1 RED
0 - 255 0% - 100%
2 GREEN
0 - 255 0% - 100%
3 BLUE
0 - 255 0% - 100%
4 AMBER
0 - 255 0% - 100%
5 COLOR MACROS
0 - 255 (Please see the color macro chart page 25)
6 PROGRAMS
0 - 15 NO FUNCTION
16 - 25 PROGRAM 1
26 - 35 PROGRAM 2
36 - 45 PROGRAM 3
46 - 55 PROGRAM 4
56 - 65 PROGRAM 5
66 - 75 PROGRAM 6
76 - 85 PROGRAM 7
86 - 95 PROGRAM 8
96 - 105 PROGRAM 9
106 - 115 PROGRAM 10
116 - 125 PROGRAM 11
126 - 135 PROGRAM 12
136 - 145 PROGRAM 13
146 - 155 PROGRAM 14
156 - 165 PROGRAM 15
166 - 175 PROGRAM 16
176 - 185 PROGRAM 17
186 - 195 PROGRAM 18
196 - 205 PROGRAM 19
206 - 215 PROGRAM 20
216 - 225 PROGRAM 21
226 - 235 PROGRAM 22

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 16
Mega Bar RGBA 9 Channel Mode
Channel Value Function
6 PROGRAMS
236 - 245 AUTO RUN
246 - 255 SOUND ACTIVE
7PROGRAM SPEED/SOUND SENSITIVITY
0 - 255 SLOW - FAST
0 - 255 LEAST SENSITIVE - MOST SENSITIVE
8 STROBING
0 - 7 NO FUNCTION
8 - 255 STROBING SLOW - FAST
9 MASTER DIMMER
0 - 255 0% - 100%
Note: When Channel 5 is being used, Channels 1, 2, 3, & 4 will not work.
When Channel 6 is between the values of 16 - 245 , Channel 7 will control the speed of
the programs.
When Channel 6 is between the values of 216 - 235 (Programs 21 & 22), Channel 4 will
let you select a flow color, and Channel 5 will let you select a base color. Channel 7 will
control the speed of the flow color. See the Color Macro Chart on page 21 to select your
flow color and base color.
When Channel 6 is between the values of 246 - 255 , Channel 7 will control the sound
sensitivity.

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 17
Mega Bar RGBA 10 Channel Mode
Channel Value Function
1 RED 1-4
0 - 255 0% - 100%
2 GREEN 1-4
0 - 255 0% - 100%
3 BLUE 1-4
0 - 255 0% - 100%
4 AMBER 1-4
0 - 255 0% - 100%
5 RED 5-8
0 - 255 0% - 100%
6 GREEN 5-8
0 - 255 0% - 100%
7 BLUE 5-8
0 - 255 0% - 100%
8 AMBER 5-8
0 - 255 0% - 100%
9 STROBING
0 - 7 NOTHING
8 - 255 STROBING SLOW - FAST
10 PRIMARY DIMMER
0 - 255 0% - 100%

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 18
Mega Bar RGBA 18 Channel Mode
Channel Value Function
1 RED 1 & 2
0 - 255 0% - 100%
2 GREEN 1 & 2
0 - 255 0% - 100%
3 BLUE 1 & 2
0 - 255 0% - 100%
4 AMBER 1 & 2
0 - 255 0% - 100%
5 RED 3 & 4
0 - 255 0% - 100%
6 GREEN 3 & 4
0 - 255 0% - 100%
7 BLUE 3 & 4
0 - 255 0% - 100%
8 AMBER 3 & 4
0 - 255 0% - 100%
9 RED 5 & 6
0 - 255 0% - 100%
10 GREEN 5 & 6
0 - 255 0% - 100%
11 BLUE 5 & 6
0 - 255 0% - 100%
12 AMBER 5 & 6
0 - 255 0% - 100%
13 RED 7 & 8
0 - 255 0% - 100%
14 GREEN 7 & 8
0 - 255 0% - 100%
15 BLUE 7 & 8
0 - 255 0% - 100%
16 AMBER 7 & 8
0 - 255 0% - 100%
17 STROBING
0 - 7 NOTHING
8 - 255 STROBING SLOW - FAST
18 PRIMARY DIMMER
0 - 255 0% - 100%

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 19
Mega Bar RGBA 34 Channel Mode
ValueChannel Function
1 RED 1
0 - 255 0% - 100%
2 GREEN 1
0 - 255 0% - 100%
3 BLUE 1
0 - 255 0% - 100%
4 AMBER 1
0 - 255 0% - 100%
5 RED 2
0 - 255 0% - 100%
6 GREEN 2
0 - 255 0% - 100%
7 BLUE 2
0 - 255 0% - 100%
8 AMBER 2
0 - 255 0% - 100%
9 RED 3
0 - 255 0% - 100%
10 GREEN 3
0 - 255 0% - 100%
11 BLUE 3
0 - 255 0% - 100%
12 AMBER 3
0 - 255 0% - 100%
13 RED 4
0 - 255 0% - 100%
14 GREEN 4
0 - 255 0% - 100%
15 BLUE 4
0 - 255 0% - 100%
16 AMBER 4
0 - 255 0% - 100%
17 RED 5
0 - 255 0% - 100%

ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 20
Mega Bar RGBA 34 Channel Mode
Channel Value Function
18 GREEN 5
0 - 255 0% - 100%
19 BLUE 5
0 - 255 0% - 100%
20 AMBER 5
0 - 255 0% - 100%
21 RED 6
0 - 255 0% - 100%
22 GREEN 6
0 - 255 0% - 100%
23 BLUE 6
0 - 255 0% - 100%
24 AMBER 6
0 - 255 0% - 100%
25 RED 7
0 - 255 0% - 100%
26 GREEN 7
0 - 255 0% - 100%
27 BLUE 7
0 - 255 0% - 100%
28 AMBER 7
0 - 255 0% - 100%
29 RED 8
0 - 255 0% - 100%
30 GREEN 8
0 - 255 0% - 100%
31 BLUE 8
0 - 255 0% - 100%
32 AMBER 8
0 - 255 0% - 100%
33 STROBING
0 - 7 NOTHING
8 - 255 STROBING SLOW - FAST
34 0 - 255 PRIMARY DIMMER 0% - 100%
