ADJ VIZI BEAM 5RX User manual

User Manual
VIZI BEAM 5RX
Rev 02/2021

©2021 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying
product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this document may be trade-
marks or registered trademarks of their respective companies and are hereby acknowledged. All
non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and opera-
tion of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 2

Vizi Beam 5RX Table of Contents
ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 3
General Information 4
Safety Precautions 5
Features | Power Cord Daisy Chain 6
General Instructions | Handling Precautions | Product Registration 7
Important Discharge Lamp Warnings 8
Mounting 9
Set Up 11
Dimensions 13
System Menu 14
DMX Control 17
Offset Menu 18
16 Channel DMX Mode 20
19 Channel DMX Mode 27
Photometric Chart 33
Lamp & Fuse Replacement 34
Lamp Replacement 35
Cleaning | Trouble Shooting 38
Warranty 39
Specifications 40
Please see Important Discharge Lamp Warning section for
important lamp instructions!
Warning! This xture can start a re! Please read Safety Guide-
lines section before installing or operating!

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 4
Unpacking: Thank you for purchasing the Vizi Beam 5RX by ADJ Products, LLC®. Every Vizi Beam
5RX has been thoroughly tested and has been shipped in perfect operating condition. Carefully check
the shipping carton for damage that may have occurred during shipping. If the carton appears to be
damaged, carefully inspect your xture for any damage and be sure all equipment necessary to oper-
ate the unit has arrived intact. In the event that damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Please do not return this unit to
your dealer without contacting customer support rst.
Introduction: The Vizi Beam 5RX is a DMX intelligent, moving head xture. The Vizi Beam 5RX can be
operated in 16 DMX channel mode or 19 DMX channel mode. The xture is a DMX controlled unit. For
best results use fog or special eects smoke to enhance the beams projections.
During the initial start-up or use of this product a light smoke or smell may arise from the unit.
This is a normal process and is cause by the heat associated with the lamp.
Customer Support: ADJ Products, LLC® provides a toll free customer support line to provide help and to
answer any questions that might arise during initial set up or operation. You may also visit us on the web
at www.adj.com for any comments or suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
To purchase parts online visit http://parts.adj.com.
Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or moisture.
Warning! This device can cause severe eye damage. Avoid looking directly into the light source at all times!
WARNING! CAUTION! FIRE HAZARD! DUE TO THE EXTREME HEAT CREATED BY THIS LAMP,
THE MINIMUM DISTANCE TO LIGHTED OBJECTS IS 12 METERS (40FT).
Vizi Beam 5RX General Information

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 5
Vizi Beam 5RX Safety Precautions
For Your Own Personal Safety, Please Read and Understand This Manual Completely Before
You Attempt To Install Or Operate This Unit!
• To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required voltage for your unit.
• Do not attempt to operate this unit if the power cord is frayed or broken.
• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used
to reduce the risk of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit with the cover removed.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm)
between this device and a wall.
• Do not attempt to operate this unit if it has been damaged in any way.
• This unit is intended for indoor use only. Use of this product outdoors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and the point at which they exit from the appliance.
• Cleaning - The fixture should be cleaned only as recommended by the manufacturer. See the
Cleaning section of this manual for details.
• Heat - This fixture should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen onto, or liquid has been spilled into, the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a marked change in perfor-
mance.

Vizi Beam 5RX Features
ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 6
• Philips® Platinum 5R Discharge
• Micro-Stepping Motors for Smooth Color and Gobo Transitions
• 2 Modes of DMX-512 Protocol Compatible (16 DMX Channel Mode or 19 DMX Channel Mode)
• Independent Gobo and Color Wheels
• 17 Static Fixed Gobos + Spot
• 14 Colors, Plus White and Split Colors
• 8 Facet Prism
• Frost Filter
• Strobe Effect
• Built-In Pan/Tilt Macros
• Motorized Focus
• 540˚ Pan Movement
• 270˚ Tilt Movement
• Pan/Tilt Invert
• Digital Display for Address and Function Setting
• Power Cord Daisy Chain Capability (see the following section for details)
Vizi Beam 5RX Power Cord Daisy Chain
Fixtures of this model type are capable of being linked to one another using the power input
and output sockets.
The maximum number of individual fixtures that can be linked in this manner are as follows:
• 3 fixtures maximum for 120V
• 6 fixtures maximum for 240V
Once this maximum number has been reached, a new power outlet will be required in order to
accommodate any additional fixtures.
All connected fixtures must be of the same make and model type. DO NOT mix fixtures.

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 7
Vizi Beam 5RX General Instructions
To optimize the performance of this product, please read these operating instructions carefully to
familiarize yourself with the basic operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please keep this manual with the unit for
future reference.
Vizi Beam 5RX Handling Precautions
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, as
doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,
please contact ADJ® customer service.
During operation the housing may become extremely hot. Avoid touching the unit with bare hands
while in use.
ADJ® will not accept any liability for any resulting damages caused by the non-observance of this
manual or any unauthorized modifications to this unit.
Vizi Beam 5RX Product Registration
The Vizi Beam 5RX carries a one year limited warranty. Please fill out the enclosed warranty card to
validate your purchase. All returned service items, whether under warranty or not, must be freight pre-
paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written
on the outside of the return package. A brief description of the problem as well as the R.A. number
must also be written down on a piece of paper and included in the shipping carton. If the unit is under
warranty, you must provide a copy of your proof of purchase invoice. You may obtain an R.A. number
by contacting our customer support team on our toll free customer support number. All packages
returned to the service department not displaying an R.A. number on the outside of the package will
be returned to the shipper at the shippers cost.

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 8
Vizi Beam 5RX Important Discharge Lamp Warning
This fixture is fitted with a discharge lamp which is highly susceptible
to damage if improperly handled. Never touch the lamp with your
bare fingers, as the oil from your hands will shorten lamp life. Also,
never move the fixture until the lamps have had ample time to cool.
Remember, lamps are not covered under warranty conditions.
This unit emits intense UV radiation which is harmful to the eyes and
skin. The intense light output of the lamp can cause severe damage to
the retina. Never operate this unit without the covers in place, as these
covers have been specially designed to shield against UV radiation.
Epilepsy Warning: Those suffering from epilepsy should avoid looking directly into the lamp at all
times.
Avoid switching the fixture on and off repeatedly in short intervals, as this will reduce lamp life and
intensity.
To achieve the intensity associated with discharge lamps, these lamps use gas sealed in a high pres-
sure environment to emit a brilliant output. Due to the high pressure involved in the operation of the
lamp, the lamp may explode if subjected to prolonged, extensive use. This risk is increased with age,
and therefore added care is required when dealing with older lamps. Extreme caution should be used
when operating this or any fixture fitted with a gas discharge lamp. Never open this unit while in use.
VERY IMPORTANT: This is notice pertains to your personal safety as well as the preservation of the
fixture. The Philips® Platinum 5R Discharge lamp has a maximum lifetime of 3000 hours.
ADJ strongly recommends conducting periodic, regular checks of the lamp running time. When the
lamp approaches the 3000 hour mark, it is strongly recommended to replace the lamp.
Replace the lamp following the instructions described in the Lamp & Fuse Replacement section
of this manual. After replacing the lamp, you must clear the LAMP RUNNING TIME (see the System
Menu section of this manual for details on this procedure).
Warning: DO NOT exceed 3000 hours of run time on a lamp. Using the lamp any longer then
the maximum rated lifetime could cause serious damage to the fixture.
WARNING! CAUTION! FIRE HAZARD! DUE TO THE EXTREME HEAT CAUSED BY THIS LAMP,
THE MINIMUM DISTANCE TO LIGHTED OBJECTS IS 12 METERS (40FT).

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 9
Vizi Beam 5RX Mounting
When installing the unit, the trussing or area of installation must be able to hold at least 10 times the
weight of the device without any deformation. The unit must be secured with a secondary safety at-
tachment, such as an appropriate safety cable. Never stand directly below the unit when mounting,
removing, or servicing the unit.
Overhead mounting requires extensive experience, including calculating working load limits, installa-
tion material being used, and perodic safety inspection of all installation material and unit. If you lack
these qualications, do not attempt the installation yourself.
These installation should be checked by a skilled person once a year.

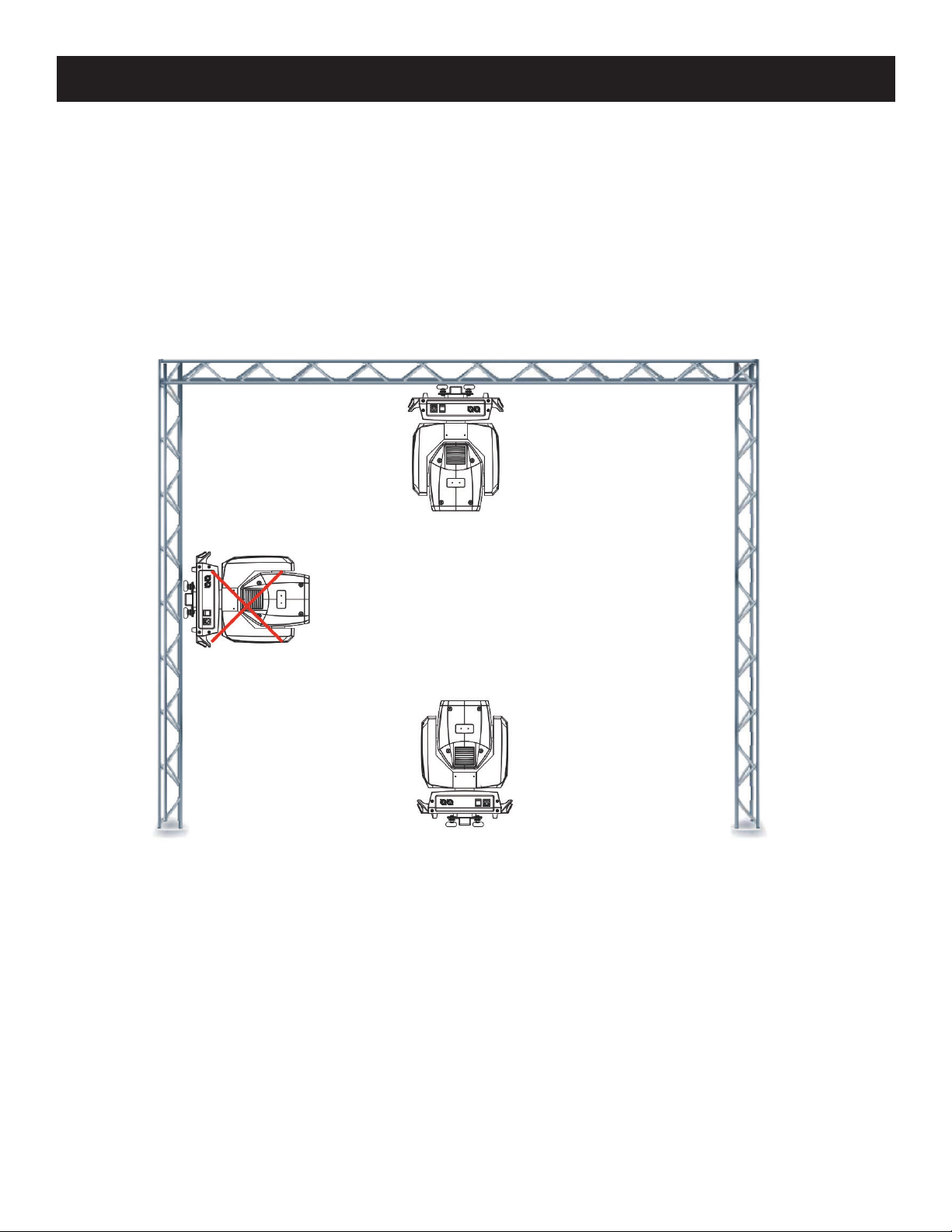

The Vizi Beam 5RX is fully operational in two dierent mounting positions: hanging upside-down
from a ceiling or set on a at level surface. To avoid internal damage to the unit, never mount the unit
on its side, as illustrated above.
Be sure this xture is kept at least 0.5m away from any ammable materials (decoration etc.). Always
use and install an appropriately rated safety cable as a safety measure to prevent accidental damage
and/or injury in the event the clamp fails. Never use the carrying handles for secondary attachment.
NOTICE: The suitable enviromental temperature range for this xture is -25˚Cto45˚C. Do not place
this xture in an enviroment where the temperatures fall outside of this range. This will allow the x-
ture to run at its best and help prolong the xture life.

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 10
Vizi Beam 5RX Mounting
Attach one clamp to each Omega holder using an M12 screw and nut. Insert the quick-lock fasten-
ers of the rst Omega holder into the respective holes on the bottom of the Vizi Beam 5RX. Tighten
the quick-lock fasteners fully clockwise, then repeat the procedure to install the second Omega
holder. Pull the safety-cable through the openings located on the base plate and over the trussing
system or a safe xation spot. Insert the end in the carabine and tighten the safety screw.

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 11
Vizi Beam 5RX Set Up
Power Supply: The ADJ® Vizi Beam 5RX contains a electronic ballast, which will automatically
sense the voltage when it is plugged into the power source. With the electronic ballast you do not
need to worry about wall voltage, as it can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and
controller manufacturers as a form of communication between intelligent fixtures and controllers. A
DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as
serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals locat-
ed on all DMX fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be
linked together and operate from a single controller, as long as all fixtures and the controller are
DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible
when connecting several fixtures together. The order in which fixtures are connected in a DMX line
does not influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be
placed anywhere in a DMX line. When a fixture is assigned a DMX address of 1, the DMX control-
ler knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX
chain.
Data Cable (DMX Cable) Requirements (For DMX and Primary/Secondary Operation): The Vizi
Beam 5RX can be controlled via DMX-512 protocol. The Vizi Beam 5RX can operate as either a 16
or 19 channel DMX unit. The DMX address is set electronically using the controls on the side panel

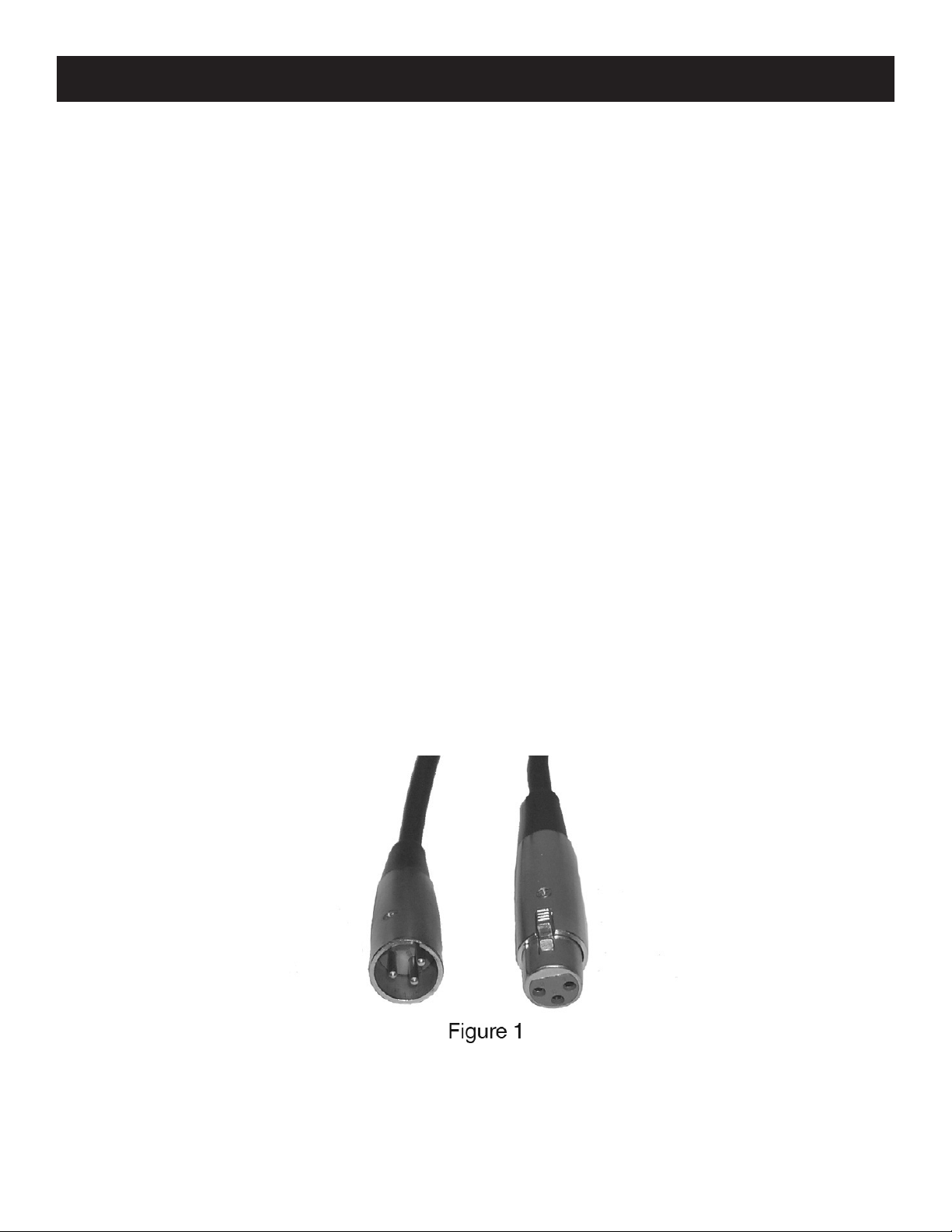

of the unit. Your unit and your DMX controller require an approved DMX-512 110 Ohm Data cable
for data input and data output (Figure 1). We recommend Accu-Cable DMX cables. If you are mak-
ing your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be pur-
chased at almost all professional sound andlighting stores). Your cables should be made with a male
XLR connector on one end and female XLR connector on the other. Also remember that DMX cable
must be daisy chained and cannot be split.

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 12
Vizi Beam 5RX Set Up
Notice: Be sure to follow figures two and three when making your own cables. Do not use the
ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or
allow the shield conductor to come into contact with the XLR’s outer casing. Grounding the shield
could cause a short circuit and lead to erratic behavior.
Special Note: Line Termination. When longer runs of cable are used, you may need to use a ter-
minator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor
which is con-nected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is
inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a
cable terminator (ADJ part number Z-DMX/T) will reduce the chance of erratic behavior.
5-Pin XLR DMX Connectors. Some manufacturers use 5-pin DMX-512 data cables for DATA trans-
mission in place of 3-pin cables. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When
inserting standard 5-pin data cables in to a 3-pin line, a cable adaptor must be used. These adaptors
are readily available at most electronics stores. The chart below details a proper cable conversion.

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 13
Vizi Beam 5RX Dimensions

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 14
Vizi Beam 5RX System Menu

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 15
Vizi Beam 5RX System Menu
System Menu: When making adjustments press ENTER to confirm your setup then press and
hold the MENU button for at least 3 seconds. To exit without making any adjustments press
the MENU button. The display will lock after 30 seconds. Press the MENU button for 3 sec-
onds to unlock.
ADDR - DMX Address Setting.
1. Press the either the MENU, UP, or DOWN buttons until “ADDR” is displayed, then press ENTER.
2. The current address will now be displayed and flashing. Press the UP or DOWN buttons to find
your desired address. Press ENTER to set your desired DMX address.
CHND - This will let select your desired DMX channel mode.
1. Press the MENU button until “CHND” is displayed, and press ENTER. Either “16CH” or “19CH”
will be displayed.
2. Press the UP or DOWN buttons to find your desired DMX channel mode and press ENTER to
confim and exit.
IPAN - Pan Inversion.
1. Press the MENU button until “IPAN” is displayed, and press ENTER. Either “Yes” or “No” will be
displayed.
2. To activate the Pan inversion press the UP or DOWN buttons until “Yes” is displayed, then press
ENTER to confim. To deactivate Pan inversion, select “No” and press Enter.
ITLT - Tilt Inversion.
1. Press the MENU button until “ITLT” is displayed, and press ENTER. Either “Yes” or “No” will be
displayed.
2. To activate the tilt inversion press the UP or DOWN buttons until “Yes” is displayed, then press
ENTER to confim. To deactivate tilt inversion, select “No” and press Enter.
LED - The backlighting for the display can be set to turn off after 10 seconds.
1. Press the MENU button until “LED” is displayed, and press ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or DOWN buttons to select “ON” to
keep the LED display on at all times, or “OFF” to switch to have the LED display switch off after
10 seconds.
3. Press ENTER to confirm. To make you LED display reappear again press any button.
DISP - This function will reverse the display 180º.
1. Press the MENU button until “DISP” is displayed, and press ENTER.
2. Press UP or DOWN to toggle between “OFF” and “ON.”
3. Press ENTER when you have made your desired setup.
TEST - This function will run a self test program.
1. Press the MENU button until “TEST” is displayed, and press ENTER.
2. The fixture will now run a self test.

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 16
Vizi Beam 5RX System Menu
FHRS - Displays the lamp running time, or clear the lamp running time. The lamp running time
needs to be cleared after a new lamp has been installed.
1. Press the MENU button until “FHRS” is displayed, and press ENTER.
2. The lamp running time will now be displayed. Press MENU to exit.
3. To clear the lamp running time, press ENTER when lamp running time is displayed. Either “NO” or
“CLea” will be displayed.
4. Use the UP or DOWN buttons to select “CLea” and press ENTER. Scroll to the password (“50”)
and press ENTER. The lamp running time will now be cleared. You should clear the lamp running
time everytime you change the lamp.
LAMP - With this function you can turn the lamp on/off while the unit is still powered on.
1. Press the MENU button until “LAMP” is displayed, and press ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or DOWN buttons to select “ON” to
keep the lamp on at all times, or “OFF” to turn the lamp off while the unit is still powered on.
3. Press ENTER to confirm.
LPND - With this function you can turn the lamp on or off while the power is on.
1. Press the MENU button until “LPND” is displayed, and press ENTER.
2. The display will show either “POOF” (lamp off) or “POON” (lamp on). Press the UP or DOWN but-
tons to select “POON” to keep the lamp on at all times, or “POOF” to turn the lamp off while the
unit is still powered on.
3. Press ENTER to confirm.
VER - Use this function to display the Software version of the unit.
1. Press the either the MENU button until “VER” is displayed, and press ENTER.
2. The display will show the software version.
DEF - Use this function to revert back to the default settings.
1. Press the either the MENU button until “deF” is displayed, and press ENTER.
2. Use the UP and DOWN buttons to toggle between “NO” and “YES.” “NO” will keep the unit set
to the current settings, and “YES” will revert the unit to the default factory setting.
RSET - Use this function to reset the unit.
1. Press the MENU button until “RSET” is displayed, and press ENTER.
2. The fixture will now reset.

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 17
Vizi Beam 5RX DMX Control
Universal DMX Control: This function allows you to use a universal DMX-512 controller. A DMX con-
troller allows you to create unique programs tailored to your individual needs.
1. The Vizi Beam 5RX has 2 DMX channel modes: 16 channel mode and 19 channel mode. See the
DMX Mode sections of this manual for detailed description of the DMX traits.
2. To control your fixture in DMX mode, follow the procedures shown in the Set Up section of this
manual, as well as the set-up specifications that are included with your DMX controller.
3. Follow the instructions in the System Menu section of this manual to select your desired DMX
channel mode and to set the DMX address.
4. Use the controller’s faders to control the various DMX fixture traits.
5. For longer cable runs (more than a 100 feet) use a terminator on the last fixture.
6. For help operating in DMX mode consult the manual included with your DMX controller.

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 18
Vizi Beam 5RX Offset Menu
To enter the Offset Menu, press the ENTER button for at least 3 seconds. In this submenu you are
able to adjust the home position of the pan, tilt, color wheel, gobo wheel, RGobo (Rotating) wheel,
prism, R (Rotating)Prism, and focus position.
OPAN - Adjustment of the pan home position.
1. Press the ENTER button for at least 3 seconds, then press the UP or DOWN buttons so that
“oPAn” is displayed. Press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm.
Press the MENU button for one second to exit.
OTLL - Adjustment of the tilt home position.
1. Press the ENTER button for at least 3 seconds, then press the UP or DOWN buttons so that
“otLL” is displayed. Press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm.
Press the MENU button for one second to exit.

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 19
Vizi Beam 5RX Offset Menu
ODNN - Setting adjustment for the color wheel.
1. Press the ENTER button for at least 3 seconds, then press the UP or DOWN buttons so that
“odnn” is displayed. Press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm.
Press the MENU button for one second to exit.
OCOL - Setting adjustment for the color wheel.
1. Press the ENTER button for at least 3 seconds, then press the UP or DOWN buttons so that
“oCoL” is displayed. Press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm.
Press the MENU button for one second to exit.
OGOB - Setting adjustment for the gobo wheel.
1. Press the ENTER button for at least 3 seconds, then press the UP or DOWN buttons so that
“oGob” is displayed. Press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm.
Press the MENU button for one second to exit.
OPRI - Setting adjustment for the prism.
1. Press the ENTER button for at least 3 seconds, then press the UP or DOWN buttons so that
“oPrI” is displayed. Press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm.
Press the MENU button for one second to exit.
ORPR - Setting adjustment for the rotating prism.
1. Press the ENTER button for at least 3 seconds, then press the UP or DOWN buttons so that
“orPr” is displayed. Press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm.
Press the MENU button for one second to exit.
OFRO - Setting adjustment for the frost filter.
Press the ENTER button for at least 3 seconds, then press the UP or DOWN buttons so that “oFro”
is displayed. Press ENTER.
Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm. Press
the MENU button for one second to exit.
OFOC - Setting adjustment for the focus.
1. Press the ENTER button for at least 3 seconds, then press the UP or DOWN buttons so that
“oFoC” is displayed. Press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm.
Press the MENU button for one second to exit.

ADJ Products, LLC - www.adj.com - Vizi Beam 5RX User Manual Page 20
Vizi Beam 5RX 16 Channel DMX Mode
