ADLINK Technology NuPRO-590 Series User manual

NuPRO-590 Series
Socket7 PICMG™Low Power Pentium SBC
With VGA/LCD/Ethernet/WOL Interface
User’s Guide
Recycled Paper

Copyright Notice
Manual Rev 1.10: June 24, 2001
Part No : 50-13010-201
This publication is protected by copyright and all rights are reserved. No part
of it may be reproduced or transmitted by any means or in any form, without
prior consent of the original manufacturer.
The information in this document has been carefully checked and is believed
to be accurate. However, the original manufacturer assumes no
responsibility for any inaccuracies that may appear in this manual. In no
event will the original manufacturer be liable for direct, indirect, special,
exemplary, incidental, incidental or consequential damages resulting from
any defect or omission in this manual, even if advised of possibility of such
damages. The material contained herein is for informational purposes only.
Acknowledgments
Award is a registered trademark of Award Software International, Inc.
IBM and PS/2 are trademarks of International Business Machines
Corporation.
C&T is a trademark of Chips and Technologies Inc.
Intel and Pentium are registered trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft Corporation.
All other product names or trademarks are properties of their respective
owners.

Getting service from ADLINK
Customer Satisfaction is always the most important thing for ADLINK
Technology Inc. If you need any help or service, please contact us and get it.
ADLINK Technology Inc.
Web Site http://www.adlink.com.tw
Sales & Service
[email protected]
Technical NuDAQ [email protected]
Support NuDAM [email protected]
NuIPC [email protected]
NuPRO [email protected]
Software [email protected]
AMB [email protected]
TEL [phone] FAX [phone]
Address 9F, No. 166, Jian Yi Road, Chungho City, Taipei, 235 Taiwan, R.O.C.
Please inform or FAX us of your detailed information for a prompt,
satisfactory and constant service.
Detailed Company Information
Company/Organization
Contact Person
E-mail Address
Address
Country
TEL FAX
Web Site Questions
Product Model
OS :
Computer Brand :
Environment to Use
M/B : CPU :
Chipset : BIOS :
Video Card :
Network Interface Card :
Other :
Challenge Description
Suggestions for ADLINK

NuPRO-590 Series Comparison Table
Model NuPRO-590 NuPRO-591 NuPRO-592
Processor
Intel Pentium
AMD K6-2, K6-3
Cyrix MII
Intel Pentium
AMD K6-2, K6-3
Cyrix MII
Intel Pentium
AMD K6-2, K6-3
Cyrix MII
Processor
Socket Socket7 Socket7 Socket7
Chipset Intel 430TX Intel 430TX Intel 430TX
BIOS Award Award Award
L2 cache 512KB 512KB 512KB
Max. SDRAM 256MB 256MB 256MB
Memory
Sockets 2 x DIMM 2 x DIMM 2x DIMM
VGA CRT/LCD
C&T 69000 C&T 69000 NO
Watchdog
Timer 0~255 seconds or minutes 0~255 seconds or minutes 0~255 seconds or minutes
PC/104
Connector NO NO NO
Multi I/O Chip Winbond83977EF Winbond83977EF Winbond83977EF
Enhanced IDE yes yes yes
2S/1P yes yes yes
USB yes yes yes
IrDA yes yes yes
Ethernet
(10/100Mbps)
Intel 82559 NO NO
H/W Monitoring
Winbond W83781D Winbond W83781D Winbond W83781D
Board Size 338mm x 122mm 338mm x 122mm 338mm x 122mm

Table of Contents•i
Table of Contents
Chapter 1 Introduction.................................................................1
1.1 Checklist.........................................................................2
1.2 Description .....................................................................2
1.3 Features .........................................................................3
1.4 Specifications..................................................................4
1.5 Intelligence .....................................................................7
Chapter 2 Installations...............................................................10
2.1 CPU Installation............................................................10
2.2 Memory Installation.......................................................11
2.3 Jumpers on the NuPRO-590 ..........................................11
2.4 Connectors on the NuPRO-590......................................18
2.5Watchdog Timer Configuration.......................................27
Chapter 3 BIOS Configuration ...................................................30
3.1 BIOS Introduction..........................................................31
3.2 BIOS Setup...................................................................31
Chapter 4 Intel PIIX Bus Master IDE Driver Installation.............59
4.1 System Requirements ...................................................60
4.2 Installing the Software ...................................................61
Chapter 5 VGA Driver Installation..............................................63
5.1 Installing the Drivers for Windows 95 ..............................64
5.2 Installing the Drivers for Windows 98 ..............................64
5.3 Installing the Drivers for Windows NT 4.0........................65
Chapter 6 LAN Driver Installation Guide....................................66
6.1 Introduction...................................................................66
6.2 Features .......................................................................67
6.3 Software Drivers Support ...............................................67
6.4 Running Diagnostics......................................................68
Chapter 7 Hardware Doctor Utility .............................................72
Product Warranty/Service...........................................................77

Introduction •1
1
Introduction
This manual is designed to give you information on the NuPRO-590 CPU
board.
The topics covered in this chapter are as follows:
•Checklist
•Description
•Features
•Specifications
•Intelligence
•Layout of Key Components and Dimensions

2•Introduction
1.1 Checklist
Please check that your package is complete and contains the items below. If
you discover damaged or missing items, please contact your dealer.
•The NuPRO-590 Industrial CPU Board
•This User’s Manual
•1 IDE Ribbon Cable
•1 Floppy Ribbon Connector
•2 Serial Port Ribbon Cable and 1 Parallel Port Attached to a
Mounting Bracket (1 Serial Port and 1 Parallel Port for NuPRO-592)
•1 Optional 2-port
•1 CD Containing Intel PCI IDE Driver, Flash Memory Utility, C&T
69000 VGA Driver, Intel 82559 LAN Driver and Hardware Monitor
utility.
1.2 Description
TheNuPRO-590isaPentiumIndustrialCPUboardbasedontheIntel430TX
chipset and is fully designed for harsh industrial environment. It features a
Socket7 processor connector that is compatible with Intel Pentium MMX,
AMD K6-2, K6-3 and Cyrix MII processors. This board accommodates up to
256MB SDRAM configuration.
The NuPRO-590 comes with Winbond’s W83781D hardware monitoring
device that monitors system and CPU temperature, system voltages, and
CPU and chassis fan speeds to prevent system crashes by warning the user
of adverse conditions. NuPro590 alsohas a case-open indicator for security.

Introduction •3
1.3 Features
•CPU Speed 166~400MHz, Intel Pentium MMX & Low power
Pentium &AMD K6-2,K6-3 &Cyrix MII processors
•Bus Speed 66MHz
•Intel 430TX PCIset
•Up to 256MB SDRAM system memory
•C&T 69000 VGA chipset for LCD & CRT displays
•COM1 and COM2 serial ports configurable as RS232 and
RS232/422/485 respectively
•Programmable watchdog timer, 0~255 second/minutes
•High speed bi-directional SPP/ECP/EPP parallel port
•Hardware Monitoring, Modem ring-on
•10/100 Base-T Ethernet interface with Wake On LAN and optional
Alert on LAN II support

4•Introduction
1.4 Specifications
•Processor Socket: Socket7 connector
•Processor: Intel Pentium MMX, Low Power Pentium, AMD K6-2,
K6-3, 166~400MHz
•Bus Speed: 66MHz
•Chipset: Intel 82430TX, 82371EB
•Secondary Cache: 512KB
•Memory Sockets:
•TWO 168-pin DIMM sockets
•Max. 256MB SDRAM
•Memory type: SDRAM (Synchronous DRAM)
•BIOS: Award BIOS, PnP support
•FLASH EEPROM (256KB) for BIOS update
•ISA Plug and Play (PnP) extension
•Power management
•Y2K Compliant
•DMI BIOS Support:
Desktop Management Interface (DMI) allows users to download
system hardware-level information such as CPU type, CPU speed,
internal/external frequencies and memory size.
•Super I/O: Winbond W83977EF
•Parallel Port:
•One high-speed parallel port, SPP/EPP/ECP mode
•ESD protection to 4KV
•Downstream device protection to 30V
•Serial Port:
•Two 16550 UART compatible ports with COM1 as RS232 and
COM2 BIOS configurable as RS232/422/485

Introduction •5
•ESD protection to 2KV
•Enhanced IDE: Two Enhanced IDE interfaces for up to four
devices, support PIO Mode 3/4 or Ultra DMA/33 IDE Hard Disk and
ATAPI CD-ROM.,LS120,ZIP
•FDD Interface: Two floppy drives (360KB, 720KB, 1.2MB, 1.44MB,
2.88MB)
•CRT/LCD: C&T 69000 chipset
•Embedded 2MB SDRAM display memory
•Simultaneous CRT & LCD display
•LCD panelsupports DSTN/TFT
•1280x1024x8bpp colors CRT resolution
•Up to 1280x1024x8bpp colors resolution for color active matrix TFT
panels (12, 18, and 24bit analog) or (12+12), (18+18) double
pixel/CLK interface
•RAMDAC Latch-up protection
•USB Interface:
•Two USB pin-header connectors, compliant with USB Specification
Rev. 1.0
•Individual over-current protection
•DiskOnChip: The M-Systems flash disk supports system boot and
storage capacity from 2MB to 72MB.
•Watchdog Timer: programmable
•Program I/O port 3F0H and3F1H to configure watchdog timer
•Time-out timing select 0~255 seconds/minutes
•Green Function: Power management via BIOS, activated through
mouse/keyboard movement
•PCI Bus Ethernet Interface: Intel 82559 chipset
•PCI local bus Ethernet controller
•IEEE 802.3 10base-T and 100base-TX compatible physical longer
support

6•Introduction
•IEEE802.3u auto-negotiation support for automatic speed selection
•10/100Mbps operation in a single port PCI bus master architecture
•IEEE 802.3X (100base-TX Flow control support)
•Wake on Lan support
Management communication support to reduce the total cost of
ownership (TCO)
•Keyboard and Mouse Connectors: PS/2 type mini-DIN that
supports PC/AT; supports a 5-pin external keyboard connector
•IrDA Interface: Pin-header connector for the optional IrDA external
connector
•PICMG Compliance: Fully compliant to PICMG standards
•Power supply: AT or ATX
•Environmental and Mechanical:
•Power Consumption: 17.5A @+5V(max), +12V:50mA
•Temperature: 0°C to 70°C
•Humidity: 5% to 95%
•Dimensions: 338mm x 122mm

Introduction •7
1.5 Intelligence
•System Health Monitoring: A sensor for the CPU temperature on
the NuPRO-590 monitors the CPU temperature, an external sensor
for system temperature, case-opened indicator, fan-speed
detection, system voltages monitoring
•Windows 98 shut-off: Allows shut-off control from within Windows
98 and through an ATX power supply.
•Modem ring-on: Allows system powering on through an external
modem and through an ATX power supply.
•Year 2000 Compliant BIOS: The onboard Award BIOS is Year
2000 Compliant.
•Wake On LAN: Through an ATX power supply and network
connection, systems can be turned on from the power-off state.
•Alert on LAN: Allows SOS hardware event alert, watchdog, and
Advanced Power Management (APM) through Ethernet.

8•Introduction

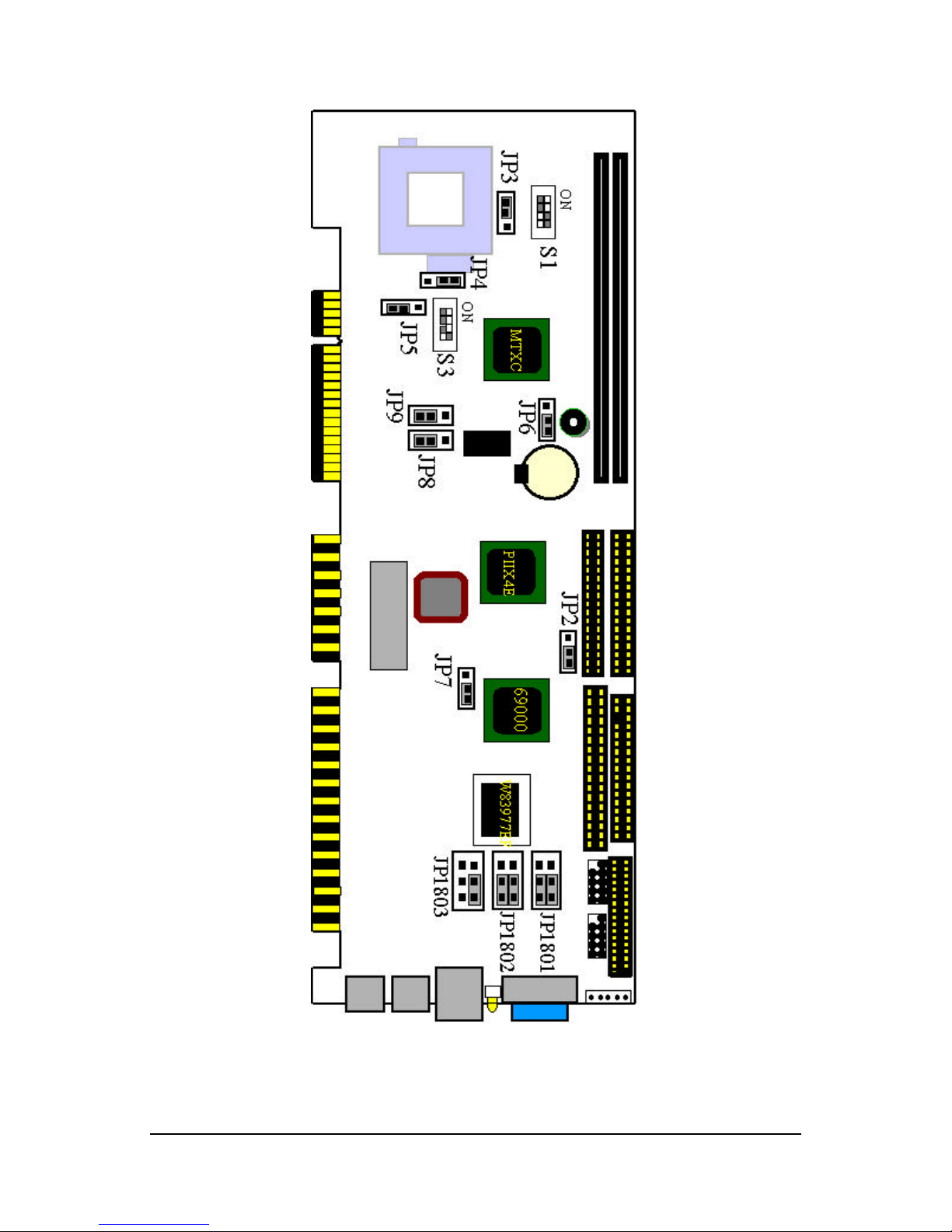

Figure 1 Layout of key components

Introduction •9
Board Dimensions
Figure 2 NuPRO-590 Mechanical Drawing

10 •Installation
2
Installations
This chapter provides information on how to use the jumpers and connectors
on the NuPRO-590 in order to set up a workable system. The topics covered
are:
•CPU Installation
•Memory Installation
•Jumpers on the NuPRO-590
•Connectors on the NuPRO-590
•Watchdog timer configration
2.1 CPU Installation
The NuPRO-590 Industrial CPU Board supports a Socket7 processor socket
for Intel Pentium MMX, Low power Pentium, AMD K6 and Cyrix MII
processors.
The Socket7 connector comes with a lever to secure the processor. Before
inserting the CPU, make sure the lever is raised perpendicular to the socket
and the notch on the corner of the CPU corresponds with the notch on the
inside of the socket.
After you have installed and lock the processor into place, check if the
jumpers for the CPU type and speed are correct.
Note: Ensure that the CPU heat sink and the CPU top surface are in total
contact to avoid CPU overheating problem that would cause your
system to hang or be unstable.

Installation •11
2.2 Memory Installation
The NuPRO-590 Industrial CPU Board supports two 168-pin DIMM sockets
for a maximum total memory of 256 SDRAMs. The memory modules can
come in sizes of 16MB, 32MB, 64MB, 128MB SDRAM.
2.3 Jumpers on the NuPRO-590
The jumpers on the NuPRO-590 allow you to configure your CPU board
accordingtotheneedsofyourapplications.Ifyouhavedoubtsaboutthebest
jumper configuration for your needs, contact your dealer or sales
representative. The following table lists the jumpers and dipswitches on
NuPRO-590 and their respective functions.

12 •Installation
Figure3 Jumper Locations on the NuPRO-590
