ADLINK Technology MI-220 User manual

Advance Technologies; Automate the World.
Manual Rev.: 2.01
Revision Date: December 19, 2011
Part No: 50-1Z086-1010

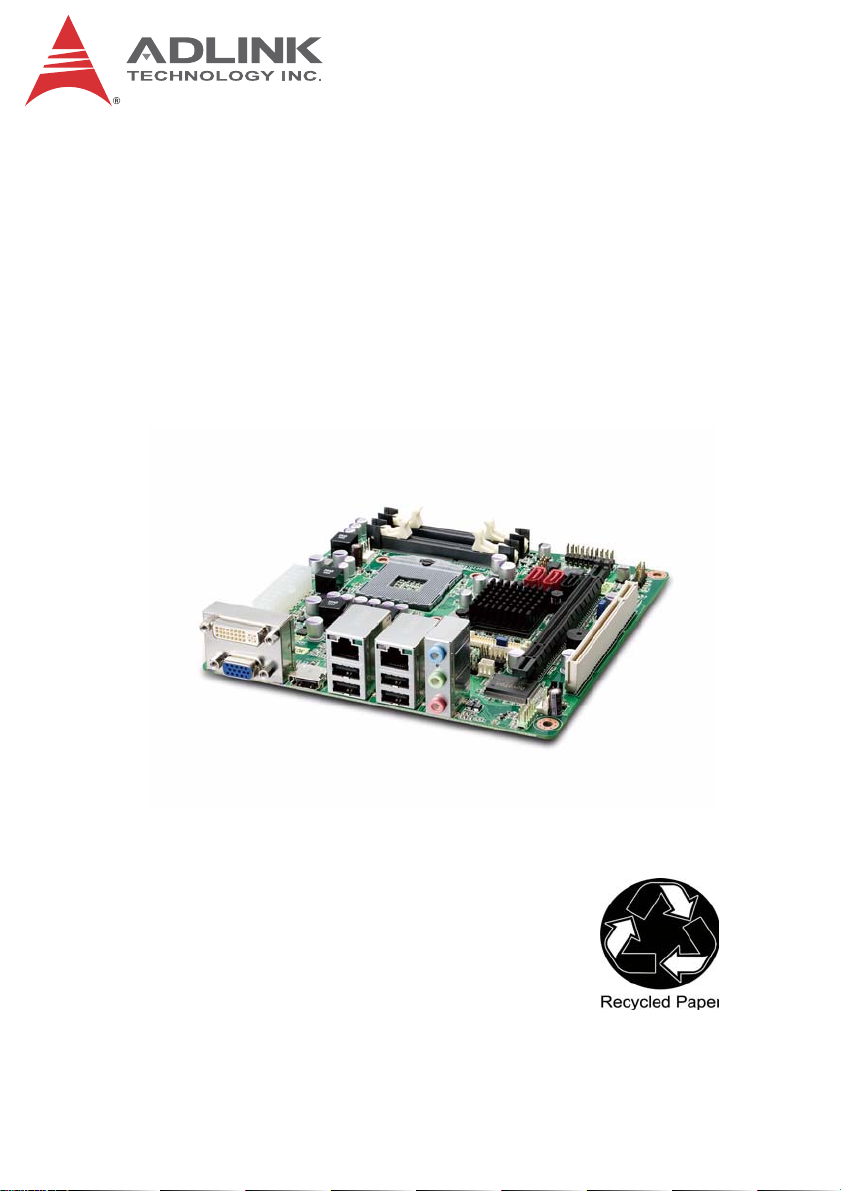

MI-220
Mini-ITX Embedded Motherboard with Intel®
Core™ i7/i5/i3 CPU and QM67 PCH
User’s Manual

ii Revision History
Revision History
Revision Release Date Description of Change(s)
2.00 2011/11/11 Initial release
2.01 2011/12/19 Correct F_PANEL1 pin definition

Preface iii
MI-220
Preface
Copyright 2011 ADLINK Technology Inc.
This document contains proprietary information protected by copy-
right. All rights are reserved. No part of this manual may be repro-
duced by any mechanical, electronic, or other means in any form
without prior written permission of the manufacturer.
Disclaimer
The information in this document is subject to change without prior
notice in order to improve reliability, design, and function and does
not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, spe-
cial, incidental, or consequential damages arising out of the use or
inability to use the product or documentation, even if advised of
the possibility of such damages.
Environmental Responsibility
ADLINK is committed to fulfill its social responsibility to global
environmental preservation through compliance with the Euro-
pean Union's Restriction of Hazardous Substances (RoHS) direc-
tive and Waste Electrical and Electronic Equipment (WEEE)
directive. Environmental protection is a top priority for ADLINK.
We have enforced measures to ensure that our products, manu-
facturing processes, components, and raw materials have as little
impact on the environment as possible. When products are at their
end of life, our customers are encouraged to dispose of them in
accordance with the product disposal and/or recovery programs
prescribed by their nation or company.
Trademarks
Product names mentioned herein are used for identification pur-
poses only and may be trademarks and/or registered trademarks
of their respective companies.

iv Preface
Using this Manual
Audience and Scope
The MI-220 User’s Manual is intended for hardware technicians
and systems operators with knowledge of installing, configuring
and operating industrial grade computers.
Manual Organization
This manual is organized as follows:
Preface: Presents copyright notifications, disclaimers, trade-
marks, and associated information on the proper usage of this
document and its associated product(s).
Chapter 1, Introduction: Introduces the MI-220, its features,
applications, and specifications, including functional descriptions
and board layout.
Chapter 2, Connectors & Jumpers: Provides technical informa-
tion on connectors, jumpers and pin assignments for configuring
the MI-220.
Chapter 3, Getting Started: Describes how to install components
and drivers on the MI-220.
Chapter 4, BIOS Setup: Presents information and illustrations to
help understand and configure the system BIOS.
Appendix A, Watchdog Timer: Presents information on under-
standing and configuring the watchdog timer.
Appendix B, System Resources: Presents information on I/O
mapping, IRQ routing, and resource allocation.
Important Safety Instructions: Presents safety instructions all
users must follow for the proper setup, installation and usage of
equipment and/or software.
Getting Service: Contact information for ADLINK’s worldwide
offices.

Preface v
MI-220
Conventions
Take note of the following conventions used throughout this
manual to make sure that users perform certain tasks and
instructions properly.
NOTE:
NOTE:
Additional information, aids, and tips that help users perform
tasks.
CAUTION:
Information to prevent minor physical injury, component dam-
age, data loss, and/or program corruption when trying to com-
plete a task.
WARNING:
Information to prevent serious physical injury, component
damage, data loss, and/or program corruption when trying to
complete a specific task.

vi Preface
This page intentionally left blank.

vii
MI-220
Table of Contents
Revision History...................................................................... ii
Preface.................................................................................... iii
List of Figures........................................................................ ix
List of Tables.......................................................................... xi
1 Introduction ........................................................................ 1
1.1 Package Contents ............................................................... 1
1.2 Overview.............................................................................. 2
1.3 Features............................................................................... 2
1.4 Specifications....................................................................... 3
1.5 Block Diagram ..................................................................... 5
1.6 Functional Description ......................................................... 6
1.7 Power Consumption ............................................................ 8
1.8 Board Layout ....................................................................... 9
1.9 Mechanical Dimensions..................................................... 11
2 Connectors & Jumpers.................................................... 13
2.1 Rear I/O Connectors.......................................................... 13
2.2 Onboard Connectors and Jumpers.................................... 16
3 Getting Started ................................................................. 25
3.1 System Memory................................................................. 25
3.2 Driver Installation ............................................................... 26
4 BIOS Setup........................................................................ 29
4.1 Starting the BIOS............................................................... 29
4.2 Main Setup......................................................................... 33
4.3 Advanced BIOS Setup....................................................... 35
4.3.1 ACPI Settings ................................................................ 36

viii
4.3.2 CPU Configuration......................................................... 37
4.3.3 SATA Configuration ....................................................... 39
4.3.4 PCH-FW Configuration .................................................. 40
4.3.5 AMT Configuration......................................................... 41
4.3.6 USB Configuration ......................................................... 44
4.3.7 Super IO Configuration .................................................. 46
4.3.8 H/W Monitor................................................................... 49
4.3.9 Serial Port Console Redirection..................................... 50
4.4 Chipset Setup .................................................................... 54
4.4.1 System Agent (SA) Configuration.................................. 55
4.4.2 PCI Express Configuration ............................................ 58
4.4.3 Memory Configuration ................................................... 59
4.4.4 PCH-IO Configuration.................................................... 60
4.5 Boot Configuration ............................................................. 62
4.6 Security Setup.................................................................... 64
4.7 Exit Menu ........................................................................... 65
A Appendix: Watchdog Timer..............................................67
B Appendix: System Resources..........................................69
B.1 System Memory Map ......................................................... 69
B.2 Direct Memory Access Channels....................................... 70
B.3 Fixed I/O Map .................................................................... 71
B.4 Variable I/O Map ................................................................ 73
B.5 Interrupt Request (IRQ) Lines............................................ 74
B.6 PCI Configuration Space Map ........................................... 75
B.7 PCI Interrupt Routing Map ................................................. 76
Important Safety Instructions............................................... 77
Getting Service...................................................................... 79

List of Figures ix
MI-220
List of Figures
Figure 1-1: MI-220 Block Diagram ..................................................... 5
Figure 1-2: MI-220 Board Layout ....................................................... 9
Figure 1-3: MI-220 Rear I/O Layout ................................................. 10
Figure 1-4: MI-220 Board Dimensions ............................................. 11

xListofFigures
This page intentionally left blank.

List of Tables xi
MI-220
List of Tables
Table 1-1: MI-220 General Specifications......................................... 4
Table 1-2: Intel® Core™ i7-2710QE Power Consumption ............... 8
Table 1-3: MI-220 Board Layout Legend ........................................ 10
Table B-1: System Memory Map..................................................... 69
Table B-2: Direct Memory Access Channels................................... 70
Table B-3: Fixed I/O Map ................................................................ 71
Table B-4: Variable I/O Map............................................................ 73
Table B-5: IRQ Lines APIC Mode ................................................... 74
Table B-6: PCI Configuration Space Map ....................................... 75
Table B-7: PCI Interrupt Routing Map............................................. 76

xii List of Tables
This page intentionally left blank.

Introduction 1
MI-220
1 Introduction
This chapter will introduce the MI-220, its features, specifications,
functional description, and mechanical layout.
1.1 Package Contents
Please check that your package contains the items below. If
you discover damaged or missing items, please contact your
vendor.
XMI-220 Mini-ITX Embedded Motherboard
XI/O shield
X2x SATA cable
XDriver CD
XUser’s Manual
WARNING:
DO NOT install or apply power to equipment that is damaged
or if there is missing/incomplete equipment. Retain the ship-
ping carton and packing materials for inspection. Please con-
tact your ADLINK dealer/vendor immediately for assistance.
Obtain authorization from your dealer before returning any
product to ADLINK.

2Introduction
1.2 Overview
The ADLINK MI-220 is a Mini-ITX embedded motherboard based
on the Intel® Core™ i7/i5/i3 Processor built on 32-nm process
technology in rPGA988B package and the Mobile Intel® QM67
Express Chipset. The MI-220 is ideal for embedded applications
requiring low power consumption in a standard small form factor
motherboard with a complete set of I/O functions and high-band-
width network connectivity. These features, combined with two
SO-DIMM sockets supporting DDR3 1066/1333MHz SDRAM up
to 8 GB, SATA 6 Gb/s ports, PCIe x16, PCI, and Mini PCIe expan-
sion slots, HDMI, DVI-D, VGA, dual-channel 24-bit LVDS, and
audio interfaces make the MI-220 suitable for medical, transporta-
tion, industrial automation, and other applications requiring a low
noise/power, space-saving, multiple display platform.
1.3 Features
XMini-ITX form factor (170 mm x 170 mm)
XIntel® Core™ i7/i5/i3 Processor:
ZQuad/dual cores with Hyper-Threading
ZDMI 5 GT/s
Z6MB/3MB last level cache
ZrPGA988B package in Socket G2
XDDR3-1066/1333 up to 8 GB max. (2x SODIMM sockets)
XIntel® HD Graphics integrated in processor
ZVGA supporting 2048 x 1536 @ 60 Hz (QXGA)
ZDVI-D, HDMI Type A, Dual Channel 24-bit LVDS
XMobile Intel® QM67 Express Chipset
X1x PCIe x16 slot, 1x PCI slot, Mini PCIe expansion slot
X2x SATA 6Gb/s ports, 1x SATA 3 Gb/s port
X3x RS-232 + 1x RS-232/422/485 serial ports
X2x GbE
X6x USB 2.0 ports (4x faceplate, 2x onboard pin headers)
XPS/2 keyboard/mouse by internal pin header
XLine-in, Line-out, Mic-in
XRoHS compliant

Introduction 3
MI-220
1.4 Specifications
System
CPU Intel® Core™ Processor, rPGA988B package, Socket G2
• Core™ i7-2710QE, 2.1GHz, 6M LLC, 32nm, 45W TDP
• Core™ i5-2510E, 2.5GHz, 3M LLC, 32nm, 35W TDP
• Core™ i3-2330E, 2.2GHz, 3M LLC, 32nm, 35W TDP
Intel® Celeron® B810, 1.6GHz, 2M LLC, 32nm, 35W TDP
Chipset • Intel® QM67 Platform Controller Hub
Memory • Dual-Channel DDR3 1066/1333MHz, up to 8GB
• 2x 204-pin SO-DIMM sockets, vertical type
BIOS • AMI 32 Mb SPI BIOS
Audio • Realtek ALC892 HD Audio
• Line-in, line-out and mic-in
Watchdog Timer • 1-255 second/minute programmable
Hardware Monitor • CPU/System temperature, fan speed and onboard DC
voltage
Operating System • Windows XP/7 32/64-bit, Fedora 14,
Redhat Enterprise Linux 5
I/O Interfaces
Serial ATA • 2x SATA 6Gb/s ports, 1x SATA 3 Gb/s port
Onboard I/O • 6x USB 2.0 (4x external, 2x by pin header)
• 3x RS-232 + 1x RS-232/422/485 serial ports
• PS/2 keyboard/mouse by internal pin header
Rear I/O • 2x RJ-45 LAN ports
• 4x USB 2.0 ports
• 1x D-Sub VGA connector
• 1x DVI-D connector
• 1x HDMI type A connector
• 3x audio jacks (line-in, line-out and mic-in)
Expansion Slots • 1x PCIe x16 slot, 1x PCI slot, 1x Mini PCIe slot
Display
Processor • Intel® HD Graphics 3000
VGA • Dsub-15 connector up to 2048x1536 @ 60Hz (QXGA)
DVI • DVI-D connector, up to 1920x 1200 @ 60 Hz
(connector has DVI-I pinout; no VGA signals supported)
HDMI • HDMI type A connector, up to 1920x 1200 @ 60 Hz
LVDS • Dual-channel 24-bit LVDS up to 1600x1200 (UXGA)

4Introduction
Table 1-1: MI-220 General Specifications
Ethernet
Controller • Intel® 82579LM + 82574L controllers
• Supports Wake-on-LAN
Ports • 2x RJ-45 Ethernet port
Mechanical and Environment
Form Factor • Mini-ITX Embedded Motherboard
Dimensions • 170 mm x 170 mm (L x W)
Operating Temp. • 0°C to 60°C
Storage Temp. • -20ºC to 80ºC
Rel. Humidity • 10 - 90% RH non-condensing
Safety • CE, FCC Class A

Introduction 5
MI-220
1.5 Block Diagram
Figure 1-1: MI-220 Block Diagram
Intel® QM67 PCH
CPU
Intel® Core™ i7/i5
quad/dual core
32nm process
rPGA988B package
FDI
LPC
USB 2.0
SPI BIOS
KB/Mouse 8-bit GPIO
RS-232
(COM2-4)
RS-232/422/
485/485+
(COM1)
PCIe x16
Gen2, 5GT/s
NCT6776F
LPC Super I/O
USB 2.0
(4x rear, 2x internal)
SO-DIMM Channel A
SO-DIMM Channel B
DDR3 1066/1333 MHz
PCIe x1
PCIe
Controller
PCIex1
PCIe x1
SATA
SATA
(2x 6 Gb/s, 1x 3 Gb/s)
DIMM x2
Audio
ALC892
HD
Codec
Intel 82579
RJ-45(LAN1)
PCIe-to-PCI
Bridge
XIO2001
Intel 82574L
RJ-45 (LAN2)
Fintek
81216AD
SPI
PCIe x16
PCIe x1
Mini-PCIe
VGA
LVDS
Dual Channel 24-bit
DVI-D
HDMI
PCI Slot
Hardware
Monitor
DMI

6Introduction
1.6 Functional Description
Processor Support
The MI-220 is a Mini-ITX embedded board featuring the 2nd gen-
eration Intel® Core™ processor family (Intel® Core™i7/i5/i3) in
rPGA988B package. An integrated memory controller supports
dual channel 1066/1333 MHz DDR3 and Intel® HD Graphics is
integrated onboard the CPU. The CPU provides a PCI Express
x16 slot for external graphics or expansion. Direct Media Interface
(DMI) and Flexible Display Interface (FDI) provide connectivity to
the Mobile Intel® QM67 Express Chipset.
Mobile Intel® QM67 Express Chipset
The Intel® BD82QM67 Platform Controller Hub (PCH) combine
with the processor to provide a compact yet powerful 2-chip solu-
tion. Direct Media Interface (DMI) is the chip-to-chip connection
between the processor and PCH. Intel® Flexible Display Interface
carries display traffic from the integrated graphics on the proces-
sor to the legacy display interfaces on the PCH. The PCH sup-
ports all other required interfaces including PCI Express, SATA 6
Gb/s, USB 2.0, LPC, and SPI.
Dual-Channel DDR3 Memory
To meet the requirements of memory-intensive applications, the
MI-220 has a dual-channel memory architecture supporting DDR3
1066/1333 MHz SO-DIMMs. The key advantages of DDR3 are
higher bandwidth and increased performance at lower power than
DDR2. DDR3 memory technology meets the requirements of the
latest 3D graphics, multimedia and network applications, and
boosts system performance by eliminating bottlenecks.
Gigabit Ethernet
The MI-220 utilizes an Intel® 82579LM Gigabit Ethernet PHY and
Intel® 82574L Gigabit Ethernet Controller connected to the PCIe
bus of the QM67 PCH. Intel® AMT 7.0 (82579LM on LAN1),
Wake-on-LAN and PXE are supported.

Introduction 7
MI-220
Serial ATA
The MI-220 provides three SATA ports with data transfer rates of
up to 6.0 GB/s on 2 ports and up to 3.0 GB/s on 1 port. Intel®
Rapid Storage Technology supports AHCI and RAID 0/1/5/10
functionality.
USB 2.0
The MI-220 provides 6 USB 2.0 ports supporting transfer rates up
to 480 Mb/s. All ports are USB 1.1 compatible.
Hardware Monitoring
A built-in, proactive hardware monitoring system in the Super I/O
monitors the CPU temperature, system fan speed, and voltage
levels to prevent overheating and/or component damage, effect
timely failure detection, and ensure stable supply of current for
critical components.
Watchdog Timer
The watchdog timer (WDT) monitors system operations based on
user-defined settings. The WDT can be programmed for different
time-out periods, such as from 1 to 255 seconds or from 1 to 255
minutes. The WDT generates a reset signal, then a reset request,
after failure to strobe it within the programmed time period. A reg-
ister bit may be enabled to indicate if the watchdog timer caused
the reset event. The WDT register is cleared during the power-on
sequence to enable the operating system to take appropriate
action when the watchdog generates a reboot.

8Introduction
1.7 Power Consumption
Intel® Core™ i7-2710QE, 2.1GHz, 6M LLC, 32nm, 45W TDP
Table 1-2: Intel® Core™ i7-2710QE Power Consumption
Test Configuration
Memory Innodisk DDR3-1333 4GB M3SN-4GHJDC09-B (2x)
Graphics Intel® HD Graphics 3000
Storage Seagate ST9160412AS Momentus 7200.4 160G.
Power Supply SPI FSP350-60PLN 350W
DOS (idle)
Power Req. +12V +5VSB +3.3V Total
Current (A) 2.20 0.86 0.87 –
Watts (W) 26.4 4.30 2.34 33.0
Windows XP, Idle
Power Req. +12V +5V +3.3V Total
Current (A) 0.98 0.85 0.71 –
Watts (W) 11.8 4.25 2.34 18.4
Windows XP, CPU Stress (Kpower)
Power Req. +12V +5V +3.3V Total
Current (A) 4.00 0.93 0.76 –
Watts (W) 48.0 4.65 2.51 55.2
Windows XP, Total System Stress (Burnin)
Power Req. +12V +5V +3.3V Total
Current (A) 4.60 1.54 0.77 –
Watts (W) 55.2 7.70 2.54 65.4
S1 Mode
Power Req. +12V +5V +3.3V Total
Current (A) 0.57 0.59 0.73 –
Watts (W) 6.89 2.95 2.41 12.3
S5 Mode
Power Req. – +5VSB – Total
Current (A) –0.94– –
Watts (W) – 4.70 – 4.70
