ADS FlashLogic FLC-FORS-FO1B-FLRSFO1-EN User manual
REVISION DATE
20201009
DOCUMENT NUMBER
TERMS OF USE: Automotive Data Solutions Inc. (“ADS”) products are strictly intended for installation by
Certified Technicians who are employed by a registered business specialized in the installation of auto-
motive aftermarket electronics products. Prior to beginning installation of an ADS product in a vehicle,
it is the Certified Technician’s responsibility to review the most current Product Guide, Install Guide
and vehicle-specific notes available in Weblink®. ADS is not responsible for any damages whatsoever,
including but not limited to any consequential damages, incidental damages, damages for loss of time,
loss of earnings, loss of profit, commercial loss, loss of economic opportunity and the like that may or
may not have resulted from the use, misuse, improper installation or operation of its products. ADS
reserves itself the right to suspend any Weblink® account without notice and decline to offer technical
support to non-Certified Technicians, non-compliant Certified Technicians or end users.
BEFORE INSTALLATION
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
Patent No. US 8,856,780 CA 2759622
INSTALL GUIDE
FLCFORSFO1BFLRSFO1EN
HARDWARE
FLRSFO1
ACCESSORIES
FLPROG REQUIRED
FLRF1/2/4 OPTIONAL
CARLINK ASCL2 OPTIONAL
FIRMWARE
FLCFORSFO1BFLRSFO1
www.flashlogic.comAutomotive Data Solutions Inc. © 2020
71928
Patent No. US 8,856,780 CA 2759622
VEHICLE LIST - 1 OF 1
MAKE
MODEL
YEAR
INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS
3X LOCK START/STANDALONE MOD.
DOOR LOCK
DOOR UNLOCK
ARM OEM ALARM
DISARM OEM ALARM
POWER LIFTGATE
TRUNK/HATCH RELEASE
RAP SHUTDOWN CTRL
HOOD STATUS (W/OEM SW)
DOOR STATUS
BRAKE PEDAL STATUS
TACHOMETER STATUS
GLOW PLUGS STATUS
PARKING LIGHT CTRL
FORD
Edge STD key AT 11-14 1 • • • • • • • • • • • • •
Expedition STD key AT 15-17 2 • • • • • • • • • • • • • •
Explorer STD key AT 11-15 1 • • • • • • • • • • • • •
F-150 STD key AT 11-14 2 • • • • • • • • • • • •
F-Super Duty STD key AT 11-16 2 • • • • • • • • • • • • •
Fiesta STD key AT 14-19 3 • • • • • • • • • • • • •
Flex STD key AT 13-19 2 • • • • • • • • • • • • •
Taurus STD key AT 13-19 2 • • • • • • • • • • • • •
Transit STD key AT* 15-19 4 • • • • • • • • • •
LINCOLN
MKX STD key AT 11-12 1 • • • • • • • • • • • • •
*Aftermarket RF kit required to control remote start.
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 2 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
BOX CONTENTS - 1 OF 1
MS1MS1
MS2MS2
VS2VS2
VS1VS1
VS4VS4
VS3VS3
3
6
4
1
2
5
C
B
A
F
G
E
D
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
7
9
3
10
8
11
12
6
4
1
2
5
2
1
3
7
9
3
10
8
6
4
12
5
2
1
3
4
2
1
3
4

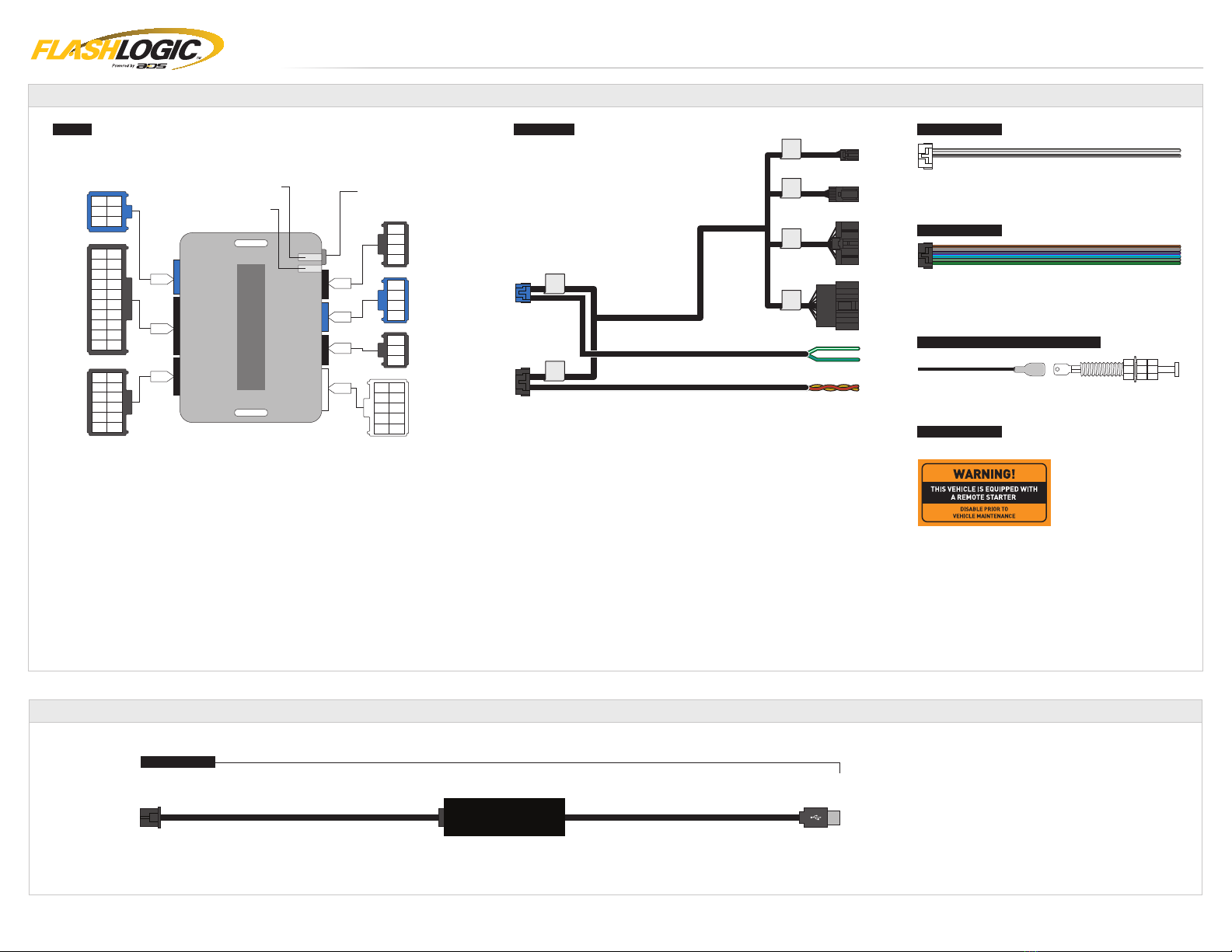

BOX CONTENTS
T-HARNESS 1
AFTERMARKET HOOD SWITCH AND CABLE
WARNING STICKER
10 PIN CONNECTOR
12 PIN CONNECTOR
BLUE
PROGRAMMING
BUTTON
LED 2
LED 1
MODULE
BLACK
BLACK
BLACK
RF PORT/
WEBLINK PORT
BLACK
BLUE
TELEMATIC
PORT
WHITE
WEBLINK CABLE (required accessory sold separately)
WEBLINK CABLE
COMPUTER
USB PORT
4 PIN BLACK CABLE
MODULE
WEBLINK PORT
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 3 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 4 OF 25
• 20201009
COMPATIBLE ACCESSORIES - 1 OF 1
FLRF1/2/4 RF KIT
RF KIT (accessories sold separately)
(NC)
ANTENNA
MODULE
RF PORT
FLHRNTM
TELEMATIC KIT (accessories sold separately)
(NC)
CARLINK
MODULE
TELEMATIC PORT
10 11 12 13 14 15 16
12345678
9
FLHRNTM
TELEMATIC KIT (accessories sold separately)
MODULE
TELEMATIC PORT
CAR CONNECTIONPN 4120260 OBDII CONNECTOR
VEHICLE
OBDII PORT
(NC)
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
F
C
D
E
H
A
B
G
COMPONENT LOCATOR - 1 OF 1
INTERIOR VIEW
DRIVER SIDE VIEW PASSENGER SIDE VIEW
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 5 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
TYPE 1 - WIRE CHART - 1 OF 1
MAKE
MODEL
YEAR
WIRE
DESCRIPTION
CONNECTOR
NAME
CONNECTOR
COLOR
CONNECTOR
TYPE
POSITION
WIRE
COLOR
POLARITY
MODULE
LOCATION
COMPONENT
LOCATOR
FORD
Edge
STD key AT 11-14
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple/Green (-) BCM, driver side dash H
Driver Door Pin C2280C Black 26 pin 09 Green/Purple (OPEN) BCM, driver side dash H
Lock C2280C Black 26 pin 06 Blue/Green (-) BCM, driver side dash H
Unlock C2280C Black 26 pin 08 Yellow/Purple (-) BCM, driver side dash H
Trunk Release C2269 Black 06 pin 06 Gray/Yellow (-) At liftgate switch in glovebox D
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, driver side dash H
Explorer
STD key AT 11-15
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple/Green (-) BCM, driver side dash H
Driver Door Pin C2280C Black 26 pin 09 Green/Purple (OPEN) BCM, driver side dash H
Lock C2280C Black 26 pin 06 Blue/Green (-) BCM, driver side dash H
Unlock C2280C Black 26 pin 08 Yellow/Purple (-) BCM, driver side dash H
Trunk Release C2114 Black 08 pin 07 Gray/Yellow (-) At liftgate switch on driver side dash A
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, driver side dash H
LINCOLN
MKX
STD key AT 11-12
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple/Green (-) BCM, driver side dash H
Driver Door Pin C2280C Black 26 pin 09 Green/Purple (OPEN) BCM, driver side dash H
Lock C2280C Black 26 pin 06 Blue/Green (-) BCM, driver side dash H
Unlock C2280C Black 26 pin 08 Yellow/Purple (-) BCM, driver side dash H
Trunk Release C2269 Black 06 pin 06 Gray/Yellow (-) At liftgate switch in glovebox D
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, driver side dash H
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 6 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
87A
30
87
85
86
3
3
1
2
2
1
M6
M6
M1
M2
M3 M4
M5
M2
M3
M4
M1
VS2VS2
VS1VS1
VS4VS4
VS3VS3
MS1MS1
MS2MS2
10
1111
12 13 14 15 16
1 2
33
45678
9
C
B
E
1
2
10A
B
E
C
10111213
14151617181920212223242526
272829303132
33343536373839
123456789
40414243444546474849505152
10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25 26
1 2 3 4 5 678 9
10
12345
67 8 9
12345678
123
4 5 6
DRIVER DOOR PIN (OPEN) - 09
12V (+)
PARKING LIGHT (+) - 06
HORN (-) - 33
LOCK (-) - 06
UNLOCK (-) - 08
TRUNK RELEASE (-)
TRUNK RELEASE (-)
INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE.
INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE.
TELEMATIC PORT
RF PORT/WEBLINK PORT
19
20
01
02
03
04
05
06
07
08
09
10
01
02
05
06
07
08
09
10
03
04
05
07
09
10
11
12
13
14
15
16
17
18
01
02
03
04
05
06
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY (NC)
08 BLUE/GREEN - TRUNK (-) OUTPUT
03 GRAY/BLACK (NC)
11 GRAY/GREEN - HORN (-) OUTPUT
04 GRAY/WHITE - HOOD STATUS (-) INPUT
1 : IMMOBILIZER CONNECTOR
2 : IGNITION CONNECTOR
2 : IGNITION HARNESS
1 : IMMOBILIZER HARNESS
IGNITION SWITCH (UNDER STEERING COLUMN)
CANL - 11
CANH - 03
OPTIONAL

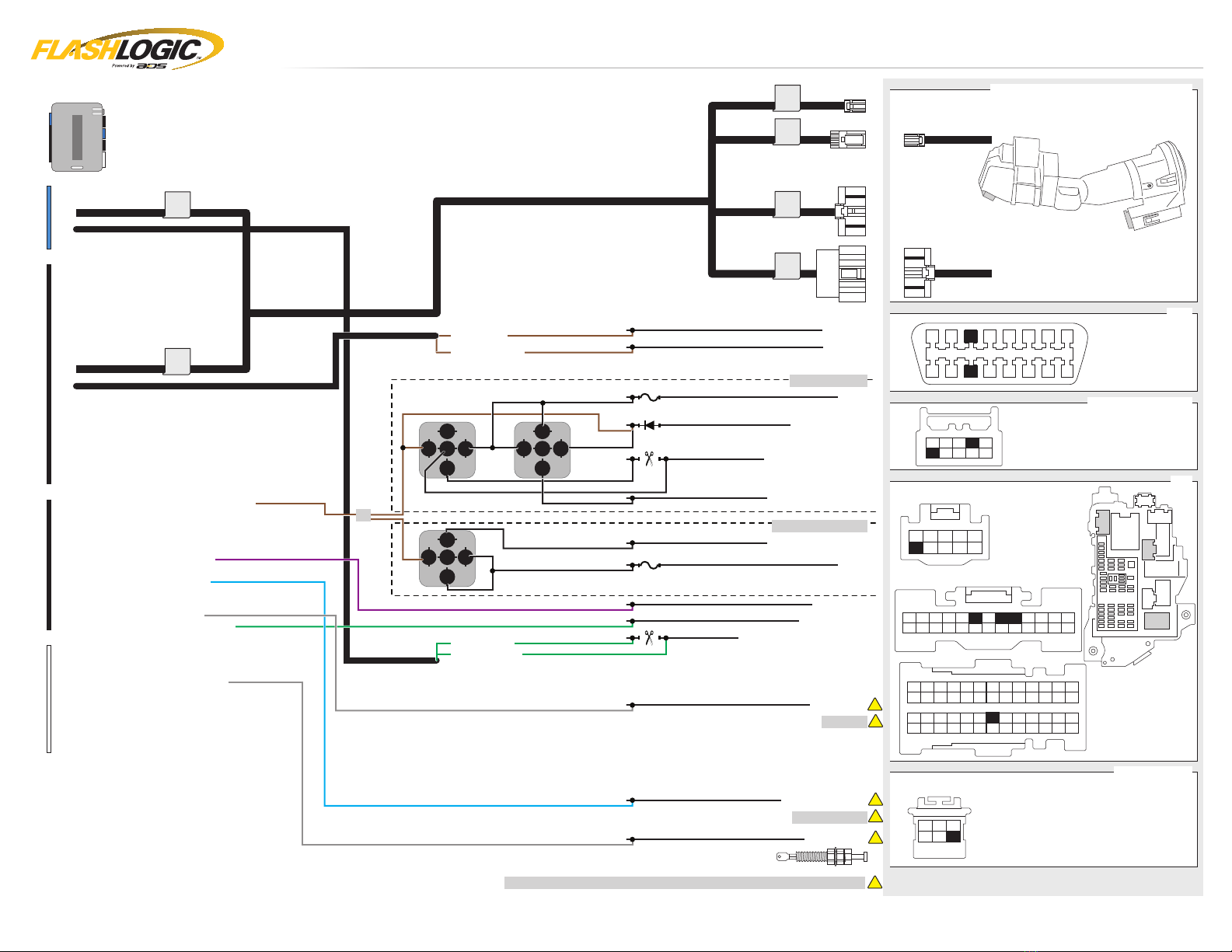

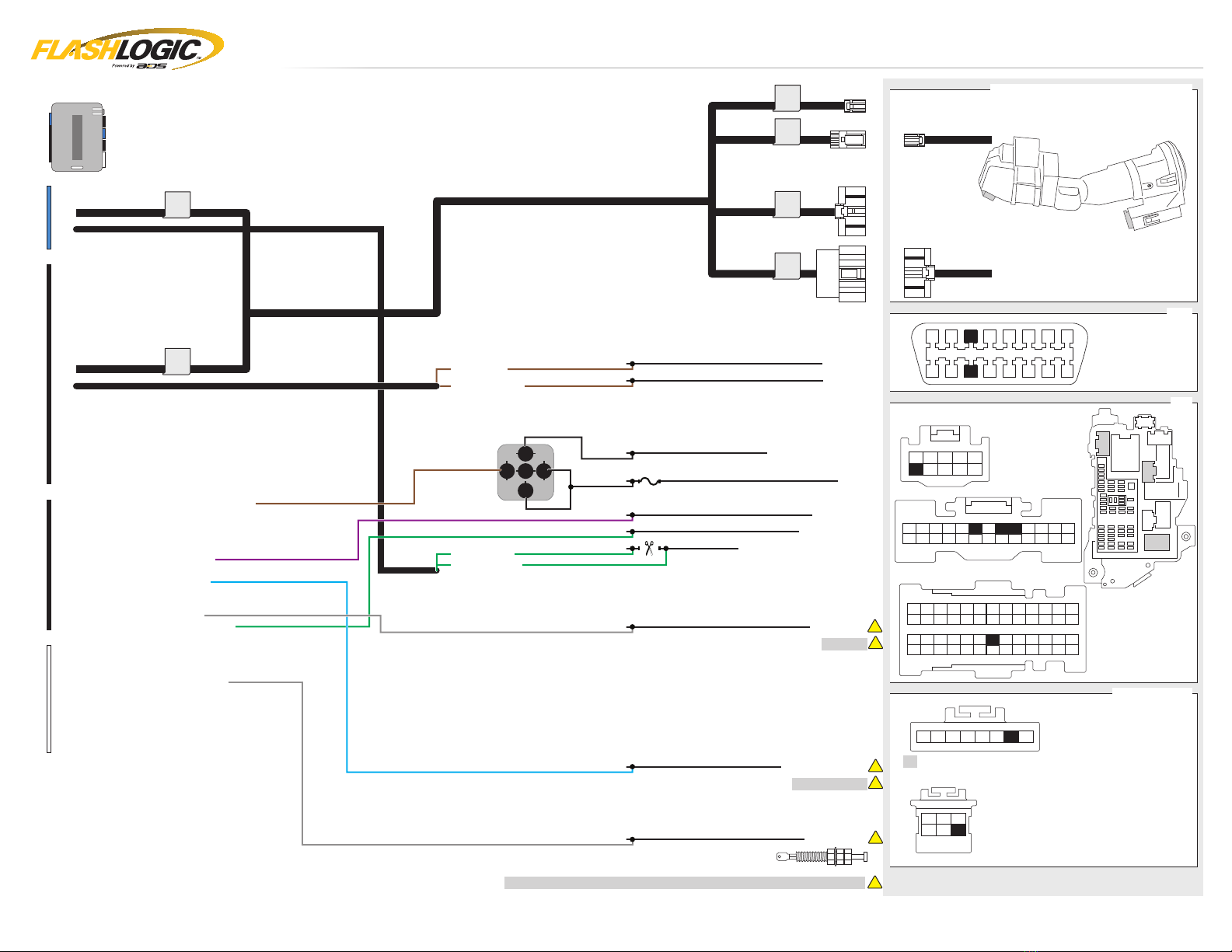

TYPE 1 - WIRING DIAGRAM - 1 OF 1
BCM
OBDII
BROWN/RED
BROWN/YELLOW
GREEN/WHITE
GREEN/PURPLE
LIFTGATE SWITCH
06 PURPLE/GREEN - LOCK (-) OUTPUT
06 PURPLE/GREEN - LOCK (-) OUTPUT
12 DKGREEN/GREEN - UNLOCK (-) OUTPUT
TRUNK RELEASE (-)
TRUNK RELEASE (-)
SEE WIRE CHART
OR
C2269 - BLACK
HOOD SWITCHHOOD SWITCH
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 7 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
TYPE 2 - WIRE CHART - 1 OF 2
MAKE
MODEL
YEAR
WIRE
DESCRIPTION
CONNECTOR
NAME
CONNECTOR
COLOR
CONNECTOR
TYPE
POSITION
WIRE
COLOR
POLARITY
MODULE
LOCATION
COMPONENT
LOCATOR
FORD
Expedition
STD key AT 15-17
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple (-) BCM, passenger kick panel E
Driver Door Pin C2280C Black 26 pin 09 Green/Purple (OPEN) BCM, passenger kick panel E
Lock C2280C Black 26 pin 06 White/Brown (-) BCM, passenger kick panel E
Unlock C2280C Black 26 pin 08 Blue/Brown (-) BCM, passenger kick panel E
Trunk Release ~ Black 08 pin 07 Gray/Yellow (-) At liftgate switch C
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, passenger kick panel E
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
F-150
STD key AT 11-14
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple/Green (-) BCM, passenger side dash E
Driver Door Pin C2280C Black 26 pin 09 Green/Purple (OPEN) BCM, passenger side dash* E
Lock C2280C Black 26 pin 06 Blue/Green (-) BCM, passenger side dash* E
Unlock C2280C Black 26 pin 08 Yellow/Purple (-) BCM, passenger side dash* E
Trunk Release ~ ~ ~ ~ ~ ~ ~ ~
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, passenger side dash E
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
F-Super Duty
STD key AT 11-16
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple/Green (-) BCM, passenger side dash E
Driver Door Pin C2280C Black 26 pin 09 Green/Purple (OPEN) BCM, passenger side dash* E
Lock C2280C Black 26 pin 06 Blue/Green (-) BCM, passenger side dash* E
Unlock C2280C Black 26 pin 08 Yellow/Purple (-) BCM, passenger side dash* E
Trunk Release ~ ~ ~ ~ ~ ~ ~ ~
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, passenger side dash E
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
* Wire also found in driver door harness.
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 8 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
TYPE 2 - WIRE CHART - 2 OF 2
MAKE
MODEL
YEAR
WIRE
DESCRIPTION
CONNECTOR
NAME
CONNECTOR
COLOR
CONNECTOR
TYPE
POSITION
WIRE
COLOR
POLARITY
MODULE
LOCATION
COMPONENT
LOCATOR
FORD
Flex
STD key AT 13-19
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple/Green (-) BCM, driver side dash B
Driver Door Pin C2280C Black 26 pin 09 Purple (OPEN) BCM, driver side dash B
Lock C2280C Black 26 pin 06 Blue (-) BCM, driver side dash B
Unlock C2280C Black 26 pin 08 Yellow (-) BCM, driver side dash B
Trunk Release C2269 Black 06 pin 06 Gray (-) At liftgate switch on driver side dash A
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, driver side dash B
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
Taurus
STD key AT 13-19
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple/Green (-) BCM, driver side dash B
Driver Door Pin C2280C Black 26 pin 09 Green/Purple (OPEN) BCM, driver side dash B
Lock C2280C Black 26 pin 06 Blue/Green (-) BCM, driver side dash B
Unlock C2280C Black 26 pin 08 Yellow/Purple (-) BCM, driver side dash B
Trunk Release C2269 Black 06 pin 06 Brown (-) At trunk release switch on center console C
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, driver side dash B
Auto Light C205 Gray 10 pin 04 Purple/Green or Purple (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple or White (-) Headlight switch A
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 9 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
87A
30
87
85
86
3
3
1
2
2
1
M6
M6
M1
M2
M3 M4
M5
M2
M3
M4
M1
VS2VS2
VS1VS1
VS4VS4
VS3VS3
MS1MS1
MS2MS2
10
1111
12 13 14 15 16
1 2
33
45678
9
C
B
E
1
2
10A
87A
30
87
85
86 87A
87
30
85
86
B
E
C
10111213
14151617181920212223242526
272829303132
33343536373839
123456789
40414243444546474849505152
10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25 26
1 2 3 4 5 678 9
10
12345
67 8 9
123
4 5 6
10A
10
12345
67 8 9
DRIVER DOOR PIN (OPEN) - 09
12V (+)
12V (+)
PARKING LIGHT (+) - 06
PARKING LIGHT (+) - 06
LIGHT OFF (-) - 06
LIGHT OFF (-) - 06
AUTO LIGHT (OPEN) - 04
AUTO LIGHT (OPEN) - 04
HORN (-) - 33
LOCK (-) - 06
UNLOCK (-) - 08
TRUNK RELEASE (-)
TRUNK RELEASE (-)
INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE.
INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE.
TELEMATIC PORT
TELEMATIC PORT
RF PORT/WEBLINK PORT
RF PORT/WEBLINK PORT
19
20
01
02
03
04
05
06
07
08
09
10
01
02
05
06
07
08
09
10
03
04
05
07
09
10
11
12
13
14
15
16
17
18
01
02
03
04
05
06
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY (NC)
08 BLUE/GREEN - TRUNK (-) OUTPUT
03 GRAY/BLACK (NC)
11 GRAY/GREEN - HORN (-) OUTPUT
04 GRAY/WHITE - HOOD STATUS (-) INPUT
1 : IMMOBILIZER CONNECTOR
2 : IGNITION CONNECTOR
2 : IGNITION HARNESS
1 : IMMOBILIZER HARNESS
IGNITION SWITCH (UNDER STEERING COLUMN)
CANL - 11
CANH - 03
OPTIONAL
WITHOUT AUTO LIGHT
WITH AUTO LIGHT
TYPE 2 - WIRING DIAGRAM - 1 OF 1
BCM
OBDII
PARKING LIGHT SWITCH
PARKING LIGHT SWITCH
BROWN/RED
BROWN/YELLOW
OR
GREEN/WHITE
GREEN/PURPLE
LIFTGATE SWITCH
06 PURPLE/GREEN - LOCK (-) OUTPUT
06 PURPLE/GREEN - LOCK (-) OUTPUT
12 DKGREEN/GREEN - UNLOCK (-) OUTPUT
TRUNK RELEASE (-)
TRUNK RELEASE (-)
SEE WIRE CHART
C2269 - BLACK
HOOD SWITCHHOOD SWITCH
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 10 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
TYPE 3 - WIRE CHART - 1 OF 1
MAKE
MODEL
YEAR
WIRE
DESCRIPTION
CONNECTOR
NAME
CONNECTOR
COLOR
CONNECTOR
TYPE
POSITION
WIRE
COLOR
POLARITY
MODULE
LOCATION
COMPONENT
LOCATOR
FORD
Fiesta
STD key
AT
14-19
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Driver Door Pin C2280G Gray 24 pin 19 Green/Purple (OPEN) BCM, behind glove box D
Horn C2280E Green 24 pin 01 Brown (-) BCM, behind glove box D
Light OFF C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
Lock C2280F White 24 pin 20 Brown/White (-) BCM, behind glove box D
Parking Light C205 Gray 10 pin 02 Yellow/Blue (-) Headlight switch A
Trunk Release C2280G Gray 24 pin 06 Green/White (-) BCM, behind glove box D
Unlock C2280G Gray 24 pin 08 Blue/Brown (-) BCM, behind glove box D
Disarm C2280G Gray 24 pin 09 Purple/Brown (-) BCM, behind glove box D
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 11 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
1
2
2
1
M6
M6
M1
M2
M3 M4
M5
M2
M3
M4
M1
VS2VS2
VS1VS1
VS4VS4
VS3VS3
MS1MS1
MS2MS2
10
1111
12 13 14 15 16
1 2
33
45678
9
1
2
87A
30
87
85
86
10
12345
67 8 9
TELEMATIC PORT
RF PORT/WEBLINK PORT
2 : IGNITION CONNECTOR
2 : IGNITION HARNESS
32
1
101112
13
14151617181920
2021222324
123456789
101112
13
1415161718192021222324
1123456789
101112
13
141516171819
192021222324
123456
678899
1A
DRIVER DOOR PIN (OPEN) - 19
12V (+)
PARKING LIGHT (-) - 02
LIGHT OFF (-) - 06
LIGHT OFF (-) - 06
HORN (-) - 01
LOCK (-) - 20
UNLOCK (-) - 08
DISARM (-) - 09
TRUNK RELEASE (-) - 06
TRUNK RELEASE (-) - 06
INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE.
INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE.
CANL - 11
CANH - 03
OPTIONAL
TRUNK RELEASE (-) - 06
TRUNK RELEASE (-) - 06
19
20
01
02
03
04
05
06
07
08
09
10
01
02
05
06
07
08
09
10
03
04
05
07
09
10
11
12
13
14
15
16
17
18
01
02
03
04
05
06
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY (NC)
08 BLUE/GREEN - TRUNK/LIFTGATE (-) OUTPUT
03 GRAY/BLACK (NC)
11 GRAY/GREEN - HORN (-) OUTPUT
04 GRAY/WHITE - HOOD STATUS (-) INPUT
GREEN/WHITE
GREEN/PURPLE
06 PURPLE/GREEN - LOCK (-) OUTPUT
06 PURPLE/GREEN - LOCK (-) OUTPUT
12 DKGREEN/GREEN - UNLOCK (-) OUTPUT
TYPE 3 - WIRING DIAGRAM - 1 OF 1
BROWN/RED
BROWN/YELLOW
1 : IMMOBILIZER CONNECTOR
1 : IMMOBILIZER HARNESS
IGNITION SWITCH (UNDER STEERING COLUMN)
BCM, BEHIND GLOVE BOX
OBDII
PARKING LIGHT SWITCH
PARKING LIGHT SWITCH
C205 : GRAY
3 (C2280E) : GREEN
1 (C2280G) : GRAY
2 (C2280F) : WHITE
HOOD SWITCH
HOOD SWITCH
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 12 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
TYPE 4 - WIRE CHART - 1 OF 1
MAKE
MODEL
YEAR
WIRE
DESCRIPTION
CONNECTOR
NAME
CONNECTOR
COLOR
CONNECTOR
TYPE
POSITION
WIRE
COLOR
POLARITY
MODULE
LOCATION
COMPONENT
LOCATOR
FORD
Transit
STD key
AT
15-19
CanH C251 White 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 White 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C218A Yellow 8 pin 04 Blue/White (-) Steering lock connector, bottom of steering column G
Driver Door Pin C2280C Brown 76 pin 44 Green/Purple (OPEN) BCM, driver side dash A
Lock C2280C Brown 76 pin 25 Gray/Yellow (-) BCM, driver side dash A
Unlock C2280C Brown 76 pin 56 Purple/Gray (-) BCM, driver side dash A
Parking Light (left) C2280B Brown 46 pin 15 Purple/Green (+) BCM, driver side dash A
Parking Light (right) C2280C Brown 76 pin 67 White/Orange (+) BCM, driver side dash A
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 13 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
87A
30
87
85
86
2
2
1
1
M6
M6
M1
M2
M3 M4
M5
M2
M3
M4
M1
VS2VS2
VS1VS1
VS4VS4
VS3VS3
MS1MS1
MS2MS2
10
1111
12 13 14 15 16
1 2
33
45678
9
2
1
15A
3A
3A
1
2
876
5
4321
1
2
2
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
2
3
4
5
6
7
8
940
41
42
43
44
45
46
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
2
3
4
5
6
7
8
9
40
41
42
43
44
45
46
47
48
49
50
51
52
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
53
54
STEERING LOCK CONNECTOR (BOTTOM OF STEERING COLUMN)
DRIVER DOOR PIN (OPEN) - 44
LOCK (-) - 25
PARKING LIGHT RIGHT (+) - 67
PARKING LIGHT LEFT (+) - 15
UNLOCK (-) - 56
BCM (DRIVER SIDE DASH)
2 (C2280B) : BROWN
1 (C2280C) : BROWN
C218A : YELLOW
12V (+)
HORN (-) - 04
INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE.
INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE.
TELEMATIC PORT
RF PORT/WEBLINK PORT
19
20
01
02
03
04
05
06
07
08
09
10
01
02
05
06
07
08
09
10
03
04
05
07
09
10
11
12
13
14
15
16
17
18
01
02
03
04
05
06
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY (NC)
08 BLUE/GREEN (NC)
03 GRAY/BLACK (NC)
11 GRAY/GREEN - HORN (-) OUTPUT
04 GRAY/WHITE - HOOD STATUS (-) INPUT
2 : IMMOBILIZER CONNECTOR
1 : IGNITION CONNECTOR
1 : IGNITION HARNESS
2 : IMMOBILIZER HARNESS
IGNITION SWITCH (UNDER STEERING COLUMN)
CANL - 11
CANH - 03
OPTIONAL
TYPE 4 - WIRING DIAGRAM - 1 OF 1
OBDII
BROWN/RED
BROWN/YELLOW
GREEN/WHITE
GREEN/PURPLE
06 PURPLE/GREEN - LOCK (-) OUTPUT
06 PURPLE/GREEN - LOCK (-) OUTPUT
12 DKGREEN/GREEN - UNLOCK (-) OUTPUT
HOOD SWITCH
HOOD SWITCH
VEHICLE WITH IMMOBILIZER ONLY
VEHICLE WITHOUT IMMOBILIZER ONLY
CUT BLACK WIRE AND CONNECT TO GROUND
GROUND (-) - 04
BLACK
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 14 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
>>
01
OFF
ACC ON
START
02
OFF
ACC ON
START
03
04
OFF
ACC ON
START
05
OFF
ACC ON
START
06
>>
07
OFF
ACC ON
START
08
OFF
ACC ON
START
09
10
11
OFF
ACC ON
START
12
OFF
ACC ON
START
13
OFF
ACC ON
START
14
15
16
OFF
ACC ON
START
MODULE PROGRAMMING PROCEDURE (2 KEYS) - 1 OF 2
NOTE: To complete this procedure, both OEM
keys are required.
Insert key 1 into ignition.
Turn key 1 to ON position. LED will turn solid
RED.
LED 1 will flash GREEN.
Turn key 1 to OFF position.
Remove key 1.
Wait, LED 1 will turn OFF. (This may take up to
30 seconds)
NOTE: If the vehicle is not equipped with an
immobilizer, press and hold the module’s
programming button during steps 7 and 8.
Insert key 1 into ignition.
Turn key 1 to ON position.
If LED turns solid GREEN for 2 seconds:
Module Programming Procedure completed.
If LED turns solid RED, proceed with following
step.
TIME RESTRICTION. Complete steps 11 to 13
within 4 seconds after LED turns OFF.
Remove key 1.
Insert key 2 into ignition.
Turn key 2 to ON position.
Wait, LED will turn solid RED then will turn
OFF.
TIME RESTRICTION. Complete steps 16 and 17
within 4 seconds after LED turns OFF.
Remove key 2.
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 15 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
17
>>
18
19
MODULE PROGRAMMING PROCEDURE (2 KEYS) - 2 OF 2
Press and release programming button.
If the LED begins to flash RED, you are using a
cloned key or used the same key twice.
Wait, LED will turn solid RED then will turn
solid GREEN.
Module Programming Procedure completed.
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 16 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
>>
01
02
ENGINE
START
STOP
OFF ACC ON START
ON
03
04
ENGINE
START
STOP
OFF ACC ON STARTOFF
05
>>
VALET MODE PROGRAMMING PROCEDURE - 1 OF 1
NOTE: In Valet Mode, the Remote starter is not
functional. Keyless entry, Lock and Unlock will
remain functional. See RF kit user manual for
alternate valet mode programming.
Time restriction. Complete next step within 7
seconds.
Cycle ignition ON five times [5x OFF/ON]
rapidly.
Wait, LED 1 will turn solid RED for 2 seconds.
Set ignition to OFF position.
Valet Mode Programming Procedure
completed.
To exit valet mode: repeat steps 1 to 5.
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 17 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
AFTERMARKET REMOTE PROGRAMMING - 1 OF 1
AFTERMARKET REMOTE PROGRAMMING:
NOTES
I All aftermarket remotes must be programmed to the
RF-Kit.
Refer to the RF-Kit user guide for aftermarket remote
features and programming procedures.
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 18 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
>>
>>
>>
01
ENGINE
START
STOP
OFF ACC ON STARTOFF
02
03 [X]
04
05 [Y]
06
07 [Z]
08 [Z]
09
10
11 [Y]
12
13
14
>>
MODULE NAVIGATION PROCEDURE - 1 OF 1
It is mandatory to exit the Module Navigation
at the end of this procedure. Failure to exit the
Module Navigation will drain vehicle battery.
To exit the Module Navigation at any time:
Follow STEP 13.
Module must be programmed to the vehicle.
Use the Module Navigation Chart on the next
page.
Set ignition to OFF position.
TO ACCESS THE MENUS: Press and hold
programming button until LED 1 turns solid
GREEN.
IN THE MENUS: Press the programming
button as many times as the menu number
indicates. LED 1 will flash GREEN an equal
amount of times continuously.
TO ACCESS THE OPTIONS: Press and hold
programming button until LED 1 turns solid
RED.
IN THE OPTIONS: Press the programming
button as many times as the option number
indicates. LED 1 will flash RED an equal
amount of times continuously.
TO ACCESS THE SETTINGS: Press and hold
programming button until LED 1 turns solid
GREEN.
LED 1 will flash GREEN as many times as
the current (or default) setting number,
continuously.
IN THE SETTINGS: Press the programming
button as many times as necessary to access
your setting. LED 1 will flash GREEN an equal
amount of times continuously.
To return to the MENUS: exit the Module
Navigation and redo the Module Navigation
Procedure.
To save and return to the OPTIONS: Press and
hold programming button until LED 1 turns
solid RED.
LED 1 will flash RED as many times as the
current option number continuously.
Configure every other setting and proceed to
step 13.
MANDATORY: EXIT MODULE NAVIGATION.
Press and hold programming button for 7
seconds. LED 1 will flash RED rapidly. Release
programming button. LED 1 will turn OFF.
Module navigation completed.
Failure to exit the Module Navigation will drain
vehicle battery.
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 19 OF 25
• 20201009
DOC.: #71928
Patent No. US 8,856,780 CA 2759622
MODULE NAVIGATION CHART - 1 OF 2
MODULE NAVIGATION CHART:
NOTES
[X] MENUS
[Y] OPTIONS
[Z] SETTINGS
I Default settings are listed in bold.
01 CONFIGURATION
01 DISARM/UNLOCK BEFORE START 01 OFF
II Make sure the option is covered on the vehicle before
attempting to change the setting.
02 ON
02 RELOCK AFTER START 01 OFF
02 ON
03 RELOCK AFTER SHUTDOWN 01 OFF
02 ON
04 FORCE UNLOCK ALL ON FIRST PRESS 01 OFF
02 ON
05 TAKEOVER 01 ENABLE
02 DISABLE*
06 N/A 01 N/A
07 FACTORY KEYLESS RS SEQUENCE
01 DISABLE
02 N/A
03 LOCK + UNLOCK + LOCK
04 LOCK + LOCK + LOCK
08 MODULE RUN TIME
01 03 MIN
02 05 MIN
03 10 MIN
04 15 MIN
05 25 MIN
06 30 MIN
07 35 MIN
08 15 MIN
09 WAIT TO START DELAY
01 02 SEC
02 05 SEC
03 08 SEC
04 10 SEC
05 15 SEC
06 20 SEC
07 25 SEC
08 30 SEC
10 N/A 01 N/A
11 N/A 01 N/A
12 N/A 01 N/A
13 N/A 01 N/A
*Vehicle will shutdown when a door is opened.
www.flashlogic.comAutomotive Data Solutions Inc. © 2020 FLCFORSFO1BFLRSFO1EN
PAGE 20 OF 25
• 20201009
DOC.: #71928
Other ADS Automobile Accessories manuals
![ADS FLASHLOGIC OEM-AL(RS)-GM8-[FLCAN]-EN User manual](/data/manuals/12/2/122nh/sources/ads-flashlogic-oem-al-rs-gm8-flcan-en-manual.jpg "ADS FLASHLOGIC OEM-AL(RS)-GM8-[FLCAN]-EN User manual")
