BURY CC 9056 Plus User manual

CC 9056 Plus
Index
Introductory information 2
1. General 2
2. Security guidelines 2
Installation of the hands-free car kit 4
3. Scope of supply 4
4. Positioning and mounting 6
5. Connections at electronic box 9
Operating guidelines 14

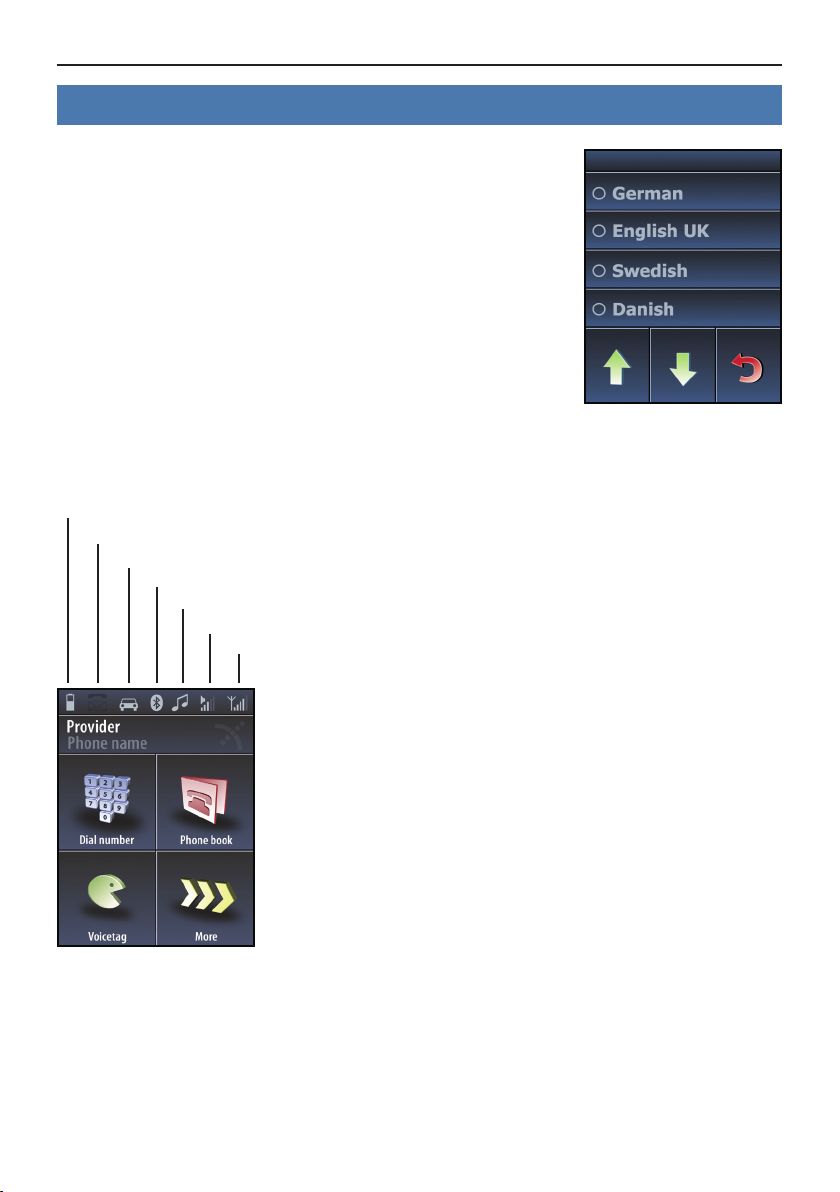

6. Using the hands-free car kit for the first time 14

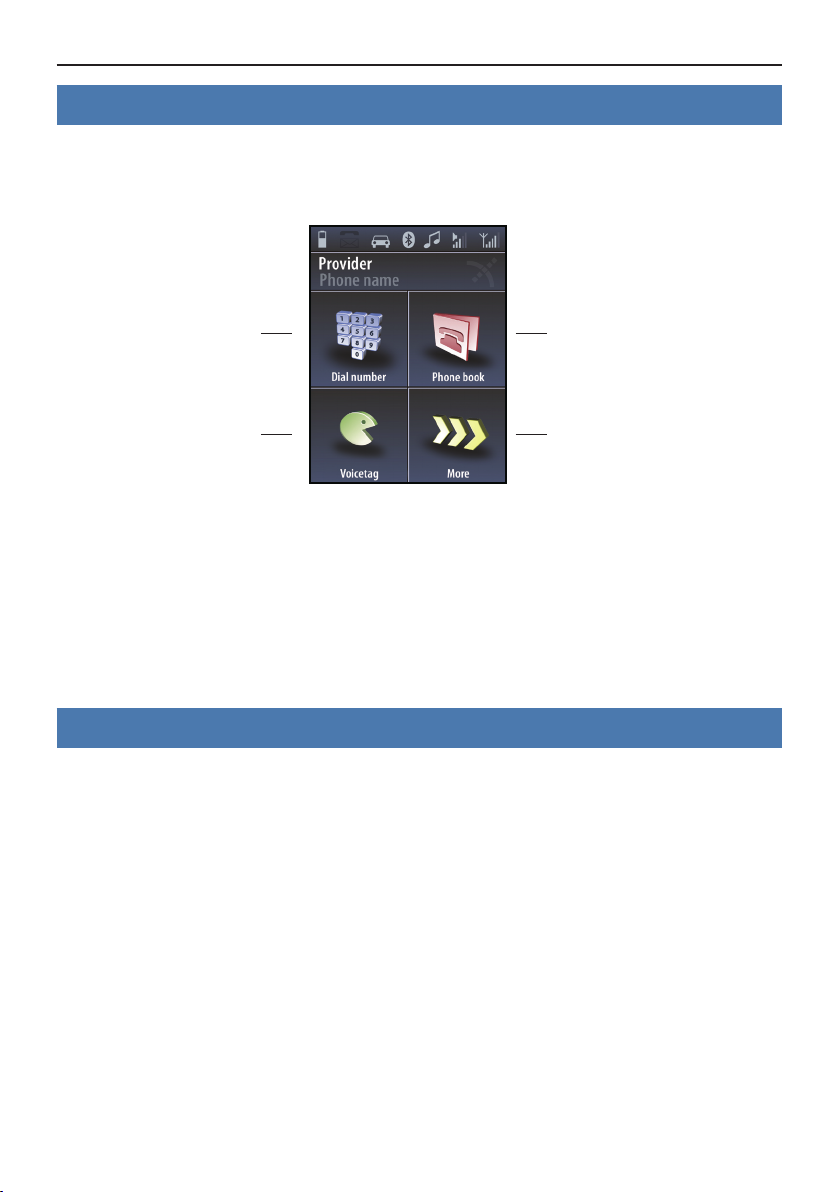

7. Operating with the touch screen 15
8. Establishing a
Bluetooth connection 15
9. Menu navigation 17
10. Accepting, making, ending calls 29
11. Transferring Calls 30
12. Conference Mode 31
Further Information 32
13. Service 32
14. Appropriate use of this system 33
15. Approvals and declaration of conformity 33

2Introductory information
Installation - who should do it
The installation of this system can be carried out by yourself but please
observe the installation requirements of the automotive manufacturer.
During the installation, park the car at a place where the road traffic is
not impaired. We recommend to let a specialised workshop perform the
installation.
Power supply
This system has been designed for the use in vehicles with an on-board
supply system of 12 volts (passenger car). If you intend to install the
device in a vehicle with an on-board supply system of 24 volts (lorry),
please use a voltage converter. If you have queries regarding this sub-
ject, please contact our hotline.
Position, volume
Install the components of the device in the vehicle so that your field of
vision is not impaired and the components are not mounted in the im-
pact zone of the passenger compartment or in the airbag inflation
zones. The removal of coverings (with and without airbags) or compo-
nents of the dashboard requires – in some cases – special tools and
special knowledge.
1. General
Dear customer,
Congratulations on purchasing a BURY hands-free car kit. You have chosen a high quality product that
is extremely easy to use.
Please read the operating manual carefully so that you can fully enjoy your BURY hands-free car kit.
If you have any further questions concerning installation or operation of your car kit, please contact
your dealer. He will be happy to give you reliable advice.
You can also contact our hotline. Our phone and fax numbers are listed in the chapter Service at the
end of the operating instructions.
Have a good trip!
2. Security guidelines

Introductory information 3
Intended use
We shall not be liable for damages or malfunctions due to improper use
of the hands-free system. Therefore, do not expose the device to mois-
ture, extreme temperatures or shocks and carefully follow the proce-
dure described in the installation and operating guidelines.
Use while driving
Operate the system only when the situation allows it and when you do
not endanger, harm, constrain, or annoy other road users. The volume
of the device has to be set in a way that exterior noise is still audible.
Faults
Do not commission the device if you detect or assume a defect. In this
case, contact a Bury specialised dealer or our hotline. Improper repair
efforts can be dangerous for you. Therefore, only skilled personnel may
perform inspections.
Important:
The driver is ultimately responsible for the safe operationX
and control of their vehicle at all times. You should never
use a hand held phone, including sending or reading text or
picture messages, while driving.
Research indicates that there is a risk to safety when theX
driver of a motor vehicle is distracted and using a mobile
phone while driving can be a distraction.
The manufacturer strongly recommends that you useX
a hands-free solution when driving.

4Installation of the hands-free car kit
3. Scope of supply
89

5
The hands-free car kit (HFCK) is supplied with different combinations of components, depending on
the sales regions (countries). The operating manual refers to all versions.
Description of the components:
1) Electronics box
2) Multifunction display with cradle and mount, screws for the holder and rubber cover,
adhesive tape
3) Microphone
4) ISO-cable harness
5) Extension cord
6) AUX-In cable
7) Micro USB charging cable
8) Quick user guide
Accessories:
9) Mobile phone and Smartphone-specific charging cable
Note:
If certain components are added or omitted you will receive the correspondingX
information on a separate enclosure.

6Installation of the hands-free car kit
4. Positioning and mounting
Step 1:
First of all, please choose the most convenient position for the attached
display on the holder and the installation pad in your vehicle by check-
ing different positions in the vehicle.
If you would like to use the device during your journey, positioning it in
the front area on the driver’s side is advisable. Sit in the vehicle and
check whether you can reach the device without difficulty.
After having found a suitable position for the display in the vehicle you
can now mount / attach the installation pad / the holder with or without
the installation pad accordingly. Please use a cleaning cloth for degreas-
ing the surfaces to which you want to attach the corresponding adhe-
sive surface of either the holder or the installation pad.
The end of the cable with the small Molex connector on the holder is
ideally suited for placing through small openings in the dashboard area.
This facilitates a practically invisible installation of the cable. Take the
length of the cable into account and make sure that it is of sufficient
length to reach the intended location of the electronics box.
Important:
When positioning the monitor please take care that theX
monitor does not impair the view onto the road, that it will
not be installed in the impact zone of the passenger com-
partment (amongst others in the airbag inflation zones) and
that the cable may be laid without any problems.
The installation pad can be affixed just once, removingX
could damage the adhesive area. In case of high variations
in temperatures - depending on the structure and the fea-
tures - decolourisations of the surfaces can occur during the
subsequent utilization.
Please avoid direct sunlight on the monitor or high inter-X
nal temperatures, which can be rapidly reached in parked
vehicles. In such cases, remove the monitor of the hands-
free car kit from the cradle and put it in the car glove pocket
or glove box for instance.

7
Example of installation 1:
1 2 3 4
5 6
1 2 3
4 5 6
Example of installation 2:

8Installation of the hands-free car kit
Step 2:
Depending on the vehicle type and its equipment (e.g. airbags), it is
reasonable to install the microphone either at the A-pillar, at the sun
shield or at the roof interior. For details about the equipment features
please refer to the vehicle documents.
Step 3:
Remove or loosen up cladding and covers to be able to install all of the
cables in the vehicle as comfortably as possible. Please lay the cables
in a way that they do not lie/hang unsecured in the vehicle and that
they may not influence the conducting of the vehicle. When laying
a cable, please take care that it is not under traction stress but that it
has some tolerance. Avoid crushing the cable as damages of the insula-
tion can be caused by friction/rubbing.
Step 4:
Install the electronics box at a convenient place in the vehicle. This can
e.g. be behind the radio, in the glove box, or in the centre console.
Please mind that you can access the connections of the box without
difficulty. It is possible that you will have to connect the components
before attaching the electronics box, if it isn’t possible to do this after-
wards due to a lack of space. A description of the connections is pro-
vided in the next section.
Before connecting the components to the electronics box you should
branch off the battery for safety reasons. In doing so, take into account
that there might be a radio coding (confer radio manual).
Important:
Please install the electronics box behind a cover or some-X
where you can only reach by opening or unfastening a pro-
tective cover / a cover. The terminal box must not hang
loosely in the vehicle.

9
5. Connections at electronic box
The other components of the hands-free car kit are connected to the electronic box. You can find the
following connections:
Connection possibilities:
1 CHARGING PORT: Micro USB socket to connect the extension cable - the charging cable
or an optional update cable can be connected there
2 PWR/LSP/LINE OUT: 24-pin socket for the connection of the molex jack from the ISO cable harness,
used as power supply of the hands-free car kit outputs music and voice (telephone)
3 MICROPHONE: Connection for external microphone
4 LINE IN: Connection for AUX-IN cable for inputting of music
5 DISPLAY: Connection for display (if present)
6 REMOTE CONTROL: Connection for remote control with 3 buttons display (if present)
1 - CHARGING PORT
An extension cable is connected to connection no. 1 (micro USB socket). You can connect a charger or
your mobile phone to the other end of the cable. Connection of the BURY ChargingCradle Universal
isoptional.
2 - PWR/LSP/LINE OUT
The hands-free car kit in the vehicle is connected to the car radio with the ISO cable harness. If the
radio has ISO socket at its backside, the installation can be done without additional installation mate-
rial. If not, certain adapters, e.g. ISO2CAR or AUDIO2CAR, can be ordered from an authorised dealer
for the respective radio or vehicle make.
Using the ISO cable harness, you can input music and voice signals (telephone) of different types into
the radio or play them back via the radio. If the present radio has a LINE-IN or AUX-IN input at the
front side or backside, the four open LINE cables of the ISO cable harness can be connected to them
using appropriate adapters (e.g. 3.5 mm stereo jacks or cinch connectors). The radio amplifier is used
for music playback in that case. Please observe the notes in the instruction manual of the radio con-
cerning “AUX input”. Generally, voice signals are only output in the two front loudspeakers while music
is played back on all four loudspeakers (front and rear). Different installation options can be selected
with the hands-free car kit for that purpose.

10 Installation of the hands-free car kit
Toggling between the installation options 1, 2 and 4 is done in the menu. You must open the options
in the menu in order to toggle between the installation options:
Menu -> Settings -> Audio -> Installation -> Option 1, 2, 3, 4
Option 1 is the standard setting upon delivery of the hands-free car kit. Music and voice are output via the
loudspeakers using the ISO jacks. The amplifiers of the hands-free car kit are used for playback. Mobile
audio is active in the device. In the case of this option the External audio cannot be switched off. The
“switching on the External audio” and “switching off the External audio” areas are inaccessible on the
display.
Options 2 and 4 feeds music to the radio via the four LINE cables, and voice signals are fed to the
loudspeakers via the ISO jacks. Additionally, after switching on the external audio, mobile audio can
be redirected to the car loudspeakers using ISO jacks.
Option 3 does not concern this device.
Output of voice (telephone) via Output of music via
ISO LINE ISO LINE
Option 1 
Option 2 External audio off
  -
External audio on

Option 3 It does not concern the CC 9056 Plus device
Option 4
refers to the device
with BURY
loudspeaker
External audio off
  -
External audio on

Installation of the hands-free car kit

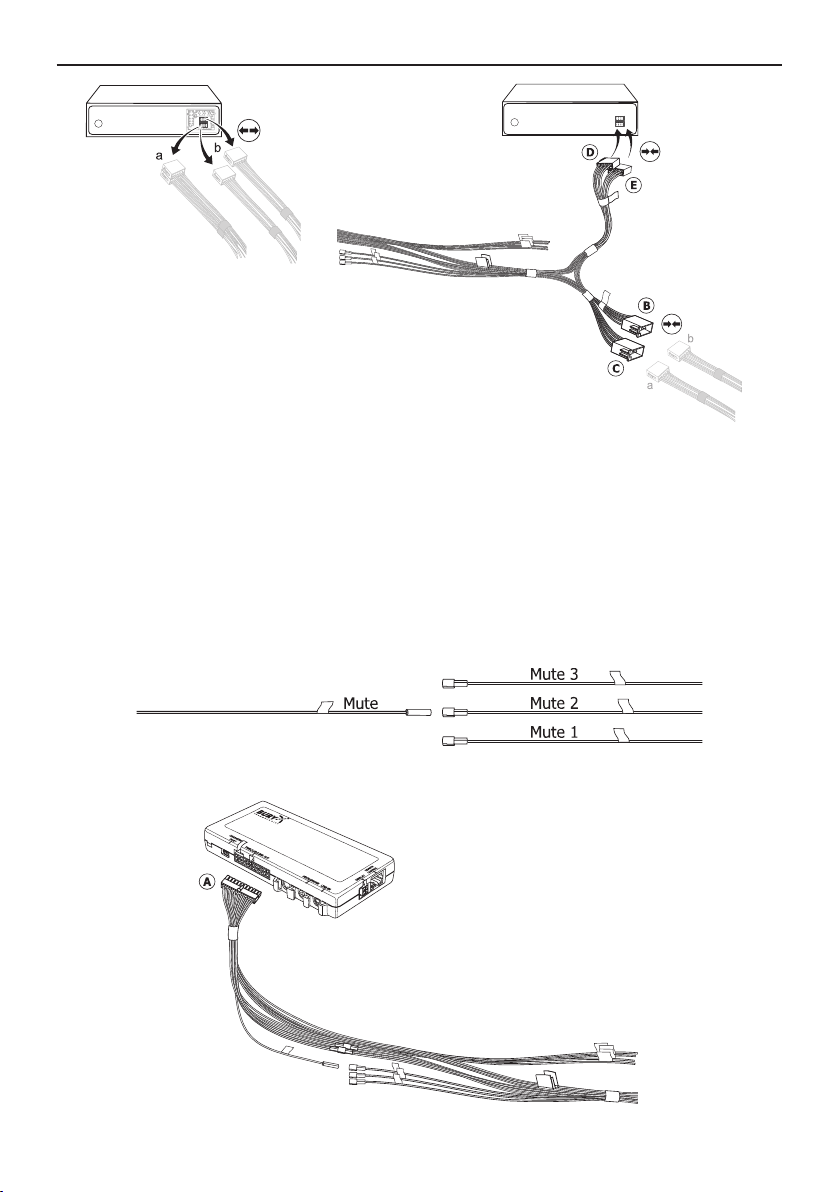

Step 1:
Pull the ISO jacks at the back of the radio off and replace them with the jacks at the ISO cable harness.
Connect the now free ISO jacks with both sockets from the ISO cable harness (see picture).

11
If you want music or voice signals to be fed via the four LINE cables, you must adjust them accord-
ingly to the respective type of radio and its connections (PHONE-IN or AUX-IN). Appropriate adapters
are available from specialists shops.
Step 2:
The hands-free car kit supports the radio mute function, if this function is also supported by the radio.
The mute signal is then fed to the radio via the yellow cable of the ISO cable harness. The cable is
labelled with “mute” and must be connected to one of the three sockets (mute1, mute2, mute3). Please
observe the notes on this topic in the instruction manual of the radio concerning “Pin allocation for
mute / radio mute”. Then, connect the mute cable to the corresponding socket.
Step 3:
Insert the 24-pole molex jack (A) into the connection of the electronic box (see picture).

12 Installation of the hands-free car kit
Connection diagram for ISO cable harness
- Micro Molex 24 - ISO - connection to the electronic box (HFCK)
- connection to the vehicle’s speakers
- connection to the vehicle’s power supply
- connection to the car radio
- connection to the car radio
1 - Mute 3
2 - Mute 2
3 - Mute 1
4 - Ignition
5 - Antenna
6 - Illumination
7 - Power
8 - Ground
- 12V Power
- 12/24V Ignition
- Ground
- Line-out 1 - Line-out 2
1-Line L + / Phone L + 1-Line R + / Phone R +
2-Line L - / Phone L - 2-Line R - / Phone R -
1 - C RR-
2 - C RF-
3 - C LF-
4 - C LR-
5 - R LR-
6 - R LF-
7 - R RF-
8 - R RR-
9 - LINE R+
10 - LINE L+
11 - R-Mute
12 - Ground
13 - C RR+
14 - C RF+
15 - C LF+
16 - C LR+
17 - R LR+
18 - R LF+
19 - R RF+
20 - R RR+
21 - LINE R-
22 - LINE L-
23 - Ignition
24 - Power

13
3 - MICROPHONE
This is where you plug in the microphone jack.
4 - LINE-IN
To connect external music players.
5 - MULTIFUNCTION DISPLAY
Please plug the 5 pole plug of the monitor connection cable into this
jack.
6 - RJ45 - socket for possible system expansions

14 Operating guidelines
6. Using the hands-free car kit for the first time
Headmenu with paired telephone
Afterwards you will reach the head menu. Different symbols will appear in the top row - before and
after you have connected a phone. These symbols have following meaning:
The loading status of the battery of the mobile telephone
Missed calls / New messages
Bluetooth
®profile / Notice of activated Multipoint function
Active
Bluetooth connection
Mobile telephone in the A2DP mode
Volume
Signal strength of the mobile telephone network
After the power supply of the hands free car kit (HFCK) is successfully
connected, the HFCK is activated when you have started the vehicle.
After this, you have to select the menu language.
You can change the menu language again by selecting the More touch-
screen field, then selecting the Settings in the Head menu, and then
changing the Language in the Device menu item.

15
7. Operating with the touch screen
The operation can be carried out via possibly existing arrow keys. With the red symbols you can cancel
an action or go a step back. If you press long you will return to the main menu. With the green symbols
you can confirm actions.
* Only if the voice commands (voice labels - Voicetags) are stored in the phone.
Residues of sweat or hand cream on your fingertips can render the display dirty over time. Then
the readability of the information on the display and its input functionality will deteriorate. There-
fore, please be sure to clean the display as necessary using a damp lint free cloth. Please do not
use any detergent.
8. Establishing a Bluetooth connection
If you wish to establish a Bluetooth connection between your mobile and the HFCK for the first time,
you have to activate the
Bluetooth function of your mobile phone and search for Bluetooth devices.
In this case, search for a device labelled „CC 9056…“. If several devices were identified, please select
the HFCK and enter the PIN number „1234“. The
Bluetooth connection (pairing) will then be estab-
lished between your mobile phone and the HFCK. It is possible that you will also have to click on ‘con-
nect’ or ‘allow data transfer’ on your mobile phone if you want to be able to make a connection.
With a connection which has successfully been made, the name of the coupled mobile telephone and
of the provider will be shown and the data from the telephone book (SIM card) and the address book
(storage of the telephone) are transmitted to the HFCK. Depending on the amount of stored data, this
can take a few seconds. If the synchronisation of the phone book is interrupted, e.g. though an incom-
ing call, it is possible that all entries will not be transmitted. If this happens, the phone book should
once again be manually synchronised.
You can enter
a telephone number here
You can activate
Voicetags here
You can open the
telephone book here
You can flick through
more functions here
Headmenu with paired telephone

16 Operating guidelines
If it is not possible to establish a connection, please check and update the software release (firmware)
of your mobile phone or of the HFCK. You will find an overview dealing with this subject on the Internet
at www.bury.com.
Note:
In the internet you can find an overview with a large number of mobile telephonesX
which have been tested with this hands-free car kit. Please note, however, the use of
firmware which deviates from the list and is installed on a listed mobile telephone can
lead to the fact that certain displays and functions are no longer possible or only possible
to a limited extent.
In addition it is possible that you must delete all devices connected to your mobile phone first in
order to enable a correct identification of the HFCK and the establishment of a connection. If you
have queries regarding the menu navigation, functions and operation of your mobile phone,
please refer to the operating guidelines of your mobile phone. Depending on the manufacturer
and type, this can differ considerably between phones.
Note:
If the rechargeable battery of the mobile phone is low, it is sometimes not possible toX
establish a
Bluetooth connection.
The HFCK has a memory for the storage of the identification of up to 10 mobile phones. In case
a 11 mobile phone is connected, the oldest entry in the HFCK memory will be cancelled.
If you wish to cancel a
Bluetooth connection, you can either disconnect it conveniently at the
HFCK or at your mobile phone. In addition, the connection is disconnected, if you move too far
away from the vehicle while taking your mobile phone with you and thus leave the reception ra-
dius of the HFCK.
Please note that the capacity of your mobile phone’s storage battery can quickly decrease when
the
Bluetooth function is active. If you do not want to use the Bluetooth function anymore, e.g.
if you leave the vehicle for a longer period, it is recommended to deactivate this function.

17
9. Menu navigation
Here you will find all menus which are necessary for the operation and configuration of the system.
The menu items which are used most frequently are displayed on the main screen via text and sym-
bols, all of the subsequent ones are displayed in text and table form. The first three functions change
as soon as a mobile phone connects with the HFCK in hands-free mode.
If no mobile phone is connected: If a mobile phone is connected:
Day/Night mode Dial number
Auto connect Phone book
Settings Voicetag*
* Only if the voice commands (voice labels - Voicetags) are stored in the phone.
In the following the individual menu points will be explained.
Dial number
In this menu you can comfortably enter the telephone number you wish to dial using the touch screen.
The fields ‘star/pause’ and ‘zero/plus’ are dual-function. To initialise the second function, press down
on the corresponding field for 2 seconds. The symbols star, pause, plus and the hash symbol are used,
for instance, when you access your mailbox or when entering special telephone numbers. If you want
to correct the telephone number please press field „C”. In order to make the telephone call, the green
handset symbol must be pressed once.
Phonebook
Since your phonebook is scanned with the first coupling of your mobile phone with the system, it is
immediately available to you and is stored until you delete the mobile phone from the phone list. The
telephone book data can of course only be seen or changed by you.
Note:
Depending on the type of mobile phone, it is possible that the order of the first namesX
and surnames may have swapped around after the telephone book has been trans-
ferred.
Depending on the settings / contacts in the mobile telephone, you will be shown by the HFCK either
the SIM card contacts or the telephone contacts or both.
The entries are in alphabetical order. With a large number of contacts, searching through the tele-
phone book using the arrow keys is time consuming. This is where the rapid search function, which is
accessed using the arrow down (ABC) key, is useful. To use this function, please press down on this
symbol for 2 seconds.

18 Operating guidelines
If your contacts are stored in the telephone’s memory, then depending on the type of mobile phone,
you can allocate four or more telephone numbers to a single contact. The terms are not standard and
may have different designations depending on the manufacturer of the mobile phone, or can be set by
you yourself*:
Home, Mobile, Work, General.
* This function depends on your mobile phone.
Some mobile phones support these categories only partly, however, or not at all. To nevertheless dis-
play the telephone numbers, unknown entries are listed within your contacts using the <Number>
category. You get a maximum of just one number from the SIM card, however (this is always desig-
nated with SIM), and four numbers from the telephone memory. If categories are only partly sup-
ported, the listing can subsequently be mixed. Example:
Private
+44...
Mobile
+44...
Number 1
+44...
Number 2
+44...
SIM
+44...
Voicetag
Voicetag feature enables the voice control of the phone. The device (CC 9056 Plus) has a button acti-
vating it on the phone. In order to be able to use the Voicetag function in your mobile phone with the
HFCK, you must have marked the telephone numbers in your phone accordingly beforehand.
Making calls
Press the Voicetag button. Some phones may then release a signal sound after one to three seconds.
Only then can you enter the voicetag. State your voicetag loud and clear.
If you announce a non-saved voicetag then the CC 9056 Plus device returns to standby mode.
Creating and using voicetags
To make a phone call you must set voicetags on your mobile phone. You can only set voicetags on your
mobile phone for contacts already saved in your address book (not on your SIM card!).

19
Please note:
Copy your contacts from your SIM card into your telephone address book. Then onlyX
use contacts from your address book.
When you call up a contact from your address book, choose under Options “Add call name”. The menu
item depends on the manufacturer and may have another name. In this menu you can set, change or
delete the voicetag for a contact. You can find further information in the operating instructions for your
mobile phone.
In your address book you can see which contacts you have already saved a voicetag for. A symbol is
shown behind the name. This varies depending on your mobile phone but is usually a Pacman.
Briefly press on the “Voicetag” button to deactivate the Voicetag function.
Incoming call
If a caller transmits its number, the device will read out this number: 05732xxxxx.
If the caller has hidden their number, then the device says: Unknown caller. Briefly press down on
the end call button to refuse the call. The device returns to standby mode. Briefly press down on the
call button to accept the incoming call.

20 Operating guidelines
The following menu items are available when you press on the field “MORE”.
Redial
The number which was last selected can be selected once again.
Call lists
Here in a chronologic sequence all calls are listed which have been made, missed or accepted. The
name of the caller / the person being called and the telephone number are displayed. If it is not pos-
sible to allocate a contact from the telephone book to the telephone number, the number alone ap-
pears without additional information. The navigation within the lists is carried out analogue to that of
the phonebook. Choose an entry to establish a phone call.
Music
There are two ways of playing music in case of the CC 9056 Plus hands-free car kit.
Through A2DP (
Bluetooth )
After the phone is paired with the hands-free car kit, music can be played via the
Bluetooth connection
(A2DP). Music player in the phone has to be turned on. Handling music playback is done with the
phone/music player (play, stop, pause, forward, backward). Volume adjustment can be controlled with
the hands-free car kit.
Through AUX-IN (cable)
Second option is music playback through AUX-In cable, used to connect phone to the hands-free car
kit. It is activated in Head Menu->Music->AUX. Playing music mutes the car radio. Handling music
playback is controlled with the external music player (phone, mp3, tablet). Disconnecting AUX-In cable
during music playback stops the music, but car radio is still muted. To exit this mode, press the “Stop”
button on HFCK.
Note:
If the call comes during the music, the music is muted and the call enters the fore-X
ground. After the call ends, the music plays on.
After switching off the device during playing music, the music is paused, and after theX
device is turned on again and the pause is turned off, the music plays again.
The inclusion of navigational application in your phone mutes the radio to broadcast navi-X
gation instructions through the speakers. However the conversation has the highest prior-
ity, so that while an incoming call only conversation will be heard through the speakers.
