ADS idatastart RSA-AUD2 User manual

INSTALL GUIDE
2016 AUDI S4 PTS WITH KEYPORT AUTOMATIC
DOCUMENT NUMBER
REVISION DATE
FIRMWARE
HARDWARE
ACCESSORIES
ATTENTION: TO COMPLETE THIS INSTALLATION SOME ACCESSORIES MAY BE
REQUIRED. VISIT OUR WEBSITE TO SEE ALL THE REQUIRED ACCESSORIES FOR
YOUR VEHICLE.
TERMS OF USE
Automotive Data Solutions Inc. (“ADS”) products are strictly intended for installation by Certified Technicians who are employed
by a registered business specialized in the installation of automotive aftermarket electronics products. Prior to beginning
installation of an ADS product in a vehicle, it is the Certified Technician’s responsibility to review the most current Product Guide,
Install Guide and vehicle-specific notes available in Weblink®. ADS is not responsible for any damages whatsoever, including but
not limited to any consequential damages, incidental damages, damages for loss of time, loss of earnings, loss of profit,
commercial loss, loss of economic opportunity and the like that may or may not have resulted from the use, misuse, improper
installation or operation of its products. ADS reserves itself the right to suspend any Weblink® account without notice and
decline to offer technical support to non-Certified Technicians, noncompliant Certified Technicians or end users.
U.S. Patent No. 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021 www.idatalink.com
A558F12
20211223_151400
RSA-AUD2
CMVWXA0

REMOTE START Supported
Data Immobilizer Bypass (no key required)
Key Required for Immobilizer Bypass
Takeover Available
No Takeover Available (shutdown on unlock or door open)
3x Lock Start from OEM Remotes
Data / MUX Parking Light Control - Constant
Data / MUX / Hazard Parking Light Control - Flashing
Tach Monitoring
Hood Status
Brake Status
E-Brake Status
Glow Plug Status
RAP Shutdown
KEYLESS ENTRY Supported
OEM Remotes Functional during RS
OEM RFID Entry Sensors Functional during RS
Door Lock
Door Unlock
Driver Door Priority Unlock
Trunk/Hatch Release
Power Liftgate
Power Sliding Door (L)
Power Sliding Door (R)
SECURITY SYSTEM Supported
Arm OEM Alarm
Disarm OEM Alarm
Aftermarket Alarm Control from OEM Remotes
Aftermarket Alarm Control from OEM RFID Entry Sensors
Door Status
Trunk/Hatch Status
COMFORT Supported
Rear Defrost Activation
Heated Mirror Activation
Heated Seat Activation
Cooled Seat Activation
Heated Steering Wheel Activation
FEATURE LIST - 1 OF 1 PAGE 2 OF 13
U.S. Patent No. 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021 www.idatalink.com
RSA-AUD2-[CMVWXA0]-EN
2016 Audi S4 PTS with keyport Automatic
Doc No.: A558F12 - 20211223_151400

AUTOMATIC
TRANSMISSION
CUT LOOP
MODULE CONNECTORS CONNECTOR PINOUT
NC - 4 PIN RED
TELEMATIC 2 - 4 PIN RED
TELEMATIC 1 - 4 PIN BLUE 2 PIN BLACK - LED
PROGRAMMING BUTTON
THERMISTOR - 2 PIN BLUE
LED 1 (BYPASS)
LED 2 (RS)
RF PORT/WEBLINK PORT - 4 PIN BLACK
USB
MODULE
7
9
3
10
8
6
4
1
2
5
7
9
3
10
8
11
12
6
4
1
2
5
FUNCTIONS DEFINED BY FIRMWARE
M3
M2
M3 - 10 PIN WHITE
M2 - 12 PIN BLACK M5 - 6 PIN BLUE
M4 - 20 PIN BLACK
MODULE LAYOUT - 1 OF 1
01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT
02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT
02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT
03 RED/WHITE•BLACK DOT - TRUNK RELEASE (-) OUTPUT03 RED/WHITE•BLACK DOT - TRUNK RELEASE (-) OUTPUT
04 EMPTY04 EMPTY
05 EMPTY05 EMPTY
06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT
06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT
07 BROWN•BLACK DOT - SIREN (+) OUTPUT
07 BROWN•BLACK DOT - SIREN (+) OUTPUT
08 WHITE/PURPLE•BLACK DOT08 WHITE/PURPLE•BLACK DOT
09 PURPLE/BLACK•BLACK DOT - RAP SHUTDOWN (-) OUTPUT09 PURPLE/BLACK•BLACK DOT - RAP SHUTDOWN (-) OUTPUT
10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT
11 BROWN/BLACK•BLACK DOT - GROUND WHEN ARMED (-) OUTPUT
11 BROWN/BLACK•BLACK DOT - GROUND WHEN ARMED (-) OUTPUT
12 WHITE•BLACK DOT - PARKING LIGHTS (-) OUTPUT
01 EMPTY
02 EMPTY
03 EMPTY
04 EMPTY
05 EMPTY
06 WHITE/BLUE•SILVER DOT - X-TRIGGER (-) INPUT
07 GRAY•SILVER DOT - HOOD (-) INPUT
08 EMPTY
09 EMPTY
10 TAN•SILVER DOT - EXT ALARM SENSOR (-) INPUT
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
M4
FUNCTIONS DEFINED BY FIRMWARE
M4
M3
M2
4
5
3
2
1
6
M5
M5
PAGE 3 OF 13
U.S. Patent No. 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021 www.idatalink.com
RSA-AUD2-[CMVWXA0]-EN
2016 Audi S4 PTS with keyport Automatic
Doc No.: A558F12 - 20211223_151400

T004_H
HARDWIRE / COMPONENT LOCATOR - 1 OF 1
A
B
PAGE 4 OF 13
U.S. Patent No. 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021 www.idatalink.com
RSA-AUD2-[CMVWXA0]-EN
2016 Audi S4 PTS with keyport Automatic
Doc No.: A558F12 - 20211223_151400

1
T304_H
!
CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY
2
USE OPTIONAL AUD-RF HARNESS TO EXTEND
THE AFTERMARKET ANTENNA PLACEMENT IF NEEDED.
USE OPTIONAL AUD-RF HARNESS TO EXTEND
THE AFTERMARKET ANTENNA PLACEMENT IF NEEDED.
OBDII, ABOVE DRIVER KICK PANEL (A)OBDII, ABOVE DRIVER KICK PANEL (A)
M5
M4
M2
M3
0101
02
0303
04
0505
06
04 EMPTY04 EMPTY
06 BLUE/WHITE•BLACK DOT06 BLUE/WHITE•BLACK DOT
08 WHITE/PURPLE•BLACK DOT
01 GREEN•BLACK DOT01 GREEN•BLACK DOT
02 BLUE•BLACK DOT02 BLUE•BLACK DOT
03 RED/WHITE•BLACK DOT03 RED/WHITE•BLACK DOT
05 EMPTY05 EMPTY
07 BROWN•BLACK DOT07 BROWN•BLACK DOT
09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT
11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT
12 WHITE•BLACK DOT12 WHITE•BLACK DOT
01 EMPTY01 EMPTY
02 EMPTY02 EMPTY
03 EMPTY03 EMPTY
04 EMPTY04 EMPTY
05 EMPTY05 EMPTY
06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT
08 EMPTY08 EMPTY
09 EMPTY09 EMPTY
10 TAN•SILVER DOT10 TAN•SILVER DOT
07 GRAY•SILVER DOT07 GRAY•SILVER DOT
10 WHITE/BLACK•BLACK DOT10 WHITE/BLACK•BLACK DOT
0303
0404
0101
0202
0505
0606
0707
0808
0909
1010
1111
1212
1313
1414
1515
1616
1717
1818
1919
2020
1
FOLLOW TYPE-1 (KLON) PROGRAMMING PROCEDURE. FOLLOW TYPE-2 PROGRAMMING PROCEDURE.
10 11 12 13 14 15 16
123456
14
678
9
REMOVE BATTERY FROM KEYFOB.
ADS-AUD2-OBD
PRE-INSTALLATION PROCEDUREPRE-INSTALLATION PROCEDURE
1- CONNECT ADS-AUD2-OBD HARNESS AS SHOWN.
2- SET IGNITION TO ON POSITION.
3- LOOK IF MODULE LED FLASHED GREEN OR RED.
4- DISCONNECT ADS-AUD2-OBD HARNESS AND TURN IGNITION TO OFF.
1- CONNECT ADS-AUD2-OBD HARNESS AS SHOWN.
2- SET IGNITION TO ON POSITION.
3- LOOK IF MODULE LED FLASHED GREEN OR RED.
4- DISCONNECT ADS-AUD2-OBD HARNESS AND TURN IGNITION TO OFF.
10 11 12 13 14 15 16
123456
14
678
9

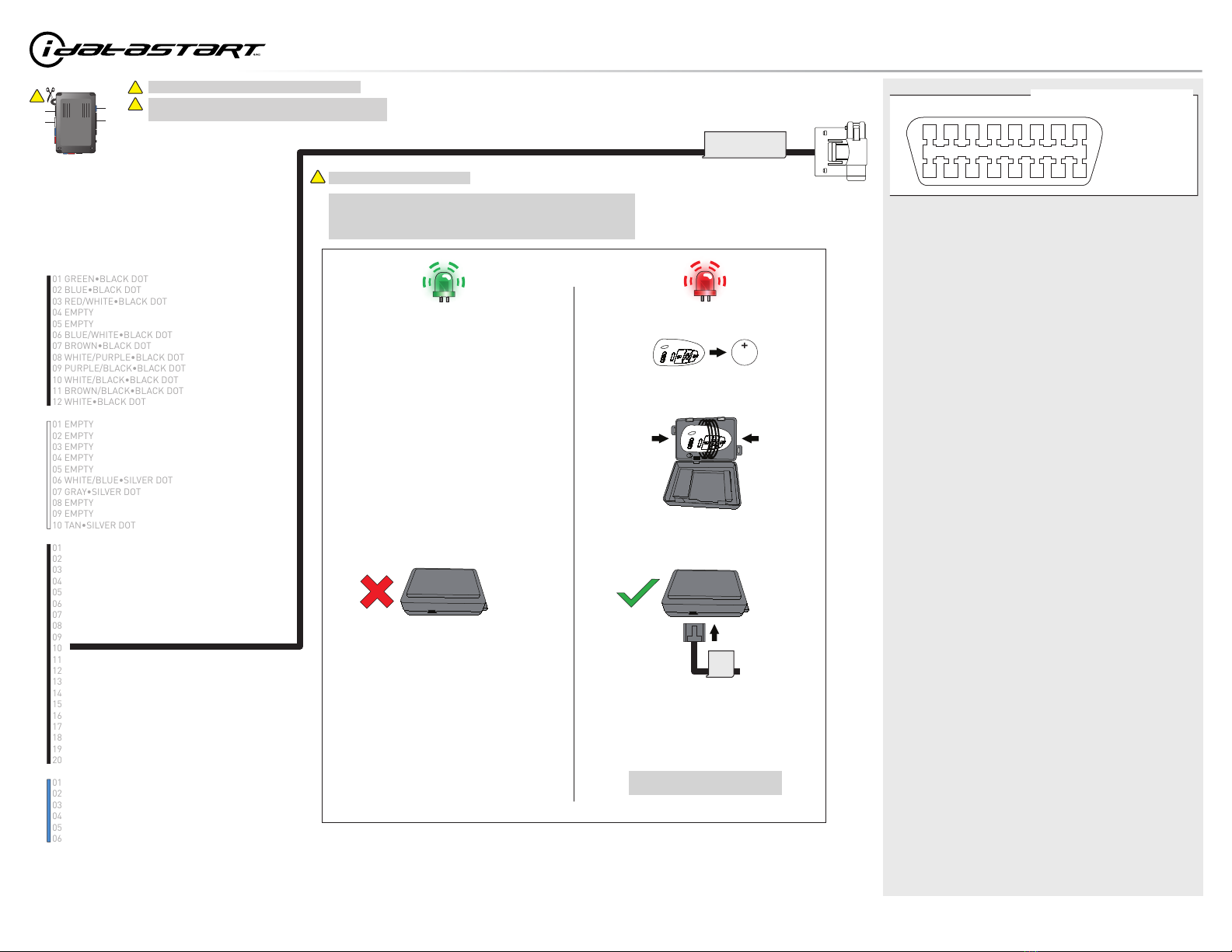

T-HARNESS / WIRING DIAGRAM - 1 OF 2
IF MODULE LED FLASHES RED:
PUT KEYFOB IN KEY BOX (AS SHOWN).
CONNECT T-HARNESS TO KEY BOX BLACK CONNECTOR
(SEE NEXT PAGE).
IF MODULE LED FLASHES GREEN:
DO NOT USE THE KEY BOX.
KEY
IMPORTANT: KEYFOB WILL REMAIN
PERMANENTLY IN THE VEHICLE.
IMPORTANT: KEYFOB WILL REMAIN
PERMANENTLY IN THE VEHICLE.
!
M3
M2 M5
M4
PAGE 5 OF 13
U.S. Patent No. 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021 www.idatalink.com
RSA-AUD2-[CMVWXA0]-EN
2016 Audi S4 PTS with keyport Automatic
Doc No.: A558F12 - 20211223_151400

M5
M4
M2
M3
03
07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT
01 GREEN•BLACK DOT- PTS 1 (-) OUTPUT
01 GREEN•BLACK DOT- PTS 1 (-) OUTPUT
02 BLUE•BLACK DOT- PTS 2 (-) OUTPUT02 BLUE•BLACK DOT- PTS 2 (-) OUTPUT
05 EMPTY05 EMPTY
06 BLUE/WHITE•BLACK DOT06 BLUE/WHITE•BLACK DOT
07 BROWN•BLACK DOT07 BROWN•BLACK DOT
08 WHITE/PURPLE•BLACK DOT08 WHITE/PURPLE•BLACK DOT
11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT
12 WHITE•BLACK DOT12 WHITE•BLACK DOT
01 EMPTY01 EMPTY
02 EMPTY02 EMPTY
03 EMPTY03 EMPTY
04 EMPTY04 EMPTY
05 EMPTY05 EMPTY
06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT
08 EMPTY08 EMPTY
09 EMPTY09 EMPTY
10 TAN•SILVER DOT10 TAN•SILVER DOT
0101
0202
04 EMPTY
09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT
03 RED/WHITE•BLACK DOT03 RED/WHITE•BLACK DOT
10 WHITE/BLACK•BLACK DOT10 WHITE/BLACK•BLACK DOT
PTS 2 (-) BLUE/WHITE - 03
PTS 1 (-) BLUE/YELLOW - 01
11
1213
1415
16
1718192021222324272829303132
1
3245678910
2526
3: LTBLUE/WHITE 32 PIN
BCM RIGHT REAR OF TRUNK (B)
T-HARNESS / WIRING DIAGRAM - 2 OF 2
T304_H
HOOD SWITCH 3
3
INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE.
HOOD SWITCH
!
CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY
1
2
USE OPTIONAL AUD-RF HARNESS TO EXTEND
THE AFTERMARKET ANTENNA PLACEMENT IF NEEDED.
USE OPTIONAL AUD-RF HARNESS TO EXTEND
THE AFTERMARKET ANTENNA PLACEMENT IF NEEDED.
IF REQUIRED,
SEE PREVIOUS PAGE
IF REQUIRED,
SEE PREVIOUS PAGE
0101
02
0303
04
0505
06
0404
0505
0606
0707
0808
0909
1010
1111
1212
1313
1414
1515
1616
1717
1818
1919
2020
JS1
FT
NC
CONNECT
JS2
HS
MS1
MS2
KEY
JS3
RELAY
BEFORE CONNECTING THE T-HARNESS TO BCM
DISCONNECT THE 17 PIN BROWN
AND 17 PIN BLACK CONNECTORS
FROM THE BCM
BEFORE CONNECTING THE T-HARNESS TO BCM
DISCONNECT THE 17 PIN BROWN
AND 17 PIN BLACK CONNECTORS
FROM THE BCM
VS1
VS2
4: BROWN CONNECTOR 17 PIN
4: BCM
VS4
VS3
VS6
VS5
1: GRAY CONNECTOR 32 PIN
1: BCM
2: BLACK CONNECTOR 32 PIN
2: BCM
31
2
44
RECONNECT 17 PIN BLACK CONNECTOR TO BCMRECONNECT 17 PIN BLACK CONNECTOR TO BCM
5
31
2
CONNECTIONS TO BCM - STEP 1CONNECTIONS TO BCM - STEP 1
CONNECTIONS TO BCM - STEP 2CONNECTIONS TO BCM - STEP 2
CONNECT TO BCMCONNECT TO BCM
CONNECTIONS TO BCM - STEP 3
CONNECTIONS TO BCM - STEP 3
CONNECT TO BCM
CONNECT TO BCM
1
4
5
4
4
REDRED
GREEN
!
M3
M2 M5
M4
PAGE 6 OF 13
U.S. Patent No. 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021 www.idatalink.com
RSA-AUD2-[CMVWXA0]-EN
2016 Audi S4 PTS with keyport Automatic
Doc No.: A558F12 - 20211223_151400

01
02
03
ENGINE
START
STOP
OFF ACC ON START
ON
04
05
06
07
ENGINE
START
STOP
OFF ACC ON STARTOFF
08
09
10
11
12
13
14
ENGINE
START
STOP
OFF ACC ON START
ON
15
16
ENGINE
START
STOP
OFF ACC ON STARTOFF
17
18
ENGINE
START
STOP
OFF ACC ON STARTSTART
START

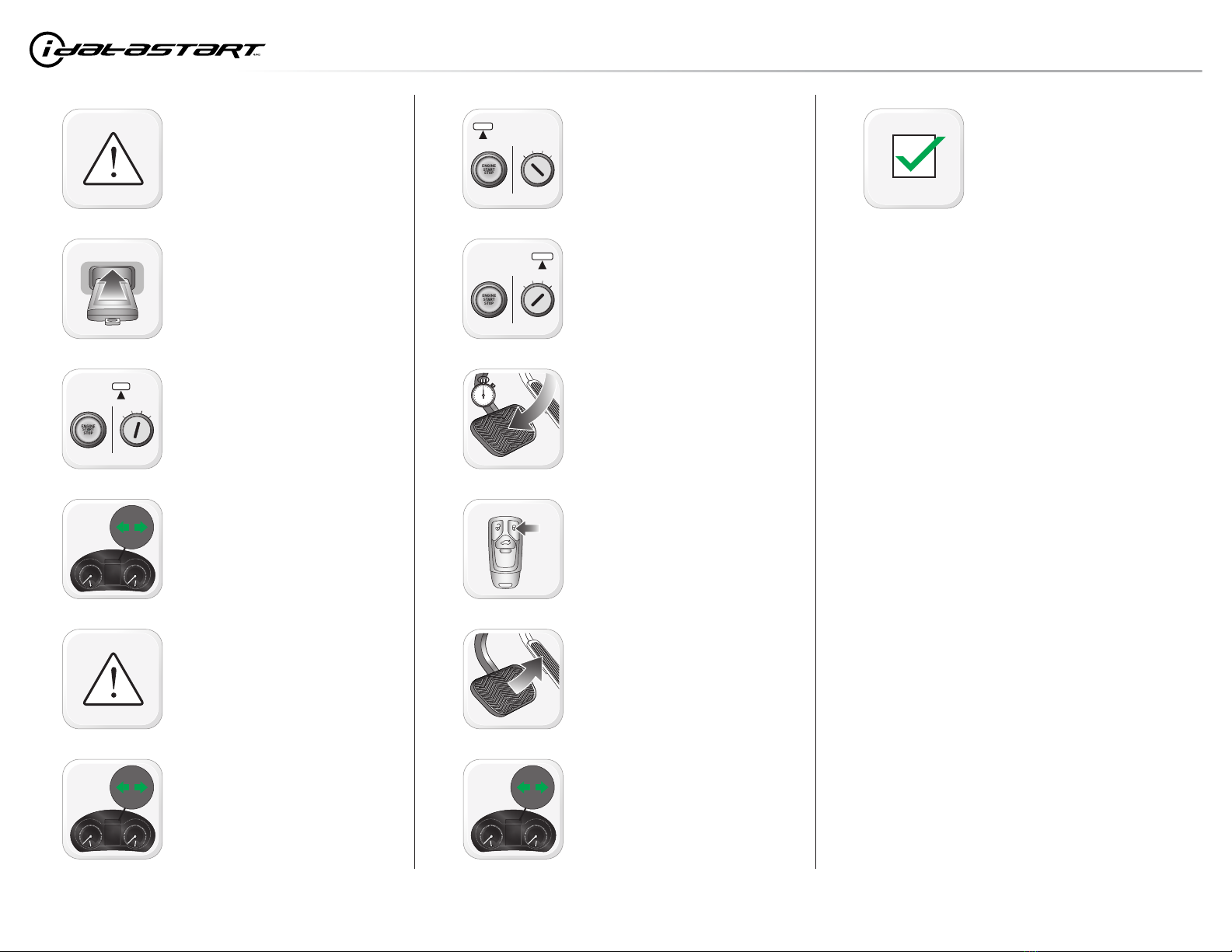

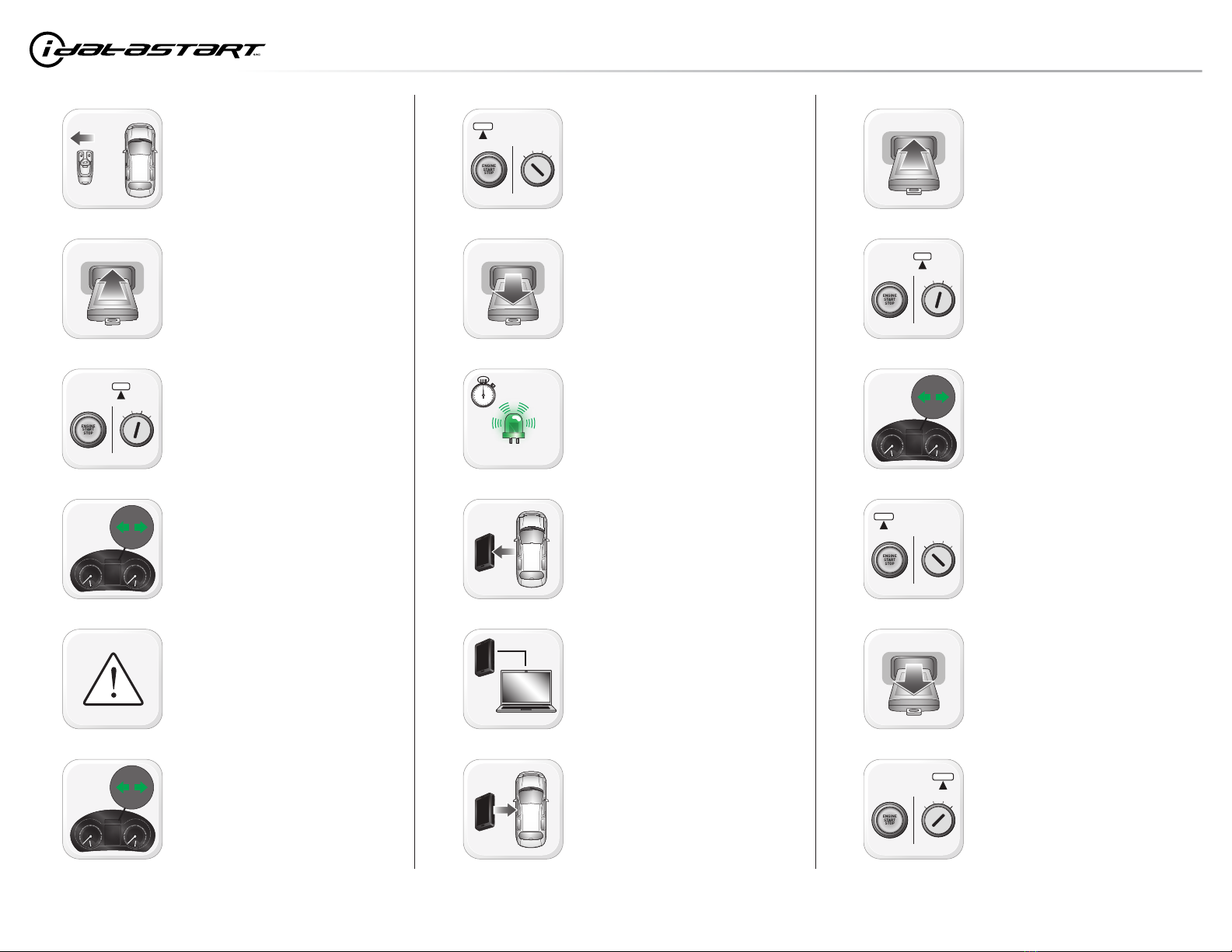

TYPE 1A - MODULE PROGRAMMING - KLON - 1 OF 2
When programming, only one OEM keyfob will
be used. Place the other one at least 10 feet
away from the vehicle.
Insert OEM keyfob 1 in keyport.
Set ignition to ON position.
Wait, the hazard lights will flash once [1x].
Wait, the ignition will turn OFF then will turn
ON. (This may take up to 30 seconds)
Wait, the hazard lights will flash twice [2x].
Set ignition to OFF position.
Remove OEM keyfob 1 from keyport.
Wait, LED 1 will flash GREEN rapidly.
WARNING: Disconnect power last. Disconnect
module from vehicle.
Connect module to computer and proceed
with extended programming.
WARNING: Do not press module programming
button. Connect power first. Connect module
to vehicle.
Insert OEM keyfob 1 in keyport.
Set ignition to ON position.
Wait, the hazard lights will flash three times
[3x].
Set ignition to OFF position.
Remove OEM keyfob 1 from keyport.
START vehicle for 15 seconds.
PAGE 7 OF 13
U.S. Patent No. 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021 www.idatalink.com
RSA-AUD2-[CMVWXA0]-EN
2016 Audi S4 PTS with keyport Automatic
Doc No.: A558F12 - 20211223_151400

19
20
21
22
23
TYPE 1A - MODULE PROGRAMMING - KLON - 2 OF 2
Press and hold the brake pedal.
Press the lock button of OEM keyfob 1 three
times [3x].
Release the brake pedal.
Wait, the hazard lights will flash twice [2x].
Module Programming Procedure completed.
PAGE 8 OF 13
U.S. Patent No. 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021 www.idatalink.com
RSA-AUD2-[CMVWXA0]-EN
2016 Audi S4 PTS with keyport Automatic
Doc No.: A558F12 - 20211223_151400

01
02
03
ENGINE
START
STOP
OFF ACC ON START
ON
04
05
06
07
ENGINE
START
STOP
OFF ACC ON STARTOFF
08
ENGINE
START
STOP
OFF ACC ON STARTSTART
START
09
10
11
12
13
TYPE 2A - MODULE PROGRAMMING - KEY BOX - 1 OF 1
When programming, have an OEM keyfob on
you. The other OEM keyfob (no battery) will
remain permanently in the key box.
Insert OEM keyfob 1 in keyport.
Set ignition to ON position.
Wait, the hazard lights will flash once [1x].
Wait, the ignition will turn OFF then will turn
ON. (This may take up to 30 seconds)
Wait, the hazard lights will flash four times
[4x].
Set ignition to OFF position.
START vehicle for 15 seconds.
Press and hold the brake pedal.
Press the lock button of OEM keyfob 1 three
times [3x].
Release the brake pedal.
Wait, the hazard lights will flash twice [2x].
Module Programming Procedure completed.
PAGE 9 OF 13
U.S. Patent No. 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021 www.idatalink.com
RSA-AUD2-[CMVWXA0]-EN
2016 Audi S4 PTS with keyport Automatic
Doc No.: A558F12 - 20211223_151400

>>
01
02
03
04
05
06
>>
TAKEOVER PROCEDURE - KEYPORT WITH PTS - 1 OF 1
All vehicle doors must be closed and locked
prior to remote start sequence.
Time restriction. Complete steps 2 to 5 within
45 seconds.
Press unlock on OEM or aftermarket remote.
Open driver door and enter vehicle.
Close driver door.
Press and release BRAKE pedal.
Take over procedure completed.
Failure to follow procedure will result in
vehicle engine shutdown.
PAGE 10 OF 13
U.S. Patent No. 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021 www.idatalink.com
RSA-AUD2-[CMVWXA0]-EN
2016 Audi S4 PTS with keyport Automatic
Doc No.: A558F12 - 20211223_151400

REMOTE STARTER ERROR CODES - 1 OF 1
REMOTE STARTER ERROR CODES: NOTES PARKING LIGHT FLASHES DIAGNOSTIC
I WARNING: The following applies only when the parking lights are
connected and supported by the system.
3 + 1 Tach is not programmed OR engine is already running.
3 + 2 Key is in ignition ON position.
3 + 3 Door is open.
II After a remote starter failure, the parking lights will flash three [3x]
times followed by the error code. See table.
3 + 4 Trunk is open.
3 + 5 Foot brake is ON.
3 + 6 Hood is open.
3 + 7 Loop is not cut.
3 + 8 No tach detected.
3 + 9 Vehicle movement detected (VSS).
3 + 10 System is in Valet Mode.
3 + 11 CAN communication failure
3 + 12 RS not synchronized. Start vehicle with OEM key for 15 sec before trying a new RS sequence.
3 + 13 Bypass problem.
3 + 14 Idle mode or takeover is not available on this vehicle.
3 + 15 Overheat protection.
REMOTE STARTER SHUTDOWN ERROR CODES: NOTES PARKING LIGHT FLASHES DIAGNOSTIC
I WARNING: The following applies only when the parking lights are
connected and supported by the system.
4 + 1 Engine tach signal was lost.
4 + 2 Emergency brake signal was lost.
4 + 3 Foot brake ON detected.
II If the engine shuts down after a remote starter sequence
use the query command from a compatible aftermarket
remote to display the shutdown error code. The parking lights will
flash four [4x] times followed by the error code. See table.
4 + 4 Hood open detected.
4 + 5 Tach over rev detected.
4 + 6 Glow plug timeout error.
4 + 7 Vehicle movement detected (VSS).
4 + 8 Check engine light ON.
4 + 9 Low fuel level.
4 + 10 Open door detected.
4 + 11 CAN communication failure during RS sequence.
4 + 12 RS not synchronized. Start vehicle with OEM key for 15 sec before trying a new RS sequence.
4 + 13 Bypass problem.
4 + 14 Idle mode or takeover is not available on this vehicle.
4 + 15 Overheat protection.
PAGE 11 OF 13
U.S. Patent No. 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021 www.idatalink.com
RSA-AUD2-[CMVWXA0]-EN
2016 Audi S4 PTS with keyport Automatic
Doc No.: A558F12 - 20211223_151400

MODULE DIAGNOSTICS - 1 OF 2
MODULE STATUS DURING: LED 2* LED 1** LED STATUS DIAGNOSTIC
MODULE PROGRAMMING
•Flashing RED Missing/wrong information from firmware or vehicle.
See firmware specific diagnostics, or contact technical support.
•Solid RED Module waiting for more vehicle information. Programming incomplete.
•Flashing GREEN Additional steps required to complete programming. Refer to install guide.
•Solid GREEN then OFF Module programming completed successfully.
oOFF No activity or module already programmed.
•1 RED flash No firmware on module. Connect to Weblink and flash device.
•2 ORANGE flashes Contact technical support.
•3 ORANGE flashes Module programming not completed.
•4 ORANGE flashes Contact technical support.
•7 ORANGE flashes Contact technical support.
•8 ORANGE flashes Loop not cut. Ensure loop is cut for automatic transmission. Reset and re-learn.
•9 ORANGE flashes Loop not cut. Ensure loop is cut for automatic transmission. Reset and re-learn.
•10 ORANGE flashes Boot loader update failed. Contact technical support.
•11 ORANGE flashes T-harness detection does not match install type selection in Weblink.
TACH PROGRAMMING
•Solid RED Tach learn in progress.
•1 GREEN flash Tach signal programmed in analog.
•2 GREEN flashes Tach signal programmed in data.
•3 RED flashes No tach signal detected
•4 RED flashes System is in valet mode. Turn off valet mode to program tach.
•6 RED flashes Engine sensing set for ‘assumed start’. No tach programming required.
•7 ORANGE flashes Engine sensing not configured properly. Contact technical support.
* LED 2 (RS) displays generic diagnostic codes specific to the remote start module. Orange LED flashes may appear red.
** LED 1 (Bypass) displays diagnostic codes specific to the firmware loaded on the module.
Visit the programming diagnostics page for more information.
PAGE 12 OF 13
U.S. Patent No. 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021 www.idatalink.com
RSA-AUD2-[CMVWXA0]-EN
2016 Audi S4 PTS with keyport Automatic
Doc No.: A558F12 - 20211223_151400

MODULE DIAGNOSTICS - 2 OF 2
MODULE STATUS DURING: LED 2* LED 1** LED STATUS DIAGNOSTIC
REMOTE START SEQUENCE
•Flashing rapid RED Remote start shutdown sequence.
•Flashing slow RED Remote start shutdown error code. Contact technical support.
•Solid RED Remote start crank delay.
•Flashing rapid GREEN Remote start cycle in progress. Working correctly.
•1 GREEN flash Remote start initiated successfully.
•3 GREEN flashes Idle mode cycle in progress.
•4 GREEN flashes Turbo mode cycle in progress.
•Flashing GREEN Remote start cycle in progress. Displays vehicle platform during runtime.
•Rapid GREEN flashing Secure takeover initiated. Waiting to complete takeover after brake press.
TRANSMITTER PROGRAMMING
•Solid RED Remote programming in progress, waiting for remote pairing.
•1 GREEN flash Remote programmed.
•4 RED flashes Shutdown remote starter before attempting remote programming.
•5 RED flashes Engine must be off before attempting remote programming.
•6 RED flashes System must be unlocked/disarmed before attempting remote programming.
•7 RED flashes Module must be learned to the vehicle before attempting remote programming.
* LED 2 (RS) displays generic diagnostic codes specific to the remote start module. Orange LED flashes may appear red.
** LED 1 (Bypass) displays diagnostic codes specific to the firmware loaded on the module.
Visit the programming diagnostics page for more information.
PAGE 13 OF 13
U.S. Patent No. 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021 www.idatalink.com
RSA-AUD2-[CMVWXA0]-EN
2016 Audi S4 PTS with keyport Automatic
Doc No.: A558F12 - 20211223_151400
