Nokia CK-7W User manual

Advanced Car Kit CK-7W
User Guide
Installation Guide
Copyright © 2007 Nokia. All rights reserved.
Nokia_CK-7_China_UG_en.fm Page 1 Thursday, May 17, 2007 11:43 AM

2 Copyright © 2007 Nokia. All rights reserved.
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION, declares that this HF-5 product is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. The product is
in conformity with the limits defined in Directive 2004/104/EC (amending Directive 72/245/
EEC), Annex I, paragraph 6.5, 6.6, 6.8 and 6.9. A copy of the Declaration of Conformity can be
found at http://www.nokia.com/phones/declaration_of_conformity/.
Copyright © 2007 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents of this document
in any form without the prior written permission of Nokia is prohibited.
Nokia and Nokia Connecting People are trademarks or registered trademarks of Nokia
Corporation. Other products and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of ongoing development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products and services may vary by region. Please check with the
Nokia dealer nearest to you.
Export Controls
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
0434
Nokia_CK-7_China_UG_en.fm Page 2 Thursday, May 17, 2007 11:43 AM

Contents
Copyright © 2007 Nokia. All rights reserved. 3
Contents
For your safety......................... 4
Introduction ............................. 5
Your Nokia Advanced
Car Kit CK-7W........................................ 5
Bluetooth wireless technology .......... 6
Bluetooth passcode............................... 6
1. Getting started..................... 7
Overview .................................................. 7
Use of enhancements........................... 8
Phone holder ....................................... 8
Antenna coupler................................. 8
GSM antenna ...................................... 8
2. Installation ........................... 9
Safety information................................ 9
Configuration........................................ 11
Connecting a mobile phone
using Bluetooth wireless
technology ......................................... 11
Connecting a mobile phone
using the data cable and
a phone holder.................................. 12
Installing the Advanced Car Kit....... 12
Handsfree unit .................................. 13
Remote control button................... 13
Loudspeaker....................................... 14
Microphone........................................ 14
Cable set............................................. 15
Data cable .......................................... 16
Charger cable .................................... 16
Function test......................................... 16
3. Putting the Advanced Car
Kit into service ...................... 17
Connecting a mobile phone using
Bluetooth wireless technology ........ 17
Pairing using a Bluetooth
passcode ............................................. 17
Connecting a mobile phone
over the data cable ............................. 18
4. Operation............................ 19
Remote control button ...................... 19
Switching the Advanced Car Kit
on/off ...................................................... 20
Operating the Advanced Car Kit ..... 20
Accepting a call................................ 20
Ending a call...................................... 20
Rejecting a call ................................. 20
Making a call..................................... 21
Redialling............................................ 21
Voice dialling..................................... 21
Adjusting the volume...................... 21
Manual search for Bluetooth
devices................................................. 21
Resetting paired Bluetooth
devices................................................. 22
Switching from handsfree mode
to the mobile phone........................ 22
Care and maintenance........... 23
Nokia_CK-7_China_UG_en.fm Page 3 Thursday, May 17, 2007 11:43 AM

For your safety
4 Copyright © 2007 Nokia. All rights reserved.
For your safety
Read these simple guidelines. Breaking the rules may be dangerous or illegal.
Further detailed information is given in this user guide.
Keep all miniature SIM cards and accessories out of the reach of small children.
ROAD SAFETY COMES FIRST
Remember that the safety of operating a motor vehicle in traffic
requires the full attention of all motorists. Only use your Advanced
Car Kit if traffic conditions permit safe use and check if local laws/
regulations restrict the use of mobile phones while driving.
INTERFERENCE
All wireless phones may get interference, which could affect
performance.
QUALIFIED INSTALLATION AND SERVICE
Only a qualified professional may install or repair phone equipment.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read the relevant user guide for
detailed safety instructions. Do not connect incompatible products.
FUSE REPLACEMENT
Replace a blown fuse with a fuse of the same type and size. Never use
a fuse with a higher rating!
Nokia_CK-7_China_UG_en.fm Page 4 Thursday, May 17, 2007 11:43 AM

Introduction
Copyright © 2007 Nokia. All rights reserved. 5
Introduction
■Your Nokia Advanced Car Kit CK-7W

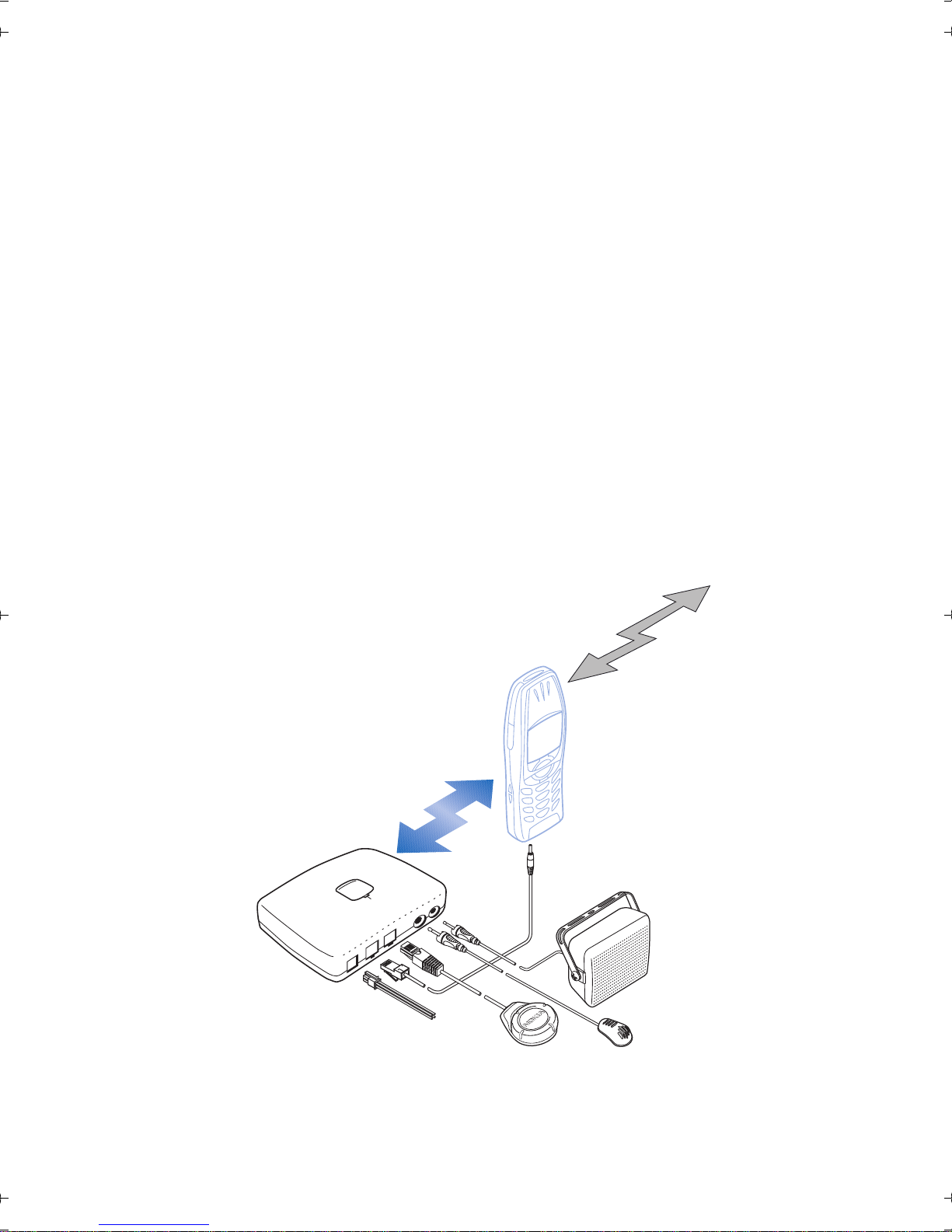

Advanced Car Kit equipment installation in the cockpit
The Nokia Advanced Car Kit was developed for installation in motor
vehicles to enable handsfree operation of mobile phones and use of
individual phone features.
A special emphasis was placed on quick and easy installation. A mobile
phone can be connected to the Advanced Car Kit in one of two ways:
using an optional phone holder with a cable or over a Bluetooth wireless
connection.
In some countries, use of the Advanced Car Kit may be restricted by law.
Please observe the applicable rules/regulations.
Nokia_CK-7_China_UG_en.fm Page 5 Thursday, May 17, 2007 11:43 AM

Introduction
6 Copyright © 2007 Nokia. All rights reserved.
■Bluetooth wireless technology
Bluetooth wirteless technology is an international standard for short-
range wireless communication. It allows you to establish a wireless
connection within a range of 10 metres between your Advanced Car Kit
and a compatible device.
The Advanced Car Kit is intended for use with any mobile phone that
supports the Bluetooth Handsfree Profile (Bluetooth HFP).
The wireless connection between the compatible devices established
using Bluetooth technology is free of charge for the user. In some
countries, there may be restrictions on using Bluetooth devices. Check
with your local authorities.
■Bluetooth passcode
The first time you wish to establish a wireless connection to a
compatible device using Bluetooth technology, you will need to input a
passcode to pair the devices.
The passcode is 0000.
Nokia_CK-7_China_UG_en.fm Page 6 Thursday, May 17, 2007 11:43 AM

Getting started
Copyright © 2007 Nokia. All rights reserved. 7
1. Getting started
■Overview
The Advanced Car Kit includes the components shown above.
• 1 Handsfree unit HF-5 with mounting plate MK-2

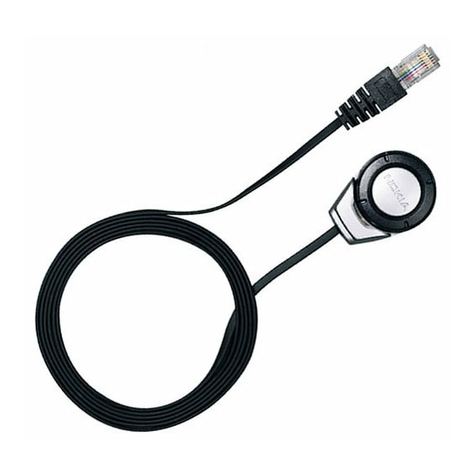

• 2 Remote control button CU-7
• 3 Loudspeaker HFS-12
• 4 Microphone MP-2
• 5 Cable set PCU-4
• 6 Data cable CA-27
• 7 Charger cable CA-116
Nokia_CK-7_China_UG_en.fm Page 7 Thursday, May 17, 2007 11:43 AM

Getting started
8 Copyright © 2007 Nokia. All rights reserved.
■Use of enhancements
Depending on the setup, a variety of optional enhancements are
available to extend your Advanced Car Kit. Before any installation work
is started, ask for professional advice on the enhancements that would
best suit your needs. Use only approved enhancements. Ensure that only
compatible products are connected to your Advanced Car Kit.
Phone holder
You will need a phone holder designed for a compatible mobile phone if
the mobile phone is to be connected direct to the handsfree unit using
the data cable.
Antenna coupler
An antenna coupler is required to connect an external antenna. A range
of antenna couplers are commercially available for the mobile phones
and phone holders on the market. An antenna coupler improves in-
vehicle reception of the mobile phone.
GSM antenna
A compatible GSM antenna enables optimised wireless connections.
If you have installed an external antenna, remember that in order to
comply with RF exposure requirements for mobile transmitting devices,
a minimum distance of 20 cm must be maintained between the antenna
and all persons.
Nokia_CK-7_China_UG_en.fm Page 8 Thursday, May 17, 2007 11:43 AM

Installation
Copyright © 2007 Nokia. All rights reserved. 9
2. Installation
■Safety information
The basic safety guidelines set out below are to be observed when
installing the Advanced Car Kit .
Note:
• Only qualified personnel should service the Advanced Car
Kit or install it in a vehicle. Faulty installation or service
may be dangerous and may invalidate any warranty which
may apply to the unit.
• The Advanced Car Kit may only be installed by a qualified
service technician using the approved original Nokia parts
supplied in the sales package. End users should remember
that the Advanced Car Kit comprises complex technical
equipment that requires professional installation using
special tools and expert know-how.
• Note that the instructions contained in this installation
guide are general guidelines which apply for the
installation of the Advanced Car Kit in an automobile.
However, due to the wide variety of car types and models
available on the market, this guide cannot consider the
individual technical requirements relevant for any
particular vehicle. Contact the vehicle manufacturer for
further detailed information about the vehicle in question.
• The Advanced Car Kit is suitable for use only in vehicles
with a 12 volts negative grounding. Use on other supply
voltages all alternative polarity will damage the
equipment.
Nokia_CK-7_China_UG_en.fm Page 9 Thursday, May 17, 2007 11:43 AM

Installation
10 Copyright © 2007 Nokia. All rights reserved.
• Remember that modern automotive systems include on-
board computers where key vehicle parameters are stored.
Improper disconnection of the car battery may cause loss
of data, necessitating extensive effort for re-initialisation
of the system. If you have any concerns, contact your car
dealer before any installation work is done.
• Do not wire Advanced Car Kit equipment to the high-
voltage lines of the ignition system.
• All equipment must be mounted so that it does not
interfere with the operation of the vehicle.
• Your service technician may be able to provide you with
information on alternatives for mounting the equipment
suitably in your vehicle without requiring boreholes.
• The mount for the phone holder is to be fixed to the
dashboard or to any other location in the cockpit area
where the display is clearly visible for the user but does not
impair control or operation of the vehicle. The keypad
should be within easy reach of the driver.
• Make sure not to impact the steering or braking systems or
other key systems essential for proper operation of the car
when installing Advanced Car Kit equipment. Check to
make sure that deployment of the airbag is not blocked or
impaired in any way.
• Do not smoke when working on the car. Make sure that
there is no source of fire or flame nearby.
• Take care not to cause damage to electrical cables, fuel or
brake lines or safety equipment during installation work.
• RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles (e.g.
electronic fuel injection systems, electronic anti-skid
braking systems, electronic speed control systems, airbag
systems). Should you note a fault or change in the
operation of such a system, contact your car dealer.
Nokia_CK-7_China_UG_en.fm Page 10 Thursday, May 17, 2007 11:43 AM

Installation
Copyright © 2007 Nokia. All rights reserved. 11
• Ensure that cables are placed so that they will not be
subjected to mechanical wear and tear (e.g. not laid under
car seats or over sharp edges).
■Configuration
In principle, the Advanced Car Kit offers two different basic
configurations for installation:
Connecting a mobile phone using Bluetooth wireless
technology
To be able to establish a connection from a compatible mobile phone to
the handsfree unit, both devices first have to be paired.
A compatible mobile phone supporting Bluetooth wireless technology is
required for this setup.
Nokia_CK-7_China_UG_en.fm Page 11 Thursday, May 17, 2007 11:43 AM

Installation
12 Copyright © 2007 Nokia. All rights reserved.
Connecting a mobile phone using the data cable and a
phone holder
When connected via the data cable, the compatible mobile phone is
ready for operation with the Advanced Car Kit when placed into the
phone holder.
Depending on your mobile phone and your vehicle equipment,
enhancements such as a phone holder, antenna coupler or external
antenna may be required.
■Installing the Advanced Car Kit
See “Introduction,” p. 5for an example of a suitable installation of the
Advanced Car Kit equipment.
Nokia_CK-7_China_UG_en.fm Page 12 Thursday, May 17, 2007 11:43 AM

Installation
Copyright © 2007 Nokia. All rights reserved. 13
Handsfree unit
When installing the handsfree unit, ensure that the cables for the
microphone and loudspeaker will reach the places you intend to mount
these components.
Take care not to mount the handsfree unit inside a closed metal housing
or in a place in the car where it would be shielded from radio waves as
this may impair the use of the Bluetooth feature.
To mount the unit, first attach the mounting plate supplied with the
Advanced Car Kit and then secure the handsfree unit using the screw
that goes through the unit. Finally, insert the cover imprinted with the
Nokia logo into the recess and press it into place.
Remote control button
The remote control button should be located so that it is within easy
reach of the user. However, ensure that it is placed so that the cable for
connection to the handsfree unit can be mounted. A suitable mounting
position for the remote control button may be on the console between
the front seats.
B
A
C
D
Nokia_CK-7_China_UG_en.fm Page 13 Thursday, May 17, 2007 11:43 AM

Installation
14 Copyright © 2007 Nokia. All rights reserved.
To mount the remote control button, use the hook and loop tape
provided. First detach the two parts of the pads from each other. Attach
the pad with the loops first: peel off the protective sheet from the
adhesive side (A) and attach the pad to the desired location in your car
(B). Make sure that the surface where you intend to attach the pad is dry
and free from dirt and dust.
Attach the pad with the hooks next: peel off the protective sheet from
the adhesive side (C) and attach the pad to the underside of the remote
control button.
Press the remote control button (D) firmly onto the loop pad mounted in
the car.
Loudspeaker
To ensure good acoustic quality, mount the loudspeaker so that it is
pointed in the user’s direction. We recommend that you mount the
loudspeaker a minimum distance of 1 metre away from the microphone
to avoid feedback.
The Advanced Car Kit also supports connection to a compatible car radio
system. If you wish to use the car radio installed in your vehicle with the
Advanced Car Kit for audio output, ask your service technician for
professional advice.
Connect the loudspeaker or a compatible car radio system to the
"SPEAKER" output.
Microphone
Careful selection of the mounting location of the microphone can
increase the quality of voice transmission.
Mount the microphone approx. 30 cm from the driver’s head, and
position it so that it points towards the driver’s mouth. Experience has
shown that the best locations are near the rearview mirror or the sun
visor. We recommend that you keep the microphone a minimum
distance of 1 metre away from the Advanced Car Kit phone loudspeaker
to avoid feedback.
Nokia_CK-7_China_UG_en.fm Page 14 Thursday, May 17, 2007 11:43 AM

Installation
Copyright © 2007 Nokia. All rights reserved. 15
Take care to mount the microphone so that it is not exposed to air
streams from the vents. Do not lay the microphone cable in the heating,
ventilation or AC system. Use the double-sided adhesive tape supplied
to fix the microphone as this will prevent noise from the car body being
transmitted into the interior.
Insert the plug into the "MIC" socket in the handsfree unit and turn it
clockwise to lock it firmly.
Note: Use of any other microphone than the microphone MP-2
supplied with the Advanced Car Kit smay impact the
transmission quality.

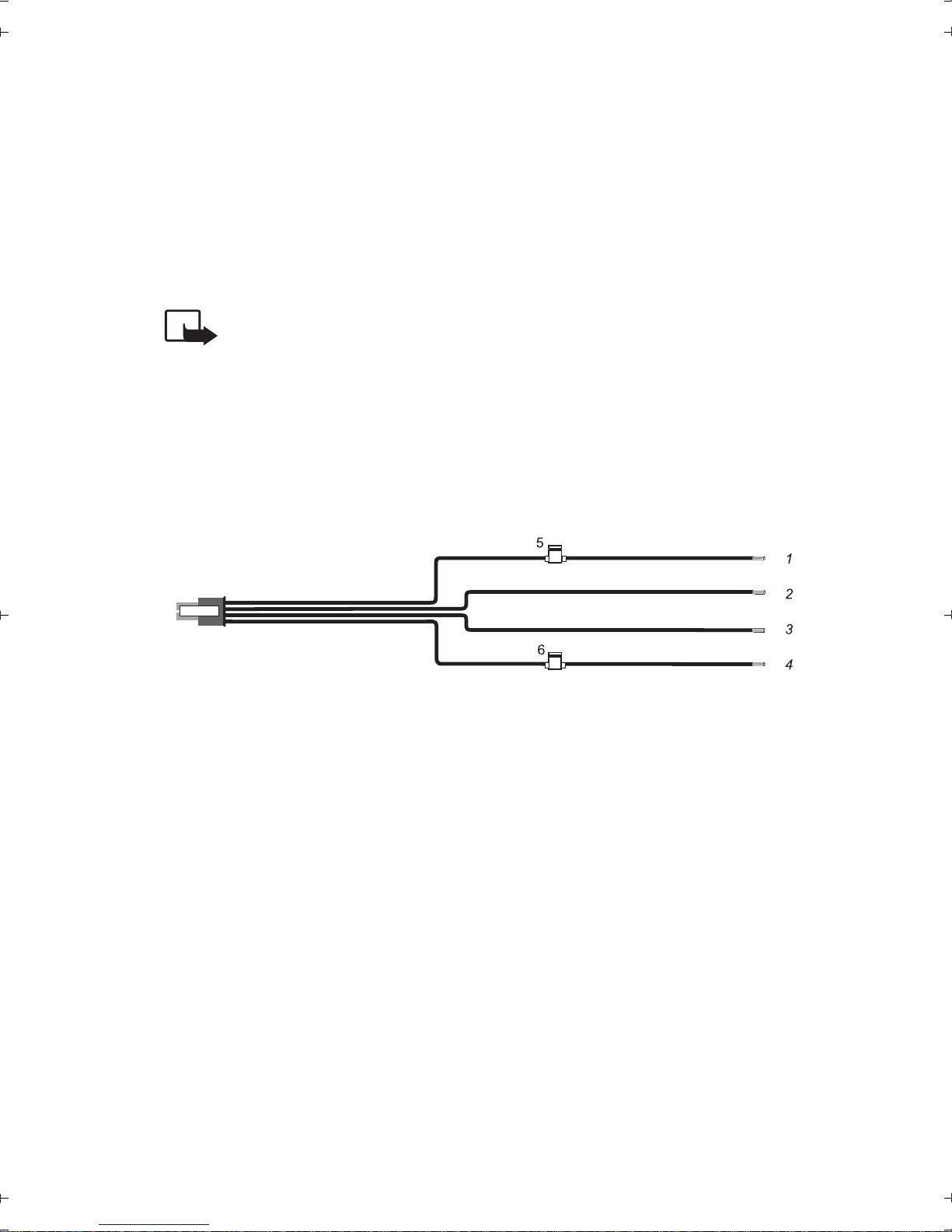

Cable set
The wires making up the cable harness are to be connected as per the
wiring diagram.
• Connect the black wire to the vehicle ground (GND).
• Connect the yellow wire to the MUTE connection of the car radio.
If your car radio does not have a mute connection, this line may
remain unconnected. In this case, your car radio will not be muted
automatically during a call.
An additional relay can be used to enable the car radio to be muted.
When a call is accepted, the Advanced Car Kit switches the yellow
line (MUTE) to ground, muting the car radio. When the call is ended,
the yellow line is separated from ground and the car radio is
unmuted.
• Connect the blue wire to the IGNS line of the car using the 1A fuse
supplied.
Nokia_CK-7_China_UG_en.fm Page 15 Thursday, May 17, 2007 11:43 AM

Installation
16 Copyright © 2007 Nokia. All rights reserved.
Some vehicles do not come with an IGNS connection. This line is not
necessary for operation of the Advanced Car Kit; the blue wire can be
left unconnected. However, in this case, the Advanced Car Kit does
not switch off automatically when the ignition is turned off. To
prevent accidental draining of the car battery, the Advanced Car Kit
automatically switches off after two minutes unless a mobile phone
is connected over Bluetooth wireless technology or the data cable.
• Connect the red wire to the positive terminal of the 12V car battery
using the 2A fuse supplied.
The four-pin plug of the cable set is plugged into the "DC" port of the
handsfree unit.
Data cable
The data cable connects the handsfree unit with a compatible mobile
phone, i.e. via the phone holder.
Plug one end of the cable into the "PHONE" socket in the handsfree unit
and the other into the phone holder.
If the Advanced Car Kit is to be used only with Bluetooth wireless
technology, the data cable does not need to be connected.
Charger cable
The charger cable allows you to charge a compatible mobile phone
while it is connected to the Advanced Car Kit over Bluetooth wireless
technology.
The charging cable can be used with compatible Nokia devices that have
a 2.0-mm charger connector.
■Function test
After your Advanced Car Kit has been installed, it needs to be checked to
ensure that it is working properly. When testing the operation of the
equipment, also check that it has been mounted so that it in no way
impairs the driver during operation of the vehicle.
Nokia_CK-7_China_UG_en.fm Page 16 Thursday, May 17, 2007 11:43 AM

Putting the Advanced Car Kit into service
Copyright © 2007 Nokia. All rights reserved. 17
3. Putting the Advanced Car Kit
into service
A compatible mobile phone can be connected to the Advanced Car Kit
in one of two ways: over a Bluetooth wireless connection or using a
compatible phone holder with a cable.
■Connecting a mobile phone using
Bluetooth wireless technology
The first time you establish a wireless link from your Advanced Car Kit
using Bluetooth technology, you will have to pair the handsfree unit
with the compatible mobile phone that you are using. This only needs to
be done once: after this the devices will automatically recognise each
other and establish the link.
Note: If you wish to establish a connection using Bluetooth
wireless technology, make sure that there is no mobile phone
inserted in the phone holder.
Pairing using a Bluetooth passcode
1. Make sure that the mobile phone is switched on and the battery is
charged.
2. Switch on the Advanced Car Kit. For further information, see
“Switching the Advanced Car Kit on/off,” p 20.
3. Open the Bluetooth menu in the mobile phone and activate the
Bluetooth function.
4. Make the required settings on the mobile phone to activate a search
for Bluetooth devices within range. For further information on the
settings required on your mobile phone, see the relevant user guide.
5. Select Advanced Car Kit from the list of Bluetooth devices found.
6. When prompted, key in the Bluetooth passcode 0000.
Nokia_CK-7_China_UG_en.fm Page 17 Thursday, May 17, 2007 11:43 AM

Putting the Advanced Car Kit into service
18 Copyright © 2007 Nokia. All rights reserved.
7. The mobile phone has now been paired with the Advanced Car Kit
and is ready for operation.
Note: The Advanced Car Kit can only establish a Bluetooth
wireless connection to one compatible mobile phone.
Therefore, you may need to end or break an existing Bluetooth
wireless connection.
Automatic pairing with a compatible mobile phone
1. Make the appropriate settings in the mobile phone so that it will pair
with your Advanced Car Kit without requiring separate acceptance
or authorisation. For further information on the settings required on
your mobile phone, see the relevant user guide.
2. Switch on the Advanced Car Kit.
3. The Advanced Car Kit now starts an automatic 30-second search for
mobile phones that have previously been paired with it using the
Bluetooth passcode. The Advanced Car Kit pairs with the mobile
phone that it has last paired with. The active Bluetooth search is
indicated by the flashing light on the remote control button.
■Connecting a mobile phone over the data cable
If you are using this form of connection, the mobile phone is ready for
use with the Advanced Car Kit when placed into the phone holder; you
do not need to pair the devices.
If a mobile phone is inserted into a phone holder connected to the
Advanced Car Kit via the data cable, this phone is the active device and
you will not be able to establish a connection to any device via
Bluetooth wireless technology. Inserting a mobile phone that is
currently involved in an active Bluetooth wireless connection into a
phone holder connected to the Advanced Car Kit will cause the
Bluetooth wireless connection to be terminated automatically.
Nokia_CK-7_China_UG_en.fm Page 18 Thursday, May 17, 2007 11:43 AM

Operation
Copyright © 2007 Nokia. All rights reserved. 19
4. Operation
The Advanced Car Kit can be controlled with the remote control button
or operated using the keypad of a compatible mobile phone.
■Remote control button
1 The button can be used as follows:
•Press
• Press and hold (approx. 1 second)
• Press twice briefly
• Press and hold for a long time (longer than 10 seconds)
2 The ring can be used as follows:
• Turn to the left
• Turn to the right
3 The indicator light has three states:
•On
• Flashing
• Off
Nokia_CK-7_China_UG_en.fm Page 19 Thursday, May 17, 2007 11:43 AM

Operation
20 Copyright © 2007 Nokia. All rights reserved.
■Switching the Advanced Car Kit on/off
When you turn on the ignition of your car, you automatically switch on
the Advanced Car Kit. The indicator light goes on to show that the
Advanced Car Kit is activated.
When you turn off the car ignition, you deactivate the Advanced Car Kit
and the indicator light goes off.
If the Advanced Car Kit has been installed without connecting the
ignition sense cable (IGNS), to switch the Advanced Car Kit on, either
press the button briefly or insert a compatible mobile phone in the
phone holder, if one has been installed.
Note: If the Advanced Car Kit has been installed without using
the IGNS cable, when switched on, it will stay in service as long
as a compatible mobile phone remains in the phone holder.
If there is currently no connection to a mobile phone, the
Advanced Car Kit will switch itself off after 2 minutes.
■Operating the Advanced Car Kit
You can use the remote control button to access the following phone
features:
Accepting a call
To accept an incoming call, press the button.
Ending a call
To end an active call, press the button.
Rejecting a call
If you do not wish to accept a call, press and hold the button.
Nokia_CK-7_China_UG_en.fm Page 20 Thursday, May 17, 2007 11:43 AM
