Advanced Bionics CI-5068 User manual

M WATERPROOF BATTERY and CLIP
CI-5068, CI-7323
instructions for use
English, Français, Español

1
SYMBOLS TABLE
Labeling symbols and their meanings
Date of Manufacture
Manufacturer
Model number
Serial number
LOT number
Unique Device Identifier
Type of Protection: BF
Suitable temperature range for transport
and storage
See Instructions for Use
Fragile
Suitable relative humidity range for transport
and storage
XXXX-XX-XX

2
Caution (refer to “Cautions & Warnings”
section for further information)
Dispose of in accordance with applicable
national and local regulations
MR Unsafe
IPxx Ingress Protection Rating
Limitations and Contraindications
There are no known limitations or contraindications for
theM Waterproof Battery.
Precautions, Cautions, and Warnings
• This device should be used only by the individual for
whom it is prescribed.
• It is recommended that you charge the M Waterproof
Battery fully prior to first use, as the M Waterproof
Battery shipped from Advanced Bionics is not fully
charged.
• The M Waterproof Battery comes with a power supply
designed for the specifications of the M Waterproof
Battery. Do not use any other power supply unless
it is supplied by Advanced Bionics. If needed, call
Advanced Bionics for a power supply replacement.
• The M Waterproof Battery and power supply should be
operated in an open area to ensure adequate airflow.

3
While no injury cases have resulted, components may
become hot during normal use or a fault condition. If the
device’s temperature results in discomfort or pain when
touched, disconnect the power source and contact your
cochlear implant professional.
• The M Waterproof Battery may reach a temperature
of 48˚C (119˚F) while charging. Do not wear the M
Waterproof Battery while charging.
• CHOKING HAZARD: Contains small parts that pose
a hazard of inhalation, choking, or ingestion. If any
parts are swallowed or inhaled, consult a physician or
hospital immediately.
• Do not leave children unattended with or allow children
to play with the M Waterproof Battery.
• Do not allow children to place the M Waterproof Battery
in the mouth.
• Remove your sound processor and consult your cochlear
implant professional if uncomfortable sounds are heard
or in case of discomfort, pain or skin irritation.
• Do not dispose of the M Waterproof Battery in fire, as it
may explode.
• To prevent injury or burns, do not allow metal objects, such
as keys or coins, to contact or short circuit the battery
terminals. The M Waterproof Battery may present risk of
fire or chemical burn if mistreated. Do not disassemble.
Do not heat above 100˚C/212˚F or incinerate.
• Remove your sound processor from the M Waterproof
Battery when the battery is discharged to prevent
damage from possible leaking.

4
• If the M Waterproof Battery shows visible signs of leakage,
dispose of it in accordance with local regulations,
asdetailed in the “Disposal” section of this document.
• Do not allow leaking battery fluid to come into contact
with skin, mouth, or eyes.
• Do not expose the M Waterproof Battery to heat
(e.g.,do not store in direct sunlight or in a hot car).
• Carry the M Waterproof Battery in the carrying case
provided or in a sealed plastic bag. The M Waterproof
Battery can short circuit if it comes into contact with
metallic objects such as coins or keys.
• High levels of static electricity may damage electronic
components of your sound processor or implant. Care
should be taken to avoid exposure of the system to
static electricity.
• The M Waterproof Battery O-Ring should be inspected
prior to each use and will need to be changed
periodically. If damage to the O-Ring is observed or
suspected, replace prior to resuming use. Do not continue
use of the M Waterproof Battery if it is damaged. Doing
so may void the warranty and may compromise system
performance. If used improperly or damaged, you may
be liable for the repair cost of the product. This includes,
but is not limited to, water or particulate matter damage.
• When the M Waterproof Battery is moved from a hot
environment (e.g., a sauna or whirlpool) to a colder
environment (e.g., a pool), condensation may form
inside the case. If condensation occurs, remove the
processor and place in a drying system overnight to

5
ensure proper drying of the sound processor. Wipe
the battery case with a soft, lint-free cloth and air
dryovernight.
• If water or particle ingress is observed, cease use of
the M Waterproof Battery immediately, remove the
processor from the enclosure and place in a drying
system overnight to ensure proper drying of the sound
processor. Wipe the battery case with a soft, lint-free
cloth and air dry overnight.
• Following exposure to particulate matter, such as sand
or dirt, clean the outside of the case with water and a
dry cloth prior to opening.
• The Waterproof Battery and O-Ring should be rinsed
and dried following submersion in salt or chlorine
treated water.
• Do NOT store the M Waterproof Battery in direct sunlight
or inside a vehicle during extremely hot or cold weather.
The O-Ring should also not be left in direct sunlight. To
prevent excessive sun exposure, cover the M Waterproof
Battery and O-Ring with a towel.
• When sunbathing or after water use, please remove
the sound processor from the M Waterproof Battery or
cover the M Waterproof Battery and sound processor
to shade it from direct sunlight and prevent excessive
temperatures.
• Do not open or close the M Waterproof Battery while
ina water environment.

6
• Cables are not intended to be removed or replaced
while the M Waterproof Battery is submerged. If the
cable accidentally detaches during water use, remove
the M Waterproof Battery from the water and shake
excess water from the case prior to reconnecting the
cable. Wipe the battery case with a soft, lint-free cloth
and air dry overnight.
• To prevent damage to accessories compatible with
the sound processor (e.g., Listening Check, Phonak
Roger devices, Phonak RemoteControl), it is important
to cease use prior to engaging in activities in or
near water. Once in a dry environment, the recipient
may resume use of the accessories with the sound
processor in the M Waterproof Battery.
• To avoid an increased risk of strangulation, do not use
cables longer than 81cm (32 inches) for young children.
• Although electromagnetic emissions of the M
Waterproof Battery have been confirmed within safe
limits, some other devices could be sensitive to such
emissions. If you notice other devices do not behave
as expected when your M Waterproof Battery is nearby,
separate the devices.
• In the event that you experience any issues with your
product, please contact your cochlear implant profes-
sional or the manufacturer. Do not attempt to service
or modify the Naída CI M, Sky CI M, or its accessories.
Doing so may compromise system performance and
will void the manufacturer’s warranty. Products should
be serviced only at Advanced Bionics and damaged
products should be returned to Advanced Bionics.

7
Undesireable Side Effects
Undesirable side eects of your Naída CI M or Sky CI M
system may include skin irritation and discomfort, device
overheating, or overly loud sounds.
Product Description
The M Waterproof Battery is a Lithium Ion rechargeable
battery. It features an enclosure for your Naída™ CI M
or Sky CI™ M sound processor to protect the sound
processor from moisture and debris.

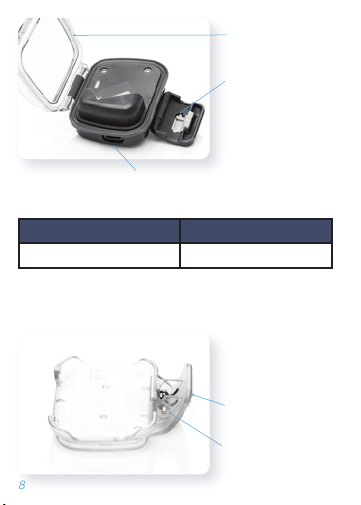

Battery Connector
O-Ring
Headpiece
Cable
Connector

8
O-Ring
Lock and Unlock
Button
USB Charging Port
Product Battery caPacity (mah)
M Waterproof Battery 225
The M Waterproof Battery can be worn in dierent
locations using the M Waterproof Battery Clip.
Clip Handle
Clip Hinge

9
Intended Use
The M Waterproof Battery is intended to power the
Advanced Bionics Naída CI M and Sky CI M Sound
Processors and protect the sound processor from moisture
and debris. Connecting the sound processor to the
connector within the M Waterproof Battery will power on the
sound processor. Removing the sound processor from the
M Waterproof Battery will power o the sound processor.
The intended users of the M Waterproof Battery are users
of the Naída CI M or Sky CI M Sound Processors. The
intended use environments of the M Waterproof Battery are
healthcare and daily living environments, including water
environments with bath water, salt water, and fresh water.
Compatibility
The M Waterproof Battery is compatible with Naída CI
M and Sky CI M Sound Processors and the Slim HP
AquaMic™ headpiece, the AquaMic, AquaMic 3D, and
AquaCables from Advanced Bionics.
Operating Instructions
General Information for Using the M Waterproof Battery
• Using the supplied power adapter, it takes
approximately 3 to 4 hours to fully recharge a depleted
M Waterproof Battery. If the M Waterproof Battery
is stored for prolonged periods of time, it may take
approximately 5 to 6 hours to fully recharge the battery.
• The M Waterproof Battery does not need to be fully
depleted before charging. A partially charged M
Waterproof Battery may be fully charged in a shorter
time period.

10
• You can discontinue charging the M Waterproof
Battery at any time.
• You will not damage the M Waterproof Battery if it
remains charging longer than the required charging
time or overnight.
• It is recommended to use and recharge the M
Waterproof Battery at least once every 3 months.
Please note that the M Waterproof Battery will
decrease in capacity with age, even if not in use.
This is normal behavior for all rechargeable batteries
and should not be considered a defect.
• Ensure that the selected program supports off-ear
listening (headpiece microphone input). If the
program does not support headpiece microphone
input, select the appropriate program that does.
If you are unsure, contact your cochlear implant
professional for programming assistance.
• Please note that you may notice a slight sound
quality difference when switching between your
BTE microphone program and your headpiece
microphone program.
• Do not open or close the M Waterproof Battery while
in a water environment.

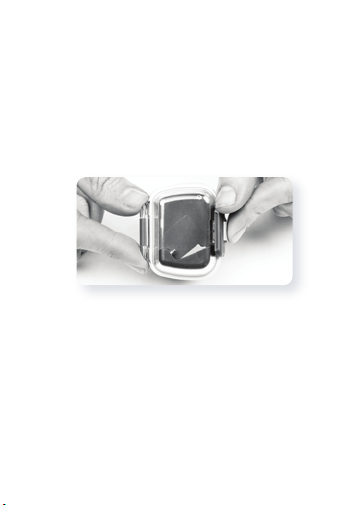

• Before placing the Naída CI M or Sky CI M in the M
Waterproof Battery, visually inspect the O-Ring seal
to make sure it is placed correctly. Confirm that
the O-Ring is not dry, brittle or dirty. If it is, replace
O-Ring prior to use. If damage to the O-Ring is
observed or suspected, replace prior to resuming use

11
Inserting the Sound Processor in the M Waterproof
Battery

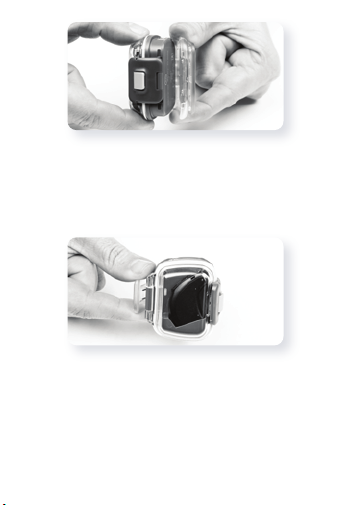

The M Waterproof Battery has a lock to make sure the
case is not accidently opened, preventing moisture from
entering the case and damaging the sound processor. The
lock is located on the front of the M Waterproof Battery.

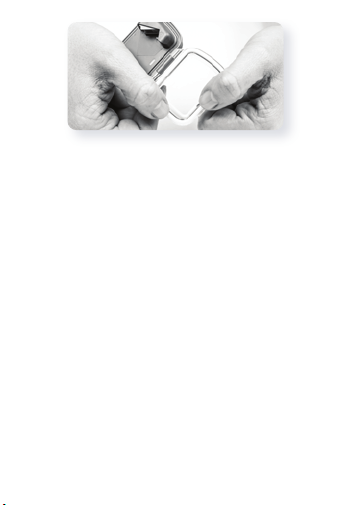

While holding the M Waterproof Battery in one hand, use
your forefinger on the opposite hand to push the lock button
while using your thumb to pull the lock away from the case.

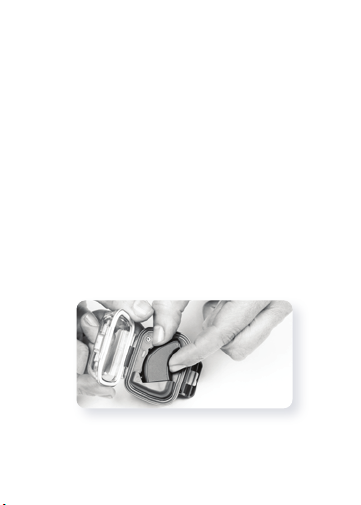

The M Earhook, M T-Mic™ microphone, or M Acoustic
Earhook, battery, cable, and headpiece must be removed
from the sound processor before inserting into the case,
however the earhook pin can remain in the processor.
Carefully align the battery connector on the sound
processor with the battery connector in the M Waterproof
Battery and slide the sound processor onto the battery
connector within the M Waterproof Battery, connecting
the cable connector with the M Waterproof battery to the
sound processor.

12
Slide the sound processor into place until the M Waterproof
Battery and headpiece cable connector are coupled
Once the sound processor is in place, close the lid of
the M Waterproof Battery. Return the latch to the closed
position, confirming that the latch has clicked into place.

13
.
Connect the AquaMic headpiece cable to the
MWaterproof Battery.
To attach the clip to the M Waterproof Battery, insert the
hinge side of the M Waterproof Battery into the clip and
press down until the M Waterproof Battery snaps into
place.

14
To remove the clip, pull the handle of the clip back and
away from the M Waterproof Battery.

15
Removing the Sound Processor in the M Waterproof
Battery
Towel dry the M Waterproof Battery before removing
the sound processor to prevent water from accidentally
getting on the sound processor. Be careful not to allow
water from your hair or body to fall in the M Waterproof
Battery or on the sound processor.
While holding the M Waterproof Battery in one hand, use
your forefinger on the opposite hand to push the lock
button while using your thumb to pull the lock away from
the case.
To remove the sound processor, carefully slide the
processor forward, making sure not to pull up until the
sound processor is free from the connectors.

16
Remember to wipe the battery case with a soft, lint-free
cloth and air dry overnight after any water related
activities. Continue use of the Slim HP or RF cable and
appropriate UHP.
Replacing the O-Ring on the M Waterproof Battery
The M Waterproof Battery O-Ring should be inspected
prior to each use and will need to be changed periodically.
If damage to the O-Ring is observed or suspected, replace
prior to resuming use. The M Waterproof Battery and
O-Ring should be rinsed following submersion in salt or
chlorine treated water.
To remove the existing O-Ring, use your fingers to lift a
portion of the old O-Ring out of the M Waterproof Battery.
Once a portion of the O-Ring is lifted out, hold the O-Ring
and pull the remaining portion out of the M Waterproof
Battery mounting groove.

17
To insert the new O-Ring, place a portion of the new
O-Ring in the M Waterproof Battery mounting groove on
the case. Take care to match the shape of the O-Ring
correctly with the shape of the M Waterproof Battery.
While holding the O-Ring in the groove with one hand,
carefully stretch the remaining portion of the O-Ring into
the remaining groove.
Run your thumb over the O-Ring to make sure of proper
insertion. Extreme care should be taken to make sure the
O-Ring is level and secure in the mounting groove.

18
Charging the M Waterproof Battery
To use a wall outlet for charging:
Place the M Waterproof Battery on a flat surface.
Connect the micro USB end of the power supply cable
into the M Waterproof Battery.
Connect the power supply cable to the USB wall adapter.
Plug the wall adapter into the wall outlet.
To use a USB port for charging:
Place the M Waterproof Battery on a flat surface.
Connect the micro USB end of the power supply cable
into the M Waterproof Battery.
Insert the USB jack into a USB port (on a computer,
in a car, etc.).
