Advantech UBX-110 User manual

User Manual
UBX-110
8K UHD Fanless Mini Box PC

UBX-110 User Manual ii
Copyright
The documentation and the software included with this product are copyrighted 2023
by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right
to make improvements in the products described in this manual at any time without
notice. No part of this manual may be reproduced, copied, translated, or transmitted
in any form or by any means without the prior written permission of Advantech Co.,
Ltd. The information provided in this manual is intended to be accurate and reliable.
However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any
infringements of the rights of third parties that may result from its use.
Acknowledgments
Intel® and Pentium® are trademarks of Intel® Corporation.
Microsoft Windows® is a registered trademark of Microsoft Corp.
RTL is a trademark of Realtek Semiconductor Co., Ltd.
ESS is a trademark of ESS Technology, Inc.
UMC is a trademark of United Microelectronics Corporation
SMI is a trademark of Silicon Motion, Inc.
Creative is a trademark of Creative Technology, Ltd.
CHRONTEL is a trademark of Chrontel, Inc.
All other product names or trademarks are properties of their respective owners.
For more information about this or other Advantech products, visit our website at
http://www.advantech.com
https://www.advantech.com/products/fanless-embedded-computers/sub_1-2jkeuf
For technical support and customer service, visit our support website at
http://support.advantech.com.tw/support
Part No. Edition 1
Printed in Taiwan February 2023

iii UBX-110 User Manual
Product Warranty (2 years)
Advantech warrants the original purchaser that each of its products will be free from
defects in materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products that have been repaired or altered by
persons other than repair personnel authorized by Advantech, or products that have
been subject to misuse, abuse, accident, or improper installation. Advantech
assumes no liability under the terms of this warranty as a consequence of such
events.
Because of Advantech’s high quality-control standards and rigorous testing, most
customers never need to use our repair service. If an Advantech product is defective,
it will be repaired or replaced free of charge during the warranty period. For out-of-
warranty repairs, customers will be billed according to the cost of replacement mate-
rials, service time, and freight. Please consult your dealer for more details.
If you believe your product to be defective, follow the steps outlined below.
1. Collect all the information about the problem encountered. (For example, CPU
speed, Advantech products used, other hardware and software used, etc.) Note
anything abnormal and list any onscreen messages displayed when the prob-
lem occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information readily available.
3. If your product is diagnosed as defective, obtain a return merchandise authori-
zation (RMA) number from your dealer. This allows us to process your return
more quickly.
4. Carefully pack the defective product, a completed Repair and Replacement
Order Card, and a proof of purchase date (such as a photocopy of your sales
receipt) into a shippable container. Products returned without a proof of pur-
chase date are not eligible for warranty service.
5. Write the RMA number clearly on the outside of the package and ship the pack-
age prepaid to your dealer.
Declaration of Conformity
FCC Class B
This equipment has been tested and found to comply with the limits for a Class B dig-
ital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-
vide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for assistance.

UBX-110 User Manual iv
Technical Support and Assistance
1. Visit the Advantech website at www.advantech.com/support to obtain the latest
product information.
2. Contact your distributor, sales representative, or Advantech's customer service
center for technical support if you need additional assistance. Please have the
following information ready before calling:
–Product name and serial number
–Description of your peripheral attachments
–Description of your software (operating system, version, application software,
etc.)
–A complete description of the problem
–The exact wording of any error messages
Warnings, Cautions, and Notes
Warning! Warnings indicate conditions that if not observed can cause personal
injury!
Caution! Cautions are included to help prevent hardware damage and data loss.
For example,
“Batteries are at risk of exploding if incorrectly installed. Do not attempt
to recharge, force open, or heat the battery. Replace the battery only
with the same or equivalent type as recommended by the manufacturer.
Discard used batteries according to the manufacturer's instructions.”
Note! Notes provide additional information.

v UBX-110 User Manual
Packing List
Before system installation, check that the items listed below are included and in good
condition. If any item does not accord with the list, contact your dealer immediately.
1 x UBX-110 unit
1 x Power adapter (DC 12V, 60W)
1 x China RoHS declaration sheet
1 x SSD thermal pad
2 x Memory thermal pads
Ordering Information
Part Number Description
UBX-110H-BCL00 UBX-110, Celeron® 6305E, barebone
UBX-110H-BI300 UBX-110H-BI300 UBX-110, i3 1115G4E, barebone
UBX-110H-BI500 UBX-110H-BI500 UBX-110, i5 1145G7E, barebone
UBX-110H-BI700 UBX-110H-BI700 UBX-110, i7 1185G7E, barebone
UBX-110H-UCL00 UBX-110H-UCL00 UBX-110, Celeron® 6305E, barebone, MIT
UBX-110H-UI300 UBX-110H-UI300 UBX-110, i3 1115G4E, barebone, MIT
UBX-110H-UI500 UBX-110H-UI500 UBX-110, i5 1145G7E, barebone, MIT
UBX-110H-UI700 UBX-110H-UI700 UBX-110, i7 1185G7E, barebone, MIT
UBX-MKV01 UBX-110 VESA mounting kit with thermal isolation

UBX-110 User Manual vi
Safety Instructions
1. Read these safety instructions carefully.
2. Retain this user manual for future reference.
3. Disconnect the equipment from all AC outlets before cleaning. Use only a damp
cloth for cleaning. Do not use liquid or spray detergents.
4. For pluggable equipment, the power outlet socket must be located near the
equipment and easily accessible.
5. Protect the equipment from humidity.
6. Place the equipment on a reliable surface during installation. Dropping or letting
the equipment fall may cause damage.
7. The openings of the enclosure are for air convection. Protect the equipment
from overheating. Do not cover the openings.
8. Ensure that the voltage is correct before connecting the equipment to a power
outlet.
9. Position the power cord away from high-traffic areas. Do not place anything over
the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If unused for a long time, disconnect the equipment from the power source to
avoid damage from transient overvoltage.
12. Never pour liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
14. If one of the following occurs, have the equipment checked by authorized ser-
vice personnel:
The power cord or plug is damaged.
Liquid has penetrated the equipment.
The equipment has been exposed to moisture.
The equipment is malfunctioning or does not operate according to the user
manual.
The equipment has been dropped and damaged.
The equipment shows obvious signs of breakage.
15. Do not store the equipment in an environment with a room temperature of below
-20 °C (-4 °F) or above 60 °C (140 °F) as this may cause damage. The equip-
ment should be stored in a controlled environment.
16. Any unverified components may cause unexpected damage. To ensure correct
installation, always use the components (e.g., screws) provided in the acces-
sory box.
17. Batteries are at risk of exploding if incorrectly installed. Replace only with the
same or equivalent type as recommended by the manufacturer. Discard used
batteries according to the manufacturer’s instructions.
18. Always disconnect the power cord from the chassis before manually handling
the hardware. Do not implement connections or configuration changes while the
device is powered on. Sudden power surges may damage sensitive electronic
components.
19. In accordance with the IEC 704-1:1982 specifications, the sound pressure level
at the operator position should not exceed 70 dB (A).
20. The equipment should only be installed in a restricted access area.
21. DISCLAIMER: These instructions are provided according to IEC 704-1 stan-
dards. Advantech disclaims all responsibility for the accuracy of any statements
contained herein.

vii UBX-110 User Manual
22. This model is intended to be supplied by a UL-certified power supply (Adapter:
FSP/ FSP060-DAAN2) suitable for use at TMA 60 °C (140 °F) min., and the out-
put is rated 12 VDC, 5.0A min., ES1. If you need further assistance, contact
Advantech for additional information.
Consignes de Sécurité
1. Veuillez lire attentivement ces instructions de sécurité.
2. Veuillez conserver ce manuel de l'utilisateur pour référence ultérieure.
3. Veuillez débrancher cet équipement de la prise secteur avant le nettoyage. Utili-
sez un chiffon humide. Ne pas utiliser de détergent liquide ou pulvérisé pour le
nettoyage. Utilisez une feuille ou un chiffon humide pour le nettoyage.
4. Pour les équipements enfichables, la prise de courant doit être à proximité de
l'équipement et doit être facilement accessible.
5. S'il vous plaît garder cet équipement de l'humidité.
6. Posez cet équipement sur une surface fiable lors de l'installation. Une chute ou
une chute pourrait causer des blessures.
7. Les ouvertures sur le boîtier sont destinées à la convection d'air,
protégeant.ainsi l'équipement de la surchauffe. NE COUVREZ PAS LES
OUVERTURES.
8. Assurez-vous de la tension de la source d'alimentation lorsque vous connectez
l'équipement à la prise secteur.
9. Placez le cordon d'alimentation de sorte que personne ne puisse marcher des-
sus. Ne placez rien sur le cordon d'alimentation.
10. Tous les avertissements et mises en garde sur l'équipement doivent être notés.
11. Si l'appareil n'est pas utilisé pendant une longue période, débranchez-le du sec-
teur pour ne pas être endommagé par une surtension transitoire.
12. Ne jamais verser de liquide dans les ouvertures de ventilation; Cela pourrait
provoquer un incendie ou un choc électrique.
13. N'ouvrez jamais l'équipement. Pour des raisons de sécurité, seul le personnel
de maintenance qualifié doit ouvrir l'équipement.
14. Si l'une des situations suivantes se présente, faites vérifier le matériel par le
personnel de service:
Le cordon d'alimentation ou la fiche est endommagé.
Un liquide a pénétré dans l'appareil.
L'équipement a été exposé à l'humidité.
L'équipement ne fonctionne pas bien ou vous ne pouvez pas le faire fonctionner
conformément au manuel d'utilisation.
Equipment L'équipement est tombé et a été endommagé.
Equipment L'équipement présente des signes évidents de rupture.
15. Ne laissez pas cet équipement dans un environnement où la température de
stockage peut être inférieure à -20 °C (-4 °F) ou supérieure à 60 °C (140 °F).
Cela pourrait endommager l'équipement. L'équipement doit être dans un envi-
ronnement contrôlé.
16. Tout composant non vérifié peut causer des dommages inattendus. Pour garan-
tir une installation correcte, veuillez toujours utiliser les composants (ex. Vis)
fournis avec la boîte d'accessoires.
17. ATTENTION: L'ordinateur est équipé d'un circuit d'horloge temps réel alimenté
par batterie. Il y a un risque d'explosion si la batterie est remplacée de manière
incorrecte. Remplacez uniquement avec le même type ou un type équivalent
recommandé par le fabricant. Jetez les piles usagées conformément aux
instructions du fabricant.

UBX-110 User Manual viii
18. Débranchez toujours complètement le cordon d'alimentation de votre châssis
lorsque vous utilisez du matériel. Ne faites pas de connexion quand l'appareil
est sous tension. Les composants électroniques sensibles peuvent être endom-
magés par des surtensions soudaines.
19. Niveau de pression acoustique au poste de l'opérateur selon la norme CEI 704-
1: 1982 n'est pas supérieur à 70 dB (A).
20. L'équipement ne doit être installé que dans une zone d'accès restreint.
21. AVERTISSEMENT: Cet ensemble d'instructions est donné conformément à la
norme CEI 704-1. Advantech décline toute responsabilité quant à l'exactitude
des déclarations contenues dans ce.
22. Ce modèle est destiné à être alimenté par une alimentation certifiée UL (adapta-
teur: FSP/FSP060-DAAN2), adaptée à une utilisation à 60 degrés Celsius. et la
sortie est nominale 12Vcc, 5.0A min., ES1, si vous avez besoin d'une assis-
tance supplémentaire, veuillez contacter Advantech pour plus.

ix UBX-110 User Manual
Contents
Chapter 1 General Information ............................1
1.1 Introduction ............................................................................................... 2
1.2 Product Features....................................................................................... 2
1.2.1 General ......................................................................................... 2
1.3 Mechanical Specifications......................................................................... 3
1.3.1 System Dimensions ...................................................................... 3
1.3.2 Weight........................................................................................... 3
1.4 Power Requirements................................................................................. 4
1.4.1 System Power............................................................................... 4
1.4.2 RTC Battery .................................................................................. 4
1.5 Environmental Specifications.................................................................... 4
1.5.1 Temperature ................................................................................. 4
1.5.2 Relative Humidity .......................................................................... 4
1.5.3 Vibration Tolerance....................................................................... 4
1.5.4 Shock Tolerance ........................................................................... 4
1.5.5 Safety Certification........................................................................ 4
1.5.6 EMC Certification .......................................................................... 4
Chapter 2 Hardware Installation ..........................5
2.1 Introduction ............................................................................................... 6
2.1.1 Warning Message ......................................................................... 6
2.2 UBX-110 I/O Connectors .......................................................................... 6
Figure 2.1 UBX-110 Front View................................................... 6
Figure 2.2 UBX-110 Rear View ................................................... 6
2.3 Hardware Installation ................................................................................ 7
2.3.1 Memory, M.2 SSD, and Wi-Fi Module Installation ........................ 7
2.4 VESA Mounting Kit Installation ............................................................... 10
Figure 2.3 UBX-110 Horizontal Installation................................ 10
Figure 2.4 UBX-110 Vertical Installation.................................... 10

UBX-110 User Manual x

Chapter 1
1General Information

UBX-110 User Manual 2
1.1 Introduction
Advantech UBX-110 is an ultra-compact box PC that is used for offices, retail applica-
tions, etc. It features an 11th Gen Intel® processor to boost system performance and
efficiency. The UBX-110 enables 8K video resolution via USB-C output that delivers
vivid and high-quality A/V experiences. It also supports TPM 2.0 and RAID 0/1 to
offer complete system security and data protection. It is an ideal mini PC for retail
applications.
11th Gen Intel® High Performance Processors
The UBX-110 has an 11th Gen Intel® Celeron Core™ i3/i5/i7 processor and a built-in
Intel® Iris® graphics chip. It provides powerful computing performance and superior
video quality for retail applications.
Triple Displays & Compact Size with Multiple I/Os
The UBX-110 is fanless and supports DDR4 memory and M.2 2280 SATA SSD. It
has a 0 ~ 40 °C operating temperature. The UBX-110 dimensions (W x D x H) are
182.5 x 141 x 35 mm. It has a compact body with multiple I/Os including 1 x RS232,
2 x LAN, 6 x USB 3.0 ports, and it supports 2 x M.2 2280 and 1 x M.2 2230 expansion
slot.
1.2 Product Features
1.2.1 General
CPU:
–Intel® Celeron® 6305E
–Intel® Core™ i3 – 1115G4E
–Intel® Core™ i5 – 1145G7E
–Intel® Core™ i7 – 1185G7E
BIOS: AMI 256 Mbit Flash BIOS
Video:
–1 x USB-C (compliant with DP 1.4a), supports up to 7680 x 4320 @60Hz
–2 x HDMI 2.0b, supports 4096 x 2160 @60Hz
Triple Display: USB-C + 2HDMI
Memory (Optional): 1 x DDR4 260-pin SODIMM, supports up to 64 GB (non-
ECC)
Storage (Optional): 2 x M.2 2280 SATA SSD
USB: 4 x USB 3.0
Audio: HD audio (via USB-C, HDMI), 1 x Line-out
Serial: 1 x RS232/422/485 (via BIOS setting)
LAN: 2x RJ-45
–LAN1: Intel® i219; 10/100/1000 Mbps
–LAN2: Intel® i225: up to 2.5 Gbps
Expansion: 1 x M.2 2230 for Wi-Fi and Bluetooth combo module

3 UBX-110 User Manual
Chapter 1 General Information
1.3 Mechanical Specifications
1.3.1 System Dimensions
1.3.2 Weight
0.94 kg

UBX-110 User Manual 4
1.4 Power Requirements
1.4.1 System Power
Power Input: DC in 12V
1.4.2 RTC Battery
Lithium: 3V/220 mAh
1.5 Environmental Specifications
1.5.1 Temperature
Operating Temperature: 0 ~ 40 °C (If the UBX-110 operating temperature is up
to 45 °C, please use a power adapter with a temperature spec that is compli-
ant.)
Storage Temperature: -20 ~ 60 °C
1.5.2 Relative Humidity
95% @ 40 °C (104 °F) (non-condensing)
1.5.3 Vibration Tolerance
The system is equipped with a memory and 2 x M.2 SSD: 3.5 Grms
Reference IEC60068-2-6:2007, random, 5 ~ 500 Hz, 1 hr/axis, (x, y, z) 3 axes
1.5.4 Shock Tolerance
The system is equipped with a memory and two M.2 SSD: 30G acceleration
Reference IEC60068-2-27:2008, half sine, 11 ms pulse duration
1.5.5 Safety Certification
UL, CB, CCC, BSMI
1.5.6 EMC Certification
CE, FCC, CCC, BSMI, RED

Chapter 2
2Hardware Installation

UBX-110 User Manual 6
2.1 Introduction
The following sections introduce the I/Os on the UBX-110 and demonstrate the mem-
ory, storage, and Wi-Fi module installation.
2.1.1 Warning Message
In working mode, the UBX-110 is capable of operation at an ambient temperature of
up to 40 °C. In such cases, the temperature of the top cover may reach a high value.
Under such a condition, accidental contact with the UBX-110 needs to be avoided.
External surfaces do not need to be touched to operate the equipment. If touching
cannot be avoided, please do not make contact for more than 1 second. There is a
warning sticker for IEC 60417-5041(DB: 2002-10) on a visible part of the top cover.
2.2 UBX-110 I/O Connectors
Figure 2.1 UBX-110 Front View
Figure 2.2 UBX-110 Rear View

7 UBX-110 User Manual
Chapter 2 Hardware Installation
2.3 Hardware Installation
2.3.1 Memory, M.2 SSD, and Wi-Fi Module Installation
Please follow these steps to install the memory and M.2 SSD for the UBX-110.

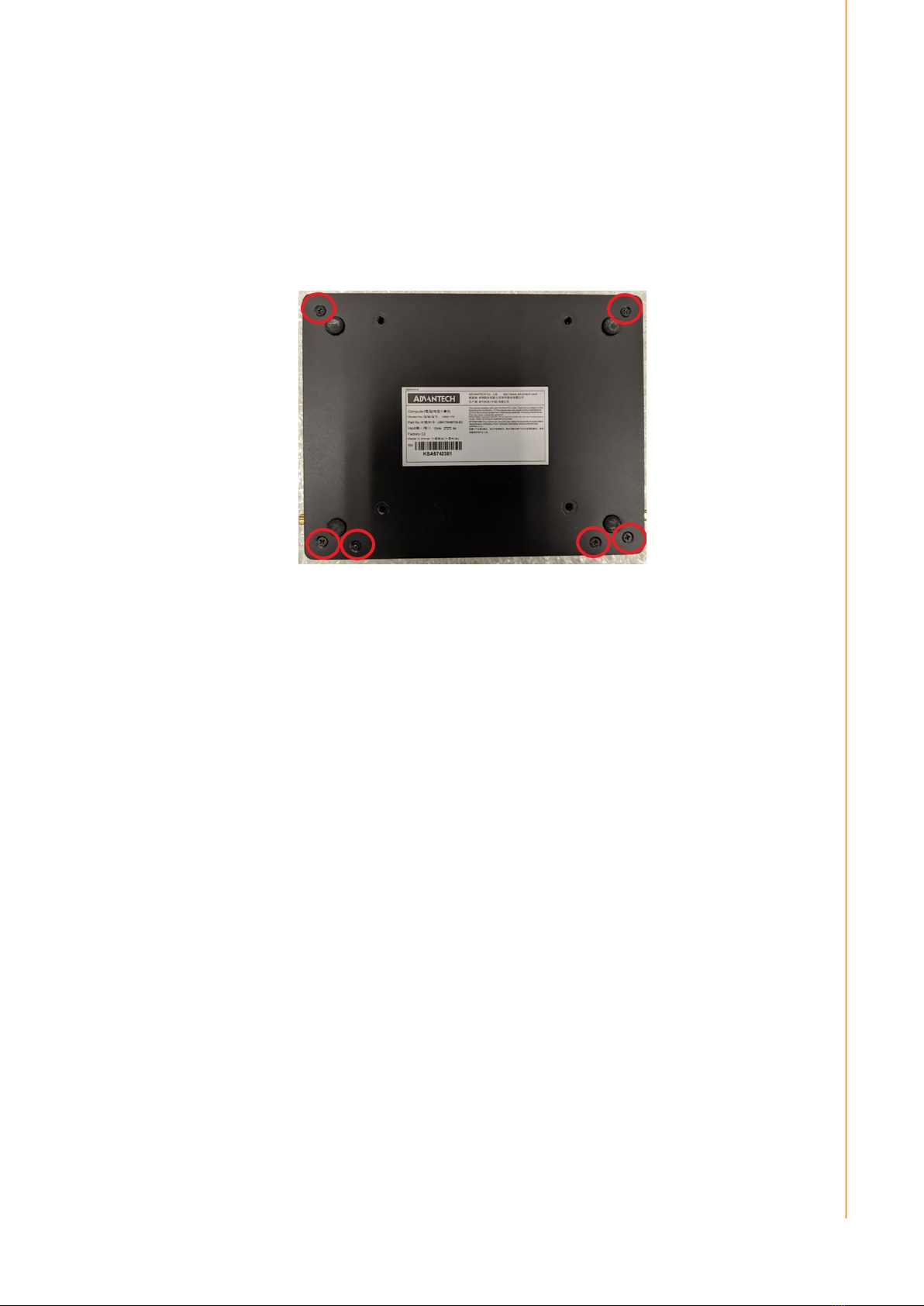

1. Remove the specified 6 screws.

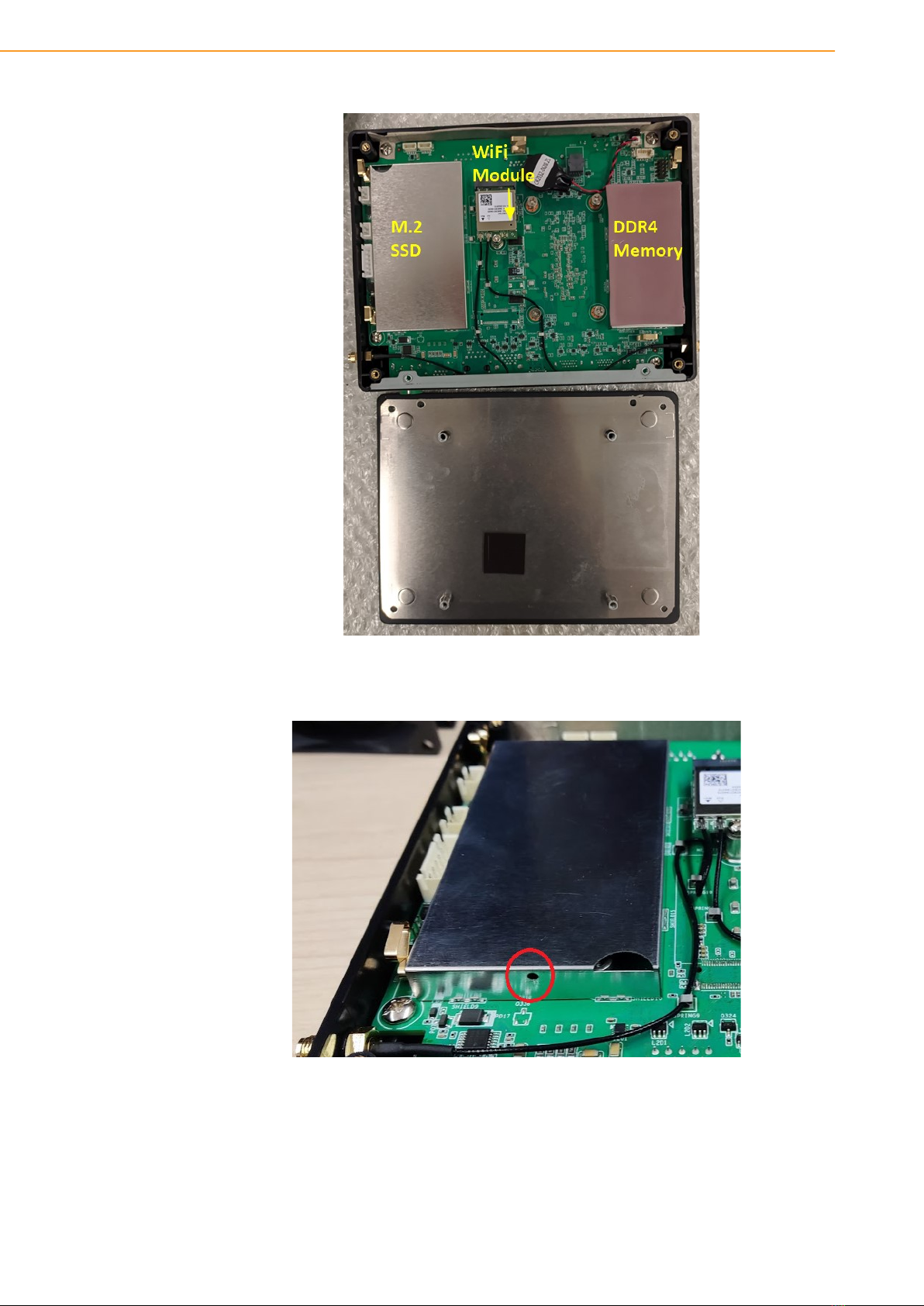

2. After removing the 6 screws, please remove the bottom cover. You will see one
DDR4 memory slot, two SSD slots, and one Wi-Fi module slot under the shield-
ing cases, respectively.

UBX-110 User Manual 8
3. Please use a tool to help remove the shielding case without breaking it.
a) In the memory slot, please add the DDR4 memory and stick the thermal
pads inside and on top of the shielding case.

9 UBX-110 User Manual
Chapter 2 Hardware Installation

UBX-110 User Manual 10
b) Regarding the M.2 SSD slots, please remove the screws and insert the SSD
into an M.2 2280 slot.
c) For the Wi-Fi module, please add it using the two antenna cables. Users
need to screw in the connector screws to fix the cable connection.
2.4 VESA Mounting Kit Installation
The UBX-110 VESA mounting kit is compatible with horizontal installation and verti-
cal installation. Users can select an appropriate installation.
Figure 2.3 UBX-110 Horizontal Installation
Figure 2.4 UBX-110 Vertical Installation
