Advantech AWS-8248V Series User manual

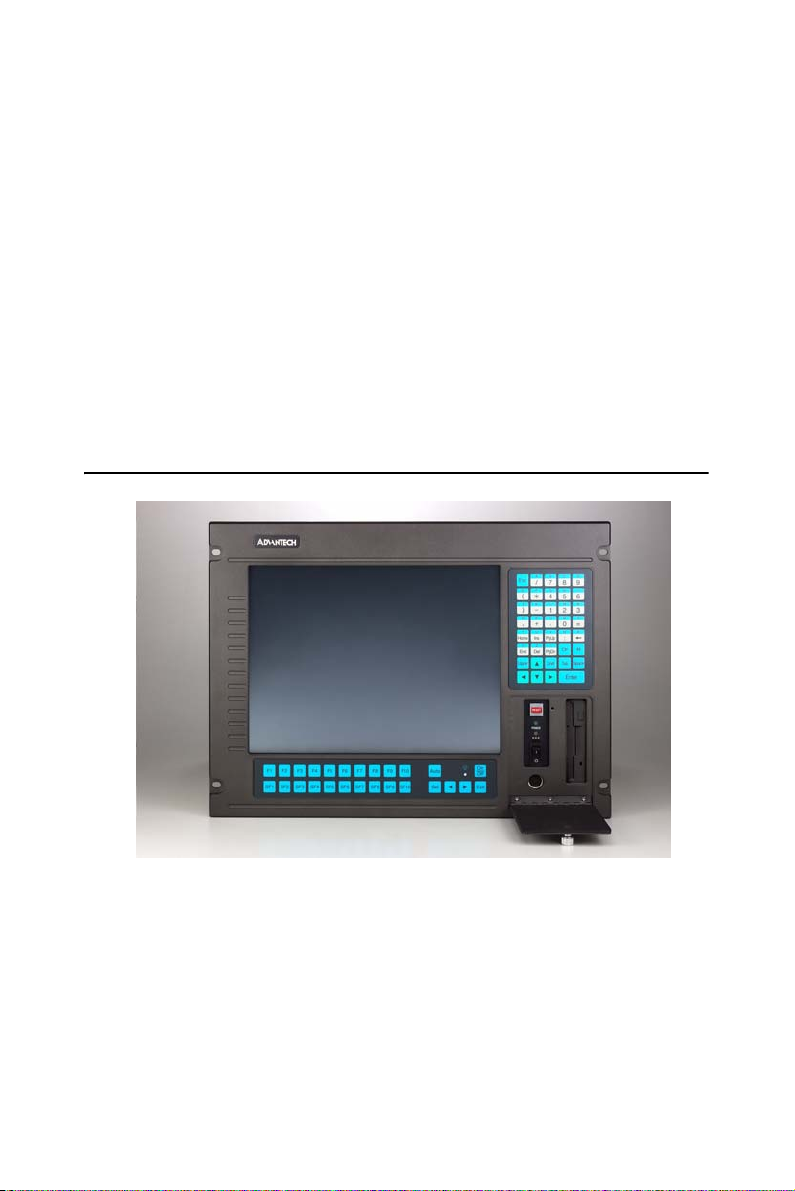

AWS-8248V
Industrial Workstation with 15"
LCD Display
User’s Manual

AWS-8248V User’s Manual ii
Copyright
This document is copyrighted September, 2002, by Advantech Co., Ltd.
All rights are reserved. Advantech Co., Ltd. reserves the right to make
improvements to the products described in this manual at any time. Spec-
ifications are thus subject to change without notice.
No part of this manual may be reproduced, copied, translated, or transmit-
ted in any form or by any means without the prior written permission of
Advantech Co., Ltd. Information provided in this manual is intended to
be accurate and reliable. However, Advantech Co., Ltd., assumes no
responsibility for its use, nor for any infringements upon the rights of
third parties which may result from its use.
Acknowledgements
AWS-8248VT, AWS-8248VTP, AWS-8248VT-T, and AWS-8248VTP-T
are all trademarks of Advantech Co., Ltd. IBM and PC are trademarks of
International Business Machines Corporation. MS-DOS is a trademark of
Microsoft Corporation. All other brand and product names mentioned
herein are trademarks or registered trademarks of their respective owners.
Printed in Taiwan September 2002

iii

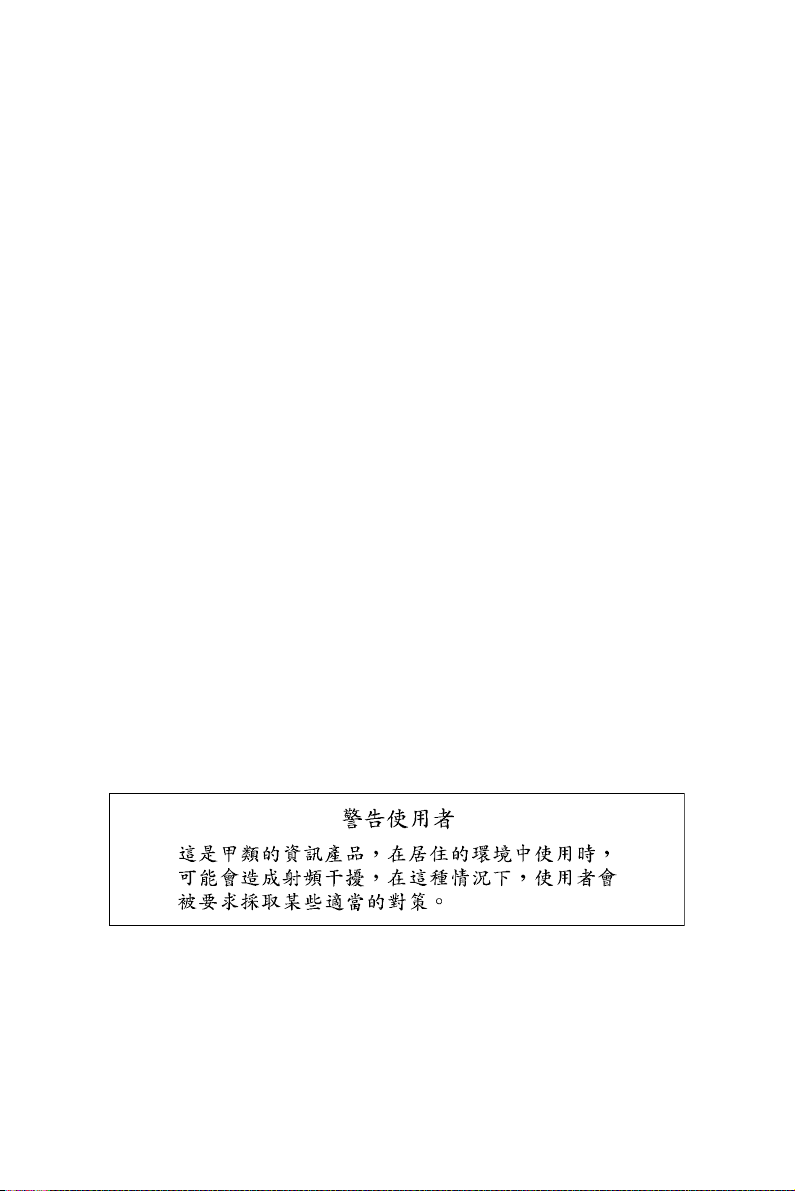

FCC Class A
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy. If not
installed and used in accordance with this user's manual, it may cause
harmful interference to radio communications. Operation of this equip-
ment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at his own
expense.

AWS-8248V User’s Manual iv
Packing List
Before you set up the AWS-8248V, make sure that the following items
have been included in your package, and that this manual is in good con-
dition. If anything is missing or damaged, contact your dealer immedi-
ately:
• One AWS-8248V industrial workstation with 15" flat panel display
• One accessory box, including:
- One power cord
- One keyboard transfer cable
- One CD-R for IC & HMI products Driver/manual
- Flat gray cable for 3.5" HDD and slim CD-ROM
- RS-232 cable to link touchscreen to CPU card (for -T models only)
- Screw bag with screws-
If any of these items is missing or damaged, contact your distributor or sales
representative immediately.
Additional Information and Assistance
1.Visit the Advantech web site at www.advantech.com where you can
find the latest information about the product.
2.Contact your distributor, sales representative, or Advantech's customer
service center for technical support if you need
additional assistance. Please have the following information ready before
you call:
•Product name and serial number
•Description of your peripheral attachments
•Description of your software (operating system, version, application
software, etc.)
•A complete description of the problem
•The exact wording of any error messages

v
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User's Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp
cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the
equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or let-
ting it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power
source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service
personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according
to the user's manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE
THE STORAGE TEMPERATURE MAY GO BELOW -20° C (-4° F) OR
ABOVE 60° C (140° F). THIS COULD DAMAGE THE EQUIPMENT. THE
EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.
The sound pressure level at the operator's position according to IEC 704-1:1982 is
no more than 70dB (A).
DISCLAIMER: This set of instructions is given according to IEC 704-1. Advan-
tech disclaims all responsibility for the accuracy of any statements contained
herein.

AWS-8248V User’s Manual vi
W i c h t i g e S i c h e r h e i s h i n w e i s e
1. Bitte lesen sie Sich diese Hinweise sorgfältig durch.
2. Heben Sie diese Anleitung für den späteren Gebrauch auf.
3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie
Keine Flüssig-oder Aerosolreiniger. Am besten dient ein angefeuchtetes Tuch
zur Reinigung.
4. Die NetzanschluBsteckdose soll nahe dem Gerät angebracht und leicht
zugänglich sein.
5. Das Gerät ist vor Feuchtigkeit zu schützen.
6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen
oder Fallen könnte Verletzungen hervorrufen.
7. Die Belüftungsöffnungen dienen zur Luftzirkulation die das Gerät vor überhit-
zung schützt. Sorgen Sie dafür, daB diese Öffnungen nicht abgedeckt werden.
8. Beachten Sie beim. AnschluB an das Stromnetz die AnschluBwerte.
9. Verlegen Sie die NetzanschluBleitung so, daB niemand darüber fallen kann.
Es sollte auch nichts auf der Leitung abgestellt werden.
10. Alle Hinweise und Warnungen die sich am Geräten befinden sind zu
beachten.
11. Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom
Stromnetz trennen. Somit wird im Falle einer Überspannung eine Beschädi-
gung vermieden.
12. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten
in das Gerät gelangen. Dies könnte einen Brand bzw. elektrischen Schlag aus-
lösen.
13. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen
Sicherheit nur von authorisiertem Servicepersonal geöffnet werden.
14. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen
und von einer qualifizierten Servicestelle zu überprüfen:
a - Netzkabel oder Netzstecker sind beschädigt.
b - Flüssigkeit ist in das Gerät eingedrungen.
c - Das Gerät war Feuchtigkeit ausgesetzt.
d - Wenn das Gerät nicht der Bedienungsanleitung entsprechend funktioniert
oder Sie mit Hilfe dieser Anleitung keine Verbesserung erzielen.
e - Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.
f - Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.
Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000
beträgt 70dB(A) oder weiger.
DISCLAIMER: This set of instructions is given according to IEC704-1.
Advantech disclaims all responsibility for the accuracy of any statements
contained herein.

vii
Contents
Chapter 1 Introduction ......................................................2
1.1 Introduction ....................................................................... 2
1.1.1 Features:.......................................................................... 3
1.2 Specifications .................................................................... 3
1.3 Front and rear panel layout................................................ 5
1.4 Dimensions........................................................................ 6
Chapter 2 System Setup.....................................................8
2.1 General .............................................................................. 8
2.2 Rack mounting .................................................................. 9

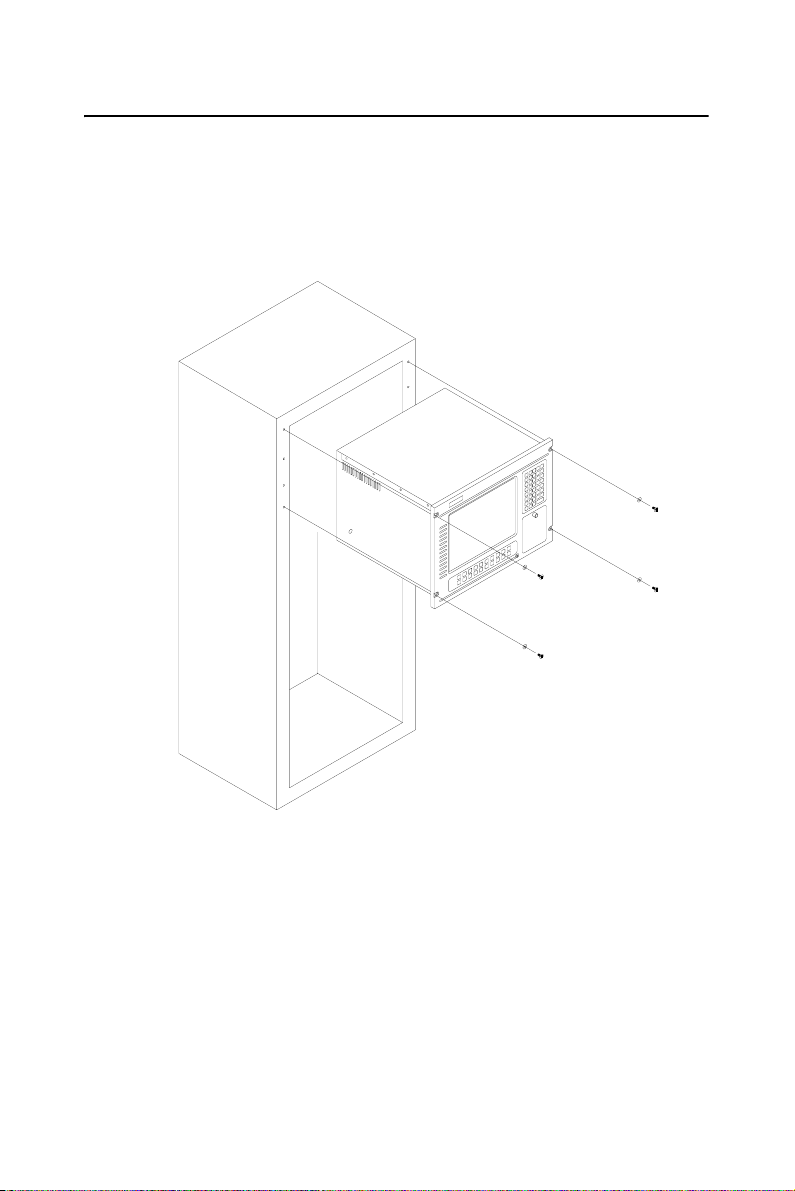

Figure 2.1:Rack mounting the AWS-8248 ..................... 9
2.3 Panel mounting................................................................ 10
Figure 2.2:Panel mounting the AWS-8248................... 10
Chapter 3 Programming KBT-2002 Macro Keys .........14
3.1 Introduction ..................................................................... 14
3.2 Macro keys ...................................................................... 14
3.3 Using Main.exe to edit Macro Key ................................. 14
3.4 Examples ......................................................................... 15
Appendix A Display Timing Mode and OSD ...................22
A.1 Supported Input Timing Modes ...................................... 22
Table A.1:Display Modes Table................................... 22
A.2 OSD Operation Keypad .................................................. 24
A.3 OSD function and operation............................................ 25
Figure A.1:OSD menu .................................................. 25
Table A.3:OSD Functionality ....................................... 26
Appendix B Power Supply Specifications ........................28
B.1 Supported Input Timing Modes ...................................... 28
B.1.1 Specifications................................................................ 28
B.2 -48 V DC power supply .................................................. 29
B.2.1 Specifications................................................................ 29
Table B.1:-48 VDC power supply output
characteristics ..................... 29
Table B.2:-48 VDC power supply DC output wire list 32
B.3 24 VDC power supply..................................................... 33
Table B.3:24VDC power supply output load range .... 33
B.3.1 General features ............................................................ 34
Appendix C Optional Touchscreen...................................38
C.1 Specifications .................................................................. 38
C.2 Installation of Touchscreen Driver.................................. 39

AWS-8248V User’s Manual viii

CHAPTER
1
Introduction
• Introduction
• Specifications
• Front and rear panel layout
• Dimensions

AWS-8248V User’s Manual 2
Chapter 1 Introduction
1.1 Introduction
The AWS-8248V is a 14-slot, 15” TFT LCD workstation. It is a great
update to the AWS-8248 product line by offering more expansion capa-
bility, a larger LCD screen, and increased usability, all at an even more
competitive price. The AWS-8248V also provides an additional major
feature for users: Easy maintenance. Using three card-cages and thumb-
screw fasteners, the AWS-8248V makes maintenance quick and easy.
The AWS-8248V combines multiple slots and 15” LCD in a more cost
effective and easier to maintain design.
Easy-to-maintain: Three card-cage and thumbscrew fasteners
The AWS-8248V's "work drawer" designed card cage conveniently
slides out for easy access. These three card-cages (one drawer previously)
allow add-on cards, HDD/CD-ROMs and power supplies to be easily
changed or added. It only takes a few minutes to service the unit, saving
time and money while reducing downtime. The thumbscrew fasteners
make access fast and easy, speeding maintenance procedures.
Easy access control panel
Users can easily access the AWS-8248V's controls from the front of the
unit via a sturdy protective door. Controls include LEDs and switches for
power and system reset, as well as an OSD in front. The front panel also
holds a 3¾" 1.44 MB FDD. The aluminum door protects controls from
the environment. The door has a waterproof foam-rubber seal and retain-
ing hand screw to securely hold it closed. In addition, the door offers pro-
tection against accidental operation of the unit's controls.
Industrial design meets harsh environment needs
In addition, the AWS-8248V also features many powerful functions that
meet or exceed industrial-grade requirements. The front panel is made of
aluminum, which prevents the panel from being damaged by acid, salt
and other elements. The unit is also waterproof and IP65/ NEMA4 com-
pliant. The AWS-8248V provides three mounting configurations to fit
various applications: 19" rack mount, panel mounting and desktop.

3 Chapter1
1.1.1 Features:
• Low cost 15", 14-slot TFT LCD workstation, and 1024 x 768 resolution
• Three card-cage design: Easy to maintain add-on cards, CPU card and
power supply.
• Two 3.5î HDDs with mobile rack drive & CD-ROM drive in back of
chassis
• Equipped with the On-Screen Display (OSD) operation keypad on the
front panel
• IP65/NEMA 4, Aluminum panel.
1.2 Specifications
General
• Construction: Heavy-duty aluminum and steel chassis
• Disk drive housing: Holds one 3½" FDD, one CD-ROM and two
3½" HDD (CD-ROM and HDD optional)
• Cooling system:
- One 32 CFM fan (flow out) on rear panel for power supply
• Dimensions:
- Width: 482 mm (19.0")
- Depth: 450 mm (17.7")
- Height: 356 mm (14.0")
• Weight: 20 kg (44 lbs)
LCD Display
- Display type: 15" TFT LCD
- Max. resolution: 1024 x 768
- Maxi. colors: 262K
- Luminance (cd/m2): 200
- Viewing angle: 100°(H), 120°(V)
- Operating temperature: 0 ~ 50°C (32 ~ 122° F)
- LCD MTBF: 50,000 hours

AWS-8248V User’s Manual 4
- Backlight lifetime: 50,000 hours
- Interface: Direct VGA
- LCD defect specification: refer to Advantech web site
Front Panel
• Keypads: One with 39 operating keys, one with 10 function keys
and 10 programmable macro function keys
• Keyboard connector: Pre-wired 5-pin DIN connector with dust-
protection cover on front and rear panel
• Switches: Reset and power on/off.
Passive backplane
• AWS-8248VT & AWS-8248VT-T:
14 ISA slot passive backplane
• AWS-8248VTP & AWS-8248VTP-T:
9 ISA / 4 PCI / 1 CPU slot passive backplane
Power supply
• AC input: 250 W (standard offer)
• Input voltage:
95 ~ 132 VAC or 190 ~ 264 VAC , switchable
• Output voltage:
+3.3V@20A, +5 V @ 27 A; +12 V @ 13 A; -5 V @ 0.3 A; -12 V @
0.8 A
• MTBF: 100,000 hours
• Safety: UL/CSA/TUV
-48 VDC input 250 W (optional)
• Input voltage: -36 ~ -72 VDC
• Output voltage:
+3.3V@25A, +5 V @ 30 A; +12 V @ 12 A; -5 V @ 0.5 A; -12 V @
1.0 A
• MTBF: 100,000 hours

5 Chapter1
24 VDC input 250 W (optional)
• Input voltage: 19 ~ 32 VDC
• Output voltage:
+5 V @ 25 A; +12 V @ 10 A; -5 V @ 1.0 A; -12 V @ 1.0 A
• MTBF: 100,000 hours
Environmental specifications
• Operating temperature: 0 ~ 50° C (32 ~ 122° F)
• Relative humidity: 5 ~ 85% @ 40° C, non-condensing
• Vibration: 5 ~ 17 Hz, 0.1" double-amplitude displacement 17 ~
500 Hz, 1.0 G peak to peak.
1.3 Front and rear panel layout
Figure 1.1: Front panel layout

AWS-8248V User’s Manual 6
Figure 1.2: Rear panel layout
1.4 Dimensions
Figure 1.3: AWS-8248 dimensions

CHAPTER
2
System Setup
• General
• Rack Mounting
• Panel mounting

AWS-8248V User’s Manual 8
Chapter 2 System Setup
2.1 General
When you receive your workstation you will find a backplane, power
supply, and floppy disk drive already installed. Further setup of the
AWS-8248V is easy. All you have to do is slide out its work drawer mod-
ule, install a CPU card, optional hard disk drive and whatever additional
I/O cards your application requires.
Warning! 1. Do not begin your installation until you are
sure there is no power flowing within the AWS-
8248V. Power must be switched off and the
main power cord unplugged.
2. Every time you service the AWS-8248V, you
should switch the power off and unplug the
main power cord.

9 Chapter2
2.2 Rack mounting
The AWS-8248 can be mounted in a 19" rack. Ensure that all addi-tional
equipment has been installed correctly and that the cabling has been reat-
tached. (See Fig. 2-7) Remove the screw covers on the front panel. Attach
the case to the rack using screws on both sides.
Figure 2.1: Rack mounting the AWS-8248

AWS-8248V User’s Manual 10
2.3 Panel mounting
Panel mounting the AWS-8248 is easy. Just line up the holes in the panel
aperture and the holes on the panel, and then secure the AWS-8248 to the
panel with the mounting bolts.
Figure 2.2: Panel mounting the AWS-8248

CHAPTER
3
Programming KBT-2002
Macro Keys
• Introduction
• Macro Keys
• Using Main.exe to edit Macro Key
• Examples

AWS-8248V User’s Manual 14
Chapter 3 Programming KBT-2002
Macro Keys
3.1 Introduction
The KBT-2002 is equipped with programmable function keys (macro
keys) that greatly enhances the operating interface. Macros, which are far
more powerful than batch files; automate the most commonly used input
sequences. They extend their functional reach within application pro-
grams.
3.2 Macro keys
Macro keys (SF1 , SF2 ,...SF10)
Ten programmable macro keys are located on the front panel of the work-
station.
Macro keys (SF11 , SF12 ,...SF30)
These twenty programmable macro keys are customized models. If your
workstation doesn’t have these twenty keys, you do not need to edit SF 11
to SF 30 when using the utility program, Main.exe, to edit the macro
keys.
The limitation of editing the macro keys
When editing the macro keys, the number of characters is limited to 78.
Every ten macro keys are defined as one block; there are three blocks in
total. The size of each block is limited under 256 bytes. Please refer to the
next section for editing the macro keys.
3.3 Using Main.exe to edit Macro Key
First, copy all the files to your hard disk and/or make a backup disk. Take
a look at the content of the utility disk; please find the .pad file that corre-
sponds to your workstation, for example, AWS8420.pad. Remember this
file name, because you will need it to edit the macro keys.
