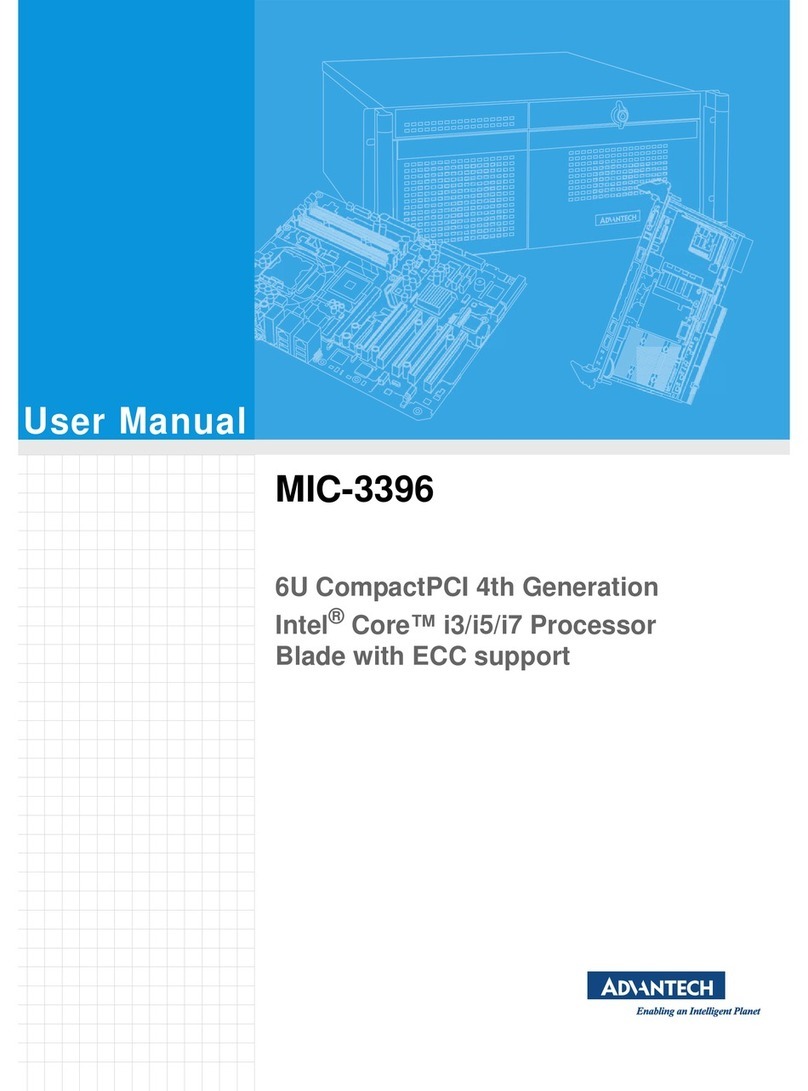

Advantech MIC-3396 User manual

Advantech

Advantech MIC-3396 User manual

Advantech AIMB-542 Series User manual

Advantech

Advantech AIMB-542 Series User manual

Advantech PCI-6881 Series User manual

Advantech

Advantech PCI-6881 Series User manual

Advantech AIMB-226 User manual

Advantech

Advantech AIMB-226 User manual

Advantech MIC-3329 Series User manual

Advantech

Advantech MIC-3329 Series User manual

Advantech AIMB-210 Installation and operation manual

Advantech

Advantech AIMB-210 Installation and operation manual

Advantech AIMB-230 User manual

Advantech

Advantech AIMB-230 User manual

Advantech PCM-9389 User manual

Advantech

Advantech PCM-9389 User manual

Advantech PPC-MB-8260AE Installation and operation manual

Advantech

Advantech PPC-MB-8260AE Installation and operation manual

Advantech MIC-3389 User manual

Advantech

Advantech MIC-3389 User manual

Advantech AIMB-240 Series Installation and operation manual

Advantech

Advantech AIMB-240 Series Installation and operation manual

Advantech AIMB-707 Installation and operation manual

Advantech

Advantech AIMB-707 Installation and operation manual

Advantech PCA-6753F User manual

Advantech

Advantech PCA-6753F User manual

Advantech PCE-7214 User manual

Advantech

Advantech PCE-7214 User manual

Advantech PCE-7128 Installation and operation manual

Advantech

Advantech PCE-7128 Installation and operation manual

Advantech MIX-Q670A1 User manual

Advantech

Advantech MIX-Q670A1 User manual

Popular Motherboard manuals by other brands

DFI SD170 user manual

DFI

DFI SD170 user manual

ASROCK ROMED8-2T user manual

ASROCK

ASROCK ROMED8-2T user manual

Asus P2L97A user manual

Asus

Asus P2L97A user manual

Winmate IC70 user manual

Winmate

Winmate IC70 user manual

Asus MES-B user manual

Asus

Asus MES-B user manual

Grantech SYS8F377VGGA-3OMN user manual

Grantech

Grantech SYS8F377VGGA-3OMN user manual

Telit Wireless Solutions SL869-3DR user guide

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR user guide

Texas Instruments ADS8372EVM user guide

Texas Instruments

Texas Instruments ADS8372EVM user guide

Commell MS-C73 user manual

Commell

Commell MS-C73 user manual

Gigabyte GA-9IVDT user manual

Gigabyte

Gigabyte GA-9IVDT user manual

IBT Technologies MB860 user manual

IBT Technologies

IBT Technologies MB860 user manual

Nvidia TEGRA DG-04927-001_V01 user guide

Nvidia

Nvidia TEGRA DG-04927-001_V01 user guide

Intel D33217CK specification

Intel

Intel D33217CK specification

Asus F1A55-M LX PLUS R2.0 user manual

Asus

Asus F1A55-M LX PLUS R2.0 user manual

EPC EPC9147C quick start guide

EPC

EPC EPC9147C quick start guide

Asus EX-B760M-V5 D4 quick start guide

Asus

Asus EX-B760M-V5 D4 quick start guide

EPOX MU-8KHA0010 user manual

EPOX

EPOX MU-8KHA0010 user manual

Ski-Doo Bombardier MPEM 219 700 090 user guide

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 user guide

https://manuals.online logo
https://manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2026 Manuals.Online. All Rights Reserved.

AIMB-705 Startup Manual 1
AIMB-705 LGA1151 Intel® Core™ i7/i5/i3 ATX with
Dual Display, DDR4, SATA III
Startup Manual
Specications (Cont.)
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the AIMB-705 series Rev. A1.
Part No. 2001070511
Printed in China
2nd Edition
January 2017
Before you begin installing your card, please make sure
that the following items have been shipped:
• 1 Startup Manual
• 1 Driver CD (user’s manual is included)
• 2 Serial ATA HDD data cables
• 1 Serial ATA HDD power cable
• 1 I/O port bracket
• 1 Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
Standard Functions
• CPU: LGA1151 6th and 7th Generation Intel® Core™ i7/
i5/i3/Pentium/Celeron
Note: The Intel 7th generation processors only support
Windows 10 (64-bit).
• BIOS: AMI 128 Mb SPI BIOS
• Chipset: Intel® H110 chipset
• System memory: Up to 32 GB with two 288-pin
DIMM sockets. Supports dual channel non-ECC DDR4
1866/2133 MHz
Note: Due to the inherent limitations of PC
architecture, the system may not fully detect
32 GB RAM when 32 GB RAM is installed
Specications
• SATA interface: Four on-board Serial ATAIII connectors
support data transmission rates up to 600 MB/s. All four
SATAIII ports support Advanced Host Controller Interface
(AHCI) technology
• PCIe and PCI slot: 1 PCIe x16 expansion slot, 1 PCIe
x4 expansion slot, 5 PCI slots 32-bit/33 MHz PCI 2.2
compliant
• LPC interface: Advantech-designed LPC connector
supports TPM module
• Serial ports: Up to six serial ports: COM1, COM2 and
COM4 ~ 6 are RS-232; COM3 is RS-232/422/485 with
jumper and BIOS options
• Parallel port: One parallel port, which supports SPP/
EPP modes
• Keyboard/mouse connector: Supports standard PS/2
keyboard and mouse
• Watchdog timer: 255 sec timer level intervals
• USB 3.0: Up to 4 (2 x pin header, 2 x rear I/O)
• USB 2.0: Up to 5 (2 x pin header, 2 x rear I/O, 1 x vertical
type A)
Graphic Interface
• Chipset: CPU integrated Intel HD graphics controller
• Display Memory: 1 GB maximum shared memory with 2
GB and above system memory installed
• Resolution:
- Supports VGA up to 1920 x 1200 resolution @ 60 Hz
refresh rate
- Supports DVI up to 1920 x 1200 resolution @ 60 Hz
refresh rate
Ethernet interface
• Interface: 10/100/1000 Mbps
• Controller: LAN1: Intel
®
I219-V; LAN2: Intel
®
I211-AT
Mechanical and Environmental
• Dimensions (L x W): 304.8 x 244 mm (12” x 9.6”)
• Power supply voltage: +3.3 V, +5 V, +12 V, +5 Vsb
• Power Consumption:
Intel Core Intel I7-6700 @ 3.4 GHz; DDR4 8 G x 2
Maximum: +3.3 V at 0.49 A, +5 V at 3.13 A, +12 V at 7.88
A, +5 Vsb at 0.08 A, -5 V at -0.07 A, -12 V at -0.07 A
• Operating temperature: 0 ~ 60° C (depending on CPU)
• Weight: 0.5 kg (weight of board)
2 AIMB-705 Startup Manual
The board has a number of jumpers that allow you to con-
figure your system to suit your application. The table below
lists the function of each jumper and connector.
Connector / Jumper List
Label Function
EATXPWR1 ATX 24-pin main power connector (for
system)
ATX12V1 ATX 12 V auxiliary power connector
(for CPU)
DIMMA1 Channel A DIMM1
DIMMB1 Channel B DIMM1
SATA0 ~ 3 SATA III (Gen3)
LAN1_
USB3_34
LAN1 / USB 3.0 port 1, 2 stack
connector
LAN2_
USB34
LAN2 / USB 2.0 port 1, 2 stack
connector
USB3_12 USB 3.0 (pin header)
USB5 USB 2.0 (type A)
USB910 USB 2.0
PCIEX16_1 PCIe x16 slot (Gen3)
PCIEX4_1 PCIe x4 slot (Gen2)
PCI1 ~ 5 PCI slot (32-bit/33 MHz)
VGA1+DVI1 VGA connector / DVI connector
VGA1 VGA connector
COM12 Serial port: RS-232
COM3 Serial port: RS-232/422/485
COM4 ~ 6 Serial port: RS-232
LPT1 Parallel port supporting SPP/EPP mode
KBMS1 Keyboard and Mouse PS/2 connector
KBMS2 Keyboard and Mouse PS/2 connector
(box header)
JFP1 Power switch / reset connector
JFP2 External speaker / HDD LED connector
/ SM Bus connector
JFP3
Keyboard lock and power LED
Suspend: fast ash (ATX/AT)
System On: on (ATX/AT)
System Off: off (AT/ATX)
VOLT1 Voltage Display
CPUFAN1 CPU fan connector (4 pin)
SYSFAN1 ~2 System fan connector (4 pin)
LANLED1 Front panel LAN indicator connector
AUDIO1 Audio connector (Line-out, Mic-in)
FPAUD1
Front panel audio pin header
SPI_CN1 SPI ash card pin header
SPDIF_OUT1
SPDIF audio output pin header
GPIO1 8 bit GPIO from super I/O
SMBUS1
SM bus from PCH
LPC1 Low pin count connector for Advantech
TPM LPC and RS232 modules.
JCMOS1/JME1: CMOS clear/ME update function
Pins Result
1-2 Keep CMOS data/Enable ME update*
2-3
Clear CMOS data/Disable ME update
* Default
*Keep CMOS data/ *Clear CMOS data/
Enable ME update Disable ME update
JWDT1: Watchdog timer output option
Closed Pins
Result
2-4 NC
4-6 System reset*
* Default
NC 2-4 Closed *System Reset 4-6 Closed
PSON1: ATX, AT mode selector
Closed Pins
Result
1-2 AT Mode
2-3 ATX Mode*
* Default
AT Mode 1-2 closed *ATX Mode 2-3 closed
12 3
12 3
12 3
12 3
Jumpers and Connectors Jumpers and Connectors (Cont.)
AIMB-705 Startup Manual 3
JUSB_2: USB power source switch between +5V and
+5V_ DUAL for onboard USB ports
Closed Pins
Result
1-2 *USB +5V_DUAL Power
2-3 USB +5V Power
* Default
*USB +5 V_DUAL Power USB +5 V Power
12 3
12 3
The CD disc contains a driver installer program that will
lead you through the installation of various device drivers
needed to take full advantage of your motherboard.
Caution! The computer is supplied with a battery-pow-
ered realtime clock circuit. There is a danger
of explosion if battery is incorrectly replaced.
Replace only with same or equivalent type
recommended by the manufacturer. Discard
used batteries according to manufacturer’s
instructions.
This device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Jumpers and Connectors (Cont.) Software Installation
Declaration of Conformity
Board Layout
KBMS1
DIMMB1
DIMMA1
SYSFAN1
VO LT1
EATXPWR1
PSON1
JWDT1+JOBS1
JFP3
JFP1+JFP2 SMBUS1
GPIO1
LPT1
SPI_CN1
SATA0 ~ SATA3
COM3
COM4
COM5
COM6
LP C1
USB5
USB910
USB3_12
CPU1
CPUFAN1
PCI1
PCI2
PCI3
PCI4
PCIEX4_1
PCI5
PCIEX16_1
FPAUD1
LANLE D1
SPDIF_OUT 1
AUDIO1
AUDIO2
LAN1_USB3_34
LAN2_USB34VGA1+DVI1
COM12
SYSFAN2
KBMS2
ATX12V1
JCASE1
JCMOS1
3 6 9 12
25811
PWRSW RESET
HDDLED
SNMP
JFP1
&
2 5 8 11
1 4 7 10
HDDLED
SM_BUS
SPEAKER
JFP2
&
PWRLED & KEYLOCK
12345
JFP3
Figure 1: Board Layout: Jumper and Connector Locations
