Aeotec MultiSensor 7 User manual
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 1/37
Aeotec
MultiSensor 7
SKU: AEOEZWA024
Quickstart
This is a secure Alarm Sensor for Europe. To run this device please insert fresh 2 * CR123A batteries. Please make sure the internal battery is fully
charged.
I
f
your
Z
-
W
a
v
e
ga
t
e
w
a
y
supports
S
m
a
rt
S
t
a
rt
,
you
ca
n
s
ca
n
t
he
QR
c
o
de
on
t
he
M
ult
i
S
e
nsor
7
to
a
utom
a
t
ica
lly
p
ai
r
t
he
s
e
nsor
if
your
Z
-
W
a
v
e
h
u
b
supports
t
hi
s
.
Important safety information
Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law. The manufacturer, importer,
distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material. Use this
equipment only for its intended purpose. Follow the disposal instructions. Do not dispose of electronic equipment or batteries in a fire or near open heat sources.
What is Z-Wave?
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 2/37
Z-Wave is the international wireless protocol for communication in the Smart Home. This device is suited for use in the region mentioned in the Quickstart section.
Z-Wave ensures a reliable communication by reconfirming every message (two-way communication) and
every mains powered node can act as a repeater for other nodes (meshed network) in case the receiver is
not in direct wireless range of the transmitter.
This device and every other certified Z-Wave device can be used together with any other certified Z-
Wave device regardless of brand and origin as long as both are suited for the same frequency range.
If a device supports secure communication it will communicate with other devices secure as long as this
device provides the same or a higher level of security. Otherwise it will automatically turn into a lower level
of security to maintain backward compatibility.
For more information about Z-Wave technology, devices, white papers etc. please refer to www.z-wave.info.
Product Description
A
e
ot
ec
M
ult
i
S
e
nsor
7
w
a
s
de
v
e
lop
ed
to
de
t
ec
t
a
m
bie
nt
v
a
lu
e
s
a
n
d
mov
e
m
e
nt
a
n
d
to
tr
a
nsm
i
t
t
he
m
w
i
t
h
Z
-
W
a
v
e
P
lus
.
I
t
i
s
pow
e
r
ed
b
y
A
e
ot
ec
ʼ
s
G
e
n
7
t
ech
nolo
g
y
.
Y
ou
ca
n
fi
n
d
out
mor
e
ab
out
M
ult
i
S
e
nsor
7
b
y
f
ollow
i
n
g
t
ha
t
l
i
n
k
.
Prepare for Installation / Reset
Please read the user manual before installing the product.
In order to include (add) a Z-Wave device to a network it must be in factory default state. Please make sure to reset the device into factory default. You can do
this by performing an Exclusion operation as described below in the manual. Every Z-Wave controller is able to perform this operation however it is recommended
to use the primary controller of the previous network to make sure the very device is excluded properly from this network.
Reset to factory default
This device also allows to be reset without any involvement of a Z-Wave controller. This procedure should only be used when the primary controller is inoperable.
Press and hold the button for 20 seconds. When the red led flashes, the device will enter the factory reset mode.
Safety Warning for Batteries
The product contains batteries. Please remove the batteries when the device is not used. Do not mix batteries of different charging level or different brands.
Installation
D
e
t
e
rm
i
n
e
t
he
pow
e
r
typ
e
you
w
a
nt
to
us
e
.
M
ult
i
S
e
nsor
7
ca
n
be
a
sl
ee
p
i
n
g
ba
tt
e
ry
de
v
ice
or
a
r
e
p
ea
t
e
r
a
s
a
U
SB
-
pow
e
r
ed
de
v
ice
.
M
ake
sur
e
you
s
e
l
ec
t
your
pr
efe
rr
ed
pow
e
r
typ
e
bef
or
e
you
st
a
rt
p
ai
r
i
n
g
.
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 3/37
N
ot
e
-
A
ny
t
i
m
e
you
cha
n
ge
t
he
i
nput
pow
e
r
typ
e
(
ie
.
B
a
tt
e
ry
to
U
SB
pow
e
r
),
you
s
h
oul
d
r
e
-
i
n
c
lu
de
a
s
your
Z
-
W
a
v
e
h
u
b
w
i
ll
only
un
de
rst
a
n
d
if
i
t
i
s
a
sl
ee
p
i
n
g
de
v
ice
or
a
R
e
p
ea
t
e
r
de
v
ice
upon
i
ts
fi
rst
p
ai
r
i
nto
your
c
ontroll
e
r
.
F
or
a
U
SB
pow
e
r
ed
i
nst
a
ll
a
t
i
on
(
ac
ts
a
s
a
r
e
p
ea
t
e
r
w
he
n
p
ai
r
ed
on
U
SB
pow
e
r
):

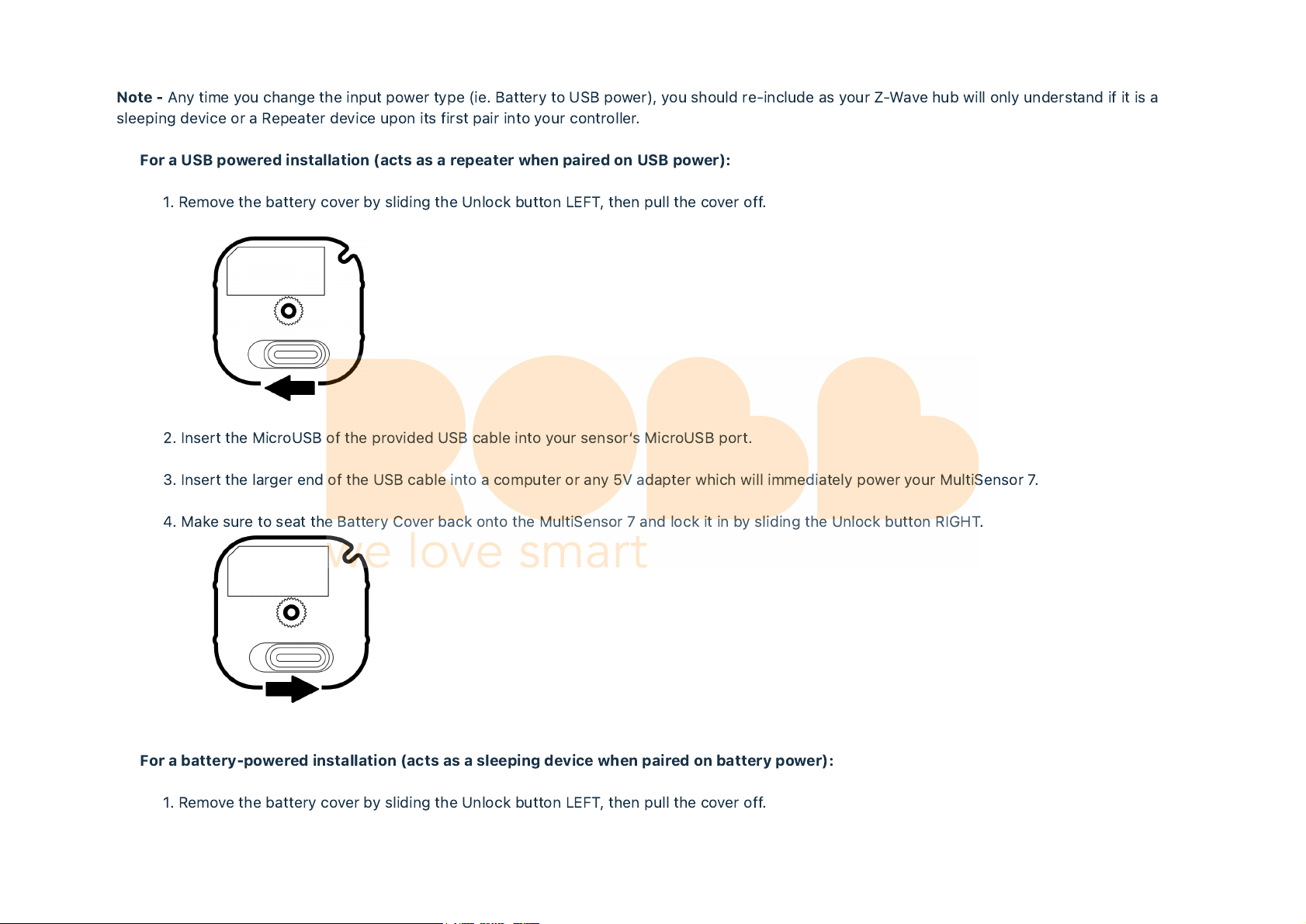

1.
R
e
mov
e
t
he
ba
tt
e
ry
c
ov
e
r
b
y
sl
idi
n
g
t
he
U
nlo
ck
b
utton
LEF
T
,
t
he
n
pull
t
he
c
ov
e
r
o
ff
.
2.
I
ns
e
rt
t
he
M
ic
ro
U
SB
o
f
t
he
prov
ided
U
SB
cab
l
e
i
nto
your
s
e
nsor
‘
s
M
ic
ro
U
SB
port
.
3.
I
ns
e
rt
t
he
l
a
r
ge
r
e
n
d
o
f
t
he
U
SB
cab
l
e
i
nto
a
c
omput
e
r
or
a
ny
V
ada
pt
e
r
w
hich
w
i
ll
i
mm
edia
t
e
ly
pow
e
r
your
M
ult
i
S
e
nsor
7.
4.
M
ake
sur
e
to
s
ea
t
t
he
B
a
tt
e
ry
C
ov
e
r
back
onto
t
he
M
ult
i
S
e
nsor
7
a
n
d
lo
ck
i
t
i
n
b
y
sl
idi
n
g
t
he
U
nlo
ck
b
utton
RIGH
T
.
F
or
a
ba
tt
e
ry
-
pow
e
r
ed
i
nst
a
ll
a
t
i
on
(
ac
ts
a
s
a
sl
ee
p
i
n
g
de
v
ice
w
he
n
p
ai
r
ed
on
ba
tt
e
ry
pow
e
r
):
1.
R
e
mov
e
t
he
ba
tt
e
ry
c
ov
e
r
b
y
sl
idi
n
g
t
he
U
nlo
ck
b
utton
LEF
T
,
t
he
n
pull
t
he
c
ov
e
r
o
ff
.
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 4/37

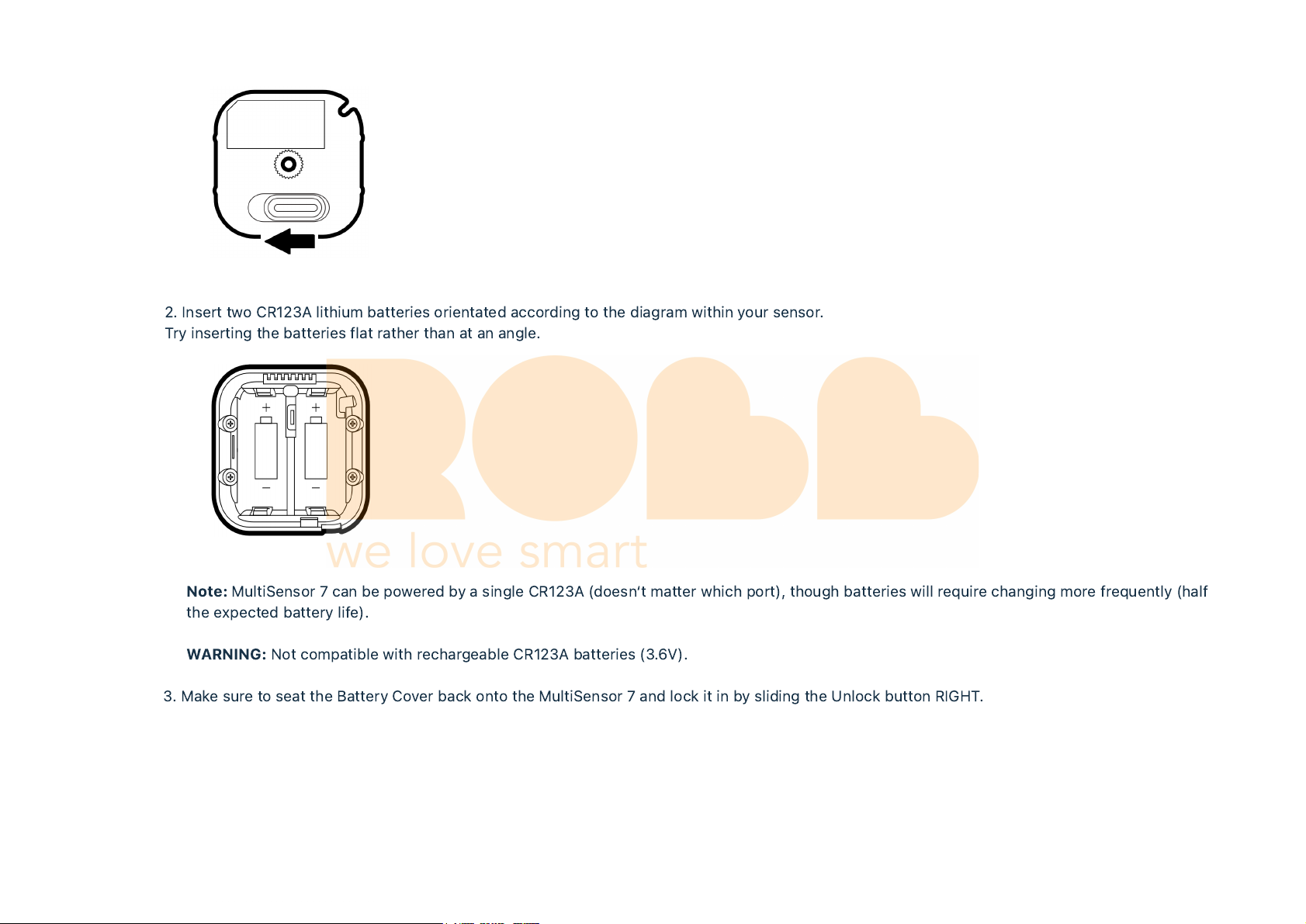

2.
I
ns
e
rt
two
CR
123
A
l
i
t
hi
um
ba
tt
e
r
ie
s
or
ie
nt
a
t
ed
acc
or
di
n
g
to
t
he
diag
r
a
m
w
i
t
hi
n
your
s
e
nsor
.
T
ry
i
ns
e
rt
i
n
g
t
he
ba
tt
e
r
ie
s
f
l
a
t
r
a
t
he
r
t
ha
n
a
t
a
n
a
n
g
l
e
.
N
ot
e
:
M
ult
i
S
e
nsor
7
ca
n
be
pow
e
r
ed
b
y
a
s
i
n
g
l
e
CR
123
A
(
d
o
e
sn
‘
t
m
a
tt
e
r
w
hich
port
),
t
h
ou
gh
ba
tt
e
r
ie
s
w
i
ll
r
e
qu
i
r
e
cha
n
gi
n
g
mor
e
f
r
e
qu
e
ntly
(
ha
l
f
t
he
e
xp
ec
t
ed
ba
tt
e
ry
l
ife
).
W
ARNING
:
N
ot
c
omp
a
t
ib
l
e
w
i
t
h
r
echa
r
geab
l
e
CR
123
A
ba
tt
e
r
ie
s
(3.6
V
).
3.
M
ake
sur
e
to
s
ea
t
t
he
B
a
tt
e
ry
C
ov
e
r
back
onto
t
he
M
ult
i
S
e
nsor
7
a
n
d
lo
ck
i
t
i
n
b
y
sl
idi
n
g
t
he
U
nlo
ck
b
utton
RIGH
T
.
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 5/37

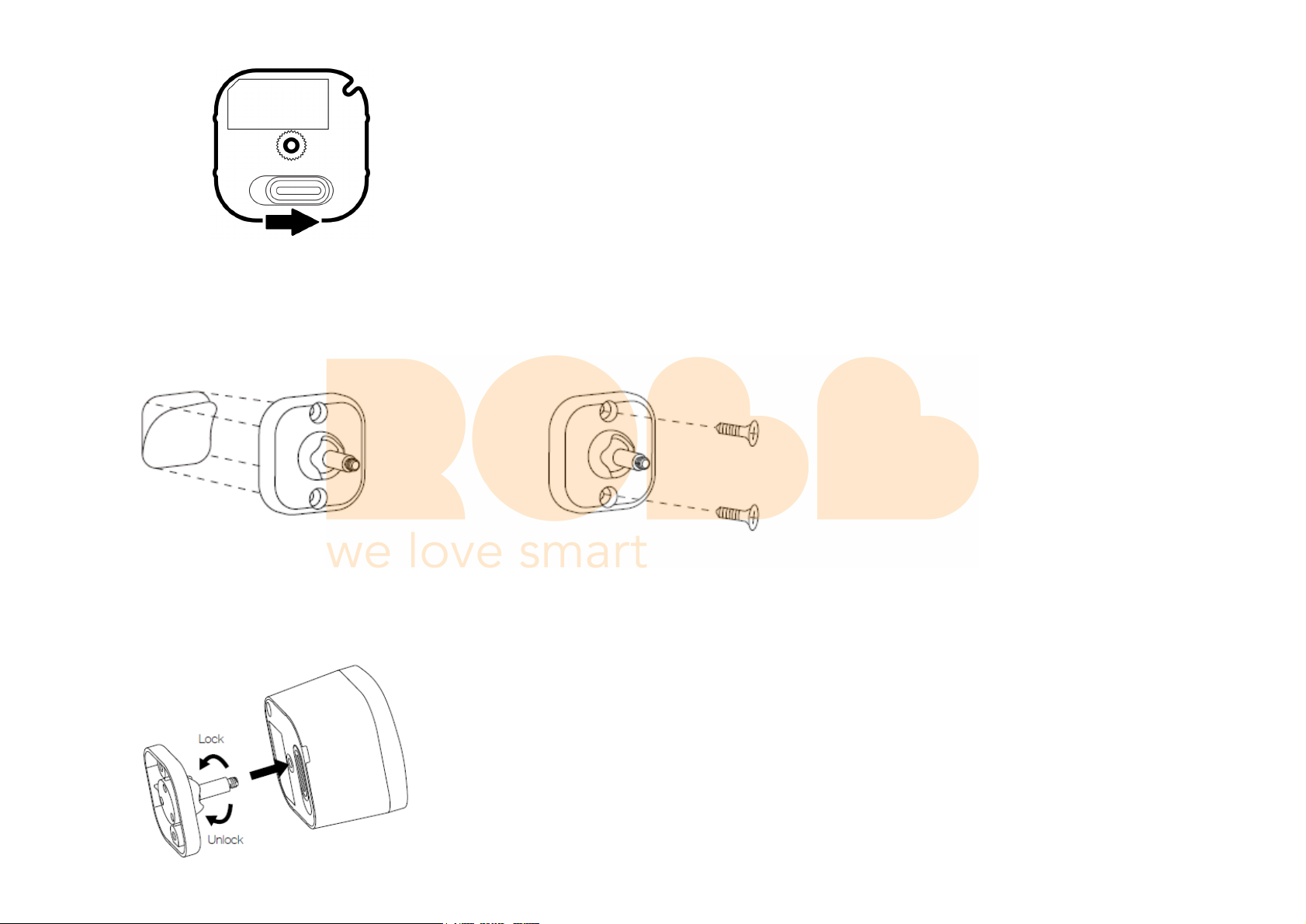

To install your TriSensor with the Back-Mount Plate;
1. You can affix the Back-Mount Arm by Double-Sided Tape or using the provided KA2.5ƒ-20 mm screws.
Tips: We suggest you choose the second method (using screws to affix the Back-Mount Arm) which would be more stable.
2. After you have completed the affixing of Back-Mount Arm, you will need to lock TriSensor to the Back-Mount Arm by screwing TriSensor in.
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 6/37

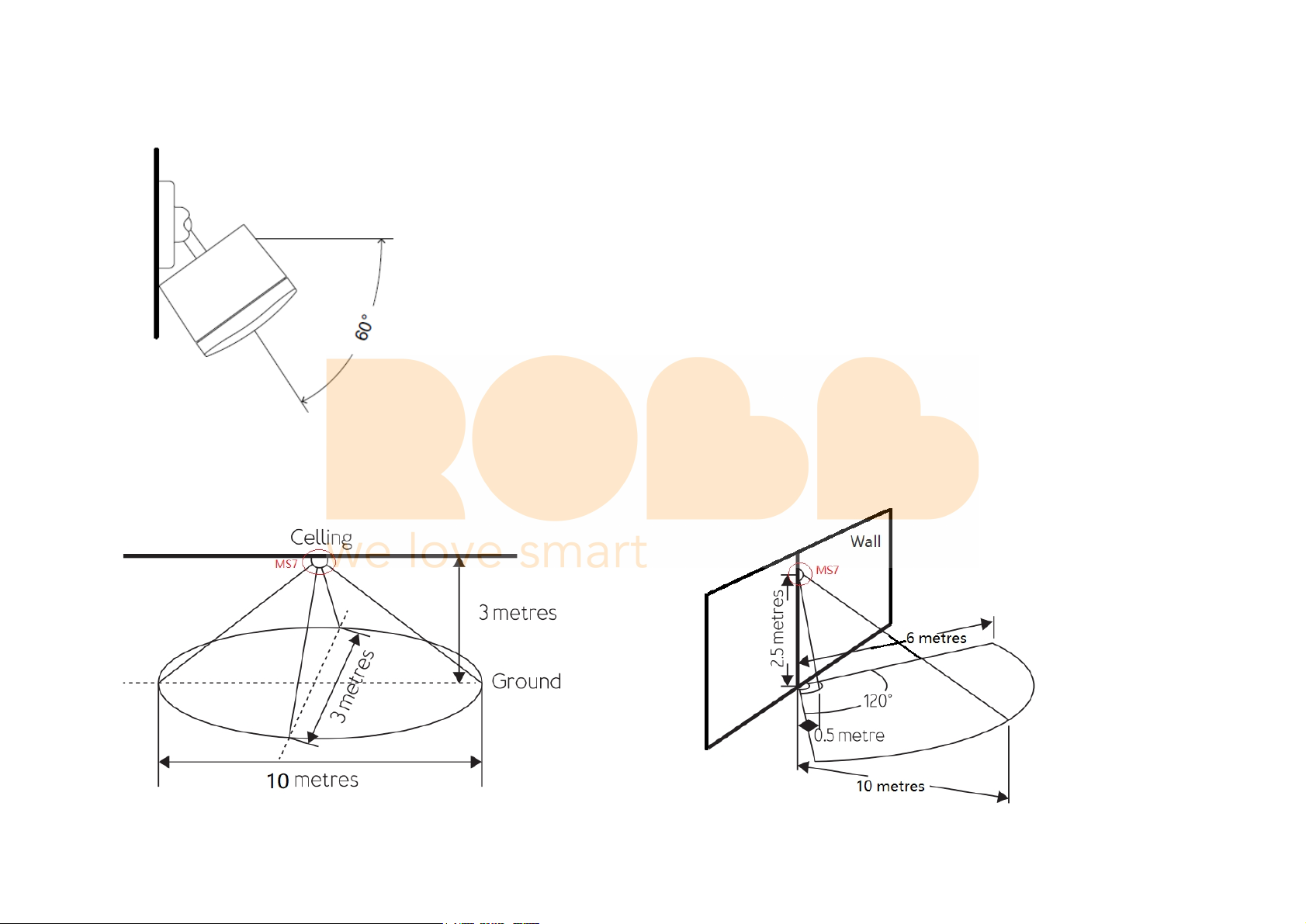

3. The Back-Mount Arm may be locked at various angles by turning the Friction Lock clockwise and counter-clockwise to respectively tighten or loosen the angle of
the arm. You can rotate the Friction Lock to change the measurement area of sensor.
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 7/37
Inclusion/Exclusion
On factory default the device does not belong to any Z-Wave network. The device needs to be added to an existing wireless network to communicate with the
devices of this network. This process is called Inclusion.
Devices can also be removed from a network. This process is called Exclusion. Both processes are initiated by the primary controller of the Z-Wave network. This
controller is turned into exclusion respective inclusion mode. Inclusion and Exclusion is then performed doing a special manual action right on the device.
Inclusion
1. Open the Cover
2. Insert the battery or connect the USB cable
3. Press the button once
4. If prompted, enter the 5 digit DSK code.
Exclusion
1. Open the Cover
2. Press the button once
Product Usage
Button Functions.
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 8/37
Action button press LED Status Function
1x Tap (when factory reset) SolidYellow Pair Mode
Enters Z-Wave pair mode, flashes white/green 4 times
within 2 seconds upon success.
1x Tap (when already paired) SolidPurple Sends NIF / Excludes device
if Z-Wave controller is in unpair mode, startsblueLED fade
in/out if unpaired and factory reset successfully.
Press and hold [1, 2 seconds) No LED N/A

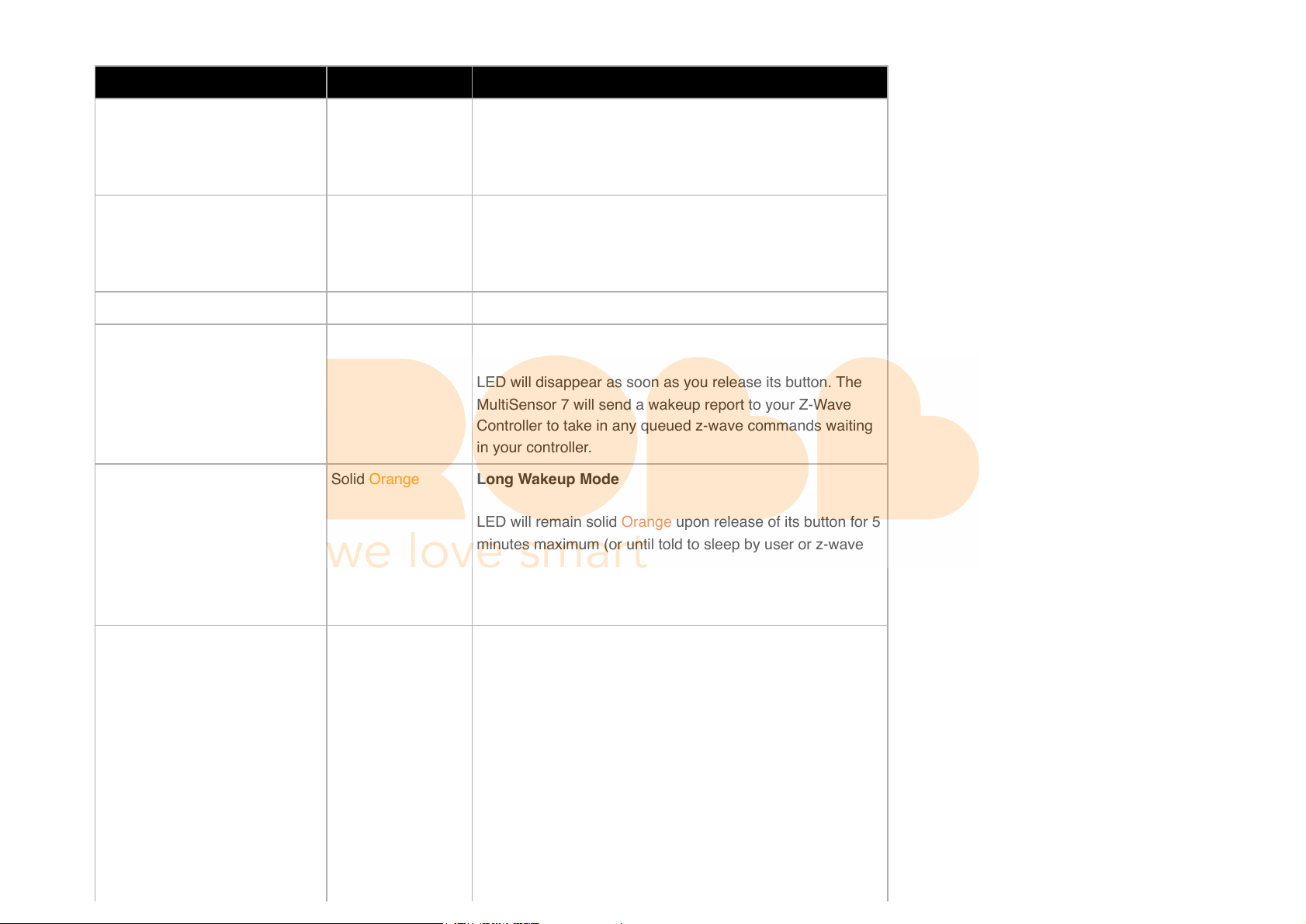

Press and hold [2, 5 seconds) SolidRed Quick Wakeup
LED will disappear as soon as you release its button. The
MultiSensor 7 will send a wakeup report to your Z-Wave
Controller to take in any queued z-wave commands waiting
in your controller.
Press and hold [5, 9 seconds) SolidOrange Long Wakeup Mode
LED will remain solidOrangeupon release of its button for 5
minutes maximum (or until told to sleep by user or z-wave
controller). This will allow you to easily configure this device
while the sensor is used with battery power assuming your
Z-Wave controller does not queue the command.
Press and hold [9, 15
seconds)
SolidCyan Communication Health Test(Direct gateway
communication - does not test through repeaters).
This will test your MultiSensor 7 direct communication to
your Z-Wave Controller. It will remainCyanwhile it is
testing.
Once finished it will become a solid color for 2 seconds
asred,yellow, orgreento indicate health:
Red= Bad health, can‘t communicate at all.
Yellow= Moderate health, could use improvement, some
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 9/37
communcation missed.
Green= Great health
Press and hold [15, 20
seconds)
BlinkingRed Release here to cancel Factory Reset.
Press and hold [20+ seconds) Bluefade in/out for
2 seconds.
Factory Reset.
Communication to a Sleeping device (Wakeup)
This device is battery operated and turned into deep sleep state most of the time to save battery life time. Communication with the device is limited. In order to
communicate with the device, a static controller C is needed in the network. This controller will maintain a mailbox for the battery operated devices and store
commands that can not be received during deep sleep state. Without such a controller, communication may become impossible and/or the battery life time is
significantly decreased.
This device will wakeup regularly and announce the wakeup state by sending out a so called Wakeup Notification. The controller can then empty the mailbox.
Therefore, the device needs to be configured with the desired wakeup interval and the node ID of the controller. If the device was included by a static controller this
controller will usually perform all necessary configurations. The wakeup interval is a tradeoff between maximal battery life time and the desired responses of the
device. To wakeup the device please perform the following action:
Waking up MultiSensor 7.
In order to configure Multisensor 7, you must either (1) wake up Multisensor 7 using the below button press function, or (2) temporarily put your Multisensor 7 on
USB power.
This section will go over the manual wakeup of this sensor in case you don‘t want to wait for configuration.
Quick Wakeup.
1.
P
r
e
ss
a
n
d
h
ol
d
M
ult
i
s
e
nsor
7
A
c
t
i
on
b
utton
2.
W
ai
t
unt
i
l
t
he
LED
turns
i
nto
a
R
ed
C
olor
(1
-
2
s
ec
on
d
s
)
3.
R
e
l
ea
s
e
M
ult
i
s
e
nsor
7
A
c
t
i
on
B
utton
,
t
he
LED
s
h
oul
d
turn
o
ff
r
igh
t
a
w
a
y
.
A
ny
qu
e
u
ed
c
omm
a
n
d
s
i
n
your
Z
-
W
a
v
e
C
ontroll
e
r
w
i
ll
be
s
e
nt
ov
e
r
.
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 10/37
Long Wakeup.
1. Press and hold Multisensor 7 Action button
2. Wait until the LED turns into a solid
or
a
n
ge
color (2 - 5 seconds)
3. Release Multisensor 7 Action Button, the LED should remain solidorangewhile it is awake. Send any configurations from your hub (assuming the
commands are not queued).
If the MultiSensor 7 LEDorangeLED turns off right away, this would indicate that your hub is putting your device to sleep. Try un-powering your hub
temporarily, follow steps 1-3 again, then power up your hub again.
4. Tap the Action Button on Multisensor 7 to put Multisensor 7 back to sleep, or wait 5 minutes. (recommended to manually put it back to sleep to conserve
battery life).
Quick trouble shooting
Here are a few hints for network installation if things dont work as expected.
1. Make sure a device is in factory reset state before including. In doubt exclude before include.
2. If inclusion still fails, check if both devices use the same frequency.
3. Remove all dead devices from associations. Otherwise you will see severe delays.
4. Never use sleeping battery devices without a central controller.
5. Dont poll FLIRS devices.
6. Make sure to have enough mains powered device to benefit from the meshing
Association - one device controls an other device
Z-Wave devices control other Z-Wave devices. The relationship between one device controlling another device is called association. In order to control a different
device, the controlling device needs to maintain a list of devices that will receive controlling commands. These lists are called association groups and they are
always related to certain events (e.g. button pressed, sensor triggers, ...). In case the event happens all devices stored in the respective association group will
receive the same wireless command wireless command, typically a 'Basic Set' Command.
Association Groups:
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 11/37
Group Number Maximum
Nodes Description
15 Lifeline
25 Basic Set Command will be sent to the associated device when motion trigger or untrigger. The
basic set value is determined by Param11, Param12. See Param13 for more information.
35 Basic Set: When the temperature change value is over or under the threshold set by Param16.
Scale is determined by Param64.
45 Basic Set: When the temperature change value is under or over the threshold set by Param17.
Scale is determined by Param64.

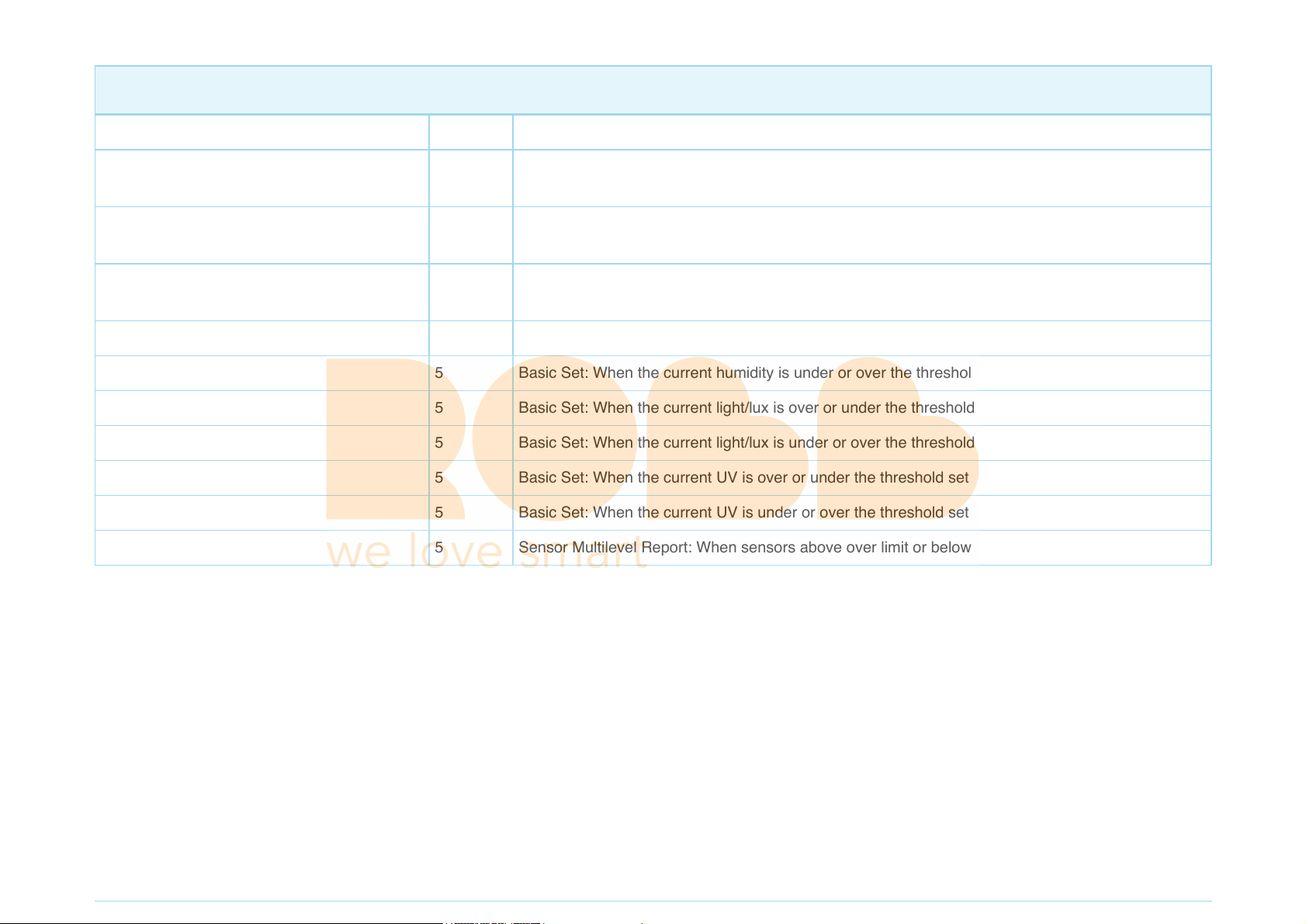

55 Basic Set: When the current humidity is over or under the threshold set by Param14
65 Basic Set: When the current humidity is under or over the threshold set by Param15
75 Basic Set: When the current light/lux is over or under the threshold set by Param18
85 Basic Set: When the current light/lux is under or over the threshold set by Param19.
95 Basic Set: When the current UV is over or under the threshold set by Param20
10 5 Basic Set: When the current UV is under or over the threshold set by Param21
11 5 Sensor Multilevel Report: When sensors above over limit or below under limit.
Configuration Parameters
Z-Wave products are supposed to work out of the box after inclusion, however certain configuration can adapt the function better to user needs or unlock further
enhanced features.
IMPORTANT: Controllers may only allow configuring signed values. In order to set values in the range 128 ... 255 the value sent in the application shall be the
desired value minus 256. For example: To set a parameter to 200 it may be needed to set a value of 200 minus 256 = minus 56. In case of a two byte value the
same logic applies: Values greater than 32768 may needed to be given as negative values too.
Parameter 1: Beaming Enable/Disable
Used to enable/disable beaming.If set to 1, FLiRs commands will be supported. But the device must be re-included into the network to activate it.
Size: 1 Byte, Default Value: 1
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 12/37
Setting Description
0Disable
1Enable
Parameter 2: Motion Retrigger Time
Presence re-detection time set in second to allow motion sensor to reset timeout of motion sensor. In this time, the motion sensor can not be triggered again. If this
value reach zero, the timeout configuration value set by Param3 will be reset. This setting value must always be less than timeout configuration.0 - disable1~3600
- timeout set in seconds
Size: 2 Byte, Default Value: 30
Setting Description
30 - 3600 timeout set in seconds
Parameter 3: Motion Untrigger Time
Timeout configuration set in second for motion sensor to send no trigger status.
Size: 2 Byte, Default Value: 240
Setting Description
30 - 3600 timeout set in seconds
Parameter 4: Motion Sensitivity
Set the sensitivity of motion sensor.
Size: 1 Byte, Default Value: 11
Setting Description
0Disable
1 - 11 sensitivity range
Parameter 5: Motion Report Type
Set which command class will be sent when the motion sensor is triggered or detriggered.
Size: 1 Byte, Default Value: 2
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 13/37
Setting Description
0Sends Notification Report
1Sends Sensor Binary Report
2Sends Notification and Sensor Binary Report
Parameter 6: Vibration Sensor Enable/Disable
Used to enable/disable vibration sensor.
Size: 1 Byte, Default Value: 255
Setting Description
0disable vibration
1 - 254 timeout set in minutes to reset vibration status
255 timeout set in minutes to reset vibration status
Parameter 7: Vibration Intensity Reports
Used to enable/disable vibration intensity reports. If set to 1, vibration intensity will be sent to gateway when triggered.
Size: 1 Byte, Default Value: 0
Setting Description
0Disable
1Enable
Parameter 9: Wakeup CC Timeout
Timeout set in seconds after Wakeup CC is send out before go to sleep. If wakeup no more information received, return to sleep mode immediately.
Size: 1 Byte, Default Value: 15
Setting Description
0 - 255 Timeout set in seconds
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 14/37
Parameter 10: Power Status
This value is Readonly. Used to report the power status (USB or Battery powered) The device must be re-included in the network to change the role type.
Size: 1 Byte, Default Value: 0
Setting Description
0When battery powered, the device will act as RSS.
1When USB cable insert, the device will act as LSS.
Parameter 11: Motion Group Control(Group2)
Set control of other devices on group2 based on motion trigger.
Size: 1 Byte, Default Value: 0
Setting Description
0Send BASIC_SET (0xFF) when motion is triggered to associated device Send BASIC_SET (0x00) when motion
is untriggered to associated device
1Send BASIC_SET (0x00) when motion is triggered Send BASIC_SET (0xFF) when motion is untriggered
2Send BASIC_SET (0xFF) when motion is triggered, Nothing when motion untriggered.
3Send BASIC_SET (0x00) when motion is triggered, Nothing when motion untriggered.
4Send BASIC_SET (0x00) when motion is untriggered, Nothing when motion triggered.
5Send BASIC_SET (0xFF) when motion is untriggered, Nothing when motion triggered.
6Send BASIC_SET (value is configured by parameter 12) when motion is triggered to associated devices. Send
BASIC_SET (value is configured by parameter 12) when motion is untriggered.
Parameter 12: Motion Group Value Setting
Set Basic Set value for Group2. The MSB will act as the basic set value when motion trigger. The LSB will act as the basic set value when motion untrigger. E.g.
value=0x0A00, then BASIC_SET(0x0A) will be sent when motion trigger, BASIC_SET(0x00) will be sent when motion untrigger.
Size: 2 Byte, Default Value: 65280
Setting Description
0 - 65535 Set Basic Set value for Group2.
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 15/37
Parameter 13: Motion Group Control Requirement
Set threshold of Light/Lux when devices associated in group2 should be triggered by motion. Associated device only receive BASIC_SET command when light
Size: 2 Byte, Default Value: 30000
Setting Description
0 - 30000 Set threshold of Light/Lux
Parameter 14: Over Humidity Group Threshold (Group5)
Set threshold of humidity. If measured humidity >= (this value), send BASIC_SET (0xFF) to associated devices through group5. If measured humidity < (this value)
send BASIC_SET (0x00) to associated devices through group5.
Size: 1 Byte, Default Value: 60
Setting Description
0 - 100 Set threshold of humidity.
Parameter 15: Under Humidity Group Threshold (Group6)
Set threshold of humidity. If measure humidity(this value) send BASIC_SET (0x00) to associated devices through group6.
Size: 1 Byte, Default Value: 40
Setting Description
0 - 100 Set threshold of humidity.
Parameter 16: Over Heat Group Threshold (Group3)
Set threshold of temperature. Designed to control Air Conditioners or temperature controllers ON or OFF. If measured temperature >= (this value, Scale is
determined by Param64) send BASIC_SET (0xFF) to associated devices. If measured temperature<(this value) send BASIC_SET (0x00) to associated devices.
E.g. Value 239 means 23.9 C. Value 750 means 75.0 F.
Size: 2 Byte, Default Value: 239
Setting Description
-400 - 850 Set threshold of temperature
Parameter 17: Under Heat Group Threshold (Group4)
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 16/37
Set threshold of temperature. Designed to control Air Conditioners or temperature controllers ON or OFF. If measured temperature(this value) send BASIC_SET
(0x00) to associated devices. E.g. Value 155 means 15.5 C. Value 600 means 60.0 F.
Size: 2 Byte, Default Value: 155
Setting Description
-400 - 850 Set threshold of temperature
Parameter 18: Over Light Group Threshold (Group7)
Set threshold of Light/Lux. If measured light/lux >= (this value) send BASIC_SET (0xFF) to associated devices. If measured light/lux < (this value) send
BASIC_SET (0x00) to associated devices.
Size: 2 Byte, Default Value: 2000
Setting Description
0 - 30000 Set threshold of Light/Lux.
Parameter 19: Under Light Group Threshold (Group8)
Set threshold of Light/Lux. If measured light/lux(this value) send BASIC_SET (0x00) to associated devices.
Size: 2 Byte, Default Value: 100
Setting Description
0 - 30000 Set threshold of Light/Lux.
Parameter 20: Over UV Group Threshold (Group9)
Set threshold of UV. If measured UV >= (this value) send BASIC_SET (0xFF) to associated devices. If measured UV < (this value) send BASIC_SET (0x00) to
associated devices.
Size: 1 Byte, Default Value: 8
Setting Description
0Set threshold of UV.
Parameter 21: Under UV Group Threshold (Group10)
Set threshold of UV. If measured UV(this value) send BASIC_SET (0x00 to associated devices.)
Size: 1 Byte, Default Value: 1
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 17/37
Setting Description
0 - 11 Set threshold of UV.
Parameter 39: Low Battery Threshold
Configure low battery report threshold, sends low battery report via notification and battery report when battery level drops under setting. Unit %.
Size: 1 Byte, Default Value: 50
Setting Description
10 - 90 Configure low battery report threshold
Parameter 40: Threshold Check Enable/Disable
Enable/Disable threshold reporting, check time can be adjusted by Param45.
Size: 1 Byte, Default Value: 0
Setting Description
0disable all threshold reports
1enable all threshold reports
Parameter 41: Temperature Threshold
Threshold = (Value * 0.1) Scale is determined by Param64.
Size: 1 Byte, Default Value: 10
Setting Description
0 - 255 Threshold = (Value * 0.1) Scale is determined by Param64. 0 = disable.
Parameter 42: Humidity Threshold
Humidity range = 1% to 50%,
Size: 1 Byte, Default Value: 5
Setting Description
0 - 50 Humidity range = 1% to 50%, 0 = disable.
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 18/37
Parameter 43: Lux Threshold
Size: 2 Byte, Default Value: 250
Setting Description
0 - 10000 Lux Threshold 0 = disabled
Parameter 44: UV Threshold
Size: 1 Byte, Default Value: 1
Setting Description
0 - 11 UV Threshold 0 = disabled
Parameter 45: Threshold Check Time
Set threshold check time in seconds if the threshold is enabled via Parameter 40.
Size: 2 Byte, Default Value: 240
Setting Description
1 - 65535 Set threshold check time in seconds when USB powered
60 - 65535 Set theshould check time in secons when Battery powered
Parameter 46: Low Temperature Report
Enable/Disable alarm report for low temperature
Size: 1 Byte, Default Value: 1
Setting Description
0Disable
1Enable
Parameter 48: Sensor Limit Control
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 19/37
Used to enable/disable measurement reports for various sensors that is more than the upper limit value or less than the lower limit value.
Size: 1 Byte, Default Value: 0
Setting Description
0Disable
1Temperature upper level
2Humidity upper level
4Lux upper level
8UV upper level
16 Temperature lower level
32 Humidity lower level
64 Lux lower level
128 UV lower level
Parameter 49: Temperature Upper Limit
Set upper limit level for temperature set in scale of 0.1. Scale is determined by Param64. If (Current measurement) > (Upper Limit), then report sensor.
Size: 2 Byte, Default Value: 280
Setting Description
-400 - 1000 Set upper limit level for temperature
Parameter 50: Temperature Lower Limit
Set lower limit level for temperature set in scale of 0.1. Scale is determined by Param64. If (Current Measurement) < (Lower limit), then report sensor.
Size: 2 Byte, Default Value: 0
Setting Description
-400 - 1000 Set lower limit level for temperature
Parameter 51: Temperature Recover Limit
24/11/2022, 15:52 https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147
https://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZWA024&cert=ZC12-20120147 20/37
Temperature recover limit set in scale of 0.1. Scale is determined by Param64. If (Current measurement) = (lower limit + recover limit), then temperature report.
Size: 1 Byte, Default Value: 20
Setting Description
1 - 255 Temperature recover limit set in scale of 0.1.
Parameter 52: Humidity Upper Limit
Set humidity upper limit level.
Size: 1 Byte, Default Value: 60
Setting Description
0 - 100 Set humidity upper limit level.
Parameter 53: Humidity Lower Limit
Set humidity lower limit level
Size: 1 Byte, Default Value: 40
Setting Description
0 - 100 Set humidity lower limit level
Parameter 54: Humidity Recover Limit
Set humidity recover limit level. Refer to Param 51.
Size: 1 Byte, Default Value: 5
Setting Description
1 - 50 Set humidity recover limit level
Parameter 55: Lux Upper Limit
Set lux upper limit level.
Size: 2 Byte, Default Value: 1000
