Door / Windows Sensor 7 user guide
Modified on: Mon, 15 Jul, 2019 at 12:56 AM
AeotecDoor/WindowSensor7.
AeotecDoor/WindowSensor7hasbeencraftedtopowerconnectedlightingusingZ-WavePlus(http://aeotec.com/z-
wave-plus).ItispoweredbyAeotec’sGen5(http://aeotec.com/z-wave-gen5)technologyandS2framework.Youcanfindout
moreaboutDoor/WindowSensor7(https://aeotec.com/z-wave-door-window-sensor)byfollowingthatlink.
ToseewhetherDoor/WindowSensor7isknowntobecompatiblewithyourZ-Wavesystemornot,pleasereferenceour
Z-Wavegatewaycomparison(http://aeotec.com/z-wave-gateways)listing.ThetechnicalspecificationsofDoor/
WindowSensor(https://aeotec.freshdesk.com/a/solutions/articles/6000218908-door-window-sensor-7-technical-
specifications-)7canbeviewedatthatlink.
FamiliarizeyourselfwithyourDoor/WindowSensor7.

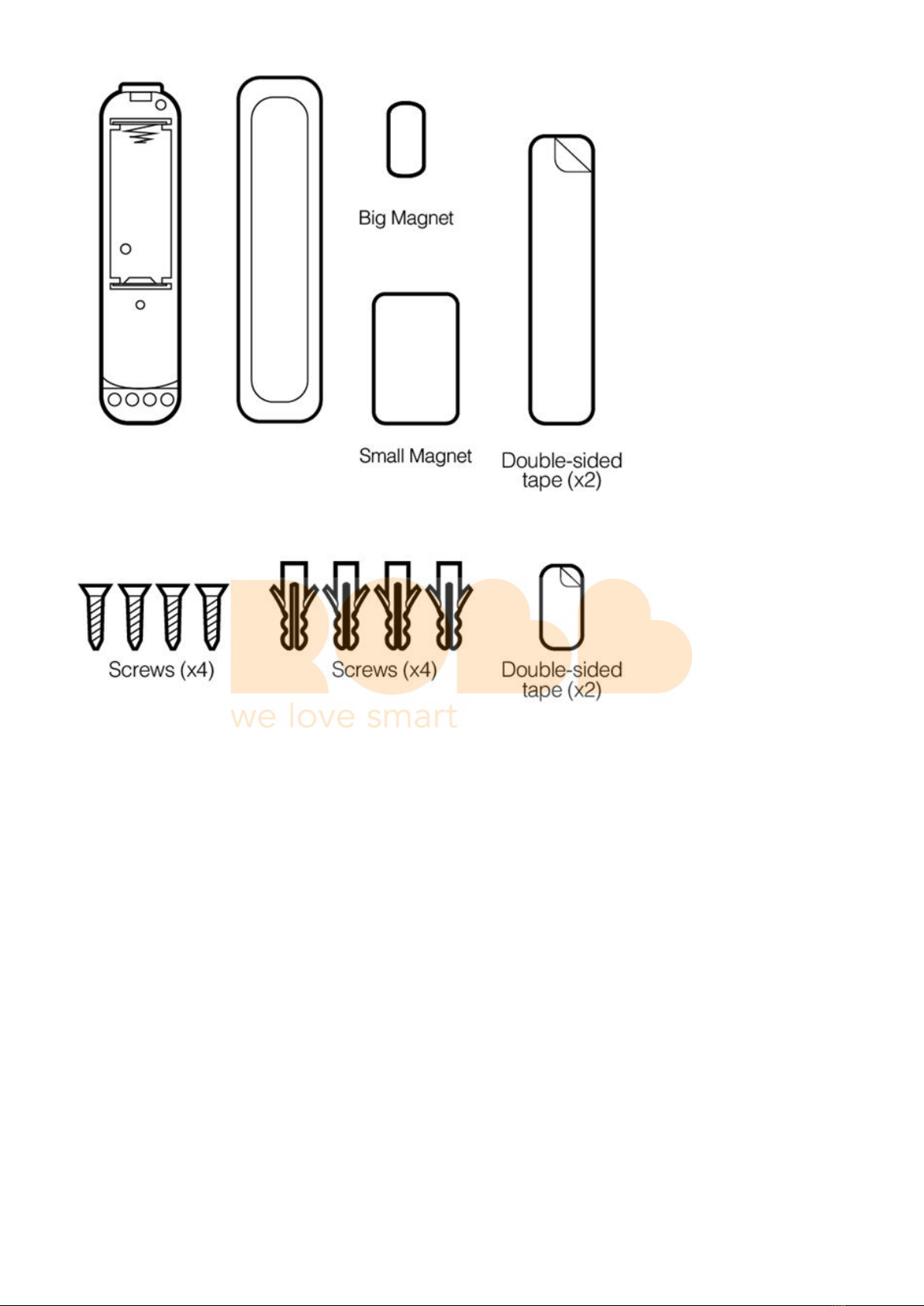

Packagecontents:
1. SensorUnit.
2. Cover
3. BigMagnet.
4. SmallMagnet.
5. Double-SidedTapelarge(×2).
6. Double-SidedTapesmall(x2).
7. Screws(×4).
8. Dowels(x4).

31/07/2019 Door / Window 7 user guide : Aeotec Group
https://aeotec.freshdesk.com/support/solutions/articles/6000218764-door-windows-sensor-7-user-guide 2/10
Importantsafetyinformation.
Pleasereadthisandotherdeviceguidescarefully.FailuretofollowtherecommendationssetforthbyAeotecLimited
maybedangerousorcauseaviolationofthelaw.Themanufacturer,importer,distributor,and/orresellerwillnotbe
heldresponsibleforanylossordamageresultingfromnotfollowinganyinstructionsinthisguideorinothermaterials.
Keepproductandbatteriesawayfromopenflamesandextremeheat.Avoiddirectsunlightorheatexposure.Always
removeallbatteriesfromproductsthatarebeingstoredandnotused.Batteriesmaydamagetheapplianceiftheyleak.
Donotuserechargeablebatteries.Ensurecorrectpolaritywheninsertingthebatteries.Improperbatteryusemay
damagetheproduct.
Door/WindowSensor7isintendedforindooruseindrylocationsonly.Donotuseindamp,moist,and/orwet
locations.
Itcontainssmallparts;keepawayfromchildren.
QuickStart
Pre-InstallationofDoor/WindowSensor7.

31/07/2019 Door / Window 7 user guide : Aeotec Group
https://aeotec.freshdesk.com/support/solutions/articles/6000218764-door-windows-sensor-7-user-guide 3/10
Openthecoverbypressingthecliponthesideandpullingthecoverupwards.
Insertafresh1*1/2AAbattery,butpayattentiontothepolarity
InstallyourDoor/WindowSensor7.
Thesensorcanbemountedeitheronthemovingpartoronthefixedpartofadoororawindow.Mountingcanbe
accomplishedeitherusingthetapebypeelingofftheprotectionfoilorusingtwoscrewswiththeholesinsidethebattery
compartment.Ifthetiltdetectiononawindow(onlynormalwindows,noroofwindows)shallbeusedthesensordevice
mustbeplacedonthemovingpartofthewindowandthemagnetonthewindowframe.Thesensorcomeswithtwotypes
ofmagnets:
Thestandardmagnetcoveredbyplasticpart,mountablebesidethesensor.Makesurethetwoindicatinglineson
sensorenclosureandmagnetareoppositetoeachother.Theimageontheright-hand-sideshowsthepositionof
magnetandsensorbody.
Aslim"naked"magnettobemountedbehindthesensorincasethesensorbodyisplacedonthesideofawindow.
Tousethetiltingfunction,theopeningangleofthewindowmustbeatleast5°orgreater.

31/07/2019 Door / Window 7 user guide : Aeotec Group
https://aeotec.freshdesk.com/support/solutions/articles/6000218764-door-windows-sensor-7-user-guide 4/10
ForGermanstylewindowstherethewindowsitsontopofthewindowframemountingonthesideofthewindowishighly
recommended.Ifnotiltingdetectionisused,thesensorcanbeplacedonanypositionofthedoororthewindow.Incase
tiltingdetectionisdesiredthesensorshouldbeplacedontheuppersideofthewindow.

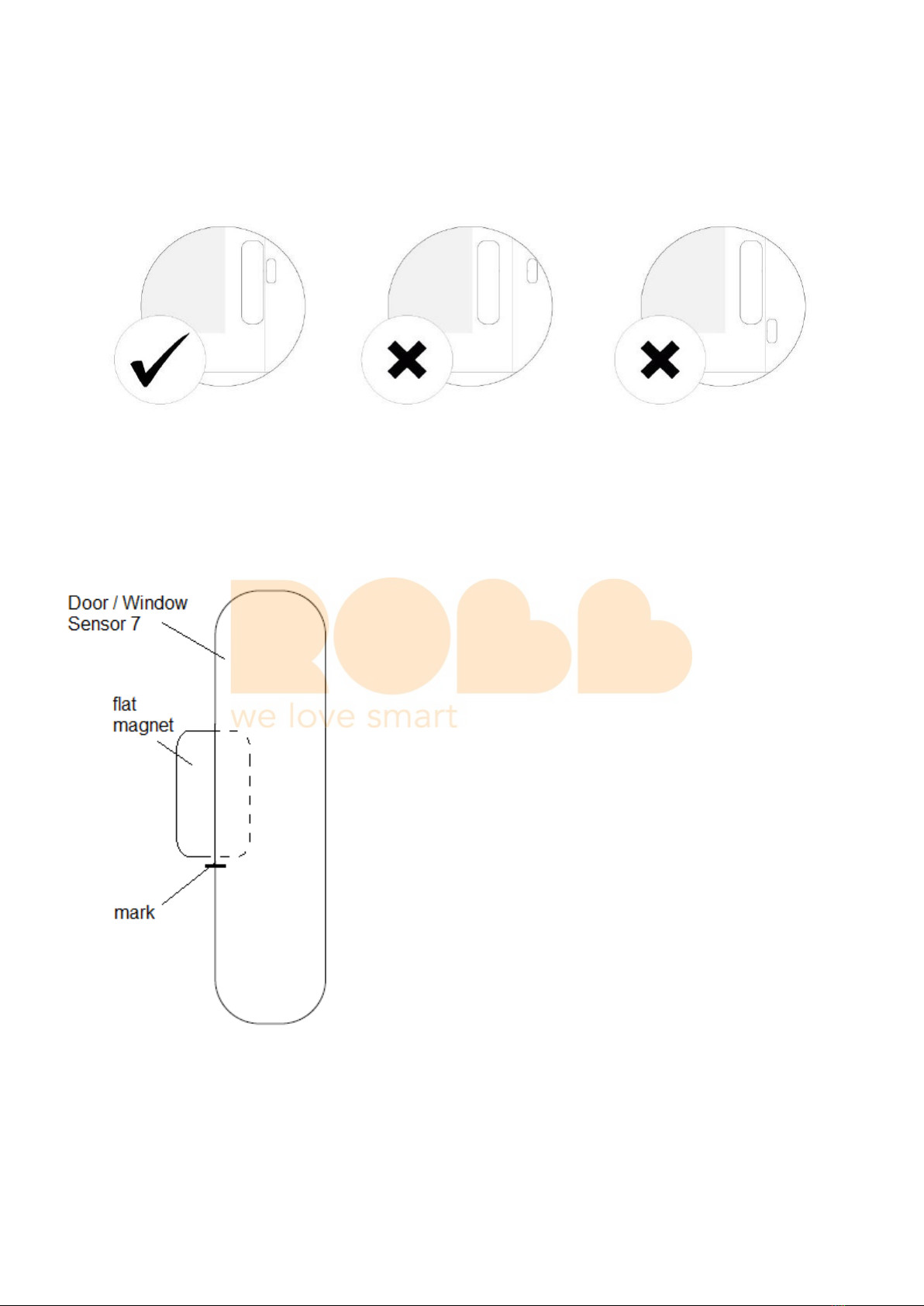

Installationoftheflatmagnet
Wheninstallingtheflatmagnetinahiddenlocation,makesurethatitisonthelongersideasseenfromthemarkonthe
Door/WindowsSensor7.
AddingyourDoor/WindowsSensor7toZ-Wavenetwork.
1. SetyourZ-Wavecontrollerintopairingmode.
2. Triple-clickthetamperswitchonDoor/WindowSensor7-thisbeginstoblinkfivetimes

31/07/2019 Door / Window 7 user guide : Aeotec Group
https://aeotec.freshdesk.com/support/solutions/articles/6000218764-door-windows-sensor-7-user-guide 5/10
3. Aftercompletionoftheinclusion,itlightsuponcebeforeitgoesout.
4. Closethecover
FunctionsofDoor/WindowSensor7.
Open/Close
Onceinstalledthesensorwillreport"open"and"close"statuschangestoacentralZ-Wavecontrollerusingnotification
commands.
Tiltdetection
Thetiltdetectionallowsreportingthewayawindowisopened.Thisisaccomplishedusingthecommandclass"binary
sensor-tilt-type".Incasethewindowisclosedoropenedwithouttiltingthetiltsensorwillreport"Off".Incasethe
windowistiltedan"On"isreported.Theangleofinclinationofthewindowmustbeatleast5°.
Advancesfunctions.
ScrewTerminal.
Withparameter#1youcanchoosebetweentheinternalmagnetortheexternalconnectionssuchaspushbuttonsordry
contactsensors.

#1:Notused.
#2:Notused.

31/07/2019 Door / Window 7 user guide : Aeotec Group
https://aeotec.freshdesk.com/support/solutions/articles/6000218764-door-windows-sensor-7-user-guide 6/10
#3:DigitalInput
#4:Ground
Digital+Groundisusedtoconnectanexternaldrycontactmechanismtocontrolscenes.
Pushbutton
Watersensorprobes
Externalmagnetdetection
etc.
Note:PleasenotethatthecontactDigitalInput(#3)andGround(#4)isanormallyopen(NO)contact.Closingthe
contactsendsoutacommand(OpenorClose).YoumustuseaNOdrycontactdevicewiththeseterminals.
Door/WindowSensor7asDryContactSensor.
Using configuration commands the source of "open" and "close" events can be chosen between the internal magnet
detector or external dry contact connected on terminal #3 and #4.
You can find direct information in this article here:
https://aeotec.freshdesk.com/support/solutions/articles/6000223859
(https://aeotec.freshdesk.com/support/solutions/articles/6000223859)
SceneController.
Whenactivatedbyconfigurationparameter#13thedevicecanperformasascenecontroller.Theexternaldrycontact
willthenactasascenecontrollerwithatotalof7scenesthatcanbeactivated:
1. ContactPressed1time
2. ContactPressed2time
3. ContactPressed3time
4. ContactPressed4time
5. ContactPressed5time
6. Contacthelddown
7. Contactreleased
YoucanfindoutmoreinformationonhowtouseDoor/WindowSensor7inthisarticlehere:
https://aeotec.freshdesk.com/support/solutions/articles/6000223885
(https://aeotec.freshdesk.com/support/solutions/articles/6000223885)
Communicationtest.
This utilizes the Power Level command class to determine the health between the Door / Window Sensor 7 and your
Z-Wave gateway. This will tell you if the Door / Window Sensor 7 has a healthy connection to your system and is a
great method of debugging connectivity issues.
1. Set Parameter #4 to value #1
2. Doubleclick the Tamper Switch.
3. Result:
Blinksonce- success
Blinks5xtimes- failure

31/07/2019 Door / Window 7 user guide : Aeotec Group
https://aeotec.freshdesk.com/support/solutions/articles/6000218764-door-windows-sensor-7-user-guide 7/10
Firmware-UpdateovertheAir.
Thisdeviceiscapableofreceivinganewfirmware'overtheair'.Theupdatefunctionneedstobesupportedbythe
centralcontroller.Oncethecontrollerstartstheupdateprocess,performthefollowingactiontoconfirmthefirmware
update:
1. WakeUpthedevicebyremovingthecover.
2. Thehitthetamperswitchonce.
Sendawakeupnotification.
InordertosendyoursensorsnewconfigurationcommandsfromyourZ-Wavecontrollerorgateway,itwillneedtobe
wokenup.
1. WakeUpthedevicebyremovingthecover.
2. Thehitthetamperswitchonce.
Note:Door/WindowSensor7remainsawakeuntilthehousingisclosedagain.
RemoveyourDoor/WindowSensor7fromZ-Wavenetwork.
YoursensorcanberemovedfromyourZ-Wavenetworkatanytime.You'llneedtouseyourZ-Wavenetwork'smain
controller/gateway.Todothis,pleaserefertothepartofyourgatewaysrespectivemanualthattellsyouhowtoremove
devicesfromyournetwork.
1. SetyourZ-Wavecontrollerintounpairmode.
2. Triple-clickthetamperswitchonDoor/WindowSensor7within1.5seconds-thiswillcausetheLEDtoblink
fivetimes.
3. Afterasuccessfulexclusion,itwilllightupitsLEDfor2secondsthendeactivate.
ResetyourDoor/WindowsSensor7.
ThisdevicealsoallowsbeingresetwithoutanyinvolvementofaZ-Wavecontroller.Thisprocedureshouldonlybeused
whentheprimarycontrollerisinoperable.
Tomanuallyfactoryreset:
1. RemovethecoverofDoor/WindowSensor7
2. Pressandholdtamperswitchfor5secondsuntiltheredLEDblinks.
3. Releasethetamperswitch
4. Immediatelypressandholdthetamperswitchfor5secondsuntiltheredLEDblinks.
ParameterConfigurations.

31/07/2019 Door / Window 7 user guide : Aeotec Group
https://aeotec.freshdesk.com/support/solutions/articles/6000218764-door-windows-sensor-7-user-guide 8/10
Parameter1:OperationMode.
Thisparameterallowsswitchingbetweeninternalsensorandexternalsensor.
Size:1Byte,DefaultValue:0
Setting Description
0theinternalhallsensorisenabled
(externalinputdisabled)
1theexternalinputisenabled(internal
hallsensordisabled)
Parameter2:Door/WindowState.
ThisparameterallowssettingDoor/WindowSensor7statewhenthemagnetisclosetothesensor.
Size:1Byte,DefaultValue:0
Setting Description
0 closedwhenthemagnetisnear
1 openedwhenthemagnetisnear
Parameter3:VisualLEDIndications.
ThisparameterdefineseventsindicatedbythevisualLEDindicator.Disablingeventsmightextendbatterylife.
Size:1Byte,DefaultValue:7,Range:0-7
Setting Description
0 noindications
1indicationofopening/closingstatus
change
2indicationofwakeup(1xclickor
periodical)
4 indicationofdevicetampering
Parameter4:Rangetestafterdoubleclick.
AllowsenablingtheactivationofZ-WaverangetestwithdoubleclickofaTamperSwitch2.
Size:1Byte,DefaultValue:0
Setting Description
0 Disable
1 Enable
Parameter5:Group2AssociationTriggers.
ThisparameterdefineseventsthatresultinsendingOn/Offcommandstodevicesaddedtothe2ndAssociationGroup.
ThesecommandsaresentalternatelytoswitchthedevicesOnandOff.CommandsrepresentthevaluesofBASIC
SETcommandframes.Thisparameterisinactiveinexternaldry-contactmode(parameter“OperationMode”setto1).
Size:1Byte,DefaultValue:0
Setting Description
0 switchafteropeningandclosing
1 switchafteropening
2 switchafterclosing
Parameter6:CommandssenttoassociateddevicesonGroup2.
Commandframessenttodevicesaddedtothe2ndassociationgroup.
Size:1Byte,DefaultValue:2
Setting Description
0 On
1 Off

31/07/2019 Door / Window 7 user guide : Aeotec Group
https://aeotec.freshdesk.com/support/solutions/articles/6000218764-door-windows-sensor-7-user-guide 9/10
2 OnandOff
Parameter7:ValuesofONcommandframesenttoGroup2Association.
Thevalueof0turnsOFFthedevice,255turnsitOn.InthecaseofassociatingtheDimmerorRollerShuttermodule,
values
Size:1Byte,DefaultValue:255
Setting Description
0-99 allowsettinganAssociateddevicetoa
specifiedlevel(0isOFF)
255 ON
Parameter8:ValueofOFFcommandframesenttoGroup2Association.
810-99,2550ValueofOFFcommandframesentto2ndAssociationGroup
Thevalueof0turnsOFFthedevice,255turnsitOn.InthecaseofassociatingtheDimmerorRollerShuttermodule,
values.
Size:1Byte,DefaultValue:0
Setting Description
0-99 allowsettinganassociateddevicetoa
specifiedlevel.(0isOFF)
255 ON
Parameter9:TimeDelayofONcommandfromGroup#2.
ThetimeperiodafterwhichOncommandframewillbesent.
Size:1Byte,DefaultValue:0
Setting Description
0-
32400 Timesetinseconds
Parameter10:TimeDelayofOFFcommandfromGroup#2.
ThetimeperiodafterwhichtheOFFcommandframewillbesent.
Size:1Byte,DefaultValue:0
Setting Description
0-
32400 Timeinseconds
Parameter11:Delayoftamperalarmcancellation.
Thetimeperiodafterwhichatamperalarmwillbecanceled.
Size:1Byte,DefaultValue:0
Setting Description
0-
32400 Timeinseconds
Parameter12:Reportingtamperalarmcancellation.
Reportingcancellationoftamperalarmtothecontrollerand3rdAssociationGroup.
Size:1Byte,DefaultValue:1
Setting Description
0 donotsendtampercancellationreport
1 sendtampercancellationreport
Parameter13:CentralSceneEventfunctionality.
Enable/DisableCentralSceneEvents.
Size:1Byte,DefaultValue:0

31/07/2019 Door / Window 7 user guide : Aeotec Group
https://aeotec.freshdesk.com/support/solutions/articles/6000218764-door-windows-sensor-7-user-guide 10/10
Setting Description
0 ContactSceneEventsdisabled
1 ContactSceneEventsenabled
Parameter14:TiltSensorFunctionalityenable/disable.
TiltSensorfunctionalityenable/disable.
Size:1Byte,DefaultValue:1
Setting Description
0 TiltSensordisabled
1 TiltSensorEnabled
Parameter15:TiltsensitivityfromV1.02andhigher
Youcanusethisparametertoadjustthetiltsensitivityifthetiltistoolowortoohigh.
Size:1Byte,DefaultValue:50
Setting Description
1-100 Tiltsensitivity
