Aerus BEYOND SANCTUAIRY User manual

65-00584 VA-00797
Owner’s Manual
ELECTRONIC AIR PURIFICATION SYSTEM
CAUTION: Read manual carefully for proper procedures and operation.

CONTENTS
2
on your purchase of a Beyond by Aerus
Sanctuairy air purification enhancement
system. This unit is designed to be installed
into an existing HVAC system by a licensed
HVAC contractor. Please follow all service
procedures outlined in this manual. Use only
genuine Beyond by Aerus replacement parts
available from your Beyond by Aerus Dealer.
CONGRATULATIONS . . .
Specifications.................................2
About Beyond by Aerus Sanctuairy ..........2
Product Contents.............................3
Installation Hardware.........................3
Replacement Parts ...........................3
Recommended Installation Tools.............3
Installation Requirements ....................4
Metal Ductwork Installation ..................5
Fiberglass Ductwork Installation..............6
Maintenance/UV Lamp Indicator............12
Warranty ....................................12
Changing the ActivePure® Cell ..............13
Changing the Ballast ........................14
Electrical:
• Input: AC 100-240V 50/60Hz 0.4A
• Output: DC 24V 1A
Mechanical:
• Distribution via air handler.
Dimensions:
• 8.5” x 8.5” x 11”
(21.59cm x 21.59cm
x27.94cm)
Weight: 3 pounds (1.2 kg.)
Operating Temperature:
• 32-200°F (93°C)
Coverage:
• Up to 2000 ft
2
Nominal, 3000 ft
2
Maximum
Warranty:
• Limited 5 years.
SPECIFICATIONS
The Beyond by Aerus Sanctuairy is
easily mounted into the supply side of air
conditioning and heating system air ducts
where many problems can start.
ActivePure® Cell (Ozone-Free) Item # 49780
Please record the name and phone number of your
Beyond by Aerus Dealer:
Name_______________________________________
Phone ______________________________________
Please record the name and phone number of your
Independent HVAC Contractor:
Name_______________________________________
Phone ______________________________________
Please record your product serial number:
Serial #______________________________________

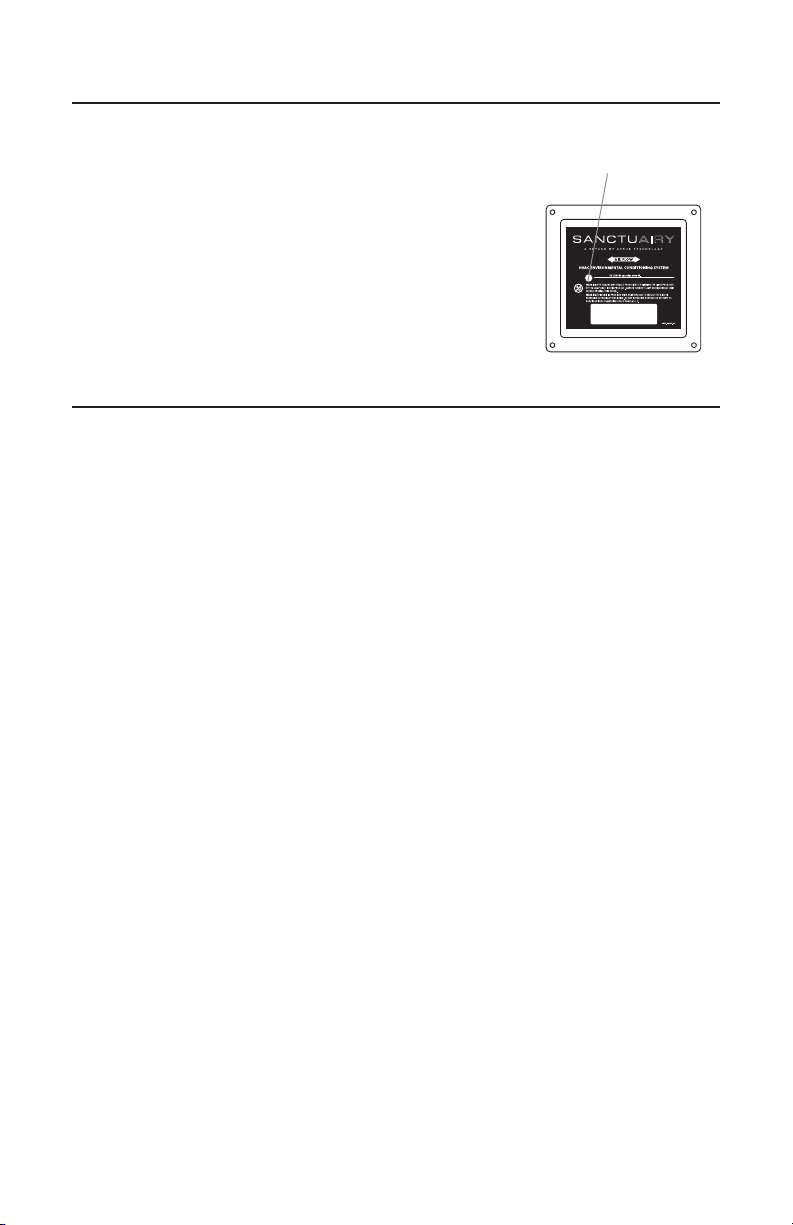

Location for Protective Earth Line.
WARNING! - UV Light in operation.
Disconnect unit from power supply
before servicing. Failure to follow
warnings may result in severe eye
damage and electrical shock.
WARNING! - This unit must be installed
by a licensed HVAC contractor. Failure to
do so will void warranty of the product.
WARNING! - To prevent damage to the
unit, operating environment temperature
must never exceed 200˚F (93°CC).
WARNING! -This unit must never be
used with an extension cord.
WARNING! - Do not connect this unit
to any voltage source above 32 volts.
Doing so will cause damage to the unit.

Safety
Switch
3
REPLACEMENT PARTS
Base Unit
ActivePure® Cell (Ozone-Free)
Item # 49780
Ballast
Item # 49776
Power Cord
Item # 49782
INSTALLATION HARDWARE SUPPLIED
UV bulb indicator
Replaceable ActivePure®
Cell (includes UV Lamp)
Mounting
Plate
RECOMMENDED INSTALLATION TOOLS
PRODUCT CONTENTS
Power Cord
ActivePure® Cell
INSTALLATION HARDWARE
(8) #8 - .75
1/4” Self-tapping screws
Item # US70679
(4) #6 - 32 X 2 inch
Threaded bolts
Item #US70680
(2) Thumb Screws
Item #36-00213
(4) Thumb Nuts
Item #36-00214
(4) #6 - 32
Toggle bolt wall anchors
Item # US70682
You may also need:
Utility Knife Tin Snips
(for metal ductwork)
CAUTION:When the unit is
installed in a roof mounted
HVAC system, the unit must be
protected from the elements.
3 1/2”Hole Saw
for wood or metal
(recommended)
Drill/Power Driver Phillips
Screwdriver
3/8”Drill Bit
(if installing into fiberglass
ducting with toggle bolts)
1/4
1/4”
Nut Driver Bit
Dust Mask

INSTALLATION REQUIREMENTS
Power Connection Requirements:
This device is designed for operation from a standard 24 VAC transformer. Do not connect this unit to any voltage
source above 32 volts. Doing so will cause damage to the unit. The supplied electrical wiring has two terminals for
connection to the G4 unit. For connection to a 24 volt source other than the G4, you will need to remove the two
terminals from the end of the supplied electrical wiring.
NOTE: Unit requires continuous power. Do not install where power to the unit will be cycled on and off.
WARNING! - This unit must be installed by a licensed HVAC
contractor. Failure to do so will void warranty of the product.
1. Unit should be installed after the air handler in the
HVAC system.
2. The ductwork around the installation area should be
clean and dry to ensure proper adhesion of the gasket
materials and any tape used.
3. When installing near a furnace or heating coils, run the heating system through five (5)
full heating cycles to ensure the temperature of the Beyond by Aerus Sanctuairy unit
does not exceed 200˚F.
4. An approximate 3.5” (8.89 cm) opening will need to be cut into the existing
ductwork to install the unit properly.
Air
Handler
Min. 9” x 9”
Metal Ductwork
Min. 10” x 10”
Fiberglass
Ductwork
Max. 15 ft.
4
METAL DUCTWORK INSTALLATION
1
1. Locate suitable area
of duct for installation.
3
3. Mark location for 3.5” opening using either the
mounting plate or included template.
4
4. Cut hole in duct using 3.5” hole saw.
2
2. Cut away insulation to expose metal duct (if
needed).

5
a
a. Using template, mark 4 Cutting
Method holes on duct.
b
b. Drill 4 holes where marked.
c
c. Cut between holes using tin snips.
ALTERNATIVE CUTTING METHOD
5
5. Remove backing
from mounting plate
adhesive gasket.
6
6. Center openings and press mounting plate onto
duct. The adhesive gasket will hold the mounting
plate in place.
8
8. Insert unit into opening. Be sure the air will pass
though the ActivePure® cell honeycomb matrix.
9
9. Secure the unit to the
mounting plate
with (4) thumb nuts.
10
7
7. Secure the mounting plate using (8) #8
self-tapping screws.
METAL DUCTWORK INSTALLATION CONTINUED
1/4
10. Plug unit into working power receptacle.
Hard wiring unit into HVAC system must
be done by a licensed HVAC installer or
electrical contractor only.
