Customer Buyer’s Guide
TEST & INSPECTION
OTDRs & Troubleshooters |Fiber Inspection & Cleaning |Optical Loss Testing |Fiber Identication

January 17, 2022
2
www.AFLglobal.com | [phone]
Test & Inspection
CustomerBuyer’s Guide
INTERNATIONAL SALES AND SERVICE CONTACT INFORMATION
© 2022, AFL, all rights reserved. BG00-00 Revision 2022-01, 2022-01-17
Specications are subject to change without notice.
International Contacts Europe, Middle East, Africa
Christian Kraemer
Sales Director
[e-mail]
[phone]
Europe, Africa
Ané Nel
Regional Sales Manager
[e-mail]
[phone]
Middle East
Ahmed El Sakaty
Regional Sales Manager
[e-mail]
[phone]
Australia
Daniel Rose
Sales Manager
[e-mail]
[phone]
New Zealand
Henk Schoeman
Country Manager
[email protected]
[phone]
Cell: [phone]
APAC
Alex Wong
Regional Sales Manager
Alex.W[email protected]
(65) 6370 2236
Cell: (65) 9233 6541
Mexico, Central America, Caribbean
Joseph Kennedy
[e-mail]
[phone]
Cell: [phone]
Commercial Support Donald Allard
Commercial Manager
[e-mail]
[phone]
Cell: [phone]
Technical Support [e-mail]
+1 (800-) 235-3423 (Option 3)
Sales Support https://www.AFLglobal.com/Contact/AFL-Sales-Team.aspx
[e-mail]
+1 (800-) 235-3423 (Option 4)
Purchase Orders, Quote, RMA [e-mail]
Service Request AFLEquipmentSer[email protected]om
AFL Test & Inspection web www.AFLglobal.com/Test
Warranty Activation www.AFLglobal.com/Register
AFL’s Customer Portal - Direct content.AFLglobal.com/Direct.html

January 17, 2022
3
www.AFLglobal.com | [phone]
Test & Inspection
CustomerBuyer’s Guide
Release Highlights........................................................... 5
OTDRs& TROUBLESHOOTERS .......................................... 6
OTDRs and Troubleshooters Selection Guide ............................... 7
FlexScan®OTDRs............................................................................ 8
FS300 Quad OTDR with SmartAuto®and LinkMap®........................... 8
FS200 SMF OTDR with SmartAuto®, FleXpress®and LinkMap®......... 11
TS100 FTTH PON Troubleshooter......................................................... 14
Field-replaceable Connector Adapters ................................................ 17
FlexScan®FS200, FS300, and TS100 Accessories and Connector
Adapters ........................................................................................... 18
MFS Multi-Fiber Switch OTDR Add-on Kit ........................................... 19
Custom-Designed Network Simulators................................................ 19
FTTx PON Simulator Kits...................................................................... 19
OTDR Launch and Receive/Tail Cords - Fiber Rings ............................. 20
FASTConnect®for Bare Fiber Termination........................................... 22
TJ-03 Temporary Splice........................................................................ 22
FIBER INSPECTION & CLEANING...................................... 23
FOCIS Flex Fiber Optic Connector Inspection System .......................... 25
FOCIS Series and DFS1 Adapter Tips ................................................ 26
FOCIS Flex Accessories..................................................................... 28
FOCIS Lightning®Multi-Fiber Optic Connector Inspection System...... 30
FOCIS Lightning®Accessories .......................................................... 31
FOCIS Lightning Adapter Tips........................................................... 31
FOCIS Duel®Fiber Optic Connector Inspection System ....................... 32
FOCIS Duel®Accessories .................................................................. 33
FOCIS Duel Adapter Tips .................................................................. 33
FOCIS WiFi2™Fiber Optic Connector Inspection System..................... 34
FOCIS WiFi2 Accessories .................................................................. 35
FOCIS WiFi2 Tips .............................................................................. 35
OFS300 Microscope for Connectors on Patch Cords .......................... 35
OFS300 Accessories.......................................................................... 35
Cleaning Supplies .......................................................................... 37
AFL-CleanDisplay-1 ............................................................................. 37
Wall/Rack Mountable Field Portable Cleaning Kits ............................. 37
Field Portable Dufe Bag Cleaning Kits............................................... 37
FCP3 Easy-Access Cleaning Kit......................................................... 37
FCC2 Cleaning Fluid and CCT Cleaning Sticks ..................................... 38
Cletop Cassette Cleaners..................................................................... 39
Cletop (ACT) Cleaning Sticks ............................................................... 39
One-Click®Cleaners............................................................................. 40
NEOCLEAN Fiber Connector Cleaning Tools........................................ 41
Optical Grade Cleaning Wipes............................................................. 41
OPTICAL LOSS TESTING.................................................... 42
ROGUE®OLTS Certier .................................................................. 44
Mobile App for ROGUE®OLTS Certier ............................................... 44
ROGUE®Hardware and Accessories................................................. 45
Connector Adapters for ROGUE Module Test Ports ......................... 45
Encircled Flux (EF) Reference Grade Test Cords ............................... 45
Multi-Fiber Switch Certication Add-on Kits....................................... 46
Multi-Fiber Switch Models ............................................................... 46
FlowScout PON Optical Power Meter ........................................... 47
FlowScout Included Accessories .......................................................... 48
Optical Loss Test Kits (SLP, SMLP, and CK Series) ......................... 49
Encircled Flux (EF) Compliant Test Kit and Light Source.............. 50
Encircled Flux (EF) Reference Grade Test Cords ............................... 50

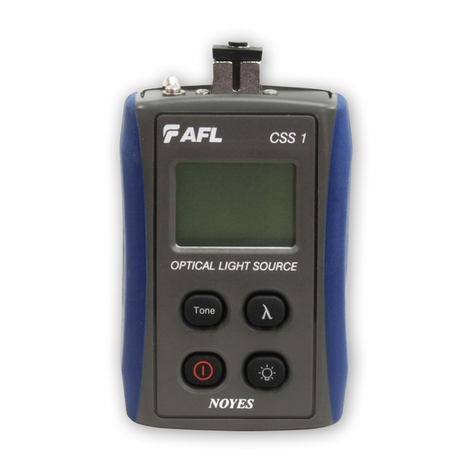

LED and Laser Light Sources (OLS and CSS1 Series)..................... 51
OLS AC Power Supply....................................................................... 51

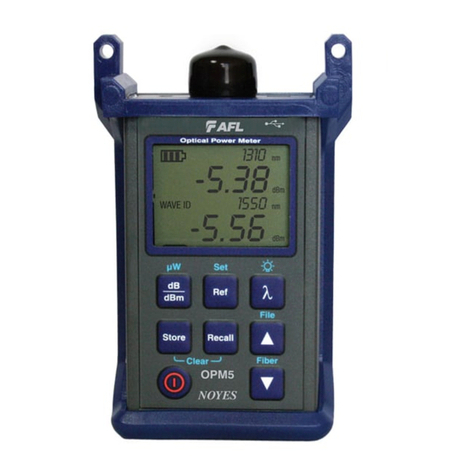

Optical Power Meters (OPM and CSM1 Series)............................. 52
OPM Accessories .............................................................................. 52
FIBER IDENTIFICATION..................................................... 53
MFIS Multi-Fiber Identication System................................................ 54
MFIS Ordering .................................................................................. 54
MFIS Accessories .............................................................................. 54
OFI-BIPM & OFI-BIPMe Optical Fiber Identiers ................................. 56
OFI-BIPM/-BIPMe Power Meter Port Adapters................................. 56
OFI- 200D and OFI-400 Optical Fiber Identiers................................. 56
OFI-200D and OFI-400 Accessories.................................................. 56
VFI4 Visual Fault Identier................................................................... 57
VFI4 Accessories .............................................................................. 58
MT Tracer (12-ber VFI and Display) ................................................... 58
Test Management and Reporting Software ................. 59
aeRos®Cloud-based Test Management and Reporting....................... 59
TRM®2.0/3.0 Test Results Manager.................................................... 59
Adapter Caps & Accessories ........................................... 60
Adapter Caps for OPM Ports and OFS300-200 ................................ 60
Adapter Caps for OFS300-200 Only ................................................ 60
Test Jumpers..................................................................................... 61
Mating Adapters............................................................................... 61
Mandrels for Multimode Link Testing .............................................. 61
Return Loss Test Sets Accessories .................................................... 61
TABLE OF CONTENTS

January 17, 2022
4
www.AFLglobal.com | [phone]
Test & Inspection
CustomerBuyer’s Guide
Power Supply Cords for AC Chargers ............................................... 61
Accessories for Discontinued Products............................................. 62
Calibration Services ........................................................ 64
Calibration and Repair Facilities .......................................................... 65
Extended Warranty Options ................................................................ 66
Terms and Conditions ..................................................... 67
Changes in the current revision, January 2022 ............ 68
TABLE OF CONTENTS

January 17, 2022
5
www.AFLglobal.com | [phone]
Test & Inspection
CustomerBuyer’s Guide
RELEASE HIGHLIGHTS
FlowScout PON Optical Power Meter
AFL’s FlowScout PON Power Meter identies, measures, and qualies both
downstream and upstream signal levels in FTTx PON networks. It is perfect
for technicians responsible for activating and maintaining networks carrying
a mix of GPON/EPON, video, and next gen PON (XG/XGS-PON, 10GEPON)
wavelengths.
Unlike competing through-mode PON Power Meters, AFL’s FlowScout requires
no setup. Technicians simply plug in the ber under test to see results displayed
in seconds on the large color touchscreen. Storage and reporting options are
included to verify and document results from the eld.
FlowScout's rugged design makes it perfect for outside plant environments
where it can be dropped, get dirty or even wet. And because it is so easy to
use, FlowScout requires little, if any, training.
See "FlowScout PON Optical Power Meter" on page 48.
VFI4 Visual Fault Identier
AFL’s compact VFI4 injects high-powered red-laser light to provide exceptional
brightness and range for locating defects in single-mode and multimode bers.
During installation and activation, the VFI4 is used for quick continuity checks,
ber tracing, splice verication, and Pass/Fail validation for mechanical
connectors.
The VFI4 is also an essential troubleshooting tool to nd sharp bends, breaks,
faulty connectors, and other defects that “leak” light - enabling technicians to
quickly spot them.
See section "VFI4 Visual Fault Identier" on page 58.

Splicing & Test Equipment
OTDRs & TROUBLESHOOTERS
OTDRs& TROUBLESHOOTERS

January 17, 2022
7
www.AFLglobal.com | [phone]
Test & Inspection
CustomerBuyer’s Guide
Model
Point-to-Point
Networks/Fiber Type FTTx PON OTDR/Troubleshooter Performance
Integrated
Peripherals Reporting
Inspection
MMF/SMF SMF SMF
Wavelengths
(nm)
Dynamic
Range
(dB)
Dead
zone
EDZ/
ADZ
(m)
SmartAuto® Expert & Real-time LinkMap® FleXpress® Trace View MPO Switch Control OLS Broadband OPM Dual- PON OPM
VFL TRM®3.0
iOS & Android FlexScan App Data Center LAN Core Metro Access Dark Live Test To Splitter Test Through Splitter
FlexScan FS300 Quad OTDR
FS300-325 850/1300/1310/1550 29/29/37/36 0.5/3.5
FlexScan FS200 SM OTDR
FS200-50B 1550 28 1.0/6.0
FS200-60 1650 37 0.8/3.6
FS200-100 1310/1550 32/30 0.8/3.6
FS200-300 1310/1550 37/36 0.8/3.5
FS200-303 1310/1550/1625 37/36/37 0.8/3.5
FS200-304 1310/1550/1650 37/36/37 0.8/3.5
FlexScan TS100 Troubleshooter
TS100-60 1650 Note 'a' Note 'b' P1c P2d
TS100-70 1650 Note 'a' Note 'b' P1c P2d
Notes
a. See TS100 data sheet for measurement range specications.
b. See TS100 data sheet for event detection specications.
c. P1 = Broadband Power Meter option for TS100.
d. P2 = Dual-wavelength + Broadband PON Power Meter option for TS100.
OTDRs and Troubleshooters Selection Guide

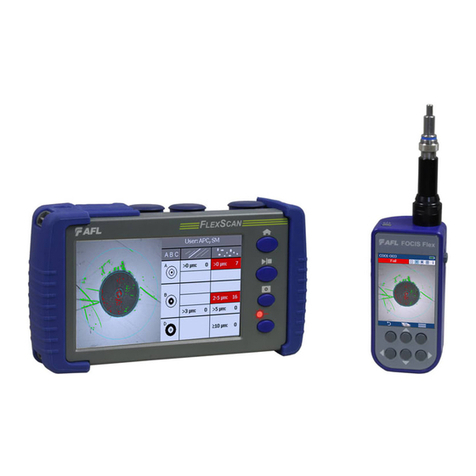

FlexScan®FS300
FlexScan®FS200
FlexScan®TS100

Specifications
• Wavelengths: MM 850/1300, SM 1310/1550
• Network Type: Point-to-Point and PON up to 1:64
• Dynamic Range: MM ≥29/29 dB, SM ≥37/36 dB
• Event Dead Zone: ≤0.8 m
• Range Settings: MM 250 m to 30 km, SM 250 m
to 240 km
• Data Points: Up to 300,000
• Internal Storage: 4 GB (≥1,000 traces)
The FlexScan FS300 OTDR enables both expert and
novice technicians to quickly and accurately locate,
identify and measure components and faults on either
single-mode or multimode optical networks.
The pocket-sized FlexScan FS300 includes an integrated
optical light source, power meter and visual fault
locater (VFL). It can be easily coupled with AFL’s
award-winning FOCIS inspection probes or optical ber
identiers (OFI) to give technicians everything they need
to locate and resolve any optical network issues.
FlexScan SmartAuto tests utilize multi-pulse acquisition
to obtain high-resolution without sacricing
measurement range. Test results are clearly displayed
on the large 5-inch touchscreen with color-coded
LinkMap®icons providing network conguration and
pass/fail status at a glance.
Professional reports can be generated using either
integrated Print-to-PDF or the included Windows-
compatible TRM®3.0 Test Results Manager software.
Results can be transferred from FlexScan by USB cable
or wirelessly using the free FlexScan App.
Easily Locate and Resolve Optical Network Faults
FlexScan FS300 Quad OTDR
Contact [email protected]
Award-winning all-in-one solution that
automates test setup, shortens test time
and simplies results interpretation.
FlexScan®OTDRs
FS300 Quad OTDR with SmartAuto®and LinkMap®

January 17, 2022
9
www.AFLglobal.com | [phone]
Test & Inspection
CustomerBuyer’s Guide
FLEXSCAN®OTDRS
FS300 Quad OTDR with SmartAuto®and LinkMap®
All the benets of FlexScan PLUS…
• Quad OTDR (850/1300 multimode and 1310/1550 single-mode, including FTTH PON test)
• Larger, higher resolution display (5”, 800 x 480)
• Gesture-recognition touchscreen (swipe-to-pan, pinch-to-zoom)
• Integrated Print-to-PDF
• Auto-save and auto-send
• User-replaceable, longer life battery
FlexScan FS300 models are available in six kit congurations: Basic, PLUS, PRO, BIPM, SMPO, and MMPO.
• All kits include FS300 with AC charger, battery, carry strap, SC/2.5mm connector adapters, TRM®3.0, quick reference user guide, and carry case
• PLUS kits add 150 m ber rings and One-Click Cleaner
• PRO kits additionally include a FOCIS Flex auto-focusing connector inspection probe with IEC pass/fail analysis and two adapter tips
• BIPM kits expand on PRO Kits by adding a bend-insensitive ber identier with optical power meter
• SMPO kits include FS300, single-mode MFS Switch, single-mode 150 m ber ring (SC/APC to SC/APC), single-mode MPO launch cable (unpinned) to
user-selected male (pinned) or female (unpinned) MPO connector, TRM 3.0 Advanced, One-Click Cleaners (single-ber and MPO), carry case that allows
FlexScan, MFS Switch, and ber rings to be connected, operated in the carry case and remain congured during transport
• MMPO kits include FS300, multimode MFS Switch, OM3/4/5-compatible 150 m ber ring (SC to SC), multimode MPO launch cable (unpinned) to
user-selected male (pinned) or female (unpinned) MPO connector, TRM 3.0 Advanced, One-Click Cleaners (single ber and MPO), carry case that allows
FlexScan, MFS Switch, and ber rings to be connected, operated in the carry case and remain congured during transport
FlexScans equipped with Bluetooth option (W1) support Bluetooth transfer of results via iOS or Android FlexScan App for remote reporting using TRM 3.0. The
FlexScan App is available as a free download from 'iOS App Store' or 'Google play' store.
AFL NO. OTDR/OLS (nm)
PON
OTDR
OLS/
OPM
BT/
Wi-Fi
FS300-325-[Kit]-P0-W0 850/1300 MM; 1310/1550 SM
FS300-325-[Kit]-P0-W1 850/1300 MM; 1310/1550 SM
FS300-325-[Kit]-P1-W0 850/1300 MM; 1310/1550 SM
FS300-325-[Kit]-P1-W1 850/1300 MM; 1310/1550 SM
FlexScan FS300 Quad OTDR Kit Conguration - [KIT]
[KIT] FS300 Kit Conguration/Kit Contents
BAS Includes: FS300, soft case, TRM®3.0 Basic, USB cablea
PLUS Includes: BAS kit plus 150 m SMF & MMF ber rings, One-Click Cleaner, upgrade to TRM 3.0 Advanced, user-selected soft or hard carry case
PRO Includes: PLUS kit plus FOCIS Flex with two user-selected adapter tips
BIPM Includes: PRO kit plus OFI-BIPMe
SMPO Includes: FS300, SMF MFS Multi-Fiber Switch, SMF 150 m ber ring (SC/APC to SC/APC), SMF MPO launch cable (unpinned) to user-selected male
(pinned) or female (unpinned) MPO connector, TRM 3.0 Advanced, One-Click Cleaners (single-ber and MPO), carry case that allows FlexScan, MFS
Switch, and ber rings to be connected, operated in the carry case and remain congured during transport
MMPO Includes: FS300, MMF MFS Multi-Fiber Switch, OM3/4/5-compatible 150 m ber ring (SC to SC), MMF MPO launch cable (unpinned) to user-
selected male (pinned) or female (unpinned) MPO connector, TRM 3.0 Advanced, One-Click Cleaners (single ber and MPO), carry case that allows
FlexScan, MFS Switch, and ber rings to be connected, operated in the carry case and remain congured during transport
Notes:
a. Results can be transferred from FlexScan OTDR to TRM 3.0 using USB cable, or performed wirelessly (W1 option) after downloading free iOS or Android
FlexScan App from 'iOS App Store' or 'Google play' store.
FlexScan PRO Kit
FlexScan BIPM Kit
FlexScan MPO Kit
FlexScan Basic Kit
FlexScan Plus Kit
FlexScan FS300 Accessories and Connector Adapters
See sections "FlexScan®FS200, FS300, and TS100 Accessories and Connector Adapters" on page 18.
Get $1000 credit
Towards any FS300-325 Kit
When you trade-up any
AFL M-series OTDR

January 17, 2022
10
www.AFLglobal.com | [phone]
Test & Inspection
CustomerBuyer’s Guide
FlexScan®FS300-325 Order Entry
FS300-325 Basic, Plus, PRO, BIPM Kits Order Entry: FS300-325-[KIT]-[Pn]-[Wn]-[C]-[CC]-[LNG]-[AC]-[SMFR]-[MMFR]-[TIP]
FS300-325 MPO Kits (SMF and MMF) Order Entry: FS300-325-[MKIT]-P1-[Wn]-[LNG]-[AC]-[MPOC]
Where:
[TIP] FOCIS Flex Tips and Cleaning (PRO, BI, BIPM Kits only)
Absent Option not available in Basic and PLUS kits
SC SC/UPC bulkhead tip, 2.5 mm UPC ferrule tip, 2.5 mm One-Click
FC FC/UPC bulkhead tip, 2.5 mm UPC ferrule tip, 2.5 mm One-Click
LC LC/UPC bulkhead tip, 1.25 mm UPC ferrule tip, 1.25 mm One-Click
ASC SC/APC bulkhead tip, 2.5 mm APC ferrule tip, 2.5 mm One-Click
AFC FC/APC bulkhead tip, 2.5 mm APC ferrule tip, 2.5 mm One-Click
ALC LC/APC bulkhead tip, 1.25 mm APC ferrule tip, 1.25 mm One-Click
[MPOC] MPO Launch Cable Network Connector
FFemale (unpinned) to Female (unpinned)
MFemale (unpinned) to Male (pinned)
[KIT] FS300-325 Kit Conguration / Kit Contents
BAS Includes: FS300, soft case, TRM®3.0 Basic, USB cablea
PLUS Includes: BAS kit plus 150 m SMF & MMF Fiber Rings, One-Click Cleaner,
upgrade to TRM 3.0 Advanced, user-selected soft or hard carry case
PRO Includes: PLUS kit plus FOCIS Flex with two user-selected adapter tips
BIPM Includes: PRO kit plus OFI-BIPMe
[MKIT] FS300-325 MPO Kit Conguration / Kit Contents
SMPO Single-mode MPO test kit (see SMPO Kit details on preceding page)
MMPO Multimode MPO test kit (see MMPO Kit details on preceding page)
[Pn] Optical Light Source (OLS) and Optical Power Meter (OPM)
P0 No OLS, no OPM
P1 850/1300 MM; 1310/1550 SM Source and Power Meter
[Wn] Bluetooth / Wi-Fi Conguration
W0 No Bluetooth or Wi-Fi
W1b Includes Wi-Fi and Bluetooth
[C] OTDR / Source Connector Type
AAPC (recommended)
UUPC
[CC]c Carry Case Option
S1 Large soft case for FlexScan, Fiber Rings, FOCIS Flex, OFI-BIPM, accessories
(Plus, PRO, BIPM Kits only)
S2 Standard soft case for FlexScan, Fiber Rings, FOCIS Flex, accessories (Basic, Plus,
PRO Kits only)
H1 Hard carry case (Plus, PRO, BIPM Kits only)
[AC] Destination Country AC Plugs
US USA 2-pin, US
EU European Union 2-pin, EU
UK United Kingdom 3-pin, UK
CN China, Australia 2-pin, SAA
[MMFR]
150 m OM2 50 µm
MMF Fiber Ring
Absent N/A in Basic kits
USC/UST2 FR-OM2-150-USC-UST
USC/USC2 FR-OM2-150-USC-USC
USC/ULC2 FR-OM2-150-USC-ULC
USC/UFC2 FR-OM2-150-USC-UFC
[MMFR]
150 m OM1 62.5 µm
MMF Fiber Ring
Absent N/A in Basic kits
USC/UST1 FR-OM1-150-USC-UST
USC/USC1 FR-OM1-150-USC-USC
USC/ULC1 FR-OM1-150-USC-ULC
USC/UFC1 FR-OM1-150-USC-UFC
[LNG] Language Option
ENG English
CHS Chinese Simplied
CHT Chinese Traditional
CZE Czech
DEU German
DNK Danish
FIN Finnish
FRA French
ITA Italian
Notes:
a. Results can be transferred from FlexScan OTDR to TRM®3.0 using USB cable, or
performed wirelessly (W1 option) after downloading free iOS or Android FlexScan App.
The FlexScan App is available as a free download from 'iOS App Store' or 'Google play'
store.
b. FlexScans equipped with Bluetooth option (W1) support Bluetooth transfer of results via
FlexScan App for remote reporting using TRM 3.0.
c. Basic kit always ships with S1 (Standard Soft Case); MPO kit always ships with MPO-
specic soft case..
[LNG] Language Option
JPN Japanese
KOR Korean
NOR Norwegian
POL Polish
POR Portuguese
SPA Spanish
TUR Turkish
VNM Vietnamese
[MMFR]
150 m OM3/4/5 -
Compatible Fiber Ring
Absent N/A in Basic kits
USC/UST3 FR-OM3-150-USC-UST
USC/USC3 FR-OM3-150-USC-USC
USC/ULC3 FR-OM3-150-USC-ULC
USC/UFC3 FR-OM3-150-USC-UFC
[SMFR] 150 m SMF Fiber Ring
Absent N/A in Basic kits
USC/USC FR-SMF-150-USC-USC
USC/UFC FR-SMF-150-USC-UFC
USC/ULC FR-SMF-150-USC-ULC
USC/UST FR-SMF-150-USC-UST
USC/ASC FR-SMF-150-USC-ASC
USC/AFC FR-SMF-150-USC-AFC
USC/ALC FR-SMF-150-USC-ALC
USC/UE2 FR-SMF-150-USC-UE2
ASC/UFC FR-SMF-150-ASC-UFC
ASC/ULC FR-SMF-150-ASC-ULC
ASC/UST FR-SMF-150-ASC-UST
ASC/ASC FR-SMF-150-ASC-ASC
ASC/AFC FR-SMF-150-ASC-AFC
ASC/ALC FR-SMF-150-ASC-ALC
ASC/AE2 FR-SMF-150-ASC-AE2

Specifications
• Wavelengths: Single, dual, triple (1310, 1550, 1650 nm)
• Network Type: Point-to-Point and/or FTTH PON
• Dynamic Range: Up to 37 dB
• Internal Storage: 4 GB (>1000 traces)
• Size: 86 x 160 x 43 mm; Weight: 0.4 kg
• Battery Life: >12 hours, Telcordia test conditions
• Display: Color touchscreen 4.3 in LCD
• Available with eld-replaceable Port Saver
• USB, Bluetooth, and Wi-Fi interfaces
The FlexScan FS200 is a family of performance-packed
singlemode OTDRs which provide fast, accurate ber
characterization and fault location for point-to-point
and FTTH PON networks.
FlexScan FS200 OTDRs automate test setup, simplify
results interpretation, and shorten test time, all at
an affordable price point. AFL’s SmartAuto®mode
requires just the push of a button to test the network.
Results are clearly displayed on the large touchscreen
using color-coded LinkMap®icons that show network
conguration and pass/fail status at a glance. Our new
FleXpress®mode completes dual-wavelength tests in
under 5 seconds – 10 x faster than other OTDRs!
The integrated light source, power meter and VFL, along
with an optional connector inspection scope, provide
both expert and novice technicians everything they need
to locate and resolve optical network issues. Results
may be stored internally or externally and easily shared
via USB or Bluetooth. Included Windows-compatible
TRM®3.0 Test Results Manager software quickly
generates easy-to-understand reports. The results used
for TRM reports can be transferred from FlexScan by
USB cable or wirelessly via the FlexScan App.
Award Winning Pocket-Sized Singlemode OTDR
FlexScan® FS200
Contact [email protected]
Measure ber attenuation and identify connectors,
splices, cable ends & issues such as bends or breaks
FS200 SMF OTDR with SmartAuto®, FleXpress®and LinkMap®

January 17, 2022
12
www.AFLglobal.com | [phone]
Test & Inspection
CustomerBuyer’s Guide
FS200 SMF OTDR with SmartAuto®, FleXpress®and LinkMap®
FleXpress Free Upgrade Introductory Offer ($395 value)!
Combining SmartAuto network-optimized event detection and analysis with its intuitive LinkMap view of the tested network, AFL’s FlexScan OTDRs enable even
novice technicians to quickly and easily troubleshoot or fully characterize optical ber networks. Have dozens of bers to test? Reduce test time more than 10x,
completing dual-wavelength OTDR tests in <5 seconds using new FleXpress fast test! For even faster testing, use FlexScan's new integrated MPO switch control
to automate multi-ber testing.
FlexScans equipped with Bluetooth option (W1) support Bluetooth transfer of results via iOS or Android FlexScan App for remote reporting using TRM®3.0. The
FlexScan App is available as a free download from 'iOS App Store' or 'Google play' store.
FlexScan FS200 family offers the following models with integrated VFL, two USB ports plus optional source, power meter, Bluetooth®and Wi-Fi communications:
• FS200-50B: 1550 nm Point-to-Point Troubleshooting OTDR
• FS200-60: 1650 nm Live PON Troubleshooting OTDR
• FS200-100: 1310/1550 Point-to-Point Verication and Troubleshooting OTDR
• FS200-300: 1310/1550 PON and Point-to-Point Verication and Troubleshooting OTDR with FleXpress and MPO Switch control
• FS200-303: 1310/1550/1625 PON and Point-to-Point Verication and Troubleshooting OTDR with FleXpress and MPO Switch control
• FS200-304: 1310/1550/1650 PON and Point-to-Point Verication and Troubleshooting OTDR with FleXpress and MPO Switch control
AFL NO.
OTDR/Source
(nm)
PON OTDR
OLS/OPM BT/Wi-FiDark Live
FS200-50B-[Kit]-P0-W0 1550
FS200-60-[Kit]-P0-W0 1650
FS200-100-[Kit]-P0-W0 1310/1550
FS200-100-[Kit]-P1-W1 1310/1550
FS200-300-[Kit]-P0-W1 1310/1550
FS200-300-[Kit]-P1-W1 1310/1550
FS200-303-[Kit]-P1-W0 1310/1550/1625
FS200-303-[Kit]-P1-W1 1310/1550/1625
FS200-304-[Kit]-P0-W1 1310/1550/1650
FS200-304-[Kit]-P1-W0 1310/1550/1650
FS200-304-[Kit]-P1-W1 1310/1550/1650
FlexScan FS200 Kit Conguration - [KIT]
[KIT] FS200 Kit Conguration / Kit Contents
BAS Includes: FS200, TRM®3.0 Basic, USB cablea, soft case
PLUS Includes: BAS Kit plus 150 m SMF Fiber Ring, One-Click Cleaner, upgrade to TRM 3.0 Advanced, soft or hard carry case
PRO Includes: PLUS Kit plus FOCIS Flex with two user-selected adapter tips
FTTH-PRO Includes: BAS kit plus 150 m SC/APC & LC/APC SMF Fiber Rings, SC & LC One-Click Cleaners, Port Saver, TRM 3.0 Advanced, soft or hard
carry case
BIPM Includes: PRO Kit plus OFI-BIPMe
MPO Includes: FS200, MFS Multi-Fiber Switch, MPO launch cable, OTDR-to-Switch launch cable, OTDR-to-Switch USB cable, TRM 3.0 Advanced
Notes:
a. Results can be transferred from FlexScan OTDR to TRM 3.0 using USB cable, or performed wirelessly (W1 option) after downloading free iOS or Android
FlexScan App from 'iOS App Store' or 'Google play' store.
FlexScan FS200 Accessories and Connector Adapters
See sections "FlexScan®FS200, FS300, and TS100 Accessories and Connector Adapters" on page 18.
FlexScan PRO Kit
FlexScan MPO Kit
FlexScan OTDR
FlexScan Basic Kit
FlexScan Plus Kit

January 17, 2022
13
www.AFLglobal.com | [phone]
Test & Inspection
CustomerBuyer’s Guide
FlexScan®FS200 Order Entry
All kits include a FlexScan FS200 with AC charger, battery, carry strap, SC/2.5 mm connector adapters, TRM®3.0, USB cable, and carry case.
FS200-XXX-Basic, Plus, PRO, BIPM Kits Order Entry: FS200-[MOD]-[KIT]-[PW]-[C]-[CC]-[LNG]-[AC]-[FR]-[TIP]
FS200-XXX-MPO Kits Order Entry: FS200-[MOD]-MPO-P1-W1-[C]-[LNG]-[AC]-[MPOC]
FS200-303/304-FTTH-PRO-Kits Order Entry: FS200-[MOD]-FTTH-PRO-[CC]-[LNG]-[AC]where:
[TIP]e FOCIS Flex Tips and Cleaning (PRO only)
Absent Option not available in Basic and PLUS kits
SC SC/UPC bulkhead tip, 2.5 mm UPC ferrule tip, 2.5 mm cleaning
FC FC/UPC bulkhead tip, 2.5 mm UPC ferrule tip, 2.5 mm cleaning
LC LC/UPC bulkhead tip, 1.25 mm UPC ferrule tip, 1.25 mm cleaning
ASC SC/APC bulkhead tip, 2.5 mm APC ferrule tip, 2.5 mm cleaning
AFC FC/APC bulkhead tip, 2.5 mm APC ferrule tip, 2.5 mm cleaning
ALC LC/APC bulkhead tip, 1.25 mm APC ferrule tip, 1.25 mm cleaning
[MOD] FS200 FlexScan OTDR Conguration
50 1550 nm only Troubleshooting OTDR
60 1650 nm only Live PON Troubleshooting OTDR
100 1310/1550 nm Verication and Troubleshooting OTDR
300 1310/1550 Pt-to-Pt and PON Verication and Troubleshooting OTDR
303 1310/1550/1625 Pt-to-Pt and PON Verication and Troubleshooting OTDR
304 1310/1550/1650 Pt-to-Pt and PON Verication and Troubleshooting OTDR
[KIT] FS200 FlexScan Kit Conguration / Kit Contents
BAS Includes: FS200, TRM 3.0 Basic, USB cablea, soft case
PLUS Includes: BAS kit plus 150 m SMF Fiber Rings, One-Click Cleaner, upgrade to
TRM 3.0 Advanced, soft or hard carry case
PRO Includes: PLUS kit plus FOCIS Flex with two user-selected adapter tips
FTTH-
PRO
Includes: BAS kit plus 150 m SC/APC and LC/APC SMF Fiber Rings, SC & LC
One-Click Cleaners, Port Saver, TRM 3.0 Advanced, soft or hard carry case
(FS200-303/304 only)
BIPM Includes: PRO kit plus OFI-BIPMe
MPO Includes FlexScan, MFS Switch, MPO launch cable,
OTDR-to-Switch launch cable, OTDR-to-Switch USB cable
[PW] Power Meter / Wireless Option
P0-W0 No Source, Power Meter, or Bluetooth/Wi-Fi (-50B/60/100 only)
P0-W1b No Source, Power Meter; Includes Bluetooth/Wi-Fi (FS200-300/304)
P1-W0 No Bluetooth/Wi-Fi (FS200-303/304 only); Includes Source, Power Meter
P1-W1b Includes Source, Power Meter, Bluetooth/Wi-Fi (all models except -50B)
[C] OTDR / Source Connector Type
AAPC (recommended)
UUPC
[CC]cCarry Case Option (PLUS, PRO, FTTH-PRO, BIPM Kits)
S1 Large soft case for FS200, Fiber Ring, FOCIS Flex, OFI-BIPMe, accessories
S2 Medium soft case for FS200, Fiber Ring, FOCIS Flex, accessories
H1 Hard carry case for FS200, Fiber Ring, FOCIS Flex, OFI-BIPMe, accessories
[AC] Destination Country AC Plugs
US USA 2-pin, US
EU European Union 2-pin, EU
UK United Kingdom 3-pin, UK
CN China, Australia 2-pin, SAA
[FR]d 150 m SMF Fiber Ring Conguration
Absent N/A in Basic kits
USC/USC FR-SMF-150-USC-USC
USC/UFC FR-SMF-150-USC-UFC
USC/ULC FR-SMF-150-USC-ULC
USC/UST FR-SMF-150-USC-UST
USC/ASC FR-SMF-150-USC-ASC
USC/AFC FR-SMF-150-USC-AFC
USC/ALC FR-SMF-150-USC-ALC
USC/UE2 FR-SMF-150-USC-UE2
ASC/UFC FR-SMF-150-ASC-UFC
ASC/ULC FR-SMF-150-ASC-ULC
ASC/UST FR-SMF-150-ASC-UST
ASC/ASC FR-SMF-150-ASC-ASC
ASC/AFC FR-SMF-150-ASC-AFC
ASC/ALC FR-SMF-150-ASC-ALC
ASC/AE2 FR-SMF-150-ASC-AE2
[LNG] Language Option
ENG English
CHS Chinese Simplied
CHT Chinese Traditional
CZE Czech
DEU German
DNK Danish
FIN Finnish
FRA French
ITA Italian
[LNG] Language Option
JPN Japanese
KOR Korean
NOR Norwegian
POL Polish
POR Portuguese
SPA Spanish
TUR Turkish
VNM Vietnamese
[MPOC] MPO Launch Cable Network Connector
FFemale (unpinned) to Female (unpinned)
MFemale (unpinned) to Male (pinned)
Notes:
a. Results can be transferred from FlexScan OTDR to TRM®3.0 using USB cable, or
performed wirelessly (W1 option) after downloading free FlexScan App.The FlexScan App
is available as a free download from 'Google play' or 'App Store'.
b. FlexScans equipped with Bluetooth option (W1) support Bluetooth transfer of results via
FlexScan App for remote reporting using TRM 3.0.
c. Basic kit always ships with S2 (Medium Soft Case); MPO kit always ships with MPO-
specic soft case.

Specifications
• Wavelengths: 1650 nm ltered live PON Troubleshooter
• Network Type: Point-to-Point and/or FTTH PON
• Integrated GPON/10GPON PON Power Meter
• Test Range: Up to 40 km
• Test Time: Length, Loss, ORL, faults to end or Splitter ≤3 sec
• Results Storage: 4 GB internal memory
• Size: 86 x 160 x 43 mm and weighs 0.4 kg
• Battery Life: >12 hours, Telcordia test conditions
• Display: 4.3 inch color touchscreen LCD
• Available with eld-replaceable Port Saver
AFL's FlexScan TS100 is a family of pocket-sized optical
troubleshooters for frontline service technicians to
enable them to quickly verify or diagnose GPON, video
and XG/XGS-PON or 10GEPON networks.
It features automated setup, ultra-fast fault location, and
color-coded icons that enable even novices to diagnose
and repair single-mode networks like experts.
TS100 measures downstream PON power, link length,
loss, and ORL in under three seconds with the push
of a button. Technicians then simply touch any failed
measurements to get information on what to do about it.
Test results may be stored internally or externally
and easily shared via USB or Bluetooth. The included
Windows-compatible TRM®3.0 Test Results Manager
software quickly generates easy-to-understand reports.
Service providers, MSOs, and contractors love FlexScan
TS100 because it automates testing, shortens test time,
interprets results, and recommends corrective actions -
improving the efciency of their frontline technicians and
reducing costs.
One-Touch FTTH PON Troubleshooter
FlexScan® TS100
Contact [email protected]
Avoid extended downtime and additional truckrolls with
the easy-to-use TS100 designed for frontline technicians
TS100 FTTH PON Troubleshooter

January 17, 2022
15
www.AFLglobal.com | [phone]
Test & Inspection
CustomerBuyer’s Guide
FlexScan®TS100 FTTH PON Troubleshooter
AFL’s FlexScan TS100 Optical Troubleshooter is an easy-to-use, all-in-one tool for detecting, identifying, locating, and resolving single-mode optical network
issues. The TS100 provides auto-congured settings to quickly measure received power, link length, loss, ORL and detect events with the push of a button.
Results are displayed within seconds using color-coded LinkMap®icons for easy analysis. The FlexScan TS100 automates testing, shortens test time, interprets
results, and recommends corrective actions, improving efciency of frontline technicians and reducing costs.
Higher performance TS100-70 FlexScans can test through splitters up to 1:64, measure splitter loss and compare it to user-settable min/max loss limits,
enabling technicians to detect dirty or damaged connections or macro-bends at the splitter.
The lower cost FlexScan TS100-60 will test to the splitter but not through the splitter. Consequently, it will not detect and report macro-bends or poor
connections at the splitter which cause excess loss through the splitter.
TS100s are available with a eld-replaceable connector, which accepts tool-free, interchangeable connector adapters. Users are able to replace the connector
in the eld if damaged when mating dirty or damaged connectors to the TS100. The eld-replaceable connector also allows users to convert the Troubleshooter
port from APC to UPC or vice versa.
All TS100s include an integrated Light Source, user-selected Broadband or optional Dual-wavelength Power Meter, Visual Fault Locator (VFL), USB and optional
Bluetooth interfaces. The Light Source generates CW, Wave ID and ber-identifying tones, while the Power Meter automatically detects Wave ID and tones.
AFL NO. Application Test (nm) Power Meter
TS100-60-P1 PON to Splitter & Point-to-Point
1650 nm ltered
Broadband
TS100-60-P2 Broadband + PON
TS100-70-P1 PON through Splitter & Point-to-Point Broadband
TS100-70-P2 Broadband + PON
FlexScan TS100 Kit Conguration - [KIT]
All kits include selected FlexScan TS100 with AC charger, battery, carry strap, SC/2.5 mm connector adapters, TRM®3.0, USB cable, and soft carry case. PLUS
kits add a 150 m Fiber Ring, One-Click cleaner, and upgrade to TRM 3.0 Advanced software. PRO kits add a FOCIS®Flex auto-focusing connector inspection
probe with IEC pass/fail analysis and two adapter tips. TS100s are manufactured with APC connectors.
[KIT] TS100 Kit Conguration/Kit Contents
BAS Includes: TS100, soft case, TRM 3.0 Basic, USB cablea
PLUS Includes: BAS kit plus 150 m Fiber Ring, One-Click Cleaner, upgrade to TRM 3.0 Advanced
PRO Includes: PLUS kit plus FOCIS Flex with 2 adapter tips
Notes:
a. Results can be transferred from FlexScan to TRM 3.0 using USB cable, or uploaded via Bluetooth using IOS or Android FlexScan App downloaded from 'iOS
App Store' or 'Google play' store.
FlexScan TS100 Accessories and Connector Adapters
See sections "FlexScan®FS200, FS300, and TS100 Accessories and Connector Adapters" on page 18.
FlexScan PRO Kit
FlexScan TS100
FlexScan Basic Kit
FlexScan Plus Kit

January 17, 2022
16
www.AFLglobal.com | [phone]
Test & Inspection
CustomerBuyer’s Guide
[TIP] FOCIS Flex Tips & Cleaning (PRO only)
Blank Option not available in Basic and PLUS kits
SC SC-UPC bulkhead tip, 2.5 mm UPC ferrule tip, 2.5 mm One-Click
FC FC-UPC bulkhead tip, 2.5 mm UPC ferrule tip, 2.5 mm One-Click
LC LC-UPC bulkhead tip, 1.25 mm UPC ferrule tip, 1.25 mm One-Click
ASC SC-APC bulkhead tip, 2.5 mm APC ferrule tip, 2.5 mm One-Click
AFC FC-APC bulkhead tip, 2.5 mm APC ferrule tip, 2.5 mm One-Click
ALC LC-APC bulkhead tip, 1.25 mm APC ferrule tip, 1.25 mm One-Click
[MOD] TS100 Conguration
60 1650 nm ltered Live PON Troubleshooter;Test to Splitter
70 1650 nm ltered Live PON Troubleshooter;Test through Splitter
[KIT] TS100 Kit Conguration/Kit Contents
BAS Includes: TS100, soft case, TRM 3.0 Basic, USB cable a
PLUS Includes.: BAS kit plus 150 m Fiber Ring, One-Click Cleaner, TRM 3.0 Advanced
PRO Includes: PLUS kit plus FOCIS Flex with 2 adapter tips
[Pn] Power Meter Option
P1 Broadband Power Meter
P2 Dual-wavelength Power Meter for GPON / Video / XG/XGS/10GEPON
[Wn] Bluetooth Wireless Option
W0 Disabled
W1b Installed and enabled
[AC] Destination Country AC Plugs
US USA 2-pin, US
EU European Union 2-pin, EU
UK United Kingdom 3-pin, UK
CN China, Australia 2-pin, SAA
[FR1] 150 m SMF Fiber Ring
Absent N/A in Basic kits
USC/USC FR-SMF-150-USC-USC
USC/UFC FR-SMF-150-USC-UFC
USC/ULC FR-SMF-150-USC-ULC
USC/UST FR-SMF-150-USC-UST
USC/ASC FR-SMF-150-USC-ASC
USC/AFC FR-SMF-150-USC-AFC
USC/ALC FR-SMF-150-USC-ALC
USC/UE2 FR-SMF-150-USC-UE2
ASC/UFC FR-SMF-150-ASC-UFC
ASC/ULC FR-SMF-150-ASC-ULC
ASC/UST FR-SMF-150-ASC-UST
ASC/ASC FR-SMF-150-ASC-ASC
ASC/AFC FR-SMF-150-ASC-AFC
ASC/ALC FR-SMF-150-ASC-ALC
ASC/AE2 FR-SMF-150-ASC-AE2
FlexScan®TS100 Order Entry
TS100-[MOD]-[KIT]-[Pn]-[Wn]-[LNG]-[AC]-[FR]-[TIP] where:
Notes:
a. Results can be transferred from FlexScan to TRM®3.0 using USB cable, or uploaded via Bluetooth using FlexScan App downloaded from 'iOS App Store' or 'Google play' store.
b. FlexScans equipped with Bluetooth option (W1) support Bluetooth transfer of results via iOS or Android FlexScan App for remote reporting using TRM 3.0.
[LNG] Language Option
ENG English
CHS Chinese Simplied
CHT Chinese Traditional
CZE Czech
DEU German
DNK Danish
FIN Finnish
FRA French
[LNG] Language Option
ITA Italian
JPN Japanese
KOR Korean
NOR Norwegian
POL Polish
POR Portuguese
SPA Spanish
TUR Turkish

Features
• Prevents damage to factory-installed OTDR ferrules
• Allows damaged connectors to be replaced in the eld
• Supports APC and UPC ferrules and connectors
AFL’s new Port Saver is a eld-replaceable connector
that protects FlexScan®-series OTDR's ferrule from
damage due to repeated mating.
Protect your OTDR ports from damage due to mating
with dirty or damaged launch cables or patch cords
or normal wear-and-tear. Equip your FlexScan FS200
or FS300 OTDR or TS100 Troubleshooter with a eld-
replaceable connector which installs in seconds and
accepts AFL’s tool-free interchangeable SC, LC, FC and
ST connector adapters.
Replace damaged connectors in the eld: When normal
wear-and-tear or poor cleaning practices damage the
port saver’s end-face, replace it in seconds without
having to return the OTDR to a service center for an
expensive and time-consuming repair.
Contact your local AFL representative to learn more
about the Field-Replaceable OTDR Connector.
Field-Replaceable OTDR Connector
Optical Ferrule Port Saver
Contact [email protected]
Tired of expensive and time-consuming OTDR
connector replacement? — Port Saver prevents
ferrule damage and reduces equipment downtime!
Field-replaceable Connector Adapters

January 17, 2022
18
www.AFLglobal.com | [phone]
Test & Inspection
CustomerBuyer’s Guide
FlexScan®FS200, FS300, and TS100 Accessories and Connector Adapters
AFL NO. Accessories | Description
Compatible With
FS200 FS300 TS100
6000-00-0031MR Cable, USB-micro B, 5 pin, 6 fta
4050-00-0931PR AC charger 100-240 VAC to 5 VDC (specify [AC] option; see 'Order Entry')
1400-05-0230PZ FlexScan wrist strap
1400-05-0231PZ FlexScan neck strap, 36”
1400-01-0111PZ Soft carry case for FS200/TS100 kits with FOCIS Flex and Fiber Ring
1400-01-0128PZ Soft carry case for FS200/TS100 kits with FOCIS Flex, OFI-BIPMe and Fiber Ring
1400-01-0134PZ Hard carry case for FS200/TS100 kits with FOCIS Flex, OFI-BIPMe and Fiber Ring
1400-01-0167PZ Soft carry case for FS300 with FOCIS, OFI and Fiber Ring
1400-01-0177PZ Hard carry case for FS300 kits with FOCIS, OFI and Fiber Ring
1400-20-0001PZ Soft Carry Case for FS300-325 MPO kits
1400-20-0002PZ Soft carry case for FS300 with FOCIS, and Fiber Ring
3900-06-0902MR FS300 extended temperature replacement battery
4050-00-0033MR Vehicle charger, 12VDC to 5VDC @2A
6000-00-0034PR 5V USB charging cable (1.5 m), type A to barrel (0.9 X 3.2 X 9 mm)
TRM3-UPGRADE TRM®3.0 upgrade from Basic to Advanced software
AFL NO. Connector Adapters Description Test Port FS200 FS300 TS100
2900-58-0001MR FlexScan-facing APC female to APC male eld-replaceable Port Saver connector OTDR/OLS
2900-58-0002MR FlexScan-facing APC female to UPC male eld-replaceable Port Saver connector OTDR/OLS
2900-58-0003MR FlexScan-facing UPC female to APC male eld-replaceable Port Saver connector OTDR/OLS
2900-58-0004MR FlexScan-facing UPC female to UPC male eld-replaceable Port Saver connector OTDR/OLS
2900-50-0002MR FC OTDR/OLS
2900-50-0003MR SC OTDR/OLS (incl)
2900-50-0004MR ST OTDR/OLS
2900-50-0006MR LC OTDR/OLS
2900-50-0011MR SC/APC OTDR/OLS (incl) (incl) (incl)
2900-52-0001MR FC OPM
2900-52-0002MR SC OPM
2900-52-0003MR ST OPM
2900-52-0004MR LC OPM
2900-52-0005MR 2.5 mm Universal OPM (incl) (incl)
2900-52-0006MR 1.25 mm Universal OPM
2900-53-0001MR 2.5 mm Universal FS200 VFL (incl) (incl)
2900-53-0002MR 1.25 mm Universal FS200 VFL
2900-50-0007MR 2.5 mm Universal FS300 VFL (incl)
2900-50-0010MR 1.25 mm Universal FS300 VFL
OFI-BIPMe See "OFI-BIPM & OFI-BIPMe Optical Fiber Identiers" on page 56
FOCIS Flex See "FOCIS Flex Fiber Optic Connector Inspection System" on page 25
Fiber Rings Coiled lengths of multimode or single-mode ber packaged in compact rings for use as OTDR test cords. See page 20
Network Simulators - Custom-designed bench top or rack mountable boxes intended to duplicate installed ber optic networks. See page 19
TJ-03 Temporary Splice - See "TJ-03 Temporary Splice" on page 22.
Notes:
a. Results can be transferred from FlexScan to TRM using USB cable, or performed wirelessly after downloading IOS or Android FlexScan App from 'iOS App
Store' or 'Google play' store.
b. OTDR software updates are available for download on the www.AFLglobal.com –> Resources –> Software web page.
NSR Rack-mountable
Model, page 19
NS Bench Top Model,
page 19
Fiber Ring, page 20
2900-58-0001MR
2900-58-0002MR
2900-58-0003MR
2900-58-0004MR
Field-replaceable
connector adapters

January 17, 2022
19
www.AFLglobal.com | [phone]
Test & Inspection
CustomerBuyer’s Guide
MFS Multi-Fiber Switch OTDR Add-on Kit
Single-mode and multimode Multi-Fiber Switches (MFS) are available to accelerate OTDR testing of MPO-connectorized, multi-ber cables. OTDR MFS Add-on
Kits include (1) MFS with MPO connector, (1) single-ber Fiber Ring to connect OTDR to the switch, plus (1) MPO Fiber Ring. Select single-mode or multimode.
See section "Multi-Fiber Switch Models" on page 46 for MFS details.
AFL NO.
Contains (ea.)
12F MFS Switch Fiber Ring MPO Fiber Ring
MPO-SM-OTDR-ADD MFS-12-SM-ASC,
SM, SC/APC-MPO/APC pinned
SM, 150 m, SC-ASC or ASC-ASC
(depending on OTDR connector)
12F, 61 m, MPO/APC-unpinned to MPO; Select
pinned or unpinned network MPO connector
MPO-MM-OTDR-ADD MFS-12-MM-USC,
MM, SC/UPC-MPO/UPC pinned
OM3/4/5-compatible, SC-SC,
150 m
12F, 61 m, MPO-unpinned to MPO; Select
pinned or unpinned network MPO connector
MFS Multi-Fiber Switch OTDR Add-on Kit Order Entry
Multimode OTDR Add-on Kit: MPO-MM-OTDR-ADD-[FRM] where:
[FRM] = multimode MPO ber ring to connect MPO switch to multimode network under test
UF/UM = MPO/UPC unpinned to MPO/UPC pinned, Type A polarity
UF/UF = MPO/UPC unpinned to MPO/UPC unpinned, Type A polarity
Note: Multimode Add-on Kit always includes: 150 m, OM4, SC/UPC to SC/UPC ber ring to connect multimode OTDR to multimode switch.
Single-mode OTDR Add-on Kit: MPO-SM-OTDR-ADD-[FR]-[FRM] where:
[FR] = single-mode ber ring to connect OTDR to MPO Switch; Options:
USC/ASC = SC/UPC to SC/APC for FlexScan OTDRs equipped with SC/UPC single-mode connector
ASC/ASC = SC/APC to SC/APC for FlexScan OTDRs equipped with SC/APC connector
[FRM] = single-mode MPO ber ring to connect MPO Switch to single-mode network under test
AF/AM = MPO/APC unpinned to MPO/APC pinned, Type A polarity
AF/AF = MPO/APC unpinned to MPO/APC unpinned, Type A polarity
MFS- Multi-Fiber Switch
Custom-Designed Network Simulators
AFL network simulators are custom-designed bench-top or rack mountable boxes intended to duplicate installed ber optic networks. Network simulators may
be ordered with customer-specied lengths of multimode or single-mode ber. Events such as connections, fusion splices, and mechanical splices can be added
at various points within the ber to duplicate installed networks. A variety of changeable panel mounted connector types are available.The bench top models
can accommodate up to 15 km of ber and the rack mountable cases can hold up to 100km of ber.
NSR Rack-mountable
Model
NS Bench Top Model
FTTx PON Simulator Kit
FTTx PON Simulator Kits
The FTTx PON Simulator Kit is designed to simulate a wide variety of FTTx PON architectures. It is eld-congurable to implement both single splitter and
distributed splitter PONs.
This eld-portable kit may be used for lab or table-top FTTx PON demonstration, evaluation, and testing applications. The FTTx PON Simulator Kit is designed for
a variety of users and applications, including network designers, ber optic installation teams and trainers, equipment manufacturers, and sales engineers.
AFL NO. Description
PONS-00-0901PZ FTTx PON Simulator kit includes:
(1) FTTx PON splitter box, (4) ber rings, (3) SC/APC jumpers, (2) hybrid jumpers, (1) PON demo procedure,
(1) carry case.

January 17, 2022
20
www.AFLglobal.com | [phone]
Test & Inspection
CustomerBuyer’s Guide
OTDR Launch and Receive/Tail Cords - Fiber Rings
To measure the insertion loss of the near-end and/or far-end connection of a ber optic link, an OTDR requires a launch and/or receive/tail test cord, which
essentially are test jumpers that can range from about 150 m to 1 km in length. AFL offers coiled lengths of 50 m and 62.5 m multimode, standard
single-mode ber (G.652) and bend-insensitive ber (G.657), packaged in compact rings for use as OTDR test cords. Fiber Rings of 150 m of ber are ideal
for premises ber network test applications. Fiber Rings of 500 m and 1 km of single-mode ber are designed for broadband, long-haul ber network test
applications and FTTH applications when testing through a splitter.
Fiber Rings Part Number Order Entry
Single Fiber (SM or MM) Fiber Rings
AFL NO. = [FR]-[FFF]-[LLLL]-[CC1]-[CC2],
where:
[FR] = Fiber Ring (single ber)
[FFF] = Fiber Type
SMF= Single-mode (G.652)
BIF = Bend Insensitive (G.657)
OM1 = 62.5 µm multimode
OM2 = 50 µm multimode
OM3 = 50 µm laser optimized
OM4 = 50 µm laser optimized
[LLLL] = Fiber Length (meters)
150 = 150 m (492 ft)
500 = 500 m (1640 ft)
1000 = 1000 m (3280 ft)
[CC1] = Connector Conguration OTDR end (see below)
[CC2] = Connector Conguration Network end (see below)
MPO-terminated Multi-Fiber (SM or MM) Fiber Rings
AFL NO. = [FRM1]-[FF]-[LLLL]-[P]-[MC1]-[MC2], where:
[FRM1] = MPO-terminated 12-ber ber ring
[FF] = Fiber Type
S2 = Standard single-mode (G.652)
M4 = OM4 50 m laser optimized
[LLLL] = Fiber Length (meters)
61 = 61 m (200 ft)
[P] = Polarity
A = Type A polarity (straight through, ber 1 to ber 1)
B = Type B polarity (ber 1 to ber 12)
[MC1], [MC2] = MPO Connector (OTDR end, Network end, respectively)
AF = APC, female (unpinned)
AM = APC, male (pinned)
UF = UPC, female (unpinned)
UM = UPC, male (pinned)
Supported Single Fiber Single-mode Fiber Ring Congurations
Connector Type Standard SMF Fiber Rings Special Order SMF Fiber Ringsa
ID Description CC1 CC2 CC1 CC2
USC SC/UPC
ASC SC/APC
ULC LC/UPC
ALC LC/APC
UFC FC/UPC
AFC FC/APC
UST ST/UPC
UE2 E2000/UPC Special Ordera
AE2 E2000/APC Special Ordera
OTA OptiTap APC Special Ordera
TRD TRIDENT APC Special Ordera
Fiber Ring
