Piusi DELPHIN PRO X User manual

Bulletin M0495A EN _ 00
Delphin
PRO_X
quick guide
RESET
on/off STAT US
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
Delphin PRO_X _ quick guide EN

M0495A
2 /20
quick guide to use
Bulletin M0495A
ENGLISH
INDEX
1 KNOW THE MANAGEMENT SYSTEM 3
1.1 THE KEYBOARD 3
1.2 DISPLAY 4
1.3 LEGENDS 4
2 USE 5
2.1 SETTING THE PRESET FUNCTIONS 5
2.2 MANUAL DISPENSING 6
2.3 DISPENSING WITH AUTOMATIC FLOW 8
2.4 SHUTDOWN OF THE SYSTEM 9
3 SYSTEM COMMUNICATIONS 10
3.1 REGULAR OPERATION 10
3.2 BATTERY INDICATIONS FOR DC VERSIONS 11
3.3 ALARM SIGNALS THAT DO NOT BLOCK THE SYSTEM 12
3.4 ALARM SIGNALS THAT BLOCK THE SYSTEM 12
4 CUSTOMIZE THE SYSTEM 13

3/124
3 /20
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
delphin PRO_X QUICK GUIDE
translated from italian
1 KNOW THE MANAGEMENT SYSTEM
1.1 THE KEYBOARD
Dispensing management system with Delphin PRO_X.
The SYSTEM also allows the user to PRESELECT the quantity to be sup-
plied and automatically stops dispensing when the preset amount has
been reached.
The interface of the management system is represented by the plate / key-
pad which includes the function keys, the LCD screen and the communica-
tion LEDS
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
1 2
5
6
7
89
4
3
1
POWER buon: used to power the system.
2
REFILL buon: press for at least 3 seconds to start dispensing
3
ON/OFF LED
4
STATUS LED
5
LCD Display
6
LED alarm messages
7
LEDS baery status indicators (GREEN / YELLOW / RED)
8
Function and pre-selection keys
9
Variator / flow seing

M0495A
4 /20
quick guide to use
1.2 DISPLAY
The liquid-crystal
display “LCD”
The SYSTEM uses an LCD with the following numeric registers and indica-
tions:
1. Batch total (4 digits, floating point)
2. Totals (7 digits).
3. Indication of the Total type (TOTAL / Resettable TOTAL).
4.
Indication of the Unit of Measurement: LIT = Liters
GAL = Gallons
QTS = Quarts
5. Indication of operation in AUTO mode.
1.3 LEGENDS
FUNCTION KEYS
Numeric keys
to be used to set the PRESET value (automatic dispense stop value).
ENTER key
to be used to select and confirm the PRESET value.
RESET key
to be used to reset the Batch Total and to display the Resettable TOTAL.
LEDS COMMUNICATION
Representation
pulses
Description
LED always on
Flashing: 1 IMPULSE TO REGULAR INTERVALS
Flashing: 2 IMPULSES TO REGULAR INTERVALS
Flashing: 3 IMPULSES TO REGULAR INTERVALS

5/124
5 /20
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
delphin PRO_X QUICK GUIDE
translated from italian
2 USE
ATTENTION The METER has been designed for professional use and must be utilized by
adult personnel properly trained for the intended purpose.
2.1 SETTING THE PRESET FUNCTIONS
The SYSTEM allows to select the value (expressed in Liters or Gallons) to
which automatically stop the delivery: “PRESET value”. You can set the
preset value in more ways:
1 - Direct
seing of a
new PRESET
value
The
SYSTEM
allows the user to directly set the PRESET value by means of the
numeric keys.
If THE SYSTEM is turned off, TURN ON BY PRESSING THE “POWER” BUTTON.
The DISPLAY will display:
Non-reseable
To t a l
To select a new PRESET value (for example 12.3) use the numeric keys.
The DISPLAY will display:
Selected value
To confirm the PRESET value, press and keep pressed the AUTO key until the
DISPLAY displays:
Reseable Batch total
Selected value
Dispensing
Proceed with the dispensing as described in the following paragraphs. The preset
functions do not vary whether you choose a manual or automatic dispensing.

M0495A
6 /20
quick guide to use
2.2 MANUAL DISPENSING
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
If the system is off, press the power buon to turn
on.
The SYSTEM can be used manually if you do not want to set an automatic
stop value. In this case, proceed as follows:
The DISPLAY displays:
Last amount
dispensed
Non-reseable
To t a l
The SYSTEM can be programmed to display the last amount dispensed
until the RESET button is pressed or to automatically reset the Batch Total
a few minutes after a dispensing operation in MANUAL mode
Resetting
the Batch
To t a l
To reset the batch total, press RESET. The DISPLAY will display:
Reseable Batch total
Reseable General Total
Resetting
the Total
To reset the resettable Total, press and keep pressed the RESET key.
The DISPLAY will display:
Reset General Total

7/124
7 /20
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
delphin PRO_X QUICK GUIDE
translated from italian
Dispensing Proceed with the dispensing as described.
1
Insert the connector to your tank and screw it in;
2
Select the desired flow rate using the knob (area included “min” and “max”):
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
3
Press the REFILL button for 3 seconds, a top LED flashes and dispensing
starts.
RESET
on/off STAT US
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
During dispensing, the up-
per LEDs will flash alter-
nately
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
4
Finished dispensing
LED ON/OFF remains on fixed while flashing the total displayed displayed
NOTE
THIS COMMUNICATION IS SAME FOR ANY KIND OF ARREST OF THE
DISPENSING.
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
+
5
Once dispensed, unscrew the connector and place it in the appropriate
support.
NOTE
Once the delivery has been completed, the system automatically prepares
a new dispensing.

M0495A
8 /20
quick guide to use
2.3 DISPENSINGWITHAUTOMATICFLOW
The system performs the supply by looking for the flow that is most suit-
able for the type of tank up to filling or when the pre-selected quantity is
reached.
Dispensing Proceed to the dispensing as described.
1
Insert the connector to your tank and screw it in;
2
Use the knob to select the delivery flow in «AUTO FLOW» position
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
3
Set the quantity in direct or pre-set mode as described;
4
Press the REFILL button for 3 seconds, a top LED flashes and dispensing
starts.
RESET
on/off STAT US
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
During dispensing, the
upper LEDs will flash al-
ternately
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
5
Terminated dispensing:
Led ON / OFF remains on fixed while flashing the total displayed on dis-
play
NOTE
THIS COMMUNICATION IS THE SAME TIME IN FRONT OF ANY KIND OF
ARREST OF DISPENSING.

9/124
9 /20
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
delphin PRO_X QUICK GUIDE
translated from italian
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
+
6
Once dispensed, unscrew the connector and place it in the appropriate
support.
ATTENTION
If dispensing starts in AUTOMATIC mode it will not be possible, during dis-
pensing, to switch to manual mode.
NOTE
Once the delivery has been completed, THE SYSTEM AUTOMATICALLY
PREPARES A NEW DISPENSING.
2.4 SHUTDOWN OF THE SYSTEM
ATTENTION
The dc models are equipped with a baery saving system that automatically
turns off the system aer 10 minutes of unusing.
The system turns off completely if not used for at least 10 minutes, but
keeps the power switch inserted.
rESTART
To turn the system back on, follow the steps below:
1
Press the «power» switch to turn it off
2
Press the power switch again to turn the system back on

M0495A
10 /20
quick guide to use
3 SYSTEM COMMUNICATIONS
3.1 REGULAR OPERATION
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
1 - STAND-BY -
[green «ON / OFF» LED lit steady]
the system is ready for a new dispens-
ing
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
2 - DISPENSING IN PROGRESS
[green LEDs “ON / OFF” and “STATUS”
flash alternately]
The system is dispensing
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
++
3 - FULL TANK FOR REACHING THE LEVEL
[LED “ON / OFF REMAINS ON FIXED
WHILE FLASHING THE TOTAL SUP-
PLIED DISPLAYED ON THE DISPLAY]
The system has dispensed until reach-
ing the maximum tank level.
4 - IN PRESET MODE:
PRE-SET QUANTITY REACHED
[LED “ON / OFF REMAINS ON FIXED
WHILE FLASHING THE TOTAL SUP-
PLIED DISPLAYED ON THE DISPLAY]
The system has dispensed until the pre-
selected quantity of liquid is reached.

11/124
11 /20
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
delphin PRO_X QUICK GUIDE
translated from italian
3.2 BATTERY INDICATIONS FOR DC VERSIONS
To recharge the battery, connect the plug of the power cord to the wall
socket.
The charger automatically starts charging, as follows:
After charging (green LED on steady), unplug the power cord from the
wall socket.
ATTENTION
Dispensing operations are possible even when the baery is charging.
It is recommended not to disconnect the plug while simultaneously dispens-
ing and charging.
Wait for the dispensing to finish.
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
1 - INDICATIONS BATTERY STATUS
[LEDs for battery on steady in charge
status color]
- If the battery is charged, only the
GREEN LED will be on steady. Permit-
ted supply.
- If the battery is half charged, only the
YELLOW LED will be steady. Allowed
delivery, better recharge the battery.
- If the battery is low, only the RED LED
will be on. Delivery not allowed.
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
1
2
3
+
1
2
3
2 - BATTERY IN RECHARGE
[LEDs for alternating flashing battery -
1-RED / 2-YELLOW / 3-GREEN]
The battery is charging

M0495A
12 /20
quick guide to use
3.3 ALARM SIGNALS THAT DO NOT BLOCK THE SYSTEM
Alarms that are reported to be resolved, but allow dispensing
+
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
+
1 -IN PRESET MODE:
Pre-set quantity not reached
[flashing with 1 pulse PER SECOND OF
STATUS LED WHILE FLASHING THE
TOTAL SUPPLIED DISPLAYED ON
THE DISPLAY]
The tank has filled before reaching the
pre-set quantity.
The system hears it and stops the dis-
pensing signaling the anomaly.
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
2 - METER MALFUNCTIONING:
The meter is faulty and does not count,
but the pump delivers anyway
[3-pulse flashing red alarm LED]
It is possible to dispense without being
able to count. Repair the liter counter.
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
3 - BATTERY CHARGER MALFUNC-
TION/BATTERY DISCONNECTED/
BATTERY DAMAGED
[Fixed alarm red LED]
Dispensing is possible but check that
the battery is connected. If the problem
persists, contact the Piusi Service. If the
battery is damaged, replace it.
3.4 ALARM SIGNALS THAT BLOCK THE SYSTEM
Alarms reported to be resolved that prevent dispensing.
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
1 - IN MANUAL MODE: SELECTED
MINIMUM CAPACITY TOO HIGH
[flashing A 2 STATUS LED IMPULSE]
At 5 sec. from the beginning of the de-
livery, the system signals if the selected
flow rate is excessive compared to the
tank configuration and stops the delivery.
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
2 - IN MANUAL MODE: MAXIMUM
DELIVERY TIME REACHED (20 MIN.)
[1 - pulse flashing red LED]
In accordance with the conditions of
use of the pump, the system allows con-
tinuous dispensing for a maximum of
20 minutes. After 20 minutes the sys-
tem stops the pump.
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
RESET
on/off STAT U S
MADE IN ITALY
RESET
Preset
Not for resale
Flow-Rate
REFILL
3sec
POWER
0,1110
ENTER
AUTO
FLOW
max
min
DELPHIN PRO X
3 - MALFUNCTION OF THE OVER-
CURRENT PUMP
[2 - pulse flashing red alarm LED]
The system blocks the pump in case of
overcurrents in the power supply.

13/124
13 /20
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
delphin PRO_X QUICK GUIDE
translated from italian
4 CUSTOMIZE THE SYSTEM
Customizing the SYSTEM means using the OFFERS options to make its use
easier, more convenient and more precise.
ACCESS TO THE CUSTOMIZATION MENU, OFFERS THE POSSIBILITY
OF:
- SELECT THE UNIT OF MEASUREMENT.
- MODIFY the calibration factor (K Factor).
- MAKE CALIBRATIONS IN THE FIELD WITH RECIPIENT GRADUATED
- MAKE A DIRECT MODIFICATION OF THE CALIBRATION FACTOR.
To access the various customizing functions and select the desired options,
two different actions are possible on the keys:
This symbol indicates the necessity to press the key briefly with conse-
quent release.
This symbol indicates the necessity to press and keep pressed the key for
a few seconds.
+
TO ACCESS THE MENU, PRESS AND SET THE «RESET» AND «ENTER»
BUTTONS LONG AS THE DISPLAY SHOWS THE «TOTAL» WRITING ON
THE DISPLAY.
The SYSTEM displays:
To exit the personalization menu, whatever the activity you are in, press
RESET. The settings displayed at that moment become immediately op-
erational.
SELECTING THE UNIT OF MEASUREMENT
The SYSTEM allows the user to select one of the following Units of Mea-
surement:
LIT = LITERS
GAL = GALLONS (U.S. Gallon).
QTS = QUARTS
The above-mentioned Units of Measurements refer to the Batch total indi-
cation.
When the DISPLAY displays:
Blinking
Press ENTER to go to the next Unit of Measurement.
Keep on pressing ENTER until the desired Unit of Measurement is displayed.

M0495A
14 /20
quick guide to use
Press ENTER and keep it pressed to go to the next activity.
Press RESET to exit the customization menu.
The modification of the unit of measurement does NOT require a new Cali-
bration.
If the TOTAL register indicates a non-zero value, this value is automatically
converted by LITERS into GALLONS or vice-versa, if necessary, when the
Unit of Measure is changed.
To access the subsequent activity:
Press and keep the ENTER key pressed until The DISPLAY displays:
Blinking
In this way, the activity of changing the calibration factor has been entered
MODIFICATION OF CALIBRATION FACTOR (K FACTOR)
The SYSTEM is pre-calibrated at the factory.
Why
calibrate
If the SYSTEM is used in extreme conditions of flow (close to the minimum
or maximum values of the admitted field) it may be appropriate to carry
out a calibration in the field, carried out under the actual conditions of use.
How to
calibrate
The SYSTEM allows the user to carry out a fast and accurate electronic
calibration by modifying the Calibration factor (K Factor).
At delivery, all SYSTEMS are given the same calibration factor:
K Factor = 1,000
This calibration factor guarantees the best accuracy in the following condi-
tions:
Fluid: motor oil type 10W 30.
Temperature: 20°C.
Flow-rate: 7 liter/min.
The calibration can be done either as:
1 - An on-site calibration, by dispensing into a calibrated container;
2 - A direct modification of the calibration factor.

15/124
15 /20
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
delphin PRO_X QUICK GUIDE
translated from italian
1 - ON-SITE CALIBRATION BY DISPENSING INTO A CALIBRATED CONTAINER
When the DISPLAY displays:
Blinking
Press the ENTER key; it is possible to start the calibration by dispensing the
fluid into a calibrated container.
During dispensing the DISPLAY displays:
Batch total dispensed
Blinking
The dispensing operation may be freely interrupted and resumed.
The Calibration dispensing is finished when the fluid level reaches the grad-
uated area in the calibrated container.
Blinking
Indicated value
To obtain a correct METER calibration, it is necessary:
- To use an accurate sample container having a capacity not less than 5 li-
ters.
- Completely purge all air from the unit before performing the calibration.
- Make the calibration delivery at constant flow rate to be set with the po-
tentiometer
- During the final dispensing phase, do not reduce the flow-rate to reach the
graduated area in the calibrated container.
Press ENTER to confirm the end of the calibration dispensing.
DISPLAY Sample
container
INDICATED
VALUE
Blinking
REAL
VALUE

M0495A
16 /20
quick guide to use
After dispensing, wait for a few minutes to allow any possible air bubble to
be bled from the sample container. Read the Real value only at the end of
this phase as the level may decrease in the container.
Do not exceed 15 minutes of waiting because the system exits the menu
without completing the calibration.
The SYSTEM is ready to accept the modification of the indicated value to
be matched with the real value.
Press the “10” key to increase the indicated value.
Press the “0.1” key to decrease the indicated value.
Each time a key is pressed, the last digit on the right is modified by one unit.
By keeping the keys pressed, the value changes, slowly at first and then
rapidly.
DISPLAY Sample
container
INDICATED
VALUE
Blinking
REAL
VALUE
Press ENTER to confirm the end of the indicated value correction;
The SYSTEM now calculates the new Calibration factor (K Factor) and dis-
plays:
CAL-End
Blinking alternately
New K Factor
After a few seconds the SYSTEM automatically exits the customization
mode and starts using the new Calibration Factor.
A single dispensing is sufficient to perform the calibration in the field.
If you want to check the result, make a normal dispensing in the same Sam-
ple container, without going back into the Calibration activity.

17/124
17 /20
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
delphin PRO_X QUICK GUIDE
translated from italian
2 - DIRECT MODIFICATION OF THE CALIBRATION FACTOR
The direct correction of the Calibration Factor is useful when:
- the K Factor in use must be corrected by a known percentage;
- a K Factor already known must be added.
When the DISPLAY displays:
Blinking
+
Press the ENTER key, release it and press the ENTER key again.
The DISPLAY displays:
Blinking
The SYSTEM is ready to accept the direct modification of the K Factor.
- Press the “10” key to increase the indicated value.
- Press the “0.1“ key to decrease the indicated value.
Each time a key is pressed, the last digit on the right is modified by one unit.
By keeping the keys pressed, the value changes, slowly at first and then rap-
idly.
Press the ENTER key to confirm that the correction of the indicated value is
over.
The SYSTEM stores the new Calibration Factor (K Factor) and displays:
CAL-End
Blinking alternately
New K Factor
After a few seconds the SYSTEM automatically exits the customization mode
and starts using the new Calibration Factor.
To exit the customization mode, independently from the activity in progress,
press RESET. The currently displayed seings become immediately opera-
tional.

M0495A
18 /20
quick guide to use

19/124
19 /20
EN
This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
delphin PRO_X QUICK GUIDE
translated from italian

Bulletin M0495A EN _ 00 03.2019
EN. This document has been drawn up with the greatest aention to precision and accuracy of all data herein contained. Nevertheless, PIUSI
S.p.A. denies liability for any possible mistake or omission.
© PIUSI S.p.A.
Download the manual in your language!
http://www.piusi.com/manual-delphin-pro-pro-x-ibc
Table of contents
Other Piusi Measuring Instrument manuals

Piusi
Piusi K24 User manual

Piusi
Piusi K24 Use and care manual

Piusi
Piusi K24 Use and care manual

Piusi
Piusi K500 User manual

Piusi
Piusi MK325 Service manual

Piusi
Piusi K24 User manual

Piusi
Piusi K33 Atex User manual

Piusi
Piusi OCIO Operator's manual

Piusi
Piusi K40 User manual

Piusi
Piusi K900 Instruction manual
Popular Measuring Instrument manuals by other brands

Sealite

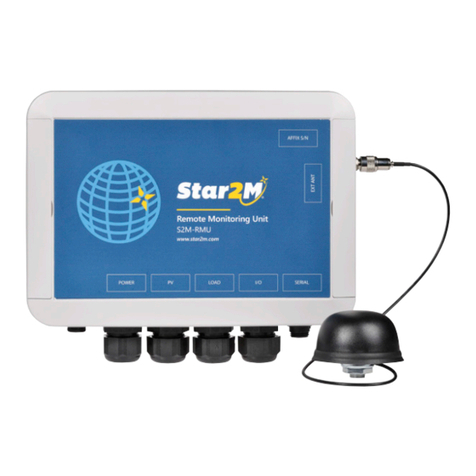

Sealite SL-RMU quick start guide

Eclipse
Eclipse EM102 instruction manual

VOLTCRAFT
VOLTCRAFT Energy Check 3000 operating instructions

Hilti
Hilti PS 85 Original operating instructions

PureAire
PureAire Air Check O2 KF-25 instruction manual

Gossen MetraWatt
Gossen MetraWatt LonWorks ENERGYMID U228 W1 Series Interface description
