AGD 335 User manual

ISO 14001
Registered
Environmental
Management015
ISO 9001
Registered
Quality
Management015
PRODUCT MANUAL
©AGD Systems Limited 2016 Doc. Ref. 335PM ISS4

2
INTRODUCTION
Product & Technology 3
Key Features 3
Product Range 3
Typical Applications 4
Product Overview 4
INSTALLATION
Quick Start Guide
What you need to set up the AGD335 5
1. Connecting Power 6
2. Installing the Radar Diagnostic Software 6
3. Connecting the Radar to a Computer 7
4. Setting up the COM port using the
Radar Diagnostic Software 8
5. Testing the Connection with the Radar 8
Mounting height, angles, clearance 9
Power & wiring 9
Typical Installation 10
CONNECTIVITY
Laptop connection 11
Identifying COM Port on PC 11
Power on test (agd response) 11
Terminal Walkthrough
Setup Connection 12
Setup Terminal 12
Test Connection 13
USER CONFIGURATION
Command Structure 14
Command Types 14
Command List 15
Example Commands 16-17
Command Explanations 18-21
Serial Outputs 21
HELP
Troubleshooting 22
Glossary of Terms 23
TECHNICAL SPECIFICATIONS
Product Specification 24
MANUFACTURING TEST PROCESS
Hyperion Test Equipment 25
IMPORTANT SAFETY INFORMATION
Safety precautions 26
Low power non-ionising radio transmission and safety 27
DISCLAIMER 28
Warranty 28
TABLE OF CONTENTS

3
INTRODUCTION
PRODUCT & TECHNOLOGY
KEY FEATURES
• Vehicle Presence detection up to 140m
• User configurable Low Speed Thresholds between 10-160kph
• Speeds reported in real-time for Vehicle Actuated Sign display
• Vehicle count functionality available
• Typical current draw less than 20mA at 6Vdc
• Suitable for Battery Power & Solar-Powered Installations
• Advanced parameters for power optimisation
• Optional download accessory (MI-102 speedometer application)
• Patent GB2472559 applies
PRODUCT RANGE
Series 335-100-000 335-103-000 335-800-000 335-803-000
12V Speed ✓ ✗ ✗ ✗
12V Speed & Count ✗ ✓ ✗ ✗
6V Speed ✗ ✗ ✓ ✗
6V Speed & Count ✗ ✗ ✗ ✓
335
The AGD335 is a compact FMCW low power digital
radar which operates in the K-Band 24GHz.
The radar processing consumes approximately
120mW whilst maintaining the detection range of
140m and update rate of 20Hz.
The power can be reduced further by setting the
event update rate accordingly between 12-28Hz.
Configuration of operational parameters is via an
RS232 serial interface. Detect output
options include opto-isolator
and RS232 serial
communications.
Options

4
INTRODUCTION
TYPICAL APPLICATIONS
Low Power Applications Vehicle Actuated Sign Driver Vehicle Count

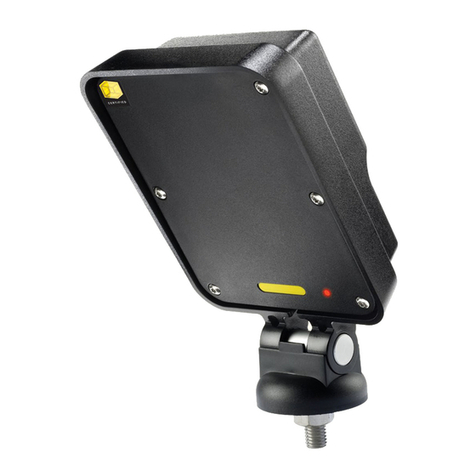

PRODUCT OVERVIEW
Power Up LED
Pan & Tilt
Mounting Foot
Power Cable
(plus RS232 for TX
Serial Output)
Rear Detect LED
RS232 to Laptop

5
INSTALLATION
QUICKSTART GUIDE
WHAT YOU NEED TO SET UP THE AGD335
The following pages make reference to the AGD335 Trial Kit. If you are not using the detector as part of an
evaluation kit, please modify instructions and apparatus accordingly.
INCLUDED IN AGD335 TRIAL KIT
AGD335 CA-183 CA-194
Serial cables to connect the AGD335 to a computer
MS-162 Socket AGD335 Trial kit disk Product Manual
(included on disk)
NOT INCLUDED IN AGD335 TRIAL KIT
6V/12V Power supply Computer or Laptop

6
INSTALLATION
QUICKSTART GUIDE
1CONNECTING POWER
Set your power supply to the
correct voltage. The radar’s voltage
of 6V or 12V can be found on the
label at the back of the unit.
Connect the red wire from the
AGD335 to the positive DC supply.
The black wire should be
connected to the negative of this
same supply.
Once powered, the AGD335 front
right LED should flash 5 times.
6V/12V Power supply AGD335
2INSTALLING THE RADAR DIAGNOSTICS SOFTWARE
Download and install the Radar
Diagnostic Software from
www.agd-systems.com/downloads
or from the AGD335 Trial Kit CD.
Install the Software following the
on screen instructions.
Launch the program by clicking
the new desktop icon.
When prompted, select the
AGD335 button

7
INSTALLATION
QUICKSTART GUIDE
3CONNECTING THE RADAR TO A COMPUTER
AGD335-100-000 & AGD335-800-000 models;
AGD335-105-000 & AGD335-803-000 models;
Where the AGD335 has no blue port interface, set up is made via the RS232 connection on the flying lead.
The AGD335 adjustable settings can be configured before connection to the host via a PC interface or directly by
the host system, if designed to do so.
For evaluation you can connect the AGD335 directly to the comport via a USB socket on a windows based PC
Plug the USB-end of your CA-194
convertor cable into the USB port
of your computer.
Connect the round, blue plug of
CA-183 to the AGD335 unit, making
sure the plug is screwed down.
Finally, connect the 9-pin female
end of CA-183 to the 9-pin male
end of CA-194
Connect the following conductors
to MS-162
Pin2. Brown
Pin3. Violet
Pin5. Green
Connect the wired MS-162 to
CA-194
Connect CA-194 to the USB on
your PC.
For help identifying your
computer’s COM port, please refer
to the Connectivity Section of this
manual.

8
INSTALLATION
QUICKSTART GUIDE
4 SETTING UP COM PORT USING THE RADAR DIAGNOSTIC SOFTWARE
Having identified the relevant COM Port, select it under the Communications Settings Tab
The software’s Baud Rate defaults to 115200 and should need no further adjustment.
You can now select the AGD Speedometer Tab to get real-time radar diagnostics.
5TESTING THE CONNECTION WITH THE RADAR
Terminal Emulator
(For further guidance
please refer to the
Connectivity Section)
To test communications with the detector, type AGD into the command line and press <ENTER>
The Radar will respond with its product description in the terminal window.
Please see the User Configuration section for radar commands to set the radar parameters.
The Speedometer needle will reflect the detected speed of any targets.
Please note that hand-wave tests will not activate the radar due to its complex nature.

9
INSTALLATION
MOUNTING HEIGHT, ANGLES, CLEARANCE
The radar should be mounted on a firm structure. The front
face of the radar should be vertical i.e. perpendicular to the
road before you begin site specific adjustments.
The radar should point down the road towards the furthest
point where target detection is required.
The radar has a relatively narrow azimuth field of view of 12
degrees. Within this angle the target vehicles should be visible
at the greatest detection distance.
For optimum performance the radar
should be situated on the
nearside of the carriageway with
an unobstructed view of approaching traffic.
Pole Height 3 -5m nominal
Beam ‘width’ 12deg
POWER & WIRING
Cable connections for the AGD335 low-power radar are as detailed below.
AGD335-100-000 & AGD335-800-000 models: 5 way flying lead.
AGD335-105-000 & AGD335-803-000 models: 8 way flying lead.
The current drawn from the radar is less than 20mA typical at 6Vdc with an update rate set to 20Hz.
Please note the cable screen must be connected to earth.
NB RS232 (PC Rx) line should be held at +5V or -5V to operate correctly. 0V results in nothing being transmitted
over the RS232 connection.
Wire Colour Function Power Off Power On-No Detect Power On-Detect
Red +6V dc / 12V dc - - -
Black Vdc Ground - - -
White Opto Common - - -
Yellow Opto Contact N/O N/C N/O
Blue Opto Contact N/C N/O N/C
Green RS232 Ground
Brown RS232 (PC Rx)
Violet RS232 (PC Tx)
5m max
1.8m
Detector
25º Detector
12º Detector
3m min

10
INSTALLATION
TYPICAL INSTALLATION
A typical system can be broken down in to 4 main elements.
• The Power Supply.
• The LED display.
• Data Logger (not always required)
• The Radar.
An Opto output is provided to activate when a valid target is detected above the set threshold. In most
applications the Opto switches the control gear to illuminate a Vehicle Actuated Sign or call the appropriate
traffic control signal phase, for example.
If fitted, the RS232 bus can be connected to a data logger to capture target data. This communication line is
also able to send commands to the detector for configuration.
If the AGD335 does not have an RS232 bus, configuration can be made using the port located at the
back of the radar.
Data logger
OPTO outputs
Setup
comms
RS232
Typical Installation
30
AGD335
Solar regulator
SolarBattery
Laptop

11
CONNECTIVITY
IDENTIFYING COM PORT ON PC
With minor differences, the following instructions can be applied to most Windows versions.
Step 1. Bring up the Computer Management console by right-clicking “My Computer” from the
Start Menu and selecting “Manage”.
Step 2. Select “Device Manager” from the left-hand tree menu.
Step 3. Within the “Ports (COM & LPT)” heading, select the COM Port you wish to change.
Step 4. Right-click on the selected entry & choose “Properties”. Then view the “Port
Settings” tab and click the “Advanced...” button.
Step 5. To remap the COM Port assignment, choose a suitable (unused) COM Port within the
“COM Port Number” drop-down list. Once completed, select “OK” on each open box, and close
the Device Manager.
Note that COM1 & COM2 are typically reserved, though the remainder will only tend to be “in use”
if the associated hardware is connected at that time. For example, assigning your USB-Serial
cable/convertor to use COM6 will then show COM6 as “in use” whether the cable/convertor is
connected or not.
POWER ON TEST (AGD RESPONSE)
When power is established the radar will respond with three actions.
1) Front right LED will flash 5 times
2) Back LED will illuminate for 2 seconds
3) Product and firmware version reported via RS232 port
This report will be done using the radars default baud of
115200. If a different baud rate has been set, the AGD335
will report this value at 115200 before using the set baud rate.
The product will always respond to the “AGD” command via RS232 port.
SERIAL CONNECTION
Parameter Setting
Baud Rate 115200
Data bits 8
Parity None
Stop bits 1
Flow Control None

12
CONNECTIVITY
TERMINAL WALKTHROUGH
This guide demonstrates the configuration of a typical Terminal application, Tera Term Pro 2.3 for Windows
95/NT (onwards). This is a license-free serial communication program available from
http://www.agd-systems.com/teraterm
The steps below assume that Tera Term has been installed following the onscreen prompts.
1. SETUP CONNECTION
Launch Tera Term and find the menu option to
configure the Serial Port. Select the appropriate
COM Port & configure the setup as per the
screenshot.
2. SETUP TERMINAL
Find the menu option to configure the Terminal
Interface. Setup your system are per the screenshot.
This will send & receive messages with the
necessary carriage return character & place
incoming & outgoing messages onto separate lines.

13
CONNECTIVITY
3. TEST CONNECTION
Test the connection by typing AGD & pressing the
<Enter> key. The detector will respond with model
& version details. If not, check communication &
power cables and ensure Tera Term is configured
correctly from the previous steps.

14
USER CONFIGURATION
COMMAND STRUCTURE
The Radar features user-adjustable Parameters to
change the way it operates. These are accessed
through Commands, sent via the Serial Connection.
Most commands start with an Asterisk (*).
The radar shows responses to commands using a
Hash (#) prefix.
Commands must be terminated with a carriage return character (<CR>), typically sent when using the <Enter>
key.
The Radar will send a <CR> (carriage return) at the end of a message.
COMMAND TYPES
There are 3 basic “Types” of commands, refelecting the number of ways to interact with a Parameter:
QUERY SET ACTION
Query commands
show a Parameter value
without changing it
Set commands change
a Parameter value
Action commands perform
an operation, often on a
group of Parameters

15
USER CONFIGURATION
RS232 COMMAND LIST
Command Suffix Function Default
Value
Min
Value
Max
Value
Resolution
& Units
AGD ? Report Radar model and version - - - -
BAUDRATE ? = Configure Radar’s RS232 Baud Rate 115200 9600 - BPS
HELP ? View the available commands - - - -
REBOOT ! Perform a software reboot of the Radar - - - -
TEMP ? Get the Radar temperature in Celsius - - - -
VER ? Display Radar firmware details - - - -
*CD ? = Set Configure Radar’s Count Distance 180 1 499 1 decimeter
(0.1m)
*DT ? =
Configure Radar’s detection threshold,
where lower values are less sensitive
than higher
5 0 6 1
*FD ! Set factory default values - - - -
*FR ? =
Configure Radar frame rate,
Lower values draw less current,
though reduces Radar sensitivity
20 12 28 4 Hz
increments
*HT ? =
Configure Opto Hold Time - the time the
opto is held in detect once a target
is no longer in the beam
2000 065535 1 millisecond
(0.01 sec)
*LD ? =
Configures both front and rear LED
brightness, where 0 is off and 10 is the
brightest
1 0 10 1
*LS ? =
Configure the low speed cutoff
This is the speed below which targets
are not reported (OPTO)
16
9
10
6
159
99
1 kph
1 mph
*LST ? =
Configure the low speed cutoff
This is the speed below which targets are
not reported (RS232)
6 6 99 1 mph
*RM !
Store user parameters to non volatile
memory so that they will be used the
next time the radar reboots - - - -
*SU ? = Configure radar measurement units. K K M K = kph
M = mph

16
USER CONFIGURATION
EXAMPLES
1. GET HELP USING THE RADAR
The HELP command Queries the Radar, returning a list of available commands.
2. QUERYING THE EXISTING LOW SPEED THRESHOLD
Sending *LS to the detector prompts it to respond with the current Low Speed Threshold.

17
USER CONFIGURATION
3. CHANGE THE LOW SPEED THRESHOLD
Adding an argument to the *LS command (55 in the example below), the Radar will Set and confirm a new value.
4. SET ALL PARAMETERS TO THEIR FACTORY DEFAULTS
The *FD command Actions the Radar to restore each Parameter to its factory default.
5. SAVE RADAR SETTINGS
Once operating as required, Parameter values must be committed using the *RM command. This Actions the
Radar to save all Parameters. They will then be available after a reboot/power-failure.

18
USER CONFIGURATION
COMMAND EXPLANATION
AGD <CR>
The AGD335 will respond with the product type and current firmware version
Detectors reply – AGD SYSTEMS LTD AGD335 Low Power Radar
Version MI – 101 – 4 11th March 2009
REBOOT <CR>
The AGD will shut down and restart its firmware as if it is being turned on
Detectors reply – AGD SYSTEMS LTD AGD335 Low Power Radar
Version MI – 101 – 4 11th March 2009
TEMP <CR>
The AGD335 will respond with the current temperature within the radar
Detectors reply - 00025
VER <CR>
The AGD335 will respond with the product type and current firmware version
Detectors reply – 335,APP,MI-101-4,11032009
*CD <CR>
This command will enquire the current value for the count distance (distance from the radar to the location at
which count is taken)
Detectors reply - #CD 00180
*CD X <CR>
This command will Set Count Distance to the value of X (for example 150) (distance from the radar to the location
at which count is taken)
Detectors reply - #CD 00150
*DT <CR>
This command will enquire the current value for the threshold when a target is seen. (This command can be
thought of as range however, targets with greater mass will be seen at a greater distance than targets with a
smaller mass)
Detectors reply - #DT 5
*DT X <CR>
This command will Set detection threshold to the value of X (for example 4) (This command can be thought of as
range however, targets with greater mass will be seen at a greater location than targets with a smaller mass)
Detectors reply - #DT 4

19
USER CONFIGURATION
COMMAND EXPLANATION
*FD <CR>
This command will set all values back to default
Detectors reply – Ready
*FR <CR>
This command will enquire the current value for the frame rate
(Frame rate is the number of times the radar’s antenna turns on over a period of time to view target information,
the greater the frequency the higher the current consumption)
Detectors reply - #FR 020
*FR X <CR>
This command will Set frame rate(Hz) to the value of X (for example 12)
(Frame rate is how many times the radars antenna turns on over a period of time to view target information)
Detectors reply - #FR 012
*HT <CR>
This command will enquire how long the opto stays in demand after the target has left the field of view
Detectors reply - #HT 02000
*HT X <CR>
This command will Set how long the opto stays in demand after the target has left the field of view to the
value of X (for example 3)
Detectors reply - #HT 00003
Microwave module on
Data being processed
Radar idle
65mA
10mA
5mA

20
USER CONFIGURATION
COMMAND EXPLANATION
*LD <CR>
Enquire/Set LED brightness (0-10)
This command will enquire the value of the LED brightness
Detectors reply - #LD 001
*LD X <CR>
This command will set the brightness value for the LED to X (for example 6)
Detectors reply - #LD 006
*LS <CR>
This command will enquire the low speed cutoff value
(The opto will respond when a valid target is detected at or above the value of the low speed cutoff)
Detectors reply - #LS 020Km\Hr
*LS X <CR>
This command will Set the low speed cutoff to the value of X (for example 25)
(The opto will respond when a valid target is detected at or above the value of the low speed cutoff)
Detectors reply - #LS 025Km\Hr
*RM <CR>
The AGD335 requires its settings to be saved to the flash memory after adjustments have been made
This command should only be used when changes have been made to the detectors settings.
*SU <CR>
This command will inquire if the radar is set as kph or mph
Detectors reply - #SU K
*SU K <CR>
Sets the radars to work in kph
Detectors reply - #SU K
*SU M <CR>
Sets the radars to work in mph
Detectors reply - #SU M
