Agilent Technologies 54810A User manual

User’s Quick Start Guide
Publication number 54810-97045
January 2000
For Safety information, Warranties, and Regulatory information, see the pages
at the end of this manual.
© Copyright Agilent Technologies 1997-2000
All Rights Reserved
Infiniium Oscilloscopes

In This Book
This book gives you the information you need to begin using the Infiniium
Oscilloscopes. It contains four chapters:
Setting up the Oscilloscope Chapter 1 contains inspection, power
requirements, air flow, and setup information.
Working in Comfort Chapter 2 contains recommendations for working
comfortably and safely while operating the Infiniium Oscilloscope.
Using the Oscilloscope Chapter 3 gives an overview of the front panel and
the graphical user interface, and tells you how to perform basic operations with
the oscilloscope.
Using the Built-In Information System Chapter 4 describes the built-in
information system contents and navigation. The built-in information system
contains all of the information that is generally found in a User’s Guide.
• For detailed information on how the oscilloscope makes measurements and
how to use the oscilloscope, see the built-in information system in the
oscilloscope.
• For information on programming the oscilloscope using a computer with a
GPIB interface card, see the Infiniium Oscilloscopes Programmer’s
Reference.
• For information on testing and servicing the oscilloscope, see either the
Infiniium Service Guide for Models 54810A/15A/20A/25A Oscilloscopes
or the Infiniium Service Guide for the Model 54835A and 54845A
Oscilloscope.
CAUTION The Infiniium Oscilloscope uses a specially designed Windows 98 application
program. While it is possible to access some standard Windows 98 application
programs, it is not recommended. All Infiniium Oscilloscope functionality is
directly available from within the Infiniium Oscilloscope application. Other
application software may or may not function correctly. Windows 98
configuration changes made outside of the Infiniium Oscilloscope application
may not work correctly and could cause improper operation of the instrument.

Contents
Contents-1
Setting Up the Oscilloscope
To inspect package contents 1-3
To inspect options and accessories 1-5
To connect power 1-8
To connect the mouse or other pointing device 1-11
To attach the optional trackball 1-12
To connect the keyboard 1-17
To connect to the LAN card 1-18
To connect oscilloscope probes 1-19
To connect a printer 1-22
To connect an external monitor 1-24
To connect an GPIB cable 1-25
To tilt the oscilloscope upward for easier viewing 1-26
To turn on the oscilloscope 1-28
To turn off the oscilloscope 1-29
To verify basic oscilloscope operation 1-30
To clean the oscilloscope 1-32
Working in Comfort
About Repetitive Strain Injury 2-3
Mice and Other Input Devices 2-4
Using the Oscilloscope
To set the oscilloscope to a known starting condition 3-7
To start and stop waveform acquisition 3-8
To clear the waveform display 3-9
To turn a channel on or off 3-10
To change input impedance and input coupling 3-11
To adjust vertical scale and offset 3-12
To adjust sweep speed and horizontal position 3-13
To magnify a part of the waveform using delayed sweep 3-14
To set the oscilloscope to trigger on an edge 3-15
To use the markers 3-16
To use the quick measurements 3-17
To reinitialize the oscilloscope 3-18
To switch between the graphical interface and full-screen mode 3-30
To perform basic user interface operations 3-31
To select a command from the menu bar 3-33
To select a command from a context-sensitive menu 3-34
To change the mouse settings 3-36
To start and stop waveform acquisition 3-37
To clear the waveform display 3-38
To print the screen 3-39
!

Contents
Contents-2
To turn a channel on or off 3-40
To adjust the vertical offset 3-41
To adjust vertical scaling 3-43
To access the channel setup 3-44
To set the horizontal reference point 3-45
To adjust sweep speed 3-46
To adjust horizontal position 3-47
To access the horizontal setup 3-48
To zoom on a section of the waveform 3-49
To move the markers using the graphical interface 3-51
To make a measurement on a waveform 3-52
To access the trigger setup 3-54
To set an edge trigger 3-55
To enable 8.0 GSa/s sampling mode on the 54845A 3-56
To enable 4.0 GSa/s sampling mode on the 54835A 3-57
To set dialog box preferences 3-58
To install the printer software 3-61
To set up the network 3-69
To recover your Infiniium hard disk 3-70
Using the Built-In Information System
To access the information system 4-4
To select the built-in information system language 4-10
To navigate through the information system 4-11
To access context-sensitive information 4-12

1
Setting Up the Oscilloscope

1-2
Setting Up the Oscilloscope
This chapter shows you how to set up your Infiniium oscilloscope,
connect power and accessories, and verify general operation.

Setting Up the Oscilloscope
To inspect package contents
1-3
To inspect package contents
❏Inspect the shipping container for damage.
Keep a damaged shipping container or cushioning material until you have
inspected the contents of the shipment for completeness and have checked the
oscilloscope mechanically and electrically.
❏Verify that you received the following items in the Infiniium Oscilloscope
packaging.
• Infiniium Oscilloscope (54810A, 15A, 20A, 25A, 35A, or 45A)
• PS/2 Mouse, P/N C3751-60201
• Mouse Pad, P/N 54810-85901
• (2) 1160A 10:1 10-MΩpassive probes (54810A, 54820A)
• (4) 1160A 10:1 10-MΩpassive probes (54815A, 54825A)
• (4) 1161A 10:1 10-MΩpassive probes (54835A, 54845A)
• Accessory Pouch (P/N 54810-68701)
• Front Panel Cover
• Keyboard
•Powercord
•User’s Quick Start Guide
•Programmer’s Reference
•Programmer’s Quick Reference Guide
•Infiniium Service Guide for Models 54810A/15A/20A/25A Oscilloscopes
or Infiniium Service Guide for Model 54835A and 54845A Oscilloscope

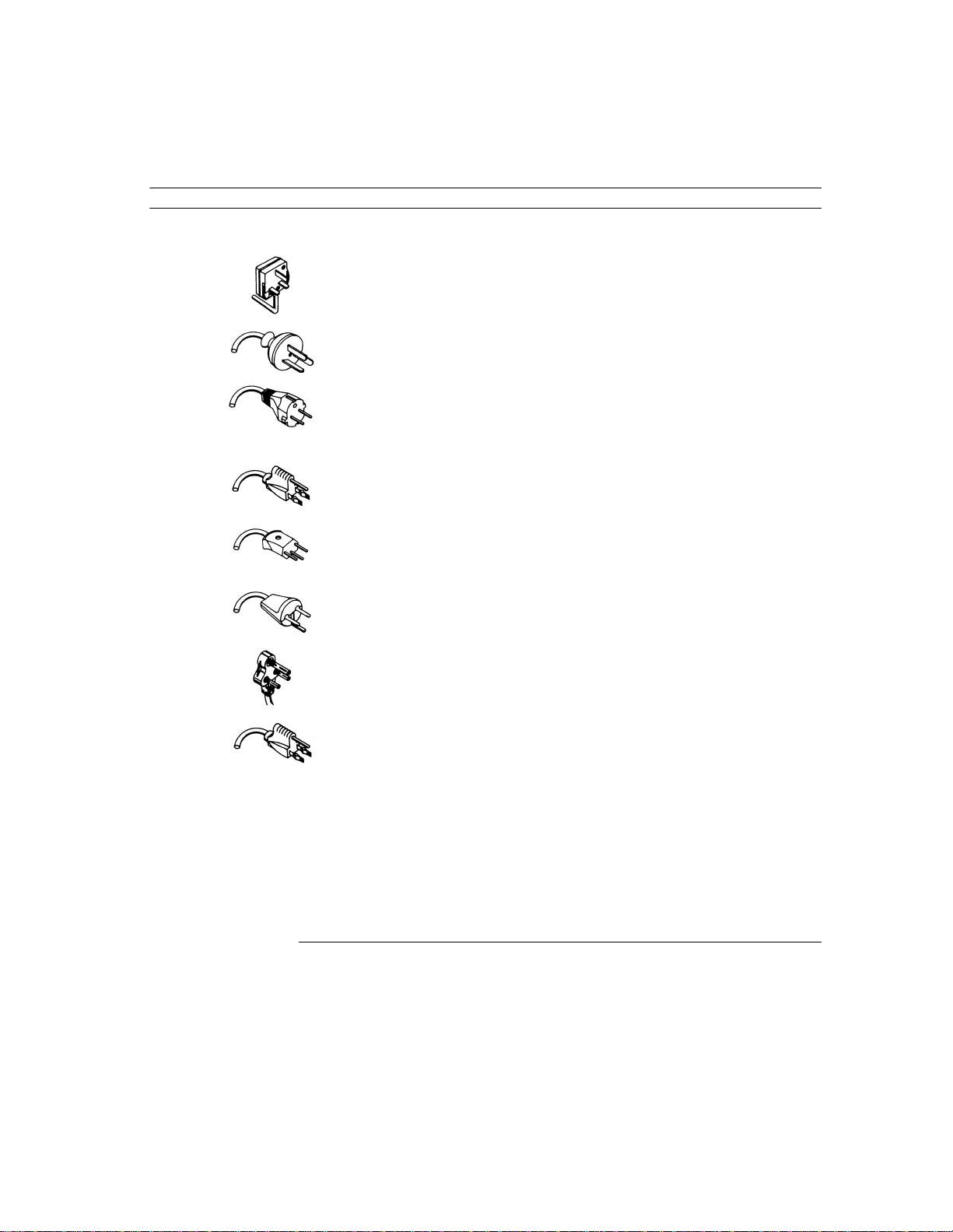

See figure 1-1. (See table 1-3 for the power cord.) If anything is missing, contact
your nearest Agilent Technologies Sales Office. If the shipment was damaged,
contact the carrier, then contact the nearest Agilent Technologies Sales Office.
❏Inspect the oscilloscope.
• If there is mechanical damage or a defect, or if the oscilloscope does not
operate properly or does not pass performance tests, notify your Agilent
Technologies Sales Office.
• If the shipping container is damaged, or the cushioning materials show signs
of stress, notify the carrier and your Agilent Technologies Sales Office. Keep
the shipping materials for the carrier’s inspection. The Agilent Technologies
Sales Office will arrange for repair or replacement at Agilent’s option without
waiting for claim settlement.

Setting Up the Oscilloscope
To inspect package contents
1-4
Figure 1-1
Package Contents for the Infiniium Oscilloscopes
Infiniium Oscilloscope
with Accessory Pouch
1160A or 1161A
Probe
Infiniium Oscilloscopes
User’s Quick Start Guide
Infiniium Oscilloscopes
Programmer’s Reference
54810A/15A/20A/25A
Oscilloscopes Service Guide
or 54835A and 54845A
Oscilloscope Service Guide
Infiniium Oscilloscopes
Programmer’s Quick Reference
PS/2 Mouse and
Mouse Pad
Keyboard

Setting Up the Oscilloscope
To inspect options and accessories
1-5
To inspect options and accessories
❏Verify that you received the options and accessories you ordered and that
none were damaged.
If anything is missing, contact your nearest Agilent Technologiess Sales Office.
If the shipment was damaged, or the cushioning materials show signs of stress,
contact the carrier and your Agilent Technologies Sales Office.
Some of the options available for the Infiniium Oscilloscopes are listed in table
1-1. Contact your Agilent Technologies Sales Office for a complete list of
options, or look in the built-in information system under the Accessories List.
Table 1-1 Infiniium Oscilloscope Options
Option Description
001 Additional set of standard probes—(2) 1160A probes for the
54810A/15A/20A/25A, or (2) 1161A probes for the 54835A and 54845A
002 Add 1 1162A 1:1 passive probe
003 Add 1 1163A 10:1 500-Ω, low-C passive probe
006 Add one 1152A 2.5 GHz, 0.6-pF active probe (for the 54835A and 54845A only)
008 Add 1153A 200 MHz differential probe
009 Add 1154A 500 MHz differential probe
010 Add 1159A 1 GHz differential probe
015 Extended trigger for the 54810A, 54815A, 54820A, and 54825A
for the 54835A and 54845A, extended trigger comes as a standard part of the
oscilloscope
090 Delete standard probes
100 Telecommunications Mask Template Kit
106 BenchLink Scope Software (34810B version 1.6 or later)
200 VoiceControl
1BP MIL-STD-45662A and ANSI/NCSL Z-540 calibration with test data
1CM Add 1 Rackmount kit (E2609A)
AB0 Taiwan
User’s Quick Start Guide
AB1 Korea User’s Quick Start Guide
AB2 PRC User’s Quick Start Guide
ABD German User’s Quick Start Guide

Setting Up the Oscilloscope
To inspect options and accessories
1-6
You can order multiple options with the oscilloscope. Also, all model numbers
shown in table 1-1 may also be ordered separately, using the model number.
Some accessories that will enhance your work with the oscilloscope are listed
in table 1-2.
Table 1-2 Accessories for the Infiniium Oscilloscopes
ABE Spanish User’s Quick Start Guide
ABF French User’s Quick Start Guide
ABJ Japanese User’s Quick Start Guide
ABZ Italian User’s Quick Start Guide
UL5 Add 1 Touchpad pointing device (E2612A)
UL6 Add 1 Clip-on trackball pointing device (E2611A)
W32 3 years calibration service
W34 3 years return standards comp calibration service
W50 5 years return repair service (additional 2 years)
W52 5 years return calibration service
W54 5 years return standards comp cal service
Agilent Model
Number
Description
01144-61604 1:2 Probe Power Fan-Out (for use with 1144A and 1145A)
10020A Resistive Divider Probe Kit
10024A 16-pin IC clip
10076A 4 KV Passive Probe
10211A 24-pin IC clip
10240B BNC Blocking Capacitor
10450A SMT Probe Accessory Kit
10833A GPIB cable, 1 m
10833B GPIB cable, 2 m
10833C GPIB cable, 4 m
10833D GPIB cable, 0.5 m
11094B 75ΩFeedthrough Termination
1142A Probe control and power module
Option Description

Setting Up the Oscilloscope
To inspect options and accessories
1-7
1182A Testmobile
1250-2427 PC Board Mini-Probe Socket (horizontal mount)
1250-2428 PC Board Mini-Probe Socket (vertical mount)
34398A
34399A RS-232-C printer cable RS-232-C Adapter kit
54006A 6 GHz probe, 10:1 (500 Ω) or 20:1 (1 kΩ), .25 pf
54701A 2.5 GHz probe, 10:1, 100 kΩ, 0.6 pf Active Probe (need 1143A probe
power)
C2950A Parallel printer cable, 2 m
C2951A Parallel printer cable, 3 m
1144A 800 MHz Active Probe
Requires 1142A power supply—1144-61604 probe powerextender also
required when using more than two 1144A active probes
1145A 2-channel, 750 MHz SMT active probe
Requires 1142A power supply
1146A AC/DC Current Probe
1152A 2.5 GHz Active Probe
1153A 200 MHz Differential Probe
1154A 500 MHz Differential Probe
1155A 750 MHz 2-Channel, Low-Mass Active Probe
1159A 1 GHz Differential Probe
1170A 500 MHz Low-Mass, Miniature 10:1 10 MΩPassive Probe
1171A 500 MHz Low-Mass, Miniature 10:1 10 MΩPassive Probe
1172A 500 MHz Low-Mass, Miniature 20:1 10 MΩPassive Probe
1173A 500 MHz Low-Mass, Miniature 20:1 10 MΩPassive Probe
1250-1454 BNC to Miniature Probe Adapter
E2621A 75 Ωterminator
E2622A 100/110/120 Ωdifferential terminator
E2625A Telecommunications Mask Template Kit
E2635A VoiceControl Retrofit Kit
Agilent Model
Number
Description

Setting Up the Oscilloscope
To connect power
1-8
To connect power
1Position the oscilloscope where it will have sufficient clearance for
airflow around the top, back, and sides.
Figure 1-2
Positioning the Infiniium Oscilloscope with Sufficient Clearance
Minimum 0 mm
Minimum 15.9 mm
both sides
Minimum 38.1 mm
Airflow requirements
54810A-25A 125 cfm
54835A-45A 250 cfm
Minimum 15.9 mm

Setting Up the Oscilloscope
To connect power
1-9
2Connect the power cord to the rear of the oscilloscope, then to a
suitable ac voltage source (100-240 VAC ±10%, 47 to 440 Hz, max power
dissipation 390 W).
Figure 1-3
Infiniium Oscilloscope Power Cord Connection
The oscilloscope power supply automatically adjusts for line input voltages in
the range 100 to 240 VAC. Therefore, you do not need to adjust an input line
voltage setting. The line cord provided is matched by Agilent Technologies to
the country of origin of the order.
3Ensure that you have the correct line cord. See table 1-3.

Setting Up the Oscilloscope
To connect power
1-10
Table 1-3
Power Cords
Plug Type Cable Part
No.
Plug Description Length
(in/cm)
Color Country
250V 8120-1351
8120-1703
Straight *BS1363A
90°
90/228
90/228
Gray
Mint Gray
United Kingdom,
Cyprus, Nigeria,
Zimbabwe, Singapore
250V 8120-1369
8120-0696
Straight *NZSS198/ASC
90°
79/200
87/221
Gray
Mint Gray
Australia, New
Zealand
250V 8120-1689
8120-1692
8120-2857
Straight *CEE7-Y11
90°
Straight (Shielded)
79/200
79/200
79/200
Mint Gray
Mint Gray
Coco Brown
East and West
Europe, SaudiArabia,
So. Africa, India
(unpolarized in many
nations)
125V 8120-1378
8120-1521
8120-1992
Straight *NEMA5-15P
90°
Straight (Medical) UL544
90/228
90/228
96/244
Jade Gray
Jade Gray
Black
United States,
Canada, Mexico,
Philippines, Taiwan
250V 8120-2104
8120-2296
Straight *SEV1011
1959-24507
Type 12 90°
79/200
79/200
Mint Gray
Mint Gray
Switzerland
220V 8120-2956
8120-2957
Straight *DHCK107
90°
79/200
79/200
Mint Gray
Mint Gray
Denmark
250V 8120-4211
8120-4600
Straight SABS164
90°
79/200
79/200
Jade Gray Republic of South
Africa
India
100V 8120-4753
8120-4754
Straight MITI
90°
90/230
90/230
Dark Gray Japan
* Part number shown for plug is the industry identifier for the plug only. Number shown for cable is the Agilent part number for thecomplete
cable including the plug.

Setting Up the Oscilloscope
To connect the mouse or other pointing device
1-11
To connect the mouse or other pointing device
1Plug the mouse into the matching connector on the back panel of the
oscilloscope.
Figure 1-4
Connecting the Mouse Cable
While you can operate many oscilloscope functions using only the front-panel
keys and knobs, you will need the mouse to access advanced oscilloscope
functions through the graphical interface, or to find out more about the
oscilloscope through the built-in information system.
The optional touchpad pointing device connects in exactly the same way as the
mouse. The supplied mousepad provides the correct surface for smooth mouse
operation.
2To modify the mouse configuration, see “To change the mouse settings”
in Chapter 3.

Setting Up the Oscilloscope
To attach the optional trackball
1-12
To attach the optional trackball
1Push in the latch on the trackball baseplate to extend the metal tabs.
Insert the tabs into the upper right of the slot on the side of the
oscilloscope. You can only install the trackball on the right side
of the oscilloscope.
Figure 1-5
Connecting the Trackball Baseplate

Setting Up the Oscilloscope
To attach the optional trackball
1-13
2While holding the latch in, slide the metal tabs down and to the front of
the oscilloscope until they touch the ends of the slot.
Figure 1-6
Slide the Metal Tabs

Setting Up the Oscilloscope
To attach the optional trackball
1-14
3Release the latch. The trackball baseplate should now be secure
against the side of the oscilloscope.
Figure 1-7
Trackball Baseplate Secured

Setting Up the Oscilloscope
To attach the optional trackball
1-15
4Snap the trackball assembly onto the pins of the baseplate. The
trackball and buttons should face up and toward the front of the
oscilloscope.
Figure 1-8
Snap the Trackball Assembly Onto the Baseplate

Setting Up the Oscilloscope
To attach the optional trackball
1-16
5Connect the 9-pin “D” connector on the trackball cable to the COM1
port on the back panel. Tighten the retaining screws.
Figure 1-9
Connecting the Trackball Cable to the COM1 Port
For information on changing the trackball settings, see “To change the mouse
settings” in Chapter 3.
