Agria 1600 farmstar compact User manual

6091,6091_7
compact – with Petrol Engine
comfort – with Diesel Engine
Power hoePower hoe
Power hoePower hoe
Power hoe
1600 Farmstar1600 Farmstar
1600 Farmstar1600 Farmstar
1600 Farmstar
compact, comfortcompact, comfort
compact, comfortcompact, comfort
compact, comfort
Before commissioning the machine, read operating
instructions and observe warnings and safety instructions.
Operating Instructions No. 998 418GB-A03.12
&
Operating InstructionsOperating Instructions
Operating InstructionsOperating Instructions
Operating Instructions
Translation of the original operating instructionsTranslation of the original operating instructions
Translation of the original operating instructionsTranslation of the original operating instructions
Translation of the original operating instructions

2agria Power Hoe Farmstar compact/comfort 1600
Symbols, Name Plate
Please complete:
Machine Type No.: ......................
ID/Machine No.:
.........................................................
Engine Type: ...............................
Engine No.: .................................
Date of Purchase: ......................
For name plate, refer to p3/fig. A/27
or p50/fig. C/27
For engine type and number, refer to
p3/fig.B/6
or p50/fig. D/6.
Please state these ‘data when
ordering spare parts to avoid wrong
deliveries.
Only use original agria spare parts!
Specifications, figures, and
dimensions stated in these
instructions are not binding. No
claims can be derived from them. We
reserve the right for improvements
without changing these instructions.
Amount of delivery:
l Operating instructions machine
l Operating instructions engine
l Power hoe
l Hoeing tools 95 cm
l Extension guard up to 90 cm
l Depth bar
l Tool kit
l Handlebar with tool box and
tommy nut

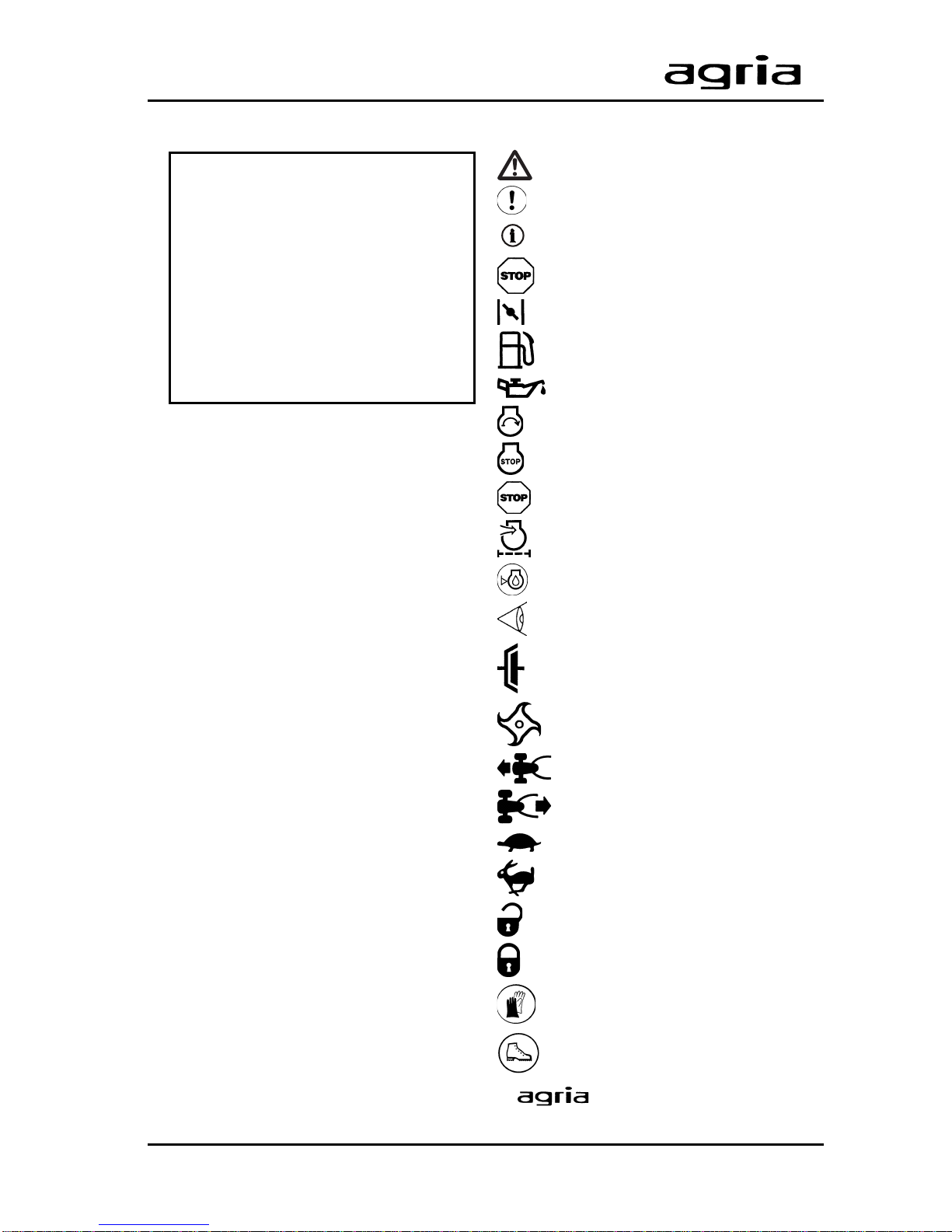

Symbols
Warning – Danger
Caution
Important information
Stop
Choke
Fuel
Oil
Engine Start
Engine Stop
Stop
Air filter
Engine oil level
Visual check
Clutch
Hoeing drive
Forward
Reverse
Slow
Fast
Open
Closed
Wear protective gloves
Wear safety shoes
è- Serviceç= contact
your agria workshop

agria Power Hoe Farmstar compact/comfort 1600 3

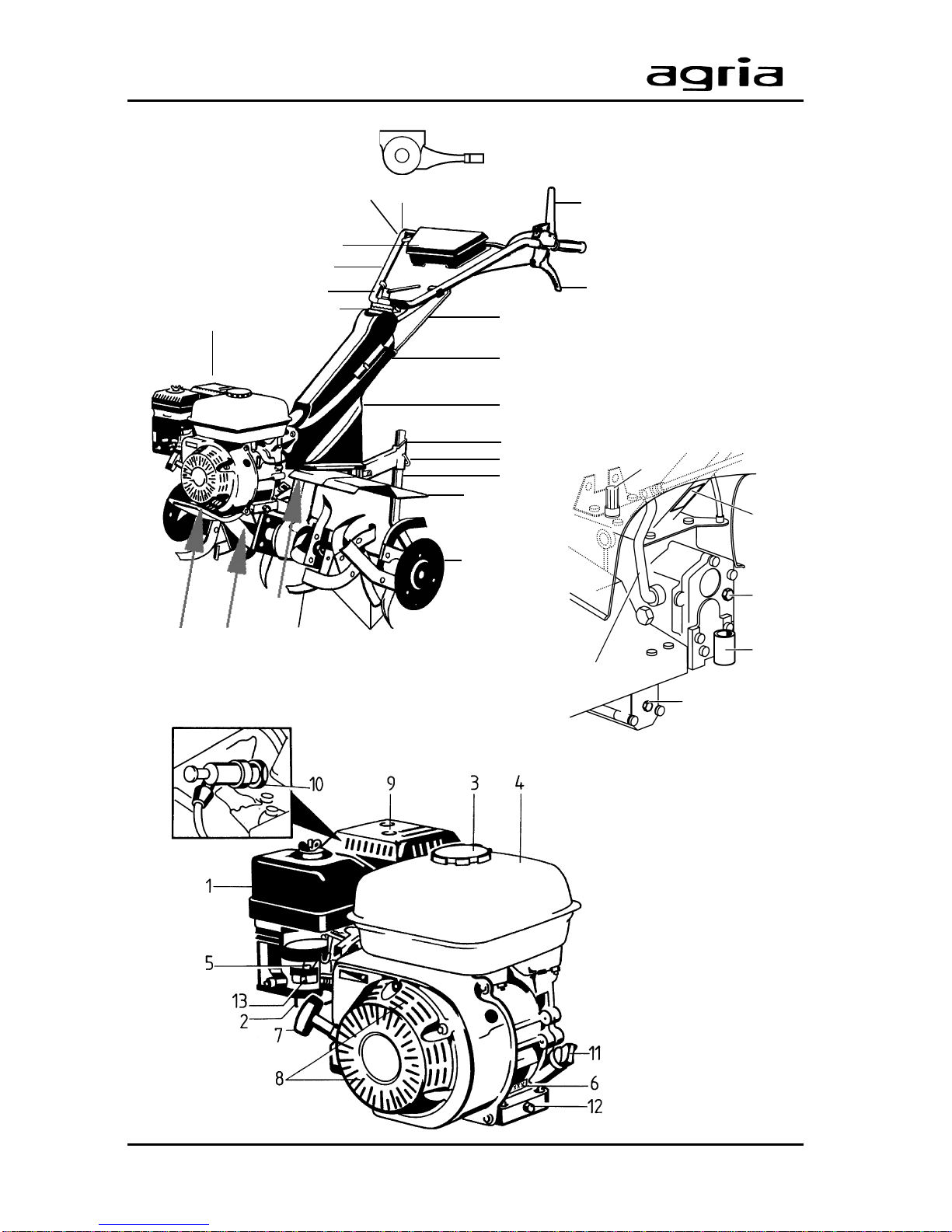

Designation of Parts
Petrol EngineVersion
Fig. A
Fig. B
8
19
20
12
3
4
6
11
12
13
14
15
16
17
18
2223 21
7
5
9
24
27
25
28
26
29

4agria Power Hoe Farmstar compact/comfort 1600
Designation of Parts
Petrol EngineVersion
Fig. A
13 Fuel tap
1Engine
2Handlebar joint
3Tommy nut for handlebar adjustment
4Handlebar
5Tool box
6Speed control lever
7Engine shut-off switch
8Safety lever
9Clutch lever
11 Gear shift lever
12 Gear shift gate
13 Cover
14 Leg of depth bar
15 Locking pin of depth bar
16 Depth bar
17 Extension guard
18 Guard discs
19 Add-on hoeing tools
20 Base hoeing tools
21 Hoeing guard
22 Front hitch
23 Support/engine guard
24 Transmission oil filling opening
25 Transmission oil control plug
26 Transmission oil drain plug
27 Name plate (ID/Machine No.)
28 Rear hitch
29 Shifter lever
Fig. B
1Air filter
2Carburetor
3Fuel tank cap
4Fuel tank
5Choke lever
6Engine type number
7Starter handle
8Cooling-air screen
9Exhaust with guard
10 Spark plug, spark plug connector
11 Engine oil filling plug and dip stick
12 Engine oil drain plug

agria Power Hoe Farmstar compact/comfort 1600 5
Index
3
5
6
2
1
4
Amount of delivery ........................2
Symbols, Name Plate....................2
Designation of Parts .......3, 50
Recommendations
Lubricants, Anti-Corrosive Agents6
Maintenance and Repair...............6
Electrical Wiring.............................6
Fuel ................................................7
Unpacking and Assembly ....8
1. Safety Instructions.... 9 - 13
Due Use ........................................9
2. Specifications

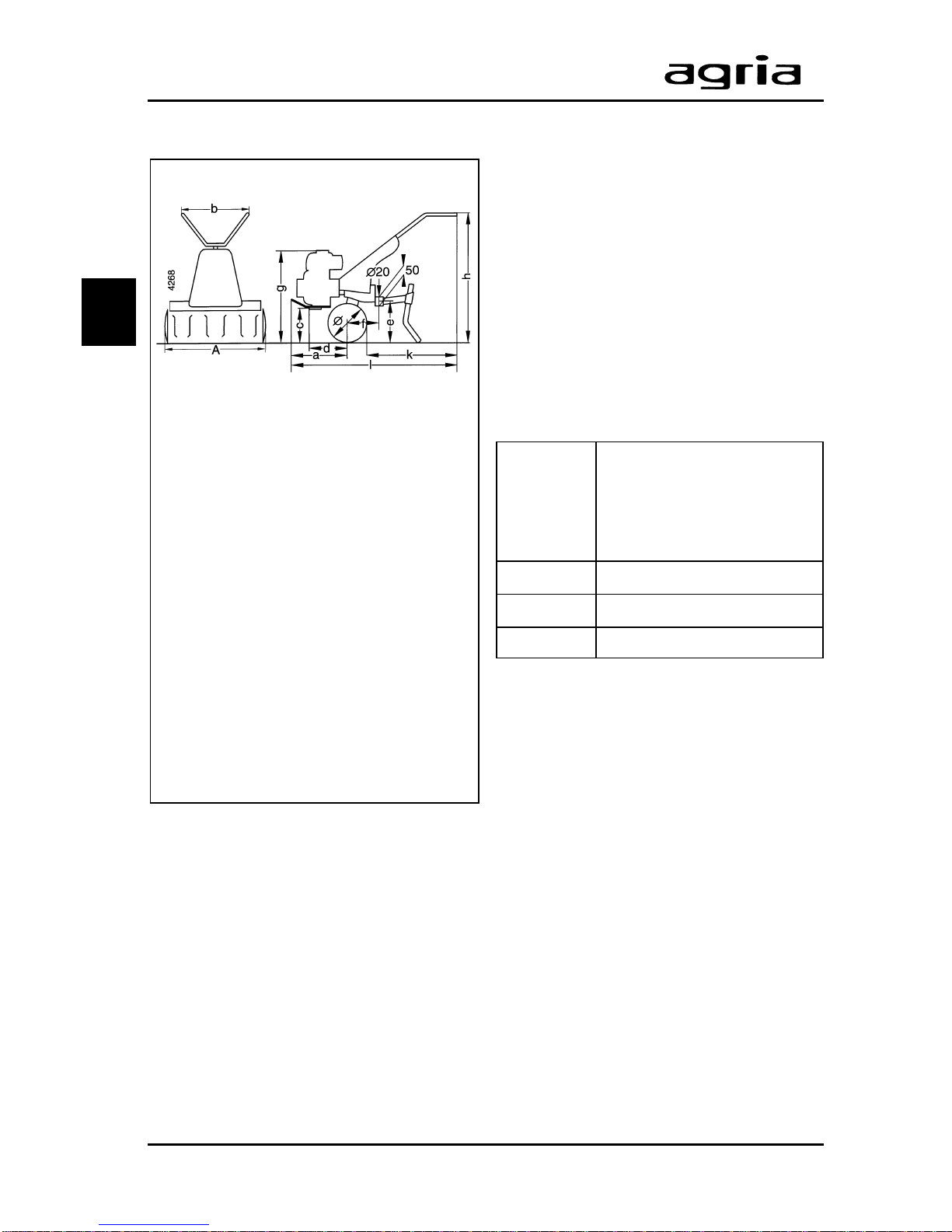

Dimensions..................................14
Power Hoe ...................................14
Engine ................................... 15, 16
Noise Level........................... 15, 16
Vibration Acceleration Value.15, 16
Operation on Slopes ............ 15, 16
3. Devices and Operating
Elements

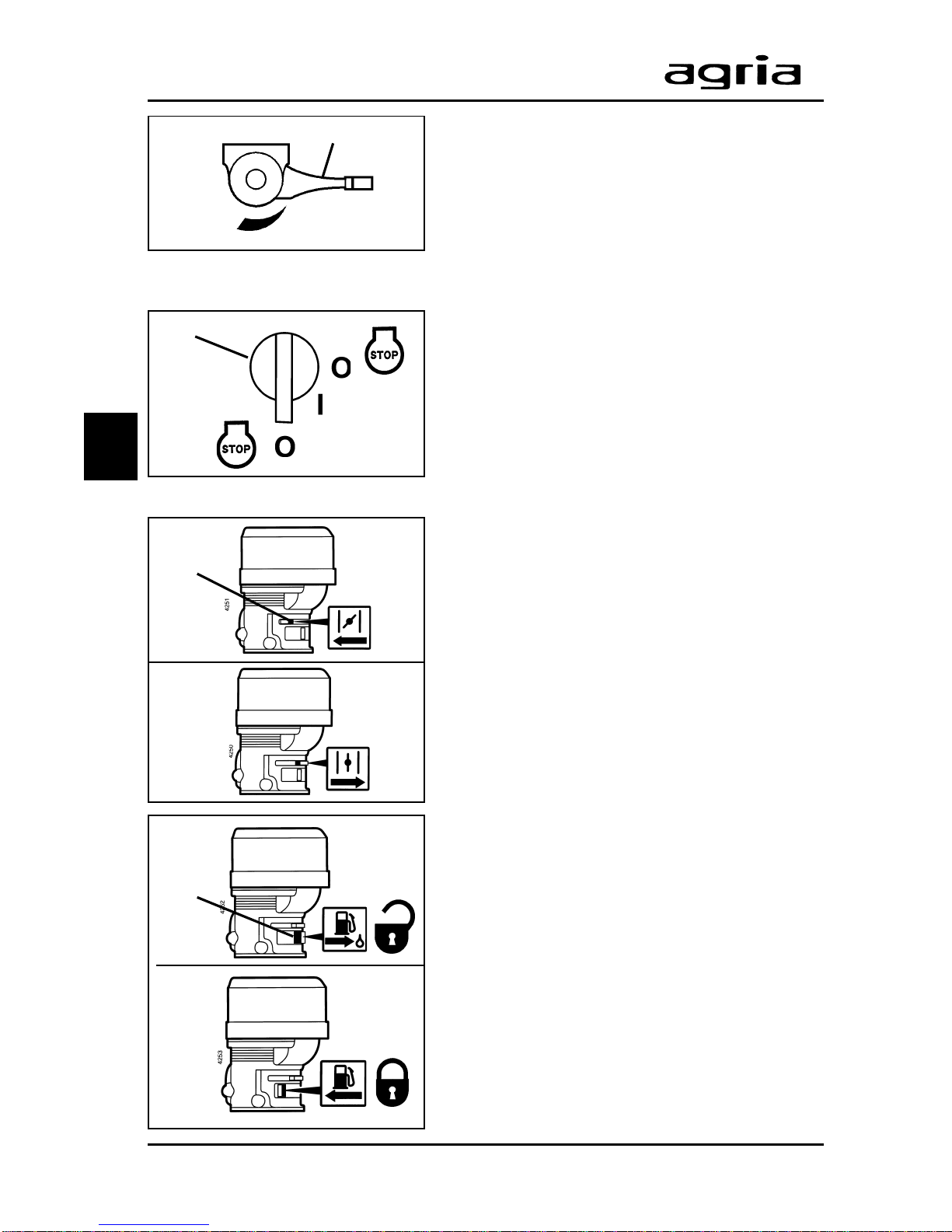

Engine ..........................................17
Speed Control Lever ............ 18, 19
Engine shut-off switch.......... 18, 19
Safety Circuit Function............... 20
Clutch ..........................................20
Gear Shifting................................21
Steering Handle...........................21
Hoeing Tools ................................22
Depth Bar ....................................23
Front Wheel .................................24
4. Commissioning and Operation
Commissioning the Machine
(Petrol Engine Version) ................... 25
Starting the Petrol Engine............... 26
Shutting off the Petrol Engine ......... 27
Commissioning the Machine
(Diesel Engine Version) .................. 28
Starting the Diesel Engine.............. 29
Shutting off the Diesel Engine ........ 30
Hoeing ..................................... 31 - 33
End of Operation ............................ 32
Danger Zone .................................. 33
Working on Slopes ......................... 33
Safety references for the handling 34
5. Maintenance
Petrol Engine............................ 35 - 36
Diesel Engine........................... 37 - 40
Machine .......................................... 41
Safety Circuit Function................... 42
Clutch Play ..................................... 42
General........................................... 43
Cleaning.......................................... 43
Storage ........................................... 44
6.Troubleshooting ...........45 - 47
Varnishes,
and Wear Parts ....................... 47
Lubrication Chart ................... 47
Inspection and
Maintenance Chart................. 48
Conformity Declaration ......... 51
Note fold-out pages!
Figures A and B
(Petrol EngineVersion) ............ 3
Figures C and D
(Diesel EngineVersion).......... 50

6agria Power Hoe Farmstar compact/comfort 1600
Recommendations,ElectricalWiring
Lubricants and
Anti-Corrosive Agents
Use the specified lubricants for engine
and gearbox (see “Specifications”).
We recommend using bio-lubricating
oil orbio-lubricating grease for“open”
lubricatingpointsornipples(asspecified
in the operating instructions).
We recommend using bio-slushing oil
for preservationofmachinesand imple-
ments (do not apply on painted exter-
nal covers). Oil can be brushed or
sprayed on.
Anti-corrosive agents are environmen-
tally friendly and degrade fast.
Using ecologically safe bio-lubricants
and bio-anti-corrosives, you contribute
to environmental protection and to the
wellbeing of humans, animals and
plants.
Maintenance and
Repair
The trained mechanics of your agria
workshop carry out expert maintenance
and repair.
You should only carry out major
maintenance work and repairs on your
own, if you have the proper tools and
knowledge of machines and internal
combustion engines.
Donothammeragainst theflywheelwith
a hard object or metal tools as it might
crack and shatter in operation causing
injuries and damage.Only use suitable
tools for pulling the flywheel.

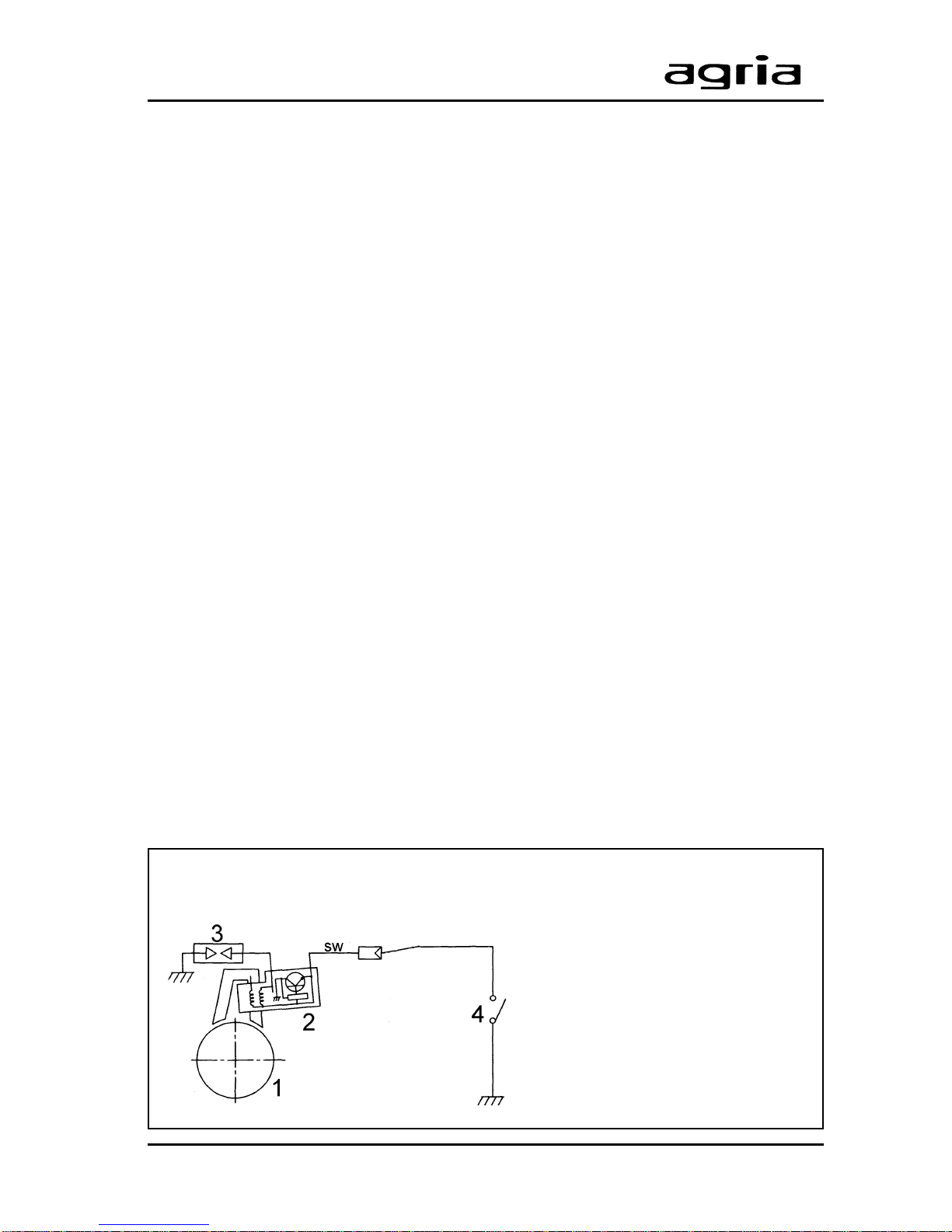

1Engine flywheel
2Ignition coil unit
3Spark plug
4Engine shut-off switch
sw = black
ElectricalWiring
Petrol Engine Version

agria Power Hoe Farmstar compact/comfort 1600 7
Fuel Recommendations
Petrol Engine
This petrol engine runs smoothly on
commercial unleaded regular and
supergrade petrol (including E10).
Do not add oil to petrol.
If, for environmental reasons, you use
unleaded petrol, make sure the fuel is
drainedcompletelywhenshuttingdown
the engine for more than 30 days.This
is to prevent resin residue from
depositing in the caburetor, fuel filter,
and tank. Or add a fuel stabilizer.
For further instructions refer to “Engine
Preservation”.
Diesel Engine
ThisDieselenginerunsonconventional
Diesel fuel of a min.cetane rating of 45.
Do not use Diesel fuel oil substitutes,
they may be harmful to the fuel system.
Fuel should be free of water or dust.
Winter operation:
To ensure reliable winter operation use
“winter diesel fuel”, to be purchased at
filling stations.
At outside temperatures of below
-15°C , take the following additional
precautions:
add commercial flow conditioners
or
add paraffine oil to depress diesel pour-
point:
Paraffine winter summer
oil: diesel diesel
fuel fuel
pour-point
50% app.-31°C app.-25°C
30% app.-26°C app.-15°C
10% app.-20°C app.- 9°C
As a last resort,you canaddupto30%
of regular petrol to avoid paraffine
deposits.However, this has negative
effects on consumption rate and
performance.

8agria Power Hoe Farmstar compact/comfort 1600
Unpacking and Assembly
Open the top of the
cardboard box.
Remove screw (2)
together with washer (3).
l Place the toothed ring on
the handle (4) onto the
toothed ring of the steering
bar joint (2). Fit tommy nut
(3)togetherwithwasherand
tighten it. Make sure that
Bowden cables and electric
cables are routed in such a
way that they are not get
crushed or damaged.
Mount the gear shift
lever (A/11) to the shifter
lever (A/29) using the
enclosed mounting parts.
Take the machine out of
the box or cut the box open
on all 4 corners and fold
down the sides to remove
the machine.
l Fit the hoeing tools and
hoeing guards.
Fit the depth bar.
Carry out all steps for
starting-up
25,28


23


22


agria Power Hoe Farmstar compact/comfort 1600 9
1. Safety Instructions
1
Before starting the machine, read the
operating instructions and note:
Warning
This symbol marks all paragraphs in
theseoperatinginstructions whichaffect
your safety.Pass all safety instructions
on to other users and operators.
Due Use
The power hoe is a hand-controlled
automatic single-axle machine.Pro-
pulsion is achieved using the hoe tools
approved by the manufacturer. The
power hoe is intended for use in turning
over the groundinlandscapegardening
(including the leisure sector).The area
to be covered must be in line with the
usual size of such areas in landscape
gardening. (Due use)
Any other type of operation is
considered undue.The manufacturer is
notliableforanydamages resultingfrom
undue use, for which the risk lies with
the user alone.
The power hoe is not intended for use
on such areas as vary stony or rocky
ground or as a tree-stump milling
machine.
Due use includes compliance with
manufacturer’s instructions on
operation, maintenance and repair.
Anyunauthorized changes to the power
hoerendermanufacturerliabilitynulland
void.
General Instructions on
Safety and Accident
Prevention
Basic Rule:
The respective national accident
prevention regulations have to be
adheredto,aswell as all other generally
accepted rules governing operational
safety, occupational health and road
traffic regulations.
When driving on public roads, you have
to observe the current traffic code.
Accordingly, check the power hoe for
road and operational safety each time
you take up operation.
Only persons familiar with the machine
and instructed on the hazards of
operation are allowed to use, maintain
and repair the machine.
Teenagers younger than 16 years are
not allowed to operate the machine!
Only work in good light and visibility.
Operator’s clothes should fit tight.Avoid
wearing loose fitting clothes. Wear
safety shoes.
Note the warning and instruction signs
on the machine for safe operation.
Compliance is for your own safety.
When transporting the machine on
vehicles or trailers outside the area to
be cultivated, ensure that the engine is
turned off.
Careful with rotating tools – keep at a
safe distance!
Beware of coasting tools.Before you
start anymaintenanceorrepair onthem,
waituntiltoolshavecometo a complete
stop.

10 agria Power Hoe Farmstar compact/comfort 1600
1. Safety Instructions
1
Foreign powered parts shear and
crush!
Riding on the attachment during
operation is not permitted.
Mounted or trailed attachments and
loads/weights affect the machine’s
driving, steering, braking, and tipping
characteristics. Therefore, ensure that
steering and braking functions are
sufficient. Match operating speed to
conditions.
Do not alter the governor settings.High
engine speed increases risk of
accidents.
Working Area and Dangerous Area
Theuserisliable forthird parties staying
within the machine’s working range.
Staying in the hazardous area is not
permitted.
Check the immediate surroundings of
the machine before you start it. Watch
out for children and animals.
Before you start work, clear the area
from any foreign object. During
operation, always watch out for further
objects and remove them in time.
For operationinenclosedareas, ensure
that a safety distance is kept to
enclosures to prevent damage to tools.
Operation and
Safety Devices
BeforeYou Start the Engine
Become familiar with the devices and
operating elements and their functions.
Above all, learn how to turn the engine
off quickly and safely in an emergency.
Ensure that all guards are mounted and
positioned to provide protection.
With no attachment mounted, make
sure PTO-shaft is covered with the cap.
Starting the Engine
Do not start engine in closed rooms.
The carbon monoxide contained in the
exhaust fume is extremely toxic when
inhaled.
Before you start the engine, move all
controls to neutral or idling speed.
When starting the engine, do not step
in front of the machine and the
attachment.
Do not use assist-starting liquids when
using electrical assist-starting devices
(jumper cable). Danger of explosion!
Operation
Neverleavetheoperator’spositionatthe
steering handle while the machine is at
work.
Never adjust the handles during work –
danger!
During operation keep a distance to the
machine as defined by the length of the
steeringhandle,especiallynotwhenyou
turn the machine.
Riding on the attachment during
operationorin transportisnotpermitted.
In case of blockages in the attachment,
turn off the engine and clean the
attachment with an appropriate tool.
In case of damage to the machine or
theattachment,immediatelyturn offthe
engine and have it repaired.

agria Power Hoe Farmstar compact/comfort 1600 11
1. Safety Instructions
1
If steering causes problems,
immediately bring the machine to a halt
and turn it off.Have the malfunction
repaired without delay.
To prevent the machine from slipping
on slopes make sure it is secured by
another person using a bar or a rope.
This person must be located at a higher
position than the vehicle at a safe
distance from the attachment at work.
If possible, always work across the
slope.
End of Operation
Never leave the machine unattended
with the engine running.
Before you leave the machine, turn off
the engine.Then close fuel taps.
Secure machine against unauthorized
use.If the machine is equipped with an
ignition key, remove the key. On other
versions, remove the spark plug
connector.
Attachments
Onlymountattachmentswiththe engine
and PTO switched off.
Always use appropriate tools and wear
gloveswhenchangingattachmentsand
parts thereof.
For mounting and dismounting
attachments bring the stands into pro-
per position and ensure stability.
Secure the base machine and
attachments against rolling off (parking
brake, wheel chocks).
Beware of injuries while coupling
attachments.
Linkage attachments as specified and
only couple at specified points.
Secure base machine and attachment
against unauthorized use and rolling off
when you leave the machine.If
necessary,installtransport or protective
devices and secure.
Hoeing
When hoeing and tilling on difficult
ground (stony, hard etc.) the machine
may give sudden jerking movements
in an upward and forward direction and
therefore extra care should be taken
under these conditions.
Adjust the hoeing guards in such a way
thatonlythetools that penetratethesoil
are not covered.
When hoeing, make sure the depth bar
is adjusted properly.
Weigths
Always fit weights properly and at the
locations specified.
Maintenance
Do not maintain or clean the machine
while the engine is running.
Before you work on the engine, always
remove the spark plug connector.
Check regularly and, if necessary,
replace all guards and tools subject to
wear and tear.
Replace damaged cutting tools.
Always wear safety gloves and use pro-
pertoolswhenexchangingcuttingtools.
Do not carry out repairs like welding,
grinding, drilling, etc. on structural and
safety parts (e.g. coupling devices)!
Keep the base machine and the
attachment clean to avoid risk of fire.
Check nuts and bolts regularly for tight
fit and re-tighten, if necessary.

12 agria Power Hoe Farmstar compact/comfort 1600
1. Safety Instructions
1
Ensurethatyou re-install all guards and
adjust them properly after maintenance
and cleaning.
Only use original agria spare parts. All
other commercial spare parts must
correspond to quality and technical
requirements specified by agria.
Storage
It is not allowed to store the machine in
rooms with an open heating system.
Never parkthemachineinclosedrooms
with fuel left in tank. Fuel vapours are
hazardous.
Engine, Fuel, and Oil
Never let the engine run in closed
rooms. Extreme danger of intoxication!
For the same reason, also replace
damaged exhaust parts immediately.
Caution with hot engine parts!
The exhaust and other engine parts
become very hot, if the engine runs and
immediately after turning off. Hold for
sufficient distance from hot surfaces
and keep children away from the
running engine.
Becarefulwhendealingwithfuel.Great
danger of fire! Never refill fuel close to
open fire, inflammable sparks or hot
engine parts.Do not refill fuel in closed
rooms.Do not smoke when refilling!
Refill only with the engine switched off
and cooled down.
Do not spill any fuel, use a proper filling
device.
In case of fuel-spillage, pull the multi-
purpose machine away from the
spillage before you start the engine.
Make sure fuel is of specified quality.
Store fuel in approved cans only.
Liquids leaking under high pressure,
e.g. fuel, can penetrate the skin and
cause severe injuries. Immediately see
a doctor.
For safety reasons the petrol tank and
fuel cap should be replaced regularly.
Store anti-corrosive agents and
stabilizing liquids out of reach of
children.If sickness and vomiting occur,
see a doctor.If the fuel has contacted
eyes, rinse them thoroughly, avoid
inhaling of vapours.
Read and observe enclosed
instructions.
Before you dispose of opened and
seemingly empty pressurised tins (e.g.
of assist-starting liquids) make sure
they are completely empty.Empty them
in ventilated places safe from spark
formation or flames.If necessary,
dispose of tins in hazardous waste
deposits.
Becarefulwhen draining hot oil, danger
of burns.
Makesureoil usedisofspecifiedquality.
Storage is in approved cans only.
Dispose of oil, greases, and filters
seperately and properly.
Electrical System
Persons having a pacemaker may not
touch live parts of the ignition system
when the engine is running.

agria Power Hoe Farmstar compact/comfort 1600 13
1. Safety Instructions
1

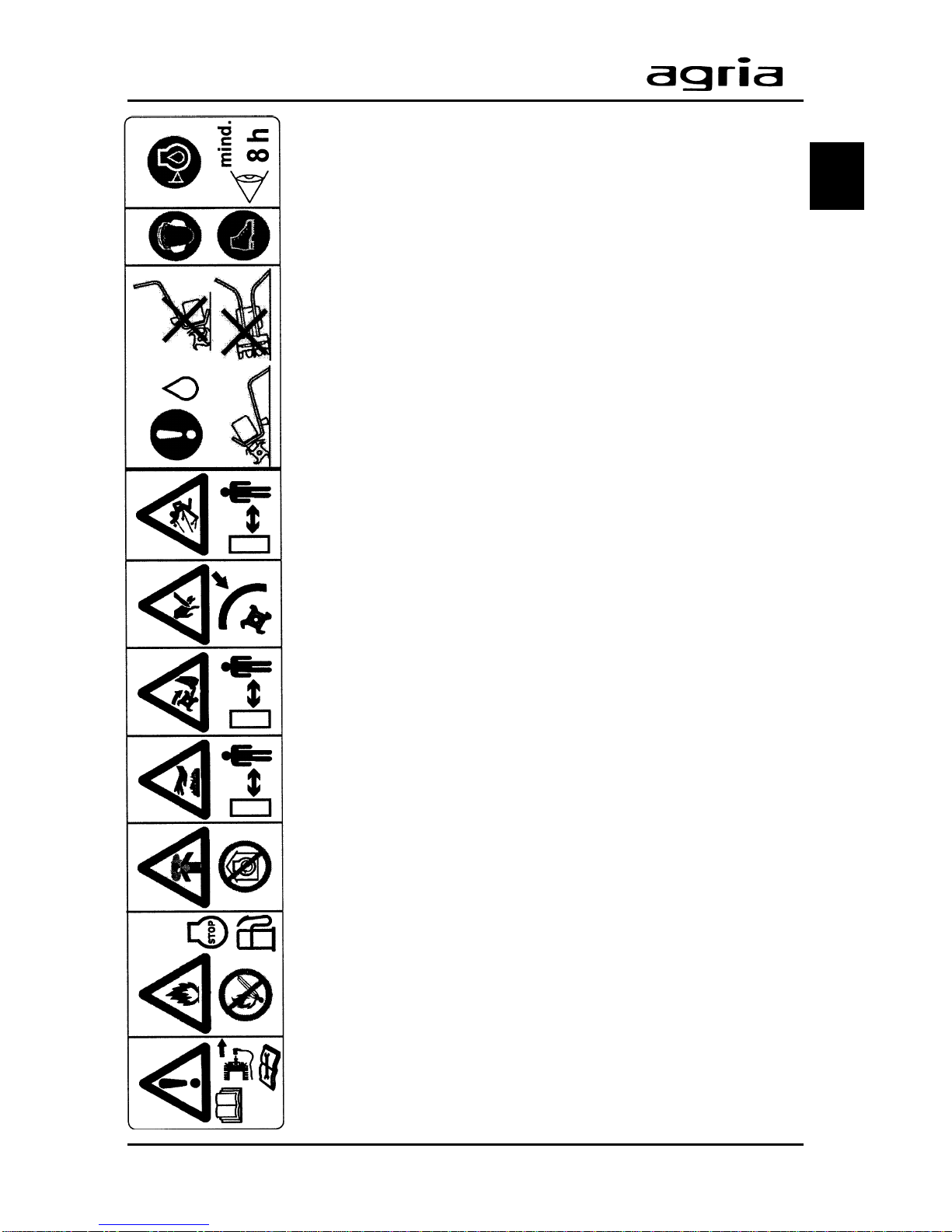

Explanation of Signs andWarning Signs
Check engine oil level at least every 8 hours.
When working with the machine, wear individual protective
ear plugs. Wear safety shoes.
To park, transport, or store the power hoe, do not tilt it
forward or laterally. There is a danger that engine oil could
leak into the cylinder and combustion chamber.
Danger - flying objects; keep safe distance from the machi-
ne as long as the engine is running!
Do not work without protective covers mounted. Before start-
ing the engine, bring covers into proper position.
With engine running, keep at a safe distance from hoeing
tools!
Stay clear of hot surfaces.
The exhaust fumes contain breath poisons - keep distance.
Warning: danger of fire - before each fuel fill, shut off the
engine and wait until it has cooled off - no open fire.
Before any cleaning, maintenance, and repair work switch
off the engine and pull spark plug connector.

14 agria Power Hoe Farmstar compact/comfort 1600
2. Specifications
Power Hoe
Dimensions:
Dimensions in mm
Ø Hoeing tools ............... 310
a...................................... 460
b...................................... 590
c...................................... 265
d...................................... 300
e...................................... 300
f....................................... 250
g...................................... 630
h...........................860…1030
k..................915 with h = 800
l...................................... 1420
A.............................520…980
22
Clutch:............................. bevel clutch
Gearbox:
3-speed mechanical gearbox
2 forward speeds and 1 reverse speed
Hoeing shaft is driven by the bevel
gearbox.
For ground speeds see table below
Transmission oil ....... SAE 90-API GL5
Filling quantity...................approx. 0.9l
Steering handle:........ height and side
adjustable without tools
Weight: (without hoeing tools)
compact
(petrol engine version) .......... 53,5 kg
comfort
(diesel engine version).......... 63,5 kg
Gear Speed of hoeing tools
[rpm]
ndw
I87
II 157
R41

agria Power Hoe Farmstar compact/comfort 1600 15
2
2. Specifications
Petrol Engine
Manufacturer: ........................ Honda
Engine type:.................... GX 160 K1
Version:....................... Fan-air cooled
1-cylinder, 4-stroke
petrol ohv engine
Bore:....................................... 68 mm
Stroke:.................................... 45 mm
Cubic capacity: .................. 163 ccm
Compression ratio:................ 8.5 : 1
Output: ................................... 4.0 kW
at 3600 rpm
Max. torque: .........................10.8 Nm
at 2500 rpm
Spark plug:................ NGK BPR 6ES
BOSCH WR 7 DC
Spark plug gap: ............. 0.7…0.8 mm
Ignition system:
Contactless solenoid ignition, ignition
point is pre-set, radio remote screened
according to VDE 0879
Valve lash (engine cold):
Intake: ...................0.15mm ± 0.02mm
Outlet: ...................0.20mm ± 0.02mm
Starter:
Soft-pull recoil starter with mechanical
decompression facility
Fuel tank capacity: ................... 3.6 l
Fuel: .......................... unleaded petrol
........octane number at least 91 RON
(also E10)
refer to fuel recommendations
Air filter:................... Oil bath air filter,
same type of oil used for engine
lubrication
Carburetor:..........Throttle valve type
Mixture control screw:
opened approx. 2 1/8 turns in base
setting
Rated speed: ......................3600 rpm
Top no-load speed: ............3850 rpm
Idling speed:........... 1250…1600 rpm
Engine oil:
Filling quantity.................. approx. 0.6 l
Multi-grade oil SAE 10 W-40
SG, SF or higher quality grade
Operability on slopes:
max ................................ < 20° (37 %)
(with oil level at“max” = upper level mark)
Noise level:
Noise level at operator’s ear 83.5 dBA
(In accordance with EN 709 and EN
1553)
Vibration acceleration value:
on handlebar:............. ahw = < 2.5 m/s2
in accordance with EN 709 and EN 1033 at
85% of rated engine speed with tool at work.

16 agria Power Hoe Farmstar compact/comfort 1600
2. Specifications
2
Diesel Engine
Manufacturer:....................... Yanmar
Type:................................... L48AE-DI
Version: .......................Fan-air-cooled
1-cylinder-4-stroke diesel engine
Bore: ....................................... 70 mm
Stroke: .................................... 55 mm
Cubic capacity: .................. 211 ccm
Output: .............. 3.5 kW at 3600 rpm
Max torque: .... 12.5 Nm at 2500 rpm
Injection pressure:...............200 bar
Valve lash (engine cold)
Intake: ..........................0.15 -0.02 mm
Outlet: ..........................0.15 -0.02 mm
Starter: .................. Recoil starter with
mechanical decompression facility
Fuel:.................................. Diesel fuel,
Min. cetane rating: ...........................45
(refer to fuel recommendations)
Fuel filter:...........Paper filter cartridge
in fuel tank
Fuel tank capacity: ........ approx. 2.5 l
Air filter: .................... Oil bath air filter
Filling quantity.. approx. 0.2l engine oil
Rated speed: ......................3600 rpm
Top no-load speed: ............3800 rpm
Lubrication: ....... Pressure lubrication
via gear pump
Full flow oil filter
Engine oil:
Filling quantity.................. approx. 0.8 l
Multi-grade oil
at ambient temperature -15° to +45°C:
SAE 10W-40 API-SC (or higher)
at ambient temperature -25° to +15°C:
SAE 5W-20 API-SC (or higher)
Operability on slopes:
max ................................ < 20° (37 %)
(with oil level at “max” = upper level
mark)
Noise level:
Noise level
at operator’s ear.................... 90 dB(A)
Sound level: .....................103.5 dB(A)
(in accordance with EN 709 and
EN1553)
Vibration acceleration value:
on handlebar:............. ahw = < 7.1 m/s2
inaccordancewithEN 709andEN1033
at 85% of rated engine speed with tool
at work.

agria Power Hoe Farmstar compact/comfort 1600 17
3. Devices and Operating Elements
33
The power hoe agria-Farmstar is a
motorised unit for turning over the
ground.Therefore it is most suitable for
normal use in landscape gardening.
Engine
l The four-stroke petrol engine runs
on commercial petrol (refer to fuel
recommendations p7).
Ignition System
The engine is equipped with a
contactless ignition system. We
recommend to have necessary check-
ups done by an expert only.
l The four-stroke diesel engine runs
on commercial diesel fuel (refer to fuel
recommendationsp7).Seetousing pro-
per fuel in winter.
During the first 20 operating hours
(break-in period) do not use engine to
maximum power.
Even after break-in period never use
engine at higher speed than necessary
for the work in hand.
IHigh engine speed is harm-
ful to any engine and consid-
erably affects its durability. This
applies especially for no load
operation. Any overspeed (have the
engine roar) can result in immediate
damage.
Cooling System
Coolingsystemis fan-cooled.Therefore
keepscreen at recoil starterandcooling
fins of cylinders clean and free from
sucked-in plant trash.
Idling-speed
Always ensure that idling-speed is
adjusted correcty.At low speeds and
with the speed control lever set to idle,
the engine is supposed to run smoothly
and without run-out.
Air Filter
The air filter purifies the air intake. A
clogged filter reduces engine output.
Ignition System
The petrol engine is equipped with a
contactless ignition system. We
recommend to have necessary check-
ups done by an expert only.
IPlease observe that only those activities are described here
which are required for operating the power hoe.
All other information on the engine may be taken from the en-
closed engine operating instructions!

18 agria Power Hoe Farmstar compact/comfort 1600
3. Devices and Operating Elements
PetrolEngineVersion
3
Speed Control Lever
The speed control lever (A/6) on the steering
handle is for stepless setting of engine speed
from min. = idle to max. = full throttle.
Engine Shut-off Switch
On pressing the switch (A/7), the ignition is
turned on or off.
Position “O” = Engine off
Position “I” = Operation
IThe engine shut-off switch also
serves as an emergency shut-off.
Set the switch to “O” for fast shut-off.
Choke
The choke lever (B/5) is on the carburetor.
l Close the choke for cold starts.To do this,
move the lever to the left.
l Open the choke for warm starts and
operation. To do this, move the lever to the
right.
Fuel tap
The fuel tap (B/13) is on the carburetor.
l Move the tap to the right to open it.
l Move the tap to the left to close it.
max. min.
A/7
A/6
B/5
B/13

agria Power Hoe Farmstar compact/comfort 1600 19
3. Devices and Operating Elements

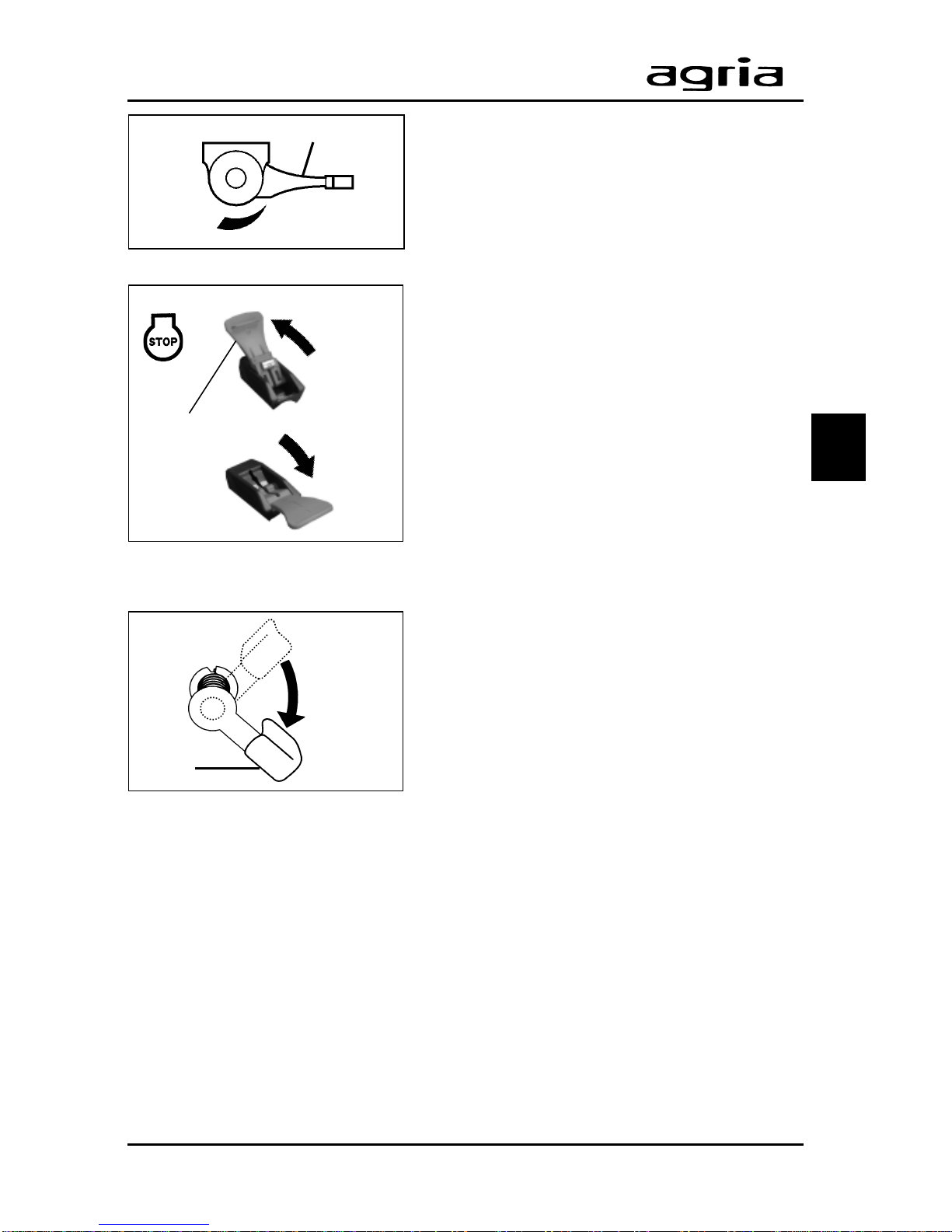

DieselEngineVersion
C/14
max min
C/6
O
I
C/7
Speed Control Lever
The speed control lever (C/6) on the steering
handle is for stepless setting of engine speed
from min. = idle to max. = full throttle.
Engine Shut-off Lever
Manupulating the lever (C/7), the ignition is
turned off.
Position “O”=Engine off
Position “I” =Operation
IThe engine shut-off lever also
serves as an emergency shut-off.
Set the lever to “O” for fast shut-off.
Decompression
Activate decompression to start the engine
via the recoil starter.To do this, fold down the
decompression lever (C/14).
As you pull the recoil starter, the
decompression lever will automatically move
back into its original position.
3

20 agria Power Hoe Farmstar compact/comfort 1600
3. Devices and Operating Elements

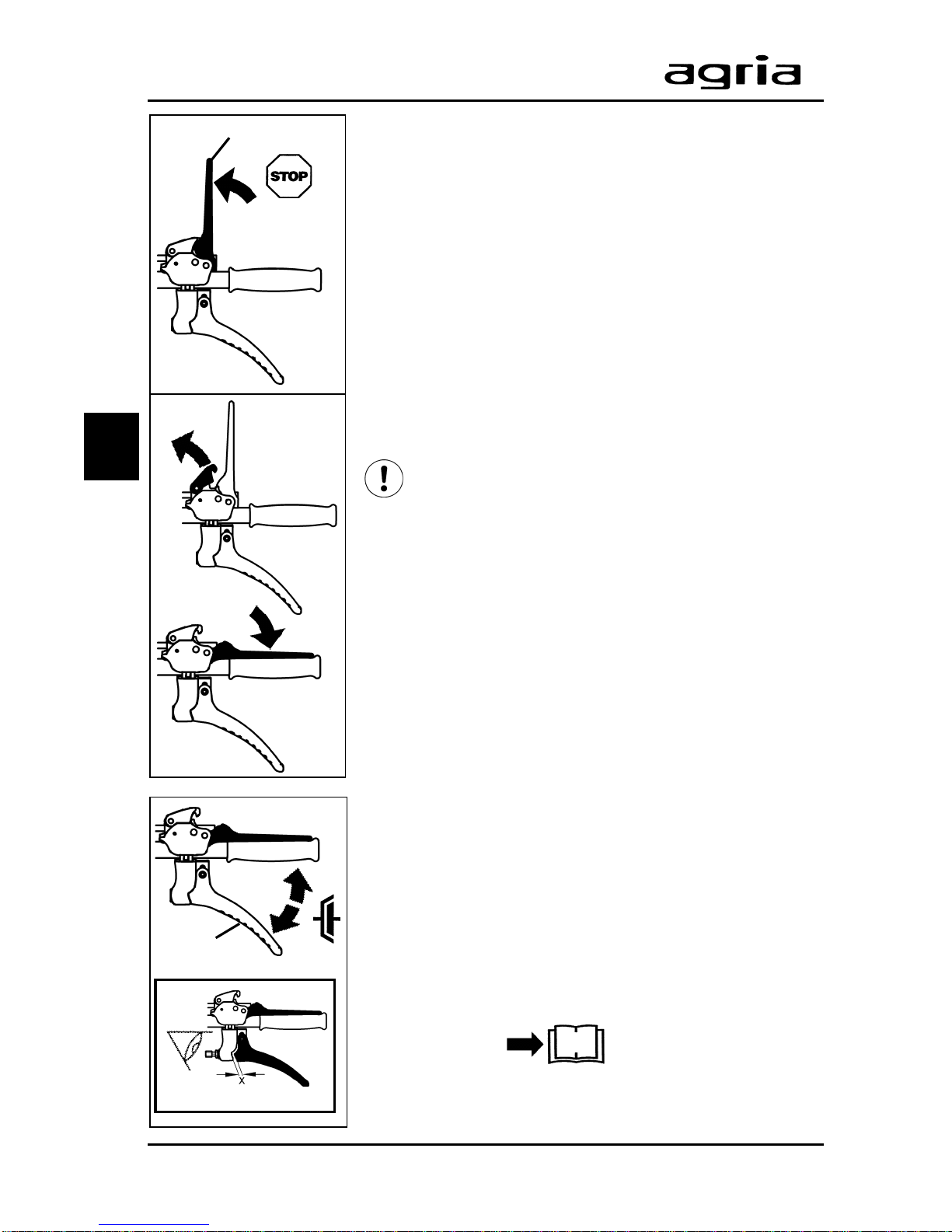

Safety circuit
The machine is equipped with a safety circuit lever.
Stop position: When safety lever (A/8 or C/8) is not
operated the clutch is disengaged but the engine continues
to run.
Operating position: for operation press the safety
lever (A/8 or C/8) down, actuating the connection
between the engine and the gearbox.
l The safety circuit must be operated in two steps:
1. Flip locking ratchet upwards (release)
2. Push safety lever downwards.
If a gear is shifted and the clutch is engaged,
the wheels and the hoeing tools begin to
turn, therefore do not press the safety lever down
until the gear shifting is set at 0 and the clutch
lever is in the disengaged position.
WDo not fasten safety circuit lever.
IThe safety lever also serves as an emergency
shut-off.In an emergency release it. The lever
automatically goes to STOP position.
Clutch
The machine is decoupled (0)when you pull the hand
clutch lever (A/9 or C/9).
Coupling takes place when the manual clutch lever is
released and the pawl is open (I).
To avoid clutch slipping away during operation, a clutch
play is factory-set on the hand lever.
After the first operating hour, the clutch play has to be
checked and, if necessary, re-adjusted.
èMaintenance


2.
A/8, C/8
1.
A/9, C/9
0
I
42
3
