Aigo M1 User manual

DIGITAL MUSIC MEDIA PLAYER
USER MANUAL
Ver：1.0
In order to ensure the best use experience, please read this
guide carefully and keep it in a safe place for future reference.
www.eroshifi .com
M1

M1
Freedom in
TECHNOLOGY,
Freedom in
LIFE.

DIGITAL MUSIC MEDIA PLAYER M1
1
MATTERS NEED
ATTENTION
This product is a precision electronic product that
requires special attention during use:
1. Keep the product away from the electromagnetic
environment; keep away from harsh
environments such as excessive humidity and
smoke;
2. Please do not separate or modify the product;
3. Do not use any corrosive or abrasive cleaner to
clean the headphones;
4. the device should not be immersed in water;
5. Please do not use excessive force to squeeze
the product;
6. Please do not put the product in direct sunlight or
in a fire- baked environment, please keep away
from high temperature and low temperature
environment;
7. Please do not violently shake or strike the
product;
8. It is recommended to turn down the volume of the
unit before using the headphones. After starting
to listen, gradually increase the volume until it is
suitable. In order to protect your hearing, please
don't adjust the volume too high (the doctor
pointed out that listening to a large volume for
a long time will damage the listener's hearing).
When tinnitus occurs, turn down the volume or
stop using it;

DIGITAL MUSIC MEDIA PLAYER M1
2
9. Make sure that the product is safely placed to
prevent accidental and falling children's touches;
10. This unit USB and the computer are connected
for too long, the body will heat up, under normal
circumstances, the machine Charging can
be completed in 4 hours. After charging is
recommended, please remove it from the USB
interface. Do not charge it for too long.
11. Do not disassemble the machine without
authorization, otherwise the warranty will be lost.
If you have any questions, please contact the
dealer.
12. Changes due to the performance and function
of the product will be subject to change without
notice. If the instructions are not in accordance
with the actual product, please refer to the actual
product;
13. Do not use headphones when driving, riding,
operating the machine, or working on a computer
that requires attention to outside sounds;
14. Battery charging precautions:
A.The battery of this unit is a lithium polymer battery
that can be recharged. In the first few charges,
it must be charged for more than 4 hours, and
each time you need to use up the battery's power
and then charge it, you can extend the life;
B.It is recommended to continue charging for half

DIGITAL MUSIC MEDIA PLAYER M1
3
an hour after fully charged to ensure a longer
playing time;
C.Lithium battery must be replaced by customer
service personnel, users can not replace it by
themselves (Note: If the battery is improperly
replaced, there is a danger of explosion, only
replace it with the same type or equivalent type
of battery); to protect the environment, please
give the battery to the professional Institutional
recycling;
D. Battery life may vary depending on usage
conditions and production time.
15. Charging: This unit can only be charged
through the USB interface of the computer or
by using the 5V1000mA adapter that conforms
to the standard. Whether the machine is turned
on or off, as long as you connect the product
to the adapter, you can charge the product.
During the charging process, The product has
a certain temperature rise, which is a normal
phenomenon;
16. This product may be different from the actual
content of the manual due to the software
update. Please refer to the product purchased.
The operation guide is for reference only.

DIGITAL MUSIC MEDIA PLAYER M1
44
PARTS LIST
aigo M1 x1
USB cable (Type C) x1
USER MANUAL x1
Macro SD card(8GB) x1
*Product accessories shall be based on the physical objects in the
package.

DIGITAL MUSIC MEDIA PLAYER M1
PRODUCT FEATURES
1. 2.4 Inch TFT LCD high-definition display;
2. One-piece tempered glass panel, smooth and natural;
3. Ultra-thin full metal body;
4.Bluetooth 4.1 transmission, easy to connect to
Bluetoothheadset, Bluetooth speaker, or even your
own vehicle;
5.High-sensitivity capacitive touch button, perfect control
experience;
6.Professional recording function, one-click recording,
comparable to any recording pens;
7.Built-in speaker ;
8.USB Type-C port, faster and more stable ;
9.TF Card storage expansion, supports up to 128GB;
10.Multi-funtions (support date, clock display, set alarm
clock, FM Radio, Video, E-Book and Image)
11.Support repeat, variable speed playback, learning
easier;
12.Support Mp3, wma, wav, ape, flac and a variety of
music formats;
13.Support Lrc Lyrics and album cover display;
14.Long play time, continuous playback reachable about
30 hours.
5

DIGITAL MUSIC MEDIA PLAYER M1
6
KEY DESCRIPTION
1 Speaker 2 LCD monitor 3 Back
4 Up 5 Previous/Rewind 6 Play/Pause
7 Down 8 Menu 9 Next/Fast-forward
10 Recording button 11 Volume Up 12 Volume Down
13 Microphone 14 Power button 15 Micro SD card slot
16 USB Type-C port 17 Line out port
6
Digital Music Player
model：M1
Input：5V 1000mA
Beijing EROS Technology Co., Ltd.
Made in China

DIGITAL MUSIC MEDIA PLAYER M1
INSTRUCTIONS
Power on/off
Press and hold the Power button 2s to turn on the player,
and press and hold the Power button 2s to turn off the
player. Press to turn off the screen, and press again to turn
on the screen.
Battery
Battery will be fully charged in approximately 4 hours on a
wall charger. If charging on a computer or other devices,
the charging time varies as the input differs on each device.
Lock Mode
Press the Power button to lock the device. The screen
will be turned off and all buttons will be locked except the
Power button and the volume buttons.
Memory
support up to 64GB memory card.
7

DIGITAL MUSIC MEDIA PLAYER M1
8
PLAY MUSIC
Press the play button on the music interface to
enter the song list, then press the up and down
buttons to select the song you want to play.
Press the play button to play and pause the music.
Press the menu button to enter the music settings,
press the up and down buttons to select the menu
and press the play button to confirm.
1.Play mode
·Sequential playback: All songs are played once in
sequence.
·Single repeat: The same song is played in a loop.
·Repeat all: All songs are played in a loop.
·Random play: The system randomly switches the
track play.
·Repeat setting
Repeat mode: Select the repeat mode during

DIGITAL MUSIC MEDIA PLAYER M1
9
playback and press the play button to confirm the
entry start and end point settings. Short pressto
set the repeat start point A, short press the button
again to set the repeat end point B, at this point the
device begins to repeat.
Pressagain to cancel the repeat, press theto reset
the repeat. Number of repetitions: The number of
A-B repetitions can be set (the system defaults 5
times)
Repeat interval: You can set the interval for A-B
repeat (system default 1 second)
2. Sound settings
Equalizer: six different styles EQ Choice (Rock,
funk, Hip hop, jazz, classical, electronic music)
Variable speed playback: The speed of playback
can be adjusted.
3. Delete
Select Delete and press the play button to delete
the currently playing song.

DIGITAL MUSIC MEDIA PLAYER M1
10
PLAY VIDEO
10
FM RADIO
Press the play button on the video interface to enter
the video list, then press up and down Select the
video you want to play by pressing the play button
to play and pause.
Video format and specifications: Supports 340*320
AVI and AMV formats only.
·Press the play button to enter the radio (The MP3
player must be plugged in by an earphone. The
earphone works as an antenna to listen to the FM
radio.)
·Press the menu button and then press
the up and down buttons to select the menu and
press the play button to confirm.
·Select auto-tuning to perform automatic search
and store of stations (frequency range: 87.5-

DIGITAL MUSIC MEDIA PLAYER M1
11
108.0MHz)
After the auto-tuning is completed, you can press
the play button to switch the saved station.
·FM radio recording: When you listen to the radio,
press the Menu button and select “Start FM Radio
Recording” to record the stations you like to listen
to, and press and hold the Record button to save.
(Radio recording files can be viewed and played in
the FM Recording menu)
·You can select the normal band or the Japanese
band by selecting “Radio band ” (campus
Frequency band)
·Press the back button to select "Yes" to exit
the radio. Select "No" to convert to background
playback.

DIGITAL MUSIC MEDIA PLAYER M1
E-BOOK
12 12

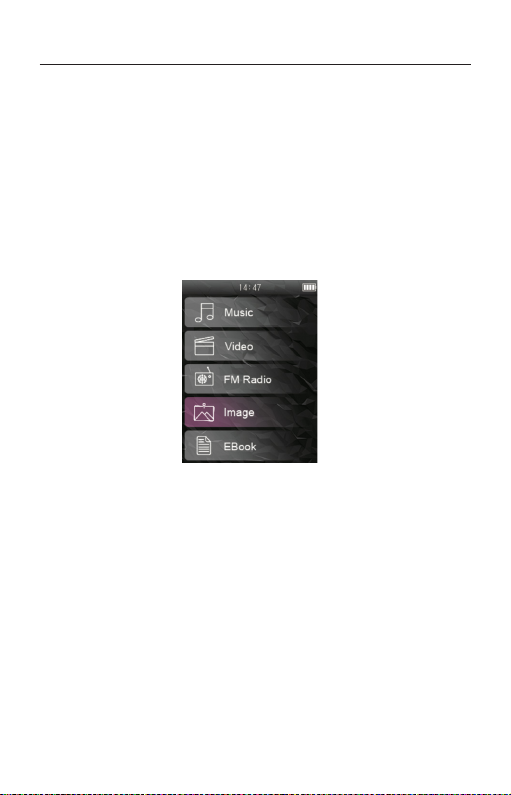

·Press the play button to enter the picture, then
press the up and down buttons to select the picture
and press the play button to start browsing the
picture.
·Image format: only supports JPG and BMP
formats
·Press the play button to enter the e-book, then
press the up/down button to select the e-book file
(TXT format). Press the play button to start reading
the e-book.
·Press the play button to turn pages automatically.
·Press the Menu button and then press the Up/
Down button to select the menu you want to set.
Press the Play button to confirm.

DIGITAL MUSIC MEDIA PLAYER M1
13
FOLDERS
·Press the play button to enter the folder view to
view all the stored files.
·Press the up/down button to select the file you
want to find and press the play button to confirm
playback.
·Press the back button to exit.

DIGITAL MUSIC MEDIA PLAYER M1
BLUETOOTH
14 14
·Press the play button to enter the Bluetooth
mode.
·Turning on the Bluetooth: Press the up/down
button to select the Bluetooth switch control and
select “Bluetooth On”and press the play button to
confirm.
·Search for devices: Press Play/Pause to turn on
the Bluetooth. Select the [Search for device] and
press the play button to confirm, the player will now
scan for Bluetooth devices. It is normal to take few
seconds before successfully connected to your
devices. When scanning, your other Bluetooth
devices (e.g. Bluetooth headphones or speakers)
should also be in scanning/pairing mode.

DIGITAL MUSIC MEDIA PLAYER M1
15
1.Power saving mode
·Timed shutdown: After setting the timed
shutdown,the M7 audio player will automatically
shut down when it reaches the specified time.
·Idle shutdown: When the unit is not playing, and
there is no operation status,it will automatically shut
down to save power when it reaches the set idle
shutdown time. The unit offers six options: Off, 5
minutes, 10 minutes, 15 minutes, 30 minutes, 60
minutes.
2.Recording settings
·Start voice recording: press the play button to
enter “Start Voice Recording” and enter the
recording mode. Press and hold the record button
shortcut key to save the recording file ( you can
also press and hold the record button shortcut key
to record and save in any state of booting )
·Recording library: Press the play button to enter
the “recording library” to view the saved audio
recordings. Press the up and down buttons to
select the recording file and then press the play
button to play the recording file directly .
·Recording format: MP3, WAV
·Recording settings: you can choose different
quality recording bit rate effects and Avr Mode
SYSTEM SETUP

DIGITAL MUSIC MEDIA PLAYER M1
16
16
(After choose Avr mode, the microphone will pause
recording when no external sound is detected, and
continue recording after detecting the sound.)
3.Display setting
·Backlight timer: After the specified time is set, the
backlight will be automatically extinguished, which
will save the screen saver or directly press the
power button to enter the black screen mode.
·Brightness: Select the backlight brightness level
according to your own environment.
4.Date and time
The time and date can be set in this function.
Press the up and down buttons to adjust the digital
scrolling, press the up anddown button to switch
the options and press the play button to confirm the
save settings.
5.Information
After entering the information, you can check the
software information and disk space status.
6.Screen protecting mode
Close screen: black screen after screen saver
Digital clock: The digital time and date will be
displayed first after the screen saver.
7.Formatting device
Confirm delete all the files inside the memory card

DIGITAL MUSIC MEDIA PLAYER M1
SPECIFICATION
17
after formatting.
8.Factory setting
The player can be restored to its original factory
settings. At this time, any customer setting
information is deleted and reset to the default state.
(The card file will not be lost)
Dimensions: 107*50*8mm
Product Weight:70g
Display:2.4 inch (lattice 240*320 TFT HD LCD
screen)
Battery:500mAH/3.7V Lithium polymer battery
Charging specification:5V/1A input
Charging time:<4 hours
Play time:30 hours
TF card expansion: ≤ 128GB
Audio format: APE、FLAC、MP3、WMA Recording

DIGITAL MUSIC MEDIA PLAYER M1
18
format:MP3、WAV
Video format:AVI、AMV
THD:0.047%
Frequency Response Range:20Hz-20KHz
Manufacturer:
Beijing EROS Technology Co., Ltd. Address:Room
321, 3nd Floor, Building 1, No 26, Lianhuachi Xili,
Haidian District, Beijing, China
Clients:
Aigo Intrnational Co., Limited
Website:
www.aigo.com
Contact US:
Email:[email protected]
Official Website: www.aigo.com
For proper treatment to avoid harmful effect
on human health and enviroment, please
contact your local municipality, your waste
disporsal service or the point of sale where
you purchased the items.
