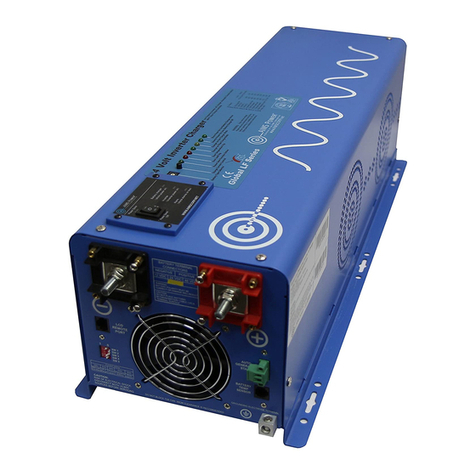

AIMS Power Global LF Series User manual

Global LF Series Pure Sine Wave Inverter Charger
User’s Manual
Version 9.0
PICOGLF10W-PICOGLF60W
04/2021

1

Table of Contents
1. Important Safety Information ...................................................................................................................................... - 2 -
1-1. General Safety Precautions ............................................................................................................................. - 2 -
1-2. Precautions When Working with Batteries .............................................................................................. - 2 -
2. Introduction ........................................................................................................................................................................ - 3 -
2-1. General Information .......................................................................................................................................... - 3 -
2-2. Application ............................................................................................................................................................ - 3 -
2-3. Mechanical Drawing .......................................................................................................................................... - 4 -
2-4. Features .................................................................................................................................................................. - 6 -
2-5. Electrical Performance ..................................................................................................................................... - 6 -
2.5.1 Inverter ....................................................................................................................................................... - 6 -
2.5.2 AC Charger ................................................................................................................................................. - 7 -
2.5.3 Transfer ...................................................................................................................................................... - 10 -
2.5.4 Auto Frequency Adjust ........................................................................................................................ - 10 -
2.5.5 Power Saver ............................................................................................................................................. - 10 -
2.5.6 Protections ............................................................................................................................................... - 13 -
2.5.7 Remote Control ...................................................................................................................................... - 13 -
2.5.8 LED Indicator .......................................................................................................................................... - 15 -
2.5.9 Audible Alarm ......................................................................................................................................... - 17 -
2.5.10 FAN Operation ..................................................................................................................................... - 17 -
2.5.11 DIP Switches ......................................................................................................................................... - 18 -
2.5.12 Auto Generator Start .......................................................................................................................... - 19 -
2.5.13 Other Features ..................................................................................................................................... - 19 -
2.5.14 Automatic Voltage Regulation ....................................................................................................... - 20 -
3 Installation ......................................................................................................................................................................... - 21 -
3.1 Unpacking and Inspection ..................................................................................................................... - 21 -
3-2. Location ................................................................................................................................................................ - 22 -
3-3. DC Wiring ............................................................................................................................................................. - 22 -
3-4. AC Wiring ............................................................................................................................................................. - 24 -
3-5. Grounding ............................................................................................................................................................ - 26 -
3.5.1 Automatic Neutral-to-Ground Connection .................................................................................. - 26 -
3.5.2 Disabling the Automatic Neutral-to-Ground Connection ...................................................... - 27 -
3-6. Install Flange....................................................................................................................................................... - 29 -
4. Troubleshooting Guide ................................................................................................................................................. - 31 -
5. Warranty ............................................................................................................................................................................ - 33 -
Specifications ........................................................................................................................................................................- 34 -
Appendix 1 - Circuit Schematics .................................................................................................................................... - 37 -
Appendix 2 - Installation Diagram ................................................................................................................................ - 38 -
1

1. Important Safety Information
NOTE: Before using the inverter, read and save this manual.
1-1. General Safety Precautions
1-1-1. Do not expose the inverter to rain, snow, spray, bilge or dust. To reduce risk of hazard, do not cover
or obstruct the ventilation openings. Do not install the inverter in a zero-clearance compartment.
Overheating may result. Allow at least 12” of clearance around the inverter for air flow. Make sure that the
air can circulate freely around the unit. A minimum air flow of 145CFM is required.
1-1-2. To avoid risk of fire and electronic shock, make sure that existing wiring is in good electrical
condition and that the wire is not undersized. Do not operate the inverter with damaged or substandard
wiring.
1-1-3. This equipment contains components which may produce arcs and/or sparks. To prevent fire and/or
explosion do not install in compartments containing batteries or flammable materials or in a location which
require ignition protected equipment. This includes any space containing gasoline-powered machinery, fuel
tanks, or joints, fittings, or other connection between components of the fuel system.
See Warranty for instructions for servicing the inverter.
1-1-4. Do not disassemble the Inverter Charger. It contains no user-serviceable parts. Attempting to service
the Inverter Charger yourself may result in electrical shock or fire. Internal capacitors remain charged after
all power is disconnected.
1-1-5. To reduce the risk of electrical shock, disconnect both AC and DC power from the Inverter Charger
before attempting any maintenance or cleaning. Turning off controls will not reduce this risk
CAUTION: Equipment damage
The output side of the inverter’s AC wiring should at no time be connected to public power or a generator.
This condition is far worse than a short circuit. If the unit survives this condition, it will shut down until
corrections are made.
Installation should ensure that the inverter’s AC output is, at no time, connected to its AC input.
1-2. Precautions When Working with Batteries
1-2-1. If battery acid contacts skin or clothing immediately wash with soap and water. If acid enters eyes
immediately rinse eyes with running cold water and seek immediate medical attention.
1-2-2. Never smoke or allow a sparks or flames near the battery.
1-2-3. Do not drop a metal tool on the battery. The resulting spark or short-circuit on the battery will cause
an explosion.
1-2-4. Remove personal metal items such as rings, bracelets, necklaces, and watches when working with a
battery. A battery produces a short-circuit current high enough to weld any metal objects and will cause a
severe burn.
1-2-5. To reduce the risk of injury, charge only deep-cycle lead acid, lead antimony, lead calcium gel cell,
absorbed mat, LIFEPO4 lithium or NiCad/NiFe type rechargeable batteries. Other types of batteries may
swell or burst causing personal injury and damage.
2

2. Introduction
2-1. General Information
The Global LF Series Pure Sine Wave Inverter Charger product line is a combination of an
inverter,battery charger and auto AC transfer switch in one unit and has a
peak conversion efficiency of 88%. It is packed with unique features and is one of the most
advanced inverter chargers on the market today. It features power factor correction, sophisticated
multi-stage charging and pure sine wave output with unprecedentedly high surge capability to
meet demanding power needs of inductive loads without damaging the equipment.
When utility AC power cuts off (or falls out of acceptable range), the transfer relay is de-energized and the
load is automatically transferred to Inverter mode. Once the qualified AC power is restored the relay is re-
energized and the load is automatically reconnected to AC bypass mode. NOTE THE BYPASS RATING
OF THE INVERTER (page 33) AND DO NOT EXCEED. DAMAGE MAY OCCUR AND VOID
THE WARRANTY. The Global LF Series Inverter is equipped with a powerful four stage smart charger
and includes an auto generator start feature. The overload capacity of the inverter charger products is 300%
of continuous output for up to 20 seconds to reliably support tools and equipment. This is for inverter mode
only. You can NOT bypass the surge rating of the inverter. This may cause permanent damage to the
inverter.
Another important feature is that the inverter can be easily customized to Battery priority via a DIP switch.
This helps to extract maximum power from the battery in renewable energy systems such as solar and wind.
The Global LF Series Pure Sine Wave Inverter is suitable for renewable energy systems in work trucks,
RV, marine and emergency appliances.
To get the most out of the power inverter, it must be operated and maintained properly. Please read the
instructions in this manual before installing and operating.
2-2. Application
Power tools–circular saws, drills, grinders, sanders, buffers, weed and hedge trimmers, air compressors.
Office equipment –computers, printers, monitors, facsimile machines, scanners.
Household items –vacuum cleaners, fans, fluorescent and incandescent lights, shavers, sewing machines.
Kitchen appliances –refrigerators, freezers, coffee makers, blenders, ice markers, toasters.
Industrial equipment –metal halide lamp, high pressure sodium lamp.
Home entertainment electronics –television, DVRs, video games, stereos, musical instruments, satellite
equipment.
3

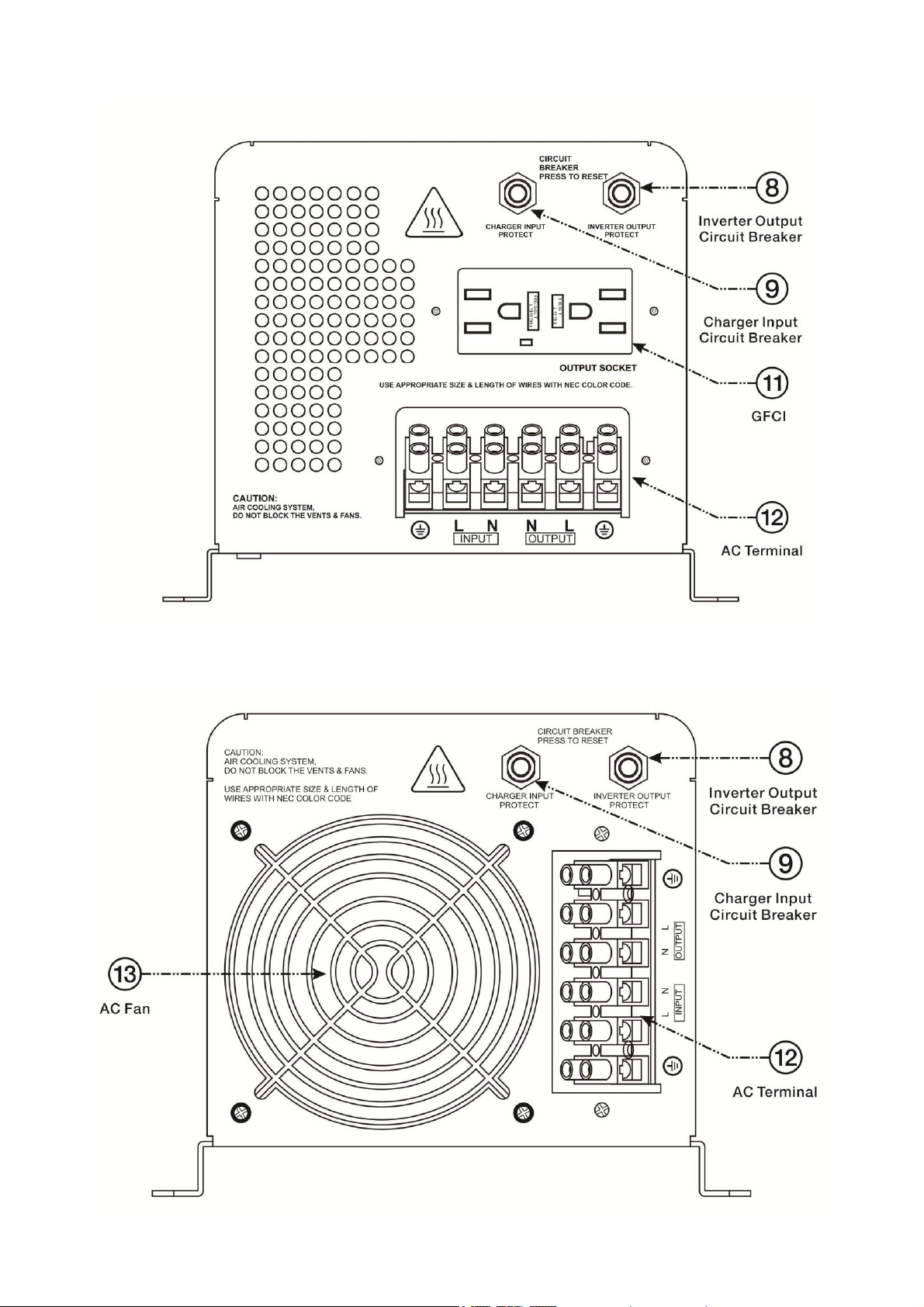

2-3. Mechanical Drawing
1000W-6000W DC Battery Side
1000W & 1500W AC Side and do NOT include a AC terminal block
4

2000W & 3000W AC Side and include outlet and AC terminal block
4000W-6000W AC Side and only include AC terminal block
5

2-4. Features
High overload ability up to 300% of rated power (20 sec
Low quiescent current, low power “Power Saving Mode” to conserve energy
Automatic Generator Start
4-step intelligent battery charger, PFC (Power Factor Correction for charger
8 pre-set battery type selector switch plus de-sulphation for completely flat batteries
Powerful charge rate of up to 115Amp, selectable from 0% 100% (based on model)
10 ms typical transfer time between battery and AC, guarantees power
continuity
LCD or LED remote controls (optional
15s delay before transfer when AC resumes, extra protection for loads when used with
generator
Allows start up and throughput power with depleted batteries 30A/40A (bypass current)
Multiple controlled cooling fans
Extensive protections against various harsh situations
13VDC battery recovery point, dedicated for renewable energy systems
2-5. Electrical Performance
2.5.1 Inverter
Topology
The Global LF inverter/charger is built according to the following topology.
Invert: Full Bridge Topology.
Charge: Isolated Boost Topology.
It works bi-directionally: in one direction it converts DC power from the battery to AC power (Inverter
Mode) and in the other direction it converts external AC power to DC power to charge the batteries (AC
Mode). The same power components are used in both directions, resulting in high-energy transfer efficiency
with fewer components.
When operating in inverter mode, the direct current (DC) that enters the inverter from the batteries is
filtered by a large input capacitor and switched "On" and "Off" by the Metal Oxide Silicon Field Effect
Transistors (MOSFET) at a rate of 50 Hz or 60Hz, in this step the DC is converted to low voltage
synthesized sine wave AC using an H-bridge configuration and high frequency PWM (Pulse Width
Modulation) technique. It is then directed into the transformer which steps the low AC voltage up to 230 or
120 volts.
The unit has a 16bit, 4.9MHZ microprocessor to control the output voltage and frequency as the DC input
voltage and/or output load varies.
Because of the high efficiency MOSFETs and the heavy transformers, it outputs PURE SINE WAVE AC
with an average THD of 10% (min 3%, max 20% under full linear loads) depending on load connected
and battery voltage. The peak DC to AC conversion efficiency of the Global LF series is >88%.
Don’t parallel the AC output of the inverters to increase power capacity as they have no
stacking functionality.
6

Overload Capacity: The Global LF series inverters have high overload capacities, making it ideal to handle
demanding loads.
1.For 110%<Load<125%(±10%), no audible alarm for 14 minutes, beeps 0.5s
every 1s in the 15th minute, and Fault (Turn off) after the 15th minute.
2.For 125%<Load<150%(±10%), beeps 0.5s every 1s and Fault (Turn off) after 1 minute.
3.For 300% ≥ Load>150%(±10%), beeps 0.5s every 1s and Fault (Turn off) after 20s.
Caution:
After the inverter is switched on, it takes time for it to self-diagnose and ready to deliver full power. Hence,
always switch on the load(s) after a few seconds of switching on the inverter. Avoid switching on the inverter
with the load already switched on. This may prematurely trigger the overload protection. When a load is
switched on, it may require an initial higher power surge to start. If multiple loads are being powered, they
should be switched on one by one so that the inverter is not overloaded by the higher starting surge if all the
loads are switched on at once.
2.5.2 AC Charger
The inverter charger is equipped with an active PFC (Power Factor Corrected) multistage battery charger.
The PFC feature is used to control the amount of power used to charge the batteries in order to obtain a
power factor as close as possible to 1.

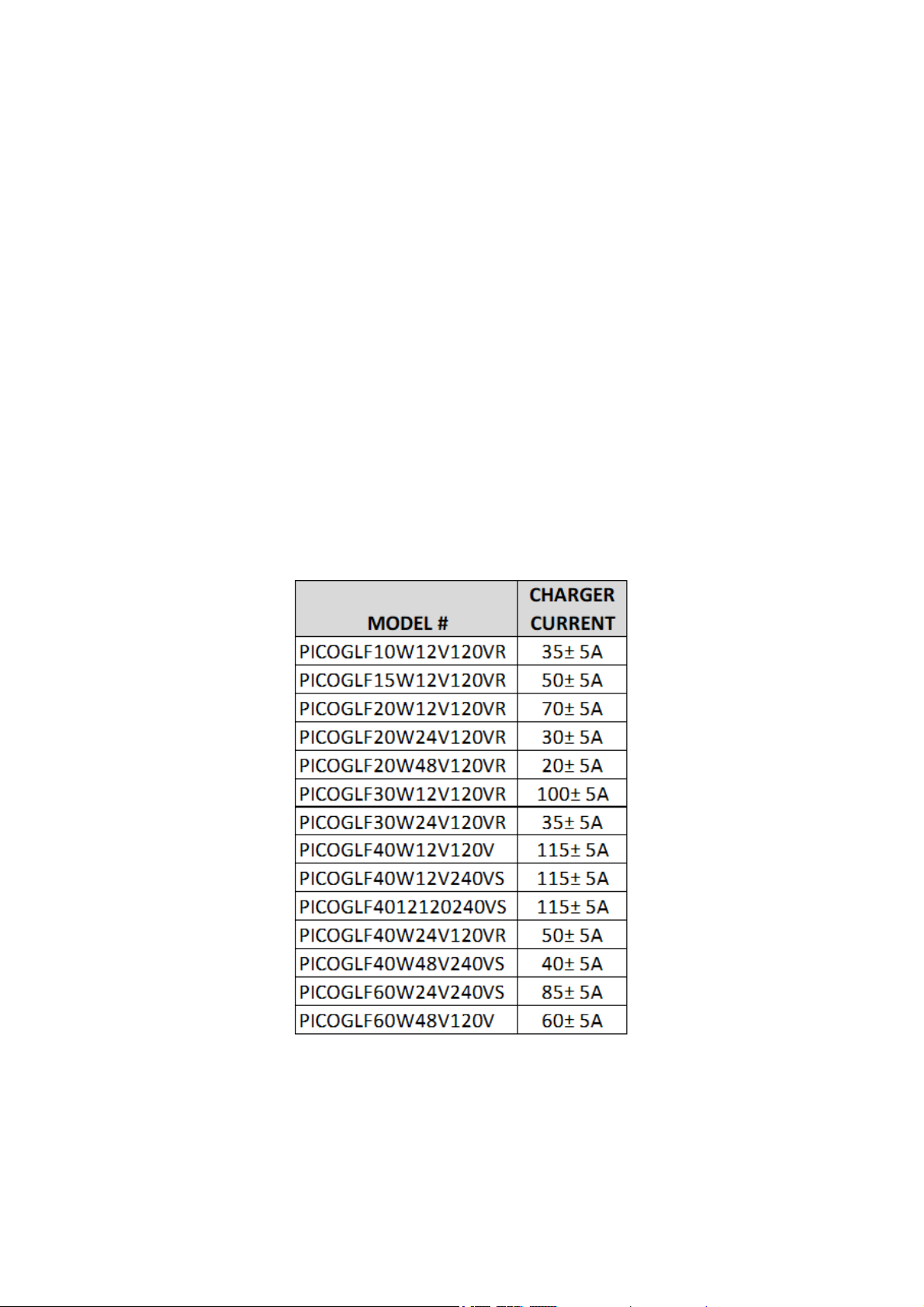

Unlike other inverters whose max charging current decreases according to the input AC voltage, the Global
LF series charger is able to output max current as long as the input AC voltage is in the range of
164-243VAC(95-127VAC for 120V model), and AC frequency is in the range of 48-54Hz(58-64Hz for
60Hz model).
The Global LF series inverter has a very rapid charge current available, and the max charge current can be
adjusted from 15%-100% (based on model) via a liner switch to the right of the battery type selector. This
will be helpful if you are using our powerful charger on a small capacity battery bank. Fortunately, the liner
switch can effectively reduce the max charging current to 15-20% of its peak (based on model). Choosing
“0” on the Battery Type Selector will disable the charging function.
Caution:
Turn the charge current control switch gently to avoid breakage due to over-turning. Not covered
under warranty.
There are 3 charging stages:
Bulk Charging: (fast charge LED solid) this is the initial stage of charging. While Bulk Charging, the
charger supplies the battery with controlled constant current. The charger will remain in Bulk charge until
the Absorption charge voltage (determined by the Battery Type selection) is achieved.
A software timer will measure the time from A/C start until the battery charger reaches 0.3V below the
boost voltage, then take this time asT0 and T0×10 = T1.
Absorb Charging:(fast charge LED blinking) This is the second charging stage when the fast charge LED
is flashing and begins after the absorb voltage has been reached. Absorb Charging provides the
batteries with a constant voltage and reduces the DC charging current in order to maintain the absorb
voltage setting. In this period, the inverter will start a T1 timer; the charger will keep the boost voltage
in Boost CV mode until the T1 timer has run out. Then drop the voltage down to the float voltage. The
timer has a minimum time of 1 hour and a maximum time of 12 hours.
Float Charging: (float charge LED solid) The third charging stage occurs at the end of the Absorb
Charging time. While Float charging, the charge voltage is reduced to the float charge voltage
(determined by the Battery Type selection*). In this stage, the batteries are kept fully charged and ready if
needed by the inverter.
7

If the AC is reconnected or the battery voltage drops below 12Vdc/24Vdc, the charger will restart the above
cycle.
If the charge maintains the float state for 10 days, the charger will deliberately reset the cycle to protect the
battery.
Battery Type Selector
Switch setting
Description
Boost / Vdc
Float / Vdc
0
Charger Off
1
Gel USA
14.0
13.7
2
AGM 1
14.1
13.4
3
AGM 2
14.6
13.7
4
Sealed lead acid
14.4
13.6
5
Gel EURO
14.4
13.8
6
Open lead acid
14.8
13.8
7
Lithium battery
14.4
14.4
8
De-sulphation
15.5 (4 Hours then Off)
9
Not used
For 24V X 2, for 48V X 4. (X= multiply)
De-sulphation
The de-sulphation cycle (switch position 8) is a very dangerous setting if you do not know what you are
doing. Before attempting to use this cycle you must clearly understand what it does and when and how
you would use it.
*Check the required charging specifications with the battery manufacturer. The chart above is just a guide.
8

What causes sulphation? This can occur with infrequent use of the batteries or if the batteries have been
discharged low enough that they will not accept a charge. This cycle is a very high voltage charge cycle
designed to try to break down the sulphated crust that is preventing the plates from taking a charge
and allowing the plates to clean up and accept a charge once again.
Charging depleted batteries
The Global LF series inverter allows a generator to start up and through power (bypass) after batteries
are depleted. See top of page 10 for generator recommendation.
For 12VDC models: after the battery voltage goes below 10V and the power switch is kept in the "ON"
position and the inverter stays connected to the battery and the battery voltage doesn’t drop below 9V, the
inverter will be able to charge the battery once qualified AC inputs are present.
Before the battery voltage goes below 9VDC, the charging can be activated when the switch is turned to
“OFF”, then to “ON”.
When the voltage goes below 9VDC, and you accidentally turn the switch to OFF or disconnect the
inverter from the battery, the inverter will not be able to charge the battery once again, because the CPU
loses memory during this process.
For 24VDC models: multiply all VDC by 2.
For 48VDC models: multiply all VDC by 4.
Charging current for each model
The charging capacity will go to peak charge rate in approximately 3 seconds. This may cause a generator to
drop frequency, making the inverter transfer to battery mode. It is recommended to gradually put the
charging load on the generator by switching the charging switch from min to max. Together with the 15s
switch delay our inverter gives the generator enough time to spin up. This will depend on the size of the
generator and rate of charge.
As a general rule, the Bulk Charging Current should be limited to 20% of the capacity of the battery bank.
Higher charging current may be used if permitted by the battery manufacturer.
9

:DUQLQJ,WHPVWRQRWHDQGDUHQRWFRYHUHGXQGHUZDUUDQW\
7RVHWWKHFKDUJHFXUUHQWFRQWUROVZLWFKXVHDVPDOOMHZHOHU¶VVW\OHIODWKHDGVFUHZGULYHU
DQGJHQWO\WXUQWRDYRLGEUHDNDJHGXHWRRYHUWXUQLQJ
7RJXDUDQWHHWKHEHVWSHUIRUPDQFHRIWKHEXLOWLQ$&FKDUJHUZKHQWKH$&LQSXWLVIURPD
JHQHUDWRUWKHVWDQGE\JHQHUDWRUVKRXOGEHRIDWOHDVWKLJKHUFDSDFLW\WKDQWKH
LQYHUWHU([DPSOHLI\RXDUHXVLQJDZDWWLQYHUWHUWKHJHQHUDWRUPXVWEHZDWWVRU
ODUJHU,IXVLQJDZDWWLQYHUWHUWKHJHQHUDWRUPXVWEHZDWWRUODUJHUDQGVRRQ
:DUQLQJ2SHUDWLQJZLWKDQXQGHUUDWHGJHQHUDWRURUJHQHUDWRUZLWKXQTXDOLILHGZDYHIRUP
PD\FDXVHSUHPDWXUHIDLOXUHDQGLVQRWFRYHUHGXQGHUZDUUDQW\
7UDQVIHU
6ZLIW3RZHU7UDQVIHU
:KLOHLQWKH6WDQGE\0RGHWKH$&LQSXWRIWKHLQYHUWHULVFRQWLQXDOO\PRQLWRUHG:KHQHYHU$&SRZHUIDOOV
EHORZWKHORZ$&YROWDJHWULSYROWDJH9$&GHIDXOWVHWWLQJIRU9$&WKHLQYHUWHUDXWRPDWLFDOO\
WUDQVIHUVEDFNWRWKH,QYHUW0RGHZLWKPLQLPXPSRZHULQWHUUXSWLRQWR\RXUDSSOLDQFHVDVORQJDVWKH
LQYHUWHULVWXUQHGRQ7KHWUDQVIHUIURP6WDQGE\PRGHWR,QYHUWHUPRGHRFFXUVLQDSSUR[LPDWHO\
PLOOLVHFRQGVIt is the sameIURP,QYHUWHUPRGHWR6WDQGE\PRGH7KLVWUDQVIHUWLPHLVXVXDOO\IDVWHQRXJKWR
NHHS\RXUHTXLSPHQWLQFOXGLQJFRPSXWHUVSRZHUHGXSWKXVRXULQYHUWHUFDQEHXVHGDVDOLQHLQWHUDFWLYH
836
6\QFKURQL]HG3RZHU7UDQVIHU
:KHQDORDGLVWUDQVIHUUHGIURPLQYHUWHU$&RXWSXWWRDQRWKHUEDFNXS$&VRXUFHRISRZHUWKURXJKWKH
WUDQVIHUVZLWFKWKHUHZLOOEHDILQLWHLQWHUUXSWLRQRISRZHUWRWKHORDGIRUWKHWUDQVIHUWRWDNHSODFH$
PLVPDWFKRISKDVHDQGIUHTXHQF\RIWKHLQYHUWHU$&RXWSXWDQGWKHEDFNXS$&VRXUFHLQWUDQVIHULVOLNHO\WR
GDPDJHWKHEDFNXS$&VRXUFHDUHDFWLYHORDG:LWKVRSKLVWLFDWHGFLUFXLWU\GHVLJQRXULQYHUWHUZLOOILUVW
ORFNRQWKHIUHTXHQF\DQGSKDVHRIWKHLQSXWVKRUHSRZHUJHQHUDWRUSRZHUDQGPDNHDVPRRWKDQGVDIH
WUDQVIHUDWWKH]HURYROWDJHSRLQWWRPLQLPL]HWKHLPSDFWRQWKHSRZHUPRGXOHV
7UDQVIHU'HOD\
7KHUHLVDVHFRQGGHOD\IURPWKHWLPHWKHLQYHUWHUVHQVHVWKDWFRQWLQXRXVO\TXDOLILHG$&LVSUHVHQWDWWKH
LQSXWWHUPLQDOVWRZKHQWKHWUDQVIHULVPDGH7KLVGHOD\LVEXLOWLQWRSURYLGHVXIILFLHQWWLPHIRUDJHQHUDWRUWR
VSLQXSWRDVWDEOHYROWDJHDQGIUHTXHQF\DQGDYRLGUHOD\FKDWWHULQJ7KHLQYHUWHUZLOOQRWWUDQVIHUWR
generator until it has locked onto the generator’s output. This delay is also designed to avoid frequent
VZLWFKLQJZKHQLQSXWXWLOLW\LVXQVWDEOH
2.5.4 Auto Frequency Adjust
7KHIDFWRU\GHIDXOWFRQILJXUDWLRQIRULQYHUWHUVVROGLQ$PHULFDQPDUNHWLV+]
,IWKHRXWSXWIUHTXHQF\QHHGVWREHFKDQJHGWKLVLVGRQHE\SXWWLQJLQDYDOLGLQSXW3RZHU6RXUFHWRWKH
inverter’s input linHV2QFHWKHLQYHUWHUYDOLGDWHVWKHLQSXWWKHRXWSXWZLOODXWRPDWLFDOO\FKDQJH 127(7KH
LQYHUWHUZLOORXWSXWIDFWRU\VHWIUHTXHQF\RI+]FRQWUROOHGZLWK',3VZLWFKSRVLWLRQ
2.5.5  
7KHUHDUHGLIIHUHQWZRUNLQJVWDWXVHVIRURXU*OREDO/)LQYHUWHU

“Power On” and “Power Off”.
When the power switch is in “Unit Off” position, the inverter

LVSRZHUHGRII
10

When the power switch is turned to either “Power Save ON” or “Power ON”, the inverter is powered on.
The Power Saver function is designed to conserve battery power when AC power is not or rarely required
by the loads.
In this mode, the inverter pulses the AC output looking for an AC load (IE. electrical device). Whenever
an AC load (greater than 50-100 watts depending on model) is turned on, the inverter recognizes the need
for power and automatically starts inverting and output goes to full voltage. When there is no load (or less
than 50-100 watts depending on model) detected, the inverter automatically goes back into search mode
to minimize energy consumption from the battery bank.
In “Power saver on” mode, the inverter will draw power mainly in sensing moments, thus the idle
consumption is significantly reduced. The inverter will detect a load for 250ms every 3 seconds (DOP
switch#3 position 1).
Note: The minimum power of a load to take inverter out of sleep mode (Power Saver On) is 50 Watts for
inverters 1000-3000 watts and 100 Watts for 4000-6000 watts. The Global LF Series is designed with
extremely low idle power consumption, only a mere 0.8-1.8% of its rated power.
11

Global LF Series Idle Power Consumption (in Watts)
Model NO
Power Saver Off
Power Saver On (3Secs)
PICOGLF10W12V230V
12.5
7.5
PICOGLF10W12V120V
12.5
7.5
PICOGLF10W24V230V
15
8.4
PICOGLF10W24V120V
16.5
9
PICOGLF15W12V230V
12.5
7.5
PICOGLF15W12V120V
13.5
8
PICOGLF15W24V230V
15
8.4
PICOGLF15W24V120V
16.5
9
PICOGLF20W12V230V
25
11.7
PICOGLF20W12V120V
28
12.7
PICOGLF20W24V230V
24.5
11.5
PICOGLF20W24V120V
26.5
12.2
PICOGLF20W48V230V
25
11.7
PICOGLF20W48V120V
28
12.7
PICOGLF30W12V230V
50
20
PICOGLF30W12V120V
55
21.7
PICOGLF30W24V230V
38.5
16.2
PICOGLF30W24V120V
46.5
18.9
PICOGLF30W48V230V
45
18.4
PICOGLF30W48V120V
50
20
PICOGLF40W12V120V
44.5
18.2
PICOGLF40W24V230V
48
19.4
PICOGLF40W24V120V
52.5
20.9
PICOGLF40W48V230V
48
19.4
PICOGLF40W48V120V
55.5
21.9
PICOGLF50W24V230V
62.5
24.2
PICOGLF50W24V230VS
PICOGLF50W48V230V
68.5
26.2
PICOGLF50W48V230VS
PICOGLF60W24V230V
76.8
29
PICOGLF60W24V230VS
PICOGLF60W48V230V
80.7
30.3
PICOGLF60W48V230VS
When in the search sense mode, the green power LED will blink and the inverter will make a ticking sound.
Not all models listed are available
12

At full output voltage, the green power LED will light steadily and the inverter will make a steady humming
sound. When the inverter is used as an “uninterruptible” power supply the search sense mode or “Power
Saver On” function should be defeated.
Exceptions
Some devices when scanned by the load sensor cannot be detected. Small fluorescent lights and
inductive loads are the most common example. (Try altering the plug polarity by turning the plug
over.) Some computers and sophisticated electronics have power supplies that do not present a load until
line voltage is available. When this occurs, each unit waits for the other to begin. To drive these loads
either a small companion load must be used to bring the inverter out of its search mode, or the
inverter may be programmed to remain at full output voltage (Power On mode).
2.5.6 Protections
AC input over voltage protection/AC input low voltage protection
Low battery alarm/high battery alarm
Over temperature protection/overload protection
Short circuit protection (1s after fault)
Back feeding protection
When over temperature /overload occur, after the fault is cleared, the master switch needs to be reset
to restart the inverter.
The low battery voltage trip point can be customized from a defaulted value of 10VDC to 10.5VDC thru
SW1 on the DIP switch.
The inverter will go to over temp protection when the heat sink temp. ≥105ºC(221℉), and go to fault
(shutdown Output) after 30 seconds. The switch needs be reset to activate the inverter.
The Global LF series inverter has back feeding protection which avoids presenting an AC voltage on the AC
input terminal in inverter mode.
When a fault is cleared, the inverter will need to be reset to start working.
*We don't recommend connecting AC input to a GFCI circuit as it will cause the supply GCFI to pop
intermittently and fail to supply power to the charger and bypass power through inverter.
2.5.7 Remote Control
In addition to the switch panel on the front (or top) of the inverter, there are two optional remotes, for some
models. An LCD remote panel that provides more detailed info or an LED remote that provides on/off with
a few LED indicators. The LCD remote panel connects to the RJ45 port on the DC side of the inverter
displays several statuses of the inverter (sold separately Part # REMOTELF). Use with port labeled LCD
remote. If you want a more simple on/off remote, consider the LED remote (sold separately Part #
REMOTELFLED). Use with port labeled LED remote. Not available on all models.
If an extra switch panel is connected to the inverter via “remote control port”, together with the panel on the
inverter case, the two panels will be connected and operated in parallel.
Whichever first switches from “Off” to “Power saver off” or “Power saver on”, it will power the inverter on.
If the commands from the two panels conflict, the inverter will operate according to the following priority:
Power saver on> Power saver off> Power off
Only when both panels are turned to the “Unit Off” position, will the inverter be powered off.
The max length of the cable is 60 feet.
13

*A push button on the left of the panel can be used to
turn off the LCD screen and save 0.1A current draw on the battery.
(1) Shore/ Generator voltage
(2) DC voltage on inverter
(3) Load when inverting
(4) Low/high voltage, over temp, overload
(5) Fault condition
(6) Output voltage
(7) Output frequency
(8) Bypass/ inverter mode
(9) Battery state of charge graph
NOTE: The battery icon is just an image and does
not represent battery capacity. The bar graph will
change based on battery voltage (2). If using lithium,
you will could an instant drop on the graph.
1
2
3
4
5
6
7
8
9
Remote LED - REMOTELFLED
The remote LED has on/off and power save
switch. There are also 3 indicator LEDs for
the battery charger, inverter mode and faults.
Remote LCD - REMOTELF
The remote LCD displays detailed
information of the inverter.
14

WARNING
ONLY USE REMOTELF WITH PORT LABELED LCD. ONLY USE REMOTELFLED WITH
PORT LABELED LED. IF YOU PLUG INTO THE WRONG PORT, YOU CAN FRY THE
INVERTER AND NOT CONVERED UNDER WARRANTY.
Never cut the remote cable when the cable is attached to inverter and battery is connected to the inverter.
Even if the inverter is turned off, it will damage the remote PCB inside if the cable is short circuited
during cutting.
2.5.8 LED Indicator Lights/Status

Display screen provides the
following info:

Input AC Voltage

Output AC

Voltage Battery

Voltage Output

Frequency

Output Load

Work Mode

Alarm Fault
Battery Capacity
15

2.5.8Remote Control Status
16

2.5.9 Audible Alarm
Battery Voltage Low
Inverter green LED lit, and the buzzer beeps 0.5s every 5s.
Battery Voltage High
Inverter green LED lit, and the buzzer beeps 0.5s every 1s and Fault after
60s.
Invert Mode Overload
(1)110%<load<125%(±10%), No audible alarm in 14 minutes,
Beeps 0.5s every 1s in 15th minute and Fault after 15 minutes;
(2)125% <load<150%(±10%), Beeps 0.5s every 1s and Fault after 60s;
(3)Load>150%(±10%), Beeps 0.5s every 1s and Fault after 20s;
Over Temperature
Heat sink temp. ≥105ºC(221℉), Over temp red LED Lighting, beeps 0.5s
every 1s;
2.5.10 FAN Operation
For 1-3KW models, there is one multiple controlled DC fan which starts to work according to the
below logic.
For 4-6KW models, there is one multiple controlled DC fan and one AC fan. The DC fan will work in
the same way as the 1-3KW models, while the AC fan will work once there is AC output from the
inverter. So when the inverter is in power saver mode, the AC fan will work from time to time in
response to the pulse sent by the inverter in power saver mode.
The Operation of the DC fan at the DC terminal side is controlled by the following logic:
Condition
Enter Condition
Leave condition
Speed
HEAT SINK
T ≤ 140℉
T > 149℉
OFF
TEMPERATURE
149℉≤ T < 185℉
T ≤ 140℉ or T ≥ 185℉
50%
T > 185℉
T ≤ 176℉
100%
CHARGER
CURRENT
I ≤ 15%
I ≥ 20%
OFF
20%< I ≤ 50%Max
I≤ 15% or I > 50%Max
50%
I > 50%Max
I ≤ 40%Max
100%
LOAD Percentage
(INV MODE)
Load < 30%
Load ≥ 30%
OFF
30% ≤ Load < 50%
Load ≤ 20% or Load ≥ 50%
50%
Load ≥ 50%
Load ≤ 40%
100%
Allow at least 12 inches of clearance around the inverter for air flow. Make sure that the air can circulate
freely around the unit.
Fan noise level <60db at a distance of 3 feet
17

2.5.11 DIP Switches
On the DC end of inverter, there are 5 DIP switches that enable users to customize some of the inverter
charger's functions.
Switch NO
Switch Function
Position: 0
Position: 1
SW1(Utility Priority)
Low Battery Trip Point
10.0VDC
10.5VDC
SW1(Battery Priority)
10.5VDC
11.5VDC
SW2(230V)
AC Input Range
184-253VAC
154-264VAC(40-70Hz)
SW2(120V)
AC Input Range
100-135VAC
90-135VAC(40-70Hz)
SW3
Power Save Override
Inverter Off
Saver On 3 sec
SW4
Frequency Switch
50Hz
60Hz
SW5
Battery/AC Priority
AC Priority
Battery Priority
Low Battery Trip Volt (SW1)
Deep discharge of the lead acid battery will cause losses in capacity and early aging. In some
applications a different low voltage disconnection level may be preferred. For example, in solar
applications, users may intend to have less DOD to prolong the battery life cycle. While for mobile
applications, users may intend to have more DOD to fully use the battery capacity available, minimizing on-
board weight.
For 12VDC models, the Low Battery Trip Volt is set at 10.0VDC by default. It can be customized to
10.5VDC using SW1. This is to prevent batteries from over-discharging while there is only a small load
applied on the inverter.
multiply*2 for 24VDC, multiply*4 for 48VDC
AC Input Range(SW2)
There are different acceptable AC input ranges for different kinds of loads.
For some relatively sensitive electronic devices, a narrow input range of 184-253VAC (100-135V for
120VAC model) is required to protect them.
While for some resistive loads that work in a wide voltage range, the input AC range can be customized to
154-264VAC (90-135V for 120VAC model). This helps to power loads with the most AC input power
without frequently switching to the battery bank.
In order to make the inverter accept dirty power from a generator, put SW2 to position “1”, the inverter will
bypass an AC input with a wider voltage and frequency (40-70Hz for 50Hz/60Hz). The AC charger will also
work in a wider voltage and frequency range (42-68Hz for 50Hz/60Hz).
As mentioned, this will avoid frequent switching between battery and generator, but the low quality power
may affect some sensitive loads. The pros and cons should be considered when dealing with sensitive loads.
NOTE: This is for bypass only! The charger has a different voltage range and may not operate at full rated
current. Refer to Section 2.5.2 AC Charger.
Power Saver Override ON/OFF (SW3)
The factory default for SW3 is Position 0. Position 1 will allow the Power Save feature of the inverter to
detect a load for 250ms every 3 seconds. If a load is detected, the inverter will output AC Power. If SW3 is
moved to Position 0. This will prevent the sense pulse from being sent out, even if inverter is in Power Save
mode via Main Power switch. No power will be output unless Shore Power input is present. Only then will
the battery charger and AC throughput operate when SW3 is in Position 0.
Frequency Switch (SW4):
The output frequency of the inverter can be set at either 50Hz or 60Hz by SW4. 50Hz most common in
Europe and Africa.
18
