AIMS Power PWRIG100012120S User manual

1

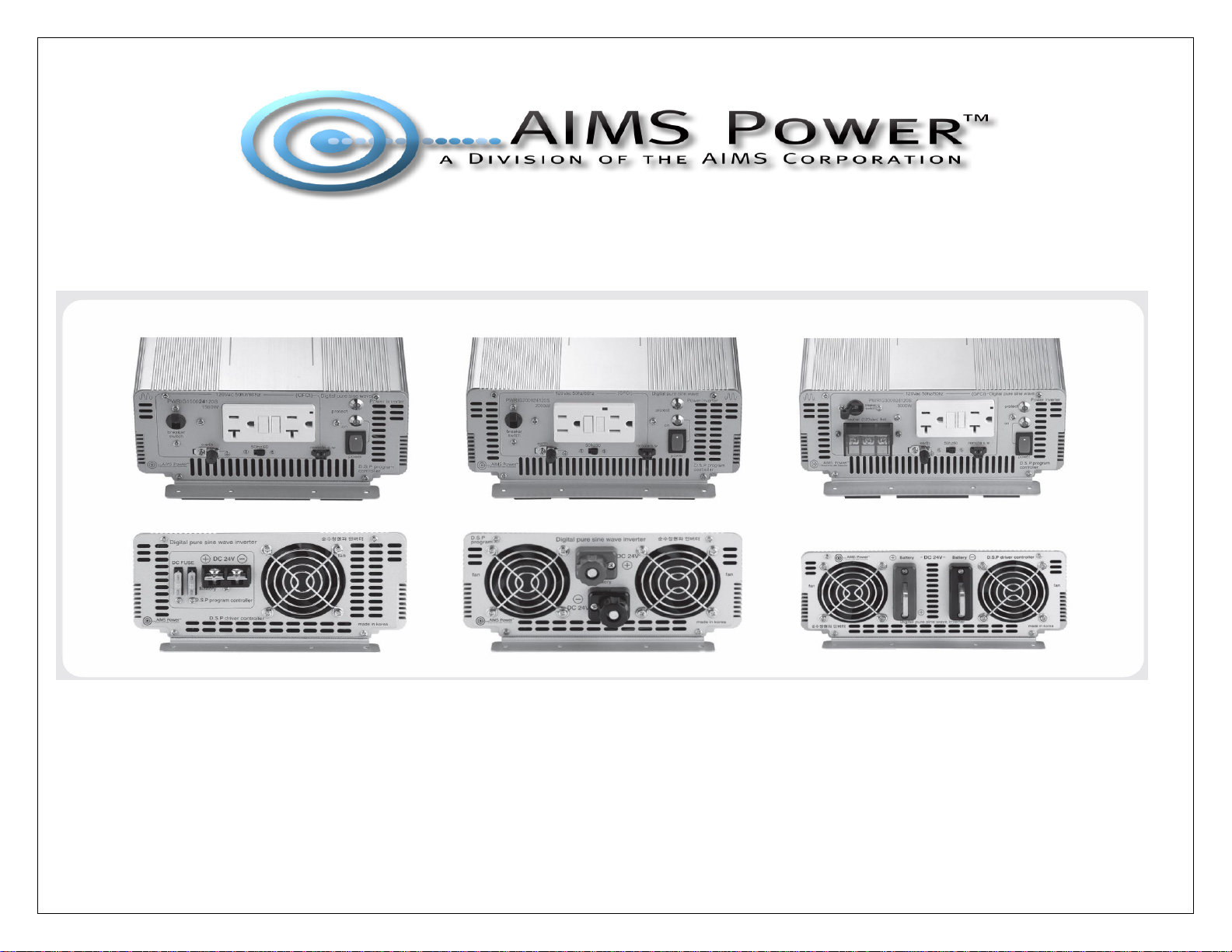

Operation Manual
Congratulations on purchasing your high quality AIMS Power pure sine inverter!
It is very important that you read and understand this instruction manual completely prior to use. Contained are
important connection tips, safety issues, and warranty information

2
Contents:
Pg. 3 Specifications 1000W-12V/ 1500W 12V, 24V AND 48V DC
Pg. 4 Specifications 2000W/ 3000W 12V, 24V AND 48V DC
Pg. 5 Features and benefits
Pg. 6 Use of DC battery / Use of 120V AC power
Pg. 7 Input and Output connections
Pg. 8 Sketch of Dc input connections / Sketch of 120V AC output connections
Pg. 9 Operating procedure
Pg. 10 Each section and name
Pg. 11 Explanation of each section
Pg. 12 Explanation of each section
Pg. 13 Troubleshooting
Pg. 14 General problems
Pg. 15 Warnings and warranty information
Pg. 16 Warranty card

3
Specifications (1000W/1500W-DC12V, 24V, 48V 120V AC)
PWRIG100012120S PWRIG150012120S PWRIG150024120S PWRIG150048120S
12V(10.5V-16V) 12V(10.5V-16V) 24V(21V-32V) 48V(41V-64V)
1000 watts
2000 watts
fan ON 0.45A 0.64A 0.40A 0.22A
fan OFF 0.57A 1.08A 0.65A 0.33A
10.0V 10.0V 20.0V 40.5V
11.2V 11.2V 22.2V 43.0V
17.0V 17.0V 33.3V 65.4V
14.5V 14.5V 29.5V 59.0V
input fuse 40A(3EA) 40A(4EA) 40A(2EA) 40A
output sensor
output circuit breaker Fused 10A
GFCI outlets
7.8X3.5X11.4
7.5lbs
6 AWG or larger 4 AWG or larger 6AWG or larger 8 AWG or larger
120V AC
1500 watts
3000 watts
90%±3%
DC input voltage
Output voltage
Output power continuous
Surge rating
No load current
Efficiency (output)
Isolation transformer tested
(withstand voltage)
Low battery shut down
Low voltage recovery
High battery shut down
High voltage recovery
Frequency selection
Overload protection
Over temperature protection
Over temperature recovery
Output wave form
Thermal cooling fan
Recommended battery cables
Applied standards
dimensions (Inch)
Weight (LBS.)
50Hz/60Hz selectable
(-4*f 172*f) ±5*
136*F ±5*
Pure sine wave (Digital signal processor)
113*F ±5*
2KV-2.5KV (±0.5KV)
Included
18A high speed
Included
FCC part 15 sub part B class A
7.8X3.5X14.4
9.7lbs

4
Specifications (2000W/3000W DC-12V, 24V, 48V 120V AC)
PWRIG200012120S PWRIG200024120S PWRIG200048120S PWRIG300012120S PWRIG300024120S PWRIG300048120S
12V(10.5V-16V) 24V(21V-32V) 48V(41-64V) 12V(10.5V-16V) 24V(21V-32V) 48V(41-64V)
fan ON 0.7A 0.38A 0.25A 0.9A 0.42A 0.32A
fan OFF 1.05A 0.54A 0.36A 1.37A 0.63A 0.83A
10.0V 20.0V 40.5V 10.0V 20.0V 40.5V
11.2V 22.2V 43.0V 11.2V 22.2V 43.0V
17.0V 33.3V 65.4V 17.0V 33.3V 65.4V
14.5V 29.5V 59.0V 14.5V 29.5V 59.0V
input sensor
input fuse 40A(6EA) 40A(3EA) 30A(2EA) 40A(89EA) 40A(4EA) 40A(2EA)
output sensor
output circuit breaker
GFCI outlets
Applied standards
dimensions (Inch)
Weight (LBS.)
2 AWG or larger 6 AWG or larger 8 AWG or larger 2 AWG or lorger 4 AWG or larger 6 AWG or larger
recommended battery cables
Isolation transformer tested
(withstand voltage)
Low battery shut down
Low voltage recovery
High battery shut down
High voltage recovery
Frequency selection
Over temperature protection
Over temperature recovery
Output wave form
Thermal cooling fan
DC input voltage
Output voltage
Output power continuous
Surge rating
No load current
Efficiency (output)
FCC part 15 sub part B class A
8.9X3.5X16.5
8.9X3.5X20.5
12.2lbs
16lbs
2KV-2.5KV (±0.5KV)
90%±3%
50Hz/60Hz selectable
(-4*f 172*f) ±5*
136*F ±5*
Pure sine wave (Digital signal processor)
113*F ±5*
Overload protection
Included
34A High speed
24A High speed
Included
Included
120V AC
3000 watts
2000 watts
4000 watts
6000 watts

5
Features and benefits
Features and benefits
By using a D.S.P. (DIGITAL Signal Processor) driver this
inverter can safely generate its pure sine wave at a high
quality 120v AC output
This product responds to the high and low battery voltage
changes and adapts its output perfectly to ensure a stable
120V AC
The innovative technology of this pure sine wave inverter
will support the usage of sensitive loads.
All DC to AC operations are automatically controlled by the
D.S.P. program.
The improved efficiency of this inverter ensures nominal
output voltage even at low input DC voltage.
Since output voltage is within 3% of the variation input voltage
(12V, 24V AND 48V) stable power will always be produced
for your AC loads.
This product has excellent driving power with a surge output
that's 2 times higher than the output capacity. This allows you
to exceed the inverters listed output for a short period of time
(500 milliseconds) to power some devices with quick startup
surges.
With various protection circuits built in, this product will
automatically shut down at low voltage or in the event of a
sudden change of input/output power. The inverter also shows
excellent performance and reliability control during rapid
environmental changes such as ambient temperature.
This inverter is designed with the most advanced circuitry
available in order to suppress most RF noise produced by
inverting DC voltage to AC 120V.
Reference
This product is a Digital Signal Processed inverter that utilizes DC 12V, 24V, or 48V to generate the 120V AC power. When
the 120V AC pure sine wave inverter is properly used within the capacity listed on various electronic devices. Please follow all
connection instructions to avoid damage or injury to the inverter and yourself. Failure to follow the warning messages and to
connect the inverter properly will cause malfunction of the inverter and may void the warranty.

6
Prior to using this product please read this operation manual thoroughly. Inappropriate use may cause damage to the product!
Please check through this manual on your new inverter before operating.
I. Use of battery (DC power)
12V Battery: When using 500 watts of output (120V AC) with a 100A battery, you can use this product for 2 hours (4.2A used under 100W) in
optimal conditions.
24V Battery: When using 500 watts of output (120V AC) with a 100A battery, you can use this product for 4 hours (4.2A) used under 100W) in
optimal conditions.
48V Battery: When using 500 watts of output (120V AC) with a 100A battery, you can use this product for 8 hours (4.2A) used under 100W) in
optimal conditions.
II. Use of AC power outlet (120V AC)
The product has an output function of 120V AC.
Although the output AC cord is different based on thickness, 150 Ft. length can be used in general conditions.
III. Alarm display function (red LED)
Output short circuit
Output overload
Over temperate protection
Battery low voltage (alarm/LED)
Battery high voltage (alarm/LED)
IV. Fan operation
Based on the 120V AC load of this product the fan automatically operates when the temperature increases.
Thermal fan engages at 113*F ±3*

7

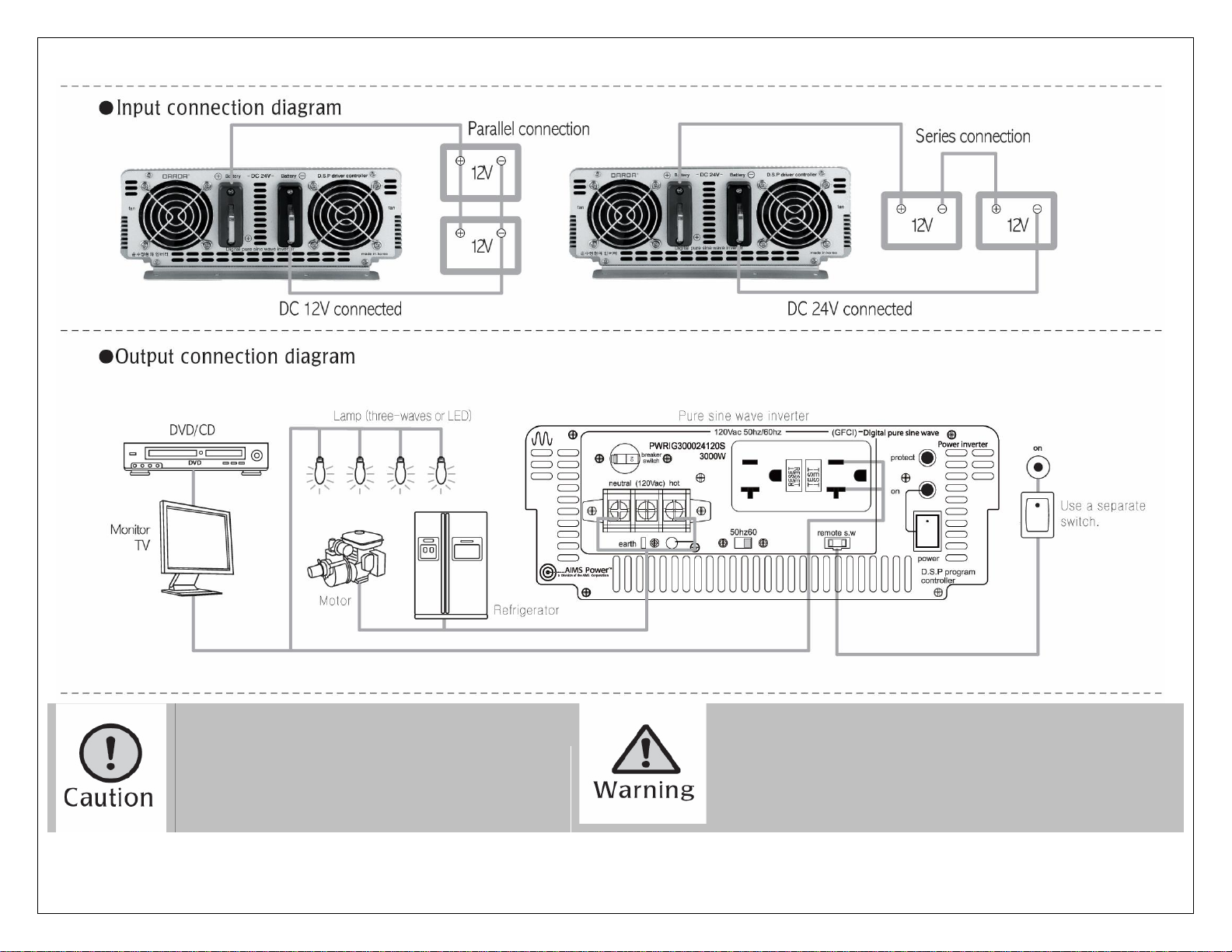

Input Battery Connection Method
Avoid installing this inverter in a sealed area,
or an area with poor ventilation/excessive heat.
This product contains battery connections and sparks
can easily occur. To prevent fire or other accidents, do
not install this inverter in a small or partitioned area
with flammable materials. Wet or moist environments
are fatal to this inverter. Special care shall be taken,
keep inverter out of direct sunlight.

8
Avoid installing this inverter in a sealed area,
or an area with poor ventilation/excessive heat.
This product contains battery connections and sparks
can easily occur. To prevent fire or other accidents, do
not install this inverter in a small or partitioned area
with flammable materials. Wet or moist environments
are fatal to this inverter. Special care shall be taken,
keep inverter out of direct sunlight.

9
Operating Procedure
A. Verify the battery operating Voltage And protection switch is on (inverter off)
B. Turn protection switch #1 “off” (circuit breaker) once the battery connection has been verified.
C. Turn protection switch #3 “off”. If the buzzer is sounding, turn the connected AC devices off and toggle the power switch off then on. The
buzzer should stop.
D. Connect the battery cable to terminal #1 (+ is Red, - is Black, refer to figure #1). The length of the cable may vary slightly, but should
preferably be less than 10 Ft. The shorter the length of the cable the better the batteries will perform. If a longer distance is needed, a larger
gauge cable is required.
E. Connect the Red cable lug to the positive + on the battery and Black lug to the negative –of the battery. Arrange the battery cables to the
safest angles.
F. Now you should connect and turn the AC devices on. Most equipment using motors, have a higher startup requirement. This may cause the
inverter to buzz and go into overload or pop the circuit breakers. This should not damage the inverter; however you should not continue to try
and power up the equipment. Repeated overloads will cause damage to the inverter Call AIMS Power Tech support and verify startup
requirements.
G. The frequency of the inverter is fine-tuned at 60Hz from the manufacture. You may however find it convenient and necessary to adjust it
using switch #10 to 50Hz.
H. The inverter may operate in overload for a short period of time. If you continue the use in overload, the inverter may overheat and shut down.
You will then be required to turn the inverter off and on again.

10

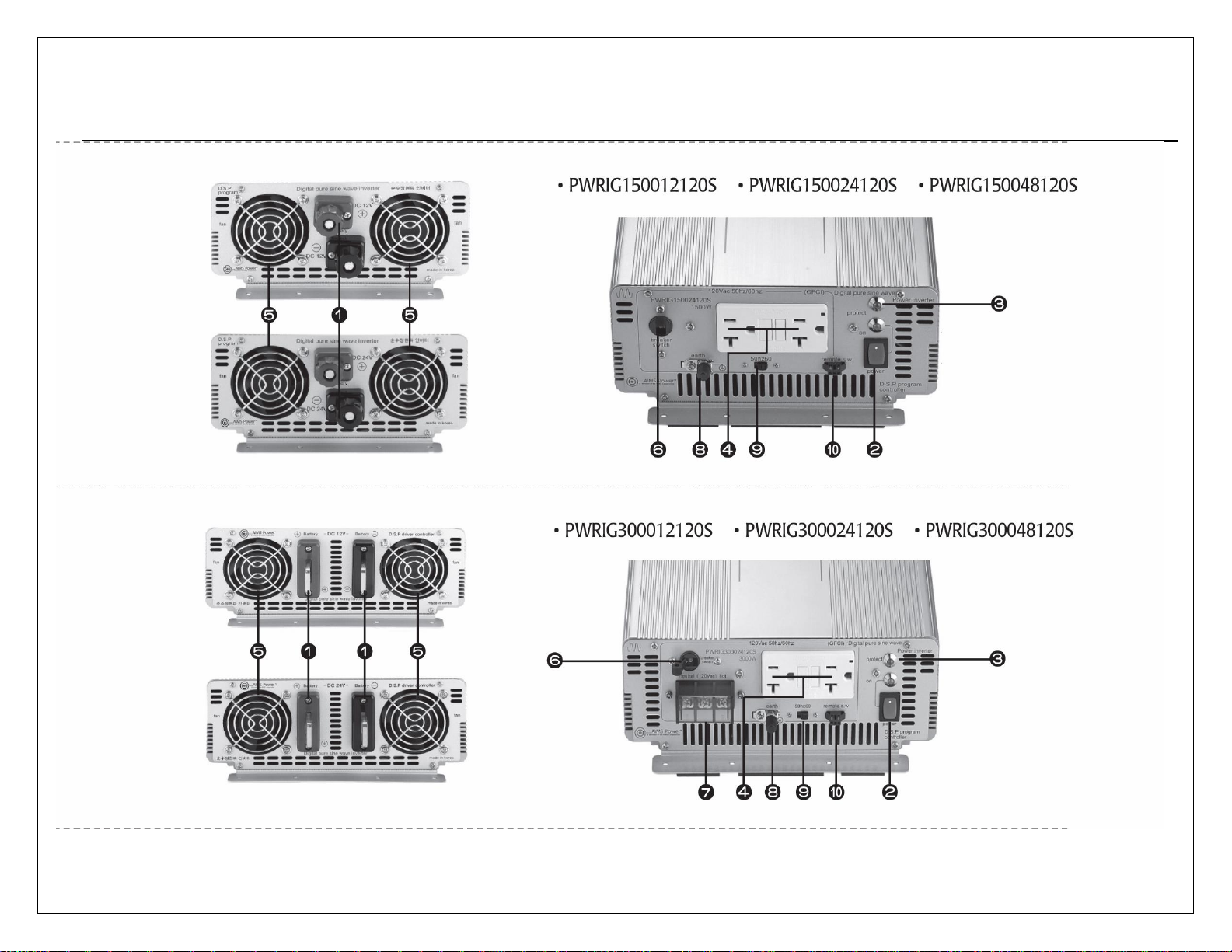

Overview

11
Important:
Locate the number below to the number on Front or Back of the inverter on the Overview page 10.
1) Input Terminal (12V, 24V or 48V)
Prior to any connections make sure you match the battery Voltage to the inverter input Voltage. You will probably notice an arc when
connecting a discharged or new power inverter to your batteries. Make sure to connect battery (-) to Black and battery (+) to Red. Tighten
terminals. In case of extreme vibration, go back and verify terminals are tight.
Tip: when connecting multiple 12Vdc batteries, connect all the Red (+) together and all the Black (-) together. This will keep the input
Voltage at 12Vdc. Never connect batteries with different Voltages unless you are certain of what you are doing.
2) Power Switch
This is the main unit Power Switch. When this is turned OFF, the inverter is off. When turned ON, the inverter is on. You may or may not
have 120 V AC out, depending on the two Protection Switches.
3) Overload Protection LED’s
When the inverters self-tests process completes, this red LED will illuminate. If this red LED is off, an internal error is indicated. First you
will hear a buzzer, followed by this LED being illuminated. You should immediately turn off all of your equipment. The LED will
automatically reset once the overload situation has been resolved. The overload may be caused by one or more of the following:
Short circuit on AC line
An actual overload occurred exceeding the inverters output power
Over Temperature
Low battery Voltage
High battery Voltage
4) AC Voltage Source (this may be 110 or 120VAC 60Hz for US market)
Please make sure no other power source can ever feed back into these outlets. It will permanently damage the inverter and void the warranty
5) Automatic Fan Operation
These fans are thermally controlled and will turn on automatically when needed

12
6) Protection Switch
The Protection Switch is a circuit breaker. If the output is exceeded, the breaker will POP and you will have to manually reset it. This circuit
breaker will protect the inverter in case of Overload or short circuit. If you have to reset this breaker, you should verify the Startup and
Running current (listed on equipment) requirements for you equipment. Startup may be several times higher than the running rate, and may
cause this protection breaker to pop.
Example: air conditioners or air compressors have high startup ratings called Locked Rotor Amps (L.R.A.).

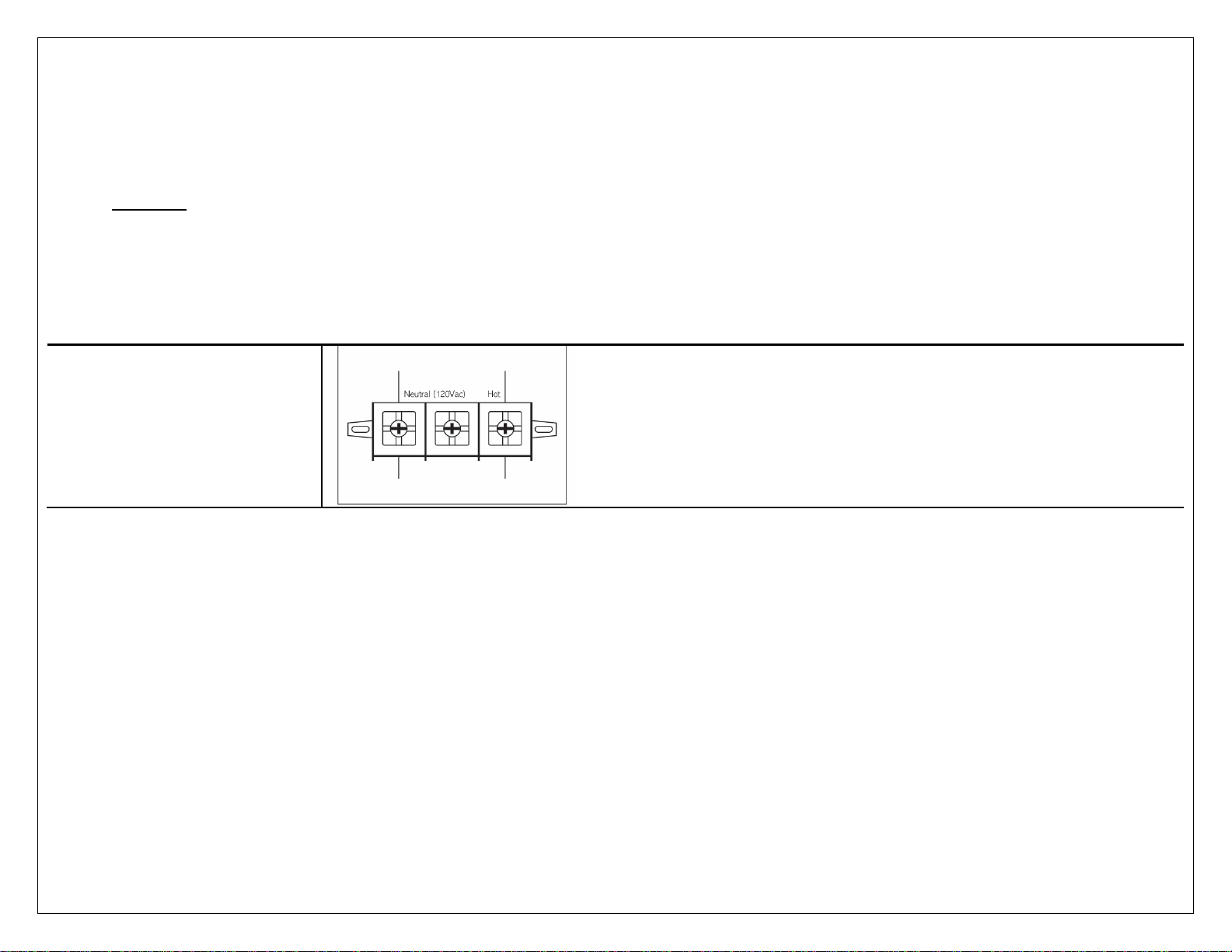

7) AC Terminal block (120V AC) *only available for 2000 watts and above.
This Terminal block is a convenient way of direct connecting equipment to achieve the full output power of the inverter. Be very careful as
these may be “hot” and if touched may cause severe injury and electrical shock.
Warning: It is recommended to have a professional electrician wire to these terminals. If they are touched, they may cause severe shock
and if wired incorrectly may cause permanent damage to the inverter and equipment, voiding warranty and in extreme cases may cause fire.
Please see wiring diagram
8) Case ground Terminal
We recommend you use this terminal to ground the inverter case. It may be required for certain appliance’s or equipment’s safety
*Some home installations will require this please check local laws and code regulations. Marine and automotive may not apply.
9) Selectable frequency switch.
Selection is available between 60Hz and 50Hz. Convert and use according to the set frequency of the devices (60Hz is required in the U.S.
market)
10) Remote power switch terminal.
If you need to mount an ON/Off switch for the inverter in a separate location for your specific application, you can use the supplied adapter to
remotely locate any open/close ON/OFF switch that you choose.

13
Troubleshooting:
For red LED and protection switch.
Symptoms
Possible problem
Possible solution
Warning red LED is illuminated
And has low output voltage
Your device requires more power than the
inverter is able to produce. The inverter has
been overloaded.
Stop the operation of the connected devices
Use the inverter under a lower condition than
the specified output capacity (refer to
instructions)
The output voltage is low or has no
output voltage with small AC loads
Check the charging status of the battery with a
meter
Check the durability of the battery with a meter
Check all connections between battery and
inverter
Check to see if the battery is fully charged with
a meter.
Check to ensure the correct wire gauge is
connected between battery and inverter and AC
output.
The warning red LED illuminates
The overload alarm is beeping.
Check for abnormalities on the devices
connected to the inverter
Check if the consumption powers of the devices
are normal with a meter.
Remove devices operating abnormally.
Check the inrush surge of all connected devices.
MAX surge ability of the inverter is 200% of
the output capacity for 500 milliseconds
Fuse breaks
Protection switch has been tripped.
Check all wiring connections.
Check the devices connected to the inverter
Check the + (Pos.) and –(Neg.) connections are
made properly.
Make sure the connected device does not
exceed the capacity of the inverter
High output voltage is present
Output of the inverter has increased
drastically.
Check if the input voltage of the battery is
correct at 12V, 24V or 48V DC
Turn off the devices connected to the 120V AC
output of the inverter
Check the voltage of the battery with an
external multi meter.
Tips for improving inverter service life
Before using the inverter with heavy motors or appliances, it is wise to verify the startup requirements. This is most often much higher than the listed
running requirements at 3 to 5 times the continuous current rating.
To keep the life expectancy of the inverter at its maximum, please ensure plenty of ventilation

14
General problems
Audio system noise: Noise may be generated from the speakers or amplifier when using the inverter to power
low-grade stereo systems and large portable radios. This is due to the interference between the electricity and current running
through each device. You are hearing the RF generated by the inverter.
TV interference: the operation of this inverter may cause interference in receiving specific TV channels; in this case
perform the following procedure’s to try to resolve the problems.
Audio, TV and wireless devices shall be installed in an area as far as possible away from the inverter. Try installing a line
filter on affected device.
Cautions during use
For normal operation, devices with excessive loads applied momentarily such as refrigerators, air conditioners, electric
motors, hand tools Etc. Should be within 60% of the maximum output capacity of this inverter. Check the capacity of
this inverter as well as the capacity of the intended devices to be used.
When the rated continuous capacity of the motor is equal to or greater than the rated capacity of the inverter, operation
of the intended device may not be available due to the inverters lack of surge ability. (Example. A 2000 watt motor
with a 2000 watt inverter, the startup of the motor may be 6000 watts and cause the inverter to fail.)
Devices using heaters will increase the temperature of the inverter drastically. When using devices like this make sure
to provide proper ventilation for the inverter. Improper ventilation will cause inverter shutdown and malfunction
resulting in irreversible damage.
Audio and video devices shall be used within the maximum power rating of the inverter. If the rating capacity is
exceeded there will be a momentary cut-off. For safe operation use 75%-80% of the listed capacity.

15
Warnings:
Never allow moisture into or around inverter. This will void your warranty
Allow plenty of ventilation around inverter. It needs air to keep cool, or it may get extremely hot and shut down
Avoid placing the inverter in direct sun light
Always keep inverters away from flammable objects
AIMS PowerTM Warranty Instructions:
This product is designed using the most modern digital technology and under very strict quality control and testing
guide lines. If however you feel this product is not performing as it should, please call
Techsupport @ [phone] ex227
[e-mail]
We will do our best to resolve your concerns. If the product needs repair or replacement, make sure to keep you
receipt/invoice, as that will need to be sent back along with the inverter prepaid to AIMS. You have a full 1 year from
date of purchase warranty

16
Warranty
If the inverter still does not function correctly after
troubleshooting. Please contact AIMS power tech support
at [e-mail]
[phone] ex227
For additional products such as:
Modified sine wave inverters
Low frequency pure sine wave inverters
Pure sine wave inverters
Solar charge controllers
Grid-tie inverters
Inverter chargers
Automatic transfer switches
Customer sized cables
Batteries
Solar panels
AIMS Operating Corp. Inc. Aims Power warranty
instructions.
This product is designed and is under very strict quality
control and testing guidelines. If however you feel this
product is not performing as it should, please contact us:
[e-mail] or [phone] Ex227. We
will do our best to resolve any of your concerns. If the
product needs repair or replacement make sure to keep
your receipt/invoice, as that will need to be sent back along
with the package and RMA# to AIMS Power. You have a
full 1 year warranty from the date of purchase. This
warranty is valid world-wide with the exception that
freight and duty charges incurred outside the continuous
48 States. User is responsible for return shipping. Except as
provided above, AIMS makes no warranty of any kind,
express or implied, including without limitation the
implied warranties of merchantability and fitness for a
particular purpose. In no event shall AIMS be liable for
indirect, special or consequential damages. This warranty
only applies to AIMS Power branded products. All other
name brand products are warranted by and according to
their respective manufacturer. Please do not attempt to
return non-AIMS Power branded products to AIMS
Power.
