AIMS Power GEN6600W240VS User manual

PORTABLE INVERTER GENERATOR
GEN6600W240VS 120/240V
IMPORTANT ─READ AND UNDERSTAND THE MANUAL PRIOR TO USING, KEEP
MANUAL FOR REFERENCE.
2019-1-18 (REV:01)

1
C O N T E N T S
SAFETY INFORMATION...............................................................................................................................................2
CONTROL & FEATURES..............................................................................................................................................4
PRE-OPERATION CHECK ...........................................................................................................................................6
OPERATION....................................................................................................................................................................8
PERIODIC MAINTENANCE....................................................................................................................................... 11
TROUBLE SHOOTING............................................................................................................................................... 14
STORAGE..................................................................................................................................................................... 15
SPECIFICATION.......................................................................................................................................................... 16
WIRING DIAGRAM...................................................................................................................................................... 17

2
WARNING
PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THE GENERATOR
SAFETY INFORMATION
1) EXHAUST FUMESAREPOISONOUS
Never operate the engine in a closed area or it may cause unconsciousness or death within a short period of time.
Operate the engine in a wellventilated area.
2) FUELISHIGHLYFLAMMABLE AND POISONOUS
Always turnoff theengine when refueling.
Never refuel while smoking or around an open flame.
Take care not to spill any fuel on the engine or muffler when refueling.
If you swallow any fuel, inhale fuel vapor, or if fuel vapor comes in contact with your eyes, seek medical assistance
immediately. If any fuel spills on your skin or clothing, immediately wash with soap and water and change your
clothes.
When operating or transporting the generator, be sure it is kept upright. If it tilts, fuel may leak from the carburetor or
fuel tank.
3) ENGINE ANDMUFFLERMAYBE HOT
Place thegenerator in a place where passers-by or children are not likely to touch the generator.
Avoid placing any flammable materials near the exhaust outlet during operation.
Keep the generator at least3 feet from buildings and otherequipment, or the engine may overheat.
Avoid operating the engine with a dust cover.
Be sure to carry the generator only by its carrying handle.
Put the generator on the flat ground, allowing the generator to vent heat freely.
4) ELECTRICSHOCKPREVENTION
Never operate the generator in rain or snow.
Never touch the generator with wet hands or electric shock may occur.

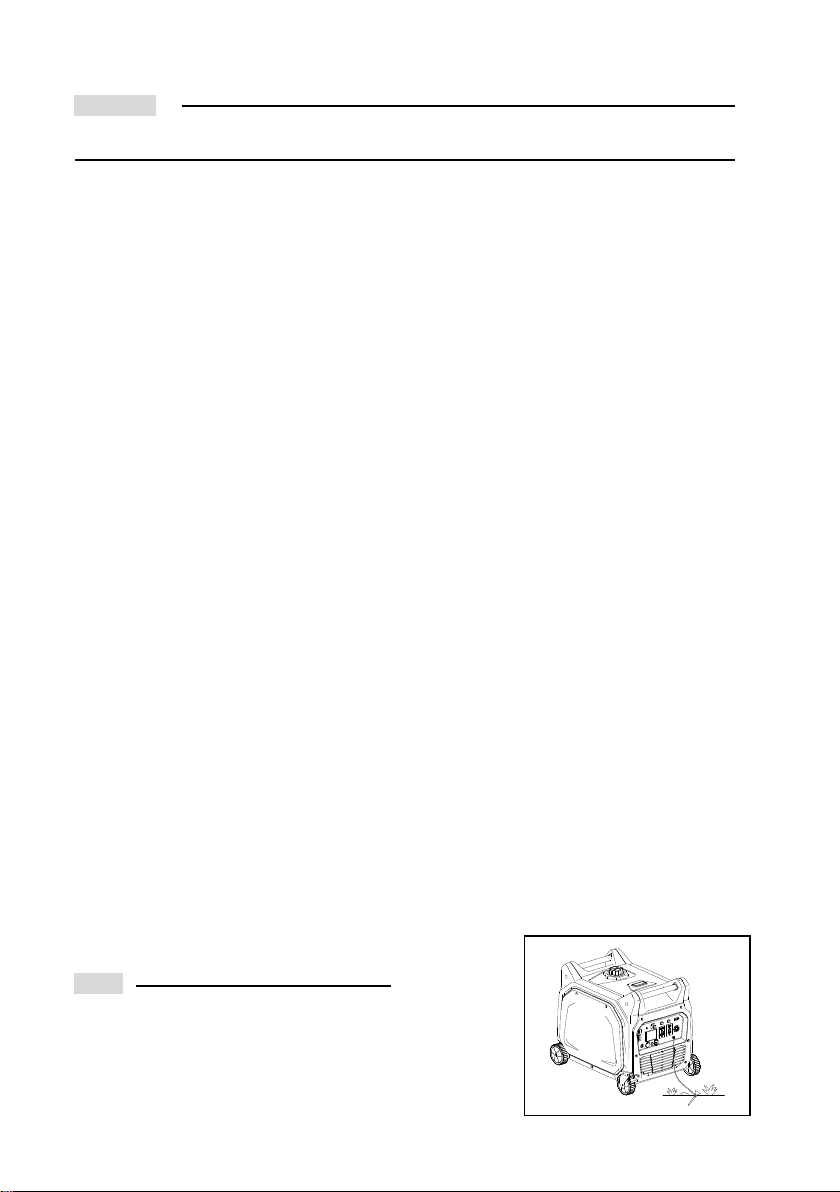

Be sureto ground (earth) the generator. FIG.1
NOTE:
Use ground (earth) lead of sufficient current capacity.
Diameter: 0.12mm (0.005 in)/ampere
EX: 10 Ampere --1.2mm (0.055in)
FIG.1

3
5) CONNECTIONNOTES
Do notconnect the generator to commercial power outlet.
Do not connect the generator in parallel with any other generator.
SAFETYSYMBOLS
Caution -The user should be aware of a general hazard.
Dangerous Voltage
Flammable
Hot Surface - Do not touch.

4
CONTROL & FEATURES

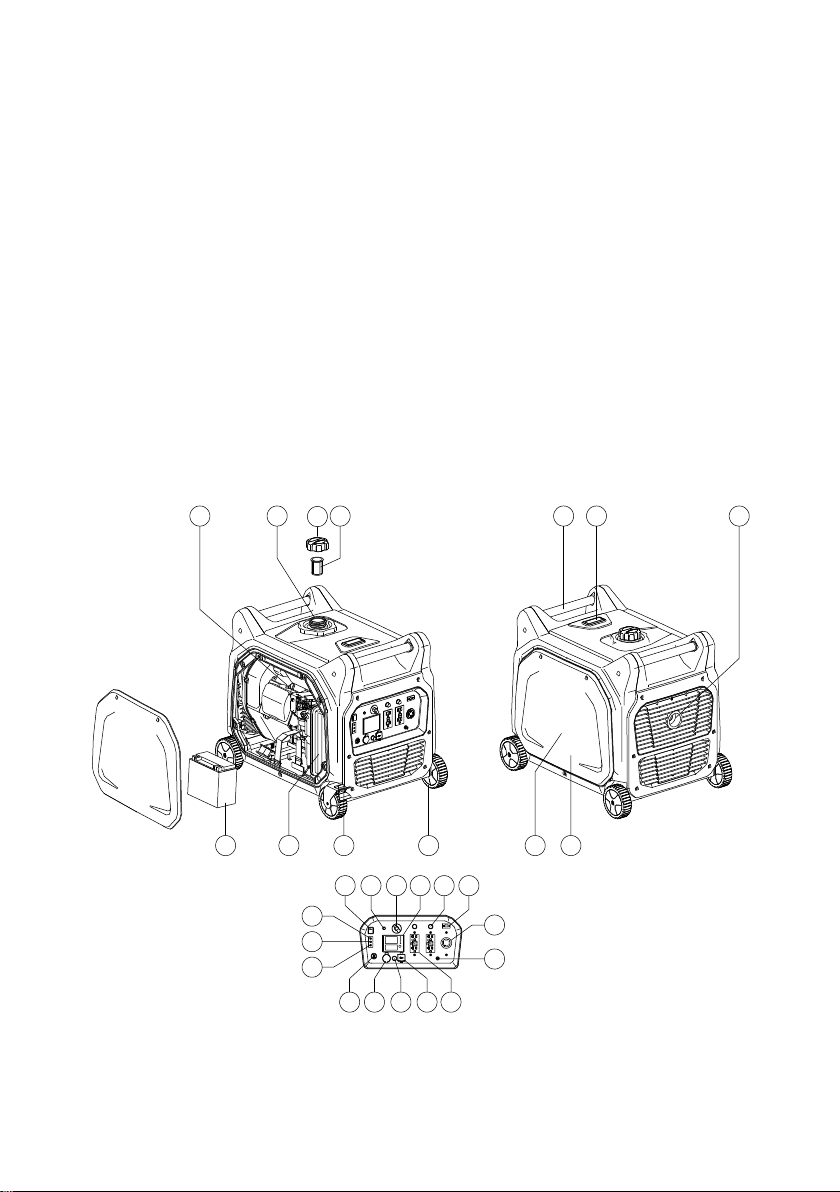

(1) Spark plug
(2)Fuel tank
(3)Fuel tank cap
(4)Fuel filter
(5) Carrying handle
(6)Fuel level gauge
(7) Muffler
(8) Battery
(9) Air filter
(10) Brake lever
(11) Wheel
(12) Oil fillercap
(13) Oil drain plug
(14) AC pilot light
(15) Overload indicator light
(16) Oil warning light
(17) Engine switch
(18) DC receptacle
(19) DC protector
(20) USB Output
(21) AC receptacle 5-20R GFCI
(22) Ground (earth) terminal
(23) AC receptacle L14-30R 120/240V
(24) Auto genstart
(25) ACprotector
(26) Voltmeter
(27) Fuel cock
(28) Output reset
(29) Economy control switch
234 65 7
131211
108
1
9
25 24
14
15
16
2728
17 2018 19 21
26
V
A
KW
HZ
MODE
29
FOLLOW INSTRUCTIONS
TESTMONTHLY
FOLLOW INSTRUCTIONS
TESTMONTHLY
- 3
0
L
14
0
3
V
5
2
1
A
R
22
23

5
1) OILWARNINGSYSTEM
When the oil level falls below the lower level, the engine stops automatically.
Unless you refill with oil, the engine will not start again. FIG.2
2) ENGINESWITCH

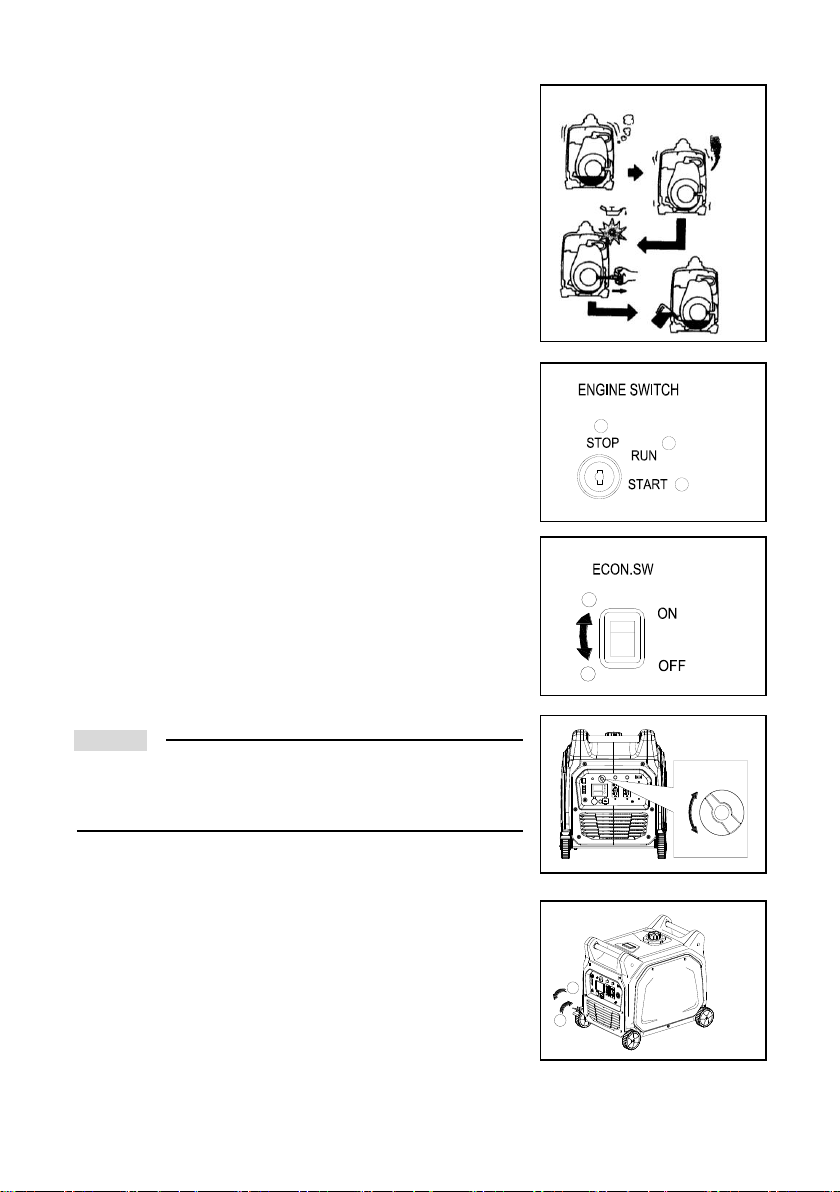

The engine switch controls the ignition system. FIG.3
①RUN(on)
Ignition circuit is switched on. The engine can be started.
②STOP
Ignition circuit is switched off. Theengine will not run.
③START
Starting circuit is switched on. The starter motorstarts.
3) ECONOMY CONTROLSWITCH
When the economy control switch is turned “ON”, the economy control will
control the engine speed according to the connected load. The result is a less
efficient fuel consumption with less noise. FIG.4
4) DCCIRCUITPROTECTOR
The DC circuit protector turns off automatically when the load exceeds the
generator rated output.
CAUTION:
Reduce the load to within specified generator’s rated output if the DC
circuit protector turns off.
5) FUEL COCK
Thefuel cock is used to supply fuel fromthe tank to the carburetor. FIG.5
6) BRAKELEVER
Thefunction of brake lever is to protect generator from moving. FIG.6
①If the brake lever is not on, the generator can move.
②If the brake lever is on, the generatorcan’t move.
FIG.2
FIG.3
FIG.4
FIG.5
1
3
2
2
1
FIG.6
V
A
KW
HZ
MODE
FOLLOW INSTRUCTIONS
TESTMONTHLY
FOLLOW
TESTMONTHLY
OFF
ON
1
2

6
7) OUTPUTRESET
Push reset button for 2 seconds, the generator will recover the AC output when
the generator stop producing AC output under overload protect. FIG.7
NOTE:
Reduce the load on the generator to ensure that the total load is within the
generator’s rated output power.
8) AUTOGENSTART
The auto gen start controls the ignition system. FIG.8
①When the circuit of this plug is connected, the starter motor starts and
runs the generator.
②When the circuit of this plug is disconnected the engine will stop
PRE-OPERATIONCHECK
NOTE:
Pre-operation checks should be made each time thegenerator is used.
1) CHECKENGINEFUEL
Make sure there is sufficient fuel in the tank. FIG.9
If fuel is low, refill with unleaded gasoline.
Be sureto use the fuel filterscreen on the fuel filter neck.
Recommended fuel: Unleaded gasoline.
Fuel tank capacity: (see page 15)
WARNING:
Do not refill tank while engine is running or hot.
Close fuel petcock before refueling.
Be careful not to allow dust, dirt, water or other foreign objects into fuel.
Do notfill abovethe top of the fuel filter or it may overflow when the fuel heats up and expands.
Wipe off spilt fuel thoroughly before starting engine.
Keep away from open flames.
FIG.9
FULL EMPTY
FIG.7
FIG.8
V
A
KW
HZ
MODE
FOLLOW INSTRUCTIONS
TESTMONTHLY
FOLLOW
TESTMONTHLY
RESET
V
A
KW
HZ
MODE
FOLLOW INSTRUCTIONS
TESTMONTHLY
FOLLOW INSTRUCTIONS
TESTMONTHLY
-
3
0
L
14
0
3
V
5
2
1
A
R
AUTO GEN
START

7
2) CHECKENGINE OIL
Make sure the engine oil is indicated by dip stick at the upper level of the oil filler
hole. Add oil as necessary. FIG.10
Remove oil filler cap andcheck the engine oil level.
If oil level is below the lower level line, refill with suitable oil to upper level
line. Do not screw in theoil filler cap when checking oil level.
Change oil if dirty.
Oil capacity: (see page 15)
Recommended engine oil: 10W-30
API Service SJ FIG.11
3) GROUND (Earth)
Make sure to ground (earth) thegenerator. FIG.12
4) CONNECT BATTERY
Loosen thescrew and removethe battery cover. FIG.13
Clamp the red wire to the positive (+) terminal and the black wire to the
negative (-) terminal of the battery. Do not reverse the polarity.
Be surethe battery is installed on the battery mount tray securely.
Install the cover and tighten the screw.
NOTE:
Recommended battery: 12V18AH
FIG.10
FIG.11
32°
F F
80°
25°CC
0°
or 10W-30
SAE #30
or 10W-40
SAE #20
or 10W-30
or 10W-40or 10W-40
or 10W-30
SAE 10W
FIG.12
FIG.13

8
OPERATION
NOTE:
The generatorhas been shipped without engine oil. Fill with oil or it will not
start.
Do not tilt the generator when adding engine oil. This could result in
overfilling and damage to the engine.
1) STARTINGTHEENGINE
NOTE:
Before starting the engine, do not connect electric appliance. FIG.14
A Electric start
1. Turn the fuel cock lever to the ON position. FIG.15
2. Turn the engine switch to the START position. FIG.16
3. Turn the engine switch to the RUN position. FIG.17
4. Warm up the engine without a load for a few minutes.
B Auto start
1. Make sure the fuel cock valve to the ON position.
2. Make sure the engine switch to the RUN position.
3. Connect the cable to Auto Gen Start plug, as soon as the generator
receives the start signal, the generator will start. If the generator does not
start successfully, it will try to start again. Generator will disconnect the
circuit when the generator does not start after three times. FIG.18
2) USINGELECTRIC POWER
1. AC APPLICATION
(a) Check the AC indicator light for proper voltage.
(b) Turn off the switch(es) of the electrical appliance(s) before connecting to
the generator.
(c) Insert the plug(s)of the electrical appliance(s)into the outlet. FIG.19
CAUTION:
Be surethe electric device is turned off before plugging in.
Be sure the total load is within generator’s rating.

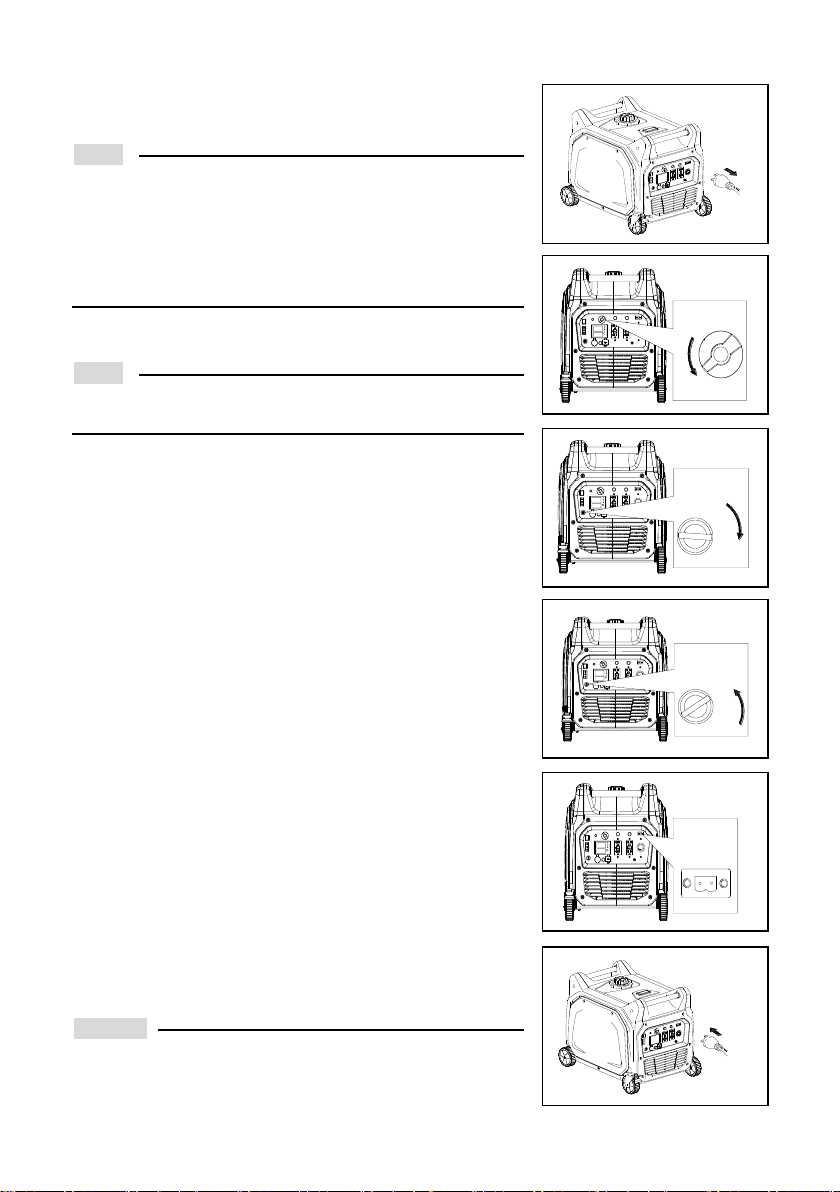

FIG.14
FIG.15
FIG.16
FIG.17
FIG.18
FIG.19
V
A
KW
HZ
MODE
FOLLOW INSTRUCTIONS
TESTMONTHLY
FOLLOW
TESTMONTHLY
ON
ENGINE
SWITCH
V
A
KW
HZ
MODE
FOLLOW INSTRUCTIONS
INSTRUCTIONS
-
3
0
L
14
R
STOP RUN
START
ENGINE
SWITCH
V
A
KW
HZ
MODE
FOLLOW INSTRUCTIONS
INSTRUCTIONS
-
3
0
L
14
R
STOP RUN
START
V
A
KW
HZ
MODE
FOLLOW INSTRUCTIONS
TESTMONTHLY
FOLLOW INSTRUCTIONS
TESTMONTHLY
-
3
0
L
14
0
3
V
5
2
1
A
R
AUTO GEN
START

9
Be surethe outlet load current is within outlet’s rated current.
The economy control switch must be turned to “OFF”when using electric
devices that require a large starting current, such as a compressor or a
submersible pump. FIG.20
OVERLOADINDICATOR LIGHT
Theoverload indicatorlight comes on when overloaded, short circuit, or voltage
is out of operating tolerance, or the AV output voltage rises. The electronic
breaker will then activate, stopping power to the generator in order to protect
the generator and any connected electric devices. The overload indicator light
(red) will flicker and then keep on, the generator will stop power output. If so
please followthe following steps: FIG.21
(a) Reduce the total wattage of connected electric devices within the
application range.
(b) Check for blockages in the cooling air inlet and around the control unit. If
any blockages are found, remove.
(c) Press the “RESET”button to reset the output, FIG.22
CAUTION:
The generatorAC output automatically resets when the engine is stopped and then restarted.
The overload indicator light may come on for a few seconds at first when using electric devices that require a large
startingcurrent, such as a compressor or a submergible pump. This is not a malfunction.
2. DC APPLICATION
12V battery charging only. FIG.23
(a) 12V DC socket maybe use to charge cell phones and other small
electronics using a 12DC adapter
(b) When charging batteries, make sure to properly connect the leads to the
battery. Do not reverse the polarity.

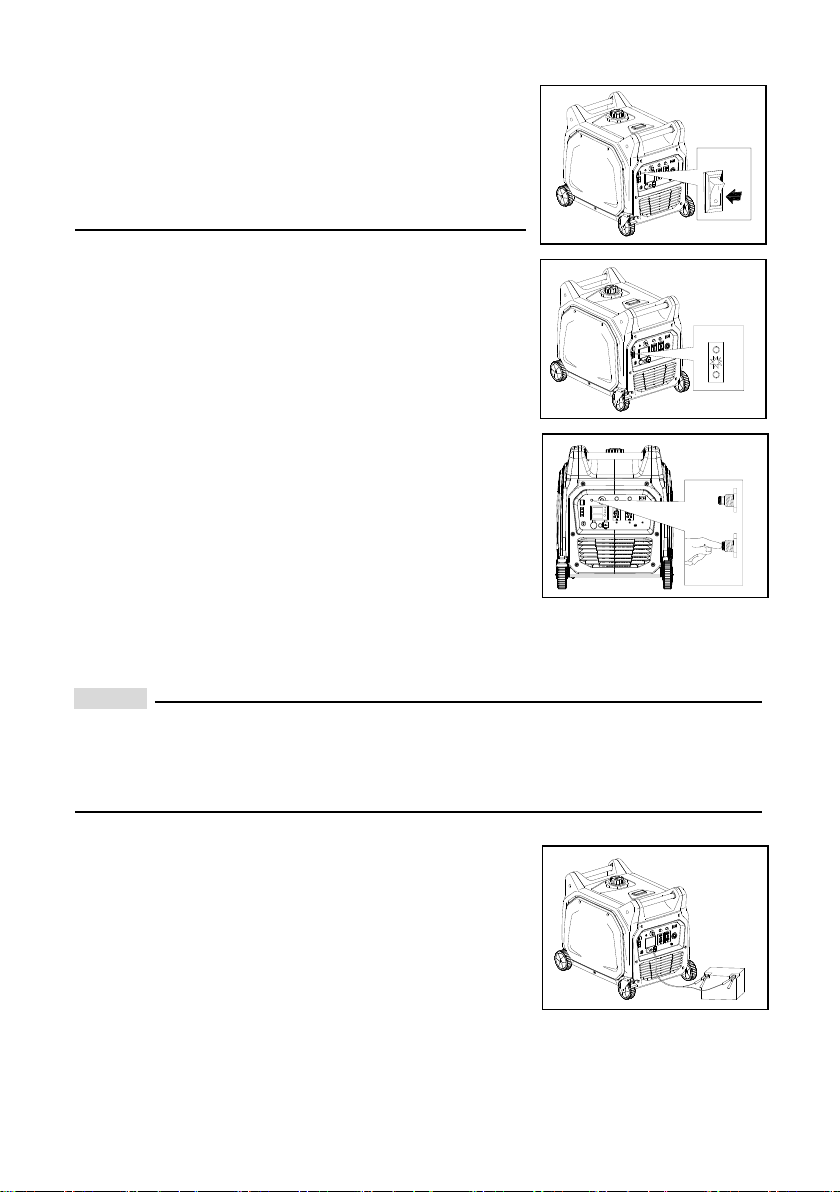

FIG.20
ECON.SW
ON
OFF
FIG.21
FIG.22
OVERLOAD
V
A
KW
HZ
MODE
FOLLOW INSTRUCTIONS
TESTMONTHLY
FOLLOW
TESTMONTHLY
RESET
FIG.23

10
(c) If DC breaker has popped or open, disconnect the device then press to
reset and reconnect DC device.
CAUTION:
Be sure the economy control switch is turned off while charging the
battery.
3) STOPPINGTHEENGINE
1. Turn off the power switch of the electric device or disconnect any electric
devices. FIG.25
2. Turn the engine switch to STOPposition. FIG.26
3. Turn the fuel cock lever to OFF. FIG.27
.
FIG.24
FIG.25
3
2
1
C
Specific gravity 20°
3. 47AH 20HR
2. 35AH 20HR
1. 30AH 20HR
Battery capacity
chargong time Hr810
4620
1.06
1.14
1.10
1.22
1.18
1.26
1.30
Aim for specific gravity and charging time
FIG.26
FIG.27
ENGINE
SWITCH
V
A
KW
HZ
MODE
FOLLOW INSTRUCTIONS
INSTRUCTIONS
-
3
0
L
14
R
STOP RUN
START
V
A
KW
HZ
MODE
FOLLOW INSTRUCTIONS
TESTMONTHLY
FOLLOW
TESTMONTHLY
OFF

11
PERIODIC MAINTENANCE
MAINTENANCECHART
Regular maintenance is important for the best performance andsafe operation.
Item
Remarks
Pre-operation
check
(daily)
Initial
1 months
or 20 Hr
Every
3 months
or 50Hr
Every
6 months
or100Hr
Every
12 months
or 300Hr
Spark
Plug
Check condition adjust gap and
clean. Replace if necessary.

Engine
Oil
Check oil level

Replace


Oil filter
Clean oil filter

AirFilter
Clean. Replace if necessary.

Fuel Filter
Clean fuel cock filter. Replaceif necessary

Choke
Check choke operation

Valve
Clearance
Check and adjust when engine
is cold.

Fuel Line
Check fuel hose for crack or
damage. Replace if necessary.

Exhaust
System
Check for leakage. Retighten or
replace gasket if necessary

Check mufflerscreen.
Clean / replace if necessary.

Carburetor
Check choke operation

Cooling
system
Check fan damage.

Starting
system
Check recoil starter operation.

Idle speed
Check and adjust engine idle speed

Fittings /
Fasteners
Check all fittings and fasteners
correct if necessary.

Crankcase
breather
Check breather hose for cracks or
damage. Replace if necessary

Generator
Check the pilot light comes on


12

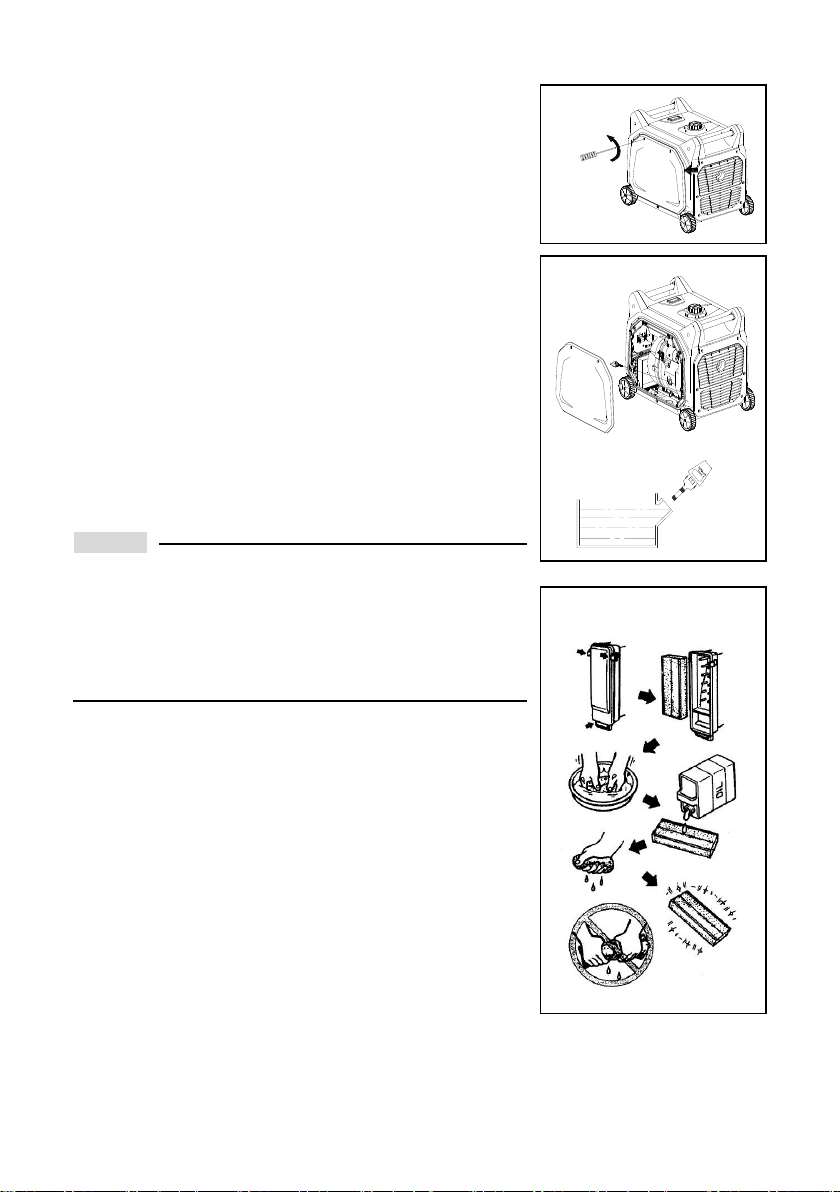

ENGINEOIL REPLACEMENT
1. Place the generator on a level surface and warm up the engine for
several minutes. Then stop the engine and turn the fuel cock knob to
OFF.Turn the fuel tank cap airvent knob clockwise.
2. Loosen thescrew and remove the cover. FIG.28
3. Remove the oil filler cap. FIG.29
4. Place an oil pan under the engine. Tilt the generator to drain the oil
completely.
5. Replace the generator on a level surface.
6. Add engineoil to the upper level of dip stick.
7. Install the oil filler cap.
8. Install the cover and tighten the screw.
Recommended engine oil: (see page 17)
API Service SJ
CAUTION:
Be sureno foreign material enters the crankcase.
Do not tilt the generator when adding engine oil. This could result in
overfilling and damage to the engine.
Change the oil filter every 100hr.
AIRFILTER
Cleaning your air filter needs to be part of your maintenance regime. The air
filter ensures that the air entering the combustion chamber is as clean as
possible. Contaminated air wears on the engine caused by foreign bodies and
a less efficient combustion process. FIG.30
1. Remove the cover.
2. Remove the air filter cover and element.
3. Wash the element in solvent and dry.
4. Oil the element and squeeze out excess oil. The element should be wet but
not dripping.
5. Insert the element into the air filter.
6. Replace thecover.
FIG.28
FIG.29
FIG.30
UPPER
LEVEL

13
CAUTION:
The engine should never run without the element; excessive piston and/or
cylinder wear may result.
CLEANING ANDADJUSTINGSPARK PLUG
1. Remove the cover.
2. Check fordiscoloration and remove the carbon. FIG.31
3. Check the spark plug typeand gap.
4. Replace the spark plug.
5. Attach thecover
FUELTANKFILTER
1. Remove the fuel tank cap and filter. FIG.32
2. Clean the filter with solvent.If damaged, replace.
3. Wipe the filter and reinsert.
WARNING ────────────
Be sure the tank cap is tightened securely.
─────────────────
MUFFLER SCREEN
WARNING ─────────────────────
The engine and muffler will be very hot after the engine has been run.
Avoid touching the engine and muffler while they are still hot with any part
of your body or clothing during inspection or repair.
──────────────────────────
1. Remove the cover. FIG.33
2. Remove the mufflerscreen.
Standard electrode color: Tan Color
Standard Spark Plug: F5RTC (TORCH)
Spark Plug Gap: 0.6-0.7 mm (0.024-0.028 in)
FIG.31
FIG.32
FIG.33

14

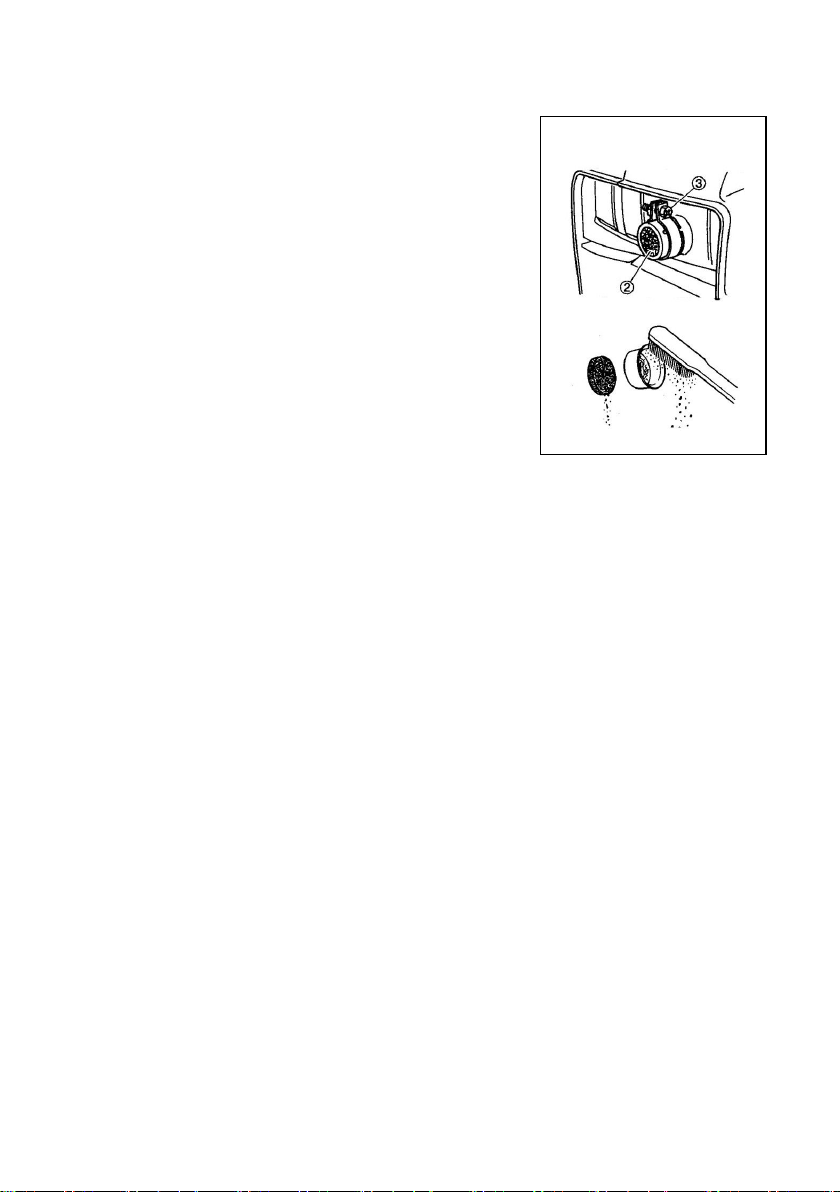

3. Use a flathead screw driver to pry the spark arrester outfrom the muffler.
4. Remove the carbon deposits on the muffler screen and spark arrester
using a wire brush. FIG.34
5. Re-install the muffler screen.
6. Re-install the cover
TROUBLE SHOOTING
ENGINE WON’T START
1. Fuel systems
No fuel supplied to combustionchamber.
No fuel in tank….Supply fuel.
Fuel in tank….Fuel tank cap air vent knob to “ON”, fuel cock knob to “ON”
Clogged fuel line….Clean fuel line.
Clogged carburetor….Clean carburetor.
2. Engine oil system
Insufficient oil
Oil level is low….Add engine oil.
3. Electrical systems
Poorspark
Spark plug dirty with carbon or wet….Remove carbon or wipe spark plug dry.
Faulty ignition system….Consult dealer.
4. Compression insufficient
Worn out piston and cylinder….Consult dealer.
5. Generator won’t produce power
Output breaker safety device (AC) to OFF …Stop the engine, then restart.
Output breaker safety device (DC) to OFF …Press to reset the DC protector
FIG.34

15
STORAGE
Long term storage of your generator will require somepreventive procedures maintenance to guard against deterioration.
DRAINTHEFUEL
1. Remove the fuel tank cap, drain the fuel from the fuel tank
2. Remove the cover, drainfuel from the carburetor by looseningthe drain screw.
ENGINE
1. Remove the spark plug, pour in about one tablespoon of SAE 10W30 or 20W40 motor oil into the spark plug hole
and reinstall the spark plug.
2. Clean exterior of the generator andapply a rustinhibitor.
3. Store the generator in a dry, well-ventilated place, with the cover place over it.
4. The generator must remain in a vertical position.

16
SPECIFICATION
MODEL
GEN6600W240VS
GENERATOR
Type
Inverter Generator
AC Voltage
120/240V
Frequency
60Hz
Max. Output
6.6 kW
Continuous Output
6 kW
PowerFactor
1.0
DC Output
POWEROUTLET 12V / 5.0A / USB 5V/3.1A
ENGINE
Model
XY188F-1
Type
Air-cooled, 4 cycle, OHV, Gasoline Engine
Bore×Stroke mm×mm
88×64
Displacement
389cc
Max. Output
7.2kW / 3600rpm
Fuel
Unleaded Gasoline
Fuel tank Capacity
18.5 liters
Rated Continuous Operation
4h30min（100% Load）
Lubricating oil
SAE 10W30
Lubricating oil Capacity
1.1 liter
Starting System
Electric Starter
Ignition system
C.D.I.
Spark Plug: Type
F5RTC
DIMENSION
Net dimension L×W×H
29.5×21×25 inches
Overall dimension L×W×H
32.5×24.5×27.5 inches
Unit Weight
191b
BoxedWeight
211.5lb
Specifications subject to change without prior notice.

17
WIRING DIAGRAM
INVERTER
UNIT
OVERLOAD
LOW OIL
R
PI
BL
BR
GR
P
Y/G
W
O
R
BU
OUTPUT
R
IGNITION
WINDING
OIL SENSOR SPARK PLUG
SPRING WINDING
BATTERY
START MOTOR
CONTROL PANEL BLOCK
GENERATOR BLOCK
ENGINE BLOCK
ELE VALVE
ELECTRIC MAGNET
IGNITION CONTROLLER
ECON. SWITCH
STEPPER MOTOR ASSY.
GRAY
BLACK / WHITE
PI
Gr
PINK
BL/W
ORANGEO
W WHITE
P PURPLE
W
BL P
W
IGNITION COIL
BL O
RY/G
P
Gr
R
BL
R
Y/G
FUSE 5A
O
R
Y
W
BL
Bu
YELLOW / GREEN
Y/G
R
BU OUTPUT RESET
FUSE 15A
R
BL
YELLOW
Y
BL
Bu
BLACK
BLUE
G GREEN BROWN
RED
Br
R
M
R
O Bu PI Br
R
AUTO GEN
START
BL
BL
BL
MAIN
WINDING
BL
BL
BL
MAIN
WINDING
DC
WINDING
DC
WINDING
Bu
Bu
Bu
Bu
RECTIFIER
DC 12V OUTPUT
Bu
Bu
Bu
Bu
Bu
BL
FUSE 15A
R
DC PROTECTOR 6A
DC5V3.1A
BL
W
GROUND
TERMINAL
BL
W
BL
W
BL
W
12
3
45
ELECTRIC LOCK
BL Bu BL/W W G
O Y W R BL
V-I-P-Hz
R
BL
W
W
SUB
WINDING
AC 20A
L14-30R 5-20R 5-20R
AC 20A
RECTIFIER R
BL

18
NOTES

19
