AIMS Power PWRNV1250W User manual

DC TO AC POWER INVERTER
PWRNV1250W
INSTRUCTION MANUAL

SAVE THIS MANUAL
You will need the manual for the safety warnings and precautions, assembly instructions, operating and
maintenance procedures, parts list and diagram. Keep your invoice with this manual. Write the invoice
number on the inside of the front cover. Keep the manual and invoice in a safe and dry place for future
reference.
Basic Operation
•Make sure that you choose the right operating voltage for both input and output of the inverter.
•When unpacking, make sure that the inverter is in good condition. If any parts are missing or
broken, please call AIMS Power, Inc. at the number found on the warranty card.
•Place the power inverter on a flat surface. Make sure it has adequate ventilation and is not in
direct sunlight. Fasten the inverter securely to the surface, using screws or some other
means. If holes are to be drilled, follow safe, proper installation techniques.
Before you connect the battery cables, make sure the power switch is in the off position. Connect
Red (+) battery cable to Red (+) inverter terminal. Connect Black (-) battery cable to Black (-) inverter
terminal. Connect Red (+) battery cable to Red (+) battery terminal. Connect Black (-) battery cable
to Black (-) battery terminal. Alligator clamp cables may be used but only to connect to the battery.
Do not use clamps on inverter terminals. Alligator clamps are not a permanent solution. You may
see a spark during connection.
•Connect the ground cable to an earth ground, such as a metal water pipe or to the vehicle
ground when used in a vehicle if the inverter includes a ground port.
•Turn the power switch to the on position, which is located on the front of the inverter. The
green LED light will confirm that AC power is present.
•Before plugging the equipment into the inverter, make sure the equipment AND the inverter
are off. Turn inverter on first, then turn on the equipment.
•The power inverter can be used either while the engine is running or off.
Warnings
•Unplug the inverter when it is not in use.
•If the AC inverter makes a beeping sound, turn off the equipment, unplug the inverter
and restart the vehicle’s engine. The beeping sound is simply the low-battery warning,
which indicates that the voltage of your battery is getting low. If you do not re-start your
engine and continue operating the inverter, the inverter will automatically shut off, leaving
your vehicle's battery at about 10. 5 VDC. This will allow you to start your engine and resume

operation of the inverter. It also reduces the fear of being stranded with a dead battery
(dependent on health of battery).
•This device should only be serviced by a qualified technician. This item does not have any
serviceable parts.
•Prevent body contact with grounded surfaces such as pipes, radiators, ranges, and
refrigerator enclosures during installation.
•Do not operate the inverter if under the influence of alcohol or drugs. Read warning labels on
prescriptions to determine if your judgement or reflexes are impaired while taking drugs. If
there is any doubt, do not operate the inverter.
•People with pacemakers should consult their physician(s) before using this product.
Electromagnetic fields in close proximity to a heart pacemaker could cause interference to or
failure of the pacemaker.
•Keep children away. Children must never be allowed in the work area. Do not let them handle
machines, tools, or extension cords.
•Store idle equipment. When not in use, inverter must be stored in a dry location to prevent
rust. Always lock up tools and the inverter and keep out of reach of children.
•Size the inverter properly. Size the inverter for the surge rating of your equipment. The
inverter’s continuous rating should be MORE than the surge rating of your equipment.
Example: Power tool runs at 1500 watts but surges at 2500 watts. You should use an inverter
>3000 watts.
•Keep the inverter well-ventilated. Do not place any objects on top of or next to the inverter
or allow anything to cover the cooling fans; doing so can cause the inverter to overheat,
causing a potential fire hazard and/or damage to the inverter. Leave adequate ventilation
space underneath the inverter as well; thick carpets or rugs can obstruct air flow, causing the
inverter to overheat.
•Avoid unintentional starting. Be sure the switch is in the OFF position when not in use and
before plugging in any appliance.
Note: Performance of this unit may vary depending on the available battery power or appliance
wattage.
Warning: The warnings, cautions, and instructions discussed in this instruction manual cannot cover
all possible conditions and situations that may occur. It must be understood by the operator that
common sense and caution are factors which cannot be built into this product, but must be supplied
by operator. Guard against electric shock. Do not open the metal case; risk of electric shock.

Battery Use
•To avoid over-discharging your vehicle battery, we recommend running your engine for 10-20
minutes to recharge the vehicle's battery if battery voltage drops <11V.
•To properly size your battery, use the following formula: Volts * Amps = Watts or Watts/Volts
= Amps. Example: 1000 watt inverter / 12 volts DC = 83.3 DC amps. In this example, you will
need 83.3 amps to power a 1000 watt load for 1 hour. If you need to power 1000 watts for 2
hours you will need 83.3 * 2 = 166.66 DC amps available. A 100 amp hour battery will give
you 100 amps / 166.66 = .6 hours so you will need two batteries if using 100 amp battery.
This is if you fully deplete your batteries. We do NOT recommend fully depleting your
batteries. This is just an example. Your power requirements may be different.
•If you choose to use a female 12 Volt DC adapter for your inverter or to the inverter make
sure wire size is correct.
•IF YOU CONNECT THE WIRES TO THE INCORRECT TERMINALS, YOU WILL REVERSE THE
POLARITY AND DAMAGE THE INVERTER.
•REVERSED POLAR ITY WILL INSTANTLY VOID THE WARRANTY OF YOUR INVERTER, SO BE
CAREFUL TO CONNECT YOUR INPUT WIRES PROPEPLY.
•If you choose to operate a battery charger to replenish your battery’s voltage, be sure to
check with charger manufacture before damaging the charger.
•CONNECTING THE INVERTER’S DC INPUT TO A BATTERY CHARGER WILL VOID THE WARRANTY,
AND MAY DAMAGE THE INVERTER.
•Make sure that the battery voltage does not exceed 15 volts DC.
•CONNECTING THE INVERTER TO A DC POWER SOURCE GREATER THAN 15 VDC WILL VOID
THE WARRANTY, AND MAY DAMAGE THE INVERTER.
Cables
We recommend that you refrain from using battery cables longer than 12 feet
between the DC power source and the DC input of the inverter. Longer battery cables
on the DC input will create a voltage drop which results in a reduction of efficiency
and output. If you require more than 12 feet, use a bigger cable. We recommend
using an extension cord between the AC output and AC appliance. You may use up to
100ft, high quality extension cord. A longer cord may result in reduced output. See
Specifications chart for recommended battery cable size.
Digital Bar Display
The digital bar display displays battery DC voltage and DC current. The current should
always be in the green zone. The inverter will operate for several minutes when the

current is in the yellow zone. Operation in the red zone of the display will result in
protective inverter shutdown. NOTE: The bar display will only monitor DC current
and voltage not AC. If you need to measure AC output you will need to use a TRUE
RMS MULTI METER.
Remote On/Off Switch
Some models include a remote port. An AIMS remote on/off switch may be
connected to the remote port. The optional remote on/off switch is a convenient
option to turn the inverter on/off if the inverter is installed in a hard to reach area.
Make sure the inverter is turned off before installing the remote switch. Simply plug
the switch into the remote jack. There are several ways to mount the remote switch.
Remote switch comes with 4 pre-drilled holes for mounting. Remote part #
REMOTEHF.
Measuring the AC Voltage

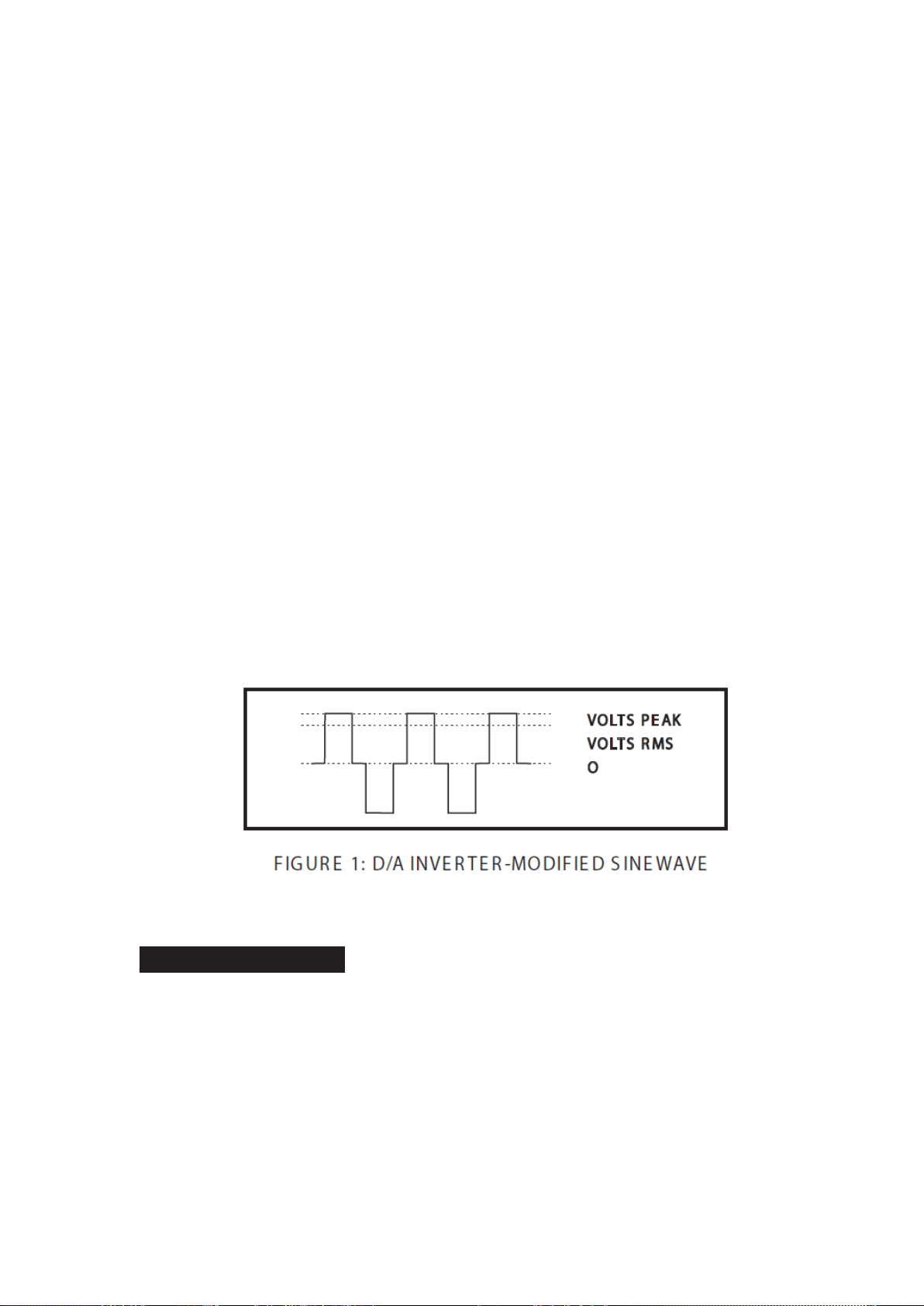

The output waveform of the inverter is a MODIFIED SINE WAVE. If you choose to
measure the AC output voltage, you must use a TRUE RMS MULTI METER. Using any
other type of voltage measuring device will result in an AC voltage reading of 10 to
30 volts lower than actual voltage. When using a true RMS multi meter, you will get
an accurate reading.
SAFETY PRECAUTIONS
•Do not open the case of the inverter. The high voltage inside the unit is the same type of
power as your electrical outlets at home.
•Do not let the cord of the inverter, or any appliance cord get wet. If you are operating the
inverter in a moving vehicle, we recommend that you secure the inverter to prevent it from
shifting around while the vehicle is moving.
•Do not operate this inverter in or around water. Water can damage the inverter, and water
damage is not covered under warranty. Also, do not operate the inverter with wet hands. The
AC voltage of the unit makes it an electrical shock hazard if operated with wet hands.

•Allow at least one inch of clearance around the Inverter for air flow. Ensure the ventilation
openings on the rear and bottom of the unit are not obstructed.
•Do not connect the inverter directly to another AC power source. Damage may result, and
such damage will void the inverter warranty.
•Know the wattage requirements of your appliance. Use only those appliances which are
limited by the capacity of this unit.
•Use common sense. This device produces power just like your wall outlets at home and
should be treated seriously. Keep it away from children.
• Reversed polarity of AC power outlet LINE /NEUTRAL will void the warranty.
•If there is anything wrong with the inverter, disconnect all of the power and contact technical
support.
TROUBLESHOOTING
If the Inverter does not appear to be functioning properly, check the following possible causes:
• Poor contact: Clean contact parts thoroughly.
• If the low battery alarm sounds, this means the input voltage is too low and battery
needs to be recharged.
•If you are getting a low output voltage, try reducing the load to minimize watts. You may have
overloaded the inverter. Reduce your load. Also, keep input voltage above 10.5 volts to
maintain a constant flow of power.
•If you are not getting any power output, turn the power switch Off and On again, until the
green power light comes on. Your devices may draw too much power to operate them. The
inverter may be in thermal shutdown. Let it cool down and make sure there is adequate
ventilation around the unit.
•If the green light turns red one of the following has happened:
A. input voltage is too low
B. input voltage is too high
C. short circuit
D. inverter is close to overload
•Battery voltage is too low: Start the engine to recharge the battery. Replace or recharge
battery if needed.
•Shuts down on overload: Reduce the wattage of your load.
•Thermal shutdown: Under heavy loads for extended period, the inverter will shut
down to prevent damage from excess heat. Simply reduce your load and allow the
Inverter to cool down.
•Low-battery shutdown: Recharge your battery and resume operation.

MAINTENANCE
Very little maintenance is required to keep your inverter operating properly. You
should disconnect input power first and then clean the exterior of the unit
periodically with a dry cloth to prevent accumulation of dust and dirt. At the same
time, tighten the screws on the DC input terminals.
PLEASE READ THE FOLLOWING CAREFULLY
Neither the manufacturer nor distributor makes any representation or warranty of any kind to the
buyer that he or she is qualified to make any repairs to the product or that he or she is qualified to
replace any parts of the product. In fact, the manufacturer and/or distributor expressly states that all
repairs and parts replacements should be undertaken by certified and licensed technicians and not by
the buyer. The buyer assumes all risk and liability arising out of his or her repairs to the original
product or replacement parts thereto, or arising out of his or her installation of replacement parts
thereto.
SPECIFICATIONS
MODEL NO :
PWRINV1250W
DC Input Voltage
12V (10-15V)
Output Wave Form
Modified Sine Wave
Output Power
1250W
Surge Power Capacity
3100W for 40milsecs
Efficiency
Over 90%
No Load Current
0.6A
Battery Low Alarm
D C 10 . 5
+
_
0 . 5 V
Battery Low Shutdown
D C 9 . 5
+
_
0 . 5 V
Alarm and Thermal Shutdown
(Automatic Recovery)
30-130° F
Internal DC Input Fuse
Must be fitted use 40A*4 max
Remote Switch Port
Yes
Mounting Hole Location
2 11/16 center hole to center hole
Recommended Cable Size
6 AWG or bigger
Power Switch
DC input ON/OFF control
AC Output Socket - 2
Dimensions (LxWxH)
10.75” x 5.13” x 3.25”
Net Weight
3.5 lb

WARRANTY
AIMS Corp., Inc. dba AIMS Power Warranty Instructions:
This product is designed using the most modern digital technology and under very strict
quality control and testing guidelines. If, however, you feel this product is not performing as it
should, please contact us: [email protected] or [phone]
We will do our best to resolve your concerns. If the product needs repair or replacement,
make sure to keep your receipt/invoice, as that will need to be sent back along with the
package and RMA# prepaid to AIMS. You have a full 1 year warranty from date of purchase.
This warranty is valid worldwide with the exception that freight and duty charges incurred
outside the contiguous 48 United States will be prepaid by customer.
Except as provided above, AIMS makes no warranty of any kind, express or implied, including
without limitation the implied warranties of merchantability and fitness for a particular
purpose. In no event shall AIMS be liable for indirect, special or consequential damages. This
warranty only applies to AIMS Power branded products. All other name brand products are
warranted by and according to their respective manufacturer. Please do not attempt to return
non-AIMS Power branded products to AIMS Power.
For additional products such as:
-Modified sine wave inverters
-Pure sine wave inverters
-Low Frequency Inverters
-Solar Charge Controllers
-Micro Grid Tied Inverters
-Inverter Chargers and Automatic transfer switches
-Converters DC-DC
-Custom cut cables
-Batteries
-Solar Panels & Racks
Please visit our web site: www.aimscorp.net
To find out where to buy any of our products, you may also e-mail: [email protected] or call
[phone].
