AIMS Power GEN2000W120V User manual

PORTABLE INVERTER GENERATOR
GEN2000W120V
READANDUNDERSTANDTHEMANUALPRIORTOUSING.
–
2018-08-06 (REV:01)

1
INTRODUCTION
Thank you for purchasing this InverterGenerator. Before using this product, please readthis manual thoroughly and follow
the instructions carefully.
CONTENTS
SAFETY INFORMATION................................................................................................................... 2
CONTROLS & FEATURES.............................................................................................................. 4
P RE - O P ER A T I O N CHECK............................................................................................................... 7
O P ER A T I O N .......................................................................................................................................9
P ER I O D I C MA I N T E N A N CE ............................................................................................................14
TROUBLE S H OO T I N G .....................................................................................................................17
S T OR A GE ............................................................................................................................................18
SP EC I F I C A T I O N................................................................................................................................19
WIRING D I A GR AM ............................................................................................................................20

2
WARNING
READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THE GENERATOR.
SAFETY INFORMATION
EXHAUST FUMES ARE POISONOUS
Never operate the generator in a closed area. It may cause unconsciousness or death within a short period of time.
Operate the generator in a well ventilated area.
FUEL IS HIGHLY FLAMMABLE AND POISONOUS
Always turn off theengine when refueling.
Never refuel while smoking or near an open flame.
Take care not to spill any fuel on the engine or muffler when refueling.
If you swallow any fuel, inhale fuel vapor, or allow any to get in your eyes, seek assistance immediately. If any fuel
spills on your skin orclothing, immediately wash with soap and water and changeyour clothes.
When operating or transporting the generator, be sure it is kept upright. If ittilts, fuel may leak from the carburetoror
fuel tank.
ENGINE AND MUFFLER MAY BE HOT
Place the generator in a place where passers-by orchildren are not likely to touch the generator.
Avoid placing any flammable materials near the exhaust outlet during operation.
Keep the generator at least 3 feet from buildings or other equipment,or the engine may overheat.
Avoid operating the engine with a dust cover.
Be suretocarry the generatoronly by its carry handle.
Put the machine on the flat ground, allowing generator to elminate heat freely.
ELECTRIC SHOCK PREVENTION
Never operate thegenerator in rain or snow.
Never touch the generator with wet hands or electrical shock will occur.
Be sure to ground (earth) the generator. FIG.1
NOTE:
Use ground (earth) lead of sufficient current capacity.
Diameter: 0.12mm (0.005 in)/ampere --8AWG Wire
EX: 10 Ampere --1.2mm (0.055 in)
FIG.1

3
CONNECTION NOTES
Do notconnect the generator to commercial power outlet.
Do not connect the generator in parallel with any other generator.
SAFETY SYMBOLS
Caution - The user should be aware of a general hazard.
Dangerous Voltage
Flammable
Hot Surface - Do not touch.

4
CONTROL & FEATURES

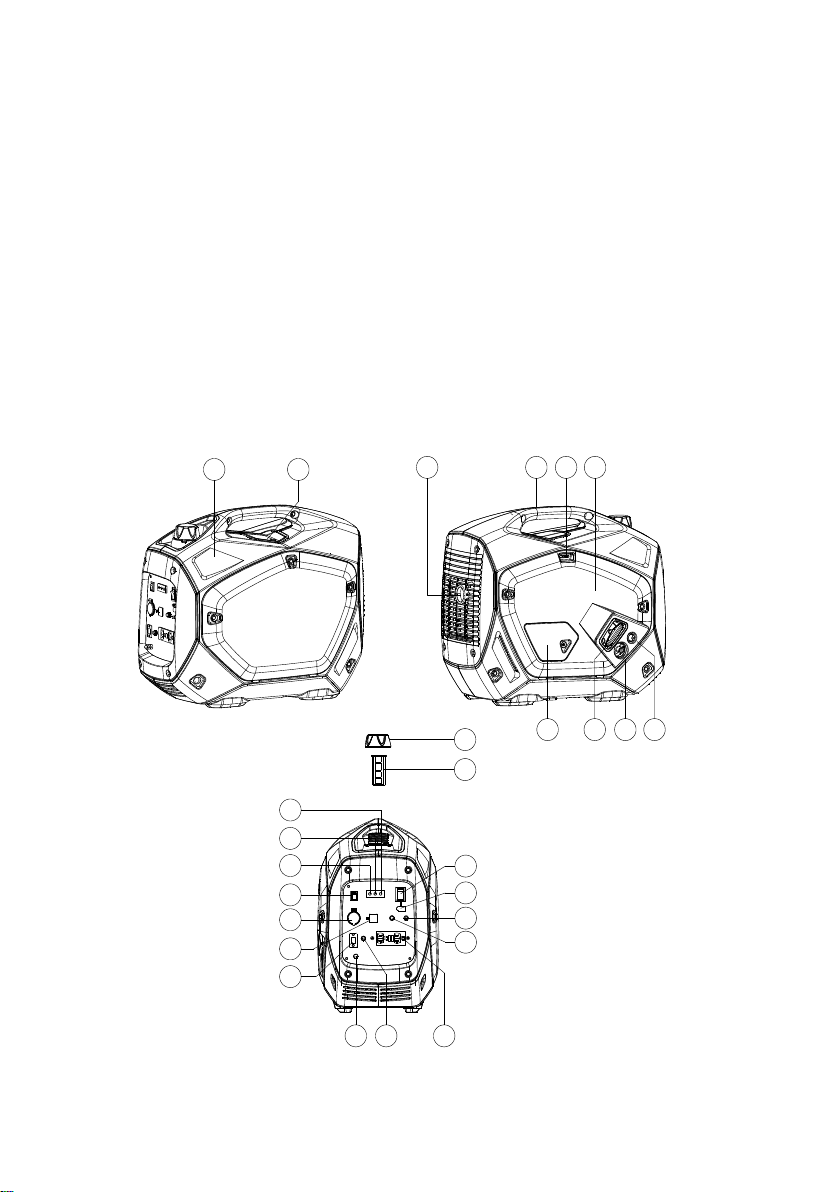

GENERATOR OVERVIEW (FOR ELECTRIC START TYPE)
(1)Fuel tank
(2) Spark plug
(3) Muffler
(4) Carryinghandle
(5) Choke lever
(6) Air filter
(7)Fuel pump
(8)Fuel cock
(9) Recoil starter
(10) Oil filler cap
(11) Fuel tank cap
(12) Fuel filter
(13) AC pilot light
(14) Overload indicator light
(15) Oil warning light
(16) Economy control switch
(17) DC 12V output
(18)USB output
(19) Auto Gen Start
(20) Ground (earth) terminal
(21) AC protector 20A
(22) AC receptacle
(23) DC protector
(24) Output reset
(25) Engine start (EC5 receptacle)
(26) Engine switch
1 2 354 6
9 8 7 10
11
12
16
15
14
13
17
18
20 22
24
19
23
21
25
26

5

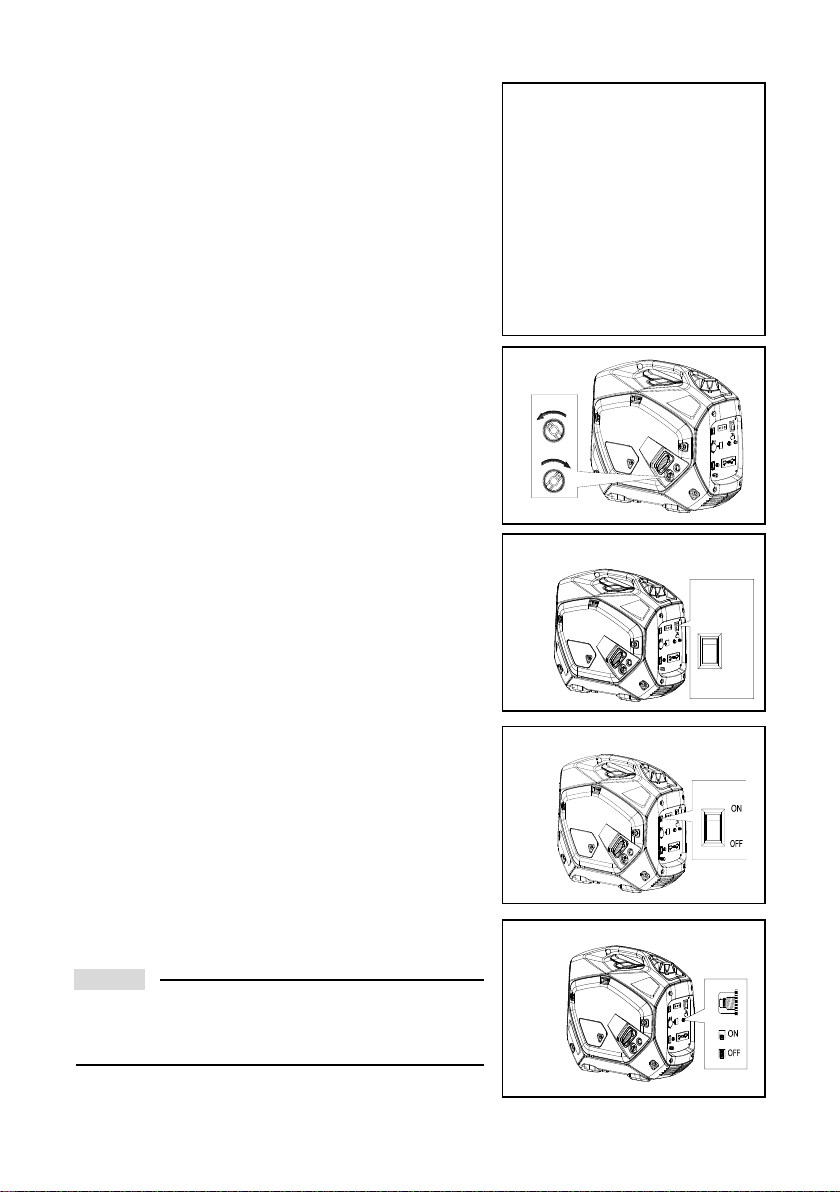

OIL WARNING SYSTEM
When the oil level falls below the lower level, the engine stops
automatically. Unless you refill with oil, the engine will not start again.
FIG.2
ENGINE AND FUEL COCK SWITCH
The engine switch controls the ignition system. FIG.3
① ON (run)
Ignition circuit is switched on. The engine can be started.
②OFF(stop)
Ignition circuit is switched off. Theengine will not run.
ELECTRIC START SWITCH
The engine switch controls the ignition system. FIG.4
①RUN
Ignition circuit is switched on. The engine can be started.
②STOP
Ignition circuit is switched off. Theengine will not run.
③START
Starting circuit is switched on. The starter motorstarts.
ECONOMY CONTROL SWITCH
When the economy control switch is turned ON, the economy control
unit will control the engine speed according to the connected load. The
results are more efficient fuel consumption and less noise. FIG.5
DC CIRCUIT PROTECTOR
The DC circuit protector turns off automatically when the load exceeds
the generator’s rated output. FIG.6
CAUTION:
Reduce the load to within specified generator’s rated output if the DC
circuit protector turns off.
FIG.2
FIG.3
FIG.5
FIG.6
FIG.4
OFF
ON
STOP
RUN
START
ELECTRIC
START SWITCH
ECON.SW

6

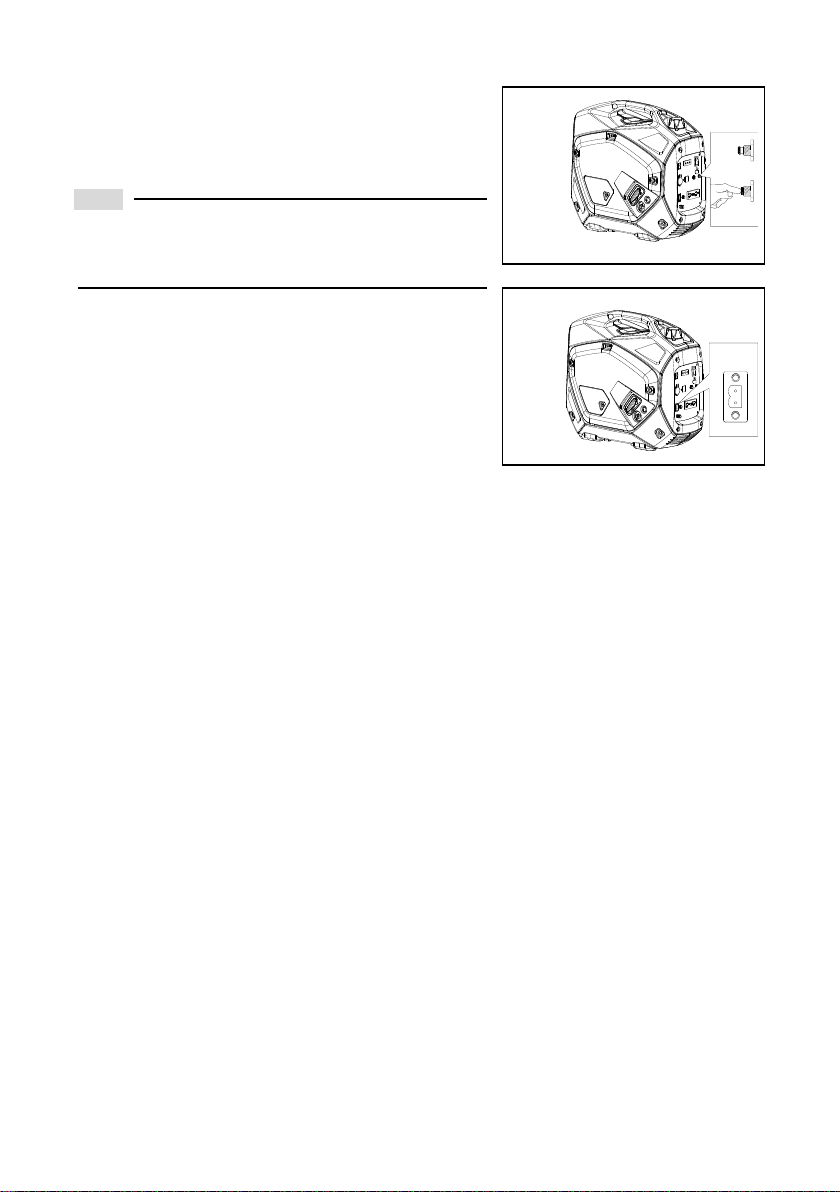

OUTPUT RESET
Push reset button for 2 seconds.The generator will recover and produce
AC power. FIG.7
NOTE:
Reduce the load on the generator to ensure that the total load is within
the rated power.
AUTO GEN START
The auto gen start controls the ignition system. FIG.8
When the circuit of this plugisconnected the starter motor starts
When the circuit of this plugis disconnected the engine will stop
FIG.8
FIG.7
RESET
AUTO GEN
START

7
PRE-OPERATION CHECK
NOTE:
Pre-operation checks should be made each time the generator is
used.
CHECK ENGINE FUEL
Make sure there is enough fuel in the tank. FIG.9
If fuel is low, refill with unleaded automotive gasoline.
Be sure to use the fuel filter screenon the fuel filter neck.
Recommended fuel: Unleaded gasoline.
Fuel tank capacity: (see page 19)
WARNING:
Do not refill tank while engine is running or hot.
Close fuel petcock before refueling.
Be careful not to allow dust, dirt, water or other foreign objects
into fuel.
Do not fill above the top of the fuel filter or it may overflow when
the fuel heats up later and expands.
Wipe offspilled fuel thoroughly beforestarting engine.
Keep away from open flame.
CHECK ENGINE OIL
Make sure the engine oil is at the upper level of the oil filler hole. Add oil
as necessary. FIG.10
Remove oil filler cap andcheck the engine oil level.
If oillevel is below the lower level line, refill with recommended oil to
upper level line. Do not screw in the oil filler cap when checking oil
level.
Change oil if contaminated.
Oil capacity: (see page 19)
Recommended engine oil:10W-30
API Service “SJ”FIG.11
FIG.11
32°F F 80°
25°CC 0°
or 10W-30
SAE #30
or 10W-40
SAE #20
or 10W-30
or 10W-40or 10W-40
or 10W-30
SAE 10W
FIG.9
FIG.10

8

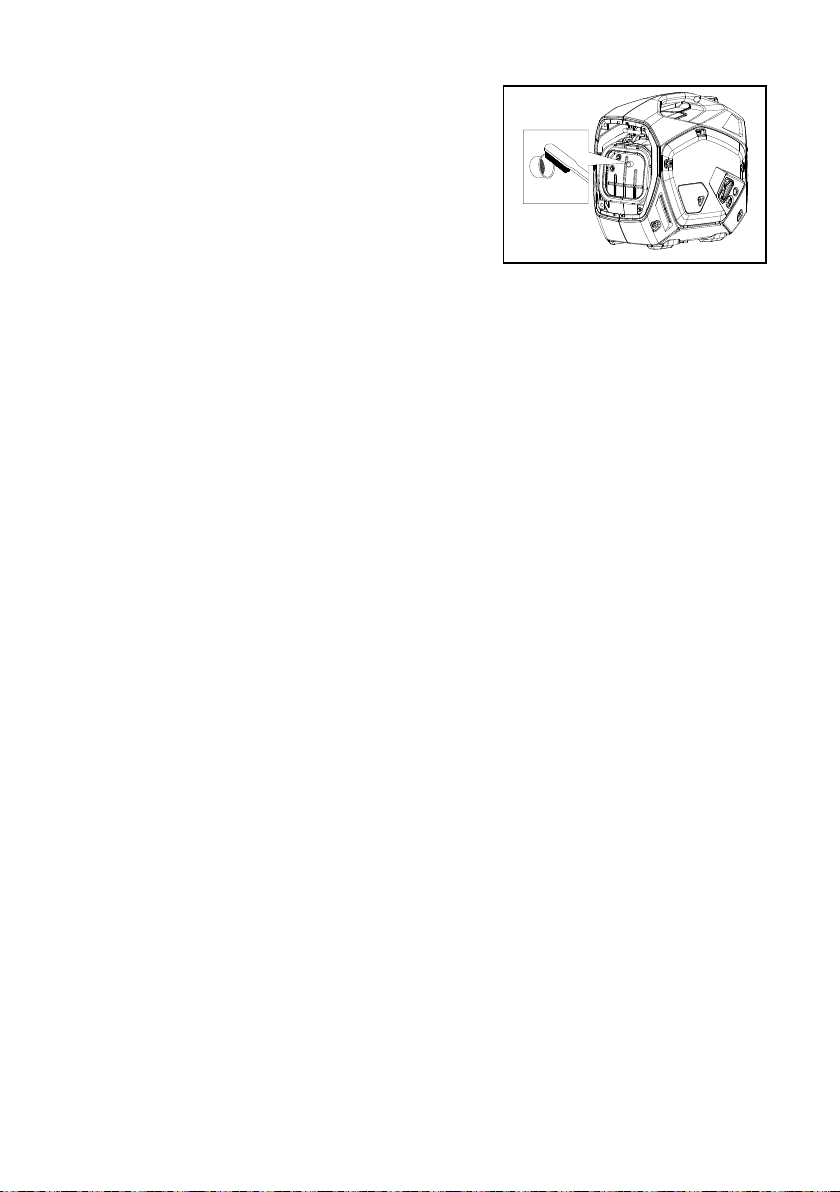

GROUND (Earth)
WARNING:
It is important to properly ground your generatorbefore using.
Use an 8AWG wire and a small metal earth spike. The wire and
earth spike are not supplied with the unit. FIG.12
CONNECT BATTERY (for electric starting system)
(a) The battery for electric starter should be fixed on the handle of generator.
FIG.13
(b) Connect the battery to the socket on the control panel with the cable
forbattery. FIG.14
NOTE:
Make sure the battery is fully charged before using.
Avoid poor contact between battery and socket on control panel.
The battery also can be used as a power bank, please find the
details in the manual for battery.
FIG.14
FIG.12
FIG.13
ENGINE
START

9
OPERATION
NOTE:
The generator has been shipped without engine oil. Fill with oil or
it will not start.
Do not tilt the generator when adding engine oil. This could result
in overfilling and damage to the engine.
STARTING THE ENGINE
NOTE:
Before starting the engine, do not connect electric appliances.
A. Recoil start
1. Turn the fuel cock lever to the ON position. FIG.15
2. Turn the electric start switch to the RUN position. FIG.16
3. When starting the generator for the first time, press the primer bulb
6 times before attempting to start. FIG.17
4. Turn the choke lever to the││CHOKE position. Not necessary
if the engine is warm. FIG.18
5. Pull the starter handle slowly until resistance is felt. This is the
“Compression” point. Return the handle to its original position and
pull swiftly. Do not fully pull out the rope. After starting, allow the
starter handle to return to its original position while still holding the
handle. Grasp the carrying handle firmly to prevent the generator
FIG.15
FIG.16
FIG.18
FIG.19
FIG.17
ON
RUN
CHOKE

10
from falling over when pulling the recoil starter. FIG.19
6. Warm up the engine.
7. Turn the choke lever back to the││RUN position.
FIG.20
8. Warm up the engine without a load for a few minutes.
B. Electric start
1. Make sure the fuel cock leveris in the ON position.
2. Make sure the chokelever is in the││RUN position
3. Turn the engine switch to the START position. FIG.21
4. Turn the engine switch to the RUN position. FIG.22
5. Warm up the engine without a load for a few minutes.
C. Auto start
1. Make sure the fuel cock lever is in the ON position.
2. Make sure thechoke lever is in the ││RUN position.
3. Make sure the engine switch is in the RUNposition.
4. Connect the cable to Auto Gen Start plug. As soon as the
generator receives the start signal, the generator will start. If the
generator does not start successfully it will try to start again.
Generator will disconnect the circuit when the generator does not
start after three times. FIG.23
FIG.20
FIG.21
FIG.22
FIG.23
RUN
START
RUN
AUTO GEN
START

11
USING ELECTRIC POWER

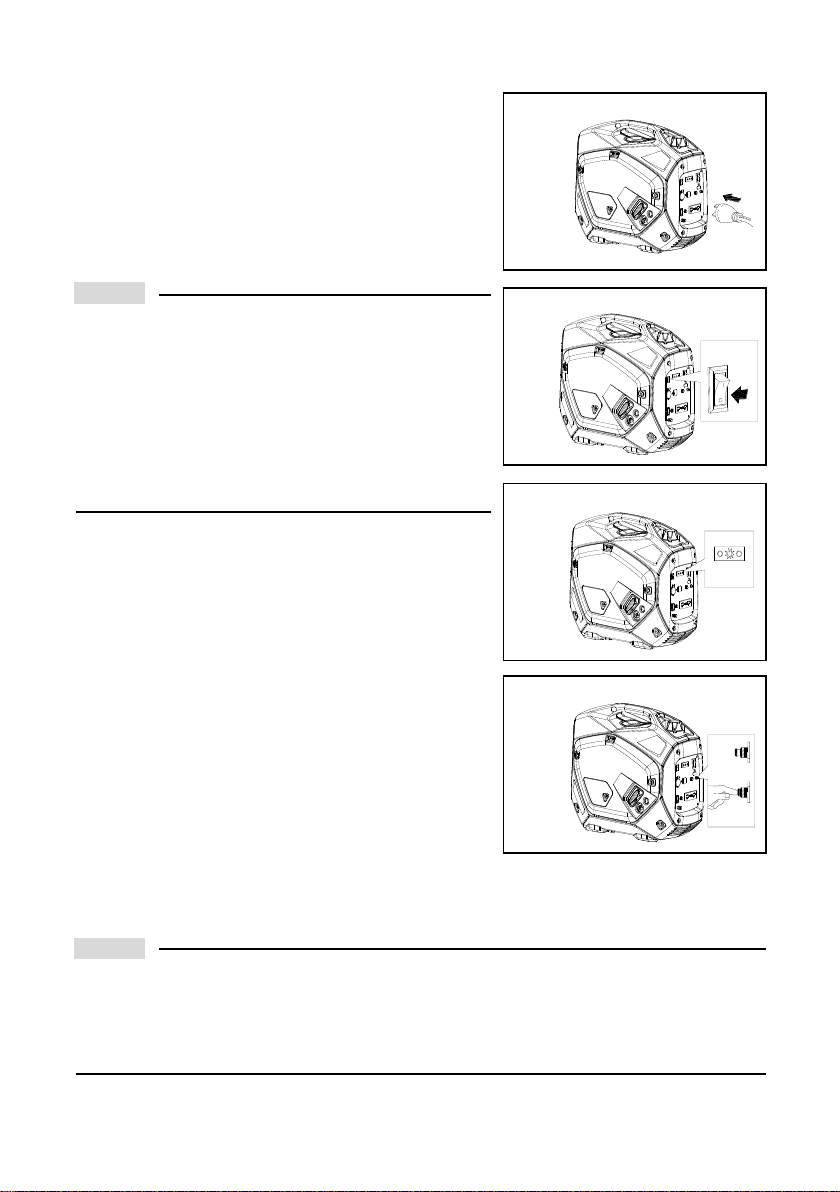

1. AC APPLICATION
(a) Check the AC pilot lamp for proper voltage.
(b) Turn off the switch(es) of the electrical appliance(s) before
connecting to the generator.
(c) Insert the plug(s) of the electrical appliance(s) into the outlet. F IG.24
CAUTION:
Be surethe electric appliance is turned off before plugging in.
Be surethe total loadis within generator’s ratedoutput.
Be sure the socket load current is within socket rated current.
The economy control switch must be turned to OFF when using
electric devices that require a large starting current, such as a
compressor or a submergible pump. FIG.25
2．OVERLOADINDICATORLIGHT
The overload indicator light comes on when overloaded, short circuit, or
voltage is out of operating tolerance, overheats, or the AC output voltage
rises. The electronic breaker will then activate, stopping power to the
generator in order to protect the generator and any connected electric
devices. The output pilot light (green) will flicker and the overload
indicator light (red) will turn on, then the engine will stop running. If so
follow the following steps: FIG.26
(a) Turn off any connectedelectric devices and stop the engine.
(b) Reduce the total wattage of connected electric devices to within
the application range.
(c) Check for blockages inthe cooling airinlet and around the control unit.If any blockages are found, remove.
(d) Afterchecking, restart theengine. FIG.27
CAUTION:
The generator AC outputautomatically resets when the engine is stopped and then restarted.
The overload indicator light may come on for a few seconds at first when using electric devices that require a large
starting current, such as a compressor or a submergiblepump. This is not a malfunction.
FIG.24
FIG.25
FIG.27
FIG.26
ECON.SW
ON
OFF
OVERLOAD
RESET

12
3. DC APPLICATION (option)
This applies to 12V battery charging only.
(a) Disconnect the leads for the battery.
Fully loosen the battery fluid filler cap.
Fill distilled water to the upper limit, if the battery fluid is low level.
Measure the specific gravity for the battery fluid by using the
hydrometer, and calculate the charging time according to the table
shown on right side.
Thespecific gravity for the fully charged battery shall be within 1.26
to 1.28. It is recommended to check every hour. FIG.28
(b) Connect the DC output socket and the battery terminals using the
charging leads. The leads must be connected making sure the (+)
and (-) are correct.FIG.29
CAUTION:
 Be sure the economy control switch is turned OFF while charging
the battery.
FIG.28
3
2
1
CSpecific gravity 20°
3. 47AH 20HR
2. 35AH 20HR
1. 30AH 20HR
Battery capacity
chargong time Hr
810
4620
1.06
1.14
1.10
1.22
1.18
1.26
1.30
Aim for specific gravity and charging time
FIG.29

13
STOPPING THE ENGINE
1. Turn off the power switch of the electric device or disconnect any
electric devices. FIG.30
2. Turn the engine switch to STOP position. FIG.31
3. Turn the fuel cock lever to OFF.FIG.32
FIG.31
FIG.30
FIG.32
STOP
OFF

14
PERIODIC MAINTENANCE
MAINTENANCE CHART
Item
Remarks
Pre-operation
check
(daily)
Initial
1 months
or 20 Hr
Every
3 months
or 50Hr
Every
6 months
or 100Hr
Every
12 months
or 300Hr
Spark
Plug
Check condition adjust gap and
clean. Replace if necessary.

Engine
Oil
Check oil level

Replace


Oil filter
Clean oil filter

AirFilter
Clean. Replace if necessary.

Fuel Filter
Clean fuel cock filter. Replace if
necessary

Choke
Check choke operation

Valve
Clearance
Check and adjust when engine
is cold.

Fuel Line
Check fuel hose for crack or
damage. Replace if necessary.

Exhaust
System
Check for leakage. Retighten or
replace gasket if necessary

Check mufflerscreen.
Clean / replace if necessary.

Carburetor
Check choke operation

Cooling
system
Check fan damage.

Starting
system
Check recoil starteroperation.

Idle speed
Check and adjust engine idle speed

Fittings /
Fasteners
Check all fittings and fasteners
correct if necessary.

Crankcase
breather
Check breather hose for cracks or
damage. Replace if necessary

Generator
Check the pilot light comes on

Regular maintenance is important for the best performance and safe operation.

15
ENGINE OIL REPLACEMENT
1. Place the generator on a level surface and warm up the engine for
several minutes. Then stop the engine and turn the fuel cock knob
to OFF. Turn the fuel tank cap air vent knob counterclockwise to
the CLOSED position. FIG.33
2. Loosen the screw and remove the cover.
3. Remove the oil filler cap.
4. Place an oil pan under the engine. Tilt the generator to drain the oil
completely. FIG.34
5. Replace the generatoron a level surface.
6. Add engineoil to the upper level. FIG.35
7. Replace the oilfillercap.
8. Replace the cover and tighten thescrew
Recommended engine oil: (see page 19)
API Service “ SJ”
CAUTION:
Be sure no foreign material enters the crankcase.
Do not tilt the generator when adding engine oil. This could result in
overfilling and damage to the engine
AIR FILTER
Cleaning your air filter needs to be part of yourmaintenance regime. The
air filter ensures that the air entering the combustion chamber is as clean
as possible. Contaminated air wears on the engine caused by foreign
bodies and a less efficient combustion process. FIG.36
1. Remove the cover.
2. Remove the air filter cover and element.
3. Wash the element in solvent and dry.
4. Oil the element and squeeze out excess oil. The element should be
wet but not dripping.
5. Insert the element into the air filter.
6. Replace thecover.
FIG.33
FIG.34
FIG.35
FIG.36

16
CAUTION:
The engine should never run without the element; excessive
piston and/or cylinder wear may result.

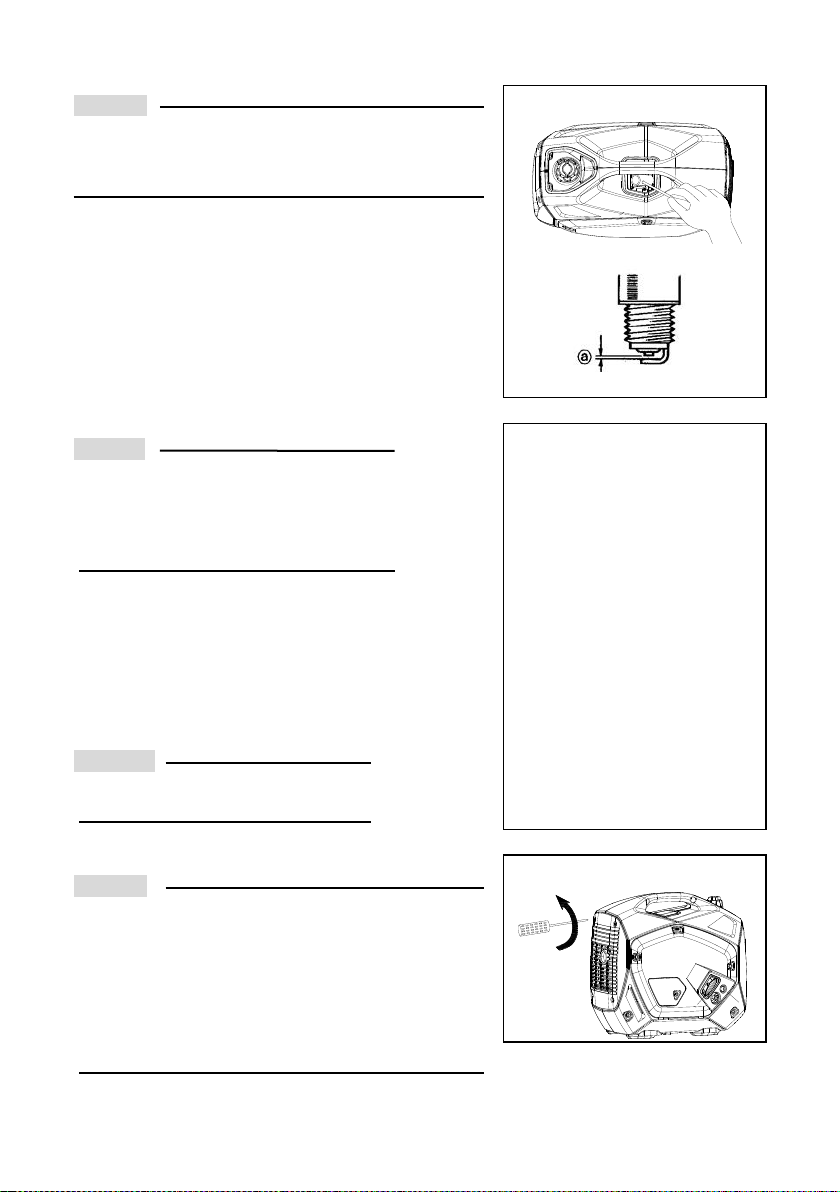

CLEANING AND ADJUSTING SPARK PLUG
1. Removethe cover.
2. Check for discolorationand remove the carbon.
3. Check the spark plug type and gap.
4. Install the spark plug.
5. Replace the cover. FIG.37
CAUTION:
Standard electrode color: Tan Color.
Standard Spark Plug: A5RTC (TORCH)
Spark Plug Gap: 0.6-0.7 mm (0.024-0.028 in)
FUEL TANK FILTER
1. Removethe fuel tank cap and filter.
2. Clean thefilter with solvent. If damaged, replace.
3. Wipe the filter and insert it. FIG.38
WARNING
Be surethe tank cap is tightened securely.
MUFFLER SCREEN
WARNING
The engine and muffler will be very hot after the engine has been
run.
Avoid touching the engine and muffler while they are still hot with
any part of your body orclothing duringinspection or repair.FIG.39
FIG.37
FIG.38
FIG.39

17
1. Remove the cover.
2. Remove the muffler screen.
3. Use a flathead screw driver to pry the spark arrester out from the
muffler.
4. Remove the carbon deposits on the muffler screen and spark
arrester using a wire brush.
5. Replace the mufflerscreen.
6. Replace thecover. FIG.40
TROUBLESHOOTING
Engine won’t start
1. Fuel systems
No fuel suppliedtocombustion chamber.
No fuel in tank….Supply fuel.
Fuel in tank….Turn fuel cock knob to ON.
Clogged fuel line….Clean fuel line.
Clogged carburetor….Clean carburetor.
2. Engine oil system
Oil level is low….Add engine oil.
3. Electrical systems
Poorspark
Spark plug dirty with carbon or wet….Remove carbon or wipe spark plug dry.
Faulty ignition system….Consult dealer.
4. Compression insufficient
Worn out piston and cylinder….Consult dealer.
5. Generator won’t produce power
Safety device (AC) to “OFF” …Stop the engine,then restart.
Safety device (DC)to “OFF” …Press to reset the DC protector
FIG.40

18
STORAGE
Long term storage of your machine will require some preventative maintenance to guard against deterioration.
DRAIN THE FUEL
1. Remove the fuel tank cap, drain the fuel from the fuel tank.
2. Remove the cover, drainfuel fromthe carburetor by loosening the drainscrew.
ENGINE
1. Remove the spark plug, pour in about one tablespoon of SAE 10W30 or 20W40 motor oil into the spark plug hole
and reinstall the spark plug.
2. Use the recoil starter to turn the engine over several times (with ignition off).
3. Pull the recoil starter until you feel compression.
4. Stoppulling.
5. Clean exterior of the generator and apply arustinhibitor.
6. Store the generator in a dry, well-ventilated place, with the cover placed overit.
7. The generator must remain in a vertical position.

19
SPECIFICATION
MODEL
GEN2000W120V
GENERATOR
Type
Portable Inverter Generator
AC Voltage
100V, 110V, 120V
Frequency
60Hz
Max. Output
2.0 kW
Rated Output
1.9 kW
PowerFactor
1.0
DC Output
12V / 4.0A5V / 1A 5V / 2.1A(Option)
ENGINE
Model
XY156F
Type
Air-cooled, 4 cycle, OHV, Gasoline Engine
Bore×Stroke mm×mm
56×46
Displacement
114 cc
Max. Output
2.5KW / 4500rpm
Fuel
Unleaded AutomobileGasoline
Fuel tank Capacity
0.95gal
Rated Continuous Operation
4.6 hr (50%Load)
Lubricatingoil
SAE 10W30
Lubricating oil Capacity
0.52 liter
Starting System
Electric / Recoil Starter
Ignition system
C.D.I.
Spark Plug: Type
A5RTC (TORCH)
DIMENSION
Unit dimension L×W×H
20.66×11.10×17.32 in
Box dimension L×W×H
21.85×12.6×18.3 in
Unit Weight
48.5lb
Box Weight
50lb
Specifications subject to change without prior notice.
