AIMS Power PWRIX120012SUL User manual

DC TO AC PURE SINE POWER INVERTER WITH
AUTOMATIC TRANSFER SWITCH
PWRIX120012SUL / PWRIX200012SUL
INSTRUCTION MANUAL
ETL Listed to UL 458 and CSA 22.2 NO 107.1

A.INTRODUCTION
The AIMS Power pure sine inverter product line is used for back-up power. The
pure sine product line is ideal for sensitive equipment and provides clean power,
which is more efficient for back-up power applications. The power inverter
transforms DC (direct current) electricity into AC (alternating current) power that
can be used for running a wide variety of tools and appliances. This inverter is
perfect for providing mobile power in cars, boats and work trucks. The inverter
can also be utilized as a back-up source of electricity in the event of an electrical
failure or for several off-grid applications such as an RV or boat.
Please read this instruction manual carefully and make sure your inverter is
installed properly before using.
B.WARNING AND SAFETY
1. Read the manual before connecting this inverter and keep it for future reference.
2. Do not put the inverter under direct sun light or near a heating source.
3. The case of inverter will get hot when used. Do not allow flammable materials to
contact the inverter, such as clothing, sleeping bags, carpet or any other
flammable materials. The heat from the inverter can damage these items.
4. The power inverter is designed to be used with a negative ground electrical
system! Don't use with positive ground electrical systems (the majority of modern
automobiles, RVs, trucks and boats are negative ground).
5. Do not disassemble the unit: it may cause fire or electric shock.
6. This device should only be serviced by a qualified technician. This item does not
have any serviceable parts.
7. Prevent body contact with grounded surfaces such as pipes, radiators, ranges,
and refrigerator enclosures during installation.
8. Do not operate the inverter if under the influence of alcohol or drugs. Read
warning labels on prescriptions to determine if your judgement or reflexes are
impaired while taking drugs. If there is any doubt, do not operate the inverter.
9. People with pacemakers should consult their physician(s) before using this
product. Electromagnetic fields in close proximity to a pacemaker could cause
interference to or failure of the pacemaker.
10.Keep the inverter well-ventilated. Do not place any objects on top of or next to
the inverter or allow anything to cover the cooling fans; doing so can cause the
inverter to overheat, causing a potential fire hazard and/or damage to the

inverter. Leave adequate ventilation space underneath the inverter as well; thick
carpets or rugs can obstruct air flow, causing the inverter to overheat.
11.Avoid unintentional starting. Be sure the switch is in the OFF position when not in
use and before plugging in any appliance.
12.Keep inverter away from children. Don't install the inverter where it is accessible
to children.
13.The power inverter will output the same AC power as utility power, please treat
the AC outlets as carefully as you would your home AC outlets. Do not put
anything other than an electrical appliance into the output terminal. It may cause
shock or fire.
14.Disconnect the battery and inverter when not in use.
Note: Performance of this unit may vary depending on the available battery power or
appliance wattage.
Warning: The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions and situations that may occur. It must
be understood by the operator that common sense and caution are factors which
cannot be built into this product, but must be supplied by operator. Guard against
electric shock. Do not open the metal case; risk of electric shock.

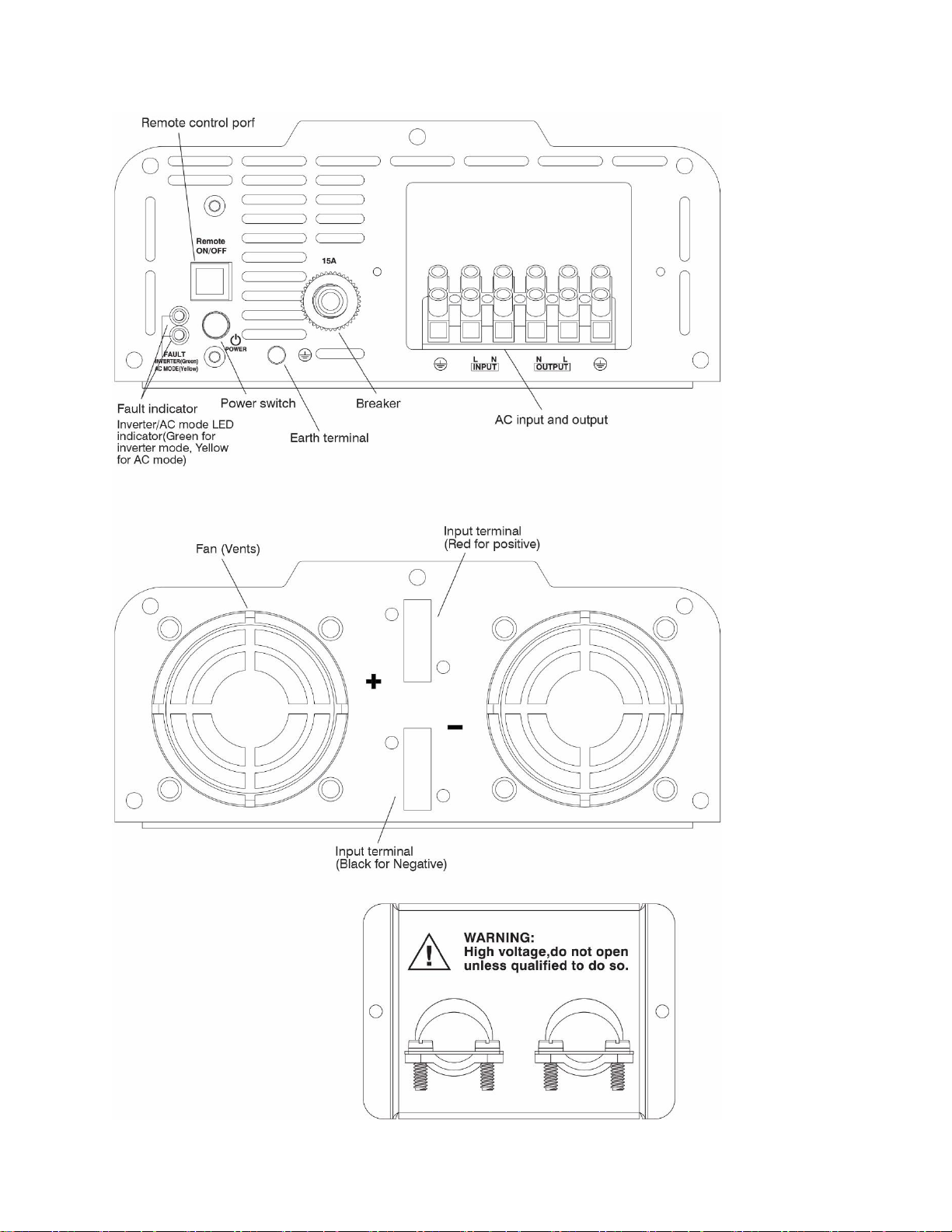

C.INVERTER FEATURES
•Dual outlets
•USB Port
•LED protect indicator
•LED power indicator
•Easy push on/off switch
•Remote port for on/off remote switch (optional)
•Thermally controlled cooling fan
•Low battery voltage warning/shutdown
•High input voltage protection with automatic shutdown
•Over load indicator
•Short circuit protection
•AC output short circuit protection

Terminal cover

D.INSTALLATION
Ensure there is enough space for the installation, and the location should be meet
the following requirements:
1. Water should not access the inverter.
2. The ambient temperature should be 32~104°F, and the preferred temperature is
50-77°F. The lower the better in this range of ambient temperature.
3. Allow for 12 inches around the inverter for adequate air flow.
4. Do not mount the inverter upside down.
5. We recommend mounting the inverter on something stable to prevent it from
bouncing. Impact shock could result in damage to your unit. Be sure to use all
four mounting screws for optimal stability. Mount in a location that can support
the weight of the inverter.
6. Allow 12 inches of space around the inverter to prevent objects from blocking the
vents and to provide enough air to circulate.
7. Do not install the inverter in an environment with high dust, saw dust residue or
other particles that may get sucked into the inverter increasing internal
temperature.
8. There will be some electrical arcing or spark when the inverter connects with the
battery. Combustible materials such as gasoline, alcohol, etc. should not be
around the inverter.
E. BATTERY
1. The battery is designed to supply the inverter with DC input voltage and the rated
voltage should be in accordance with the rated input voltage of the inverter. Any
voltage exceeding the range of the input voltage of the inverter will cause the
inverter to go into overload and could possibly damage the inverter. The battery
should supply enough current for the load. The load is the amp or watt rating of
the equipment being powered by the inverter. A small capacity battery cannot
provide enough power for a large electrical equipment. In this case, the battery
will cause the inverter to go into under voltage protection because of the load put
on the battery. A simple way to calculate the load or amps required from your
battery is to divide watts of equipment by battery voltage. Due to the consumption
of the inverter itself, the actual current will be about 10%. For example, the
voltage of lead acid battery is 12VDC, and load of the equipment is 1000W,
therefore, the actual current needed from the battery is about 1000W / 12V = 83.3
amps per hour. Add 10% for efficiency loss and you get 83.3 * 1.10% = 91.6 amp
per hour needed. If you don’t know the wattage of your equipment, you can figure
the wattage by multiplying AC amps by AC voltage. For example, a refrigerator is
8 AC amps * 120 Volts AC = 960 watts. Remember, all equipment has a start-up

requirement 3-5x its running wattage. In this example, 960 watts * 3 = 2880 watts
needed from the inverter so don’t size your inverter too small.
2. Battery operating time depends on battery capacity and load. The formula for
operating time is: battery capacity divided by the value of the load divided by
battery voltage times 1.10%. For example, using the numbers from above, the
battery specification is 12V, 200Ah capacity and the load is 1000W. Take battery
capacity 200Ah / 91.6 amps = 2.18 hours of run time if you fully deplete the
battery. This is NOT recommended. Deep cycle batteries last longer when they
are only depleted to 50% of capacity.
F. CONNECTION
1. Grounding
The power inverter has a terminal on the rear panel marked " Grounding "or "≡".
This is used to connect the chassis of the power inverter to ground. The ground
terminal has already been connected to the ground wire of the AC output
receptacle through the inverter.
The ground terminal must be connected to the ground wire, which will vary
depending on where the power inverter is installed. In a vehicle, connect the
ground terminal to the chassis of the vehicle. In a boat, connect it to the boat’s
ground system. In a fixed location, connect the ground terminal to earth.
2. Battery Terminals
Before you connect the battery cables, make sure the power switch is in the off
position. Connect Red (+) battery cable to Red (+) inverter terminal. Connect
Black (-) battery cable to Black (-) inverter terminal. Connect Red (+) battery
cable to Red (+) battery terminal. Connect Black (-) battery cable to Black (-)
battery terminal. Alligator clamp cables may be used but only to connect to the
battery. Do not use clamps on inverter terminals. Alligator clamps are not a
permanent solution. You may see a spark during connection. Do not reverse the
polarity. This may damage the inverter and void warranty.

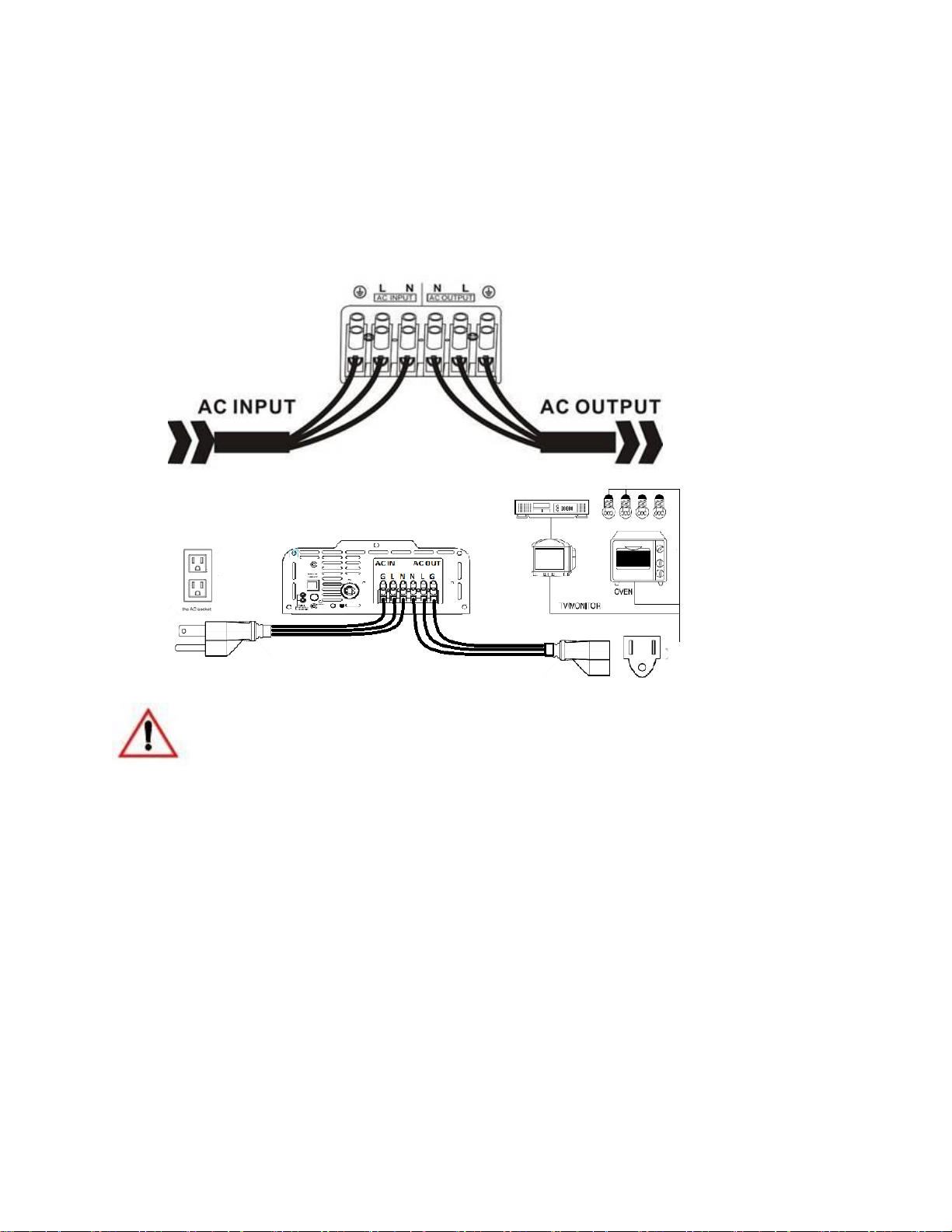

3. Hardwire Connection –AC Wiring. Use 12 AWG wire.
Input: Hot line + Neutral + Ground
Output: Hot line + Neutral + Ground
Green –ground
White –neutral
Black - hot
WARNING
The output voltage of this unit must never be connected in its input AC terminal, overload or
damage may result. Always press power button to ON position before plugging in any
appliance.
G. USING THE POWER INVERTER
1. Check the output voltage and capacity of the battery. The battery (s) should
match the voltage of the inverter and have enough capacity for the load. See
Section E for more information.

2. Connect your inverter to your battery bank and do not to reverse the polarities of
the connection. See Section F.
3. Press the power switch button on your inverter for .5 seconds and a green LED
will light up indicating that the inverter is on.
4. Before plugging anything into your inverter, make sure the appliance you are
trying to power is shut OFF, then plug it into the AC outlet of your inverter and
power on your appliance.
4. Once finished using the inverter, turn off your electrical appliance and the
inverter. The indicator lights should be off.
5. The cooling fans inside the inverter do not work until the case temperature
reaches approximately 104°F.
6. If you do not plan to use the inverter for a long period of time, disconnect it from
your battery bank. Leaving the inverter on and connected for long periods of time
may harm the equipment and over discharge the battery.
7. The USB port on this unit can provide a stable line of 5V DC current. The
maximum current is 1000 mA. Be sure to double check your device to make sure
it doesn't exceed these requirements.
H. SOFT START TECHNOLOGY
The soft start technology built into this inverter protects the unit from delivering too
much AC power at once by gradually increasing the AC voltage pushed out. To
make sure that you are utilizing this feature, turn on the appliance being used
before turning on the inverter. This is especially necessary for equipment that has
an inductive load or electrical motor.
I. OUTPUT VOLTAGE & WAVEFORM
The electrical waveform output of this inverter is a pure sine wave, which has the
same quality as utility and/or domestic power. This type of waveform is suitable for
most electrical devices, appliances and tools. This pure sine wave unit provides
more capabilities than modified sine wave inverters because it is a cleaner form of
power. The pure sine wave also effectively reduces the noise produced while using
appliances.
J. PROTECTIONS IN THE INVERTER
1. Input under-voltage alarm: When the input DC voltage is lower than 9.8V
(19.6V/39.2V), the buzzer will whistle intermittently to remind that the inverter
will go into the under voltage protection.
2. Under voltage protection: The inverter will automatically shut down when the
input DC voltage is lower than 9.5V(19V/38V). The buzzer will whistle
continuously and the green light is off, red light is on. Please turn off the
inverter and use it after recharging the battery.
3. Over voltage protection: The inverter will automatically shut down when the

input DC voltage is higher than 16V(32V/62V). The buzzer will whistle
continuously and the green light is off, red light is on. Please turn off the
inverter and adjust the input voltage to the admissible range.
4. Overload protection: The inverter will automatically shut down when the load is
higher than the rated power. The buzzer will whistle continuously. Turn off the
inverter and resume to normal operation after taking away the excessive load.
5. Short-circuit protection: The AC output will be automatically shut down when
short circuited. It will automatically reset after the problem is solved.
6. Thermal protection: The unit will get hot during operation. If the temperature is
higher than 149°F, the inverter will automatically shut down. Then the buzzer
will whistle continuously and the green light is off, red light is on. Please turn
off the inverter, and continue using it after the temperature goes back to
normal naturally. Meanwhile find out the factors causing the fault, such as
ventilation, ambient temperature, vent, load power etc. It can avoid similar
things from happening again.
**NOTE** The numbers in the parenthesis are for 24V and 48V models. In the case of
over voltage, under voltage and thermal protection, the inverter will shut down. When
the inverter is in the OFF position, the inverter doesn't consume battery current.
HI-POT TESTING OF DC to AC Inverter
Most of our AC inverters are Listed by Intertek to conform to UL 458 One of the
requirements of UL 458 is that all AC inverters pass a High Voltage Dielectric Withstand
Test, commonly called the Hi-Pot Test. The voltage applied to the control is usually
equal to 1,000 volts, plus two times the line voltage rating of the inverter. Therefore, the
standard hi-pot voltage for 115 VAC inverter is 1,250 VAC. For 230 VAC or dual voltage
inverters, the hi-pot voltage is 1,500 VAC. This Aims power inverter is hi-pot tested
before it leaves the factory, with a UL Certified hi-pot tester, set to the voltages shown
above.
For UL Listed equipment, UL requires that customers perform a final Hi-Pot test of their
machine with the AC inverter installed. Hi-Pot testing is used to detect any electrical
leakage between live metal components and the frame of the machine that is connected
to earth ground. This helps prevent electrical shock to the user of the equipment should
a live component touch the frame and the user touch the frame and ground at the same
time.
(CAN/CSA-C22.2 No. 107.1) and are identified with the cETL Listed Mark.

TROUBLESHOOTING TIPS
Fault / Display
Cause
Solutions
No output voltage, buzzer sounds
continuously
Low input DC voltage
Recharge or replace the battery
Do not use it when the battery is charging.
Check the rated voltage of the battery and
make sure it is in within the range of the input
voltage.
High input DC voltage
Overload
Reduce the load power.
Over temperature
Cut off the load and let cool for 10 to 30
minutes. Restart it after it resumes to normal
temperature. The load power is too large,
reduce the total load power to the range of
rated power. Avoid blocking the vent and
improve the ventilation condition. Reduce the
ambient temperature.
No output voltage
The switch is off
Turn on the power switch.
Poor cable connection
Check the cables and make sure they are
tightly connected.
Incorrect output voltage
RMS Multimeter measurement error
Use a true RMS multimeter to measure,such
as model FLUKE 177/179.
The battery power of RMS
Multimeter is low. The input voltage
is too high or too low.
Try to maintain the input voltage in the range
of rated power.
Change the battery of the multimeter then test
again.
Cannot drive the load
Load power is too large,or the
actual power of the appliance
exceeds nominal power.
Reduce the load power,or turn on the
appliance first,then turn on the inverter.
The starting power is larger than
rated power (such as motor).
The internal inverter soft-start circuit will buffer
starting the appliance.

SPECIFICATIONS
MODEL NO
PWRIX120012120SUL
PWRIX200012120SUL
DC Input Voltage
12V (10-16V)
12V (10-16V)
Output Wave Form
Pure Sine Wave THD
<3%
Pure Sine Wave THD
<3%
Output Power
1200W
2000W
Surge Power Capacity
2400W for 40 milsec
4000W for 40 milsec
Efficiency
90%
90%
No Load Current
1.2 A switch on
1.2 A switch on
Battery Low Alarm
D C 9 . 8
+
_
0 . 3V
D C 9 . 8
+
_
0 . 3V
Battery Low Shutdown
D C 9 . 5
+
_
0 . 5V
D C 9 . 5
+
_
0 . 5V
Input Over Voltage Shutdown
16
+
_ 0.5 VDC
16
+
_ 0.5 VDC
Operating Temperature
(Automatic Recovery/Shutdown)
32-113° F
+
_ 8
° F
32-113° F
+
_ 8
° F
Breaker
15 A resettable
15 A resettable
Transfer Switch- Automatic
Bypass
10 AMP <20msecs
25 AMP <20msecs
Over Temperature Protection
149 ° F
+
_ 8
° F
149 ° F
+
_ 8
° F
FAN
Thermal
Thermal
Marine
Conformal coated to protect
again moisture and
corrosion
Conformal coated to protect
again moisture and
corrosion
USB Output
5 VDC, Max 1A
5 VDC, Max 1A
Internal DC Input Fuse
Must Be Fitted, Use 40A *4
Maximum
Must Be Fitted, Use 40A *4
Maximum
Remote Switch Port
YES
YES
Recommended Cable Size
6 AWG or bigger
2 AWG or bigger
Mounting Hole Location
3 5/8” hole to hole on width
side
11 3/8” center hole to
center hole on length side
Power Switch
ON/OFF Control
ON/OFF Control
Cigarette Lighter Cable
NO
NO
Dimensions (LxWxH)
15.5” x 10” x 3.5”
21.5” x 9.5” x 3.5”
Net Weight
10.4 lb
14.4 lb

WARRANTY
This product is designed using the most modern digital technology and under very strict quality
control and testing guidelines. If, however, you feel this product is not performing as it should, please
contact us: [e-mail] or [phone].
We will do our best to resolve your concerns. If the product needs repair or replacement, make sure
to keep your receipt/invoice, as that will need to be sent back along with the package and RMA#
prepaid to AIMS. You have a full 2 year warranty from date of purchase.
This warranty is valid worldwide with the exception that freight and duty charges incurred outside the
contiguous 48 United States will be prepaid by customer.
Except as noted above, AIMS makes no warranty of any kind, express or implied, including without
limitation the implied warranties of merchantability and fitness for a particular purpose. In no event
shall AIMS be liable for indirect, special or consequential damages. This warranty only applies to
AIMS Power branded products. All other name brand products are warranted by and according to
their respective manufacturer. Please do not attempt to return non-AIMS Power branded products to
AIMS Power.
The following situations will void warranty:
1. The box is distorted, damaged or changed, and interior parts damaged because of an
exterior hit or drop not reported at time of delivery.
2. Connect the DC power incorrectly reversing the polarity.
3. Dismantled or repaired the unit by an unauthorized person.
4. The unit was damaged by incorrect installation or operating method.
For additional products, please visit our web site: www.aimscorp.net
-Modified sine wave inverters
-Pure sine wave inverters
-Low Frequency Inverters
-Solar Charge Controllers
-Micro Grid Tied Inverters
-Inverter Chargers and Automatic transfer switches
-Converters DC-DC
-Custom cut cables
-Batteries
-Solar Panels & Racks
To find out where to buy any of our products, you may also e-mail: [e-mail] or call (775)359-
6703.
