AIRLESSCO SURE STRIPE 3350 SP Use and care manual

For the application of line striping materials. For professional use only. For outdoor use
only. Not approved for use in explosive atmospheres or hazardous locations.
Model: 25M232
3300 psi (22.8 MPa, 228 bar) Maximum Operating Pressure
Important Safety Instructions
Read all warnings and instructions in this manual, related manuals, and on the
equipment. Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
Related Manuals:
3A4408 Gun
3A4347 Pump
Operation, Repair, Parts
Airless Line Striper 3A4637A
EN
ti30693a

Contents
23A4637A Operation, Repair, Parts
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Uni-Tip Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . 7
Grounding Procedure (For Flammable Materials Only) . 8
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . . . 8
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Front Wheel Alignment: . . . . . . . . . . . . . . . . . . . . . . . . 9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Self-Propelled Drive . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Power ON/OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Drive Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Speed Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Speed Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Uni-Tip and Guard Assembly . . . . . . . . . . . . . . . . . . . 16
Gun Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Install Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Position Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Paint Stripe Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Spray Test Stripe . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Clearing Tip Clogs . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Clean-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Flushing Recommendations . . . . . . . . . . . . . . . . . . . . . . 23
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Displacement Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Drive Housing and Connecting Rod . . . . . . . . . . . . . . . . 28
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Pinion Assembly/Clutch Armature/Clamp . . . . . . . . . . . 29
Pinion Assembly/Clutch Armature Removal . . . . . . . . 29
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Clamp Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Clamp Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Clutch Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Pressure Control Transducer . . . . . . . . . . . . . . . . . . . . . 34
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Pressure Control (On/Off Switch) . . . . . . . . . . . . . . . . . . 35
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Pressure Adjust Potentiometer . . . . . . . . . . . . . . . . . . . 36
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Drive Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Drive Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Drive Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Drive/Axle Bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Drive Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Motor Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Speed Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Troubleshooting - Drive System . . . . . . . . . . . . . . . . . . 53
Fluid Pump Runs Constantly . . . . . . . . . . . . . . . . . . . 54
Control Board Malfunction . . . . . . . . . . . . . . . . . . . . . 55
Control Board Malfunction (Steps) . . . . . . . . . . . . . . . 56
Pump Control Status LED . . . . . . . . . . . . . . . . . . . . . 57
Parts Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
25M232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Parts List - 25M232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Parts Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Self-Propelled Drive . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Parts List - Self-Propelled Drive . . . . . . . . . . . . . . . . . . . 61
Parts Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Parts List - 25M232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Parts Drawing and List - Pinion Housing . . . . . . . . . . . 64
Gun Arm Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Pressure Control/Filter Assembly . . . . . . . . . . . . . . . . . 66
Parts List - Pressure Control/Filter Assembly . . . . . . . 67
Pressure Control Wiring Diagram . . . . . . . . . . . . . . . . . 68
Drive Control Wiring Diagram . . . . . . . . . . . . . . . . . . . . 69
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Airlessco Standard Warranty . . . . . . . . . . . . . . . . . . . . . 72

Warnings
3A4637A Operation, Repair, Parts 3
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation
point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these sym-
bols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard sym-
bols and warnings not covered in this section may appear throughout the body of this manual where applicable.
SKIN INJECTION HAZARD
High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the event that
injection occurs, get immediate surgical treatment.
• Do not aim the gun at, or spray any person or animal.
• Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with any
part of the body.
• Always use the nozzle tip guard. Do not spray without nozzle tip guard in place.
• Use Graco nozzle tips.
• Use caution when cleaning and changing nozzle tips. In the case where the nozzle tip clogs while spraying,
follow the Pressure Relief Procedure for turning off the unit and relieving the pressure before removing
the nozzle tip to clean.
• Equipment maintains pressure after power is shut off. Do not leave the equipment energized or under pres-
sure while unattended. Follow the Pressure Relief Procedure when the equipment is unattended or not
in use, and before servicing, cleaning, or removing parts.
• Check hoses and parts for signs of damage. Replace any damaged hoses or parts.
• This system is capable of producing 3300 psi. Use Graco replacement parts or accessories that are rated
a minimum of 3300 psi.
• Always engage the trigger lock when not spraying. Verify the trigger lock is functioning properly.
• Verify that all connections are secure before operating the unit.
• Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar with the controls.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. Paint or solvent
flowing through the equipment can cause static sparking. To help prevent fire and explosion:
• Use equipment only in well ventilated area.
• Do not fill fuel tank while engine is running or hot; shut off engine and let it cool. Fuel is flammable and
can ignite or explode if spilled on hot surface.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static sparking).
• Ground all equipment in the work area. See Grounding instructions.
• Never spray or flush solvent at high pressure.
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes are
present.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless they are
anti-static or conductive.
•Stop operation immediately if static sparking occurs or you feel a shock.Do not use equipment until you
identify and correct the problem.
• Keep a working fire extinguisher in the work area.

Warnings
43A4637A Operation, Repair, Parts
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information about your
material, request Safety Data Sheet (SDS) from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufacturer’s
replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and create safety
hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
MOVING PARTS HAZARD
Moving parts can pinch, cut, or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment, follow
the Pressure Relief Procedure and disconnect all power sources.
ENTANGLEMENT HAZARD
Rotating parts can cause serious injury.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Do not wear loose clothing, jewelry or long hair while operating equipment.
• Equipment can start without warning. Before checking, moving, or servicing equipment, remove fuse near
battery.
CARBON MONOXIDE HAZARD
Exhaust contains poisonous carbon monoxide, which is colorless and odorless. Breathing carbon monoxide
can cause death.
• Do not operate in an enclosed area.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed.
• Read SDS to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe burns:
• Do not touch hot fluid or equipment.

Warnings
3A4637A Operation, Repair, Parts 5
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including eye injury,
hearing loss, inhalation of toxic fumes, and burns. This protective equipment includes but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
CALIFORNIA PROPOSITION 65
• The engine exhaust from this product contains a chemical known to the state of California to cause cancer,
birth defects or other reproductive harm.
• This product contains a chemical known to the State of California to cause cancer, birth defects or other
reproductive harm. Wash hands after handling.

Uni-Tip Selection
63A4637A Operation, Repair, Parts
Uni-Tip Selection
69215ST* 2 (5) 
69217ST 4 (10) 
69219ST 4-6 (10-15) 
69315ST 6 (15) 
69317ST 6 (15) 
69319ST 6 (15) 
69321ST 6 (15) 
69323ST 6-8 (15-20) 
69325ST 6-8 (15-20) 
69417ST 6-8 (15-20) 
69419ST 8-10 (20-25) 
69421ST 8-10 (20-25) 
69423ST 8-10 (20-25) 
69425ST 8-10 (20-25) 
69427ST 8-10 (20-25) 
69431ST 8-10 (20-25) 
69621ST 12-14 (30-36) 
69623ST 12-14 (30-36) 
69625ST 12-14 (30-36) 
69627ST 12-14 (30-36) 
69629ST 12-14 (30-36) 
* Use 100 mesh filter to reduce tip clogs
in.
(cm)
in.
(cm)
in.
(cm)
in.
(cm)

Component Identification
3A4637A Operation, Repair, Parts 7
Component Identification
123
4
56789
10 11
15
16
17
14
12
13
2
3
18
19 20
19
17
15
11
PRIME
SPRAY
2
1
3
4
5 6
7 8 9 10
12
13
14 16
18
20
I
O
ti30694a
1 Engine Controls
2 Filter
3 Gauge
4 Prime/Spray
5 Drain Hose
6 Suction Tube
7 Speed Control
8 Drive Power Switch
9PumpSwitch
10 Pressure Control
11 Spray Gun Trigger
12 Front Wheel Lock/Unlock
13 Drive Control
14 Drive Motor
15 Brake
16 Battery
17 Adjustable Handle
18 Adjustable Pail Holder
19 Pump
20 Trigger Lock

Grounding Procedure (For Flammable Materials Only)
83A4637A Operation, Repair, Parts
Grounding Procedure
(For Flammable Materials Only)
1. Position striper so that the tires are not on pave-
ment.
2. Striper is shipped with a grounding clamp. Ground-
ing clap must attach to grounded object. (e.g. metal
sign post).
Pressure Relief Procedure
Follow the Pressure Relief Procedure
whenever you see this symbol.
1. Perform Grounding Procedure if using flammable
materials.
2. Set pump switch OFF. Turn engine OFF by pressing
the engine kill switch at the controls, or by moving
the lever on the engine.
3. Turn pressure to lowest setting. Trigger gun to
relieve pressure.
4. Engage the trigger lock. Turn prime valve down.
5. If you suspect the spray tip or hose is clogged or
that pressure has not been fully relieved:
a. VERY SLOWLY loosen tip guard retaining nut
or hose end coupling to relieve pressure
gradually.
b. Loosen nut or coupling completely.
c. Clear hose or tip obstruction.
This equipment must be grounded to reduce the risk
of static sparking. Static sparking can cause fumes to
ignite or explode. Grounding provides an escape wire
for the electric current.
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury
from pressurized fluid, such as skin injection,
splashed fluid and moving parts, follow the Pressure
Relief Procedure whenever sprayer is stopped and
before sprayer is cleaned or checked, and before
equipment is serviced.
ti30387a
ti30388a
I
O
I
O
ti30389a
ti30107a

Maintenance
3A4637A Operation, Repair, Parts 9
Maintenance
DAILY: Check hose for wear and damage.
DAILY: Check gun safety for proper operation.
DAILY: Check pressure drain valve for proper
operation.
DAILY: Check and fill the gas tank.
DAILY: Check level of TSO in displacement pump pack-
ing nut. Fill nut, if necessary. Keep TSO in nut to help
prevent fluid buildup on piston rod and premature wear
of packings and pump corrosion.
Engine Maintenance Schedule
FIRST 5 HOURS: Change oil
EVERY 8 HOURS OR DAILY:
• Check engine oil level.
• Clean area around muffler and controls.
• Clean air intake grille.
EVERY 25 HOURS OR ANNUALLY:
• Clean air filter.
• Clean pre-cleaner.
EVERY 50 HOURS OR ANNUALLY:
• Change engine oil.
• Service exhaust system.
EVERY 100 HOURS: Change gear reduction oil (if
equipped)
ANNUALLY:
• Replace spark plug.
• Replace air filter.
• Replace pre-cleaner.
• Service fuel system.
• Service cooling system.
• Check valve clearance.
SPARK PLUG: Use only Briggs & Stratton 491055S or
Champion RC12YC spark plug. Gap plug to 0.030 in.
(0.762mm). Use spark plug wrench when installing and
removing plug.
Front Wheel Alignment:
Align front wheel as follows:
1. Loosen cap screw (114).
2. Position front wheel left or right, as necessary, to
straighten alignment.
3. Tighten cap screw. Push striper and let striper roll
with hands off of striper.
NOTE: If striper veers right or left, repeat steps 1 and 2
until striper rolls straight.
114
ti30295a

Operation
10 3A4637A Operation, Repair, Parts
Operation
Setup
1. Ground striper with grounding clamp if using flam-
mable materials.
2. Fill throat packing nut with TSO.
3. Check engine oil level. See Briggs & Stratton engine
manual.
4. Fill fuel tank. See Briggs & Stratton engine manual.
5. Check that tires are inflated to recommended
pressure.
The equipment must be grounded to reduce the risk
of static sparking. Static sparking can cause fumes to
ignite or explode. Grounding provides an escape wire
for the electric current.
ti30387a
ti30409a
ti29076b
ti30068a
Max pressure
30-40 psi
Max pressure
50 psi
ti30646a

Operation
3A4637A Operation, Repair, Parts 11
Self-Propelled Drive
The self-propelled drive assists the user in moving the
striper through turf and/or up a grade. The drive can be used
with or without the engine running. Maximum performance
is achieved with the engine running at full RPM.

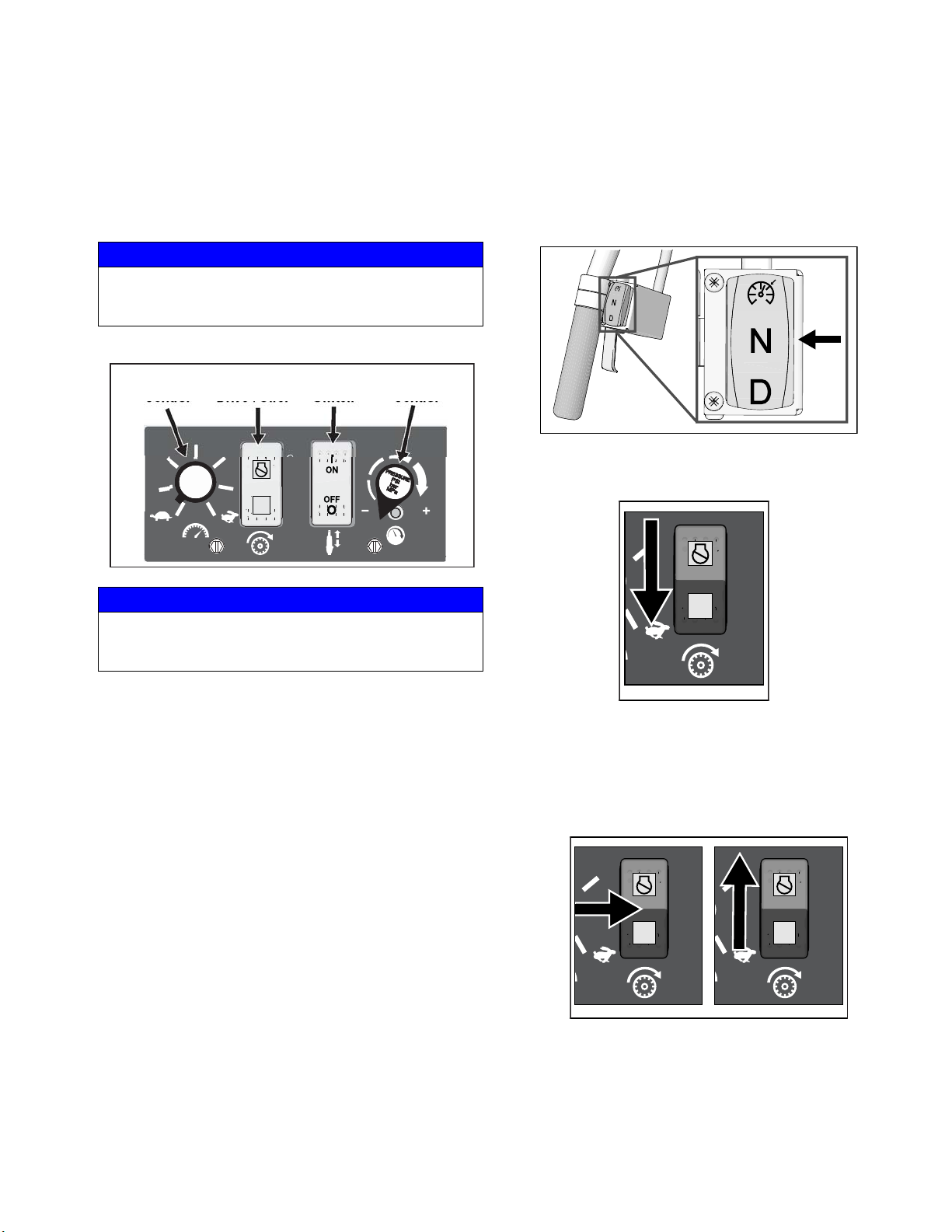

Power ON/OFF
The drive power switch includes the engine kill function.
1. Ensure the Drive Control switch is in the “N”
position.
2. Press the bottom portion of the Engine Kill/Drive
Power switch to power the drive system.
3. Move the Engine Kill/Drive Power switch to the
middle position to shut off the drive system. Fully
depress the top portion of the Engine Kill/Drive
Power switch to shut off the gas engine.The drive
system is off when the green light on the switch is off.
NOTICE
Running the drive with the engine off, or at a lower than
maximum RPM, may cause damage to the battery from
over-discharging.
NOTICE
Leaving the drive system on when not using, or when
storing the machine, may cause damage to the battery
from over discharging.
I
O
Speed
Control
Engine Kill
Drive Power
Pump
Switch
Pressure
Control
ti30398a
ti30382a
ti30388c
I
O
ti30388d
I
O
I
O

Operation
12 3A4637A Operation, Repair, Parts
Drive Control
The drive control switch on the left handlebar has three
positions to control the engagement of the drive system.
• “N” places the drive in neutral and allows the unit to
be moved manually.
• “D” must be held down to engage the drive and
move the striper forward.
• Cruise keeps the drive engaged, until disen-
gaged by momentarily depressing “D”.
Speed Adjustment
The speed control will vary the speed from 0 to maximum
over the full range of the speed knob. Turning the speed
knob fully counterclockwise will result in no motion, and
turning the speed knob fully clockwise will result in
maximum speed.
Changes in the terrain may require adjusting the speed;
i.e. moving from turf to pavement.
Speed Control
1. With the engine already running, and the drive
system OFF, turn the speed knob fully
counterclockwise to the “0” speed position.
2. Press Cruise on the driver control switch to
engage the self-propelled drive.
3. With a clear and safe path ahead of the striper, and
with one hand on the left handlebar, slowly turn the
speed knob clockwise until the desired speed is
achieved on the specific terrain.
NOTE: Due to battery level and system load, the drive
may not engage until close to the second tick mark.
ti30382a
Cruise
Neutral
Drive
I
O
ti30400a
I
O
ti30401a
ti30402a
ti30403a

Operation
3A4637A Operation, Repair, Parts 13
Startup
1. Perform Grounding Procedure (For Flammable
Materials Only), page 8.
2. Place siphon tube set in grounded metal pail partially
filled with flushing fluid. Attach ground wire to pail and
to true earth ground. Use water to flush water-base
paint and mineral spirits to flush oil-base paint and
storage oil.
3. Turn prime valve down.
4. Turn pressure control counterclockwise to lowest
pressure.
5. Set pump switch to OFF.
6. Set drive system switch to OFF.
7. Set drive control switch to “N”.
ti3310b
ti6254b
I
O
ti30378a
I
O
ti30379a
I
O
ti30381a
ti30382a

Operation
14 3A4637A Operation, Repair, Parts

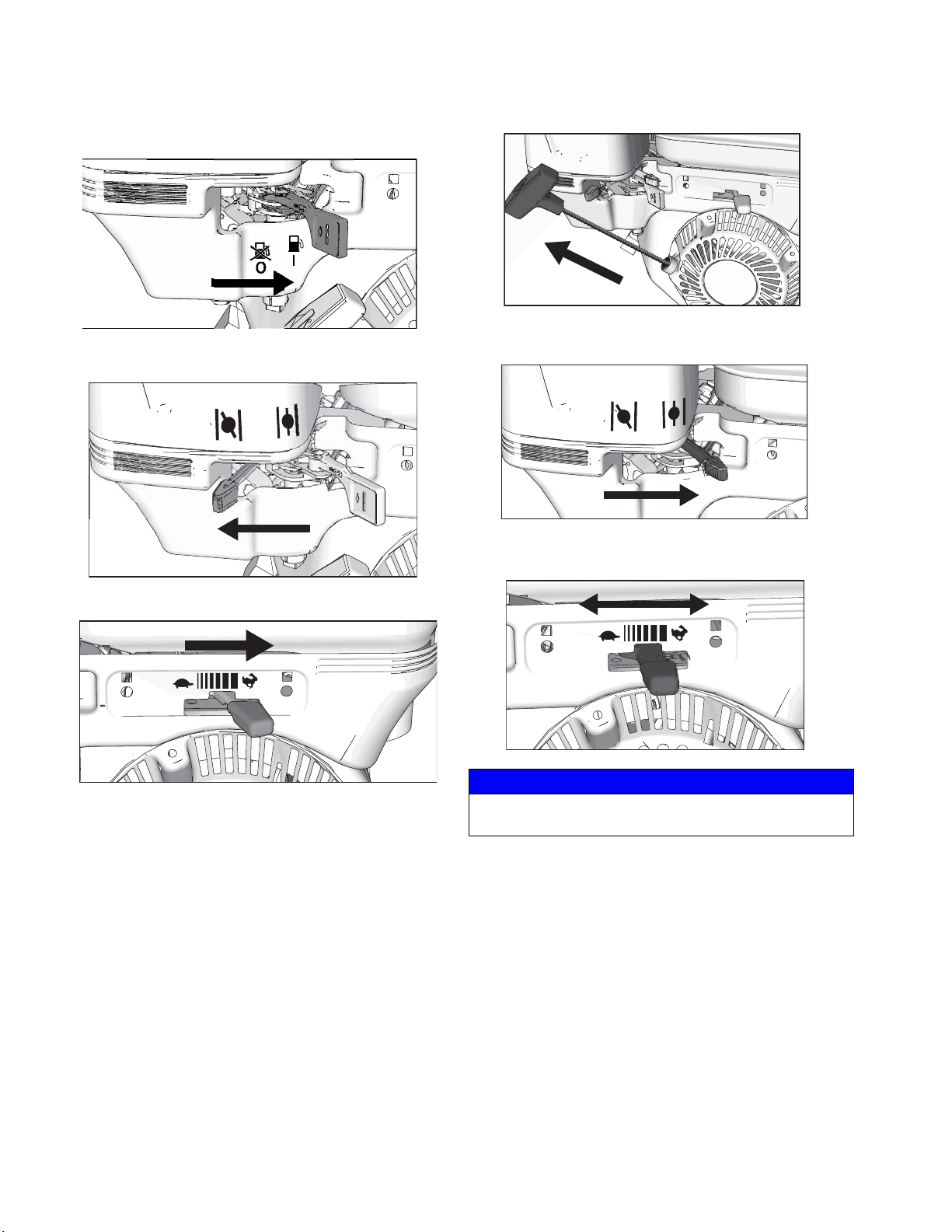

8. Start Engine.
a. Move fuel valve to open.
b. Move choke to closed.
c. Set throttle to fast.
d. Pull starter cord.
e. After engine starts, move choke to open.
f. Set throttle to slow.
ti29206b
ti29207b
ti29208b NOTICE
Do not run pump without fluid flow. Damage to
packings can occur.
ti29100a
ti29210b
ti29211b

Operation
3A4637A Operation, Repair, Parts 15

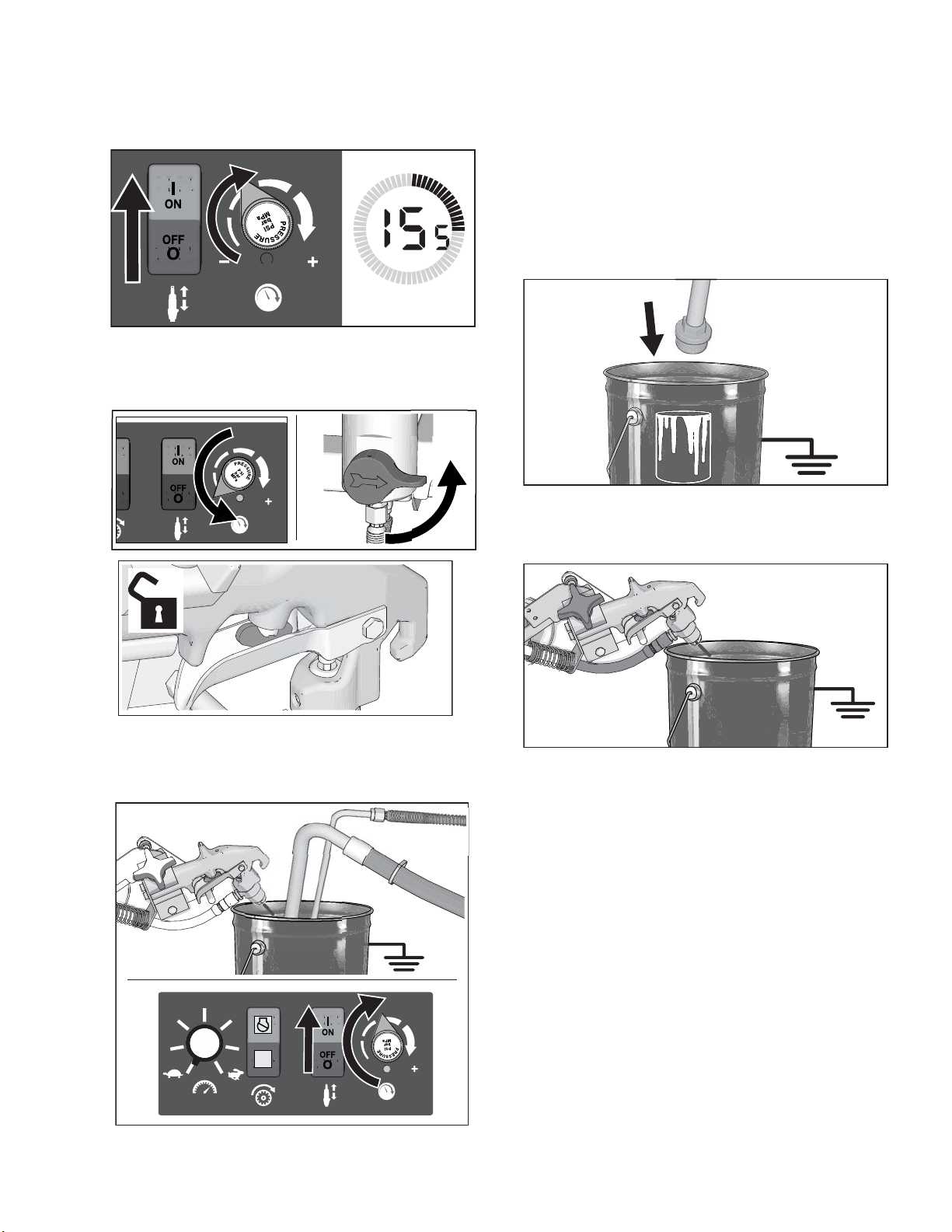

9. Set pump switch to ON. Increase pressure enough
to start pump. Allow fluid to circulate for 15 seconds.
10. Turn pressure down, close prime valve. Disengage
gun trigger lock.
11. Hold gun against grounded metal flushing pail. Trig-
ger gun and increase fluid pressure slowly until
pump runs smoothly.
12. Inspect fittings for leaks. Do not stop leaks with your
hand or a rag! If leaks occur, turn striper OFF imme-
diately. Perform Grounding Procedure (For Flam-
mable Materials Only), page 8. Tighten leaky
fittings. Repeat Startup, steps 1 - 7. If no leaks,
continue to trigger gun until system is thoroughly
flushed. Proceed to step 8.
13. Place siphon tube in paint pail.
14. Trigger gun again into flushing fluid pail until paint
appears. Assemble Uni-Tip and Uni-Tip Guard.
ti30380a
ti30077b
I
O
ti30078a
ti30079a
I
O
ti30080b
ti30177a

Operation
16 3A4637A Operation, Repair, Parts
Uni-Tip and Guard Assembly
To prevent spray tip leaks, make certain spray tip and
tip guard are installed properly.
1. Perform Pressure Relief Procedure, page 8.
2. Engage trigger lock. Insert seat and Uni-Tip Seal.
Insert Uni-Tip.
3. Screw assembly onto gun. Hand tighten.
To avoid serious injury from skin injection do not put
your hand in front of the spray tip when installing or
removing the spray tip and tip guard.
ti30082a
ti30180a

Gun Placement
3A4637A Operation, Repair, Parts 17
Gun Placement
Install Gun
1. Insert gun into gun holder with hose guard pressed
against the holder assembly bracket. Tighten gun
into clamp.
Position Gun
2. Position gun up/down and forward/reverse.
3. Position gun left/right.
a. Right-side gun position: Place gun and
related hardware on right-hand side.
ti30093a
ti30094a
ti30095a
ti30383a

Gun Placement
18 3A4637A Operation, Repair, Parts
b. Left-side gun position: Place gun and related
hardware on left-hand side.
4. For Curb Position, place gun at 45° angle.
5. For Gun Arc Spray Position, place gun at rear of
striper. Rear position improves arc quality.
NOTE: Verify that the gun can still be triggered and that
the trigger lock can still be engaged after installation.
Make adjustments if necessary.
ti30384a
ti30098
a
ti30099a

Paint Stripe Width
3A4637A Operation, Repair, Parts 19
Paint Stripe Width
1. Adjust gun up or down to change paint stripe width.
Spray Test Stripe
1. Disengage trigger lock.
2. Trigger gun and spray test pattern. Slowly adjust
pressure to eliminate heavy edges. Use smaller tip
size if pressure adjustment can not eliminate heavy
edges.
Clearing Tip Clogs
1. Release trigger. Engage gun trigger lock. Rotate
Uni-Tip. Disengage gun trigger lock and trigger gun
to clear the clog.
2. Engage gun trigger lock, return Uni-Tip to original
position, disengage gun trigger lock and continue
spraying.
ti30100a
.015 .027
ti30102a
ti30078a
ti30103a
ti30385a
ti30386a

Clean-up
20 3A4637A Operation, Repair, Parts
Clean-up
1. Perform Pressure Relief Procedure, page 8.
2. Remove Uni-Tip Guard and Uni-Tip.
3. Unscrew cap, remove filter. Assemble without filter.
Clean filter.
4. Clean gun filter, Uni-Tip Guard and Uni-Tip in
flushing fluid. See Flushing Recommendations,
page 23.
5. Remove siphon tube set from paint and place in
flushing fluid. Use water or pump conditioner for
water-base paint and mineral spirits for oil-base
paint.
6. Turn engine ON and start engine. Set pump switch
ON.
7. Close prime valve.
ti30108a
ti30109a
ti30110a
ti30112a
ti30390a
ti30114a
